Model Image
Manufacturer

LG

Model Number

GM819FSFA

Description

Gm-819fsfa

Interactive Exploded View

Parts List

Part Number Description
4811JJ2002K 4811JJ2002K AC MOTOR [404A]
4770JA3001A 4770JA3001A BAND [623C]
3103JJ1001Z 3103JJ1001Z BASE ASSEMBLY,COMPRESSOR [315A]
5005JJ2017A 5005JJ2017A BASKET ASSEMBLY,DOOR [241C]
5005JJ2020A 5005JJ2020A BASKET ASSEMBLY,DOOR [241D]
5005JJ2018A 5005JJ2018A BASKET ASSEMBLY,DOOR [241E]
5005JJ2010F 5005JJ2010F BASKET ASSEMBLY,DOOR [241F]
5004JJ1021B 5004JJ1021B BASKET,DOOR [241B]
4810JA3036A 4810JA3036A BRACKET,COVER [622B]
4810JJ2005A 4810JJ2005A BRACKET,MOTOR [319E]
5074JJ1006A 5074JJ1006A BUCKET,ICE [131A]
4984JJ3003A 4984JJ3003A BUSH [286A]
5006JA3034A 5006JA3034A CAP,DRAIN TUBE [327A]
5006JJ3016D 5006JJ3016D CAP,HANDLE [244E]
5006JJ3014C 5006JJ3014C CAP,HINGE [281E]
5006JJ2001F 5006JJ2001F CAP,HINGE [282E]
5006JJ3004E 5006JJ3004E CAP,HINGE [282H]
0CZZJB2014L 0CZZJB2014L CAPACITOR,ELECTRIC APPLIANCE FILM,BOX [410G]
ABQ33905301 ABQ33905301 CASE ASSEMBLY,DISPLAY [503F]
3110JA1096A 3110JA1096A CASE,DISPLAY [503D]
4004JA3002A 4004JA3002A CLIP [262D]
ACG73746801 ACG73746801 CONDENSER ASSEMBLY,WIRE [323B]
6615JB2005C 6615JB2005C CONTROLLER ASSEMBLY [401A]
3550JJ0006C 3550JJ0006C COVER ASSEMBLY,LOWER [103C]
3551JJ2008B 3551JJ2008B COVER ASSEMBLY,MACHINERY(REAR) [304A]
3551JJ1020A 3551JJ1020A COVER ASSEMBLY,PCB [501F]
3550JJ2031A 3550JJ2031A COVER,DISPLAY [503E]
3550JJ2030A 3550JJ2030A COVER,GRILLE FAN [135C]
3550JJ2013C 3550JJ2013C COVER,HINGE [281A]
3550JA1388B 3550JA1388B COVER,LAMP [158A]
MCK30060901 MCK30060901 COVER,LAMP [158E]
3550JJ8003A 3550JJ8003A COVER,PTC [310A]
3550JJ2020A 3550JJ2020A COVER,SENSOR [610A]
3551JJ1069C 3551JJ1069C COVER,TV [154A]
3550JJ2024A 3550JJ2024A COVER,VALVE [619B]
5040JA3031A 5040JA3031A DAMPER,COMPRESSOR [312A]
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [405C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [405F]
4J03020A 4J03020A DAMPER,PIPE [328A]
3806JL1049A 3806JL1049A DECOR,CONTROL [503G]
3806JL2006F 3806JL2006F DECOR,DUCT [282F]
3581JJ8020H 3581JJ8020H DOOR ASSEMBLY,FREEZER [200A]
3581JJ8716C 3581JJ8716C DOOR ASSEMBLY,REFRIGERATOR [230A]
5433JJ0058G 5433JJ0058G DOOR FOAM ASSEMBLY,FREEZER [201A]
6621JK2003B 6621JK2003B DRAWING,ASSEMBLY [410A]
5851JJ2002F 5851JJ2002F DRIER ASSEMBLY [317A]
ADH73150208 ADH73150208 DRIER ASSEMBLY [317A]
5209JJ1002A 5209JJ1002A DUCT ASSEMBLY,MULTI [120B]
5421JJ1001B 5421JJ1001B EVAPORATOR ASSEMBLY [301A]
5901JA1022A 5901JA1022A FAN ASSEMBLY [329A]
5901JJ1004B 5901JJ1004B FAN ASSEMBLY [329C]
ADX73350926 ADX73350926 GASKET ASSEMBLY,DOOR [203A]
ADX73350929 ADX73350929 GASKET ASSEMBLY,DOOR [233A]
3531JJ1004R 3531JJ1004R GRILLE ASSEMBLY,FAN [332A]
4975JJ2002A 4975JJ2002A GUIDE ASSEMBLY,RAIL [128A]
4975JJ2002B 4975JJ2002B GUIDE ASSEMBLY,RAIL [128B]
4975JJ2009A 4975JJ2009A GUIDE ASSEMBLY,RAIL [128E]
4975JJ2009B 4975JJ2009B GUIDE ASSEMBLY,RAIL [128F]
4974JJ1009A 4974JJ1009A GUIDE,FAN [319C]
MEA32865501 MEA32865501 GUIDE,TUBE [600C]
3651JA1033J 3651JA1033J HANDLE ASSEMBLY,FREEZER [212A]
3650JJ2003M 3650JJ2003M HANDLE,REAR [103A]
3650JJ2003L 3650JJ2003L HANDLE,REAR [103B]
5300JB1100J 5300JB1100J HEATER,SHEATH [418A]
4775JJ2006H 4775JJ2006H HINGE ASSEMBLY,CENTER [282B]
4775JJ2007C 4775JJ2007C HINGE ASSEMBLY,LOWER [283B]
4775JJ2003B 4775JJ2003B HINGE ASSEMBLY,UPPER [281B]
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET [602A]
4930JJ3007A 4930JJ3007A HOLDER,BRACKET [125D]
4930JA3034C 4930JA3034C HOLDER,DRIER [318A]
4930JA3054A 4930JA3054A HOLDER,PIPE [627A]
4930JJ2003D 4930JJ2003D HOLDER,SHELF [145A]
4930JJ2004D 4930JJ2004D HOLDER,SHELF [145B]
5989JA0002Y 5989JA0002Y ICE MAKER ASSEMBLY,KIT [600A]
4940JJ2003C 4940JJ2003C KNOB,SHUTTER [151C]
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [409B]
4779JA2003A 4779JA2003A LEG ASSEMBLY,ADJUST [106A]
4680JK1001B 4680JK1001B MOTOR,AC [420A]
MFT62346511 MFT62346511 NAME PLATE [212G]
6750C-0005P 6750C-0005P OVERLOAD PROTECT [309A]
6750C-0004S 6750C-0004S OVERLOAD PROTECT [309A]
EBR30659301 EBR30659301 PCB ASSEMBLY,MAIN [501A]
1PZZJJ3002F 1PZZJJ3002F PIN,COMMON [282C]
4J04238A 4J04238A PIN,COMMON [305C]
6411JB1042Y 6411JB1042Y POWER CORD ASSEMBLY [411A]
5218JJ3001A 5218JJ3001A RAIL,SLIDE [103E]
3034JJ1002B 3034JJ1002B REFLECTOR,LAMP [409D]
MHA62513601 MHA62513601 ROLLER [305B]
1STZJA3004D 1STZJA3004D SCREW,CUSTOMIZED [284D]
1STZJA3004F 1STZJA3004F SCREW,CUSTOMIZED [B01]
J471-00001J J471-00001J SCREW,CUSTOMIZED [S22]
1SZZJA3011B 1SZZJA3011B SCREW,CUSTOMIZED [S24]
4J01424C 4J01424C SCREW,CUSTOMIZED [S27]
1SZZJJ3005E 1SZZJJ3005E SCREW,CUSTOMIZED [S28]
4J00415D 4J00415D SCREW,CUSTOMIZED [S29]
4000W4A003A 4000W4A003A SCREW,CUSTOMIZED [S31]
6500JB2001B 6500JB2001B SENSOR [903D]
6500JB2002T 6500JB2002T SENSOR [903E]
AHT72996104 AHT72996104 SHELF ASSEMBLY,REFRIGERATOR [140B]
5027JJ1008H 5027JJ1008H SHELF ASSEMBLY,REFRIGERATOR [143F]
5026JJ1026A 5026JJ1026A SHELF,FREEZER [149A]
4890JL1002N 4890JL1002N SHELF,GLASS [167B]
MHL38615403 MHL38615403 SHELF,NET [140D]
MHL38615404 MHL38615404 SHELF,NET [140E]
AHT72974106 AHT72974106 SHELF,NET [142D]
5026JJ2001M 5026JJ2001M SHELF,NET [142E]
5070JJ3002A 5070JJ3002A SKIRT,LOWER [105F]
4620JA3009A 4620JA3009A STOPPER,COMPRESSOR [314A]
4620JJ3006C 4620JJ3006C STOPPER,DOOR [243A]
MJB36873202 MJB36873202 STOPPER,DOOR [283F]
4620JJ3007E 4620JJ3007E STOPPER,HANDLE [212J]
6600JB1010K 6600JB1010K SWITCH,PUSH BUTTON [406B]
6749C-0014E 6749C-0014E THERMISTOR ASSEMBLY,PTC [308A]

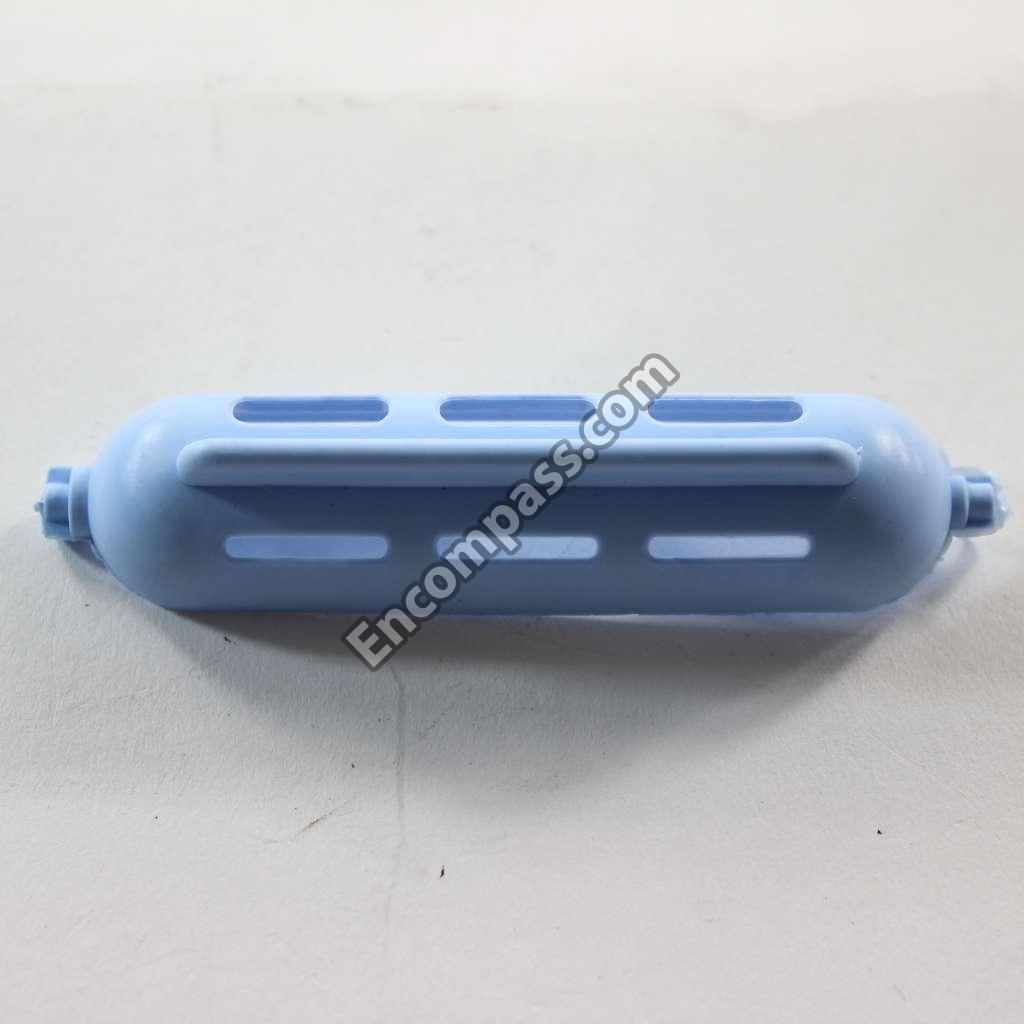

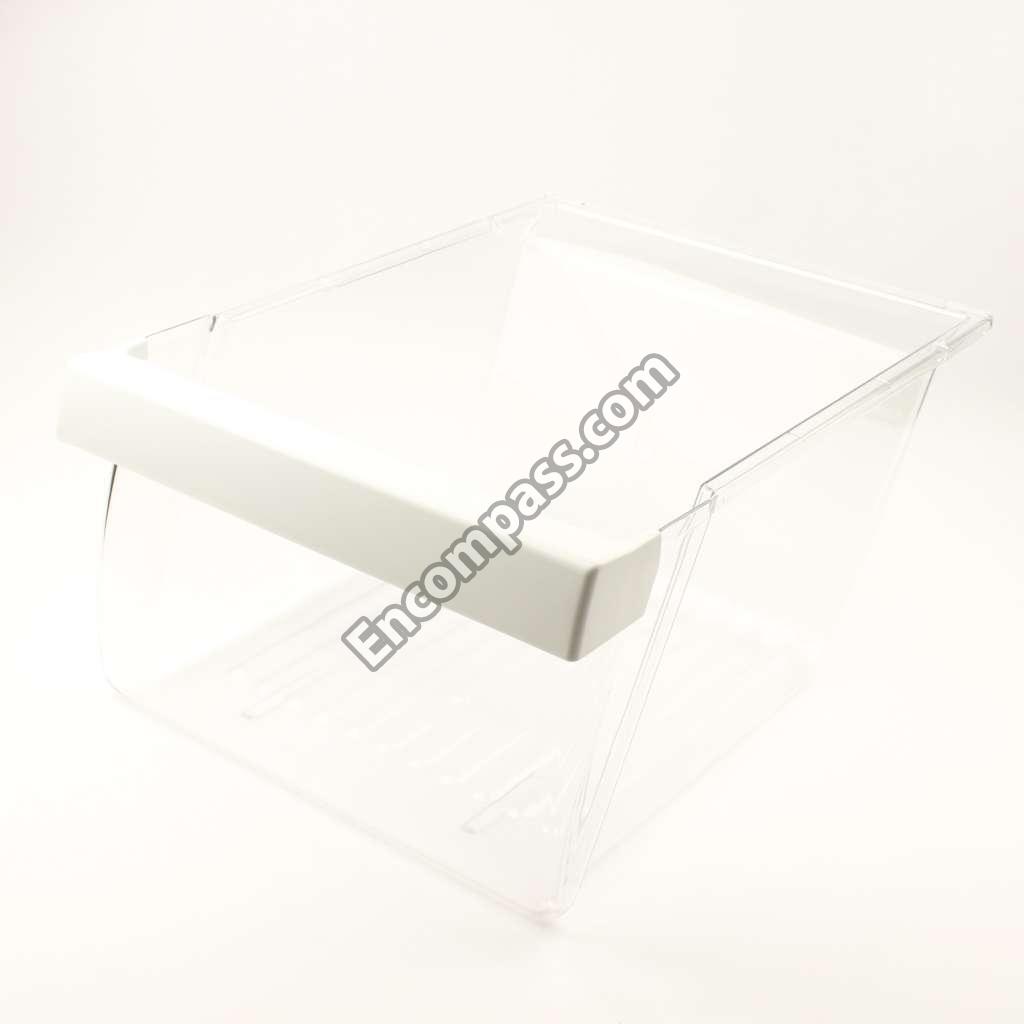

3391JJ2004H 3391JJ2004H TRAY ASSEMBLY,MEAT [170A]
3391JJ1020C 3391JJ1020C TRAY ASSEMBLY,VEGETABLE [151A]
3390JJ1057C 3390JJ1057C TRAY,DRAWER [136C]
3390JJ0003A 3390JJ0003A TRAY,DRIP [319A]
5251JA3003B 5251JA3003B TUBE ASSEMBLY,DRAIN [105A]
5210JJ3005B 5210JJ3005B TUBE,INJECT [618A]
5040JA2015A 5040JA2015A TUBE,INLET [622A]
5210JA3005W 5210JA3005W TUBE,PLASTIC [616E]

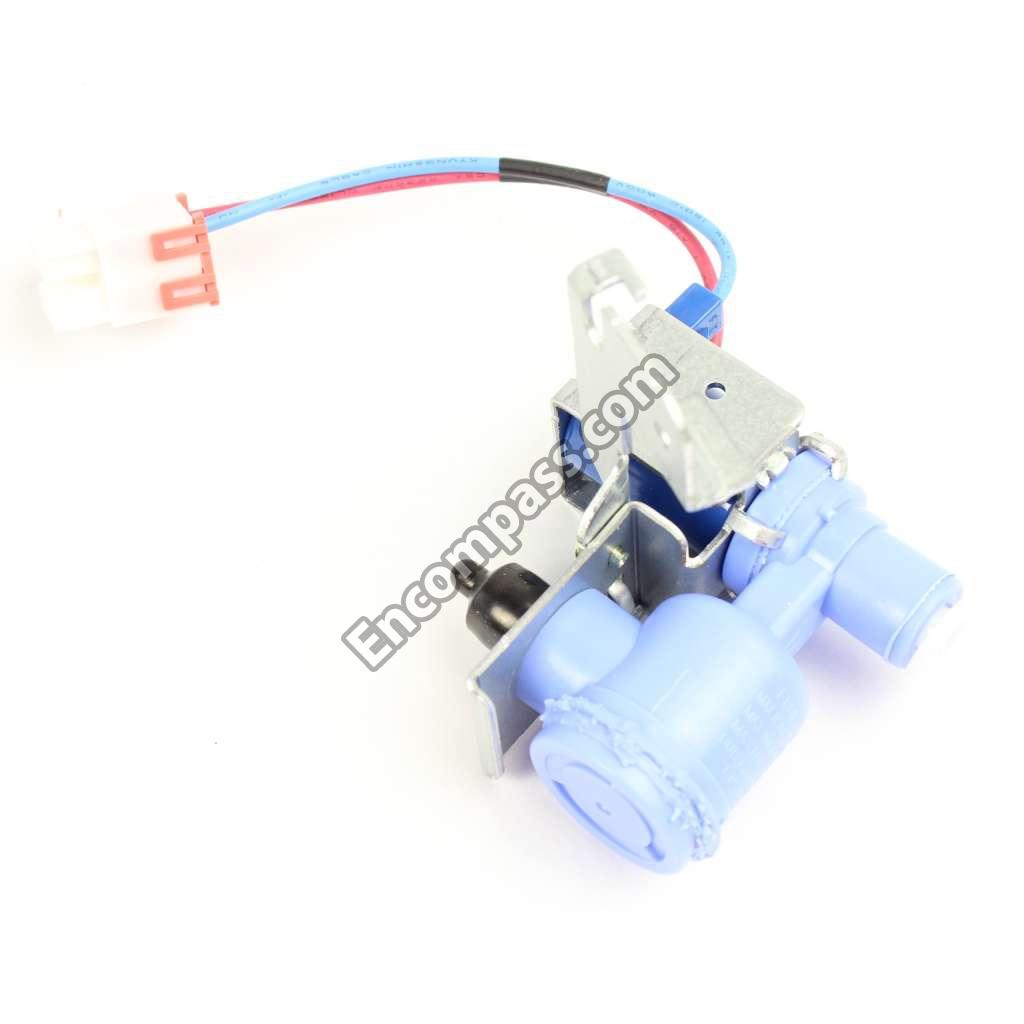

AJU55759303 AJU55759303 VALVE ASSEMBLY,WATER [619C]
5220JB2010T 5220JB2010T VALVE,WATER [619A]
4J00382C 4J00382C WASHER,COMMON [106B]
