Model Image
Manufacturer

LG

Model Number

GMB208JQCA

Description

Gm-b208jqca

Interactive Exploded View

Parts List

Part Number Description
4811JJ2002K 4811JJ2002K LG AC MOTOR [404A]
4770JA3001A 4770JA3001A LG BAND [623C]

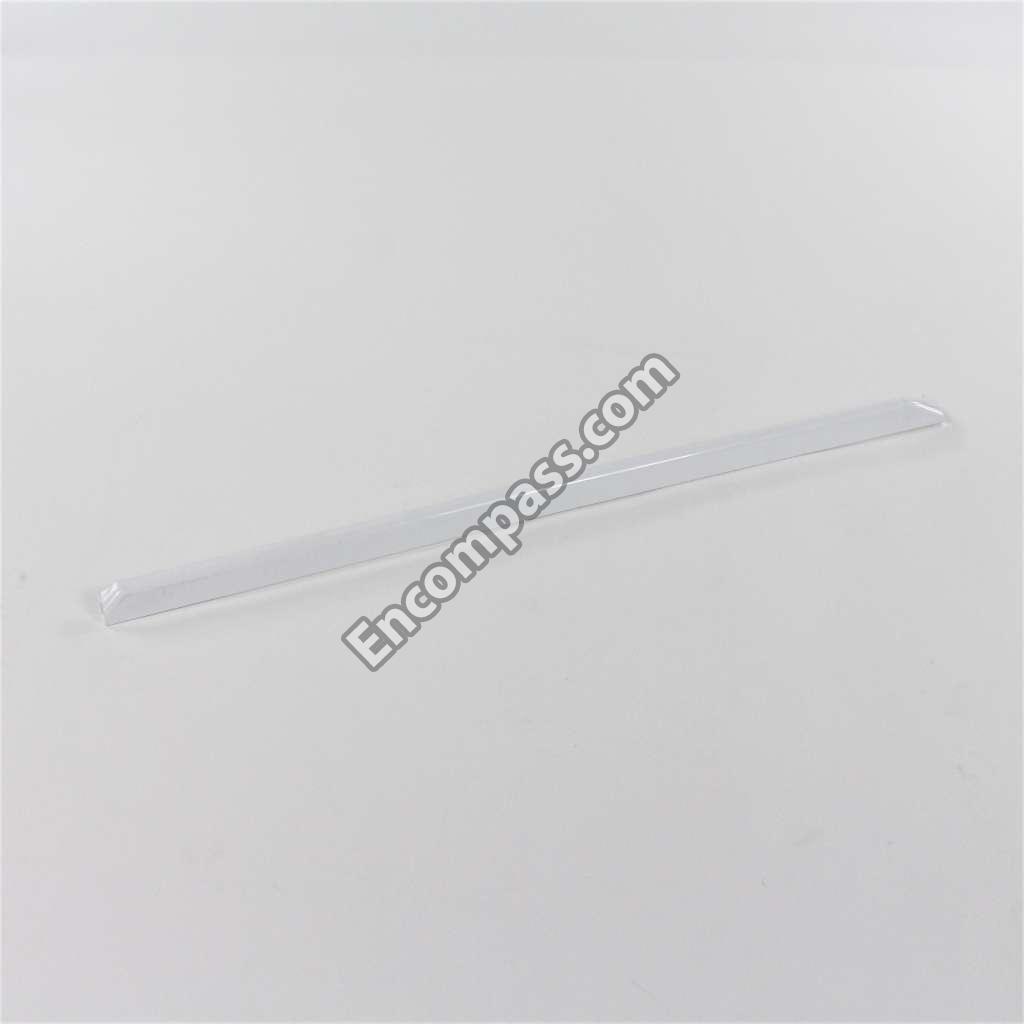

4270JJ3001F 4270JJ3001F LG BAR [250A]
3103JJ1001K 3103JJ1001K LG BASE ASSEMBLY,COMPRESSOR [315A]

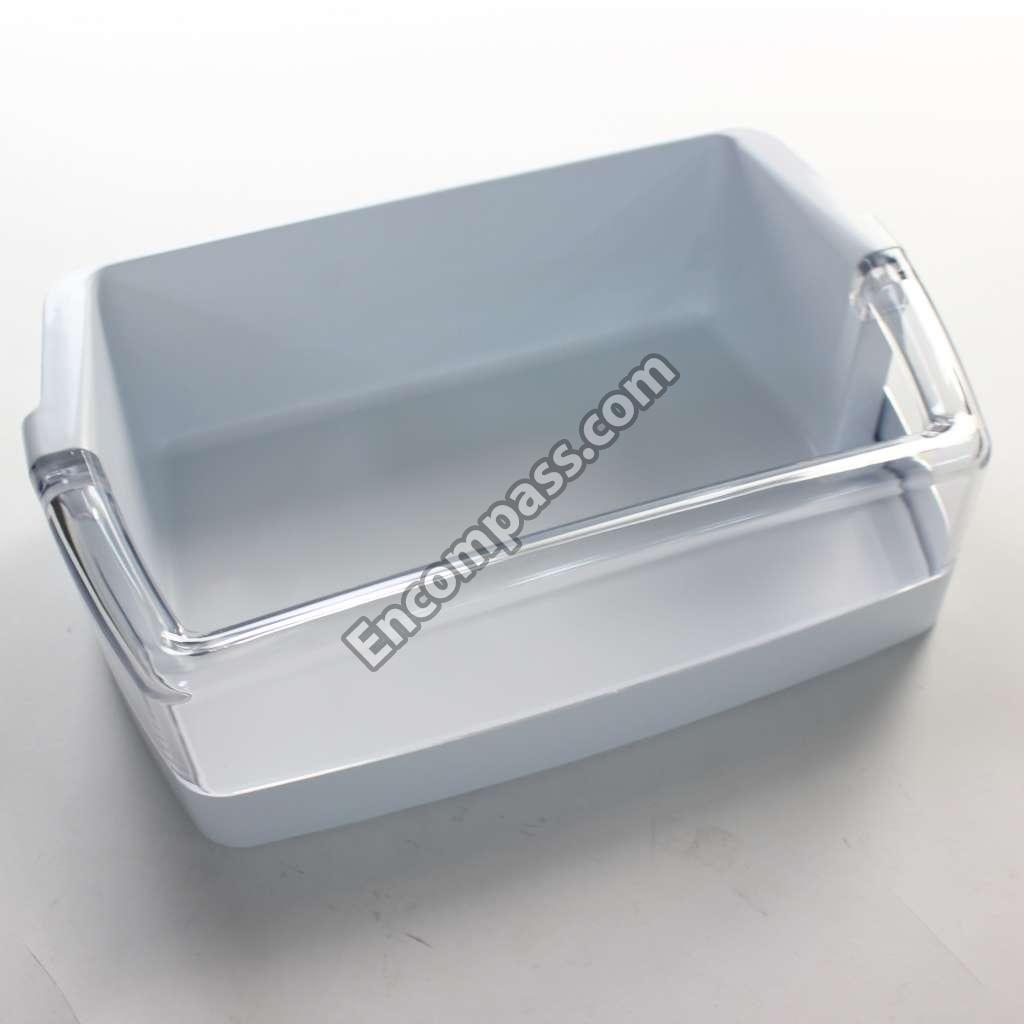

5005JJ2022B 5005JJ2022B LG BASKET ASSEMBLY,DOOR [241C]
5005JJ2021F 5005JJ2021F LG BASKET ASSEMBLY,DOOR [241F]
4810JA3036A 4810JA3036A LG BRACKET,COVER [622B]
4810JJ2005A 4810JJ2005A LG BRACKET,MOTOR [319E]
5074JJ1055A 5074JJ1055A LG BUCKET,ICE [131A]
4984JJ3003A 4984JJ3003A LG BUSH [286A]
4430JJ2005B 4430JJ2005B LG CAM,SHAFT [233G]
4430JJ2005A 4430JJ2005A LG CAM,SHAFT [233H]
5006JJ2014A 5006JJ2014A LG CAP,COVER [205B]
5006JJ2014B 5006JJ2014B LG CAP,COVER [205C]
5006JA3034A 5006JA3034A LG CAP,DRAIN TUBE [327A]
0CZZJB2014L 0CZZJB2014L LG CAPACITOR,ELECTRIC APPLIANCE FILM,BOX [410G]
ABQ33905301 ABQ33905301 LG CASE ASSEMBLY,DISPLAY [503F]
3110JA1096A 3110JA1096A LG CASE,DISPLAY [503D]
5047JJ1001A 5047JJ1001A LG CASE,LOWER [146A]
4004JA3002A 4004JA3002A LG CLIP [262D]
5403JJ1008A 5403JJ1008A LG CONDENSER ASSEMBLY,WIRE [323B]
MCD36888904 MCD36888904 LG CONNECTOR ASSEMBLY [249A]
5098JJ1002E 5098JJ1002E LG CONNECTOR ASSEMBLY [249B]
4403JJ3001A 4403JJ3001A LG CONNECTOR ASSEMBLY [250B]
ACJ30147004 ACJ30147004 LG CONNECTOR ASSEMBLY [621B]
ACJ30147003 ACJ30147003 LG CONNECTOR ASSEMBLY [621C]
6615JB2005C 6615JB2005C LG CONTROLLER ASSEMBLY [401A]
ACQ67902603 ACQ67902603 LG COVER ASSEMBLY,FRONT [233C]
ACQ67902604 ACQ67902604 LG COVER ASSEMBLY,FRONT [233D]
3551JJ1018A 3551JJ1018A LG COVER ASSEMBLY,HINGE [281A]
3551JJ1018D 3551JJ1018D LG COVER ASSEMBLY,HINGE [282E]
3550JJ0005A 3550JJ0005A LG COVER ASSEMBLY,LOWER [103C]
3551JJ2008A 3551JJ2008A LG COVER ASSEMBLY,MACHINERY(REAR) [304A]
3551JJ1020A 3551JJ1020A LG COVER ASSEMBLY,PCB [501F]
3550JJ1111A 3550JJ1111A LG COVER,CONNECTOR [249J]
3550JJ1111B 3550JJ1111B LG COVER,CONNECTOR [249K]
3550JJ2031A 3550JJ2031A LG COVER,DISPLAY [503E]
3550JJ2030A 3550JJ2030A LG COVER,GRILLE FAN [135C]
3550JA1388B 3550JA1388B LG COVER,LAMP [158A]
MCK30060901 MCK30060901 LG COVER,LAMP [158E]
3550JA2042C 3550JA2042C LG COVER,PTC [310A]
3550JJ2020A 3550JJ2020A LG COVER,SENSOR [610A]
3551JJ1005X 3551JJ1005X LG COVER,TV [154A]
3550JJ2024A 3550JJ2024A LG COVER,VALVE [619B]
5040JA3031A 5040JA3031A LG DAMPER,COMPRESSOR [312A]
5040JA2009B 5040JA2009B LG DAMPER,MOTOR SUPPORT [405C]
5040JA2004A 5040JA2004A LG DAMPER,MOTOR SUPPORT [405F]
4J03020A 4J03020A LG DAMPER,PIPE [328A]
3806JL1049A 3806JL1049A LG DECOR,CONTROL [503G]
3806JL2006F 3806JL2006F LG DECOR,DUCT [282F]
3806JJ1051A 3806JJ1051A LG DECOR,TRAY [248E]
3806JL2011A 3806JL2011A LG DECOR,TRAY [248F]
3581JJ8720K 3581JJ8720K LG DOOR ASSEMBLY,FREEZER [200A]
ADC33235201 ADC33235201 LG DOOR ASSEMBLY,REFRIGERATOR(LEFT) [230B]
ADC33235301 ADC33235301 LG DOOR ASSEMBLY,REFRIGERATOR(RIGHT) [230A]
5433JJ0059S 5433JJ0059S LG DOOR FOAM ASSEMBLY,FREEZER [201A]
ADD32184801 ADD32184801 LG DOOR FOAM ASSEMBLY,REFRIGERATOR [231A]
ADD32184901 ADD32184901 LG DOOR FOAM ASSEMBLY,REFRIGERATOR [231B]
6621JK2003B 6621JK2003B LG DRAWING,ASSEMBLY [410A]
5851JJ2002F 5851JJ2002F LG DRIER ASSEMBLY [317A]
ADH73150208 ADH73150208 LG DRIER ASSEMBLY [317A]
5209JJ1002A 5209JJ1002A LG DUCT ASSEMBLY,MULTI [120B]
5421JJ1001A 5421JJ1001A LG EVAPORATOR ASSEMBLY [301A]
5901JA1022A 5901JA1022A LG FAN ASSEMBLY [329A]
5901JJ1004B 5901JJ1004B LG FAN ASSEMBLY [329C]

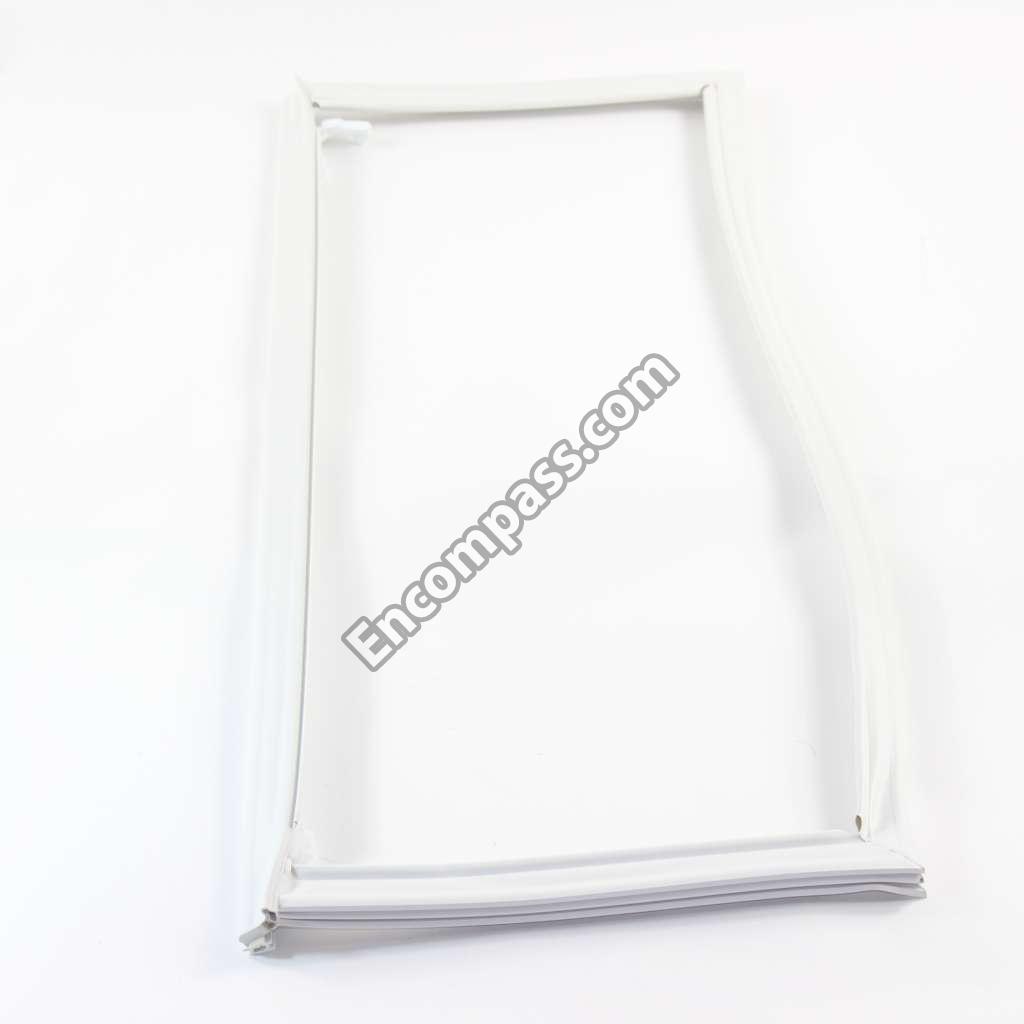

ADX73350901 ADX73350901 LG GASKET ASSEMBLY,DOOR [203A]

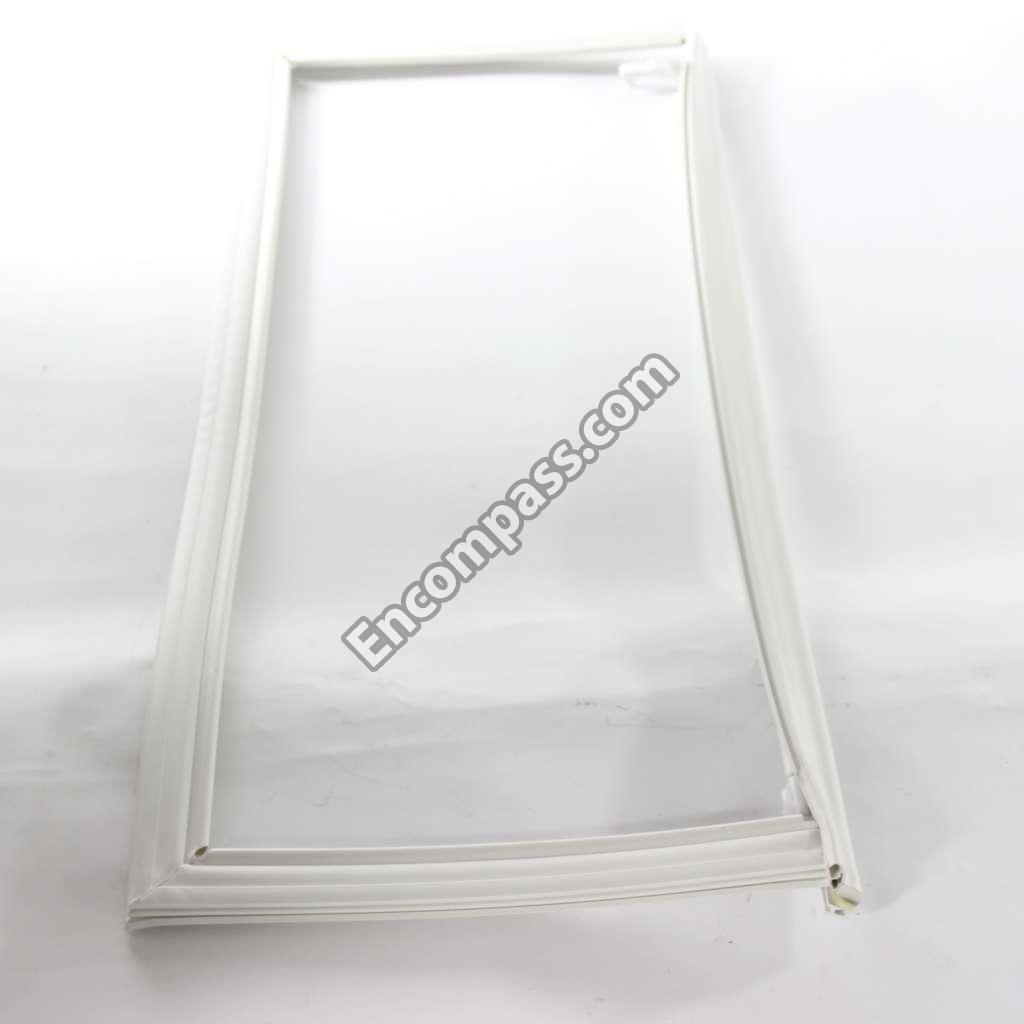

ADX73410710 ADX73410710 LG GASKET ASSEMBLY,DOOR [233A]
ADX73410704 ADX73410704 LG GASKET ASSEMBLY,DOOR [233B]
3531JJ1004B 3531JJ1004B LG GRILLE ASSEMBLY,FAN [332A]
4975JJ2002A 4975JJ2002A LG GUIDE ASSEMBLY,RAIL [128A]
4975JJ2002B 4975JJ2002B LG GUIDE ASSEMBLY,RAIL [128B]
4975JJ2028C 4975JJ2028C LG GUIDE ASSEMBLY,RAIL [145C]
4975JJ2028D 4975JJ2028D LG GUIDE ASSEMBLY,RAIL [145F]
4974JJ1021A 4974JJ1021A LG GUIDE,DRAWER [237C]
4974JJ1009A 4974JJ1009A LG GUIDE,FAN [319C]
4974JJ2017A 4974JJ2017A LG GUIDE,PITCHER [237A]
MEA32865501 MEA32865501 LG GUIDE,TUBE [600C]
3651JA1033K 3651JA1033K LG HANDLE ASSEMBLY,FREEZER [212A]
3651JA1023X 3651JA1023X LG HANDLE ASSEMBLY,FREEZER [244A]
3650JJ2003E 3650JJ2003E LG HANDLE,REAR [103A]
3650JJ2003A 3650JJ2003A LG HANDLE,REAR [103B]
AEH73856202 AEH73856202 LG HINGE ASSEMBLY,CENTER [262H]
AEH73856201 AEH73856201 LG HINGE ASSEMBLY,CENTER [282B]
4775JJ2018B 4775JJ2018B LG HINGE ASSEMBLY,UPPER [271A]
4775JJ2018A 4775JJ2018A LG HINGE ASSEMBLY,UPPER [271C]
AEJ73579702 AEJ73579702 LG HOLDER ASSEMBLY,BRACKET [602A]
4931JJ3002A 4931JJ3002A LG HOLDER ASSEMBLY,GASKET [104E]
4930JJ3007A 4930JJ3007A LG HOLDER,BRACKET [125D]
4930JA3034C 4930JA3034C LG HOLDER,DRIER [318A]

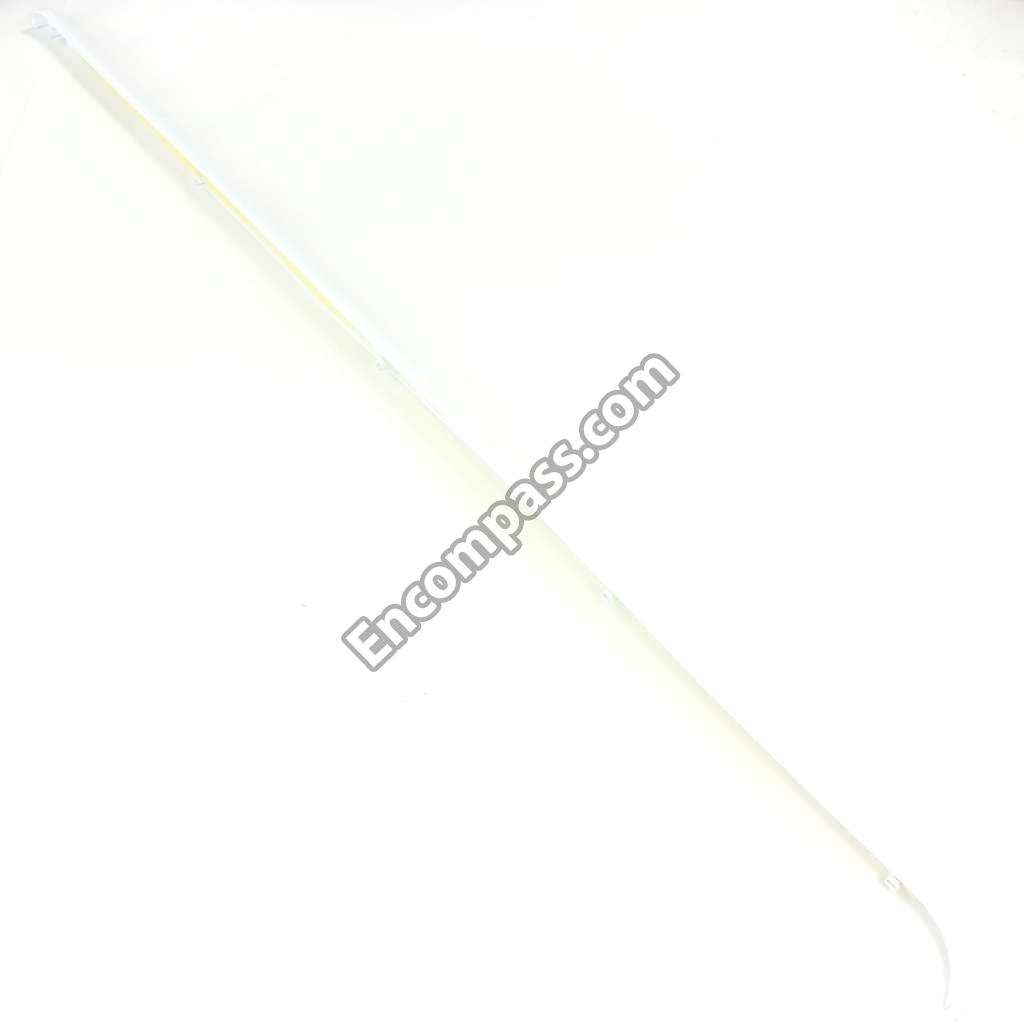

4930JJ2028H 4930JJ2028H LG HOLDER,GASKET [233E]
4930JJ2028F 4930JJ2028F LG HOLDER,GASKET [233E]
4930JJ2028D 4930JJ2028D LG HOLDER,GASKET [233E]
4930JJ2028E 4930JJ2028E LG HOLDER,GASKET [233F]
4930JJ2028C 4930JJ2028C LG HOLDER,GASKET [233F]
4930JJ2028A 4930JJ2028A LG HOLDER,GASKET [233F]
4930JA3054A 4930JA3054A LG HOLDER,PIPE [627A]
4930JJ1025B 4930JJ1025B LG HOLDER,RAIL [128E]
MEG54557901 MEG54557901 LG HOLDER,RAIL [128F]
4930JJ2003D 4930JJ2003D LG HOLDER,SHELF [145A]
4930JJ2004D 4930JJ2004D LG HOLDER,SHELF [145B]
5989JA0002Y 5989JA0002Y LG ICE MAKER ASSEMBLY,KIT [600A]
4940JJ2003C 4940JJ2003C LG KNOB,SHUTTER [151C]
6912JK2002E 6912JK2002E LG LAMP,INCANDESCENT [409B]
4779JA2003A 4779JA2003A LG LEG ASSEMBLY,ADJUST [106A]
4680JK1001B 4680JK1001B LG MOTOR,AC [420A]
MFT62346511 MFT62346511 LG NAME PLATE [212G]
6750C-0005P 6750C-0005P LG OVERLOAD PROTECT [309A]
6750C-0004S 6750C-0004S LG OVERLOAD PROTECT [309A]
EBR36222901 EBR36222901 LG PCB ASSEMBLY,MAIN [501A]
4J04238A 4J04238A LG PIN,COMMON [305C]
6411JB1042Y 6411JB1042Y LG POWER CORD ASSEMBLY [411A]
5218JJ3001A 5218JJ3001A LG RAIL,SLIDE [103E]
5218JA1010E 5218JA1010E LG RAIL,SLIDE [249E]
5218JA1010F 5218JA1010F LG RAIL,SLIDE [249F]
3034JJ1002B 3034JJ1002B LG REFLECTOR,LAMP [409D]
4350JA3005B 4350JA3005B LG RING [262E]
MHA62513601 MHA62513601 LG ROLLER [305B]
J471-00001J J471-00001J LG SCREW,CUSTOMIZED [S22]
1SZZJA3011B 1SZZJA3011B LG SCREW,CUSTOMIZED [S24]
4J01424C 4J01424C LG SCREW,CUSTOMIZED [S27]
1SZZJJ3005E 1SZZJJ3005E LG SCREW,CUSTOMIZED [S28]
4J00415D 4J00415D LG SCREW,CUSTOMIZED [S29]
4000W4A003A 4000W4A003A LG SCREW,CUSTOMIZED [S31]
6500JB2001B 6500JB2001B LG SENSOR [903D]
6500JB2002T 6500JB2002T LG SENSOR [903E]
AHT72996108 AHT72996108 LG SHELF ASSEMBLY,REFRIGERATOR [140B]
AHT72974106 AHT72974106 LG SHELF ASSEMBLY,REFRIGERATOR [143F]

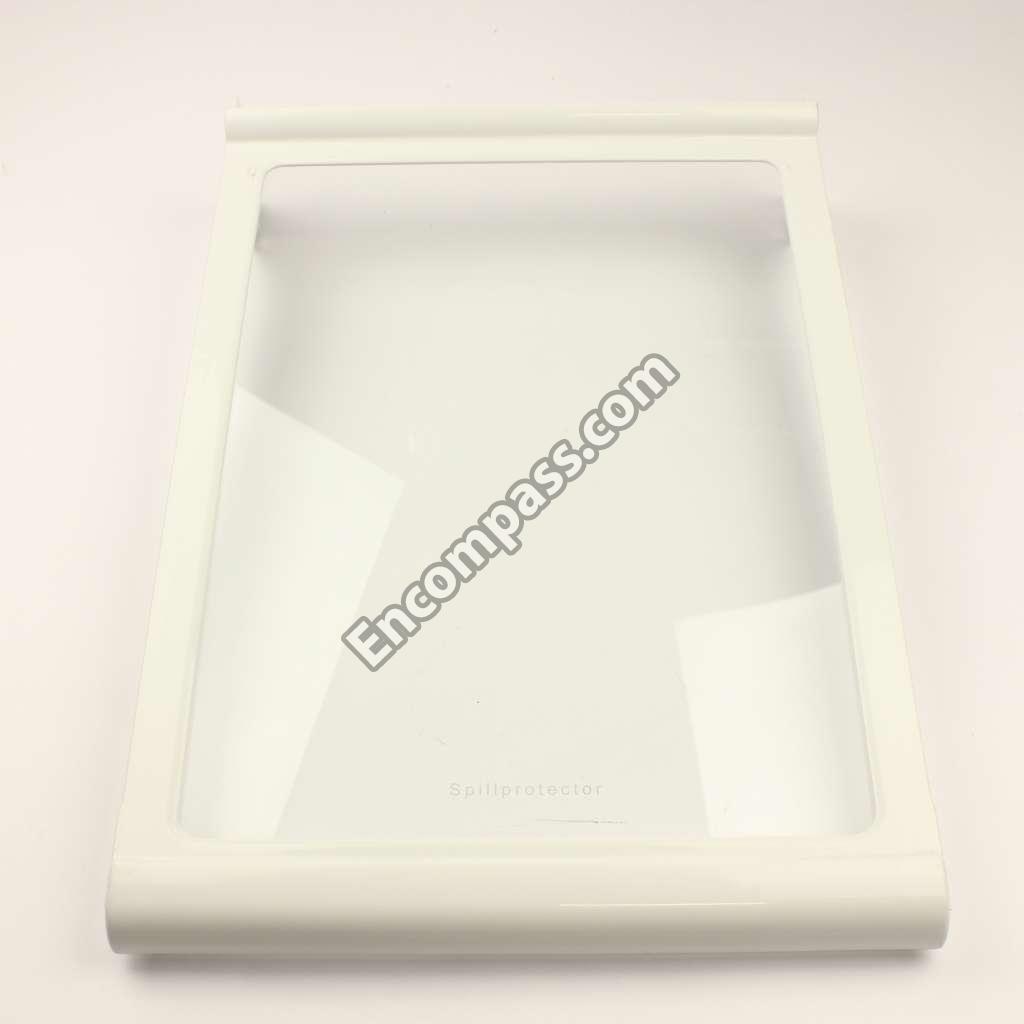

4890JL1002M 4890JL1002M LG SHELF,GLASS [167B]
MHL38615403 MHL38615403 LG SHELF,NET [140D]
MHL38615404 MHL38615404 LG SHELF,NET [140E]
5026JJ2001M 5026JJ2001M LG SHELF,NET [142E]
5070JJ3002A 5070JJ3002A LG SKIRT,LOWER [105F]
4620JA3009A 4620JA3009A LG STOPPER,COMPRESSOR [314A]
4620JJ3006D 4620JJ3006D LG STOPPER,DOOR [243A]
MJB63029901 MJB63029901 LG STOPPER,DOOR [243B]
4620JJ3007E 4620JJ3007E LG STOPPER,HANDLE [212J]
MJH62074601 MJH62074601 LG SUPPORTER,COVER TV [155B]
6600JB3007A 6600JB3007A LG SWITCH,PUSH BUTTON [402A]
6600JB1010K 6600JB1010K LG SWITCH,PUSH BUTTON [406B]
6749C-0014E 6749C-0014E LG THERMISTOR ASSEMBLY,PTC [308A]
3391JJ2004G 3391JJ2004G LG TRAY ASSEMBLY,MEAT [170A]
3390JJ0003A 3390JJ0003A LG TRAY,DRIP [319A]
3391JJ1020D 3391JJ1020D LG TRAY,VEGETABLE [151A]
5251JA3003B 5251JA3003B LG TUBE ASSEMBLY,DRAIN [105A]
5210JJ3005B 5210JJ3005B LG TUBE,INJECT [618A]
5040JA2015A 5040JA2015A LG TUBE,INLET [622A]
5210JA3005W 5210JA3005W LG TUBE,PLASTIC [616E]
AJU55759303 AJU55759303 LG VALVE ASSEMBLY,WATER [619C]
5220JB2010T 5220JB2010T LG VALVE,WATER [619A]
