Model Image
Manufacturer

LG

Model Number

GRB258USNZ

Description

Gr-b258usnz

Interactive Exploded View

Parts List

Part Number Description
4770JA3001A 4770JA3001A BAND [623A]
MAK39123901 MAK39123901 BAR [250A]
MAK62707101 MAK62707101 BAR [250E]

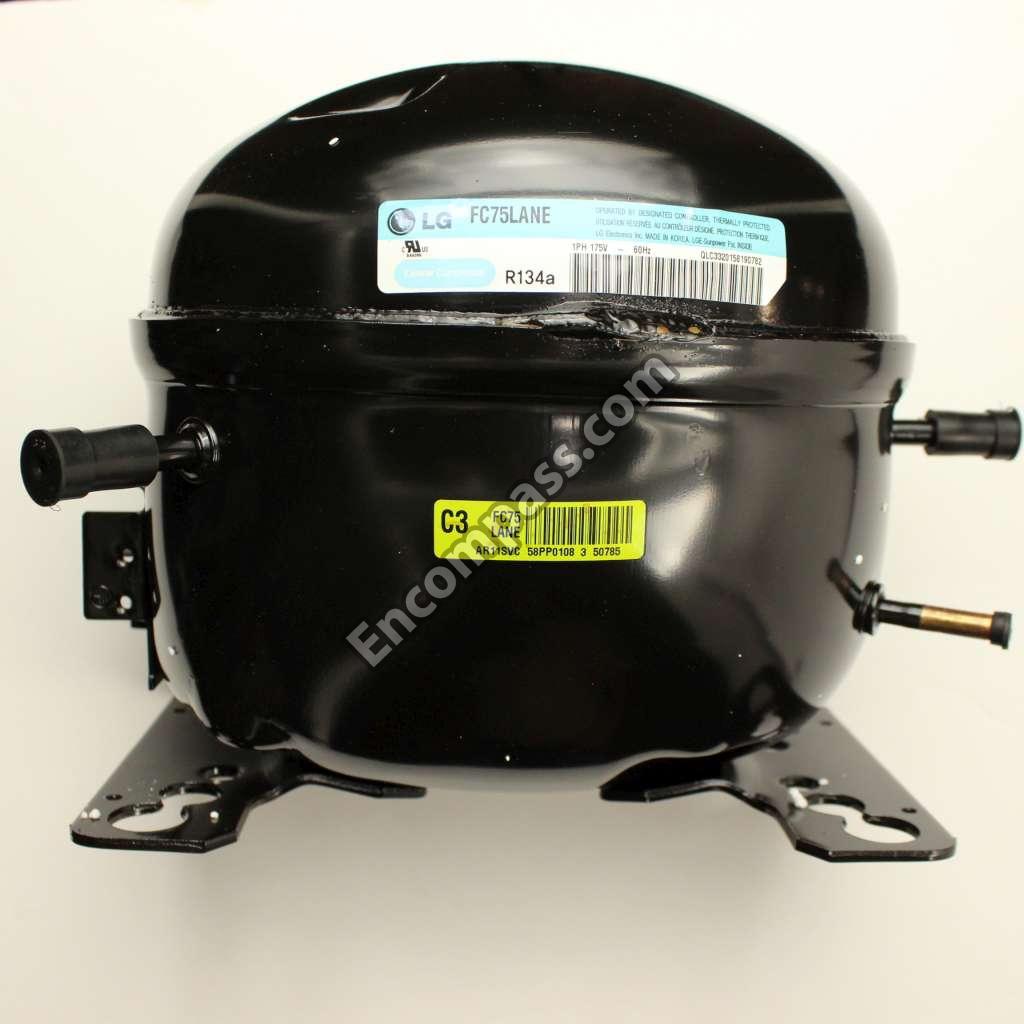

AAN74109205 AAN74109205 BASE ASSEMBLY,COMPRESSOR [315A]
AAP33686302 AAP33686302 BASKET ASSEMBLY,DOOR [241A]
AAP73871501 AAP73871501 BASKET ASSEMBLY,DOOR [241D]
AAP73871601 AAP73871601 BASKET ASSEMBLY,DOOR [241E]
AAP73871401 AAP73871401 BASKET,DOOR [205A]
5004JA2017A 5004JA2017A BASKET,TILT [205B]
5004JA2017B 5004JA2017B BASKET,TILT [205C]
MAN38143001 MAN38143001 BASKET,WINDOW [241C]
1BZZJA2002A 1BZZJA2002A BOLT,COMMON [B04]
4810JA2129A 4810JA2129A BRACKET,MOTOR [405B]
4810JJ0003B 4810JJ0003B BRACKET,MOTOR [407B]
AJP73894602 AJP73894602 BUCKET,ICE [131A]
MBG62013801 MBG62013801 BUTTON,LEVER [250H]
4430JJ2004A 4430JJ2004A CAM,SHAFT [234A]
4430JJ2004B 4430JJ2004B CAM,SHAFT [234B]
5006JA2069A 5006JA2069A CAP,COVER [250D]
MBL38019501 MBL38019501 CAP,DUCT [282F]
5006JA3111A 5006JA3111A CAP,DUCT [282G]

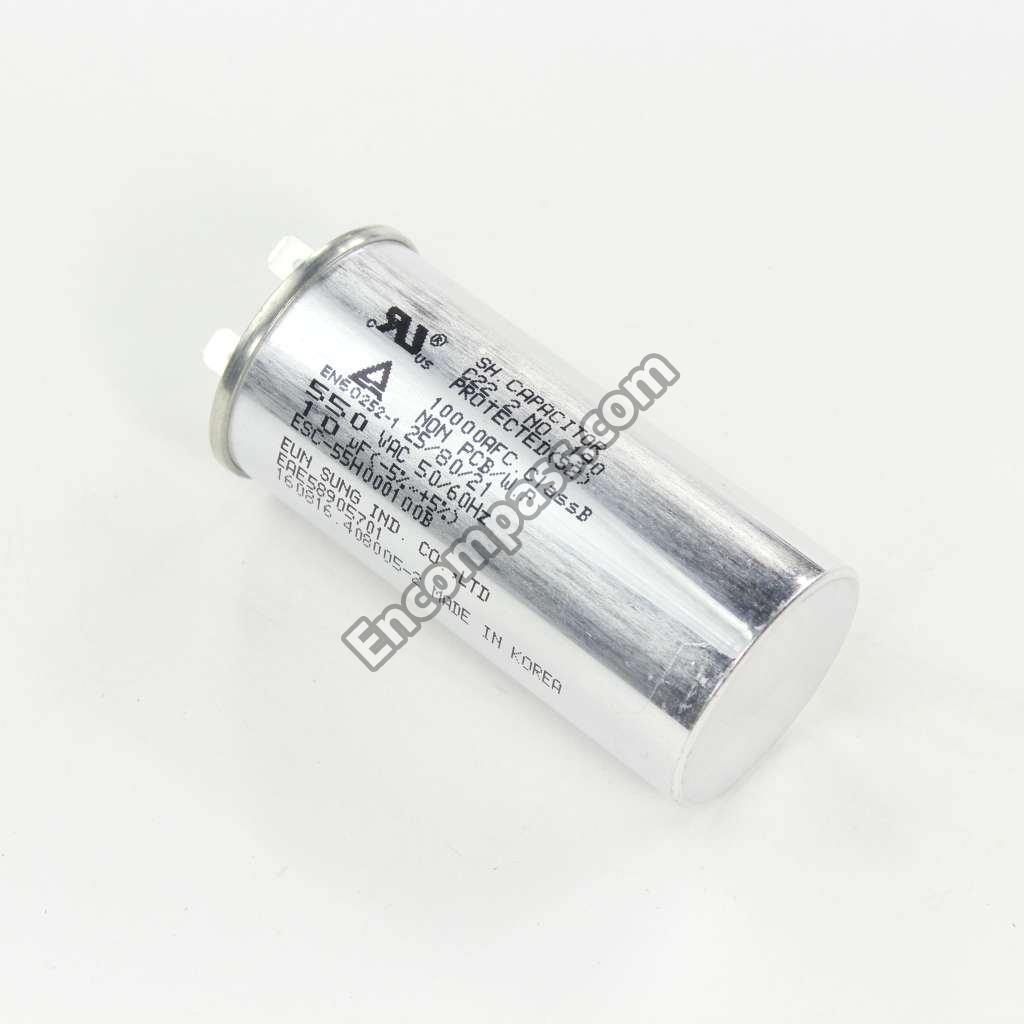

EAE58905701 EAE58905701 CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [410G]
ABQ56655311 ABQ56655311 CASE ASSEMBLY,DISPLAY [207C]
ABQ73004304 ABQ73004304 CASE ASSEMBLY,PCB [290A]
MBN38018601 MBN38018601 CASE,LAMP [503D]
MBN61884601 MBN61884601 CASE,PCB [413A]
ACG72915209 ACG72915209 CONDENSER ASSEMBLY,WIRE [323B]
4403JA3005A 4403JA3005A CONNECTOR ASSEMBLY [250B]
4932JA1010B 4932JA1010B CONNECTOR,RAIL [145K]
4932JA1010A 4932JA1010A CONNECTOR,RAIL [145M]
MCD36888904 MCD36888904 CONNECTOR,RAIL [249J]
MCD36888903 MCD36888903 CONNECTOR,RAIL [249K]
6615JB2005H 6615JB2005H CONTROLLER ASSEMBLY [400A]
ACQ55957509 ACQ55957509 COVER ASSEMBLY,LOWER [103C]
3551JJ2018A 3551JJ2018A COVER ASSEMBLY,MACHINERY(REAR) [313A]
3551JA2144C 3551JA2144C COVER ASSEMBLY,PCB [501F]
ACQ73244001 ACQ73244001 COVER ASSEMBLY,SENSOR [610C]
ACQ86509710 ACQ86509710 COVER ASSEMBLY,TRAY [146E]
ACQ86509709 ACQ86509709 COVER ASSEMBLY,TV [154A]
3550JA1455C 3550JA1455C COVER,CONNECTOR [249G]
3550JA1455D 3550JA1455D COVER,CONNECTOR [249H]
MCK59045801 MCK59045801 COVER,FRAME [233C]
MCK59045802 MCK59045802 COVER,FRAME [233D]
3550JA2263B 3550JA2263B COVER,GRILLE FAN [135C]
MCK67447705 MCK67447705 COVER,HINGE [207A]
3550JJ1097R 3550JJ1097R COVER,HINGE [207B]
MCK38019301 MCK38019301 COVER,LAMP [158A]
MCK66846501 MCK66846501 COVER,LAMP [158B]
MCK62887801 MCK62887801 COVER,PCB [504A]
3550JA2284A 3550JA2284A COVER,PTC [304A]
3550JA2247A 3550JA2247A COVER,SENSOR [610A]
MCQ67247501 MCQ67247501 DAMPER ASSEMBLY,SEAT [312A]
5040JJ2001A 5040JJ2001A DAMPER,MOTOR SUPPORT [309B]
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [405C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [405F]
5072JA3003F 5072JA3003F DAMPER,NOISE [316A]
MCR63407301 MCR63407301 DECOR,CONTROL [503G]
ADC55626842 ADC55626842 DOOR ASSEMBLY,REFRIGERATOR(LEFT) [230B]
ADC55510566 ADC55510566 DOOR ASSEMBLY,REFRIGERATOR(RIGHT) [230A]
6877JB3036K 6877JB3036K DRAWING,ASSEMBLY [619E]
5851JA2008R 5851JA2008R DRIER ASSEMBLY [317A]
MCZ42230901 MCZ42230901 DUCT,MULTI [120B]
MCZ61849401 MCZ61849401 DUCT,MULTI [610E]
5421JJ1003S 5421JJ1003S EVAPORATOR ASSEMBLY [302B]
5901JA1022A 5901JA1022A FAN ASSEMBLY [329A]
ADP36665701 ADP36665701 FAN ASSEMBLY [329C]
4987JJ2002S 4987JJ2002S GASKET ASSEMBLY,DOOR [233A]
4987JJ2002T 4987JJ2002T GASKET ASSEMBLY,DOOR [233B]
MDS64172919 MDS64172919 GASKET,DOOR [203A]
4470JA2008A 4470JA2008A GEAR,ICE [250C]
MDX63113401 MDX63113401 GRILLE,FAN [332A]
AEC73877502 AEC73877502 GUIDE ASSEMBLY,RAIL [161C]
AEC73857401 AEC73857401 GUIDE ASSEMBLY,RAIL [162A]
AEC73857402 AEC73857402 GUIDE ASSEMBLY,RAIL [162B]
AEC73877402 AEC73877402 GUIDE ASSEMBLY,TV [161A]
AEC73877401 AEC73877401 GUIDE ASSEMBLY,TV [161B]
4974JJ1031A 4974JJ1031A GUIDE,DRAWER [237C]
MEA42257901 MEA42257901 GUIDE,FAN [319C]
EBS61443362 EBS61443362 GUIDE,RAIL [145G]
4974JA1154A 4974JA1154A GUIDE,RAIL [145H]
AED37133117 AED37133117 HANDLE ASSEMBLY,FREEZER [212D]
AED37082916 AED37082916 HANDLE ASSEMBLY,REFRIGERATOR [244A]
3650JA2061X 3650JA2061X HANDLE,REAR [103A]
MEB62055503 MEB62055503 HANDLE,REAR [103B]
EAD60704101 EAD60704101 HARNESS ASSEMBLY [250F]
EAD61050801 EAD61050801 HARNESS ASSEMBLY [303A]
5300JK1005D 5300JK1005D HEATER,SHEATH [408A]
AEH71135346 AEH71135346 HINGE ASSEMBLY,CENTER [262B]
AEH71135348 AEH71135348 HINGE ASSEMBLY,CENTER [262H]
AEH74216502 AEH74216502 HINGE ASSEMBLY,UPPER [271B]
AEH60614101 AEH60614101 HINGE ASSEMBLY,UPPER [271D]
4931JJ2002E 4931JJ2002E HOLDER ASSEMBLY,GASKET [234C]
4931JJ2002F 4931JJ2002F HOLDER ASSEMBLY,GASKET [234D]
4931JA3006A 4931JA3006A HOLDER ASSEMBLY,GASKET [406D]
4930JA3034C 4930JA3034C HOLDER,DRIER [318A]
MEG61879201 MEG61879201 HOLDER,PIPE [616E]
4930JA3054A 4930JA3054A HOLDER,PIPE [627B]
MEG61878302 MEG61878302 HOLDER,RAIL [249C]
AEC73857902 AEC73857902 HOLDER,RAIL [249D]
4930JA2080C 4930JA2080C HOLDER,SHELF [145A]
4930JA2081C 4930JA2081C HOLDER,SHELF [145B]

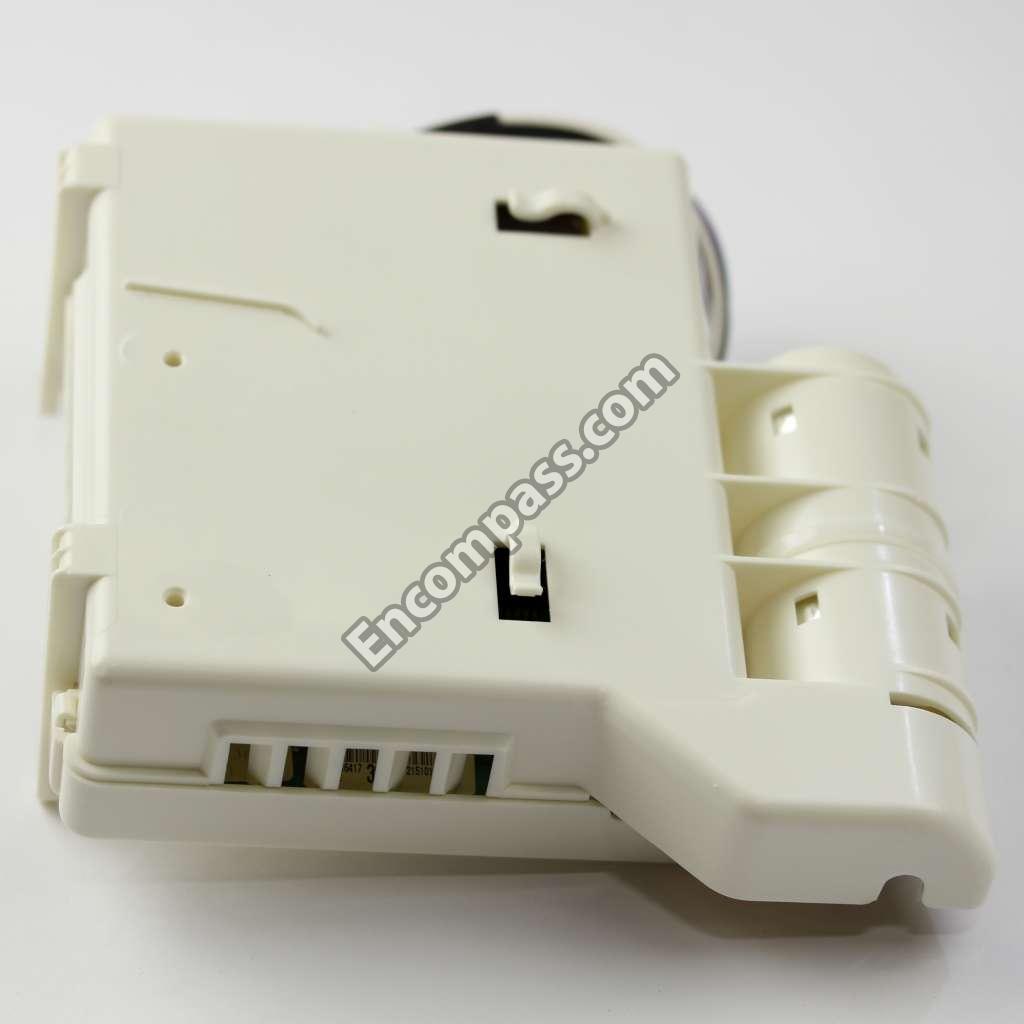

AEQ72909603 AEQ72909603 ICE MAKER ASSEMBLY,KIT [600A]
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [409B]
EAV43060808 EAV43060808 LED ASSEMBLY [409D]
AFC72909201 AFC72909201 LEG ASSEMBLY,ADJUST [106A]
4510JA3003D 4510JA3003D LEVER,ICE MAKER [600B]
TCA36411701 TCA36411701 LF [300A]
4681JB1027C 4681JB1027C MOTOR,DC [404A]
4681JB1029D 4681JB1029D MOTOR,DC [420A]
MFT62346508 MFT62346508 NAME PLATE [212G]

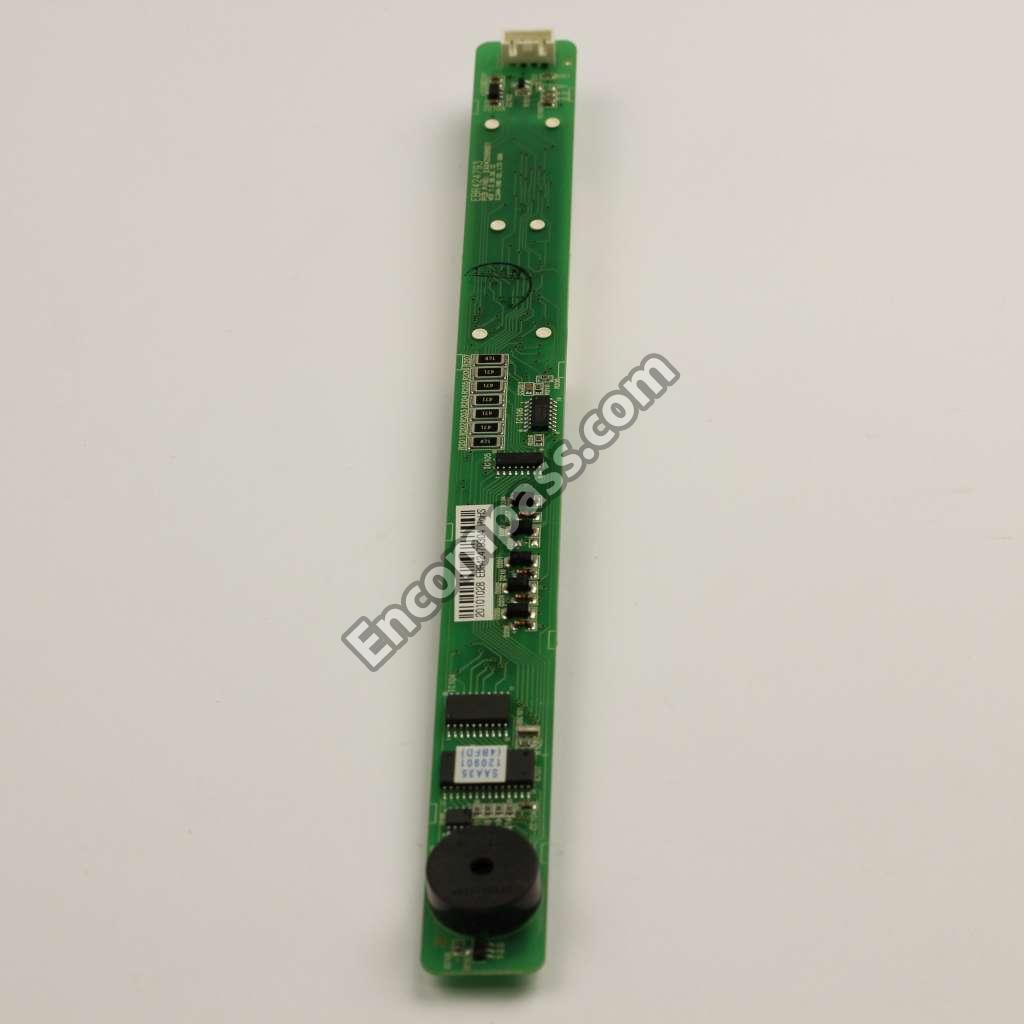

EBR42479304 EBR42479304 PCB ASSEMBLY,DISPLAY [503C]

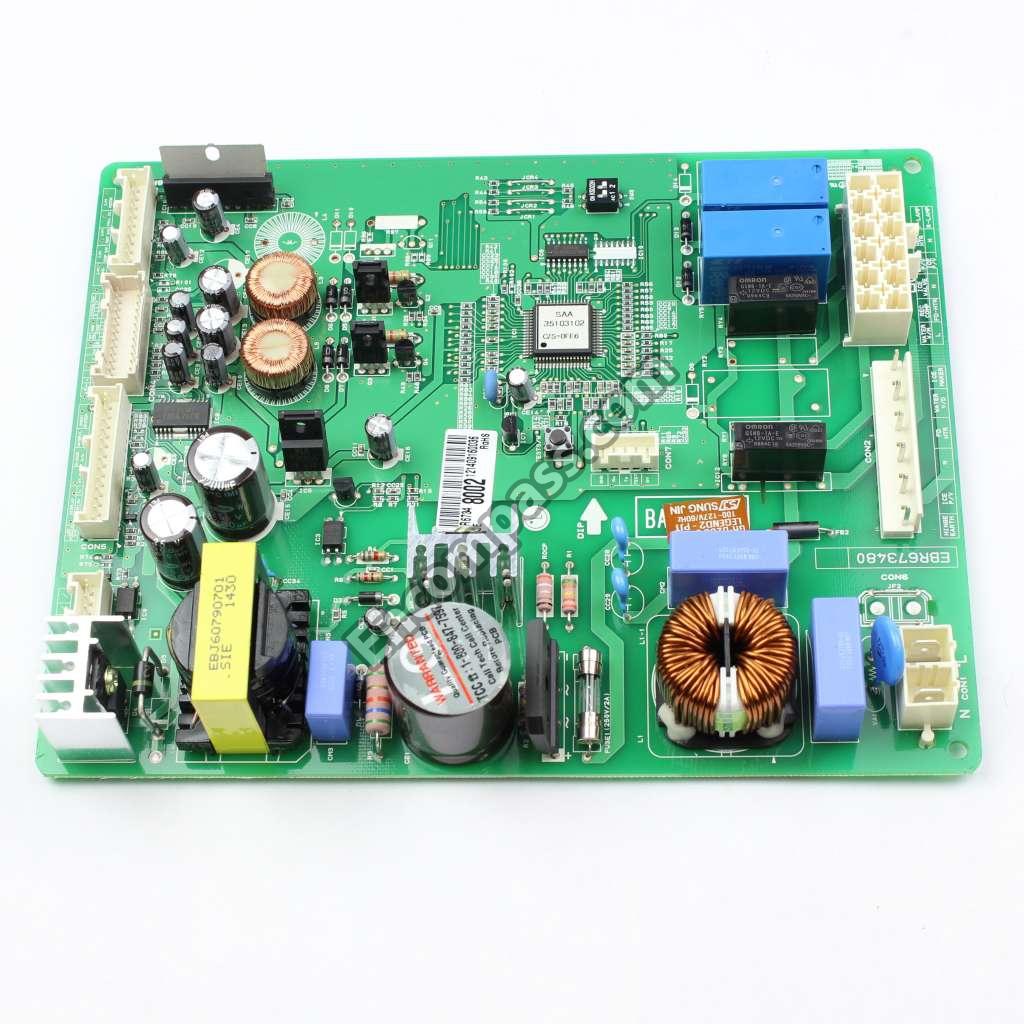

EBR67348002 EBR67348002 PCB ASSEMBLY,MAIN [500A]

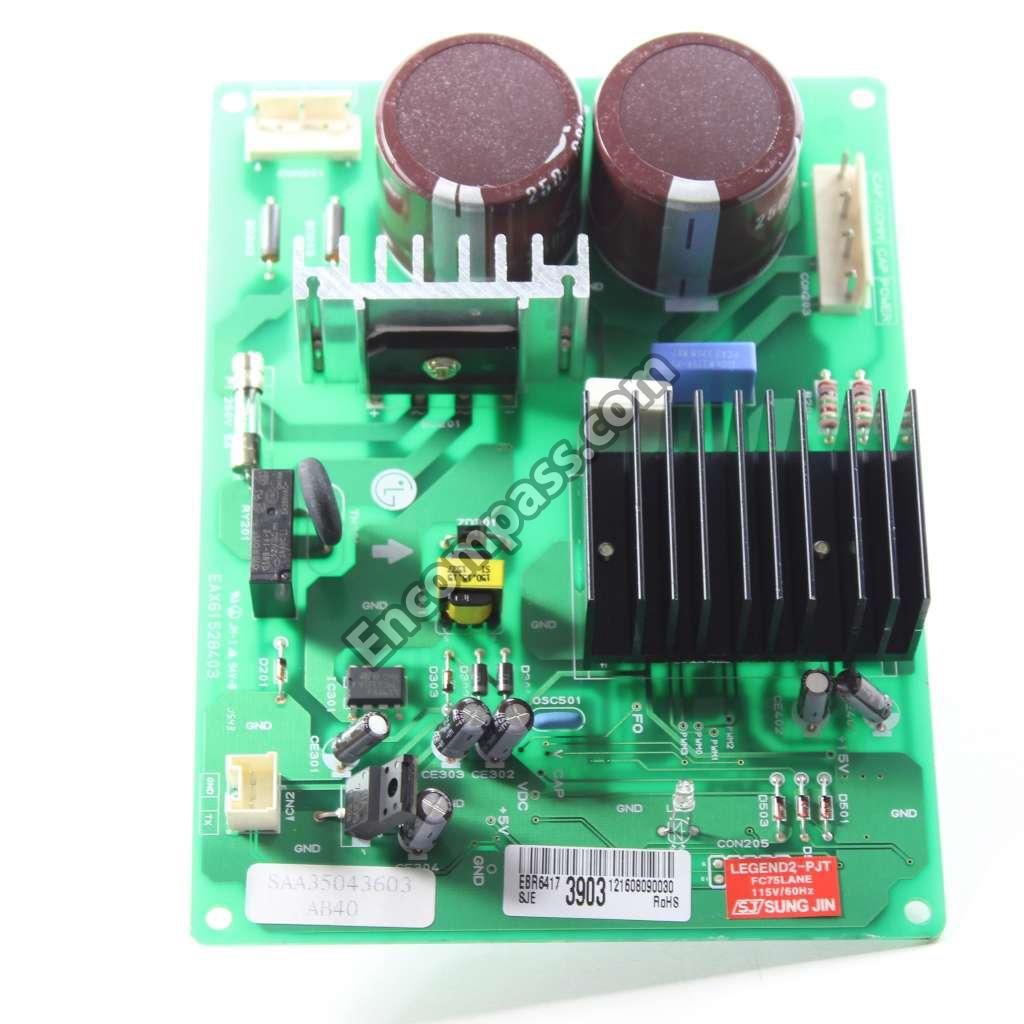

EBR64173903 EBR64173903 PCB ASSEMBLY,SUB [500H]
1PZZJA3013B 1PZZJA3013B PIN,COMMON [315C]
4J00977P 4J00977P PIPE,COMPRESSOR SEALING [310B]
6411JB1042W 6411JB1042W POWER CORD ASSEMBLY [411A]
5218JA1010E 5218JA1010E RAIL,SLIDE [249E]
5218JA1010F 5218JA1010F RAIL,SLIDE [249F]
4350JA3005B 4350JA3005B RING [262C]
MHA62513601 MHA62513601 ROLLER [315B]
4000W4A003A 4000W4A003A SCREW,CUSTOMIZED [B01]
1STZJA3004F 1STZJA3004F SCREW,CUSTOMIZED [B02]
4J00415D 4J00415D SCREW,CUSTOMIZED [S01]
1SZZJA3005K 1SZZJA3005K SCREW,CUSTOMIZED [S01]
4J01424B 4J01424B SCREW,CUSTOMIZED [S03]
4J01424D 4J01424D SCREW,CUSTOMIZED [S08]
4J01425A 4J01425A SCREW,CUSTOMIZED [S10]
3J05696W 3J05696W SCREW,CUSTOMIZED [S11]
1SZZJJ3003D 1SZZJJ3003D SCREW,CUSTOMIZED [S12]
1SZZJA3016A 1SZZJA3016A SCREW,CUSTOMIZED [S20]
6500JB2001B 6500JB2001B SENSOR [610D]
AHT73734102 AHT73734102 SHELF ASSEMBLY,NET [141C]

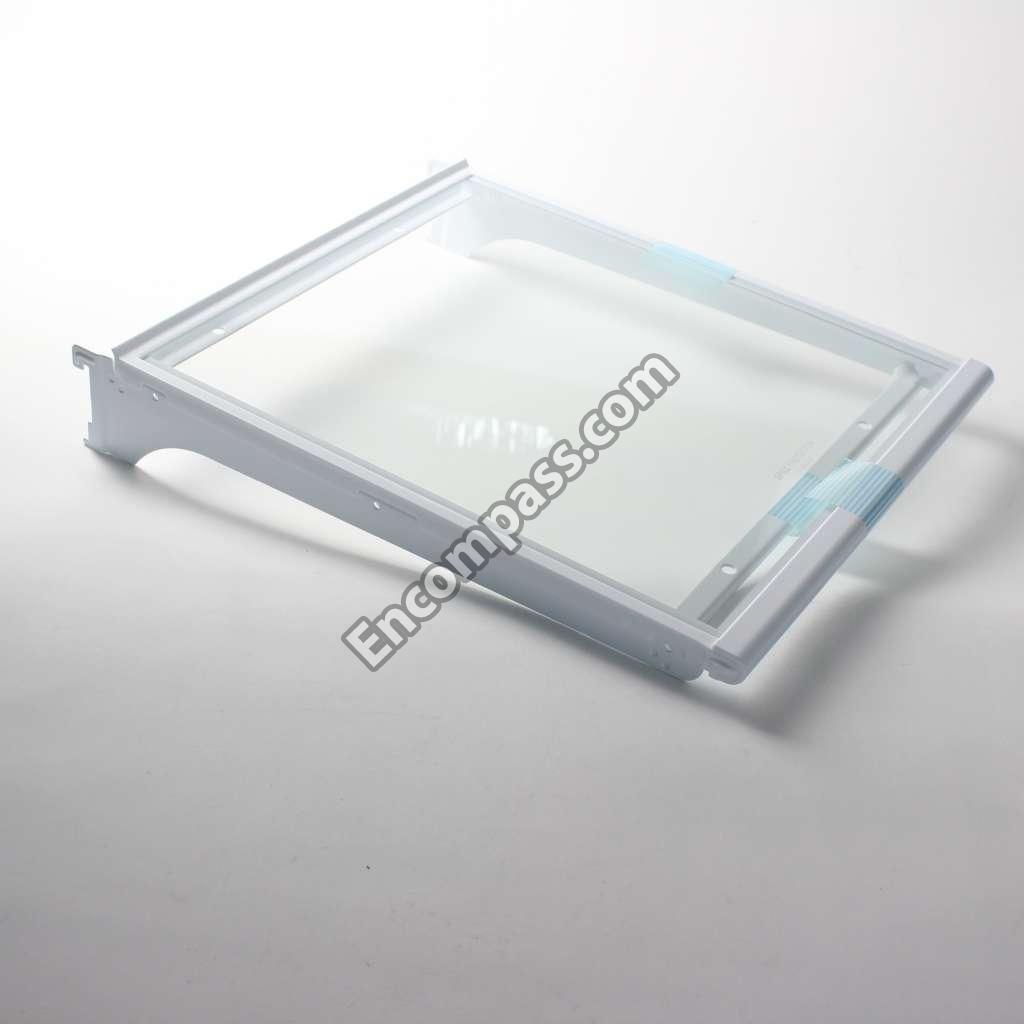

AHT36764315 AHT36764315 SHELF ASSEMBLY,REFRIGERATOR [141A]
4620JA3015A 4620JA3015A STOPPER,COMPRESSOR [314A]
4620JJ3006N 4620JJ3006N STOPPER,DOOR [243A]
MJB63029901 MJB63029901 STOPPER,DOOR [243B]
MJB63190001 MJB63190001 STOPPER,HANDLE [B05]
EBF60755002 EBF60755002 SWITCH,PUSH BUTTON [402A]
6600JB1010K 6600JB1010K SWITCH,PUSH BUTTON [406B]
3391JJ2013B 3391JJ2013B TRAY ASSEMBLY,DRAIN [312C]

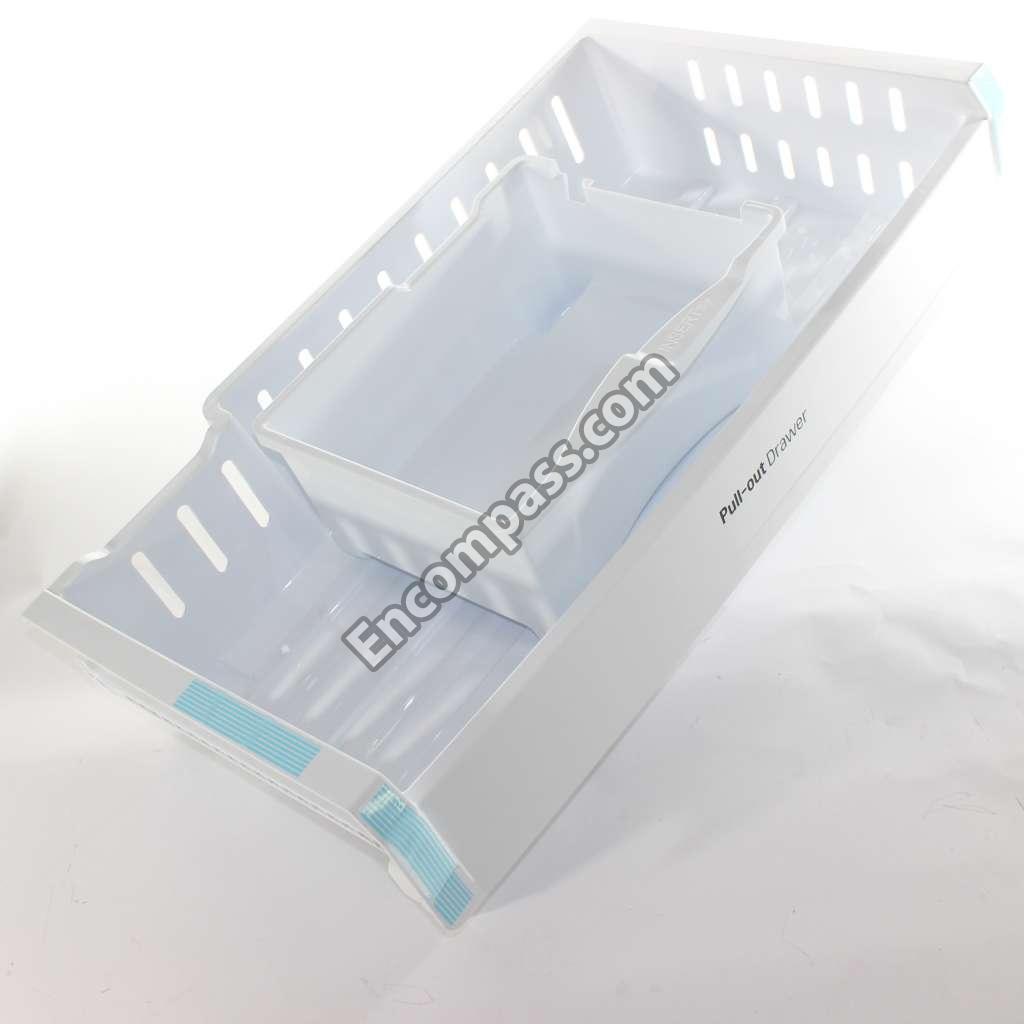

AJP73934401 AJP73934401 TRAY ASSEMBLY,DRAWER [136A]
AJP73874601 AJP73874601 TRAY ASSEMBLY,FRESH ROOM [145D]
AJP73914504 AJP73914504 TRAY ASSEMBLY,VEGETABLE [151A]
MJS61845701 MJS61845701 TRAY,DRIP [319A]
5251JA3003E 5251JA3003E TUBE ASSEMBLY,DRAIN [105A]
MJU39256404 MJU39256404 TUBE,PLASTIC [623B]
5220JB2010A 5220JB2010A VALVE,WATER [619A]
