Model Image
Manufacturer

LG

Model Number

GRL258DSVA

Description

Gr-l258dsva

Interactive Exploded View

Parts List

Part Number Description
MAK39123901 MAK39123901 BAR [250A]
MAK62707101 MAK62707101 BAR [250E]
AAP33686302 AAP33686302 BASKET ASSEMBLY,DOOR [241A]
AAP33751402 AAP33751402 BASKET ASSEMBLY,DOOR [241D]
AAP33726606 AAP33726606 BASKET ASSEMBLY,DOOR [241G]
AAP33726601 AAP33726601 BASKET ASSEMBLY,DOOR [241H]
AAP73871401 AAP73871401 BASKET,DOOR [205A]
5004JA2017A 5004JA2017A BASKET,TILT [205B]
5004JA2017B 5004JA2017B BASKET,TILT [205C]
MAN39723201 MAN39723201 BASKET,WINDOW [241C]
1BZZJA2002A 1BZZJA2002A BOLT,COMMON [B04]
4810JA2129A 4810JA2129A BRACKET,MOTOR [405B]
5075JA1044E 5075JA1044E BUCKET ASSEMBLY,ICE [611A]

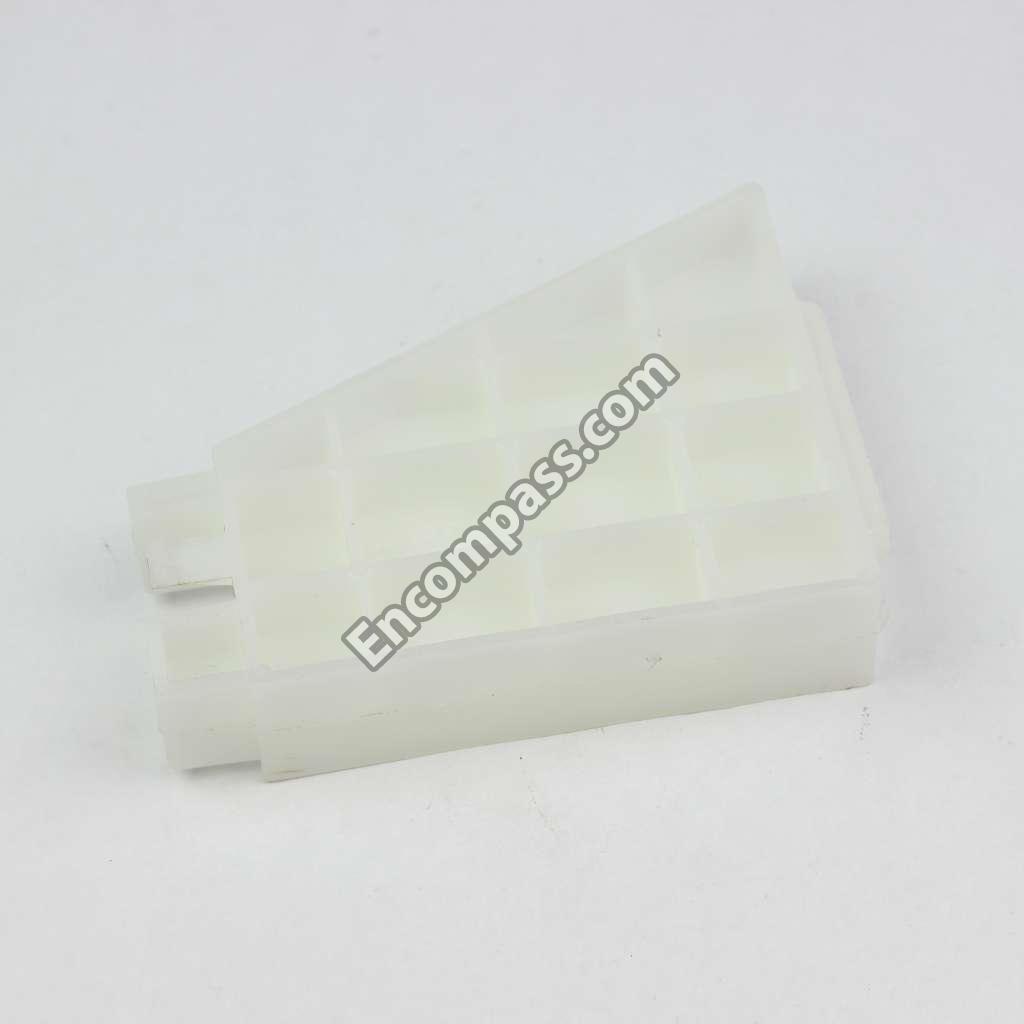

5074JA2004A 5074JA2004A BUCKET,ICE [131A]
ABH34641101 ABH34641101 BUTTON ASSEMBLY [277A]
ABH34641102 ABH34641102 BUTTON ASSEMBLY [277B]
ABH34641103 ABH34641103 BUTTON ASSEMBLY [277C]
ABH34641104 ABH34641104 BUTTON ASSEMBLY [277D]
ABH34641105 ABH34641105 BUTTON ASSEMBLY [277E]
ABH34641106 ABH34641106 BUTTON ASSEMBLY [277F]
ABH34641107 ABH34641107 BUTTON ASSEMBLY [277G]
ABH34641108 ABH34641108 BUTTON ASSEMBLY [277H]
ABH33777901 ABH33777901 BUTTON ASSEMBLY [279G]
ABH34641201 ABH34641201 BUTTON ASSEMBLY [500E]
MBG38252601 MBG38252601 BUTTON,LEVER [279J]
MBJ38219001 MBJ38219001 CAM,LOCKER [262C]
4430JJ2004A 4430JJ2004A CAM,SHAFT [234A]
4430JJ2004B 4430JJ2004B CAM,SHAFT [234B]
5007JA3006T 5007JA3006T CAP ASSEMBLY,DUCT [275A]
5006JA2069A 5006JA2069A CAP,COVER [250D]
5006JJ2009A 5006JJ2009A CAP,COVER [623B]
MBL38019501 MBL38019501 CAP,DUCT [282F]
MBL38019801 MBL38019801 CAP,DUCT [282G]
0CZZJB2014K 0CZZJB2014K CAPACITOR,ELECTRIC APPLIANCE FILM,BOX [410G]
3111JB1017M 3111JB1017M CASE ASSEMBLY,PCB [410J]
MBN38018601 MBN38018601 CASE,LAMP [503D]
ACQ75432188 ACQ75432188 CASE,PCB [279D]
3110JA1108A 3110JA1108A CASE,PCB [502B]
ABY72909002 ABY72909002 CKD ASSEMBLY [SVC]
4860JA3010A 4860JA3010A CLAMP [630M]
4860JA3010B 4860JA3010B CLAMP [630N]
4004JA3002A 4004JA3002A CLIP [603A]
4004JA3003A 4004JA3003A CLIP [603C]
4403JA3005A 4403JA3005A CONNECTOR ASSEMBLY [250B]
MCD62748402 MCD62748402 CONNECTOR,RAIL [145K]
4932JA1009A 4932JA1009A CONNECTOR,RAIL [145M]
4932JJ2009B 4932JJ2009B CONNECTOR,TILT [249R]
MCD62426801 MCD62426801 CONNECTOR,TUBE [616H]
6615JB2005H 6615JB2005H CONTROLLER ASSEMBLY [400A]
EBR35287601 EBR35287601 COVER ASSEMBLY,DISPLAY [279A]
3551JJ2030B 3551JJ2030B COVER ASSEMBLY,FRONT [233C]
3551JJ2030A 3551JJ2030A COVER ASSEMBLY,FRONT [233D]
ACQ33751001 ACQ33751001 COVER ASSEMBLY,LAMP [503F]
ACQ55957509 ACQ55957509 COVER ASSEMBLY,LOWER [103C]
3551JJ2018A 3551JJ2018A COVER ASSEMBLY,MACHINERY(REAR) [313A]
3551JA2144C 3551JA2144C COVER ASSEMBLY,PCB [501F]
3550JA1455C 3550JA1455C COVER,CONNECTOR [249G]
3550JA1455D 3550JA1455D COVER,CONNECTOR [249H]
3550JD1128E 3550JD1128E COVER,FILTER [624C]
3550JA2279A 3550JA2279A COVER,FILTER [626A]
MCK38163201 MCK38163201 COVER,FRONT [312B]
MCK67447705 MCK67447705 COVER,HINGE [207A]
3550JJ1097R 3550JJ1097R COVER,HINGE [207B]
3550JA2267B 3550JA2267B COVER,HINGE [281D]
3550JA2267A 3550JA2267A COVER,HINGE [281E]
3550JA2264A 3550JA2264A COVER,HINGE [281F]
3550JA3188A 3550JA3188A COVER,HOME BAR [630H]
MCK38019301 MCK38019301 COVER,LAMP [158A]
MCK38015101 MCK38015101 COVER,LAMP [158B]
MCK38209801 MCK38209801 COVER,PCB [279E]
3550JA1405A 3550JA1405A COVER,PCB [502A]
3550JA2042C 3550JA2042C COVER,PTC [304A]
MCK39131501 MCK39131501 COVER,SENSOR [152B]
3550JA2247A 3550JA2247A COVER,SENSOR [610A]
3550JA2184B 3550JA2184B COVER,TUBE [625A]
5040JA3075A 5040JA3075A DAMPER [281G]
5040JA3071A 5040JA3071A DAMPER,COMPRESSOR [312A]
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [405C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [405F]
5072JA3003F 5072JA3003F DAMPER,NOISE [316A]
5072JA3003B 5072JA3003B DAMPER,NOISE [316B]
5040JA3056A 5040JA3056A DAMPER,PIPE [327A]
4J03020A 4J03020A DAMPER,PIPE [328A]
3806JA2146E 3806JA2146E DECOR ASSEMBLY,CASE [207C]
ACW33739001 ACW33739001 DECOR ASSEMBLY,TRAY [136C]

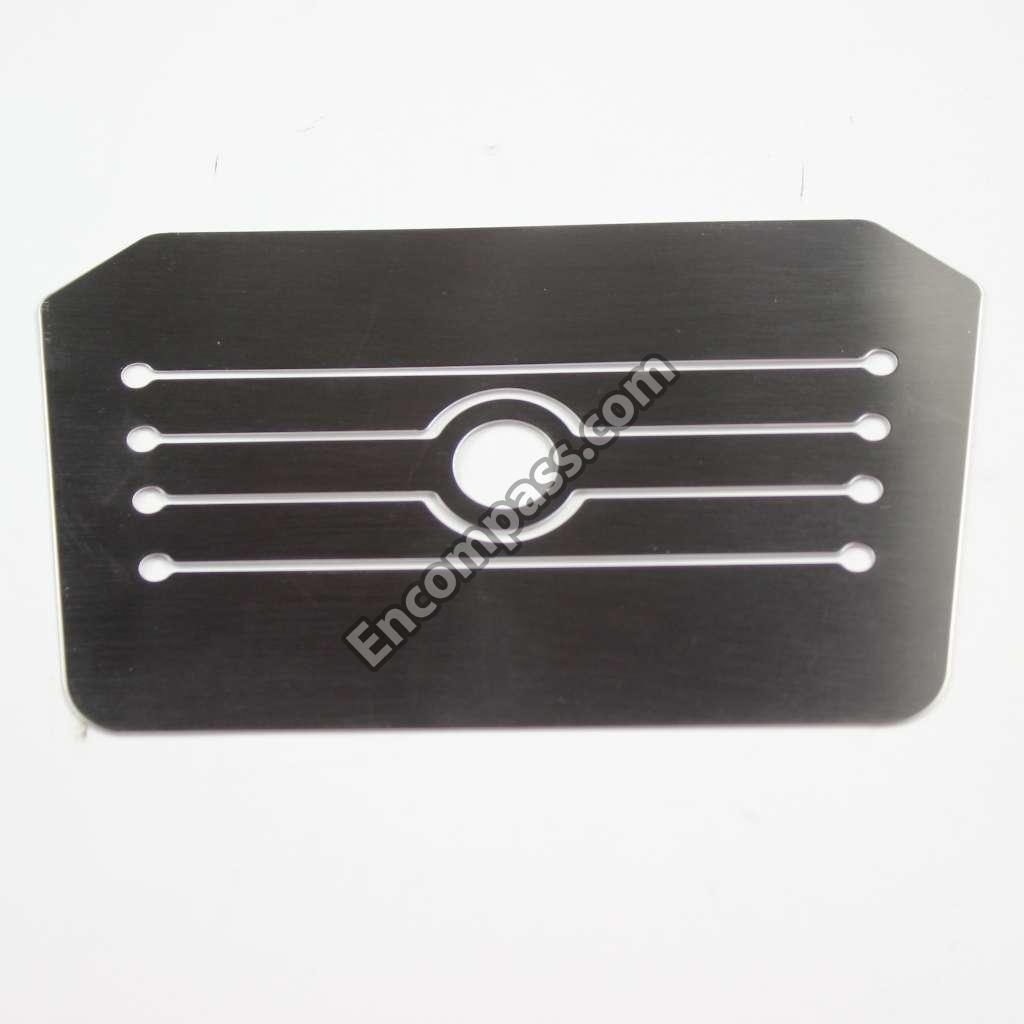

MCR38009801 MCR38009801 DECOR,DRAIN [281A]
3806JA2119A 3806JA2119A DECOR,HANDLE [630E]
3581JA1182H 3581JA1182H DOOR ASSEMBLY,FREEZE ROOM [630A]
3581JA8820U 3581JA8820U DOOR ASSEMBLY,FREEZER [200A]
3581JA8815V 3581JA8815V DOOR ASSEMBLY,REFRIGERATOR(LEFT) [230B]
ADD33201001 ADD33201001 DOOR FOAM ASSEMBLY,FREEZER [201A]
5433JA2071C 5433JA2071C DOOR FOAM ASSEMBLY,HOME BAR [630B]
ADD33201401 ADD33201401 DOOR FOAM ASSEMBLY,REFRIGERATOR [231B]
6877JB2051F 6877JB2051F DRAWING,ASSEMBLY [303D]
AJU72992601 AJU72992601 DRAWING,ASSEMBLY [619E]
5851JA2008R 5851JA2008R DRIER ASSEMBLY [317A]
5209JA1044A 5209JA1044A DUCT ASSEMBLY,CONNECTOR [407A]
ADJ33675301 ADJ33675301 DUCT ASSEMBLY,MULTI [120A]
5421JJ1003S 5421JJ1003S EVAPORATOR ASSEMBLY [301A]
5901JA1022A 5901JA1022A FAN ASSEMBLY [329A]
J753-00011A J753-00011A FAN ASSEMBLY [329C]
5231JA2006F 5231JA2006F FILTER ASSEMBLY,WATER [624A]
5230JA2003A 5230JA2003A FILTER,HEAD [624D]
4987JJ2002S 4987JJ2002S GASKET ASSEMBLY,DOOR [233A]
4987JJ2002T 4987JJ2002T GASKET ASSEMBLY,DOOR [233B]
ADX72909701 ADX72909701 GASKET ASSEMBLY,DOOR [630C]
4987JA3025H 4987JA3025H GASKET ASSEMBLY,DOOR [630J]
MDS64172919 MDS64172919 GASKET,DOOR [203A]
4470JA2008A 4470JA2008A GEAR,ICE [250C]
AEB34270101 AEB34270101 GRILLE ASSEMBLY,FAN [332C]
AEC34652101 AEC34652101 GUIDE ASSEMBLY,RAIL [140C]
AEC34652102 AEC34652102 GUIDE ASSEMBLY,RAIL [140D]
EBS61443362 EBS61443362 GUIDE ASSEMBLY,RAIL [145C]
EBS61443363 EBS61443363 GUIDE ASSEMBLY,RAIL [145F]
AEC34513701 AEC34513701 GUIDE ASSEMBLY,TV [237C]
4974JJ1036A 4974JJ1036A GUIDE,FAN [319C]
4974JA1154A 4974JA1154A GUIDE,RAIL [145H]
AED33208203 AED33208203 HANDLE ASSEMBLY,FREEZER [212D]
3650JD1160D 3650JD1160D HANDLE,HOME BAR [630D]
MEB62055503 MEB62055503 HANDLE,REAR [103A]
3650JA2061X 3650JA2061X HANDLE,REAR [103B]
5300JK1005D 5300JK1005D HEATER,SHEATH [408A]
AEH33724104 AEH33724104 HINGE ASSEMBLY,CENTER [262H]
4775JA2102B 4775JA2102B HINGE ASSEMBLY,LOWER [630G]
4775JJ2014B 4775JJ2014B HINGE ASSEMBLY,UPPER [271A]
AEH74216502 AEH74216502 HINGE ASSEMBLY,UPPER [271B]
4775JJ2014A 4775JJ2014A HINGE ASSEMBLY,UPPER [271C]
AEH60614101 AEH60614101 HINGE ASSEMBLY,UPPER [271D]
4775JA2101A 4775JA2101A HINGE ASSEMBLY,UPPER [630F]
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET [607A]
4931JJ2002E 4931JJ2002E HOLDER ASSEMBLY,GASKET [234C]
4931JJ2002F 4931JJ2002F HOLDER ASSEMBLY,GASKET [234D]
4931JA3006A 4931JA3006A HOLDER ASSEMBLY,GASKET [406D]
4930JA3091A 4930JA3091A HOLDER,BRACKET [603B]
MEG38133301 MEG38133301 HOLDER,COVER [279K]
4930JA3034C 4930JA3034C HOLDER,DRIER [318A]
4930JA3054A 4930JA3054A HOLDER,PIPE [627A]
4930JA1066A 4930JA1066A HOLDER,RAIL [249C]
4930JA1066B 4930JA1066B HOLDER,RAIL [249D]
4930JA2080C 4930JA2080C HOLDER,SHELF [145A]
4930JA2081C 4930JA2081C HOLDER,SHELF [145B]
AEQ36756901 AEQ36756901 ICE MAKER ASSEMBLY,KIT [600A]
4779JJ2001B 4779JJ2001B LEG ASSEMBLY,ADJUST [106A]
MFA40012801 MFA40012801 LEG,ADJUST [262D]
EAU60943434 EAU60943434 MOTOR,AC [606A]
4681JB1027C 4681JB1027C MOTOR,DC [404A]
4681JB1029D 4681JB1029D MOTOR,DC [420A]
AFZ34128801 AFZ34128801 NAME PLATE ASSEMBLY [212G]
6750C-0004R 6750C-0004R OVERLOAD PROTECT [303C]
6871JB2074D 6871JB2074D PCB ASSEMBLY,DISPLAY [501D]

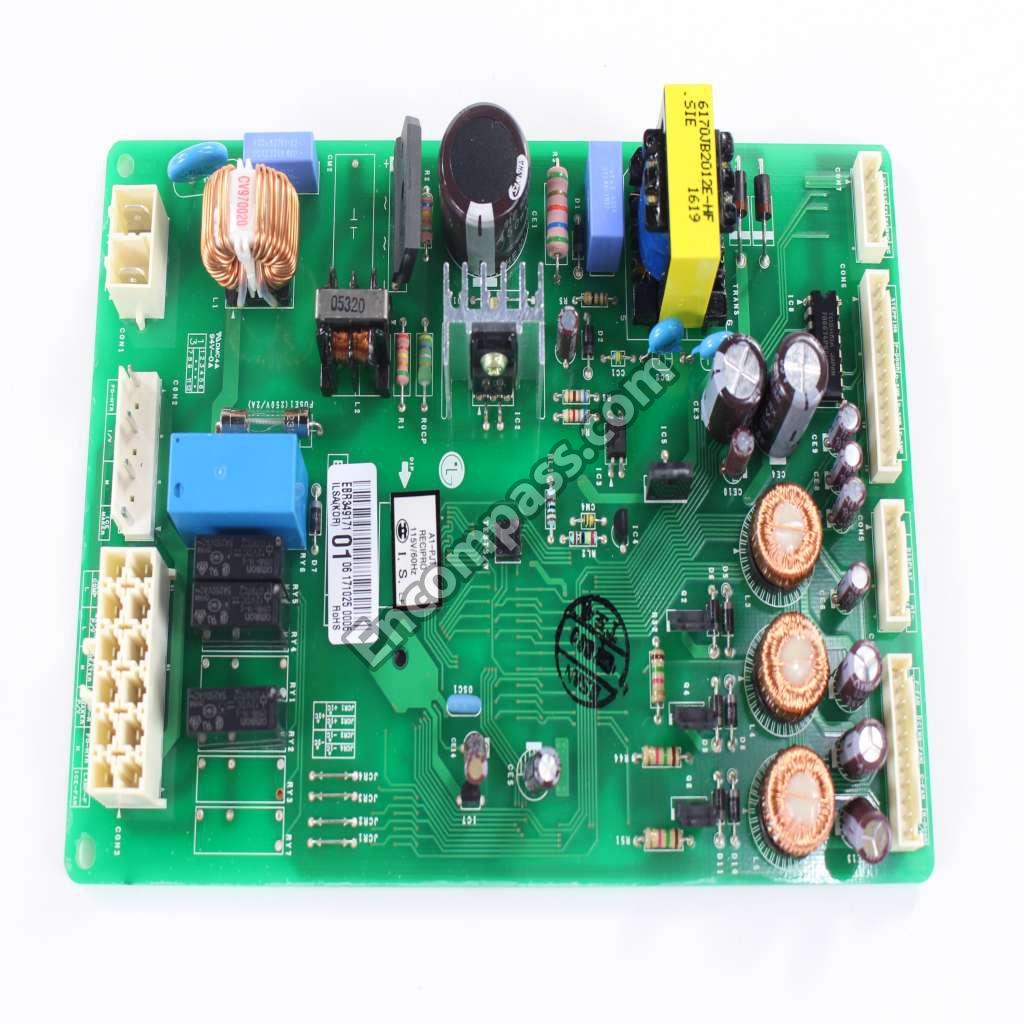

EBR34917101 EBR34917101 PCB ASSEMBLY,MAIN [500A]
EBR32820101 EBR32820101 PCB ASSEMBLY,SUB [500B]
EBR36498901 EBR36498901 PCB ASSEMBLY,TIMER/KEY [500D]
1PZZJA3013B 1PZZJA3013B PIN,COMMON [315C]
5201JJ1010N 5201JJ1010N PIPE ASSEMBLY,JOINT [310B]
6411JB1042X 6411JB1042X POWER CORD ASSEMBLY [411A]
J469-00030B J469-00030B RACK [146A]

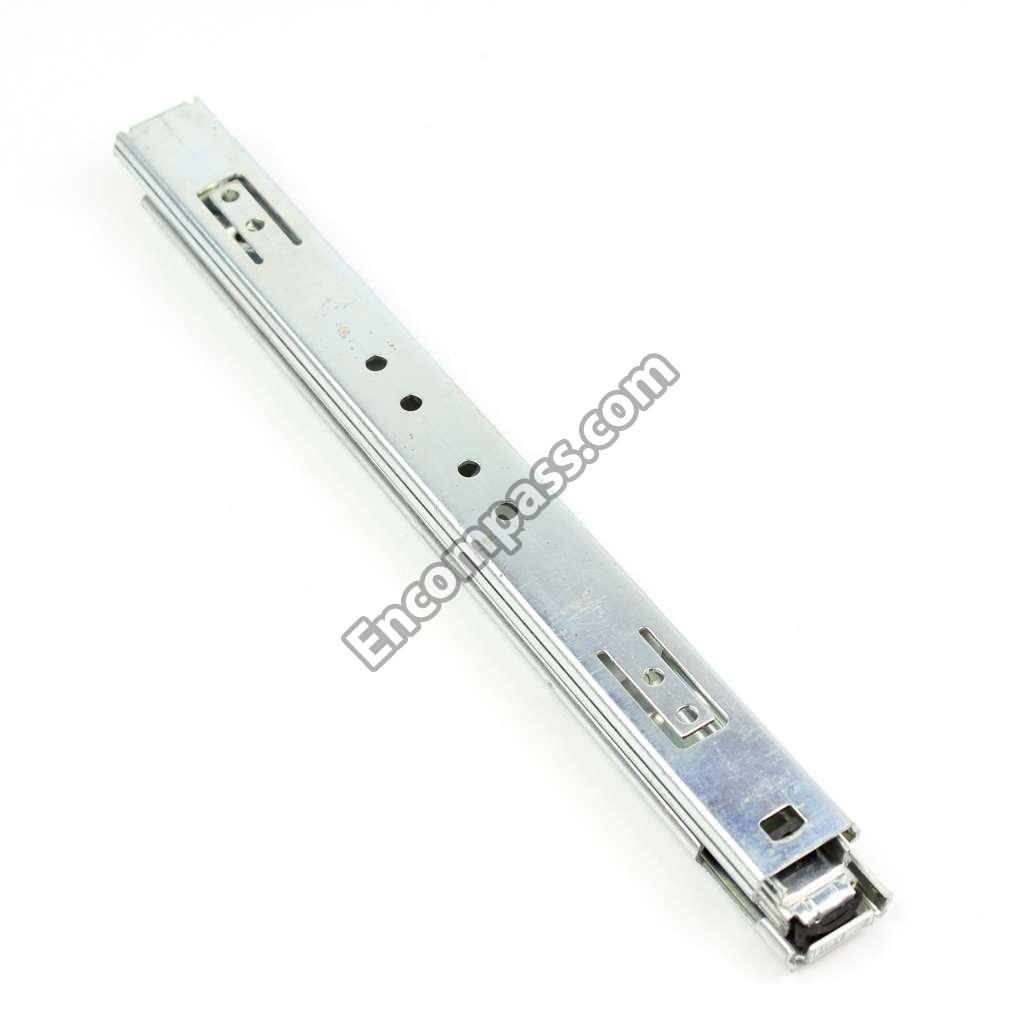

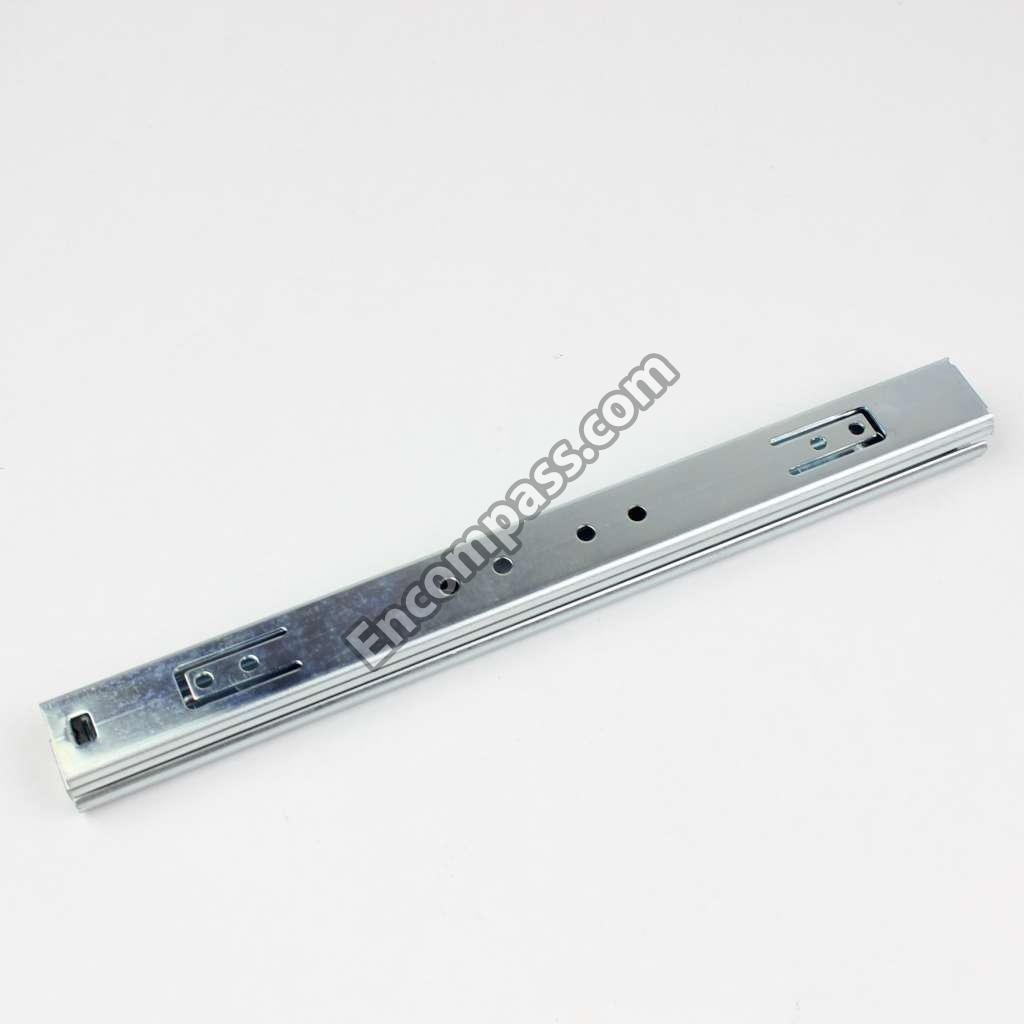

MGT39306304 MGT39306304 RAIL,SLIDE [161C]
MGT39306303 MGT39306303 RAIL,SLIDE [161D]
5218JA1010E 5218JA1010E RAIL,SLIDE [249E]
5218JA1010F 5218JA1010F RAIL,SLIDE [249F]
MHA62513601 MHA62513601 ROLLER [315B]
4000W4A003A 4000W4A003A SCREW,CUSTOMIZED [B01]
1STZJA3004G 1STZJA3004G SCREW,CUSTOMIZED [B02]
1STZJA3004F 1STZJA3004F SCREW,CUSTOMIZED [B03]
1SZZJA3005K 1SZZJA3005K SCREW,CUSTOMIZED [S01]
4J00415D 4J00415D SCREW,CUSTOMIZED [S02]
4J01424B 4J01424B SCREW,CUSTOMIZED [S03]
1SZZJJ3005E 1SZZJJ3005E SCREW,CUSTOMIZED [S08]
1SBZJA3004L 1SBZJA3004L SCREW,CUSTOMIZED [S10]
4J01425A 4J01425A SCREW,CUSTOMIZED [S11]
1SZZJJ3010C 1SZZJJ3010C SCREW,CUSTOMIZED [S14]
1SZZJA3016A 1SZZJA3016A SCREW,CUSTOMIZED [S20]
6500JB1008A 6500JB1008A SENSOR,TEMPERATURE [600B]
AHT33676301 AHT33676301 SHELF ASSEMBLY,REFRIGERATOR [140A]
AHT33676302 AHT33676302 SHELF ASSEMBLY,REFRIGERATOR [140B]
AHT33676201 AHT33676201 SHELF ASSEMBLY,REFRIGERATOR [141A]
EBE60661303 EBE60661303 SOLENOID ASSEMBLY [614A]
6421JB2002R 6421JB2002R SOLENOID,REVERSING,VALVE [405A]
MHU38218901 MHU38218901 SPANNER [262E]
4970JA3044A 4970JA3044A SPRING [630K]
4970JA3045A 4970JA3045A SPRING [630L]
4970JA3011K 4970JA3011K SPRING,LEVER [276A]
4620JA3015A 4620JA3015A STOPPER,COMPRESSOR [314A]
MJB38054102 MJB38054102 STOPPER,DOOR [243A]
MJB38054101 MJB38054101 STOPPER,DOOR [243B]
4620JJ2010B 4620JJ2010B STOPPER,HANDLE [B06]
MJH38067301 MJH38067301 SUPPORTER,COVER TV [154C]
6600JB3001C 6600JB3001C SWITCH,MICRO [402C]
6600JB3007K 6600JB3007K SWITCH,PUSH BUTTON [402A]
6600JB1010K 6600JB1010K SWITCH,PUSH BUTTON [406B]
6749C-0014E 6749C-0014E THERMISTOR ASSEMBLY,PTC [303B]
6748C-0002C 6748C-0002C THERMISTOR ASSEMBLY,PTC [303B]
3391JJ2013B 3391JJ2013B TRAY ASSEMBLY,DRAIN [312C]

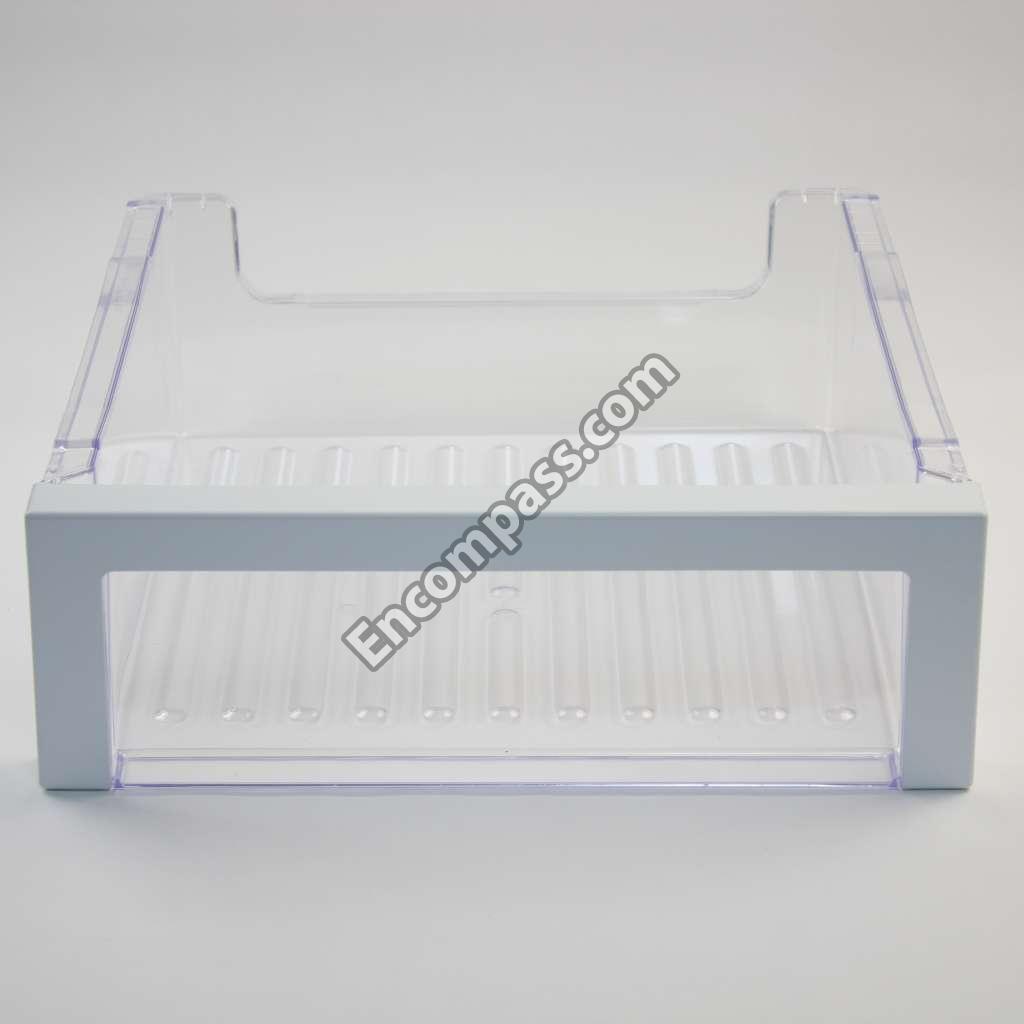

3391JA2054G 3391JA2054G TRAY ASSEMBLY,DRAWER [136B]
AJP33676001 AJP33676001 TRAY ASSEMBLY,SNACK [140F]

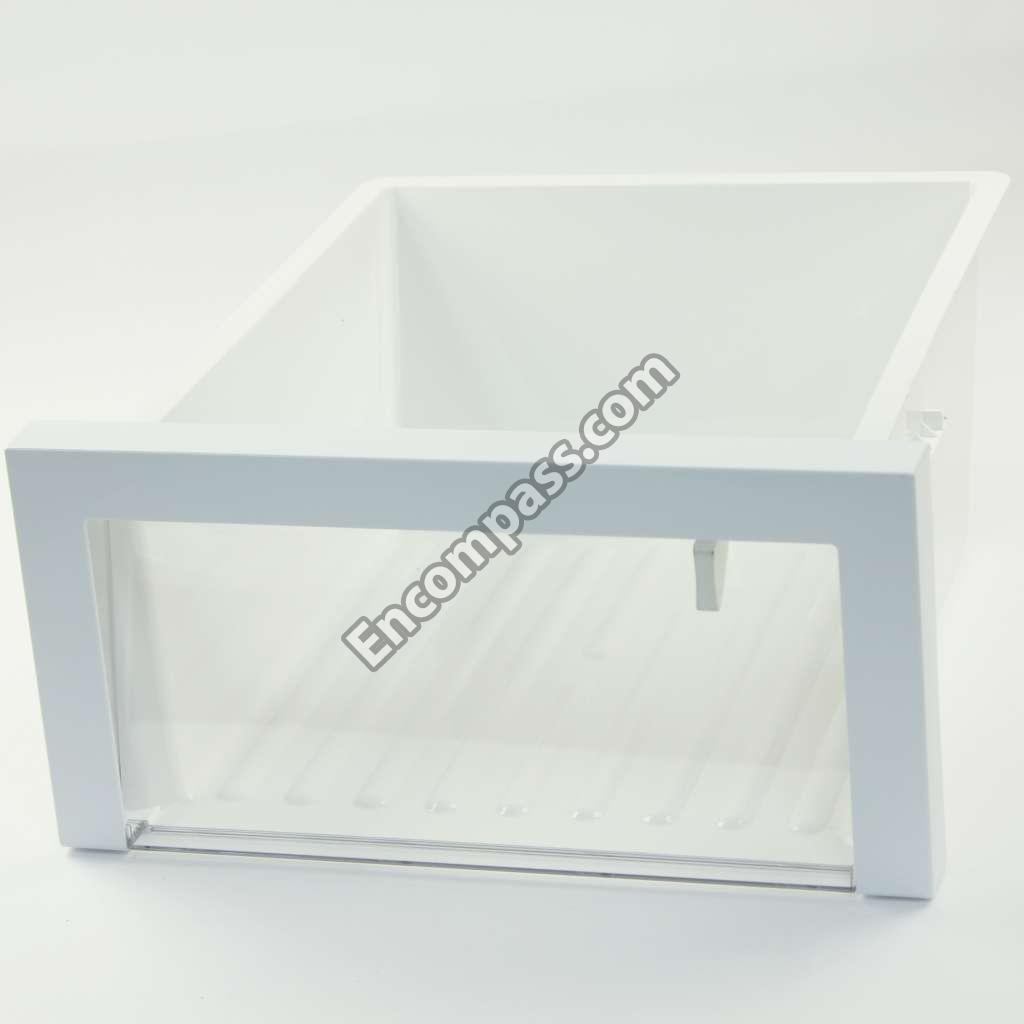

AJP33740401 AJP33740401 TRAY ASSEMBLY,VEGETABLE [151A]
MJS38017701 MJS38017701 TRAY,DRAIN [281B]
MJS61891805 MJS61891805 TRAY,VEGETABLE [-]
5251JA3003E 5251JA3003E TUBE ASSEMBLY,DRAIN [105A]
5210JA3005L 5210JA3005L TUBE,PLASTIC [616D]
5210JA3004A 5210JA3004A TUBE,PLASTIC [616F]
5210JA3005E 5210JA3005E TUBE,PLASTIC [616J]
MJX41869201 MJX41869201 VALVE ASSEMBLY,WATER [619B]
MJX41178908 MJX41178908 VALVE,WATER [619A]
MKC38029901 MKC38029901 WINDOW [500F]
