Model Image
Manufacturer

LG

Model Number

GRL267ATBT

Description

Gr-l267atbt

Interactive Exploded View

Parts List

Part Number Description
3103JA1036B 3103JA1036B BASE ASSEMBLY,COMPRESSOR [305A]

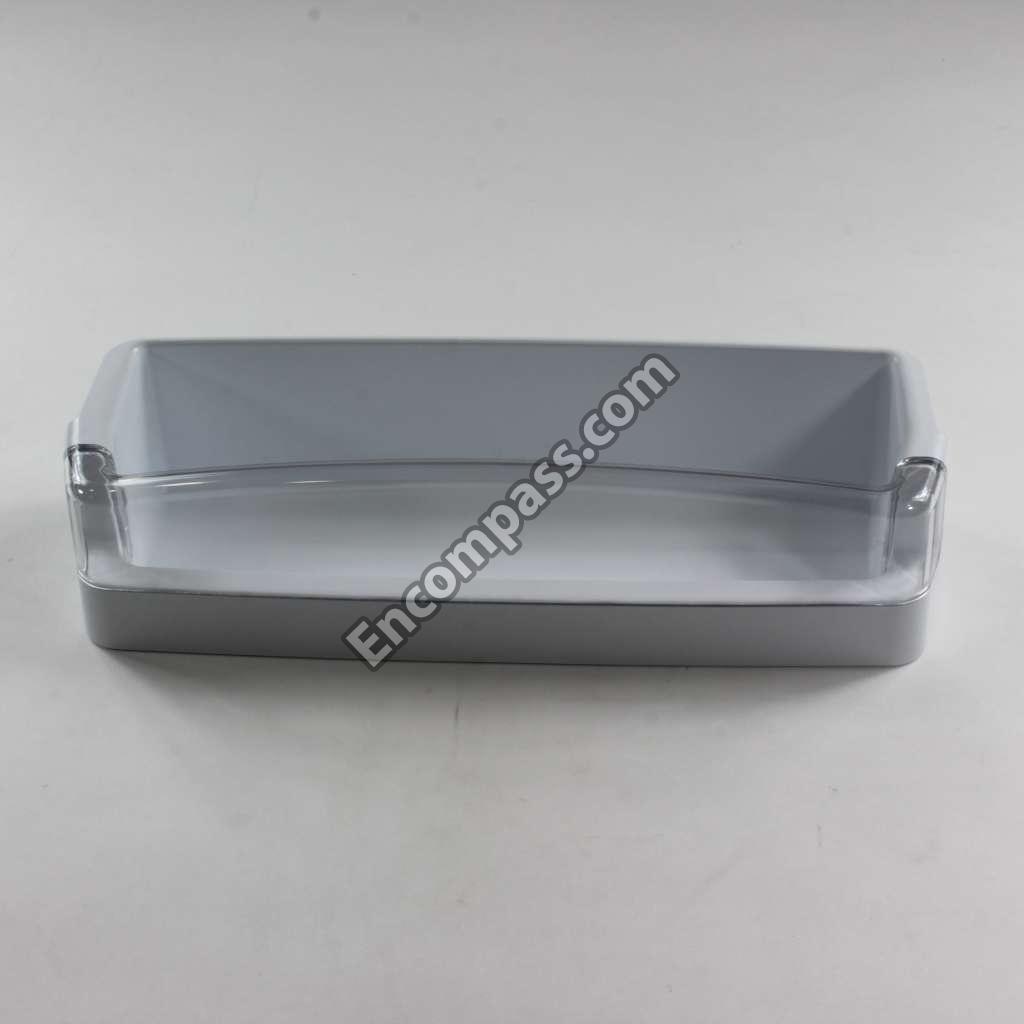

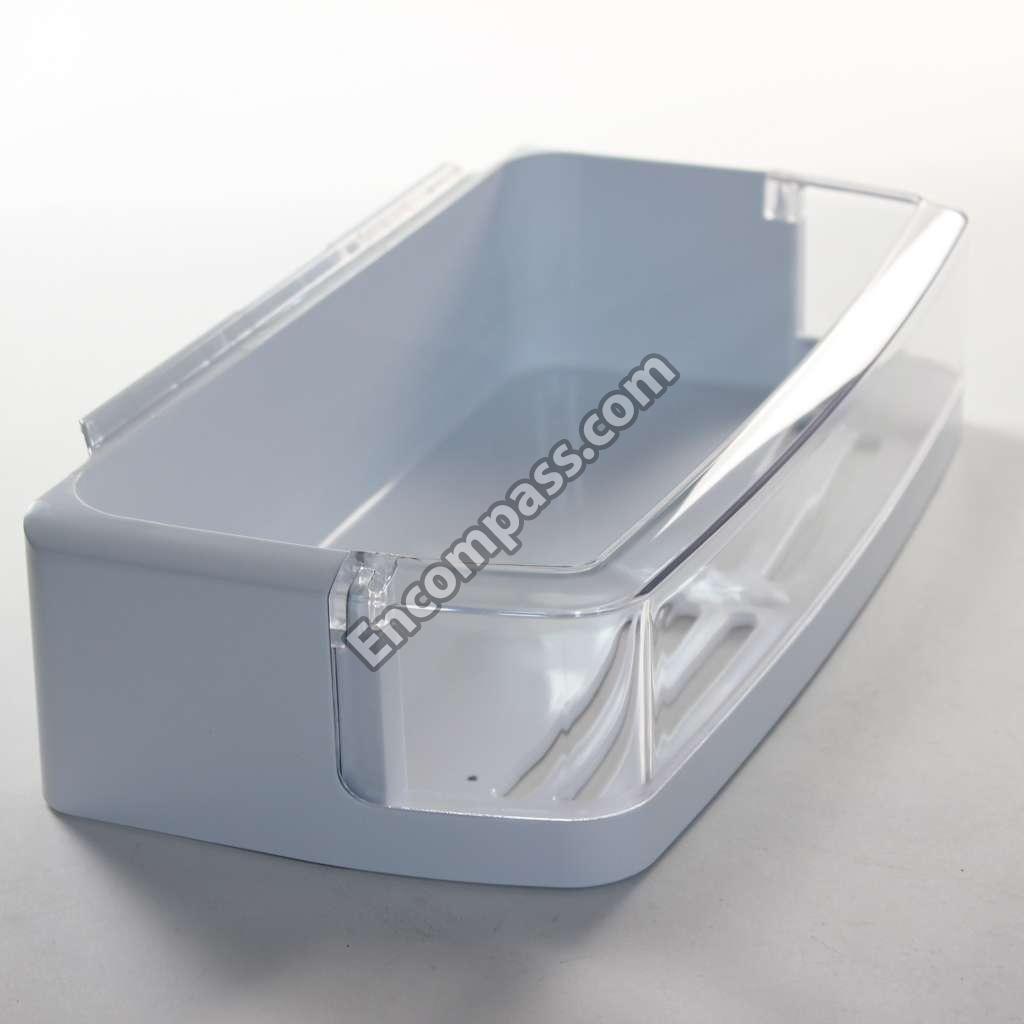

5005JA1020A 5005JA1020A BASKET ASSEMBLY,DOOR [240A]
5005JA1021A 5005JA1021A BASKET ASSEMBLY,DOOR [240C]
5005JA1016D 5005JA1016D BASKET ASSEMBLY,DOOR [241A]
5005JA1026B 5005JA1026B BASKET ASSEMBLY,DOOR [242A]
5004JA1183A 5004JA1183A BASKET,DOOR [241B]
4811JA2009A 4811JA2009A BRACKET ASSEMBLY,MOTOR [136B]
4810JA2078A 4810JA2078A BRACKET,ICE MAKER [602A]
5075JA1029S 5075JA1029S BUCKET ASSEMBLY,ICE [610A]
5020JA3021A 5020JA3021A BUTTON,LINK [280E]

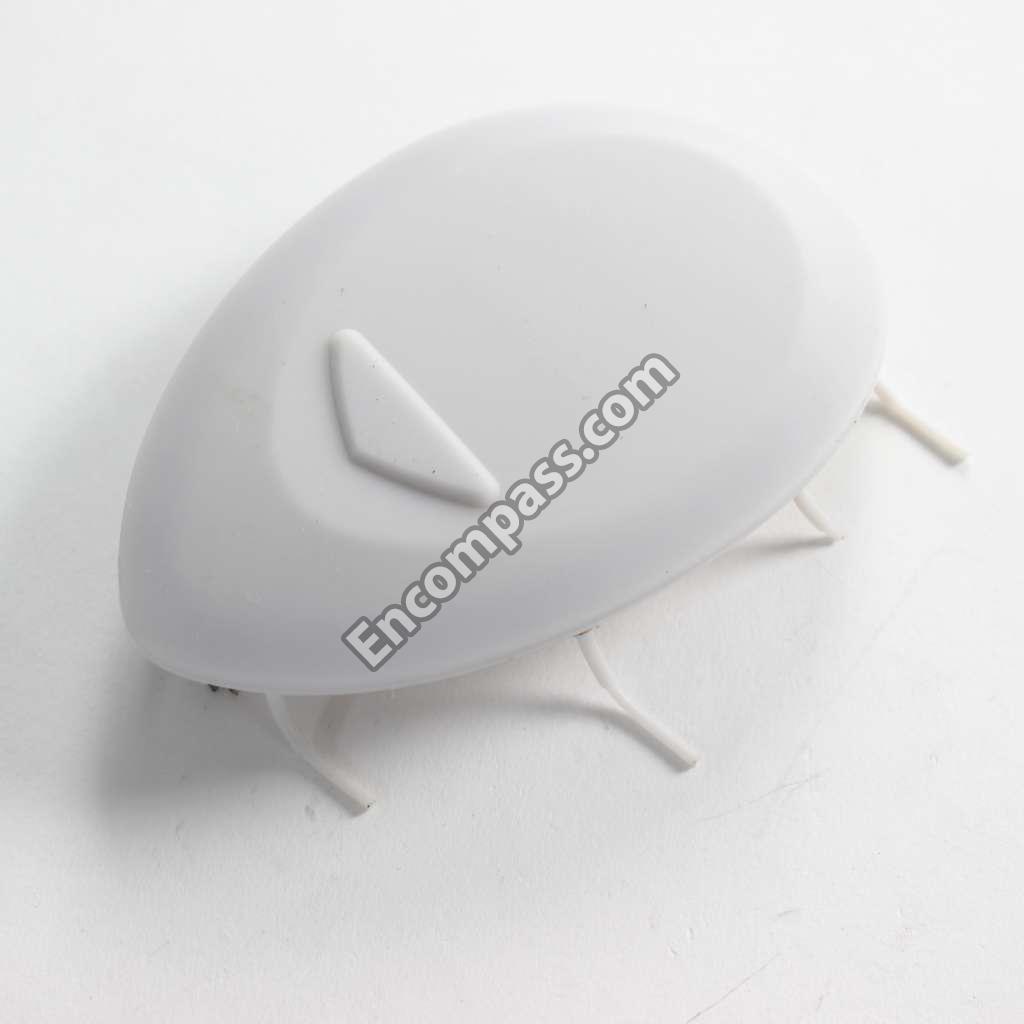

5007JA3006R 5007JA3006R CAP ASSEMBLY,DUCT [275A]
0CZZJB2013A 0CZZJB2013A CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [407B]
4995JA1038C 4995JA1038C CASE ASSEMBLY,CONTROL REFRIGERATOR [115A]
3111JA1033F 3111JA1033F CASE ASSEMBLY,MAGIC ROOM [167A]
3110JA1071A 3110JA1071A CASE,PCB [502B]
5044JA1001A 5044JA1001A CASE,SERVER [146B]
5403JA1003A 5403JA1003A CONDENSER ASSEMBLY,WIRE [301A]
4402JA3001A 4402JA3001A CONNECTOR [620A]
4932JA3002A 4932JA3002A CONNECTOR,TUBE [621B]
6615JB2002R 6615JB2002R CONTROLLER ASSEMBLY [400A]
3551JA2053E 3551JA2053E COVER ASSEMBLY,DEODORIZER [151A]

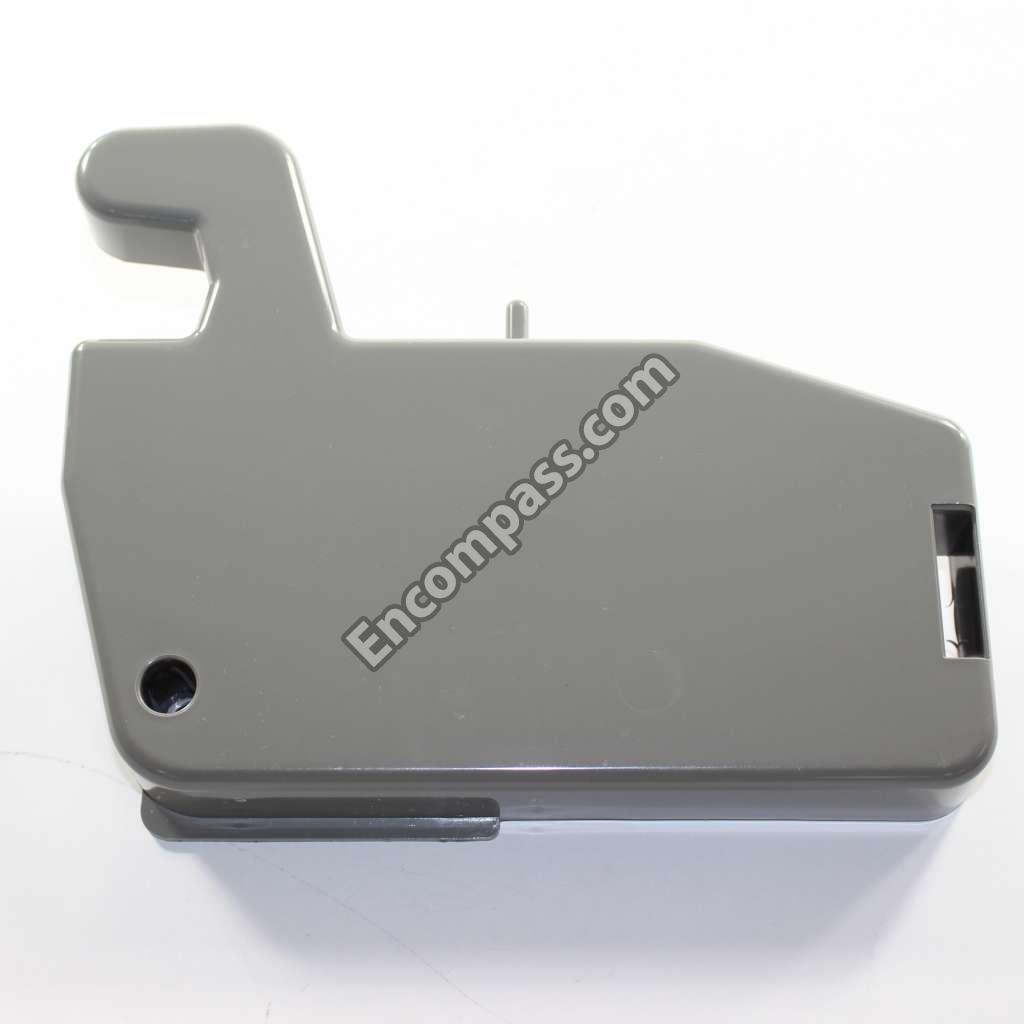

ACQ77080304 ACQ77080304 COVER ASSEMBLY,HINGE [270A]
3551JA1084E 3551JA1084E COVER ASSEMBLY,HINGE [270B]
3551JA1062Q 3551JA1062Q COVER ASSEMBLY,LOWER [105B]
3551JA1071A 3551JA1071A COVER ASSEMBLY,MACHINERY(REAR) [313A]

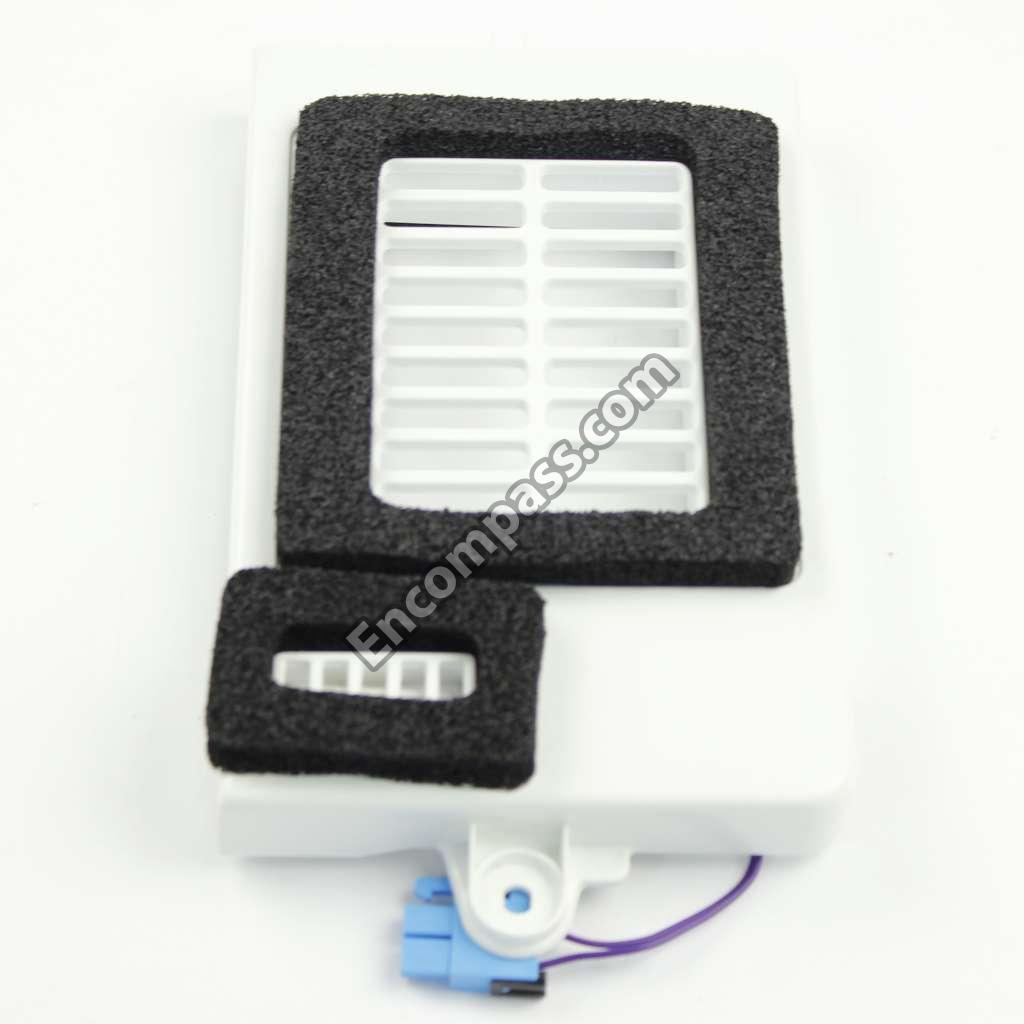

3551JA1067A 3551JA1067A COVER ASSEMBLY,MOTOR [139A]
3551JA1068E 3551JA1068E COVER ASSEMBLY,THERMAL [167C]
3551JA1063C 3551JA1063C COVER ASSEMBLY,TRAY [166A]
3551JA1064B 3551JA1064B COVER ASSEMBLY,TRAY [166C]
3551JA1066A 3551JA1066A COVER ASSEMBLY,TRAY [504A]
3550JD1086A 3550JD1086A COVER,BUCKET ICE [611B]
3550JA2215A 3550JA2215A COVER,DEODORIZER [151C]
3550JA2182A 3550JA2182A COVER,DUCT [155A]
3550JA2209A 3550JA2209A COVER,FILTER [624D]

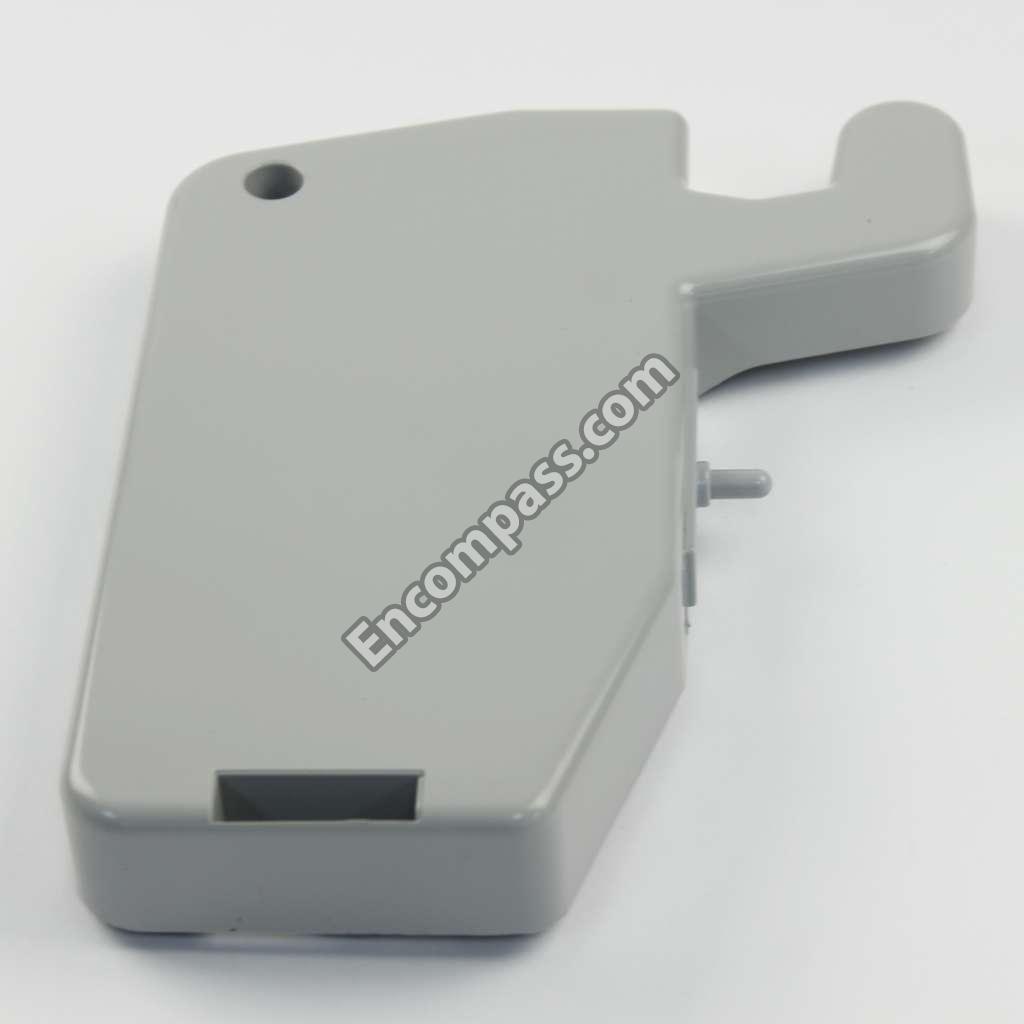

3550JA1299F 3550JA1299F COVER,HINGE [270C]
3550JA1299Q 3550JA1299Q COVER,HINGE [270D]

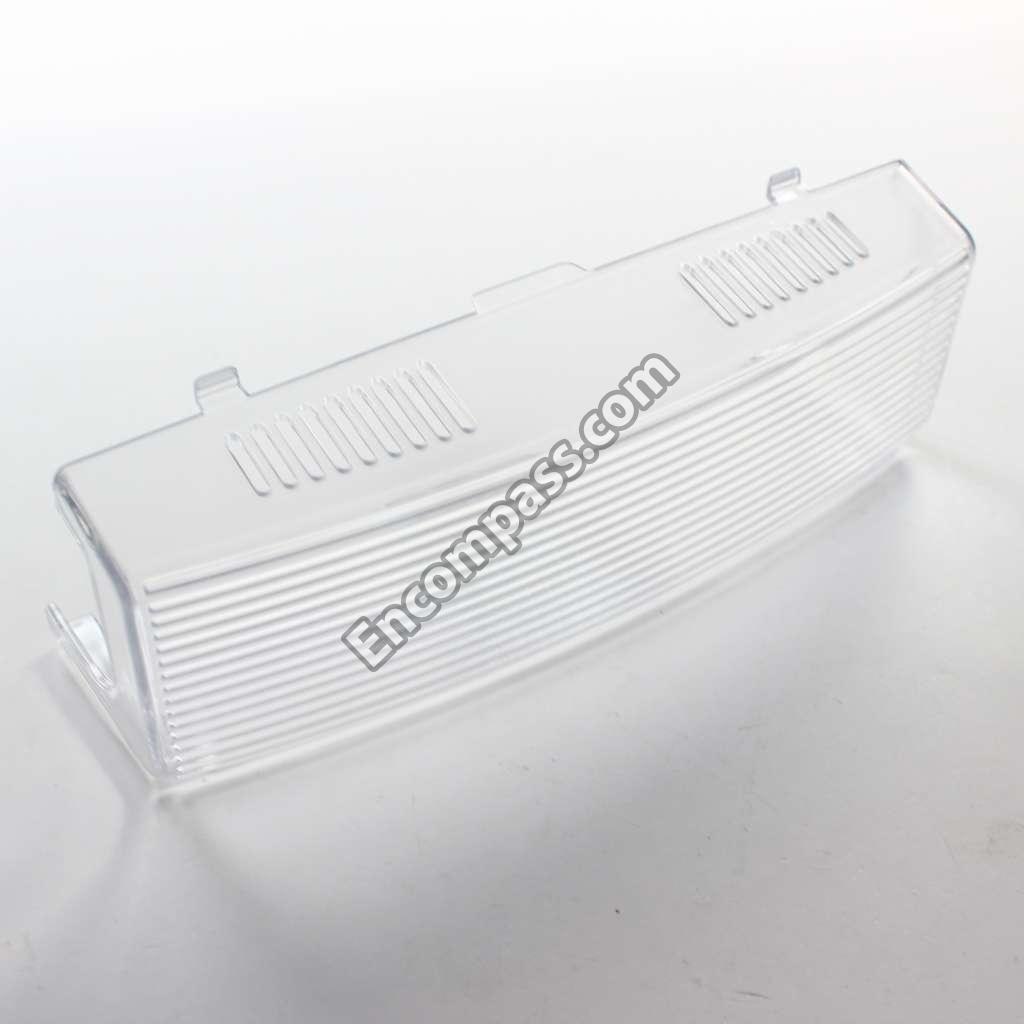

3550JA1495A 3550JA1495A COVER,LAMP [130A]
3550JA1297A 3550JA1297A COVER,LAMP [150A]
3550JA1311A 3550JA1311A COVER,MOTOR [139B]
3550JA2147A 3550JA2147A COVER,MOTOR [308C]
3550JA1395C 3550JA1395C COVER,PCB [502A]
3550JA2110B 3550JA2110B COVER,PTC [304A]
3550JA2035D 3550JA2035D COVER,SENSOR [152A]
3550JA2184B 3550JA2184B COVER,TUBE [625A]
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [136C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [136D]
5040JA2009A 5040JA2009A DAMPER,MOTOR SUPPORT [309C]
5072JA3003F 5072JA3003F DAMPER,NOISE [316A]
5072JA3002E 5072JA3002E DAMPER,NOISE [316B]
5040JA3056A 5040JA3056A DAMPER,PIPE [327A]
4J03020A 4J03020A DAMPER,PIPE [328A]
3806JA2074A 3806JA2074A DECOR,BASKET [242B]
3806JA0019D 3806JA0019D DECOR,DISPENSER [279C]

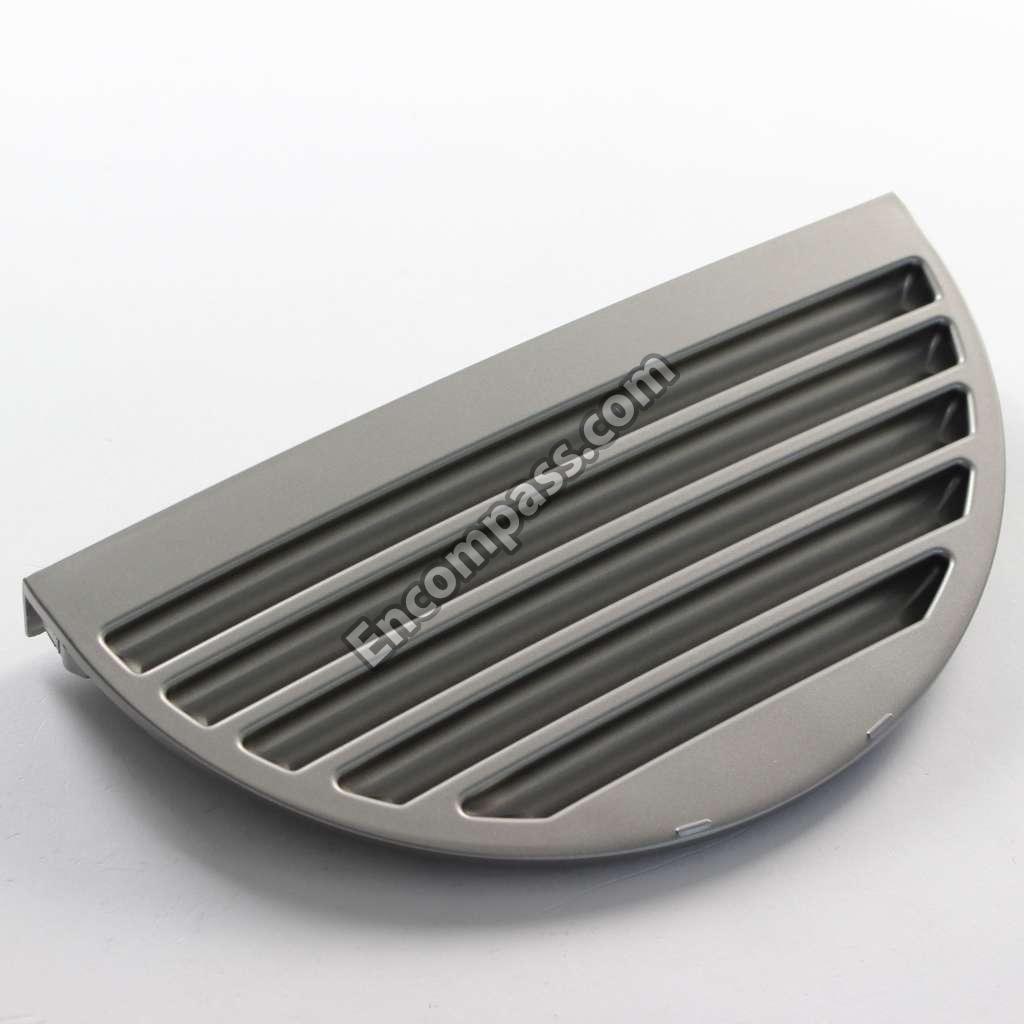

3806JA2046B 3806JA2046B DECOR,DRAIN [281A]
3806JA2045D 3806JA2045D DECOR,FRAME DISPLAY [279E]
ADC30116501 ADC30116501 DOOR ASSEMBLY,FREEZER [200A]
3581JA8572B 3581JA8572B DOOR ASSEMBLY,REFRIGERATOR [230A]
3581JA8569B 3581JA8569B DOOR ASSEMBLY,SEMI FREEZER [201A]
6877JB3053A 6877JB3053A DRAWING,ASSEMBLY [404A]
6877JB1272A 6877JB1272A DRAWING,ASSEMBLY [404B]

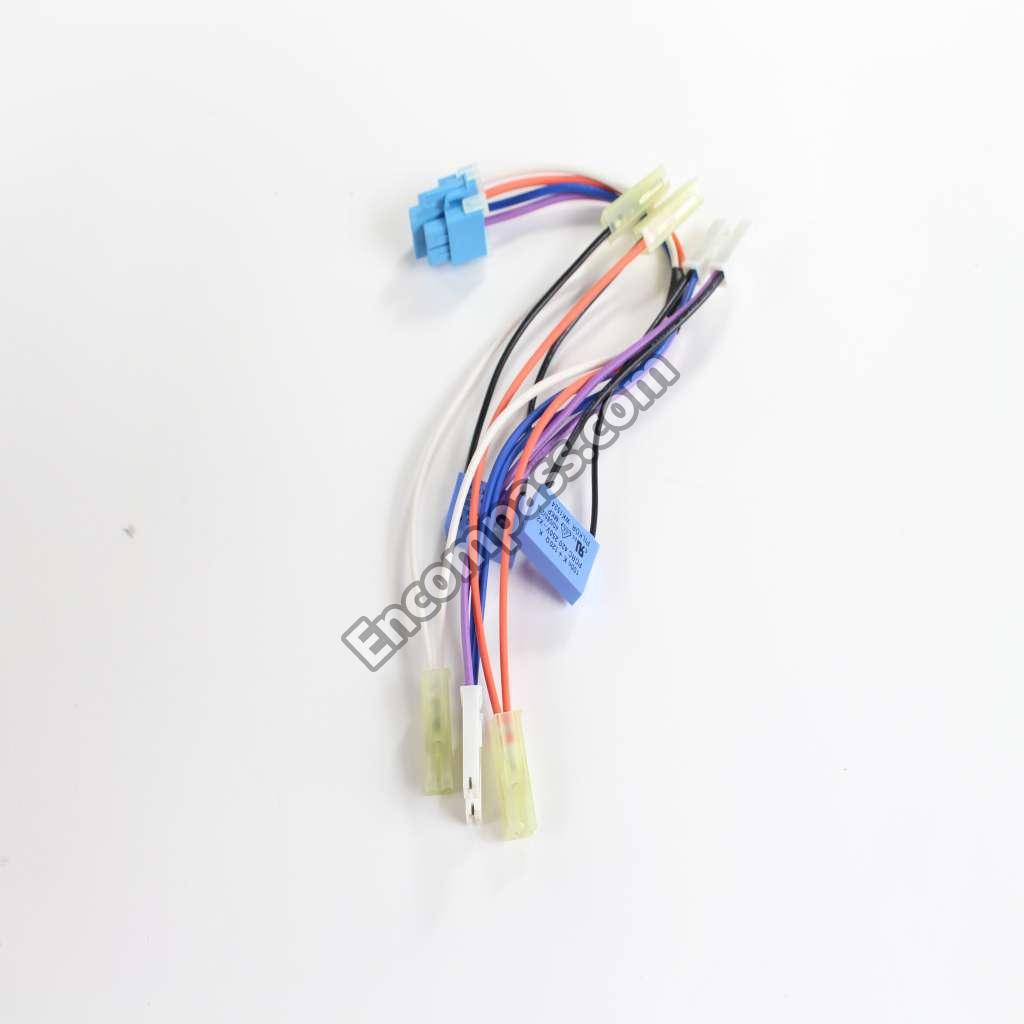

6621JK2002E 6621JK2002E DRAWING,ASSEMBLY [408B]
5851JA2008R 5851JA2008R DRIER ASSEMBLY [317A]
5209JA1036A 5209JA1036A DUCT ASSEMBLY,INSULATION [116A]
5209JA1040A 5209JA1040A DUCT ASSEMBLY,INSULATION [120E]
5421JA1126Q 5421JA1126Q EVAPORATOR ASSEMBLY [302B]

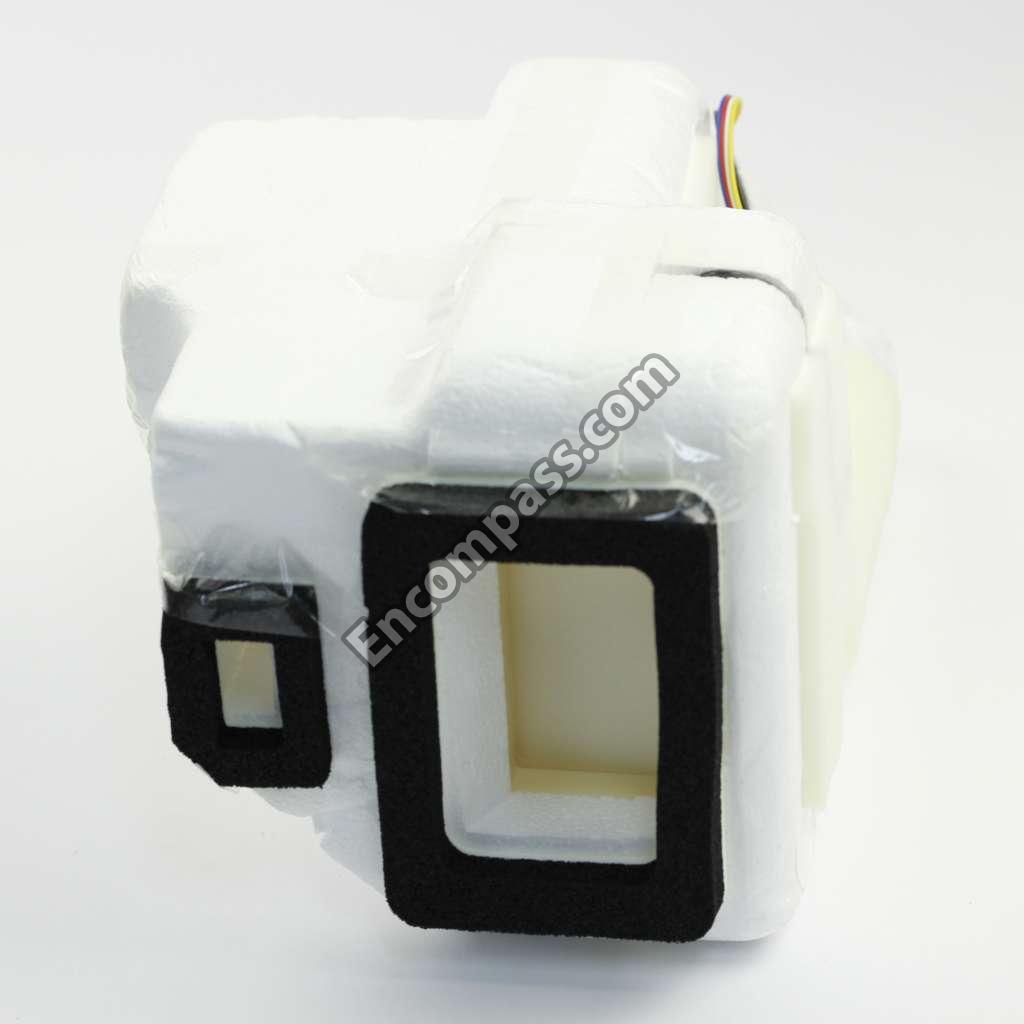

5901JA1019A 5901JA1019A FAN ASSEMBLY [309A]
5901JA1022A 5901JA1022A FAN ASSEMBLY [329A]
5231JA2006F 5231JA2006F FILTER ASSEMBLY,WATER [624A]
5230JA2003A 5230JA2003A FILTER,HEAD [624B]
3210JA2005B 3210JA2005B FRAME,DISPLAY [279D]
3017JA2004M 3017JA2004M FUNNEL ASSEMBLY [278A]
3016JA2002M 3016JA2002M FUNNEL [278G]
ADX62799529 ADX62799529 GASKET ASSEMBLY,DOOR [202A]
ADX62799506 ADX62799506 GASKET ASSEMBLY,DOOR [232A]
3531JA1040B 3531JA1040B GRILLE ASSEMBLY,FAN [135A]

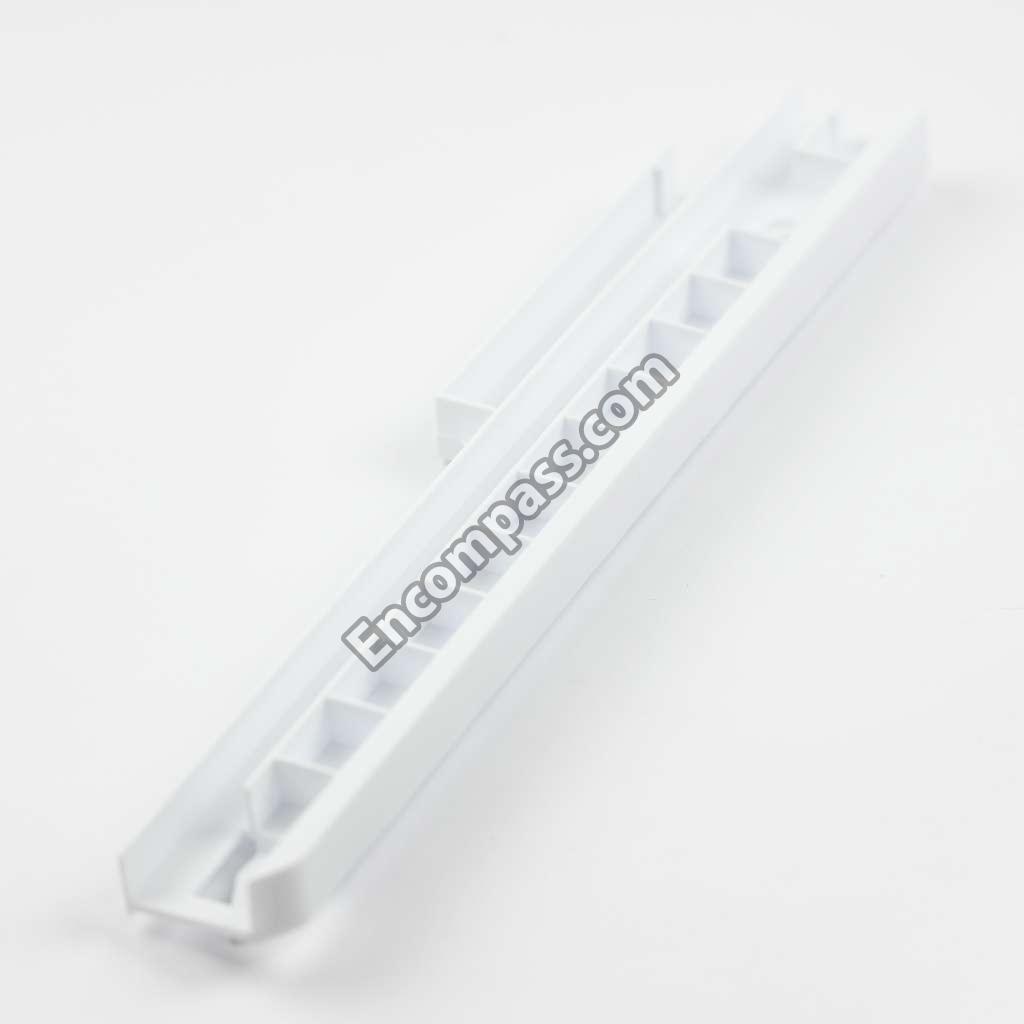

4975JA1017A 4975JA1017A GUIDE ASSEMBLY,RAIL [128G]
4975JA1017B 4975JA1017B GUIDE ASSEMBLY,RAIL [128H]
4975JA1012B 4975JA1012B GUIDE ASSEMBLY,RAIL [171D]
4975JA1022A 4975JA1022A GUIDE ASSEMBLY,RAIL [177A]
4975JA1018A 4975JA1018A GUIDE ASSEMBLY,RAIL [177B]
4974JD1003B 4974JD1003B GUIDE,AIR [611C]
4974JA1053A 4974JA1053A GUIDE,FAN [308B]
4974JA3028A 4974JA3028A GUIDE,ICE [613A]

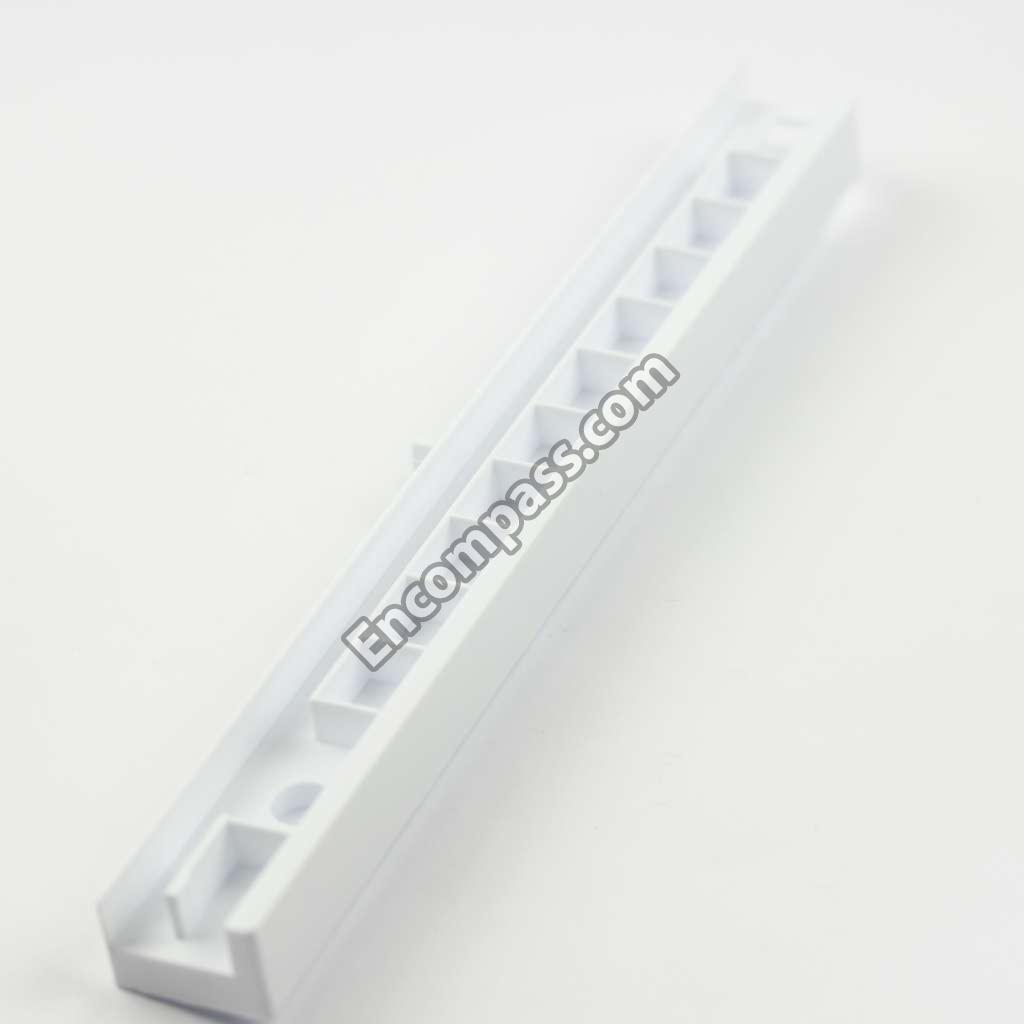

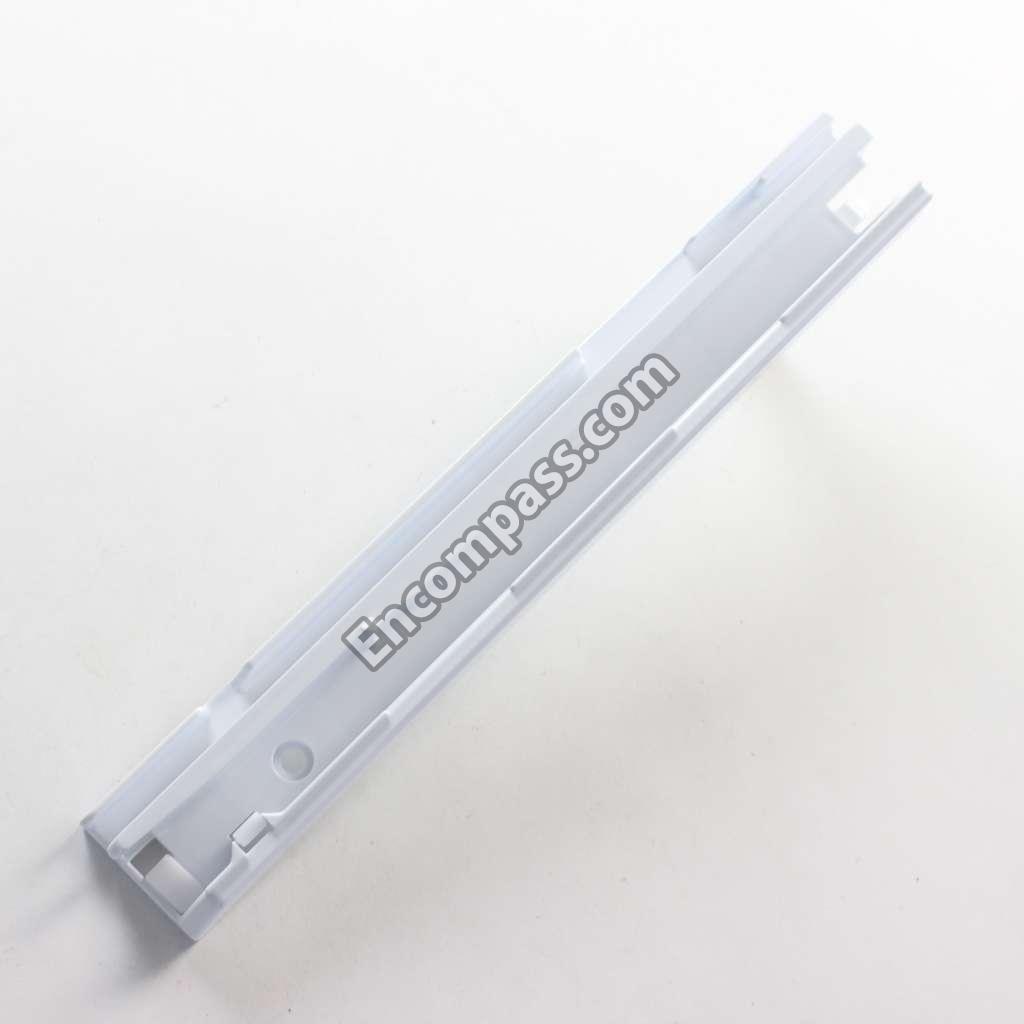

4974JA1084C 4974JA1084C GUIDE,RAIL [128D]
4974JA1086B 4974JA1086B GUIDE,RAIL [128E]
4974JA1086A 4974JA1086A GUIDE,RAIL [128F]
4974JA1091A 4974JA1091A GUIDE,RAIL [162A]
4974JA1091B 4974JA1091B GUIDE,RAIL [162B]
4974JA1064B 4974JA1064B GUIDE,RAIL [612B]
3650JA1164B 3650JA1164B HANDLE ASSEMBLY,FREEZER [205A]

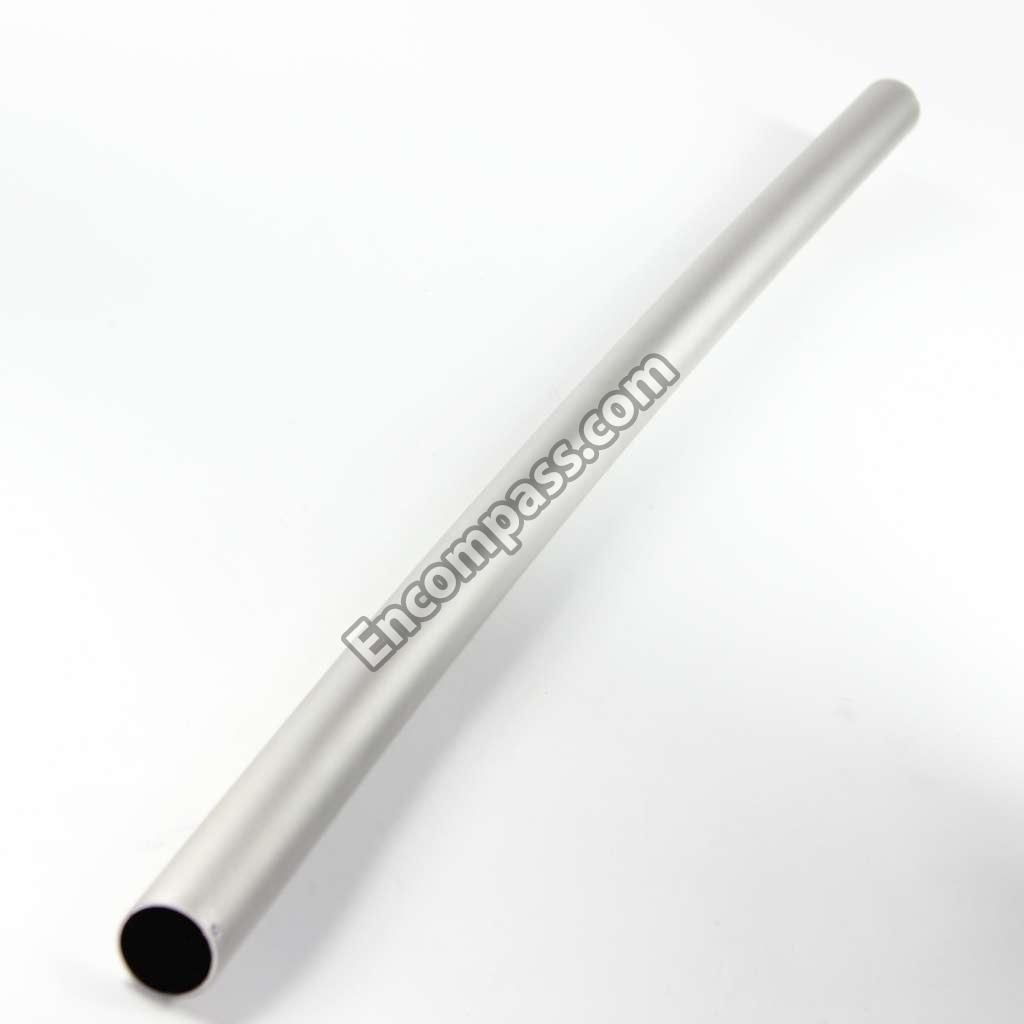

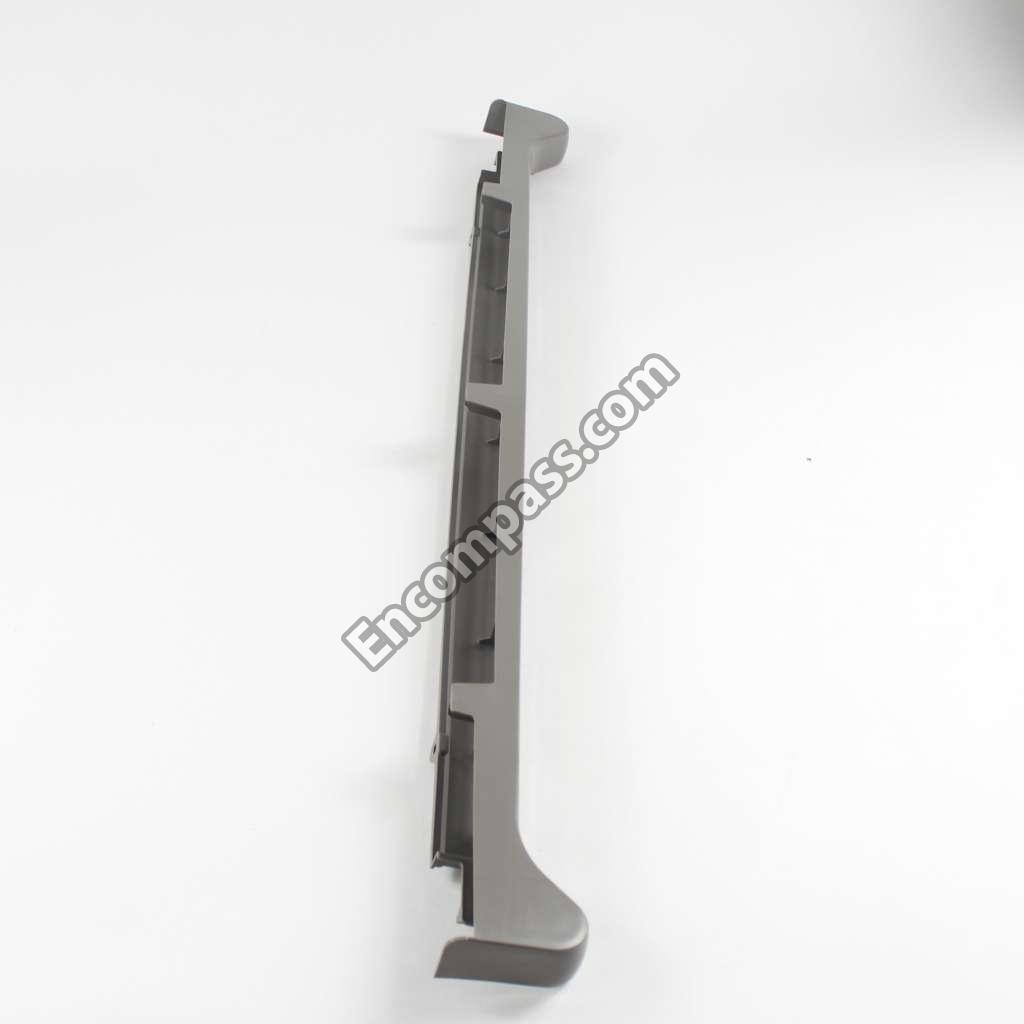

3650JA2100D 3650JA2100D HANDLE,BASE [205C]

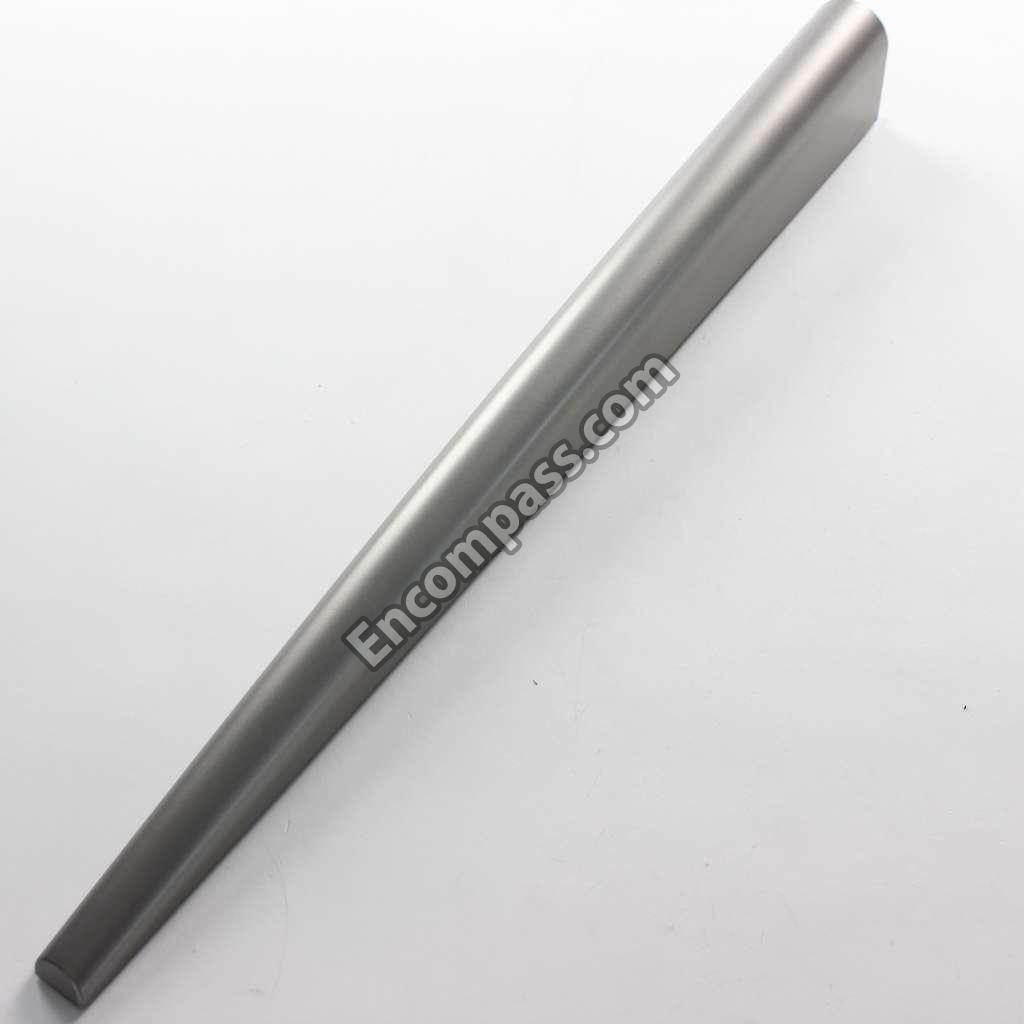

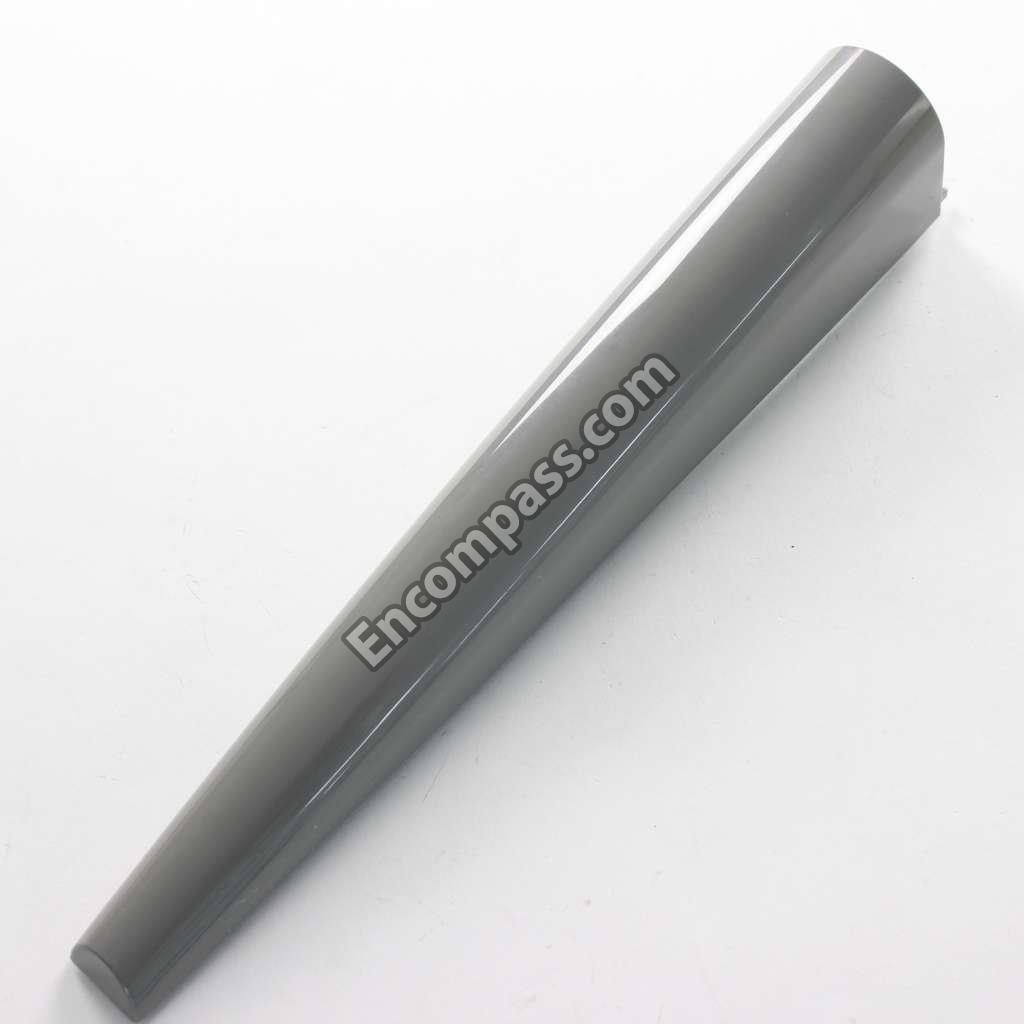

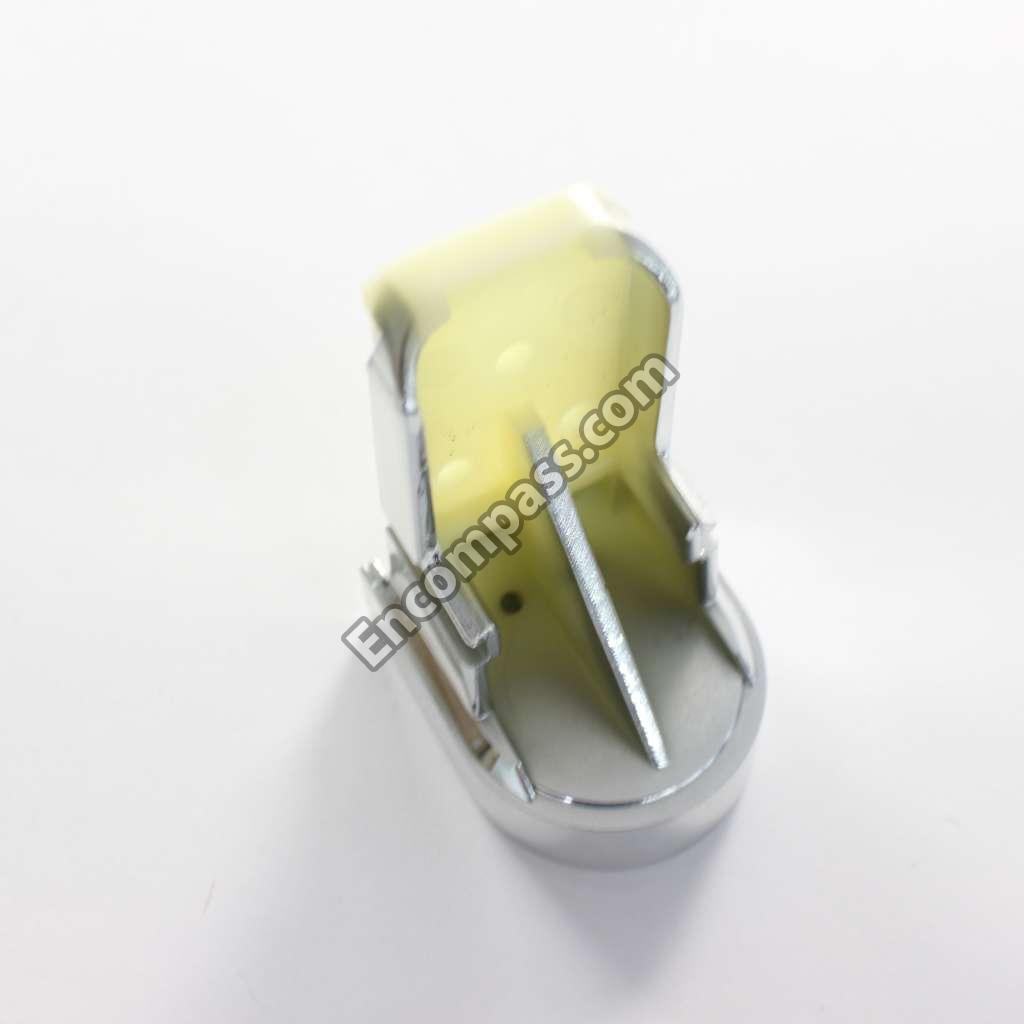

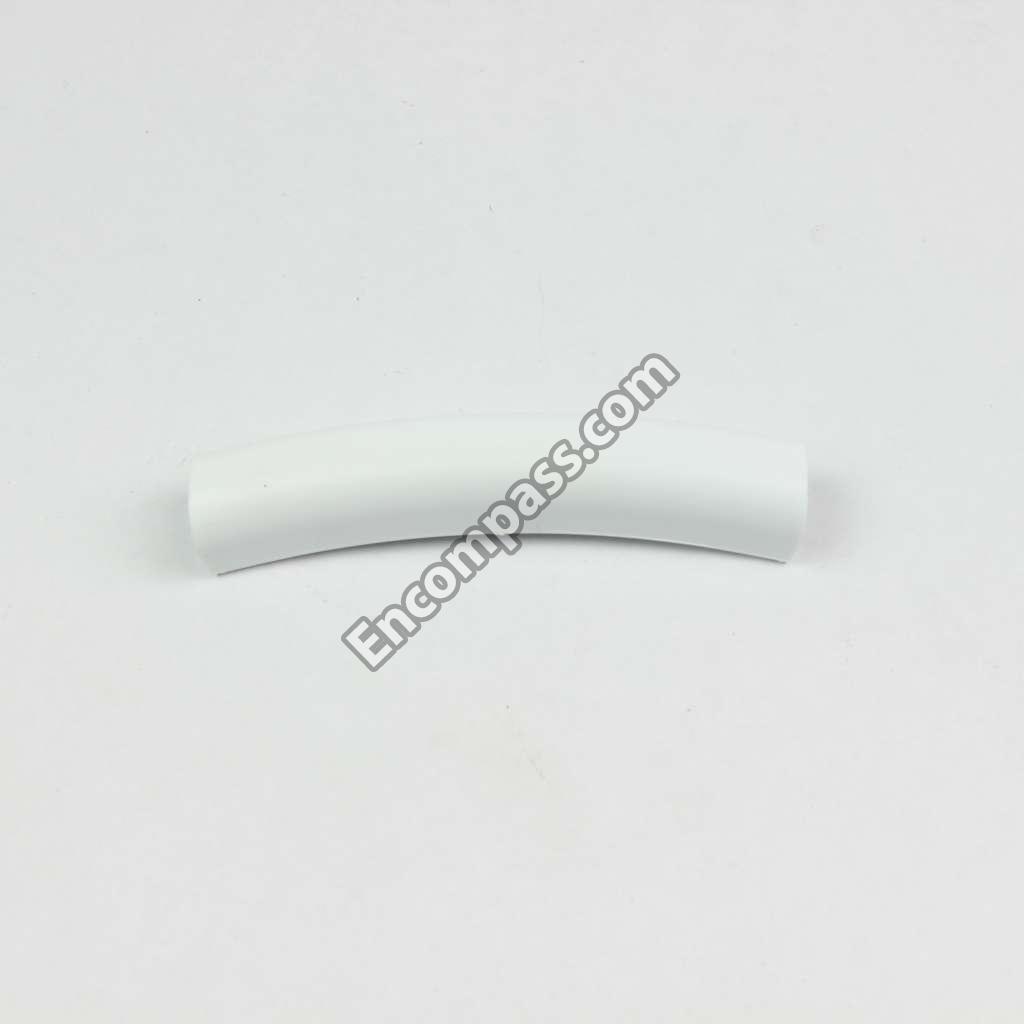

3650JA2098B 3650JA2098B HANDLE,DECOR [205E]
3650JA1177B 3650JA1177B HANDLE,DECOR [205F]
3650JA3041W 3650JA3041W HANDLE,REAR [101A]
3650JA3041X 3650JA3041X HANDLE,REAR [101B]
5300JB1102D 5300JB1102D HEATER,SHEATH [408A]
4775JA2105B 4775JA2105B HINGE ASSEMBLY,UPPER [271A]
4775JA2084B 4775JA2084B HINGE ASSEMBLY,UPPER [271C]
4930JA3034B 4930JA3034B HOLDER,DRIER [318A]
4930JA3043A 4930JA3043A HOLDER,LEVER [276B]
4930JA3081A 4930JA3081A HOLDER,PIPE [627A]
4930JA2023B 4930JA2023B HOLDER,SHELF [145A]
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [401A]
4779JA3001E 4779JA3001E LEG ASSEMBLY,ADJUST [103A]
4510JA2022A 4510JA2022A LEVER,DISPENSER [278C]
4510JA2018A 4510JA2018A LEVER,DISPENSER [278C]
4510JA2017D 4510JA2017D LEVER,DISPENSER [280G]
4510JA3004A 4510JA3004A LEVER,HINGE [271B]

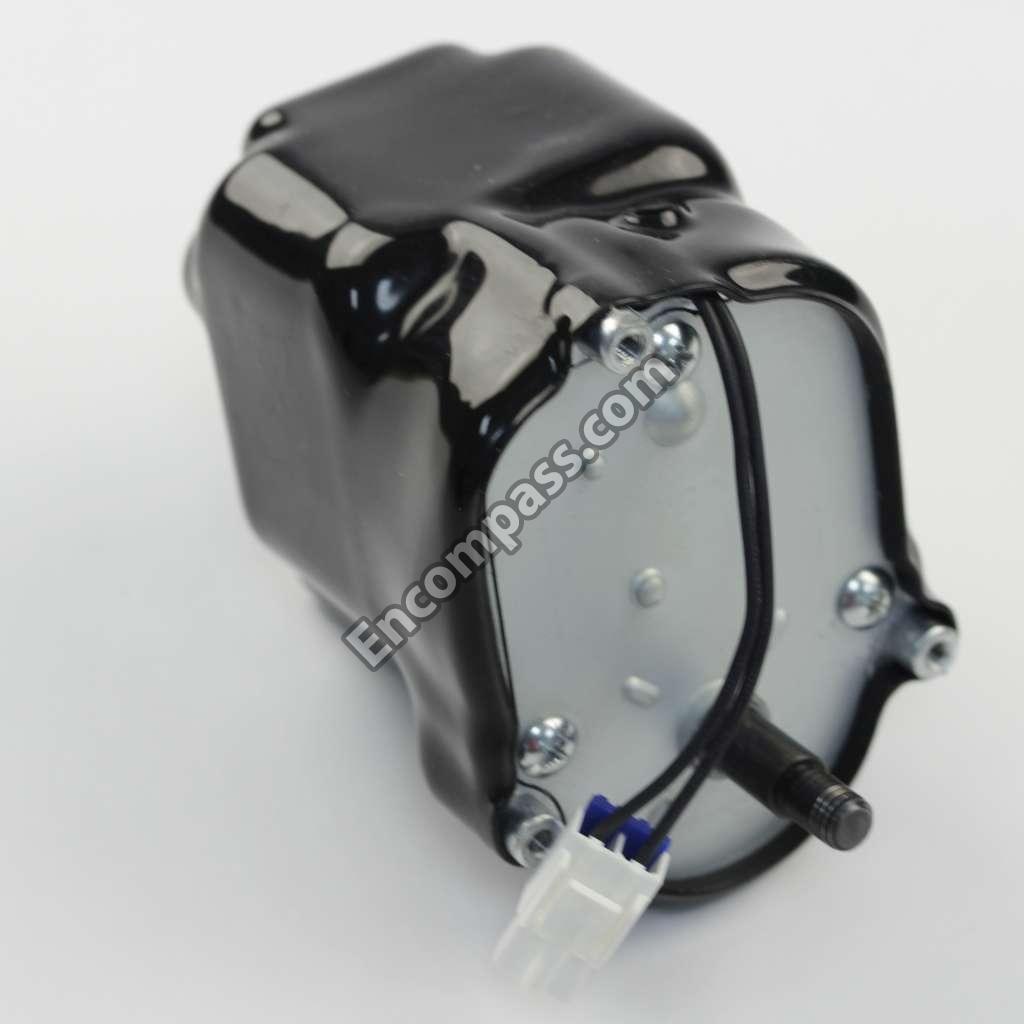

EAU33481409 EAU33481409 MOTOR, AC AUGER [606A]
4681JB1029A 4681JB1029A MOTOR,DC [403A]
4681JB1027B 4681JB1027B MOTOR,DC [403B]
4681JB2005E 4681JB2005E MOTOR,DC [403C]
4681JB2005A 4681JB2005A MOTOR,DC [403D]
6750C-0002Z 6750C-0002Z OVERLOAD PROTECT [303C]
3920JC3026A 3920JC3026A PACKING,DOOR [PD]
3920JC3025D 3920JC3025D PACKING,DOOR [PD]
6871JB1262A 6871JB1262A PCB ASSEMBLY,MAIN [500A]
1PZZJA3013A 1PZZJA3013A PIN,COMMON [305C]

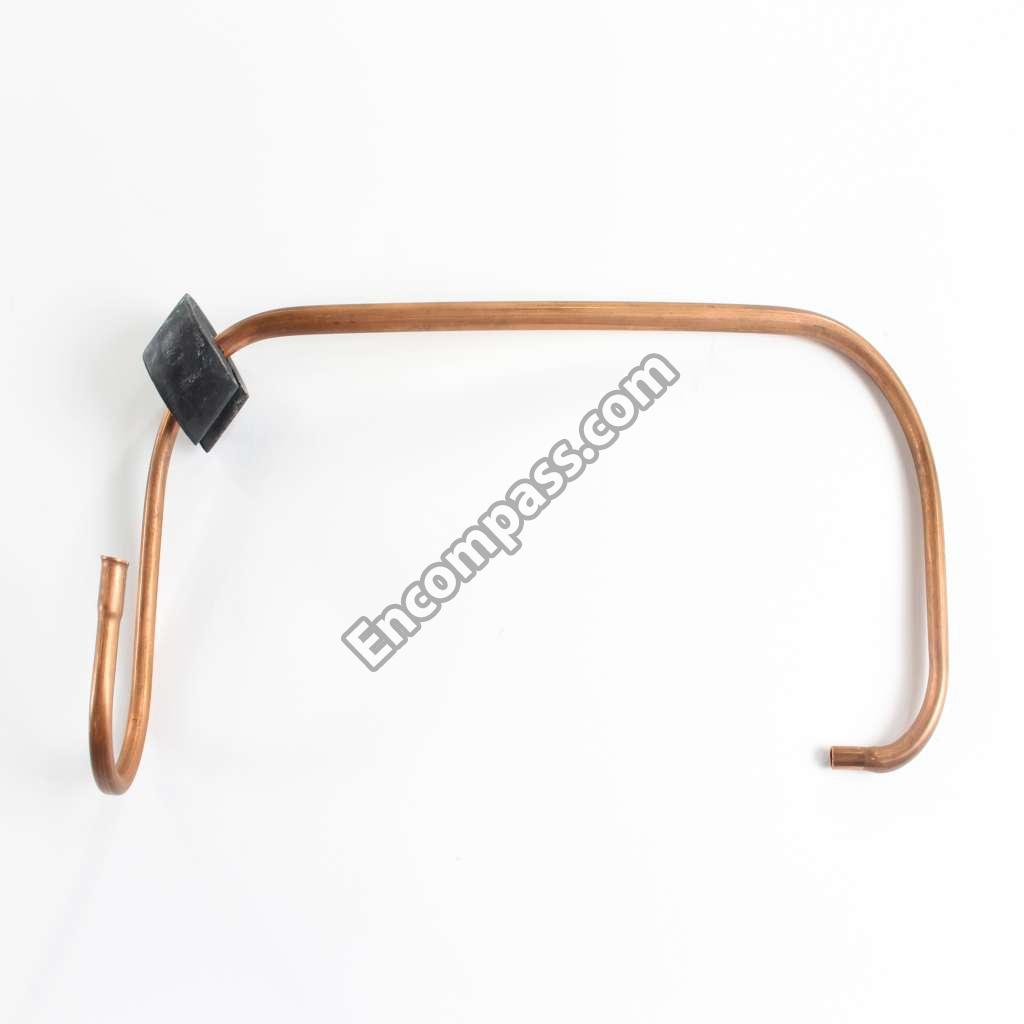

5201JA1067C 5201JA1067C PIPE ASSEMBLY,JOINT [310A]
5200JA1009E 5200JA1009E PIPE,JOINT [310B]
6411JB1033C 6411JB1033C POWER CORD ASSEMBLY [406A]
4580JA3028A 4580JA3028A ROLLER [167B]
4580JA3024A 4580JA3024A ROLLER [305B]
3858JA3005C 3858JA3005C SHEET,DUCT [278F]
5027JA1064A 5027JA1064A SHELF ASSEMBLY,FREEZER [120B]
5027JA1065A 5027JA1065A SHELF ASSEMBLY,FREEZER [120C]
5027JA2076E 5027JA2076E SHELF ASSEMBLY,NET [141C]
5027JA2076C 5027JA2076C SHELF ASSEMBLY,NET [142D]

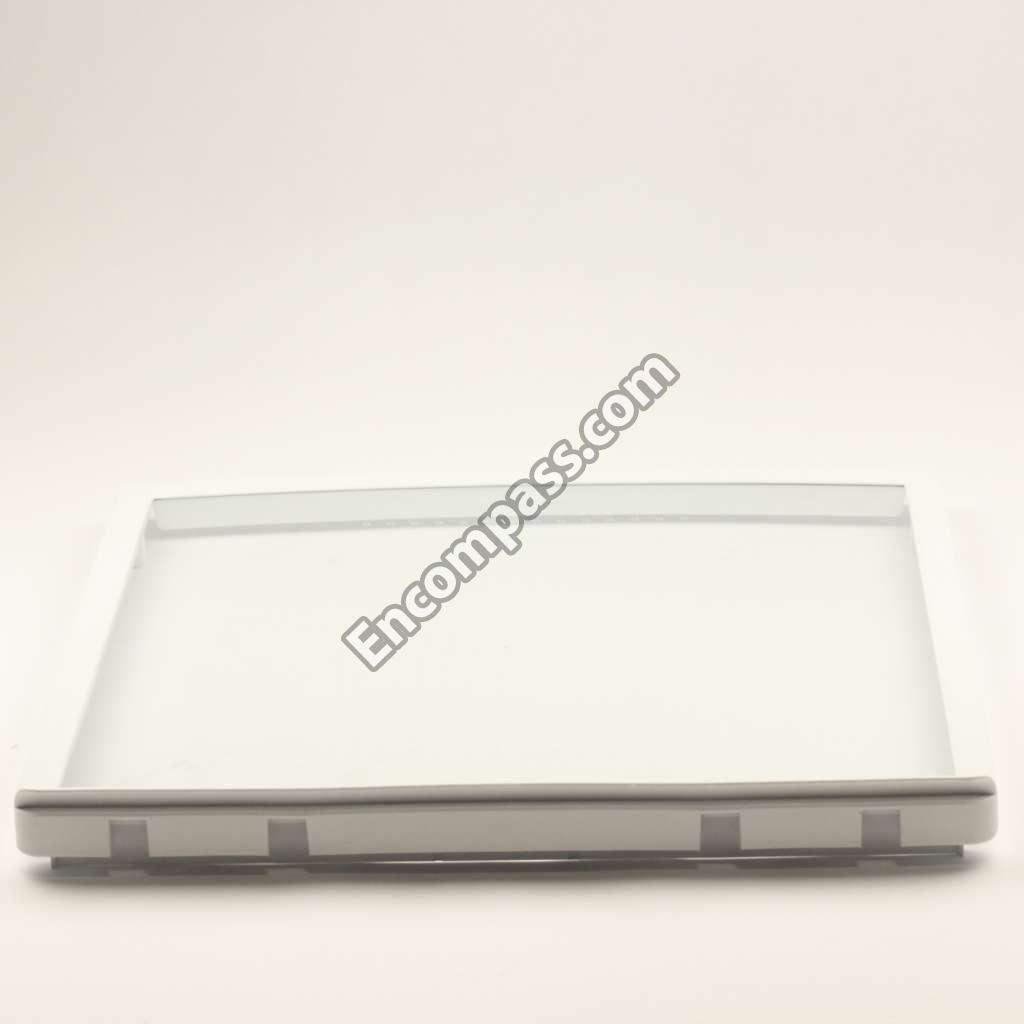

5027JA1062A 5027JA1062A SHELF ASSEMBLY,REFRIGERATOR [140A]
5027JA1061B 5027JA1061B SHELF ASSEMBLY,REFRIGERATOR [140B]
5027JA1062B 5027JA1062B SHELF ASSEMBLY,REFRIGERATOR [141A]
5027JA2077B 5027JA2077B SHELF ASSEMBLY,REFRIGERATOR [142B]
5027JA1063B 5027JA1063B SHELF ASSEMBLY,REFRIGERATOR [142C]
4999JA2024B 4999JA2024B SHROUD ASSEMBLY,FREEZER [137A]
4999JA2025A 4999JA2025A SHROUD ASSEMBLY,FREEZER [137B]
5070JA3002F 5070JA3002F SKIRT,LOWER [105C]
5070JA3002G 5070JA3002G SKIRT,LOWER [105D]
5070JA3002J 5070JA3002J SKIRT,LOWER [105E]
6421JA3001D 6421JA3001D SOLENOID ASSEMBLY [614A]
6421JB2002R 6421JB2002R SOLENOID,REVERSING,VALVE [405A]
4970JA3011K 4970JA3011K SPRING,LEVER [276A]
4621JQ3001G 4621JQ3001G STOPPER ASSEMBLY,DOOR [203A]
AJC34211602 AJC34211602 STOPPER ASSEMBLY,DOOR [233A]
4J03277A 4J03277A STOPPER,COMPRESSOR [307A]
5028JA3002A 5028JA3002A SUPPORTER,COMPRESSOR [306A]
6600JB3001C 6600JB3001C SWITCH,MICRO [402C]
6600JB3007B 6600JB3007B SWITCH,PUSH BUTTON [402A]
3391JA2036A 3391JA2036A TRAY ASSEMBLY,DRAIN [312A]
3390JJ1195A 3390JJ1195A TRAY ASSEMBLY,DRAWER [125A]

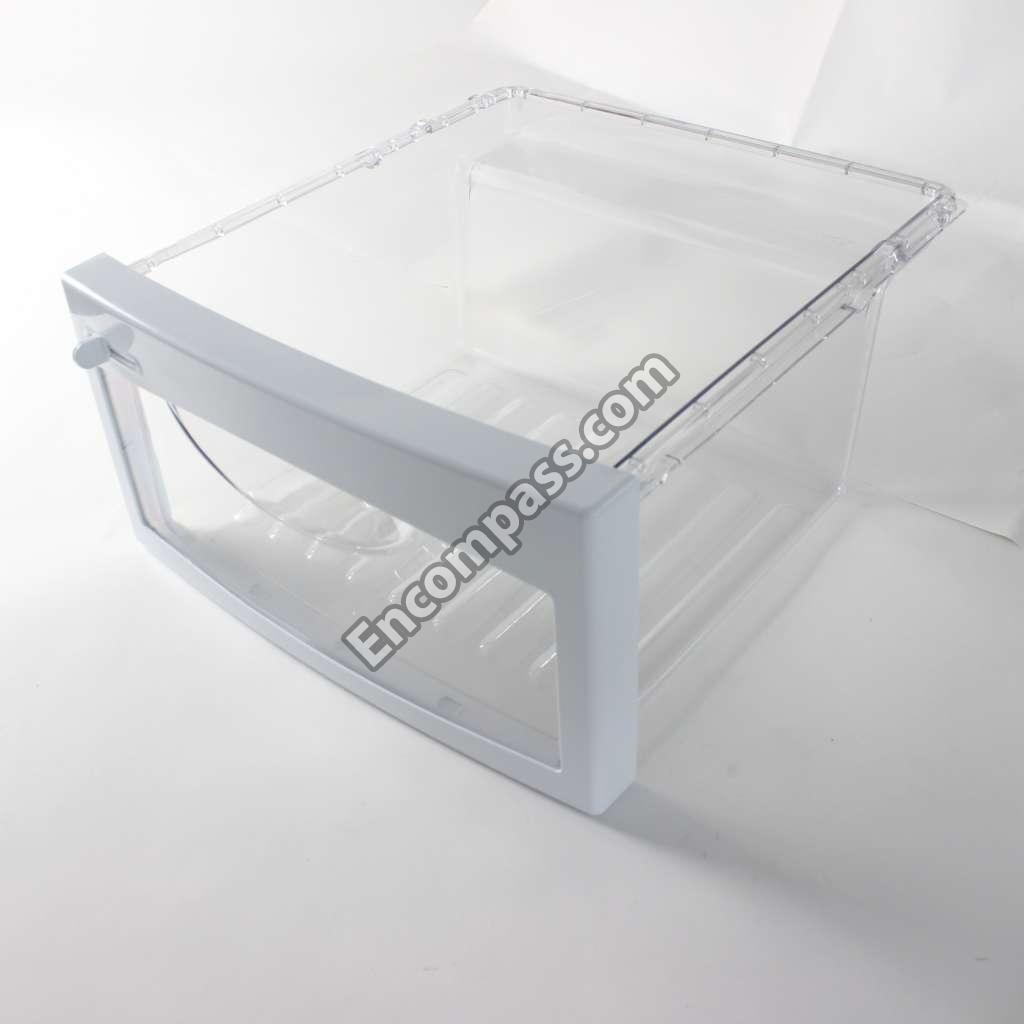

3391JA1082F 3391JA1082F TRAY ASSEMBLY,VEGETABLE [165A]
3390JA1086A 3390JA1086A TRAY,EGG [147B]
3390JA1193A 3390JA1193A TRAY,PIZZA [121A]
5251JA3004B 5251JA3004B TUBE ASSEMBLY,DRAIN [104A]
5040JA2015A 5040JA2015A TUBE,INLET [618A]
5210JA3005F 5210JA3005F TUBE,PLASTIC [616D]
MJU62070603 MJU62070603 TUBE,PLASTIC [616F]
5210JA3005E 5210JA3005E TUBE,PLASTIC [616G]

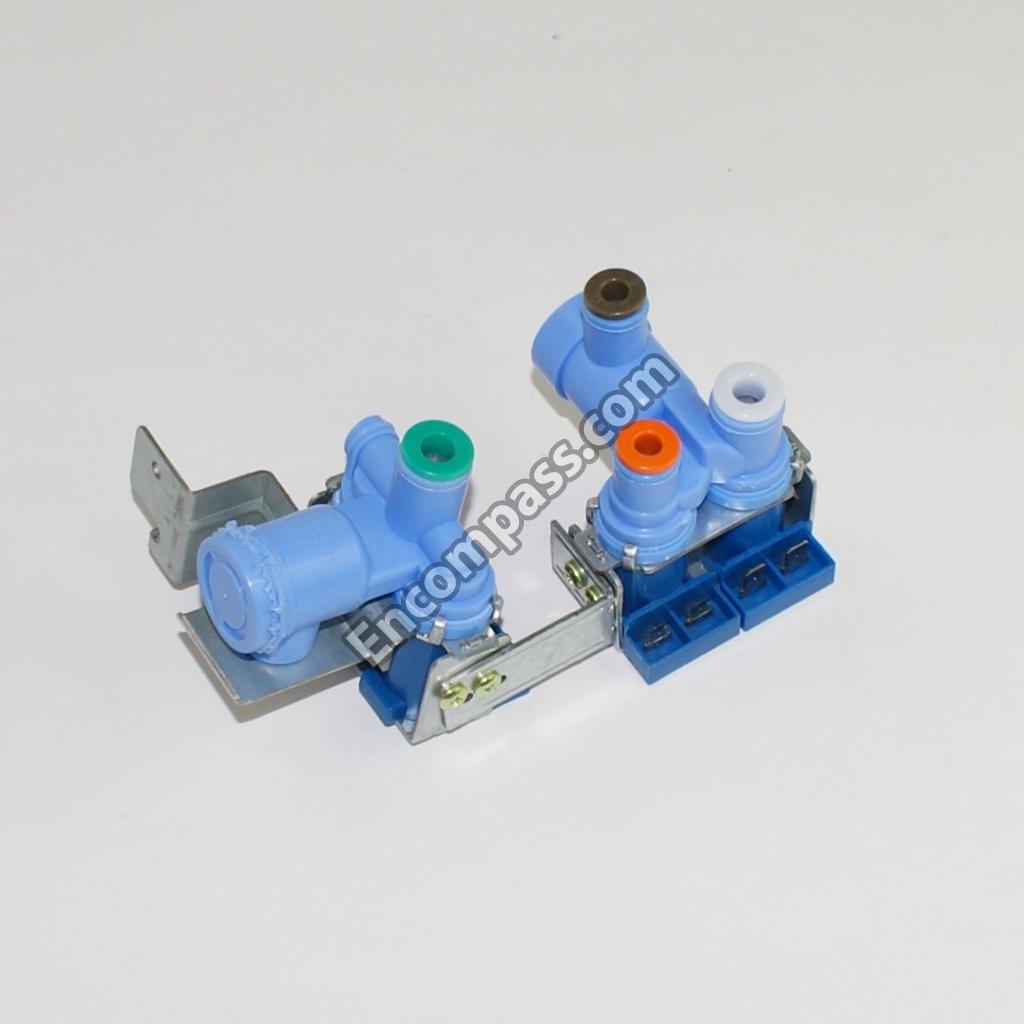

5221JB2006A 5221JB2006A VALVE ASSEMBLY,WATER [619A]
