Model Image
Manufacturer

LG

Model Number

JE1340BC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3890W3Y010A 3890W3Y010A BOX,[YELLOW]
4810W4C003A 4810W4C003A BRACKET,CAPACITOR
4B74584A 4B74584A BRACKET,THERMOSTAT
5020W2A138B 5020W2A138B BUTTON
6908W3YA01C 6908W3YA01C BUZZER,PIEZO
6021W3B001U 6021W3B001U CABLE,ASSEMBLY
5006W3A010A 5006W3A010A CAP,CHOKE COVER
0CE1056K638 0CE1056K638 CAPACITOR,AL,RADIAL
0CE4766K638 0CE4766K638 CAPACITOR,AL,RADIAL
0CE4756K638 0CE4756K638 CAPACITOR,AL,RADIAL
0CE2276H638 0CE2276H638 CAPACITOR,AL,RADIAL
0CK2210K518 0CK2210K518 CAPACITOR,CERAMIC,AXIAL
0CK2230K948 0CK2230K948 CAPACITOR,CERAMIC,AXIAL
0CK1040K948 0CK1040K948 CAPACITOR,CERAMIC,AXIAL
0CZZW1H003H 0CZZW1H003H CAPACITOR,HIGH VOLTAGE
6877W1A215A 6877W1A215A CONNECTOR ASSEMBLY
4051W3A001A 4051W3A001A CONNECTOR ASSEMBLY
6630W5YA19D 6630W5YA19D CONNECTOR,FFC/FPC/PIC
6630W5V021A 6630W5V021A CONNECTOR,WAFER
3572W0A204B 3572W0A204B CONTROL PANEL
4781W1M240B 4781W1M240B CONTROLLER ASSY,[MICOM]

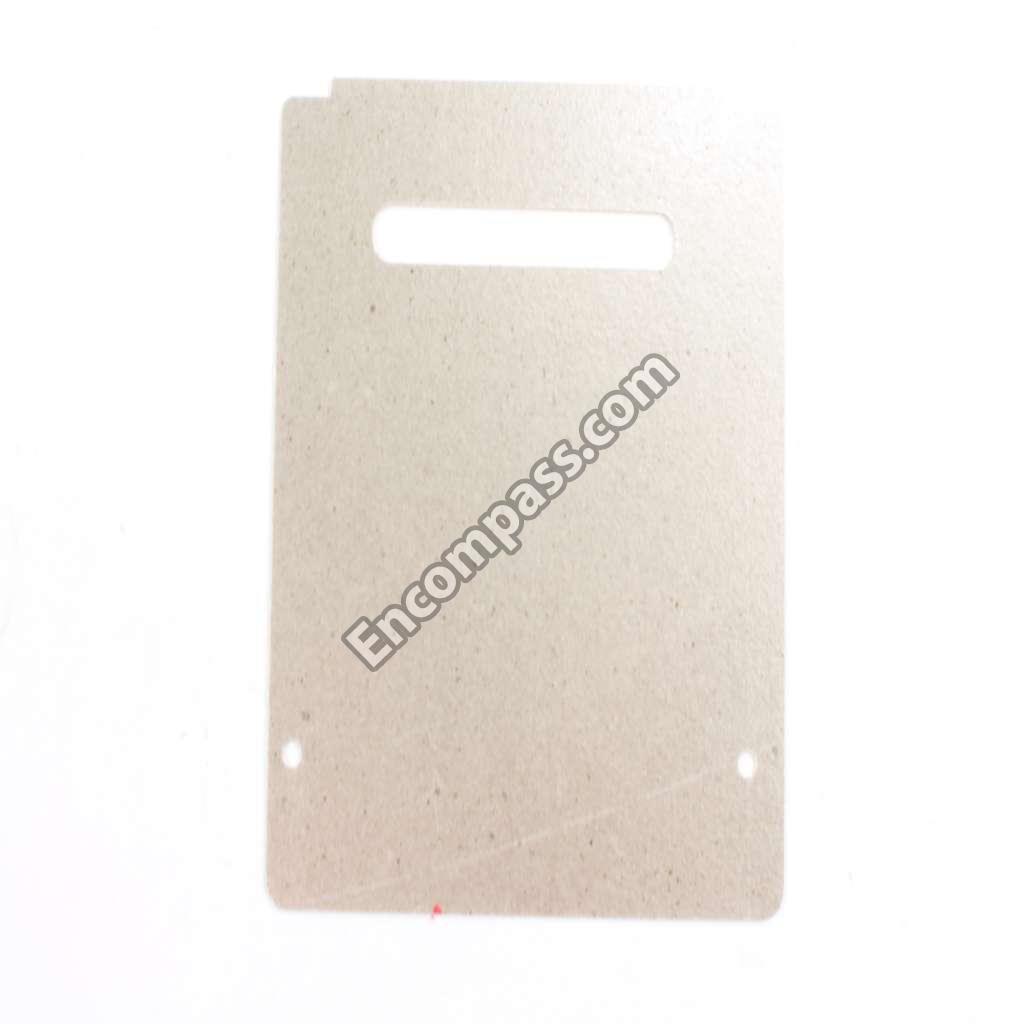

3552W1A028A 3552W1A028A COVER,CHOKE
3550W4A029B 3550W4A029B COVER,DISPLAY
3052W3M008B 3052W3M008B COVER,INSULATOR
4850W4C001A 4850W4C001A DAMPER
4B73438L 4B73438L DAMPER
3B72244C 3B72244C DAMPER
3B72244G 3B72244G DAMPER
0DD400209AA 0DD400209AA DIODE,RECTIFIER
0DD414809AB 0DD414809AB DIODE,SWITCHING
0DZ510009AA 0DZ510009AA DIODE,ZENER
3581W1A235B 3581W1A235B DOOR ASSEMBLY
5262W2A043A 5262W2A043A DUCT
5900W1A004A 5900W1A004A FAN,PROPELLER
4B73900A 4B73900A FOOT
3213W1A031B 3213W1A031B FRAME ASSEMBLY,DOOR
4930W3B025B 4930W3B025B FUSE HOLDER
3B74133Q 3B74133Q FUSE,TIME DELAY
4974W1S010A 4974W1S010A GUIDE,SUCTION
3501W1A003S 3501W1A003S HOLDER ASSEMBLY,LOCKER
3500W1A008A 3500W1A008A HOLDER,LOCKER
4930W3B029A 4930W3B029A HOLDER,WIRE
0IZZW5A081A 0IZZW5A081A IC,DRAWING
5012W3A012A 5012W3A012A INSULATOR
3850W3D010B 3850W3D010B LABEL,COOKING GUIDE
6912W3B002L 6912W3B002L LAMP,INCANDESCENT
4510W3L003A 4510W3L003A LEVER
4026W2A012A 4026W2A012A LOCKER
6324W1A001H 6324W1A001H MAGNETRON
6638W2A358B 6638W2A358B MEMBRANE
6549W1S017A 6549W1S017A MOTOR, AC SYNCHRONOUS
6549W1F001E 6549W1F001E MOTOR,AC FAN
3112W0U039G 3112W0U039G OUT CASE,[U-BENDING]
3720W0D166B 3720W0D166B PANEL,[DOOR]
6871W2S125T 6871W2S125T PCB ASSEMBLY,SUB
3303W2A003G 3303W2A003G PLATE ASSEMBLY,BASE
3303W1A026E 3303W1A026E PLATE ASSEMBLY,BASE
3302W1A033F 3302W1A033F PLATE,BASE
3302W1A034A 3302W1A034A PLATE,BASE
6411W2A002X 6411W2A002X POWER CORD ASSEMBLY
6920W5A012A 6920W5A012A RELAY,CONTACT
6920W2D010B 6920W2D010B RELAY,CONTACT
0RZ1503G610 0RZ1503G610 RESISTOR,ARRAY
0RD2202F608 0RD2202F608 RESISTOR,CARBON FILM
0RD1004F608 0RD1004F608 RESISTOR,CARBON FILM
0RD3900F608 0RD3900F608 RESISTOR,CARBON FILM
0RD2001F608 0RD2001F608 RESISTOR,CARBON FILM
0RD5601F608 0RD5601F608 RESISTOR,CARBON FILM
0RD2701F608 0RD2701F608 RESISTOR,CARBON FILM
0RD1002F608 0RD1002F608 RESISTOR,CARBON FILM
0RD1001G608 0RD1001G608 RESISTOR,CARBON FILM
0RD2202G608 0RD2202G608 RESISTOR,CARBON FILM
0RD1003F608 0RD1003F608 RESISTOR,CARBON FILM
0RD4701G608 0RD4701G608 RESISTOR,CARBON FILM
0RD0102F608 0RD0102F608 RESISTOR,CARBON FILM
0RD4702F608 0RD4702F608 RESISTOR,CARBON FILM
0RD1000F608 0RD1000F608 RESISTOR,CARBON FILM
0RD1001F608 0RD1001F608 RESISTOR,CARBON FILM
0RD4701F608 0RD4701F608 RESISTOR,CARBON FILM
0RD1501F608 0RD1501F608 RESISTOR,CARBON FILM
1SZZW2A002D 1SZZW2A002D SCREW,CUSTOMIZED
1SZZW2A002A 1SZZW2A002A SCREW,CUSTOMIZED
4B70188C 4B70188C SCREW,CUSTOMIZED
1TTL0403818 1TTL0403818 SCREW,TAPPING
1TTL0402416 1TTL0402416 SCREW,TAPPING
1TTL0402818 1TTL0402818 SCREW,TAPPING
1TPL0402618 1TPL0402618 SCREW,TAPPING
1TTL0402418 1TTL0402418 SCREW,TAPPING
1TPL0302018 1TPL0302018 SCREW,TAPPING
1TTG0402422 1TTG0402422 SCREW,TAPTITE
4B72023A 4B72023A SPRING
4970WRA001G 4970WRA001G SPRING
6600W1K001C 6600W1K001C SWITCH,MICRO
3B73362F 3B73362F SWITCH,MICRO
3536WRA001M 3536WRA001M TAPE,SEALING
6930WRT003B 6930WRT003B THERMOSTAT
6930WRT001H 6930WRT001H THERMOSTAT
0TR107009AE 0TR107009AE TR,BIPOLAR
0TR320209BA 0TR320209BA TR,BIPOLAR
0TR126609AA 0TR126609AA TR,BIPOLAR
6170W1D023J 6170W1D023J TRANSFORMER,HIGH VOLTAGE
6010W2P043A 6010W2P043A TRANSFORMER,POWER
0TR319809AA 0TR319809AA TRANSISTOR
3390W1G004E 3390W1G004E TRAY,GLASS
5889W2A014C 5889W2A014C TURNTABLE ASSEMBLY
6102W5V006A 6102W5V006A VARISTOR
6302W5A004A 6302W5A004A VFD
3352W2A047A 3352W2A047A WINDOW,SCREEN
