Model Image
Manufacturer

LG

Model Number

JMC8130DDQ

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4790W1A009A 4790W1A009A BARRIER
4790W1A008A 4790W1A008A BARRIER
4790W1A007A 4790W1A007A BARRIER
3080W1A001A 3080W1A001A BASE
3040W1A027A 3040W1A027A BASE,PCB
3890W3Y579A 3890W3Y579A BOX
4810W3C007A 4810W3C007A BRACKET,CAPACITOR
4810W0A002A 4810W0A002A BRACKET,CONTROL PANEL
4810W3G135A 4810W3G135A BRACKET,IDLE
4810W1A109B 4810W1A109B BRACKET,MOUNT
4810W1A109A 4810W1A109A BRACKET,MOUNT
6021W3B001V 6021W3B001V CABLE,ASSEMBLY
6021W3B001R 6021W3B001R CABLE,ASSEMBLY
0CZZW1H004B 0CZZW1H004B CAPACITOR,HIGH VOLTAGE
0CZZW1H004G 0CZZW1H004G CAPACITOR,HIGH VOLTAGE
3180W0A005A 3180W0A005A CASE
3180W0A006A 3180W0A006A CASE
3180W0A004B 3180W0A004B CASE
4781W0M037P 4781W0M037P CONTROLLER ASSEMBLY,KEYPAD
4781W0A014S 4781W0A014S CONTROLLER ASSEMBLY,SUB
3552W0A011A 3552W0A011A COVER,CHOKE
3052W3M022A 3052W3M022A COVER,INSULATOR
3550W1A167A 3550W1A167A COVER,REAR
3550W1A167B 3550W1A167B COVER,REAR
3550W0A080B 3550W0A080B COVER,REAR
4850W4C001C 4850W4C001C DAMPER
3B72246K 3B72246K DAMPER
3B72245G 3B72245G DAMPER
4850W2A004F 4850W2A004F DAMPER
ADC30953903 ADC30953903 DOOR ASSEMBLY
3581W0A060R 3581W0A060R DOOR ASSEMBLY
3550W1A093B 3550W1A093B DUCT
5900W1A007A 5900W1A007A FAN

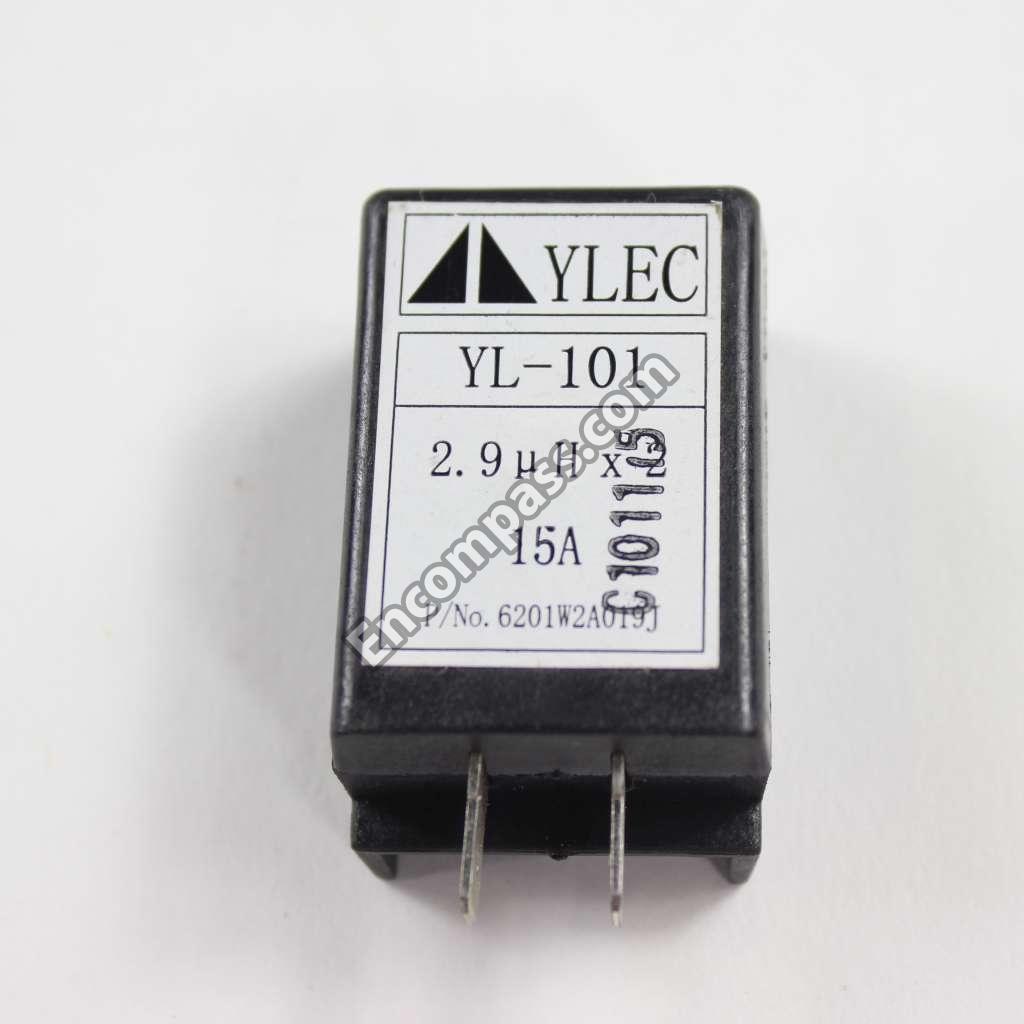

6201W2A019A 6201W2A019A FILTER ASSEMBLY
6201W2A019J 6201W2A019J FILTER ASSEMBLY
6201W2A018A 6201W2A018A FILTER,AC LINE
3213W0A010F 3213W0A010F FRAME ASSEMBLY,DOOR
3B74133Q 3B74133Q FUSE,TIME DELAY
3B74133J 3B74133J FUSE,TIME DELAY
4918W1A013D 4918W1A013D GRILLE
4918W1A013C 4918W1A013C GRILLE
3530W0A036A 3530W0A036A GRILLE,VENT
4974W1A018A 4974W1A018A GUIDE,AIR
5264W1A015E 5264W1A015E GUIDE,AIR
4974W1A017A 4974W1A017A GUIDE,SUCTION
3651W1A014B 3651W1A014B HANDLE ASSEMBLY
3651W1A014A 3651W1A014A HANDLE ASSEMBLY
6877W1A439A 6877W1A439A HARNESS,SINGLE
4775W1A007A 4775W1A007A HINGE ASSEMBLY
4775W1A008A 4775W1A008A HINGE ASSEMBLY
3501W1A031A 3501W1A031A HOLDER ASSEMBLY,LOCKER
3501W1A031B 3501W1A031B HOLDER ASSEMBLY,LOCKER
4930W1A035A 4930W1A035A HOLDER,DISPLAY
3500W1A031A 3500W1A031A HOLDER,LOCKER

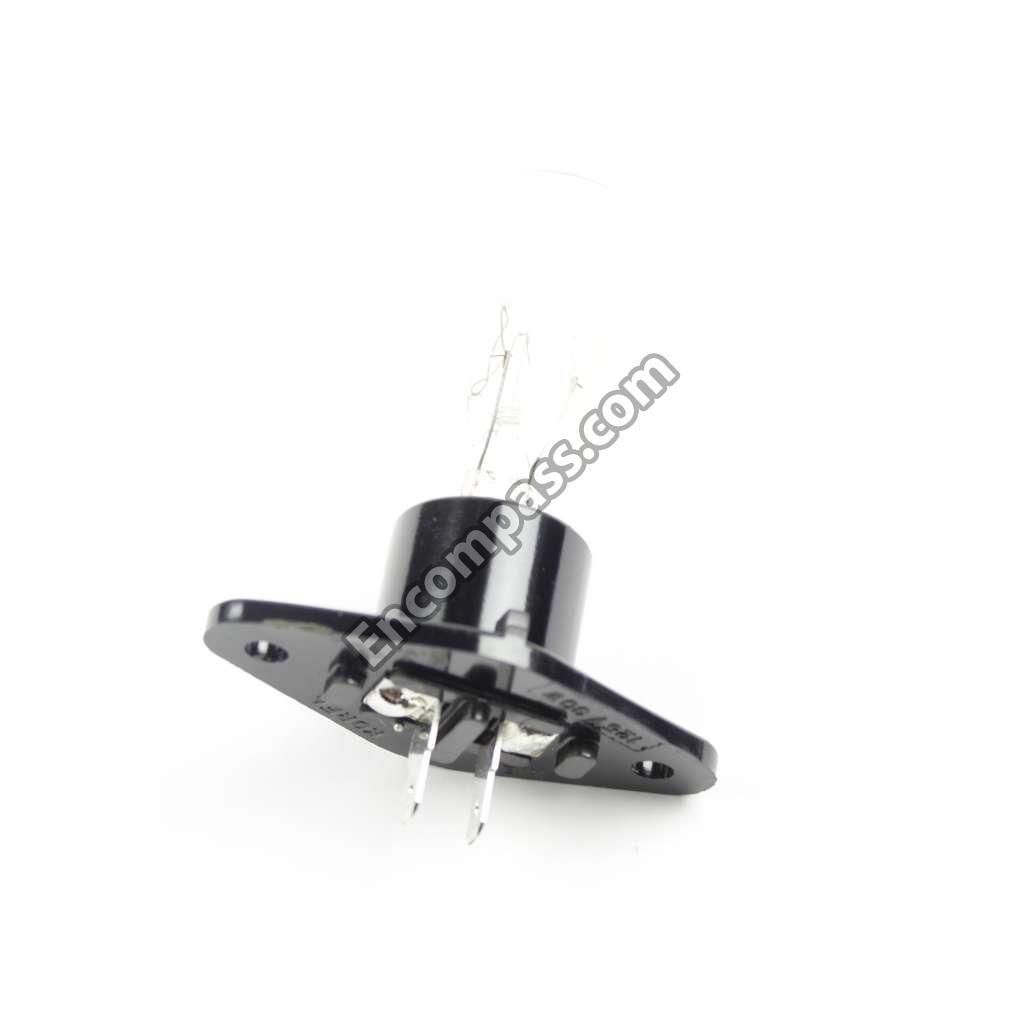

6912W3B002H 6912W3B002H LAMP,INCANDESCENT
4510W1A011A 4510W1A011A LEVER
4510W1A010A 4510W1A010A LEVER
4026W1A030A 4026W1A030A LOCKER
EAS42812906 EAS42812906 MAGNETRON
6324W1A001H 6324W1A001H MAGNETRON
3828W5U0230 3828W5U0230 MANUAL,INSTALLATION
3828W5A2905 3828W5A2905 MANUAL,OWNERS
6549W1S013H 6549W1S013H MOTOR, AC SYNCHRONOUS
6549W1S013A 6549W1S013A MOTOR, AC SYNCHRONOUS
6549W1F009A 6549W1F009A MOTOR,AC FAN
4B71028A 4B71028A NUT,COMMON

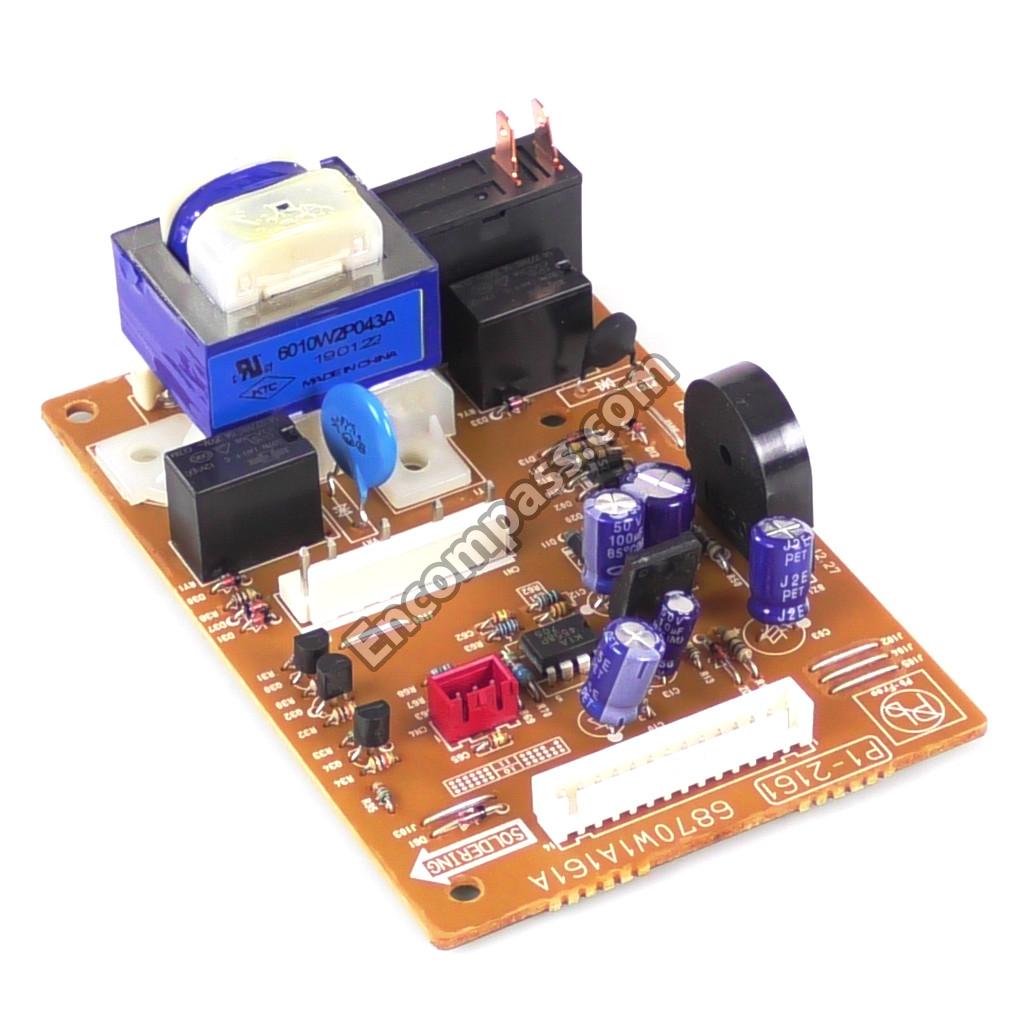

6871W1S161A 6871W1S161A PCB ASSEMBLY,SUB
6871W1S160B 6871W1S160B PCB ASSEMBLY,SUB
1PZZW3Z008C 1PZZW3Z008C PIN,COMMON
4960W1A015B 4960W1A015B PLATE
3303W0A024A 3303W0A024A PLATE ASSEMBLY,BASE
3300W1A038A 3300W1A038A PLATE,SHIELD
6411W1A018L 6411W1A018L POWER CORD ASSEMBLY
4B70188C 4B70188C SCREW,CUSTOMIZED
1MFC0402416 1MFC0402416 SCREW,MACHINE
1MTC0402416 1MTC0402416 SCREW,MACHINE
1TTL0402816 1TTL0402816 SCREW,TAPPING
1TTG0402632 1TTG0402632 SCREW,TAPPING
1TTL0403818 1TTL0403818 SCREW,TAPPING
1TTL0402818 1TTL0402818 SCREW,TAPPING
1TTL0402416 1TTL0402416 SCREW,TAPPING
1TTL0402418 1TTL0402418 SCREW,TAPPING
1TPL0302018 1TPL0302018 SCREW,TAPPING
1SPF0302018 1SPF0302018 SCREW,TAPTITE
1TTG0402422 1TTG0402422 SCREW,TAPTITE
6501W1A004B 6501W1A004B SENSOR ASSEMBLY
4370W3A001A 4370W3A001A SHAFT,TURNTABLE
4970W1A003A 4970W1A003A SPRING
6600W1K001C 6600W1K001C SWITCH,MICRO
6600W1K001D 6600W1K001D SWITCH,MICRO
3B73362F 3B73362F SWITCH,MICRO
6930WRT003A 6930WRT003A THERMOSTAT
6930W1A003G 6930W1A003G THERMOSTAT
6170W1D050Y 6170W1D050Y TRANSFORMER,HIGH VOLTAGE
6170W1D050P 6170W1D050P TRANSFORMER,HIGH VOLTAGE
1B71961H 1B71961H TRAY,GLASS
5889W2A005J 5889W2A005J TURNTABLE ASSEMBLY
1WSD0500018 1WSD0500018 WASHER,COMMON
4891W0A004F 4891W0A004F WINDOW ASSEMBLY
