Model Image
Manufacturer

LG

Model Number

LAB550H

Description

100w 2.0ch Soundplate With Bluetooth Connectivity

Interactive Exploded View

Parts List

Part Number Description
MAM63783901 MAM63783901 BASE
MAM62664101 MAM62664101 BASE
MAM62644001 MAM62644001 BASE
MAS62103801 MAS62103801 BELT
AAX74887602 AAX74887602 BOARD ASSEMBLY,SUB
EAD62185605 EAD62185605 CABLE,FFC
EAD61049029 EAD61049029 CABLE,FFC
EAD61048216 EAD61048216 CABLE,FFC
EAE60659001 EAE60659001 CAPACITOR,AL,CHIP
0CH8107F621 0CH8107F621 CAPACITOR,AL,CHIP
0CE337WJ6D8 0CE337WJ6D8 CAPACITOR,AL,CHIP
0CE227SF6DC 0CE227SF6DC CAPACITOR,AL,CHIP
EAE63203306 EAE63203306 CAPACITOR,AL,RADIAL
EAE61224401 EAE61224401 CAPACITOR,AL,RADIAL
0CE4756K618 0CE4756K618 CAPACITOR,AL,RADIAL
0CE108EJK18 0CE108EJK18 CAPACITOR,AL,RADIAL
0CE1056K618 0CE1056K618 CAPACITOR,AL,RADIAL
0CN4710K519 0CN4710K519 CAPACITOR,CERAMIC,AXIAL
ECZH0001215 ECZH0001215 CAPACITOR,CERAMIC,CHIP
EAE62771201 EAE62771201 CAPACITOR,CERAMIC,CHIP
EAE62161801 EAE62161801 CAPACITOR,CERAMIC,CHIP
EAE61081701 EAE61081701 CAPACITOR,CERAMIC,CHIP
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP
EAE31992101 EAE31992101 CAPACITOR,CERAMIC,CHIP
EAE31360401 EAE31360401 CAPACITOR,CERAMIC,CHIP
0CZZB00019A 0CZZB00019A CAPACITOR,CERAMIC,CHIP
0CK682BKK6A 0CK682BKK6A CAPACITOR,CERAMIC,CHIP
0CK681BK56A 0CK681BK56A CAPACITOR,CERAMIC,CHIP
0CK474DK56A 0CK474DK56A CAPACITOR,CERAMIC,CHIP
0CK471BK56A 0CK471BK56A CAPACITOR,CERAMIC,CHIP
0CK331BKFDA 0CK331BKFDA CAPACITOR,CERAMIC,CHIP
0CK226FF56A 0CK226FF56A CAPACITOR,CERAMIC,CHIP
0CK225DF56A 0CK225DF56A CAPACITOR,CERAMIC,CHIP
0CK225CFK7A 0CK225CFK7A CAPACITOR,CERAMIC,CHIP
0CK224DK46A 0CK224DK46A CAPACITOR,CERAMIC,CHIP
0CK222BKG6A 0CK222BKG6A CAPACITOR,CERAMIC,CHIP
0CK106EF56A 0CK106EF56A CAPACITOR,CERAMIC,CHIP
0CK105CK56A 0CK105CK56A CAPACITOR,CERAMIC,CHIP
0CK105CC56A 0CK105CC56A CAPACITOR,CERAMIC,CHIP
0CK104CKG6A 0CK104CKG6A CAPACITOR,CERAMIC,CHIP
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP
0CK104BH56A 0CK104BH56A CAPACITOR,CERAMIC,CHIP
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP
0CK103DN56A 0CK103DN56A CAPACITOR,CERAMIC,CHIP
0CK102BK56A 0CK102BK56A CAPACITOR,CERAMIC,CHIP
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP
0CH5470K618 0CH5470K618 CAPACITOR,CERAMIC,CHIP
0CH5220K618 0CH5220K618 CAPACITOR,CERAMIC,CHIP
0CH4470K412 0CH4470K412 CAPACITOR,CERAMIC,CHIP
0CH1562K566 0CH1562K566 CAPACITOR,CERAMIC,CHIP
0CC475CD5DA 0CC475CD5DA CAPACITOR,CERAMIC,CHIP
0CC223BK5BA 0CC223BK5BA CAPACITOR,CERAMIC,CHIP
0CC151BK41A 0CC151BK41A CAPACITOR,CERAMIC,CHIP
0CC150BK4AA 0CC150BK4AA CAPACITOR,CERAMIC,CHIP
0CC103BK5BA 0CC103BK5BA CAPACITOR,CERAMIC,CHIP
0CC100BKF1A 0CC100BKF1A CAPACITOR,CERAMIC,CHIP
EAE42618801 EAE42618801 CAPACITOR,CERAMIC,RADIAL
0CG1020U630 0CG1020U630 CAPACITOR,CERAMIC,RADIAL
624-087B 624-087B CAPACITOR,CERAMIC,RADIAL
EAE63981701 EAE63981701 CAPACITOR,FILM,BOX
EAE61103301 EAE61103301 CAPACITOR,FILM,BOX
EAE50550201 EAE50550201 CAPACITOR,FILM,DIP
0CQ6821N409 0CQ6821N409 CAPACITOR,FILM,DIP
MBS63265501 MBS63265501 CHASSIS
MBS63265401 MBS63265401 CHASSIS
EAP62526302 EAP62526302 COIL,CHOKE
EAG64430101 EAG64430101 CONNECTOR,FFC/FPC/PIC
6630XE00108 6630XE00108 CONNECTOR,FFC/FPC/PIC
6630XE00106 6630XE00106 CONNECTOR,FFC/FPC/PIC
6630X60142J 6630X60142J CONNECTOR,FFC/FPC/PIC
EAG62611205 EAG62611205 CONNECTOR,HDMI
EAG62571101 EAG62571101 CONNECTOR,USB
EAG62611102 EAG62611102 CONNECTOR,WAFER
EAG62610602 EAG62610602 CONNECTOR,WAFER
EAG62569901 EAG62569901 CONNECTOR,WAFER
EAG58732909 EAG58732909 CONNECTOR,WAFER
EAG41647503 EAG41647503 CONNECTOR,WAFER
6630V90078E 6630V90078E CONNECTOR,WAFER
MCK66964901 MCK66964901 COVER
MCK66944901 MCK66944901 COVER
EAW62583505 EAW62583505 CRYSTAL
EAW62583501 EAW62583501 CRYSTAL
MCQ67221201 MCQ67221201 DAMPER
MCQ67221101 MCQ67221101 DAMPER
MCQ65785001 MCQ65785001 DAMPER
MCQ62096433 MCQ62096433 DAMPER
MCQ32325007 MCQ32325007 DAMPER
EAH31952201 EAH31952201 DIODE,BRIDGE
EAH61252701 EAH61252701 DIODE,RECTIFIER
0DR104009BA 0DR104009BA DIODE,RECTIFIER
EAH62232901 EAH62232901 DIODE,SCHOTTKY
0DSKE00048A 0DSKE00048A DIODE,SCHOTTKY
0DSRM00148A 0DSRM00148A DIODE,SWITCHING
EAH62735601 EAH62735601 DIODE,TVS
EAH62033601 EAH62033601 DIODE,TVS
EAH56919501 EAH56919501 DIODE,TVS
EAH60702201 EAH60702201 DIODE,ZENER
0DZSE00134A 0DZSE00134A DIODE,ZENER
0DZSE00044A 0DZSE00044A DIODE,ZENER
0DZRM00318A 0DZRM00318A DIODE,ZENER
0DZPH00098A 0DZPH00098A DIODE,ZENER
0DZPH00088A 0DZPH00088A DIODE,ZENER
0DZGD00064B 0DZGD00064B DIODE,ZENER
0DZ222609AA 0DZ222609AA DIODE,ZENER
0DZ180009AE 0DZ180009AE DIODE,ZENER
MCV62493301 MCV62493301 DOOR
EBK62212301 EBK62212301 FET
0TRRH80042A 0TRRH80042A FET
EAM62151101 EAM62151101 FILTER,BEAD
EAM61090601 EAM61090601 FILTER,BEAD
EAM56488801 EAM56488801 FILTER,BEAD
EAM42641607 EAM42641607 FILTER,BEAD
SFEY0008901 SFEY0008901 FILTER,EMI/POWER
EAM63110001 EAM63110001 FILTER,EMI/POWER
6210VH0004C 6210VH0004C FILTER,FERRITE CORE
EAM62712401 EAM62712401 FILTER,LINE NOISE
EAM61230103 EAM61230103 FILTER,LINE NOISE
ADV74147301 ADV74147301 FRAME ASSEMBLY
0FS5001B51D 0FS5001B51D FUSE,TIME DELAY
ADY73009301 ADY73009301 GEAR ASSEMBLY
MEA62870101 MEA62870101 GUIDE
MEA62870001 MEA62870001 GUIDE
EAD63469401 EAD63469401 HARNESS,SINGLE
EAD63210701 EAD63210701 HARNESS,SINGLE
EAD35863031 EAD35863031 HARNESS,SINGLE
EAD35829017 EAD35829017 HARNESS,SINGLE
MED61841614 MED61841614 HEAT SINK
AEJ73539501 AEJ73539501 HOLDER ASSEMBLY
EAN60910101 EAN60910101 IC,A/D CONVERTER
EAN62871401 EAN62871401 IC,ANALOG SWITCH
EAN38256201 EAN38256201 IC,ANALOG SWITCH
EAN62491201 EAN62491201 IC,AUDIO AMPLIFIER
EAN60070301 EAN60070301 IC,CMOS
EAN62986201 EAN62986201 IC,D/A CONVERTER
EAN63530001 EAN63530001 IC,DC,DC CONVERTER
EAN62994601 EAN62994601 IC,DC,DC CONVERTER
EAN63391401 EAN63391401 IC,DDR3 SDRAM
EAN63053202 EAN63053202 IC,DDR3 SDRAM
EAN63747401 EAN63747401 IC,DIGITAL SIGNAL PROCESSORS
EAN60711701 EAN60711701 IC,GATE
0ISTLPH027A 0ISTLPH027A IC,INVERTER
EAN62868801 EAN62868801 IC,LDO VOLTAGE REGULATOR
EAN62780901 EAN62780901 IC,LDO VOLTAGE REGULATOR
EAN62682301 EAN62682301 IC,LDO VOLTAGE REGULATOR
EAN62579201 EAN62579201 IC,LINE DRIVER
EAN62351201 EAN62351201 IC,MOTOR DRIVER
EAN62700101 EAN62700101 IC,PWM CONTROLLER
EAN63547801 EAN63547801 IC,TX/RX
EAN63626701 EAN63626701 IC,VIDEO PROCESSORS
EAN60911701 EAN60911701 IC,VOLTAGE REFERENCE
EAP63026901 EAP63026901 INDUCTOR,WIRE WOUND,CHIP
EAP62147201 EAP62147201 INDUCTOR,WIRE WOUND,CHIP
EAP61747403 EAP61747403 INDUCTOR,WIRE WOUND,CHIP
EAG64171001 EAG64171001 JACK,FIBER OPTIC
EAG32089104 EAG32089104 JACK,MODULAR
6612F00091C 6612F00091C JACK,PHONE
EAJ63172301 EAJ63172301 LCD MODULE
EAV62414301 EAV62414301 LED,CHIP
MFC62469801 MFC62469801 LEVER
MFC62469701 MFC62469701 LEVER
MFC62469601 MFC62469601 LEVER
AFN76972101 AFN76972101 MANUAL ASSEMBLY,OWNERS
EAT62833301 EAT62833301 MODULE,BLUETOOTH
EAT62513301 EAT62513301 MODULE,WLAN
EAU62103901 EAU62103901 MOTOR ASSEMBLY,DC
EBR80229103 EBR80229103 OPTION CODE ASSEMBLY
MGC63920401 MGC63920401 PANEL,REAR
EBR80786201 EBR80786201 PCB ASSEMBLY
EBR80744101 EBR80744101 PCB ASSEMBLY
EBR80632001 EBR80632001 PCB ASSEMBLY
EBR80223201 EBR80223201 PCB ASSEMBLY,DECK
EBR80266001 EBR80266001 PCB ASSEMBLY,POWER
EAV59176001 EAV59176001 PHOTO,COUPLER

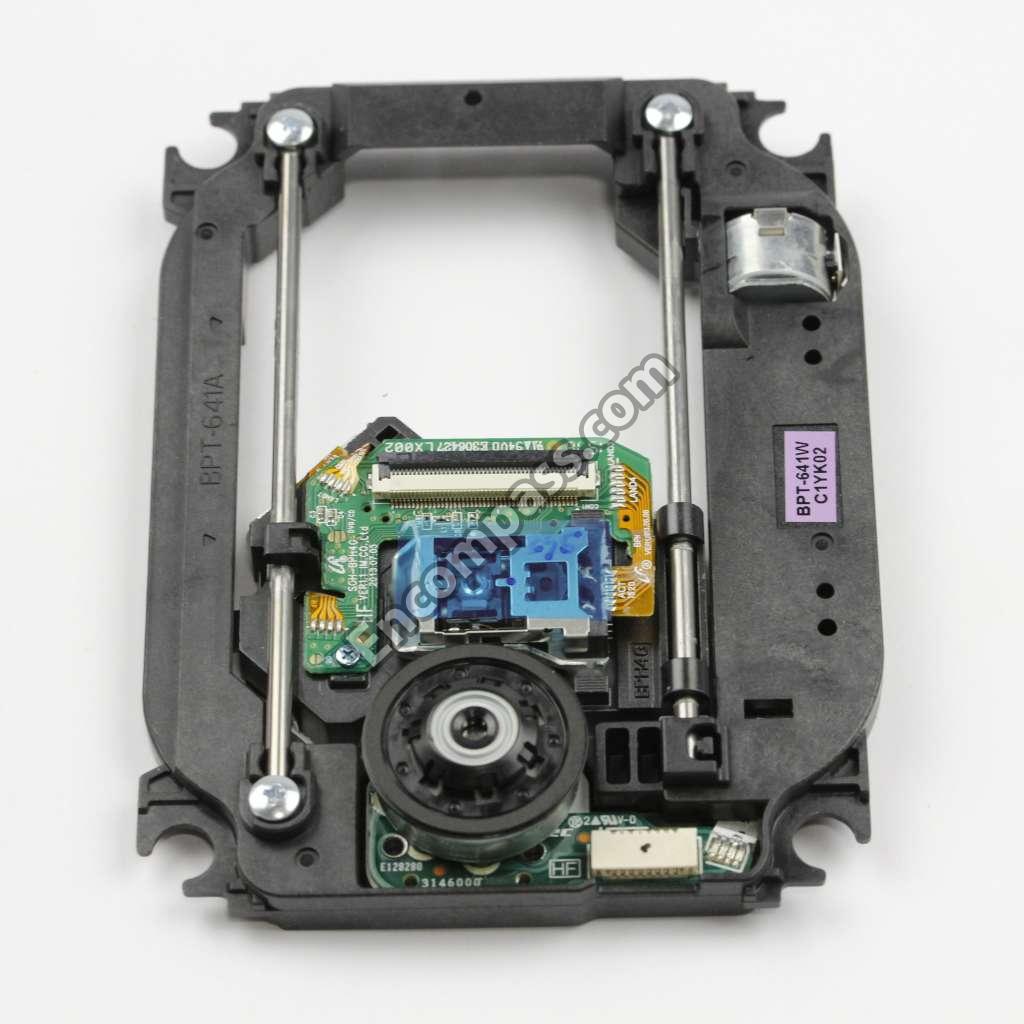

EAZ62281301 EAZ62281301 PICK UP ASSEMBLY
MGJ63181401 MGJ63181401 PLATE
EAD63505502 EAD63505502 POWER CORD
534-008C 534-008C PRIMARY CELL BATTERY,CARBON ZINC
EAV62055002 EAV62055002 RECEIVER MODULE
AKB74095511 AKB74095511 REMOTE CONTROLLER ASSEMBLY
EBC32260601 EBC32260601 RESISTOR,ARRAY
0RZZH033273 0RZZH033273 RESISTOR,ARRAY
0RD8200F609 0RD8200F609 RESISTOR,CARBON FILM
0RD7500F609 0RD7500F609 RESISTOR,CARBON FILM
0RD5103F609 0RD5103F609 RESISTOR,CARBON FILM
0RD4701F609 0RD4701F609 RESISTOR,CARBON FILM
0RD2702F609 0RD2702F609 RESISTOR,CARBON FILM
0RD2200F609 0RD2200F609 RESISTOR,CARBON FILM
0RD1004F609 0RD1004F609 RESISTOR,CARBON FILM
0RD1002F609 0RD1002F609 RESISTOR,CARBON FILM
0RD1001F609 0RD1001F609 RESISTOR,CARBON FILM
0RD0471F609 0RD0471F609 RESISTOR,CARBON FILM
0RD0222F609 0RD0222F609 RESISTOR,CARBON FILM
ERHZ0000327 ERHZ0000327 RESISTOR,CHIP
ERHZ0000217 ERHZ0000217 RESISTOR,CHIP
EBC33408101 EBC33408101 RESISTOR,CHIP
EBC30994201 EBC30994201 RESISTOR,CHIP
0RJ9100C478 0RJ9100C478 RESISTOR,CHIP
0RJ8201C678 0RJ8201C678 RESISTOR,CHIP
0RJ5602C477 0RJ5602C477 RESISTOR,CHIP
0RJ5601C477 0RJ5601C477 RESISTOR,CHIP
0RJ5600C678 0RJ5600C678 RESISTOR,CHIP
0RJ5101C678 0RJ5101C678 RESISTOR,CHIP
0RJ5101C478 0RJ5101C478 RESISTOR,CHIP
0RJ4702C678 0RJ4702C678 RESISTOR,CHIP
0RJ4702C478 0RJ4702C478 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
0RJ4700C678 0RJ4700C678 RESISTOR,CHIP
0RJ3302C678 0RJ3302C678 RESISTOR,CHIP
0RJ3301C678 0RJ3301C678 RESISTOR,CHIP
0RJ3301C478 0RJ3301C478 RESISTOR,CHIP
0RJ3000C478 0RJ3000C478 RESISTOR,CHIP
0RJ2703C477 0RJ2703C477 RESISTOR,CHIP
0RJ2702C678 0RJ2702C678 RESISTOR,CHIP
0RJ2701C678 0RJ2701C678 RESISTOR,CHIP
0RJ2402C478 0RJ2402C478 RESISTOR,CHIP
0RJ2400C478 0RJ2400C478 RESISTOR,CHIP
0RJ2202C678 0RJ2202C678 RESISTOR,CHIP
0RJ2201C478 0RJ2201C478 RESISTOR,CHIP
0RJ2002C478 0RJ2002C478 RESISTOR,CHIP
0RJ1802C478 0RJ1802C478 RESISTOR,CHIP
0RJ1801C678 0RJ1801C678 RESISTOR,CHIP
0RJ1503C478 0RJ1503C478 RESISTOR,CHIP
0RJ1502C678 0RJ1502C678 RESISTOR,CHIP
0RJ1502C478 0RJ1502C478 RESISTOR,CHIP
0RJ1203C678 0RJ1203C678 RESISTOR,CHIP
0RJ1202C478 0RJ1202C478 RESISTOR,CHIP
0RJ1201C678 0RJ1201C678 RESISTOR,CHIP
0RJ1201C478 0RJ1201C478 RESISTOR,CHIP
0RJ1200C478 0RJ1200C478 RESISTOR,CHIP
0RJ1004C678 0RJ1004C678 RESISTOR,CHIP
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP
0RJ1002C478 0RJ1002C478 RESISTOR,CHIP
0RJ1001E478 0RJ1001E478 RESISTOR,CHIP
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP
0RJ1000C478 0RJ1000C478 RESISTOR,CHIP
0RJ0822C678 0RJ0822C678 RESISTOR,CHIP
0RJ0752C678 0RJ0752C678 RESISTOR,CHIP
0RJ0682C678 0RJ0682C678 RESISTOR,CHIP
0RJ0482C477 0RJ0482C477 RESISTOR,CHIP
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP
0RJ0222C678 0RJ0222C678 RESISTOR,CHIP
0RJ0102C678 0RJ0102C678 RESISTOR,CHIP
0RJ0101C678 0RJ0101C678 RESISTOR,CHIP
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP
0RH9102C622 0RH9102C622 RESISTOR,CHIP
0RH8202B622 0RH8202B622 RESISTOR,CHIP
0RH8200C622 0RH8200C622 RESISTOR,CHIP
0RH7501C622 0RH7501C622 RESISTOR,CHIP
0RH7500D622 0RH7500D622 RESISTOR,CHIP
0RH7500C622 0RH7500C622 RESISTOR,CHIP
0RH6800C622 0RH6800C622 RESISTOR,CHIP
0RH5600C422 0RH5600C422 RESISTOR,CHIP
0RH4702C622 0RH4702C622 RESISTOR,CHIP
0RH4701C622 0RH4701C622 RESISTOR,CHIP
0RH4700B622 0RH4700B622 RESISTOR,CHIP
0RH3903C622 0RH3903C622 RESISTOR,CHIP
0RH3303D622 0RH3303D622 RESISTOR,CHIP
0RH3302C422 0RH3302C422 RESISTOR,CHIP
0RH3300D622 0RH3300D622 RESISTOR,CHIP
0RH2702C622 0RH2702C622 RESISTOR,CHIP
0RH2203C622 0RH2203C622 RESISTOR,CHIP
0RH2201C622 0RH2201C622 RESISTOR,CHIP
0RH2002C622 0RH2002C622 RESISTOR,CHIP
0RH2002C422 0RH2002C422 RESISTOR,CHIP
0RH1503C422 0RH1503C422 RESISTOR,CHIP
0RH1502C622 0RH1502C622 RESISTOR,CHIP
0RH1501C622 0RH1501C622 RESISTOR,CHIP
0RH1003C422 0RH1003C422 RESISTOR,CHIP
0RH1002C422 0RH1002C422 RESISTOR,CHIP
0RH1002B622 0RH1002B622 RESISTOR,CHIP
0RH1001C622 0RH1001C622 RESISTOR,CHIP
0RH1001C422 0RH1001C422 RESISTOR,CHIP
0RH1000C422 0RH1000C422 RESISTOR,CHIP
0RH0331D622 0RH0331D622 RESISTOR,CHIP
0RH0102C622 0RH0102C622 RESISTOR,CHIP
0RH0101D622 0RH0101D622 RESISTOR,CHIP
0RH0000C622 0RH0000C622 RESISTOR,CHIP
0RN2701F409 0RN2701F409 RESISTOR,METAL FILM
0RN2201F409 0RN2201F409 RESISTOR,METAL FILM
0RN1502F409 0RN1502F409 RESISTOR,METAL FILM
0RN1002F409 0RN1002F409 RESISTOR,METAL FILM
0RS5602K619 0RS5602K619 RESISTOR,METAL OXIDE FILM
0RS0220K619 0RS0220K619 RESISTOR,METAL OXIDE FILM
EBC30416601 EBC30416601 RESISTOR,WIRE WOUND
SAB34053018 SAB34053018 S/W PACKAGE
SAA37661001 SAA37661001 S/W,SYSTEM PROGRAM
SAA37660901 SAA37660901 S/W,SYSTEM PROGRAM
SAA37660801 SAA37660801 S/W,SYSTEM PROGRAM
SAA37575001 SAA37575001 S/W,SYSTEM PROGRAM
FAB31442101 FAB31442101 SCREW,CUSTOMIZED
FAB31442001 FAB31442001 SCREW,CUSTOMIZED
FAB30840502 FAB30840502 SCREW,CUSTOMIZED
353-028H 353-028H SCREW,CUSTOMIZED
353-022S 353-022S SCREW,CUSTOMIZED
1SZZR-0097K 1SZZR-0097K SCREW,CUSTOMIZED
FAB32018801 FAB32018801 SCREW,MACHINE
MHK63610301 MHK63610301 SHEET
EAG35192701 EAG35192701 SOCKET,POWER
MHY62824731 MHY62824731 SPRING
MHY62824721 MHY62824721 SPRING
MHY62824711 MHY62824711 SPRING
MHY62824701 MHY62824701 SPRING
MHY39334801 MHY39334801 SPRING
6600R000005 6600R000005 SWITCH,TACT
EBG43134001 EBG43134001 THERMISTOR,NTC
EBK61012701 EBK61012701 TR,BIPOLAR
0TR387509AC 0TR387509AC TR,BIPOLAR
0TR150409AC 0TR150409AC TR,BIPOLAR
0TR319809AA 0TR319809AA TR,BIPOLAR
0TR103009AM 0TR103009AM TR,BIPOLAR
0TR103009AC 0TR103009AC TR,BIPOLAR
EBJ60770138 EBJ60770138 TRANSFORMER,SWITCHING
EAF43134202 EAF43134202 VARISTOR
Main Menu x
