Model Image
Manufacturer

LG

Model Number

LAP340NB

Description

120w 4.1ch Soundplate

Interactive Exploded View

Parts List

Part Number Description
MAJ62422501 MAJ62422501 BAND
MBG64808801 MBG64808801 BUTTON

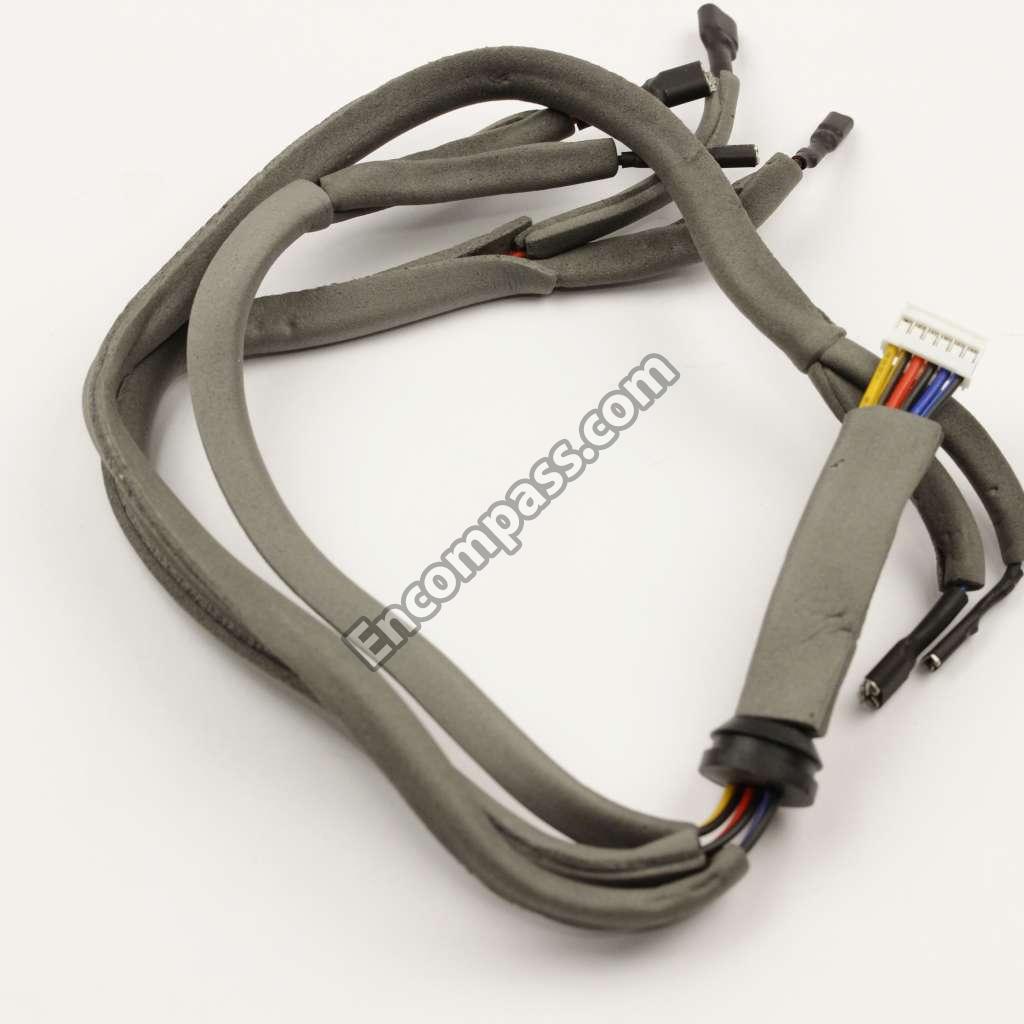

EAD63345601 EAD63345601 CABLE,ASSEMBLY
EAD62130005 EAD62130005 CABLE,FFC
EAE63203301 EAE63203301 CAPACITOR,AL,RADIAL
EAE62406601 EAE62406601 CAPACITOR,AL,RADIAL
624-085D 624-085D CAPACITOR,AL,RADIAL
0CE477EJ630 0CE477EJ630 CAPACITOR,AL,RADIAL
0CE4766F618 0CE4766F618 CAPACITOR,AL,RADIAL
0CE4756K618 0CE4756K618 CAPACITOR,AL,RADIAL
EAE61081701 EAE61081701 CAPACITOR,CERAMIC,CHIP
EAE60364701 EAE60364701 CAPACITOR,CERAMIC,CHIP
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP
EAE37475001 EAE37475001 CAPACITOR,CERAMIC,CHIP
EAE33831901 EAE33831901 CAPACITOR,CERAMIC,CHIP
EAE30276501 EAE30276501 CAPACITOR,CERAMIC,CHIP
0CZZB00035A 0CZZB00035A CAPACITOR,CERAMIC,CHIP
0CZZB00024A 0CZZB00024A CAPACITOR,CERAMIC,CHIP
0CK473CK56A 0CK473CK56A CAPACITOR,CERAMIC,CHIP
0CK332BK56A 0CK332BK56A CAPACITOR,CERAMIC,CHIP
0CK226FF56A 0CK226FF56A CAPACITOR,CERAMIC,CHIP
0CK223BF5CA 0CK223BF5CA CAPACITOR,CERAMIC,CHIP
0CK222BKG6A 0CK222BKG6A CAPACITOR,CERAMIC,CHIP
0CK105CK56A 0CK105CK56A CAPACITOR,CERAMIC,CHIP
0CK105BF94A 0CK105BF94A CAPACITOR,CERAMIC,CHIP
0CK104DN56A 0CK104DN56A CAPACITOR,CERAMIC,CHIP
0CK104CKG6A 0CK104CKG6A CAPACITOR,CERAMIC,CHIP
0CK104BH56A 0CK104BH56A CAPACITOR,CERAMIC,CHIP
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP
0CK103DN56A 0CK103DN56A CAPACITOR,CERAMIC,CHIP
0CK102BK56A 0CK102BK56A CAPACITOR,CERAMIC,CHIP
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP
0CK100BKMDA 0CK100BKMDA CAPACITOR,CERAMIC,CHIP
0CH5470K618 0CH5470K618 CAPACITOR,CERAMIC,CHIP
0CH4681K416 0CH4681K416 CAPACITOR,CERAMIC,CHIP
0CH4470K412 0CH4470K412 CAPACITOR,CERAMIC,CHIP
0CH1224K512 0CH1224K512 CAPACITOR,CERAMIC,CHIP
0CH1103K566 0CH1103K566 CAPACITOR,CERAMIC,CHIP
0CC271BK4AA 0CC271BK4AA CAPACITOR,CERAMIC,CHIP
0CC150BK4AA 0CC150BK4AA CAPACITOR,CERAMIC,CHIP
0CC103BK5BA 0CC103BK5BA CAPACITOR,CERAMIC,CHIP
0CC100BKF1A 0CC100BKF1A CAPACITOR,CERAMIC,CHIP
EAE60686401 EAE60686401 CAPACITOR,CERAMIC,RADIAL
0CG1020U630 0CG1020U630 CAPACITOR,CERAMIC,RADIAL
624-087H 624-087H CAPACITOR,CERAMIC,RADIAL
EAE61103301 EAE61103301 CAPACITOR,FILM,BOX
EAE50550201 EAE50550201 CAPACITOR,FILM,DIP
ABQ74402302 ABQ74402302 CASE ASSEMBLY
ABQ74402202 ABQ74402202 CASE ASSEMBLY
EAP62526301 EAP62526301 COIL,CHOKE
6630XE00110 6630XE00110 CONNECTOR,FFC/FPC/PIC
EAG63270201 EAG63270201 CONNECTOR,WAFER
EAG62569901 EAG62569901 CONNECTOR,WAFER
EAG58732904 EAG58732904 CONNECTOR,WAFER
6630V90141C 6630V90141C CONNECTOR,WAFER
6602T12005J 6602T12005J CONNECTOR,WAFER
EAW61645504 EAW61645504 CRYSTAL
EAW61645208 EAW61645208 CRYSTAL
EAW32919201 EAW32919201 CRYSTAL
EAH31952201 EAH31952201 DIODE,BRIDGE
EAH61252701 EAH61252701 DIODE,RECTIFIER
0DRGF00239A 0DRGF00239A DIODE,RECTIFIER
0DR104009BA 0DR104009BA DIODE,RECTIFIER
EAH62095001 EAH62095001 DIODE,SCHOTTKY
0DSKE00048A 0DSKE00048A DIODE,SCHOTTKY
0DRKE00048A 0DRKE00048A DIODE,SCHOTTKY
EDSY0017701 EDSY0017701 DIODE,SWITCHING
EAH30982401 EAH30982401 DIODE,SWITCHING
0DSRM00148A 0DSRM00148A DIODE,SWITCHING
EAH62033601 EAH62033601 DIODE,TVS
EAH61433801 EAH61433801 DIODE,ZENER
EAH42410401 EAH42410401 DIODE,ZENER
EAH39305801 EAH39305801 DIODE,ZENER
0DZPH00128A 0DZPH00128A DIODE,ZENER
0DZPH00098A 0DZPH00098A DIODE,ZENER
0DZPH00088A 0DZPH00088A DIODE,ZENER
0DZPH00048A 0DZPH00048A DIODE,ZENER
EBK60872301 EBK60872301 FET
EAM62151101 EAM62151101 FILTER,BEAD
EAM56488801 EAM56488801 FILTER,BEAD
EAM42641607 EAM42641607 FILTER,BEAD
EAM38769505 EAM38769505 FILTER,BEAD
EAM32500205 EAM32500205 FILTER,BEAD
EAM62092401 EAM62092401 FILTER,EMI/POWER
6210VH0004D 6210VH0004D FILTER,FERRITE CORE
6210VH0004C 6210VH0004C FILTER,FERRITE CORE
EAM61230103 EAM61230103 FILTER,LINE NOISE
0FS5001B51D 0FS5001B51D FUSE,TIME DELAY
EAD62632401 EAD62632401 HARNESS,SINGLE
EAD35829013 EAD35829013 HARNESS,SINGLE
MEG63424301 MEG63424301 HOLDER
EAN62910601 EAN62910601 IC,AUDIO AMPLIFIER
EAN62889801 EAN62889801 IC,D/A CONVERTER
EAN62766801 EAN62766801 IC,DC,DC CONVERTER
EAN62698701 EAN62698701 IC,DC,DC CONVERTER
EAN62408102 EAN62408102 IC,DIGITAL SIGNAL PROCESSORS
EAN57037601 EAN57037601 IC,EEPROM
EAN30375501 EAN30375501 IC,INVERTER
EAN61866701 EAN61866701 IC,LDO VOLTAGE REGULATOR
EAN40225301 EAN40225301 IC,LDO VOLTAGE REGULATOR
EAN62579201 EAN62579201 IC,LINE DRIVER
EAN62700201 EAN62700201 IC,PWM CONTROLLER
0IMMREO001E 0IMMREO001E IC,SDRAM
EAN60911701 EAN60911701 IC,VOLTAGE REFERENCE
EAN62910701 EAN62910701 IC,VOLUME CONTROL
EAP62267602 EAP62267602 INDUCTOR,WIRE WOUND,CHIP
EAP62267601 EAP62267601 INDUCTOR,WIRE WOUND,CHIP
EAP61747403 EAP61747403 INDUCTOR,WIRE WOUND,CHIP
EAP61747401 EAP61747401 INDUCTOR,WIRE WOUND,CHIP
EAG63410102 EAG63410102 JACK,DC POWER
EAG37842006 EAG37842006 JACK,FIBER OPTIC
EAV62172301 EAV62172301 LED,CHIP
EAV62034801 EAV62034801 LED,CHIP
EAV61492301 EAV61492301 LED,CHIP
EAV30476901 EAV30476901 LED,CHIP
EAT61976201 EAT61976201 MODULE,BLUETOOTH

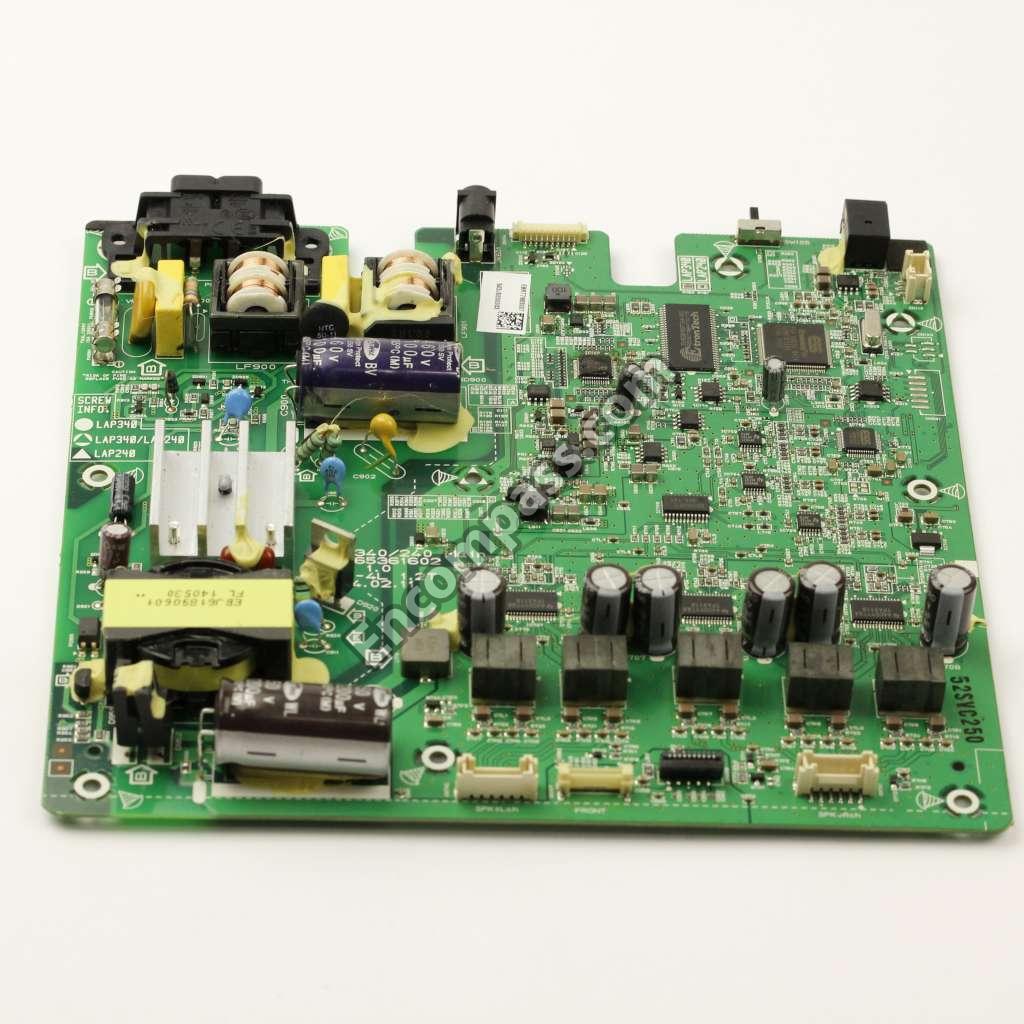

EBR78392101 EBR78392101 PCB ASSEMBLY
EBR78392001 EBR78392001 PCB ASSEMBLY
EBR78353903 EBR78353903 PCB ASSEMBLY
EBR77856601 EBR77856601 PCB ASSEMBLY,SUB
EAV61253101 EAV61253101 PHOTO,COUPLER
EAD63505502 EAD63505502 POWER CORD
EAC52293601 EAC52293601 PRIMARY CELL BATTERY,LITHIUM
EAV61333201 EAV61333201 RECEIVER MODULE
AKB73996701 AKB73996701 REMOTE CONTROLLER ASSEMBLY
EBC60972001 EBC60972001 RESISTOR,CARBON FILM
0RJ8201C478 0RJ8201C478 RESISTOR,CHIP
0RJ5602C478 0RJ5602C478 RESISTOR,CHIP
0RJ5601C678 0RJ5601C678 RESISTOR,CHIP
0RJ5101C478 0RJ5101C478 RESISTOR,CHIP
0RJ4702C678 0RJ4702C678 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
0RJ4701C478 0RJ4701C478 RESISTOR,CHIP
0RJ3002C478 0RJ3002C478 RESISTOR,CHIP
0RJ3001C478 0RJ3001C478 RESISTOR,CHIP
0RJ2403C478 0RJ2403C478 RESISTOR,CHIP
0RJ2201C478 0RJ2201C478 RESISTOR,CHIP
0RJ2200C678 0RJ2200C678 RESISTOR,CHIP
0RJ2002C478 0RJ2002C478 RESISTOR,CHIP
0RJ1502C678 0RJ1502C678 RESISTOR,CHIP
0RJ1502C478 0RJ1502C478 RESISTOR,CHIP
0RJ1203C478 0RJ1203C478 RESISTOR,CHIP
0RJ1202C478 0RJ1202C478 RESISTOR,CHIP
0RJ1004C678 0RJ1004C678 RESISTOR,CHIP
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP
0RJ1003C478 0RJ1003C478 RESISTOR,CHIP
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP
0RJ1002C478 0RJ1002C478 RESISTOR,CHIP
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP
0RJ0562C678 0RJ0562C678 RESISTOR,CHIP
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP
0RH8200D622 0RH8200D622 RESISTOR,CHIP
0RH8200C422 0RH8200C422 RESISTOR,CHIP
0RH7502C622 0RH7502C622 RESISTOR,CHIP
0RH7501C622 0RH7501C622 RESISTOR,CHIP
0RH7500D622 0RH7500D622 RESISTOR,CHIP
0RH7500C622 0RH7500C622 RESISTOR,CHIP
0RH6801C422 0RH6801C422 RESISTOR,CHIP
0RH6800C422 0RH6800C422 RESISTOR,CHIP
0RH5103D622 0RH5103D622 RESISTOR,CHIP
0RH4702C422 0RH4702C422 RESISTOR,CHIP
0RH4701D622 0RH4701D622 RESISTOR,CHIP
0RH3301C622 0RH3301C622 RESISTOR,CHIP
0RH3301C422 0RH3301C422 RESISTOR,CHIP
0RH3300D622 0RH3300D622 RESISTOR,CHIP
0RH2702D622 0RH2702D622 RESISTOR,CHIP
0RH2401C622 0RH2401C622 RESISTOR,CHIP
0RH2204C622 0RH2204C622 RESISTOR,CHIP
0RH2203C622 0RH2203C622 RESISTOR,CHIP
0RH2202C622 0RH2202C622 RESISTOR,CHIP
0RH2200D622 0RH2200D622 RESISTOR,CHIP
0RH2200C622 0RH2200C622 RESISTOR,CHIP
0RH2002C622 0RH2002C622 RESISTOR,CHIP
0RH2001D622 0RH2001D622 RESISTOR,CHIP
0RH2001D422 0RH2001D422 RESISTOR,CHIP
0RH1502C622 0RH1502C622 RESISTOR,CHIP
0RH1500D622 0RH1500D622 RESISTOR,CHIP
0RH1500C422 0RH1500C422 RESISTOR,CHIP
0RH1302C422 0RH1302C422 RESISTOR,CHIP
0RH1202D422 0RH1202D422 RESISTOR,CHIP
0RH1004D622 0RH1004D622 RESISTOR,CHIP
0RH1003C622 0RH1003C622 RESISTOR,CHIP
0RH1003C422 0RH1003C422 RESISTOR,CHIP
0RH1002D622 0RH1002D622 RESISTOR,CHIP
0RH1002C622 0RH1002C622 RESISTOR,CHIP
0RH1002C422 0RH1002C422 RESISTOR,CHIP
0RH1000D622 0RH1000D622 RESISTOR,CHIP
0RH0822D622 0RH0822D622 RESISTOR,CHIP
0RH0682D622 0RH0682D622 RESISTOR,CHIP
0RH0561D622 0RH0561D622 RESISTOR,CHIP
0RH0471D622 0RH0471D622 RESISTOR,CHIP
0RH0332D622 0RH0332D622 RESISTOR,CHIP
0RH0331D622 0RH0331D622 RESISTOR,CHIP
0RH0222D622 0RH0222D622 RESISTOR,CHIP
0RH0000C622 0RH0000C622 RESISTOR,CHIP
0RS1003K619 0RS1003K619 RESISTOR,METAL OXIDE FILM
0RS0220K619 0RS0220K619 RESISTOR,METAL OXIDE FILM
SAA36765201 SAA36765201 S/W,SYSTEM PROGRAM
SAA36765102 SAA36765102 S/W,SYSTEM PROGRAM
FAB32158901 FAB32158901 SCREW,CUSTOMIZED
1SZZR-0097N 1SZZR-0097N SCREW,CUSTOMIZED
1SZZH-1007B 1SZZH-1007B SCREW,CUSTOMIZED
EAG63193901 EAG63193901 SOCKET,POWER
EAB63088501 EAB63088501 SPEAKER,SUB WOOFER
EBF62114401 EBF62114401 SWITCH,SLIDE
6600R000005 6600R000005 SWITCH,TACT
EBG43134001 EBG43134001 THERMISTOR,NTC
EBK36400001 EBK36400001 TR,BIPOLAR
0TRKE80041A 0TRKE80041A TR,BIPOLAR
0TR387509AC 0TR387509AC TR,BIPOLAR
0TR103009AM 0TR103009AM TR,BIPOLAR
0TR103009AC 0TR103009AC TR,BIPOLAR
EBJ61890601 EBJ61890601 TRANSFORMER,SWITCHING
EAF43134202 EAF43134202 VARISTOR
