Model Image
Manufacturer

LG

Model Number

LAS551H

Description

2.1ch Sound Bar Audio System

Interactive Exploded View

Parts List

Part Number Description
AAA75831502 AAA75831502 ACCESSORY ASSEMBLY
AAA76046902 AAA76046902 WALL BRACKET
MAF37454653 MAF37454653 BAG
MAJ62422501 MAJ62422501 BAND
841N0015 841N0015 BATTERY,MANGANESE
AAX74768304 AAX74768304 BOARD ASSEMBLY
MAY67008403 MAY67008403 BOX,MASTER
MBG65523202 MBG65523202 BUTTON
EAD63345601 EAD63345601 CABLE,ASSEMBLY
EAD62130027 EAD62130027 CABLE,FFC
0CZZR00033A 0CZZR00033A CAPACITOR,AL,CHIP
0CE337WJ6D8 0CE337WJ6D8 CAPACITOR,AL,CHIP
0CH8106J691 0CH8106J691 CAPACITOR,AL,CHIP
0CH8226F611 0CH8226F611 CAPACITOR,AL,CHIP
0CH8227C621 0CH8227C621 CAPACITOR,AL,CHIP
0CZZQE2018A 0CZZQE2018A CAPACITOR,AL,CHIP
EAE30174501 EAE30174501 CAPACITOR,AL,CHIP
EAE39330001 EAE39330001 CAPACITOR,AL,CHIP
0CE108AK610 0CE108AK610 CAPACITOR,AL,RADIAL
0CE108EJK18 0CE108EJK18 CAPACITOR,AL,RADIAL
0CE107BK618 0CE107BK618 CAPACITOR,AL,RADIAL
EAE63203307 EAE63203307 CAPACITOR,AL,RADIAL
0CE2262K638 0CE2262K638 CAPACITOR,AL,RADIAL
0CE105BK638 0CE105BK638 CAPACITOR,AL,RADIAL
EAE62604201 EAE62604201 CAPACITOR,AL,RADIAL
EAE61224401 EAE61224401 CAPACITOR,AL,RADIAL
0CE4756K618 0CE4756K618 CAPACITOR,AL,RADIAL
0CE337EK630 0CE337EK630 CAPACITOR,AL,RADIAL
0CN1040K949 0CN1040K949 CAPACITOR,CERAMIC,AXIAL
0CN4710K519 0CN4710K519 CAPACITOR,CERAMIC,AXIAL
0CK104BH56A 0CK104BH56A CAPACITOR,CERAMIC,CHIP
0CH4100K412 0CH4100K412 CAPACITOR,CERAMIC,CHIP
0CH5220K618 0CH5220K618 CAPACITOR,CERAMIC,CHIP
0CH1562K562 0CH1562K562 CAPACITOR,CERAMIC,CHIP
0CK103BFD6A 0CK103BFD6A CAPACITOR,CERAMIC,CHIP
0CK103DN56A 0CK103DN56A CAPACITOR,CERAMIC,CHIP
0CK560BK4EA 0CK560BK4EA CAPACITOR,CERAMIC,CHIP
0CK680BK4DA 0CK680BK4DA CAPACITOR,CERAMIC,CHIP
0CK104DN56A 0CK104DN56A CAPACITOR,CERAMIC,CHIP
0CK104CKG6A 0CK104CKG6A CAPACITOR,CERAMIC,CHIP
0CK222BKG6A 0CK222BKG6A CAPACITOR,CERAMIC,CHIP
0CK331BKFDA 0CK331BKFDA CAPACITOR,CERAMIC,CHIP
0CZZB00024A 0CZZB00024A CAPACITOR,CERAMIC,CHIP
EAE62281601 EAE62281601 CAPACITOR,CERAMIC,CHIP
0CH4101K412 0CH4101K412 CAPACITOR,CERAMIC,CHIP
0CK102BK56A 0CK102BK56A CAPACITOR,CERAMIC,CHIP
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP
EAE32166101 EAE32166101 CAPACITOR,CERAMIC,CHIP
EAE60364701 EAE60364701 CAPACITOR,CERAMIC,CHIP
EAE61081701 EAE61081701 CAPACITOR,CERAMIC,CHIP
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP
0CC103BK5BA 0CC103BK5BA CAPACITOR,CERAMIC,CHIP
0CC475CD5DA 0CC475CD5DA CAPACITOR,CERAMIC,CHIP
0CC150BK4AA 0CC150BK4AA CAPACITOR,CERAMIC,CHIP
0CK330BK4DA 0CK330BK4DA CAPACITOR,CERAMIC,CHIP
0CC221BKFAA 0CC221BKFAA CAPACITOR,CERAMIC,CHIP
0CC4R7BHFAA 0CC4R7BHFAA CAPACITOR,CERAMIC,CHIP
0CH1474K562 0CH1474K562 CAPACITOR,CERAMIC,CHIP
0CH1562K566 0CH1562K566 CAPACITOR,CERAMIC,CHIP
EAE36194101 EAE36194101 CAPACITOR,CERAMIC,CHIP
EAE37475001 EAE37475001 CAPACITOR,CERAMIC,CHIP
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP
0CC151BK41A 0CC151BK41A CAPACITOR,CERAMIC,CHIP
0CH1333K562 0CH1333K562 CAPACITOR,CERAMIC,CHIP
0CK105CK56A 0CK105CK56A CAPACITOR,CERAMIC,CHIP
0CK106EF56A 0CK106EF56A CAPACITOR,CERAMIC,CHIP
0CK226FF56A 0CK226FF56A CAPACITOR,CERAMIC,CHIP
0CC100BKF1A 0CC100BKF1A CAPACITOR,CERAMIC,CHIP
EAE31992101 EAE31992101 CAPACITOR,CERAMIC,CHIP
EAE33831901 EAE33831901 CAPACITOR,CERAMIC,CHIP
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP
EAE42617201 EAE42617201 CAPACITOR,CERAMIC,RADIAL
0CG2220U630 0CG2220U630 CAPACITOR,CERAMIC,RADIAL
0CG1020U630 0CG1020U630 CAPACITOR,CERAMIC,RADIAL
EAE42618801 EAE42618801 CAPACITOR,CERAMIC,RADIAL
0CG4710U610 0CG4710U610 CAPACITOR,CERAMIC,RADIAL
624-087D 624-087D CAPACITOR,CERAMIC,RADIAL
624-087B 624-087B CAPACITOR,CERAMIC,RADIAL
EAE61103301 EAE61103301 CAPACITOR,FILM,BOX
624-088L 624-088L CAPACITOR,FILM,DIP
EAE39104801 EAE39104801 CAPACITOR,FILM,DIP
EAE50550201 EAE50550201 CAPACITOR,FILM,DIP
0CQ6821N409 0CQ6821N409 CAPACITOR,FILM,DIP
ABQ75063102 ABQ75063102 CASE ASSEMBLY
ABQ75063002 ABQ75063002 CASE ASSEMBLY
MBS63105501 MBS63105501 CHASSIS
MBS63085901 MBS63085901 CHASSIS
EAP62526301 EAP62526301 COIL,CHOKE
EAP62127101 EAP62127101 COIL,CHOKE
EAG63717513 EAG63717513 CONNECTOR,BTOB
6630VL01006 6630VL01006 CONNECTOR,BTOB
EAG63717502 EAG63717502 CONNECTOR,BTOB
EAG63717501 EAG63717501 CONNECTOR,BTOB
EAG63717512 EAG63717512 CONNECTOR,BTOB
EAG63717510 EAG63717510 CONNECTOR,BTOB
EAG63717509 EAG63717509 CONNECTOR,BTOB
EAG63717511 EAG63717511 CONNECTOR,BTOB
EAG62611204 EAG62611204 CONNECTOR,HDMI
EAG62571101 EAG62571101 CONNECTOR,USB
EAG63270203 EAG63270203 CONNECTOR,WAFER
561-292B 561-292B CONNECTOR,WAFER
6630V90078D 6630V90078D CONNECTOR,WAFER
6630R3S006E 6630R3S006E CONNECTOR,WAFER
6630V90135B 6630V90135B CONNECTOR,WAFER
561-711C 561-711C CONNECTOR,WAFER
6630VM015A2 6630VM015A2 CONNECTOR,WAFER
EAG62611102 EAG62611102 CONNECTOR,WAFER
6602T25008J 6602T25008J CONNECTOR,WAFER
561-711B 561-711B CONNECTOR,WAFER
EAG63270202 EAG63270202 CONNECTOR,WAFER
MCK68517201 MCK68517201 COVER
EAW62583505 EAW62583505 CRYSTAL
EAW62583501 EAW62583501 CRYSTAL
EAW62583502 EAW62583502 CRYSTAL
MCQ62096450 MCQ62096450 DAMPER
MCQ68404801 MCQ68404801 DAMPER
MCQ68305001 MCQ68305001 DAMPER

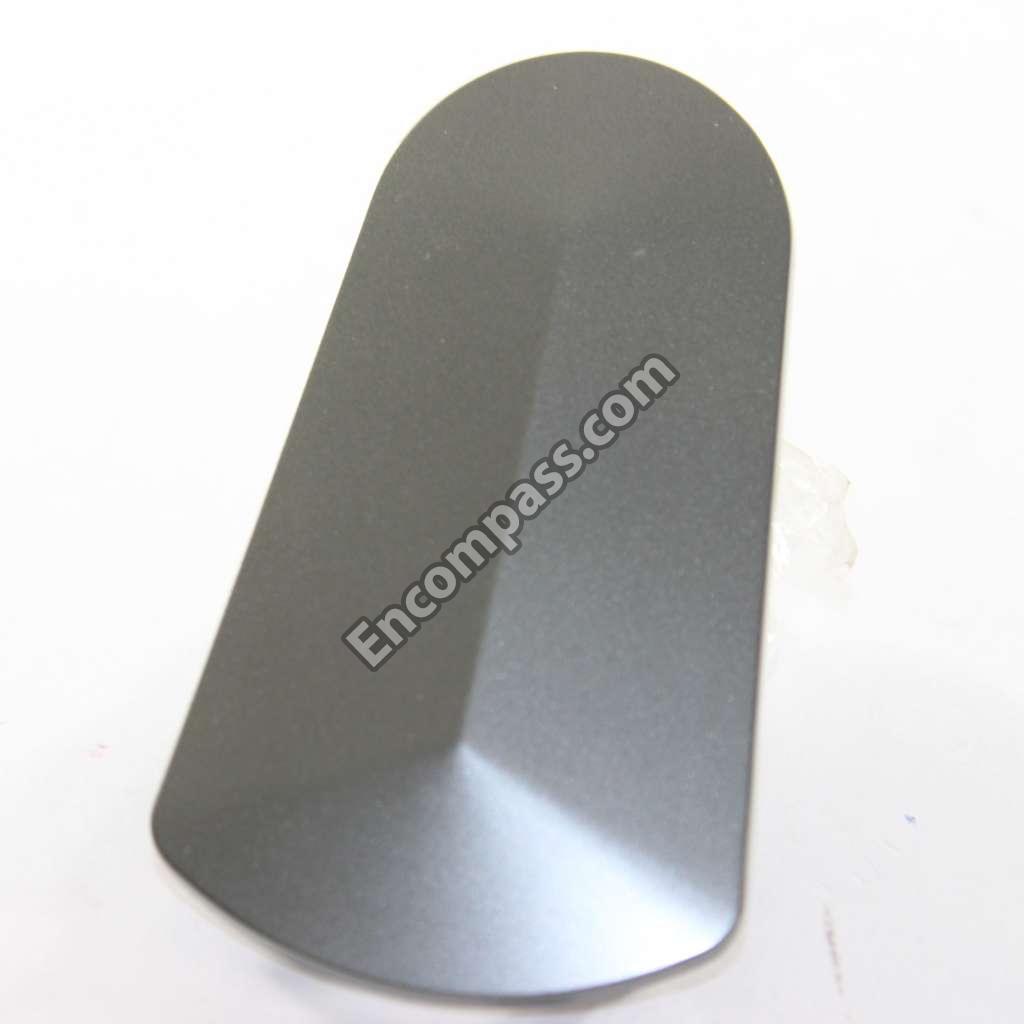

MCR65810301 MCR65810301 DECOR
EAH31952201 EAH31952201 DIODE,BRIDGE
EAH42986602 EAH42986602 DIODE,BRIDGE
EAH61252701 EAH61252701 DIODE,RECTIFIER
0DR104009BA 0DR104009BA DIODE,RECTIFIER
EAH62232901 EAH62232901 DIODE,SCHOTTKY
0DSKE00048A 0DSKE00048A DIODE,SCHOTTKY
0DD160009AB 0DD160009AB DIODE,SWITCHING
0DSRM00148A 0DSRM00148A DIODE,SWITCHING
EAH62735501 EAH62735501 DIODE,TVS
EAH56919501 EAH56919501 DIODE,TVS
EAH62033601 EAH62033601 DIODE,TVS
0DZ510009AH 0DZ510009AH DIODE,ZENER
0DZ222609AA 0DZ222609AA DIODE,ZENER
0DZPH00088A 0DZPH00088A DIODE,ZENER
0DZ220009AE 0DZ220009AE DIODE,ZENER
EAH39305801 EAH39305801 DIODE,ZENER
0DZSE00134A 0DZSE00134A DIODE,ZENER
0DZSE00044A 0DZSE00044A DIODE,ZENER
0DZ180009AE 0DZ180009AE DIODE,ZENER
MCZ63611901 MCZ63611901 DUCT
MCZ63631801 MCZ63631801 DUCT
EBK62911801 EBK62911801 FET
EBK62851701 EBK62851701 FET
EBK62212301 EBK62212301 FET
0TRRH80042A 0TRRH80042A FET
0LC11608C01 0LC11608C01 FILTER,BEAD
EAM62151001 EAM62151001 FILTER,BEAD
EAM61090601 EAM61090601 FILTER,BEAD
EAM62155402 EAM62155402 FILTER,BEAD
EAM62155401 EAM62155401 FILTER,BEAD
EAM42641607 EAM42641607 FILTER,BEAD
EAM62151101 EAM62151101 FILTER,BEAD
EAM56488801 EAM56488801 FILTER,BEAD
EAM62770301 EAM62770301 FILTER,EMI/POWER
EAM61230103 EAM61230103 FILTER,LINE NOISE
EAM62712401 EAM62712401 FILTER,LINE NOISE
EAM62634203 EAM62634203 FILTER,LINE NOISE
EAM62634201 EAM62634201 FILTER,LINE NOISE
MDP63146701 MDP63146701 FOOT
0FS5001B51D 0FS5001B51D FUSE,TIME DELAY
MDX63512001 MDX63512001 GRILLE
EAD62497601 EAD62497601 HARNESS,SINGLE
EAD35863029 EAD35863029 HARNESS,SINGLE
EAD63465101 EAD63465101 HARNESS,SINGLE
MED61841613 MED61841613 HEAT SINK
MED62751601 MED62751601 HEAT SINK
MED61841614 MED61841614 HEAT SINK
MEG64140401 MEG64140401 HOLDER
EAN60910101 EAN60910101 IC,A/D CONVERTER
EAN62871401 EAN62871401 IC,ANALOG SWITCH
EAN62395902 EAN62395902 IC,AUDIO AMPLIFIER
EAN62994601 EAN62994601 IC,DC,DC CONVERTER
EAN63530001 EAN63530001 IC,DC,DC CONVERTER
EAN62909503 EAN62909503 IC,DIGITAL SIGNAL PROCESSORS
EAN57065701 EAN57065701 IC,I/O SUPPORT CHIP
EAN62682301 EAN62682301 IC,LDO VOLTAGE REGULATOR
EAN62780901 EAN62780901 IC,LDO VOLTAGE REGULATOR
EAN62700101 EAN62700101 IC,PWM CONTROLLER
EAN60700803 EAN60700803 IC,SDRAM
EAN62580901 EAN62580901 IC,SOUND/AUDIO PROCESSOR
EAN63547801 EAN63547801 IC,TX/RX
EAN38061301 EAN38061301 IC,VOLTAGE DETECTOR
EAN60911701 EAN60911701 IC,VOLTAGE REFERENCE
EAP63026901 EAP63026901 INDUCTOR,WIRE WOUND,CHIP
EAP61747403 EAP61747403 INDUCTOR,WIRE WOUND,CHIP
EAP61747401 EAP61747401 INDUCTOR,WIRE WOUND,CHIP
EAG64171001 EAG64171001 JACK,FIBER OPTIC
6612F00091C 6612F00091C JACK,PHONE
EAJ63172301 EAJ63172301 LCD MODULE
EAV60793101 EAV60793101 LED,CHIP
AFN76832521 AFN76832521 MANUAL ASSEMBLY,OWNERS
EAT62833601 EAT62833601 MODULE,BLUETOOTH
EAT62833401 EAT62833401 MODULE,RF FULL MODULE(RXTX)
MFZ64695401 MFZ64695401 PACKING

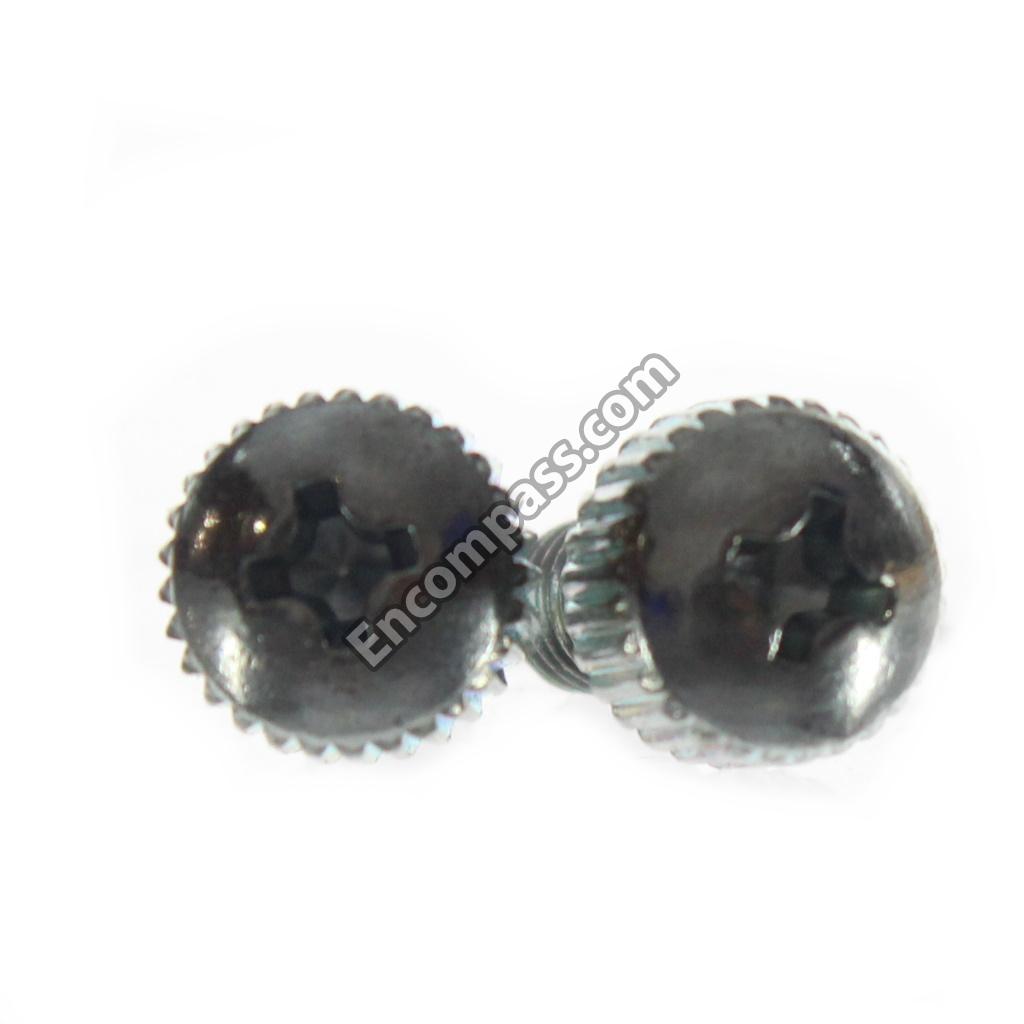

AGG74482402 AGG74482402 SCREW FOR WALL BRACKET
MGC63804104 MGC63804104 PANEL,REAR
EBR80383001 EBR80383001 PCB ASSEMBLY
EBR80403101 EBR80403101 PCB ASSEMBLY
EBU63043201 EBU63043201 PCB ASSEMBLY,HDMI
EBR80544601 EBR80544601 PCB ASSEMBLY,KEYPAD
EBR80127301 EBR80127301 PCB ASSEMBLY,KEYPAD
EBR80544401 EBR80544401 PCB ASSEMBLY,MAIN
EBR81222301 EBR81222301 PCB ASSEMBLY,MAIN
EBR80387301 EBR80387301 PCB ASSEMBLY,POWER
EBR80073701 EBR80073701 PCB ASSEMBLY,SUB
EBR80073801 EBR80073801 PCB ASSEMBLY,SUB
EAV61473101 EAV61473101 PHOTO,COUPLER
EAV59176001 EAV59176001 PHOTO,COUPLER
MGJ64687001 MGJ64687001 PLATE,GROUND
EAD60816752 EAD60816752 POWER CORD
EAV61333201 EAV61333201 RECEIVER MODULE

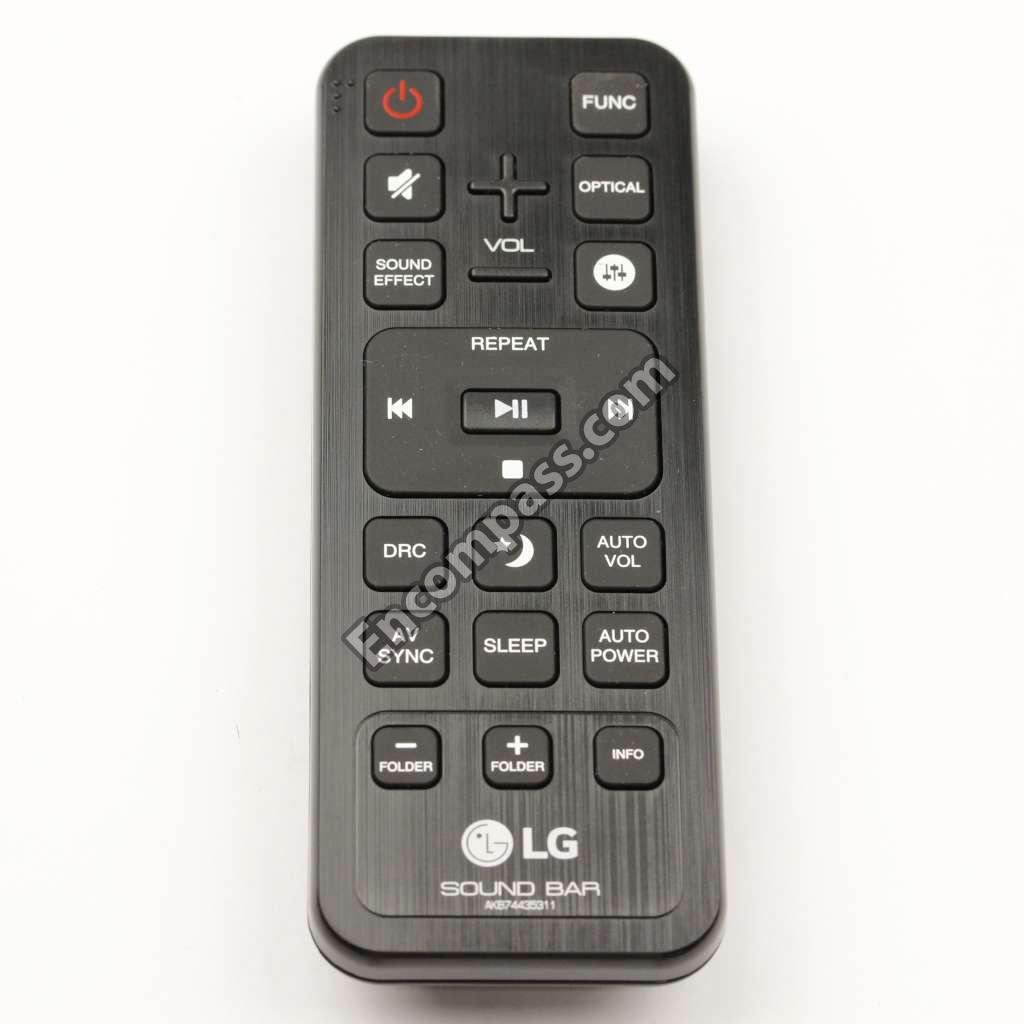

AKB74435311 AKB74435311 REMOTE CONTROLLER ASSEMBLY
0RD8200F609 0RD8200F609 RESISTOR,CARBON FILM
0RD0221F609 0RD0221F609 RESISTOR,CARBON FILM
0RD5103F609 0RD5103F609 RESISTOR,CARBON FILM
0RD7500F609 0RD7500F609 RESISTOR,CARBON FILM
0RD1202F609 0RD1202F609 RESISTOR,CARBON FILM
0RD2702F609 0RD2702F609 RESISTOR,CARBON FILM
0RD4701F609 0RD4701F609 RESISTOR,CARBON FILM
0RD1002F609 0RD1002F609 RESISTOR,CARBON FILM
0RD1004F609 0RD1004F609 RESISTOR,CARBON FILM
0RD2200F609 0RD2200F609 RESISTOR,CARBON FILM
0RD0222F609 0RD0222F609 RESISTOR,CARBON FILM
0RD0471F609 0RD0471F609 RESISTOR,CARBON FILM
0RD1001F609 0RD1001F609 RESISTOR,CARBON FILM
0RJ5600C678 0RJ5600C678 RESISTOR,CHIP
0RJ8201C478 0RJ8201C478 RESISTOR,CHIP
0RH6800C622 0RH6800C622 RESISTOR,CHIP
EBC62736001 EBC62736001 RESISTOR,CHIP
0RJ1202C678 0RJ1202C678 RESISTOR,CHIP
0RJ1502C478 0RJ1502C478 RESISTOR,CHIP
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP
0RJ1203C678 0RJ1203C678 RESISTOR,CHIP
0RJ1502C678 0RJ1502C678 RESISTOR,CHIP
0RH1000C622 0RH1000C622 RESISTOR,CHIP
0RJ1003C478 0RJ1003C478 RESISTOR,CHIP
0RJ1004C678 0RJ1004C678 RESISTOR,CHIP
0RJ1202C478 0RJ1202C478 RESISTOR,CHIP
0RJ1303C477 0RJ1303C477 RESISTOR,CHIP
0RJ1501C678 0RJ1501C678 RESISTOR,CHIP
0RJ1503C478 0RJ1503C478 RESISTOR,CHIP
0RH2203C622 0RH2203C622 RESISTOR,CHIP
0RH2702D622 0RH2702D622 RESISTOR,CHIP
0RJ0102C678 0RJ0102C678 RESISTOR,CHIP
0RH2003C622 0RH2003C622 RESISTOR,CHIP
0RH4701C622 0RH4701C622 RESISTOR,CHIP
0RJ4701C478 0RJ4701C478 RESISTOR,CHIP
0RH4702C622 0RH4702C622 RESISTOR,CHIP
0RH5102C422 0RH5102C422 RESISTOR,CHIP
0RH6800D622 0RH6800D622 RESISTOR,CHIP
0RH8200D622 0RH8200D622 RESISTOR,CHIP
0RH0000D622 0RH0000D622 RESISTOR,CHIP
0RH1000D622 0RH1000D622 RESISTOR,CHIP
0RH0332C622 0RH0332C622 RESISTOR,CHIP
0RH0331D622 0RH0331D622 RESISTOR,CHIP
0RH1002C622 0RH1002C622 RESISTOR,CHIP
0RH1003B622 0RH1003B622 RESISTOR,CHIP
0RH2201C622 0RH2201C622 RESISTOR,CHIP
0RH2702C622 0RH2702C622 RESISTOR,CHIP
0RH3303D622 0RH3303D622 RESISTOR,CHIP
0RJ0472C678 0RJ0472C678 RESISTOR,CHIP
0RH0000C622 0RH0000C622 RESISTOR,CHIP
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP
0RJ4702C478 0RJ4702C478 RESISTOR,CHIP
0RJ5602C478 0RJ5602C478 RESISTOR,CHIP
0RH7500D622 0RH7500D622 RESISTOR,CHIP
0RJ0222C678 0RJ0222C678 RESISTOR,CHIP
0RJ2200C678 0RJ2200C678 RESISTOR,CHIP
0RJ0562C678 0RJ0562C678 RESISTOR,CHIP
0RJ1002C478 0RJ1002C478 RESISTOR,CHIP
0RJ2403C478 0RJ2403C478 RESISTOR,CHIP
0RJ3301C678 0RJ3301C678 RESISTOR,CHIP
0RJ4700C678 0RJ4700C678 RESISTOR,CHIP
EBC40092901 EBC40092901 RESISTOR,CHIP
0RJ8201C678 0RJ8201C678 RESISTOR,CHIP
0RJ8202C478 0RJ8202C478 RESISTOR,CHIP
0RJ2202C678 0RJ2202C678 RESISTOR,CHIP
0RJ2702C678 0RJ2702C678 RESISTOR,CHIP
0RJ3900C477 0RJ3900C477 RESISTOR,CHIP
0RJ3902C678 0RJ3902C678 RESISTOR,CHIP
0RJ1801C678 0RJ1801C678 RESISTOR,CHIP
0RJ1802C478 0RJ1802C478 RESISTOR,CHIP
0RJ1802C678 0RJ1802C678 RESISTOR,CHIP
EBC61057301 EBC61057301 RESISTOR,CHIP
0RJ4702C678 0RJ4702C678 RESISTOR,CHIP
0RJ5101C678 0RJ5101C678 RESISTOR,CHIP
0RJ6800C477 0RJ6800C477 RESISTOR,CHIP
0RJ6802C678 0RJ6802C678 RESISTOR,CHIP
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP
0RJ2002C478 0RJ2002C478 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
0RJ2201C478 0RJ2201C478 RESISTOR,CHIP
0RJ2201C678 0RJ2201C678 RESISTOR,CHIP
0RJ2203C678 0RJ2203C678 RESISTOR,CHIP
0RJ2702C478 0RJ2702C478 RESISTOR,CHIP
0RJ2703C478 0RJ2703C478 RESISTOR,CHIP
0RJ3302C678 0RJ3302C678 RESISTOR,CHIP
0RJ3901C678 0RJ3901C678 RESISTOR,CHIP
0RH1001C622 0RH1001C622 RESISTOR,CHIP
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP
0RJ0752C678 0RJ0752C678 RESISTOR,CHIP
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP
0RN1201F409 0RN1201F409 RESISTOR,METAL FILM
0RN2001F409 0RN2001F409 RESISTOR,METAL FILM
0RN4701F409 0RN4701F409 RESISTOR,METAL FILM
0RN2202F409 0RN2202F409 RESISTOR,METAL FILM
0RS0470K619 0RS0470K619 RESISTOR,METAL OXIDE FILM
0RS0220K619 0RS0220K619 RESISTOR,METAL OXIDE FILM
0RS5602K619 0RS5602K619 RESISTOR,METAL OXIDE FILM
EBC30416601 EBC30416601 RESISTOR,WIRE WOUND
SAA35932228 SAA35932228 S/W,SYSTEM PROGRAM
SAA37594301 SAA37594301 S/W,SYSTEM PROGRAM
SAA37594201 SAA37594201 S/W,SYSTEM PROGRAM
SAA35932227 SAA35932227 S/W,SYSTEM PROGRAM
1SZZR-0097K 1SZZR-0097K SCREW,CUSTOMIZED
1SZZH-1007B 1SZZH-1007B SCREW,CUSTOMIZED
353M050N 353M050N SCREW,CUSTOMIZED
1SZZR-0098J 1SZZR-0098J SCREW,CUSTOMIZED
1SZZR-0098A 1SZZR-0098A SCREW,CUSTOMIZED
TCG36068036 TCG36068036 SPEAKER SYSTEM TOTAL
EAB63708601 EAB63708601 SPEAKER,TWEETER

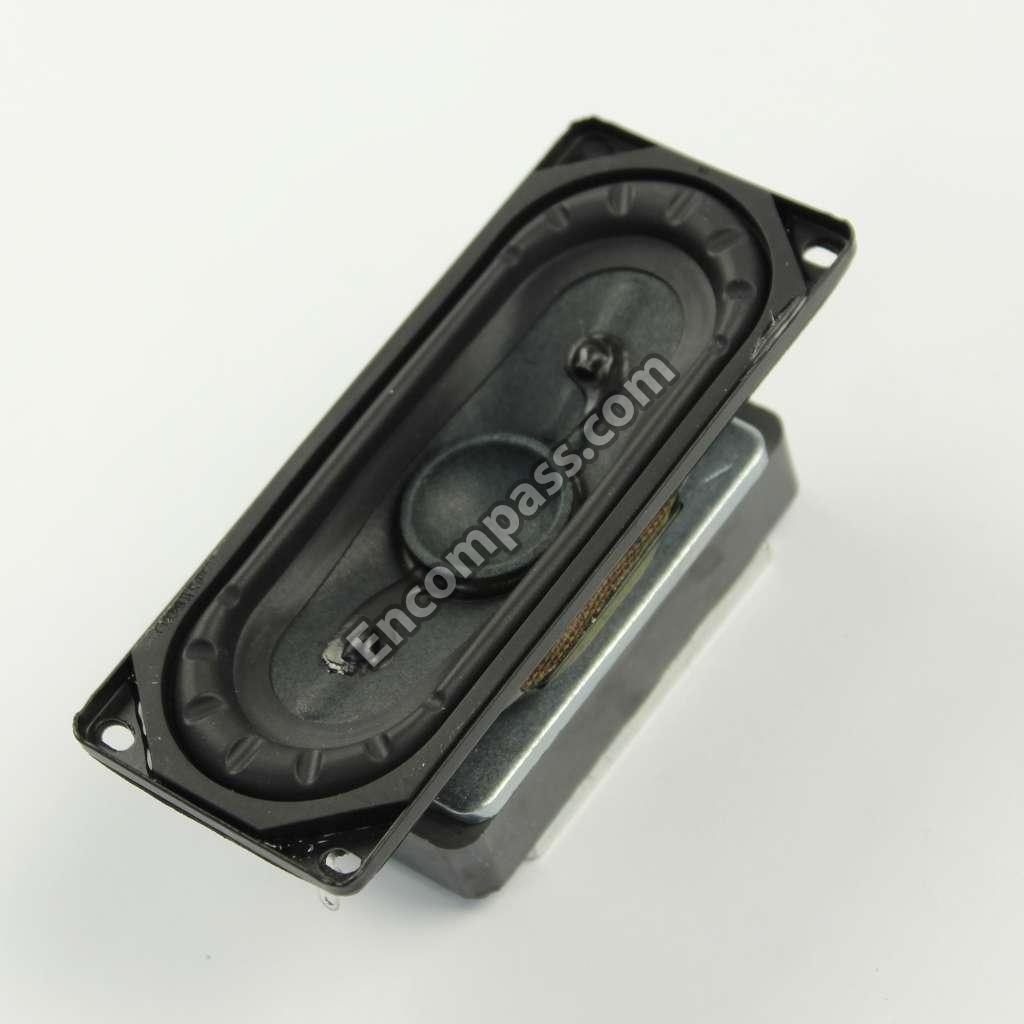

EAB63609301 EAB63609301 SPEAKER,WOOFER
6600R00004C 6600R00004C SWITCH,TACT
6600R00004A 6600R00004A SWITCH,TACT
EBG61026201 EBG61026201 THERMISTOR,NTC
EBG61045701 EBG61045701 THERMISTOR,NTC
EBG43133901 EBG43133901 THERMISTOR,NTC
EBK61012601 EBK61012601 TR,BIPOLAR
0TR319809AA 0TR319809AA TR,BIPOLAR
0TRAU90005A 0TRAU90005A TR,BIPOLAR
EBK61231501 EBK61231501 TR,BIPOLAR
EBK33822201 EBK33822201 TR,BIPOLAR
0TR102009AA 0TR102009AA TR,BIPOLAR
0TR150409AB 0TR150409AB TR,BIPOLAR
0TR150409AC 0TR150409AC TR,BIPOLAR
0TR103009AM 0TR103009AM TR,BIPOLAR
0TR103009AA 0TR103009AA TR,BIPOLAR
0TR387509AC 0TR387509AC TR,BIPOLAR
EBJ60770138 EBJ60770138 TRANSFORMER,SWITCHING
EBJ60770154 EBJ60770154 TRANSFORMER,SWITCHING
EAF43134201 EAF43134201 VARISTOR
Main Menu x
