Model Image
Manufacturer

LG

Model Number

LBN10551PV

Description

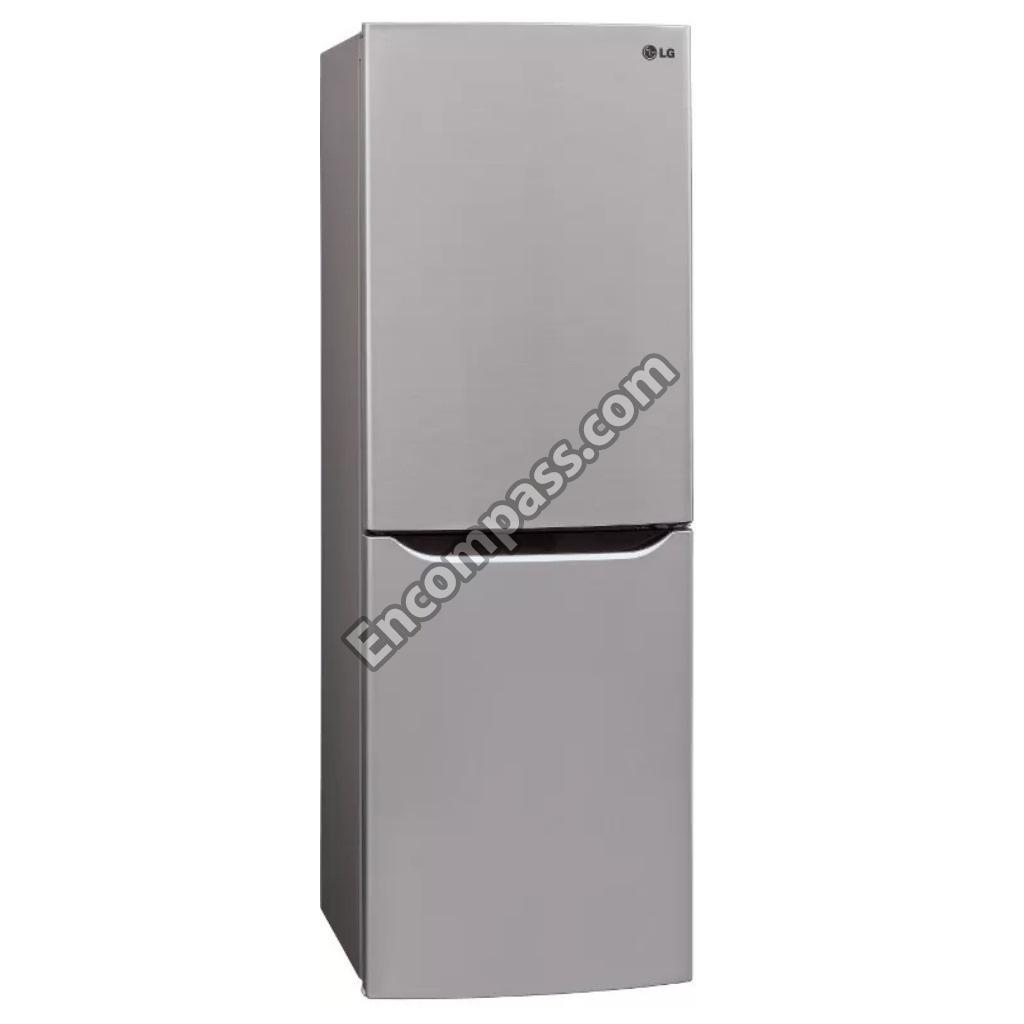

24-inch Bottom Freezer Refrigerator

Interactive Exploded View

Parts List

Part Number Description
AAN73069301 AAN73069301 BASE ASSEMBLY,COMPRESSOR
AAP74091303 AAP74091303 BASKET,DOOR
MAN62769103 MAN62769103 BASKET,DOOR
MAZ62231901 MAZ62231901 BRACKET,MOTOR
ABN73880310 ABN73880310 CAP ASSEMBLY,DECOR REFRIGERATOR
5006JQ3032A 5006JQ3032A CAP,COVER
5006JQ3063E 5006JQ3063E CAP,COVER
5006JQ3012U 5006JQ3012U CAP,HINGE
EAE32501015 EAE32501015 CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL
ABQ74149301 ABQ74149301 CASE ASSEMBLY,CONTROL REFRIGERATOR
MBN63031802 MBN63031802 CASE,CONTROL REFRIGERATOR
MBN61962901 MBN61962901 CASE,PCB
TCA30129802 TCA30129802 COMPRESSOR,SET ASSEMBLY
ACG73924801 ACG73924801 CONDENSER ASSEMBLY,WIRE
4781JR2004C 4781JR2004C CONTROLLER ASSEMBLY
ACQ86657714 ACQ86657714 COVER ASSEMBLY,DISPLAY
ACQ86325523 ACQ86325523 COVER ASSEMBLY,FRONT
ACQ76009101 ACQ76009101 COVER ASSEMBLY,MACHINERY(REAR)
ACQ76174708 ACQ76174708 COVER ASSEMBLY,PCB
ACQ76174701 ACQ76174701 COVER ASSEMBLY,PCB
ACQ86325403 ACQ86325403 COVER ASSEMBLY,TV
3550JQ2046A 3550JQ2046A COVER,DUCT
MCK67403003 MCK67403003 COVER,FRONT
MCK67506805 MCK67506805 COVER,HINGE
MCK67506806 MCK67506806 COVER,HINGE
MCK67400601 MCK67400601 COVER,LAMP
MCK63208401 MCK63208401 COVER,MACHINERY(REAR)
MCK51763401 MCK51763401 COVER,PTC
3550JQ2025A 3550JQ2025A COVER,SENSOR
MCK67483101 MCK67483101 COVER,TRAY
5040JQ3008B 5040JQ3008B DAMPER,COMPRESSOR
5040JQ2002B 5040JQ2002B DAMPER,MOTOR SUPPORT
5040JQ2003B 5040JQ2003B DAMPER,MOTOR SUPPORT
5072JQ3002B 5072JQ3002B DAMPER,NOISE
5040JQ3023A 5040JQ3023A DAMPER,PIPE
ADC74186311 ADC74186311 DOOR ASSEMBLY,FREEZER
ADC32822124 ADC32822124 DOOR ASSEMBLY,REFRIGERATOR
ADD73518413 ADD73518413 DOOR FOAM ASSEMBLY,FREEZER
ADD73498813 ADD73498813 DOOR FOAM ASSEMBLY,REFRIGERATOR
ADH69749101 ADH69749101 DRIER ASSEMBLY
MCZ62873101 MCZ62873101 DUCT,INSULATION
5421JQ0019A 5421JQ0019A EVAPORATOR ASSEMBLY
ADP36665701 ADP36665701 FAN ASSEMBLY
5901JA1020A 5901JA1020A FAN ASSEMBLY
ADX73591403 ADX73591403 GASKET ASSEMBLY,DOOR
ADX73591402 ADX73591402 GASKET ASSEMBLY,DOOR
3531JQ2001A 3531JQ2001A GRILLE ASSEMBLY,FAN
MEA62071201 MEA62071201 GUIDE,FAN
MEA63150301 MEA63150301 GUIDE,RAIL
MEA63150302 MEA63150302 GUIDE,RAIL
MEB61847008 MEB61847008 HANDLE,REAR
MEB61847007 MEB61847007 HANDLE,REAR
6877JR3007E 6877JR3007E HARNESS ASSEMBLY
5300JR1006D 5300JR1006D HEATER,SHEATH
5300JB1050D 5300JB1050D HEATER,SHEATH
AEH74158001 AEH74158001 HINGE ASSEMBLY,CENTER
AEH74137801 AEH74137801 HINGE ASSEMBLY,LOWER
AEH74276201 AEH74276201 HINGE ASSEMBLY,UPPER
AGM73110132 AGM73110132 HINGE ASSEMBLY,UPPER
4930JQ3020D 4930JQ3020D HOLDER,DRIER
EAV61573111 EAV61573111 LED ASSEMBLY
EAU60694520 EAU60694520 MOTOR,DC
EAU60694522 EAU60694522 MOTOR,DC
MFT62346511 MFT62346511 NAME PLATE
MFT62346508 MFT62346508 NAME PLATE
EAF61770715 EAF61770715 OVERLOAD PROTECT

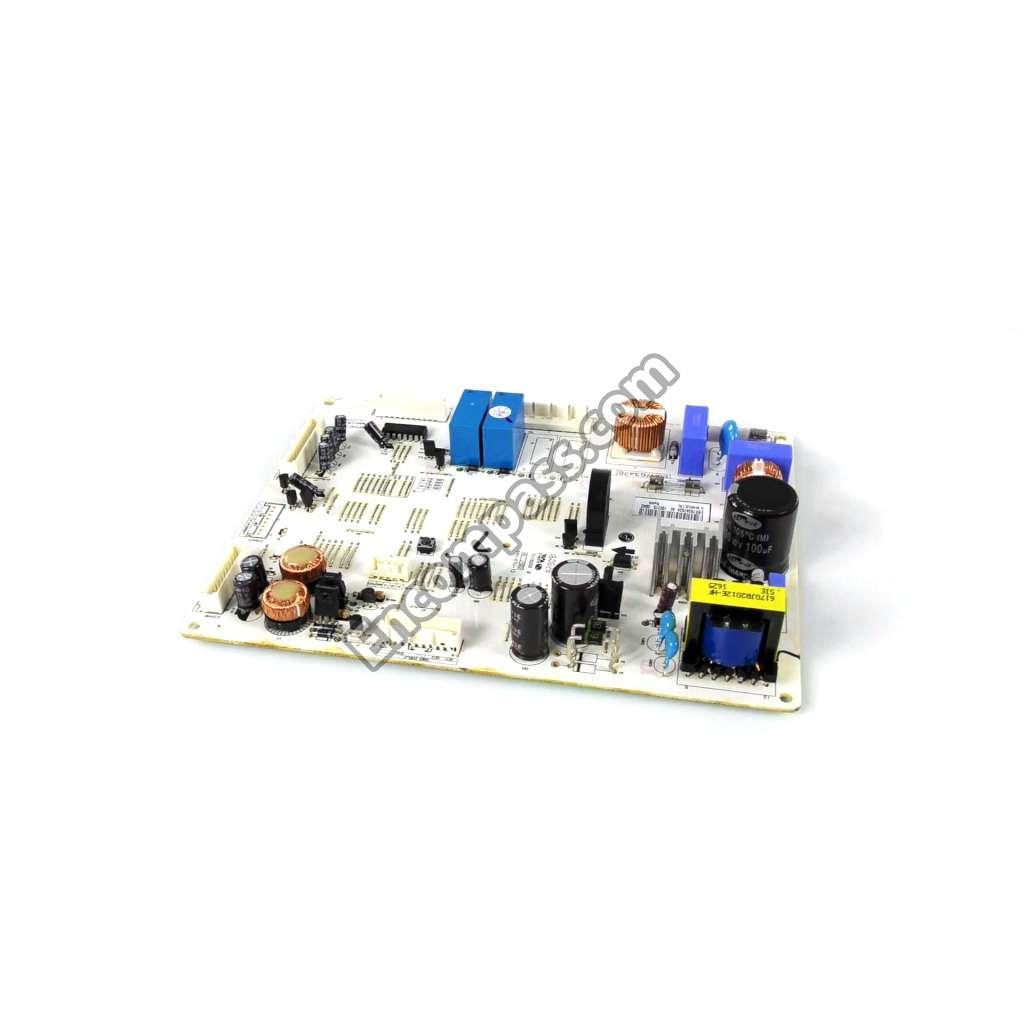

EBR76347624 EBR76347624 PCB ASSEMBLY,MAIN
1PZZJQ3017A 1PZZJQ3017A PIN,COMMON
EAD62427003 EAD62427003 POWER CORD ASSEMBLY
4580JQ3001B 4580JQ3001B ROLLER
AHJ73229902 AHJ73229902 ROLLER ASSEMBLY
AHJ73229901 AHJ73229901 ROLLER ASSEMBLY
AHT73754301 AHT73754301 SHELF ASSEMBLY,REFRIGERATOR
AHV72970201 AHV72970201 SHROUD ASSEMBLY,FREEZER
4J03277A 4J03277A STOPPER,COMPRESSOR
MJB63170801 MJB63170801 STOPPER,DOOR
MJB63150601 MJB63150601 STOPPER,DOOR
MJB63190801 MJB63190801 STOPPER,HANDLE
4981JQ3001A 4981JQ3001A SUPPORTER ASSEMBLY,LEG
4980JQ3033A 4980JQ3033A SUPPORTER,LEG
6600JB3007K 6600JB3007K SWITCH,PUSH BUTTON
6749C-0014E 6749C-0014E THERMISTOR ASSEMBLY,PTC
3391JQ2010A 3391JQ2010A TRAY ASSEMBLY,DRAIN
AJP72975302 AJP72975302 TRAY ASSEMBLY,DRAWER
AJP72975202 AJP72975202 TRAY ASSEMBLY,DRAWER
AJP72975102 AJP72975102 TRAY ASSEMBLY,DRAWER
AJP72975002 AJP72975002 TRAY ASSEMBLY,DRAWER
AJP73015502 AJP73015502 TRAY ASSEMBLY,DRIP
AJP73816305 AJP73816305 TRAY ASSEMBLY,VEGETABLE
MJS61912301 MJS61912301 TRAY,DRIP
MJS62773801 MJS62773801 TRAY,EGG
3390JQ2001A 3390JQ2001A TRAY,ICE
5251JQ3002A 5251JQ3002A TUBE ASSEMBLY,DRAIN
5250JQ2010A 5250JQ2010A TUBE,DRAIN
