Model Number

LBNC10551W

Description

10.1 Cu. Ft. Bottom-freezer Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
- - 0
AAN73069311 AAN73069311 BASE ASSEMBLY,COMPRESSOR
AAP74091308 AAP74091308 BASKET ASSEMBLY,DOOR
MAN62769103 MAN62769103 BASKET,DOOR
MAZ62231901 MAZ62231901 BRACKET,MOTOR
ABN73880328 ABN73880328 CAP ASSEMBLY,DECOR REFRIGERATOR
5006JQ3032A 5006JQ3032A CAP,COVER
5006JQ3063B 5006JQ3063B CAP,COVER
MBL63037015 MBL63037015 CAP,HINGE
5006JQ3012U 5006JQ3012U CAP,HINGE
MBL68659104 MBL68659104 CAP,HINGE
ABQ75982502 ABQ75982502 CASE ASSEMBLY,CONTROL REFRIGERATOR
MBN64864401 MBN64864401 CASE,CONTROL REFRIGERATOR
TCA35776411 TCA35776411 COMPRESSOR,SET ASSEMBLY
ACG56006609 ACG56006609 CONDENSER ASSEMBLY,WIRE
ACQ86325554 ACQ86325554 COVER ASSEMBLY,FRONT
ACQ76009101 ACQ76009101 COVER ASSEMBLY,MACHINERY(REAR)
ACQ76174701 ACQ76174701 COVER ASSEMBLY,PCB
ACQ76908301 ACQ76908301 COVER ASSEMBLY,PCB
3550JQ2046A 3550JQ2046A COVER,DUCT
MCK68751005 MCK68751005 COVER,FRONT
MCK67506801 MCK67506801 COVER,HINGE
MCK67506802 MCK67506802 COVER,HINGE
MCK67400601 MCK67400601 COVER,LAMP
ACQ76174708 ACQ76174708 COVER,PCB
MCK66611203 MCK66611203 COVER,PTC
MCK69400301 MCK69400301 COVER,TRAY
5040JA3071B 5040JA3071B DAMPER,COMPRESSOR
5040JQ2002B 5040JQ2002B DAMPER,MOTOR SUPPORT
5072JQ3002F 5072JQ3002F DAMPER,NOISE
ADD73518448 ADD73518448 DOOR ASSEMBLY,FREEZER
ADD73498895 ADD73498895 DOOR ASSEMBLY,REFRIGERATOR
AAP74091303 AAP74091303 DOOR BASKET
5251JQ3002A 5251JQ3002A DRAIN ASSEMBLY,PIPE-Z
ADH30339601 ADH30339601 DRIER ASSEMBLY
ADH73590301 ADH73590301 DRIER ASSEMBLY
ADH73150210 ADH73150210 DRIER ASSEMBLY
ADH73150208 ADH73150208 DRIER ASSEMBLY
MCZ64412301 MCZ64412301 DUCT,INSULATION
5421JQ0023A 5421JQ0023A EVAPORATOR ASSEMBLY
ADP73673901 ADP73673901 FAN ASSEMBLY
ADP36665705 ADP36665705 FAN ASSEMBLY
ADX73591403 ADX73591403 GASKET ASSEMBLY,DOOR
ADX73591402 ADX73591402 GASKET ASSEMBLY,DOOR
3531JQ2001B 3531JQ2001B GRILLE ASSEMBLY,FAN
MEA62071201 MEA62071201 GUIDE,FAN
MEA64731201 MEA64731201 GUIDE,RAIL
MEA64731202 MEA64731202 GUIDE,RAIL
MEB61847008 MEB61847008 HANDLE,REAR
MEB61847007 MEB61847007 HANDLE,REAR
MEB41340711 MEB41340711 HANDLE,REAR
MEB41340712 MEB41340712 HANDLE,REAR
6877JR3007E 6877JR3007E HARNESS ASSEMBLY
5300JR1009X 5300JR1009X HEATER,SHEATH
AEH74158001 AEH74158001 HINGE ASSEMBLY,CENTER
AEH74137801 AEH74137801 HINGE ASSEMBLY,LOWER
AEH74137802 AEH74137802 HINGE ASSEMBLY,LOWER
AGM73110132 AGM73110132 HINGE ASSEMBLY,UPPER
AEH74276201 AEH74276201 HINGE ASSEMBLY,UPPER
4930JA3034A 4930JA3034A HOLDER,DRIER
MEG61863805 MEG61863805 HOLDER,DRIER
EAV61573117 EAV61573117 LED ASSEMBLY
4779JQ3002A 4779JQ3002A LEG ASSEMBLY,ADJUST
EAU65058313 EAU65058313 MOTOR,DC
EAU63103012 EAU63103012 MOTOR,DC
EAU63103002 EAU63103002 MOTOR,DC
MFT62346511 MFT62346511 NAME PLATE
MFT63266201 MFT63266201 NAME PLATE,PET
EAF61170610 EAF61170610 OVERLOAD PROTECT
AGM73110135 AGM73110135 PARTS ASSEMBLY,REFRIGERATOR
EBR80525457 EBR80525457 PCB ASSEMBLY,MAIN
1PZZJQ3017A 1PZZJQ3017A PIN,DRAWING
EAD62026071 EAD62026071 POWER CORD ASSEMBLY
5072JQ3002B 5072JQ3002B RESTRAINER
4580JQ3004B 4580JQ3004B ROLLER
1SZZJQ2015B 1SZZJQ2015B SCREW,CUSTOMIZED
AHT73754311 AHT73754311 SHELF ASSEMBLY,REFRIGERATOR
AHT73754307 AHT73754307 SHELF ASSEMBLY,REFRIGERATOR
AHV72970203 AHV72970203 SHROUD ASSEMBLY,FREEZER
4620JA3015A 4620JA3015A STOPPER,COMP
MJB63170801 MJB63170801 STOPPER,DOOR
MJB63150601 MJB63150601 STOPPER,DOOR
4981JQ3001A 4981JQ3001A SUPPORTER ASSEMBLY,LEG
4980JQ3033A 4980JQ3033A SUPPORTER,LEG
3391JQ2010A 3391JQ2010A TRAY ASSEMBLY,DRAIN

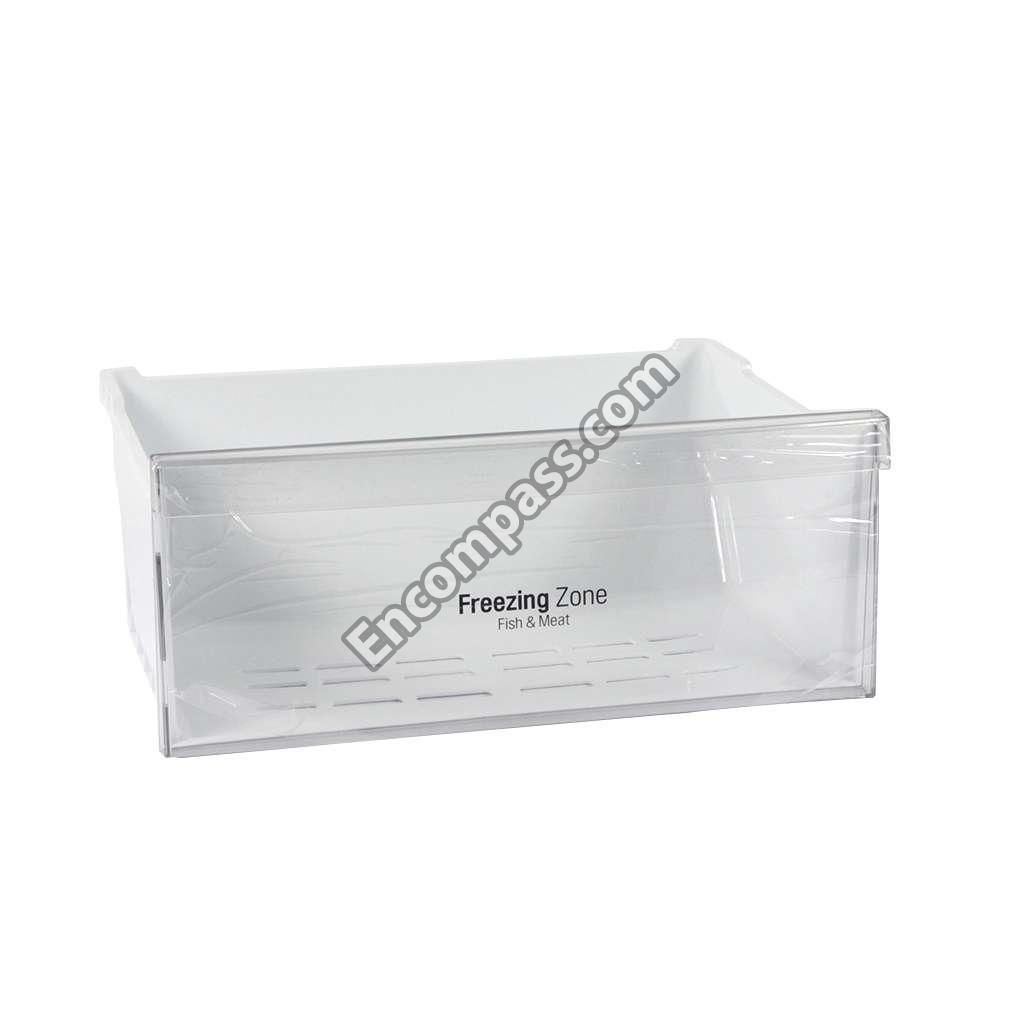

AJP72975208 AJP72975208 TRAY ASSEMBLY,DRAWER
AJP34979907 AJP34979907 TRAY ASSEMBLY,DRAWER

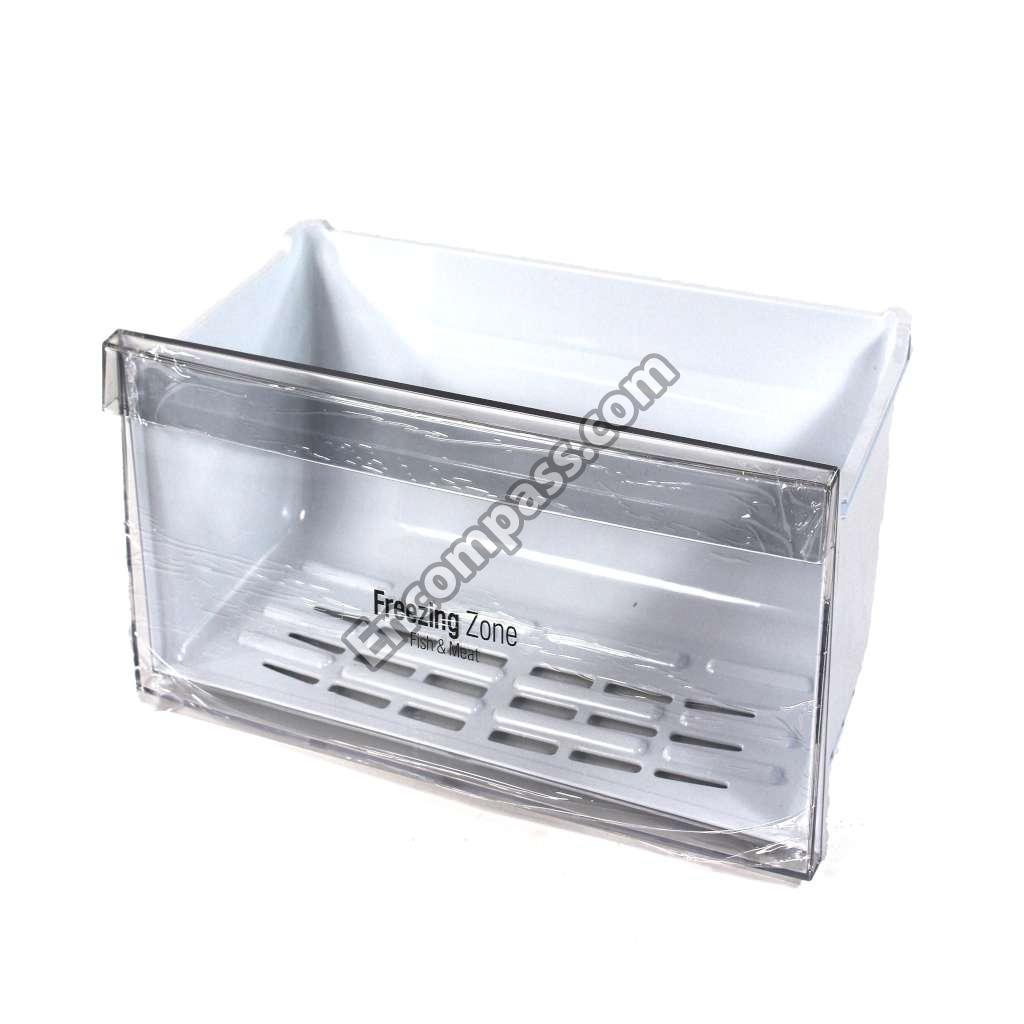

AJP72975308 AJP72975308 TRAY ASSEMBLY,DRAWER

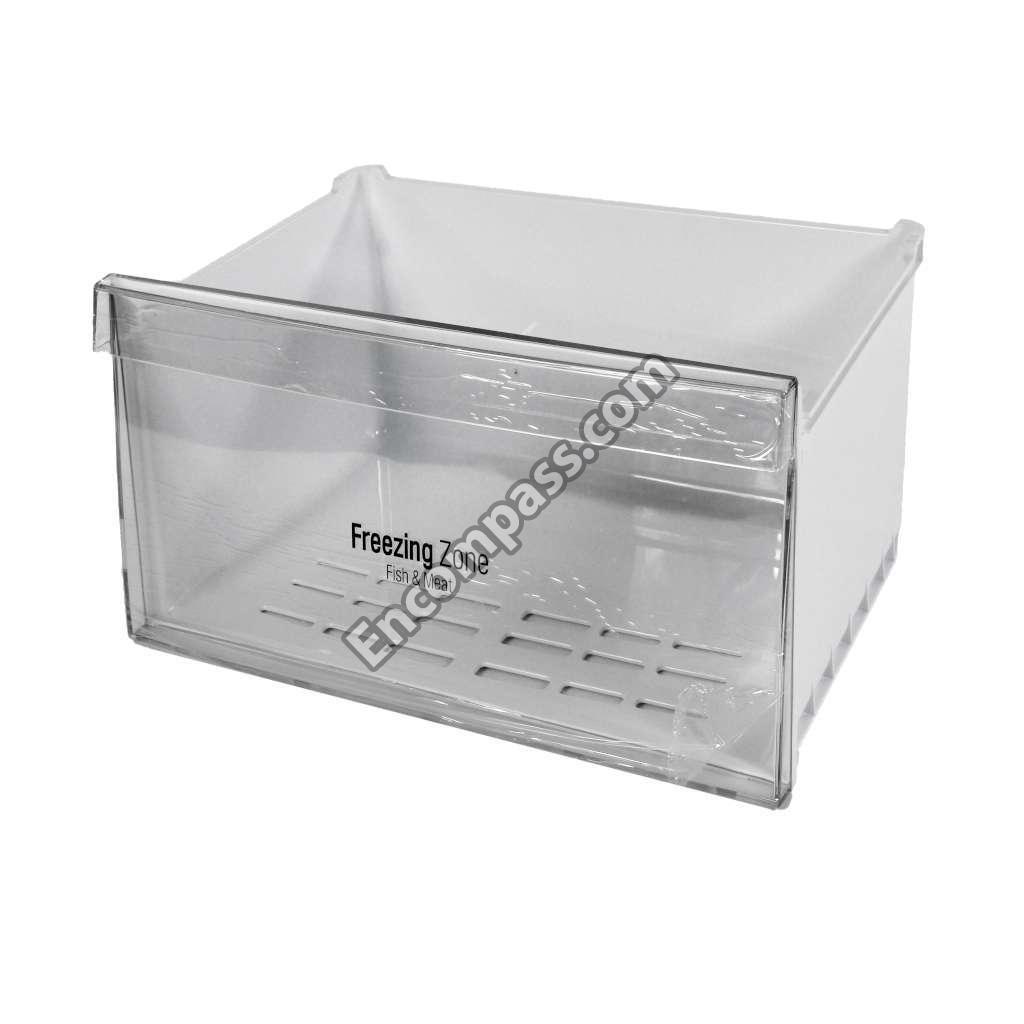

AJP72975108 AJP72975108 TRAY ASSEMBLY,DRAWER
AJP73015508 AJP73015508 TRAY ASSEMBLY,DRIP
AJP75234603 AJP75234603 TRAY ASSEMBLY,VEGETABLE
MJS61912301 MJS61912301 TRAY,DRIP
3390JQ2001A 3390JQ2001A TRAY,ICE
