Model Image
Manufacturer

LG

Model Number

LCN368HV

Description

36000 Btu Ductless Single Zone Ceiling Cassette In

Interactive Exploded View
Exploded View

Parts List

Part Number Description
AAA31075410 AAA31075410 ACCESSORY ASSEMBLY
AAN31579010 AAN31579010 BASE ASSEMBLY,INDOOR
MBH33966602 MBH33966602 CABINET
MBH33966802 MBH33966802 CABINET
ABJ32324106 ABJ32324106 CABINET ASSEMBLY
ABJ31579104 ABJ31579104 CABINET ASSEMBLY,INDOOR
ABJ32882402 ABJ32882402 CABINET ASSEMBLY,INDOOR
MBL36236701 MBL36236701 CAP
ABQ74181908 ABQ74181908 CASE ASSEMBLY,CONTROL(INDOOR)
EAG38884401 EAG38884401 CONNECTOR,TERMINAL BLOCK
EBR86598714 EBR86598714 CONTROL BOARD
MCK36239314 MCK36239314 COVER
ADL32881104 ADL32881104 EVAPORATOR ASSEMBLY,BENDING
ADP73573601 ADP73573601 FAN ASSEMBLY,TURBO
EAF60673101 EAF60673101 FUSE,TIME DELAY
AEJ32882701 AEJ32882701 HOLDER ASSEMBLY
AEM32883701 AEM32883701 HOSE ASSEMBLY,DRAIN
AAA31075401 AAA31075401 HOSE ASSEMBLY,DRAIN

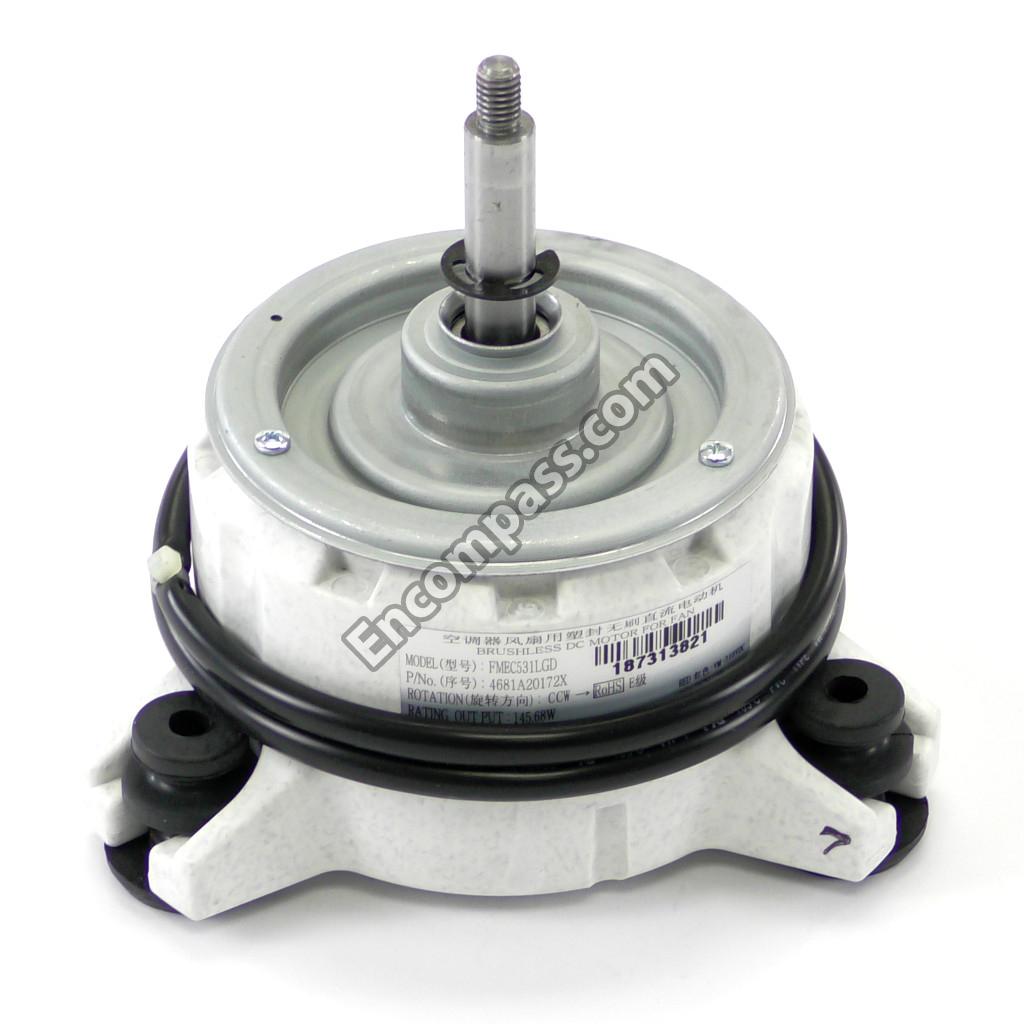

4681A20172X 4681A20172X MOTOR ASSEMBLY,DC,INDOOR
MFX62141903 MFX62141903 ORIFICE
MFX62141901 MFX62141901 ORIFICE
AGK73130505 AGK73130505 PAN ASSEMBLY
AGK73610504 AGK73610504 PAN ASSEMBLY,DRAIN
EBR79629512 EBR79629512 PCB ASSEMBLY,MAIN
AHA75113324 AHA75113324 PUMP ASSEMBLY,WATER(DC)
AHA75113304 AHA75113304 PUMP ASSEMBLY,WATER(DC)
AKB73455712 AKB73455712 REMOTE CONTROLLER ASSEMBLY
AMW00020301 AMW00020301 SENSOR ASSEMBLY,HUMIDITY
3A00375A 3A00375A SOCKET,FLARE
MJH62281901 MJH62281901 SUPPORTER
AJJ73239001 AJJ73239001 SUPPORTER ASSEMBLY
6601A20013M 6601A20013M SWITCH ASSEMBLY
6601A20013L 6601A20013L SWITCH ASSEMBLY

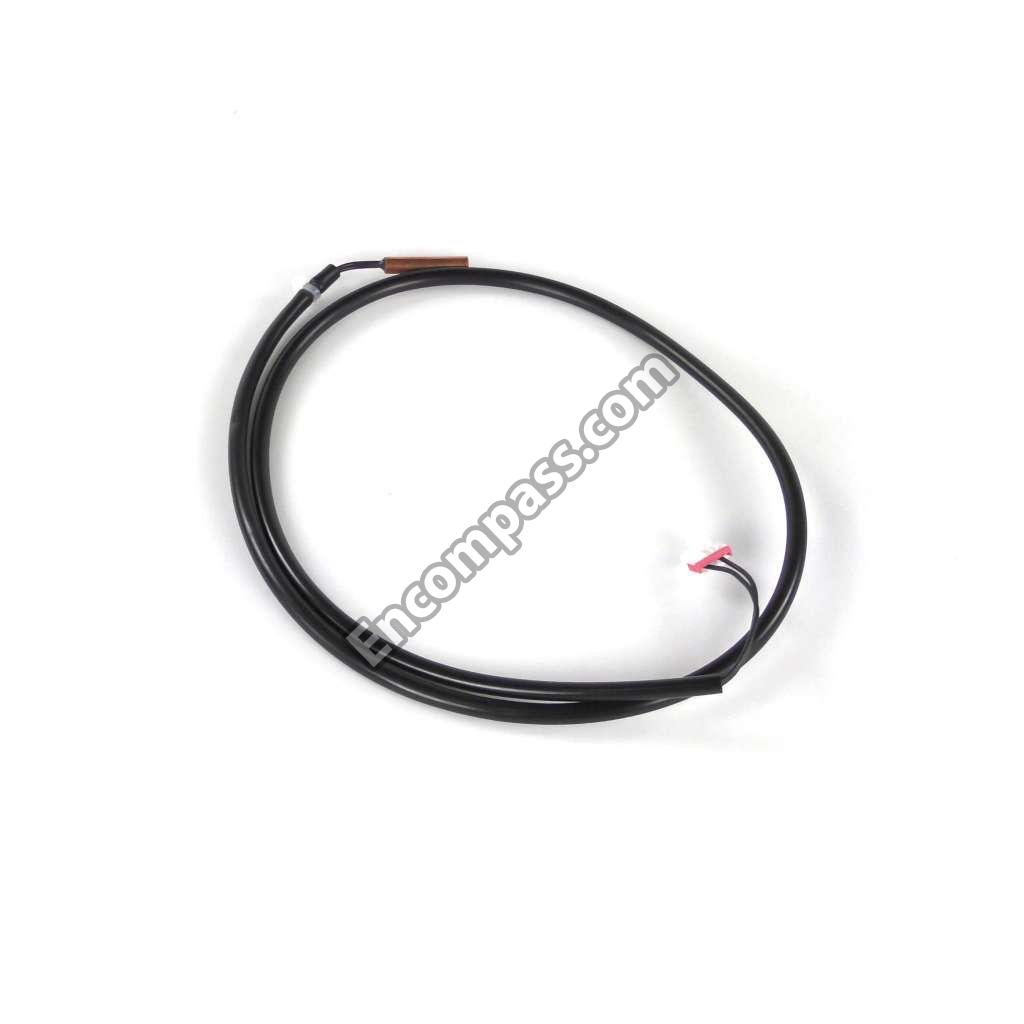

EBG61106816 EBG61106816 THERMISTOR ASSEMBLY,NTC
EBG61287707 EBG61287707 THERMISTOR ASSEMBLY,NTC
EBG61325805 EBG61325805 THERMISTOR ASSEMBLY,NTC
AJR32674707 AJR32674707 TUBE ASSEMBLY,EVAPORATOR(IN)
AJR32883911 AJR32883911 TUBE ASSEMBLY,MANIFOLD(INDOOR)
