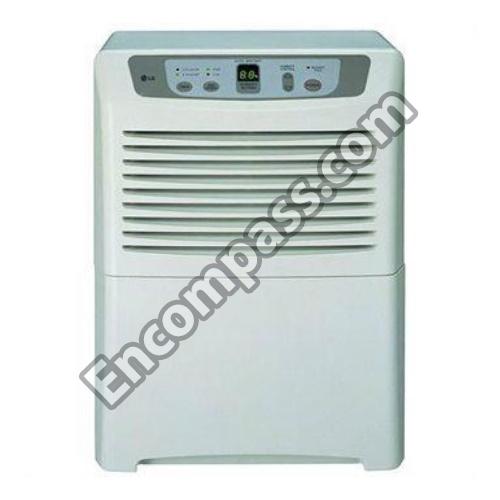

Model Image
Manufacturer

LG

Model Number

LD65EL

Description

Dehumidifier With Electronic Controls (65 Pint Cap

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3041A10042A 3041A10042A BASE ASSEMBLY,SINGLE [130411]
4999A10002B 4999A10002B BRACKET,MOTOR [349600]
3090A10042A 3090A10042A CABINET [130910]
4995A20359L 4995A20359L CASE ASSEMBLY,CONTROL [249950]
TBZ31951701 TBZ31951701 COMPRESSOR SET,CHINA [554160]
5403A10008L 5403A10008L CONDENSER ASSEMBLY,FIRST [554030]
5214A20027A 5214A20027A CONNECTOR,HOSE
3551A20109B 3551A20109B COVER ASSEMBLY,DISPLAY [235512]
4830A30005A 4830A30005A DAMPER,COMPRESSOR [352111]
3831A20079J 3831A20079J ESCUTCHEON [238310]
5421A10009H 5421A10009H EVAPORATOR ASSEMBLY,FIRST [354210]
5900A20007B 5900A20007B FAN,TURBO [359012]
5230A20040A 5230A20040A FILTER,AIR [152302]
3531A10254E 3531A10254E GRILLE ASSEMBLY,FRONT [135312]
3530A10193B 3530A10193B GRILLE,REAR [435300]
3650A20004A 3650A20004A HANDLE [436500]
4681A20040R 4681A20040R MOTOR ASSEMBLY,AC,SINGLE
6750U-L048A 6750U-L048A OVERLOAD PROTECT [567502]
3087A10019A 3087A10019A PAN ASSEMBLY,DRAIN [330870]
6871A10141C 6871A10141C PCB ASSEMBLY,MAIN [268714]
6411A20001Z 6411A20001Z POWER CORD ASSEMBLY [264110]
4441A30001F 4441A30001F ROLLER [144410]

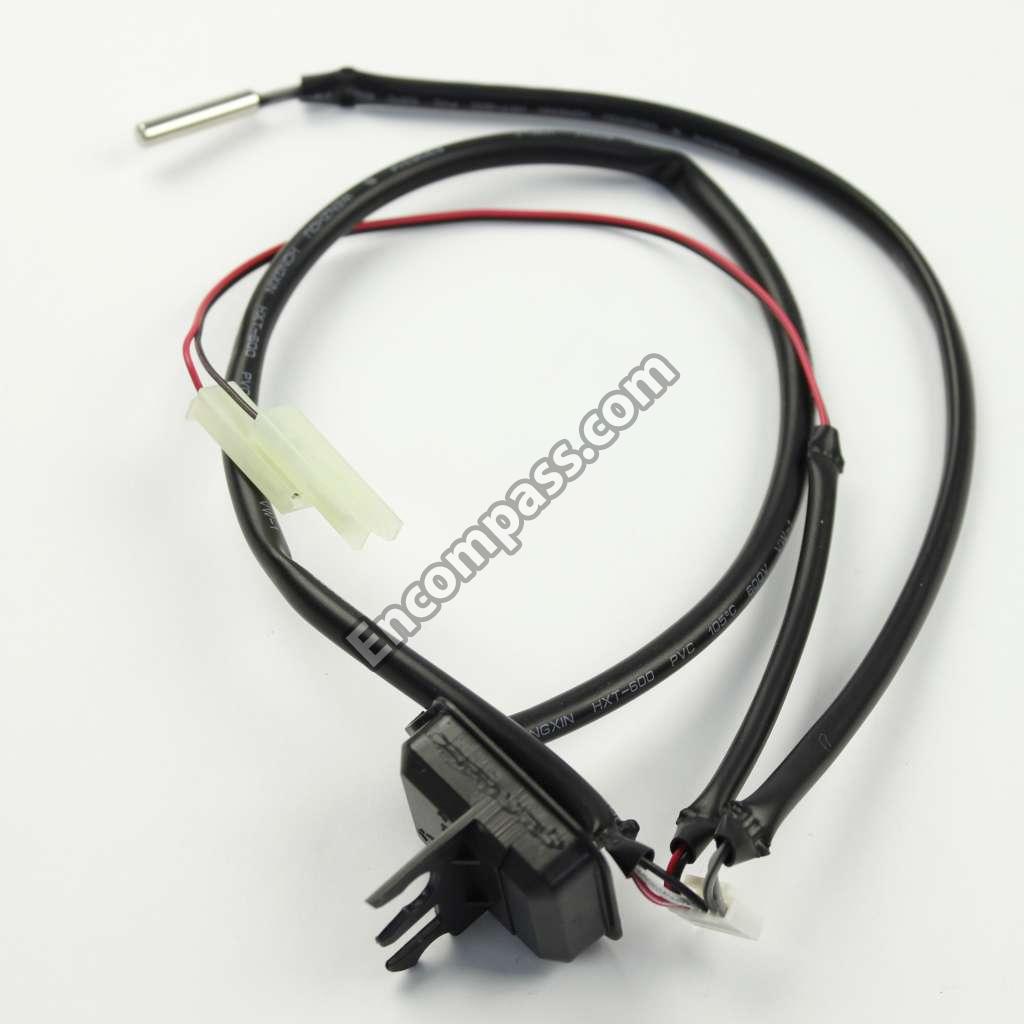

6877A30013L 6877A30013L SENSOR ASSEMBLY
6877A30013S 6877A30013S SENSOR ASSEMBLY [162615]
4998A10034A 4998A10034A SHROUD [149980]
6600A30003C 6600A30003C SWITCH ASSEMBLY [266011]
4839A10002A 4839A10002A TANK ASSEMBLY,BUCKET
5211A10468A 5211A10468A TUBE ASSEMBLY,CAPILLARY [552111]
5211A10455A 5211A10455A TUBE ASSEMBLY,DISCHARGE [352113]
5211A10454A 5211A10454A TUBE ASSEMBLY,SUCTION [35211A]
