Model Image
Manufacturer

LG

Model Number

LDN22735ST

Description

Ldn22735st

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4811JJ2002K 4811JJ2002K AC MOTOR [404A]

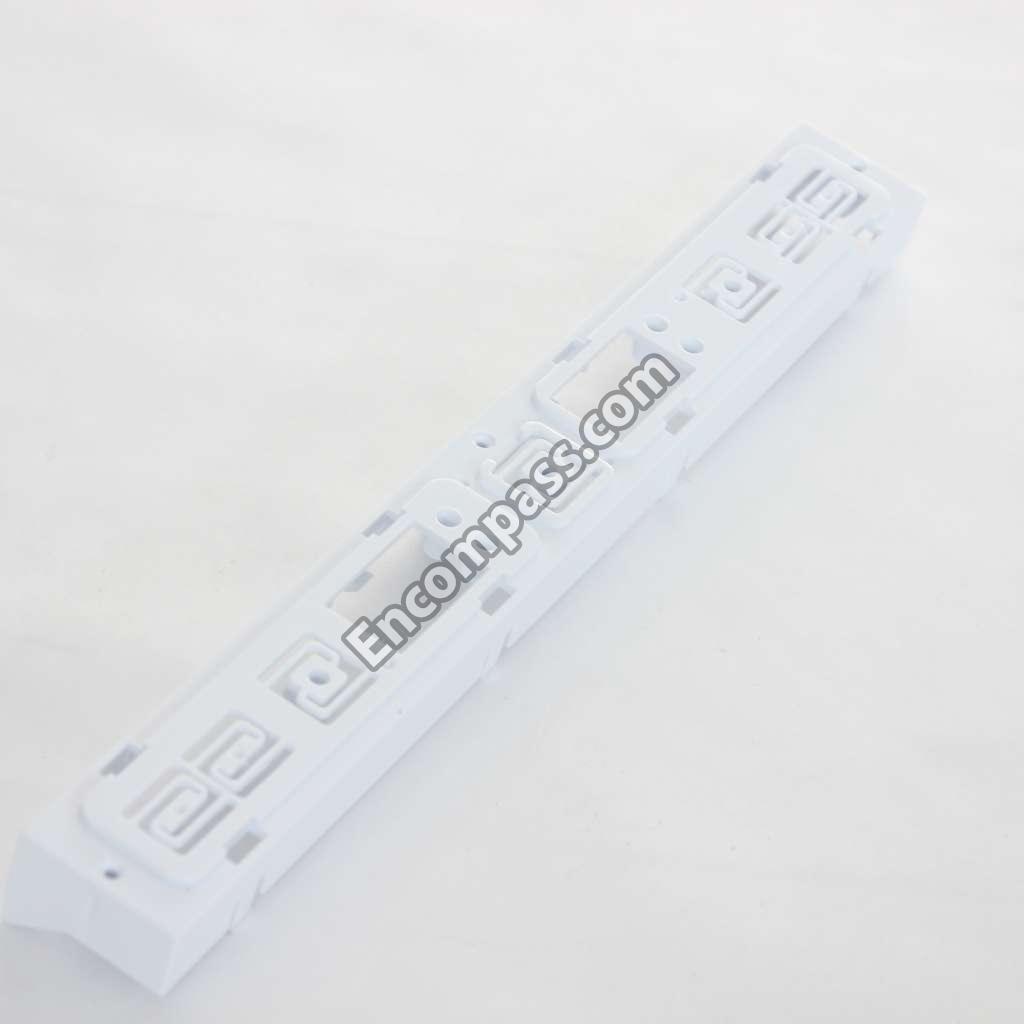

4270JJ3001P 4270JJ3001P BAR [250A]
3103JJ1001Z 3103JJ1001Z BASE ASSEMBLY,COMPRESSOR [315A]

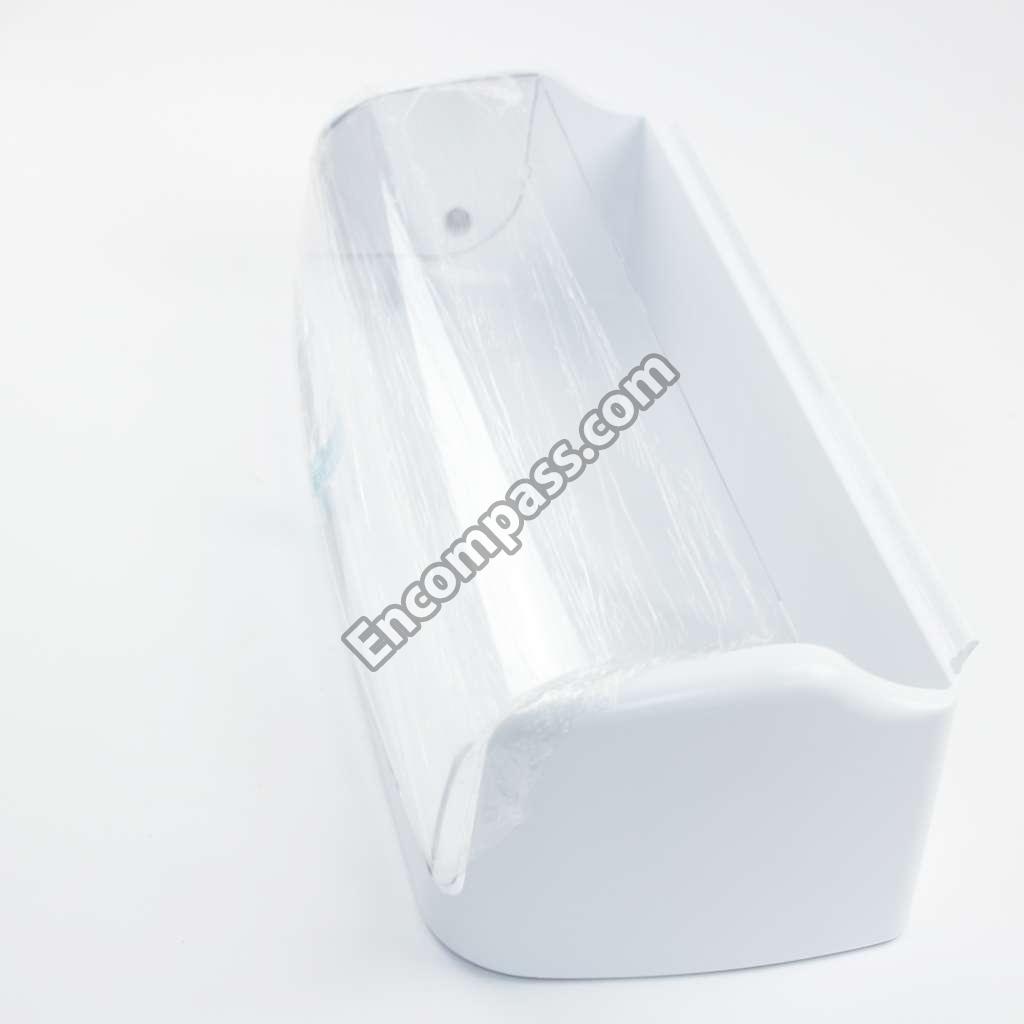

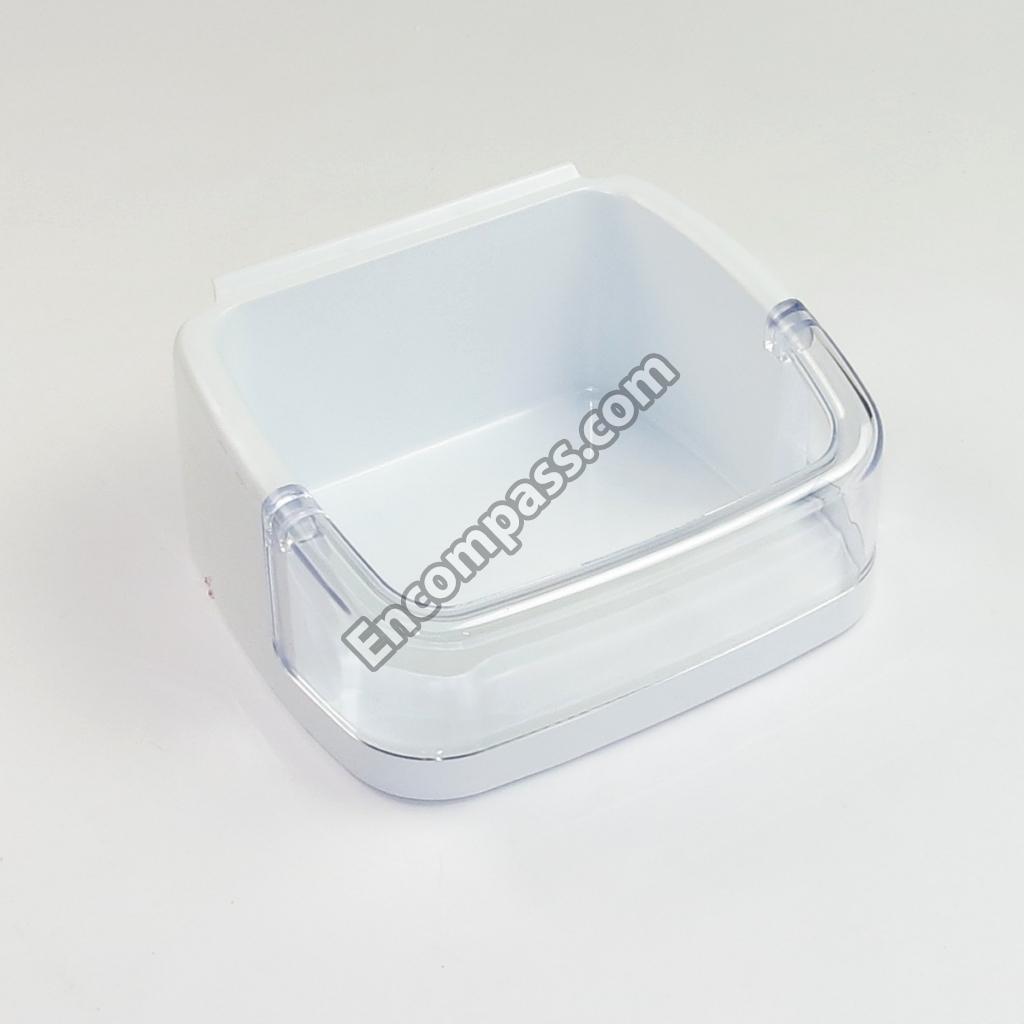

5005JJ2017A 5005JJ2017A BASKET ASSEMBLY,DOOR [241C]
5005JJ2020A 5005JJ2020A BASKET ASSEMBLY,DOOR [241D]
5005JJ2018A 5005JJ2018A BASKET ASSEMBLY,DOOR [241E]

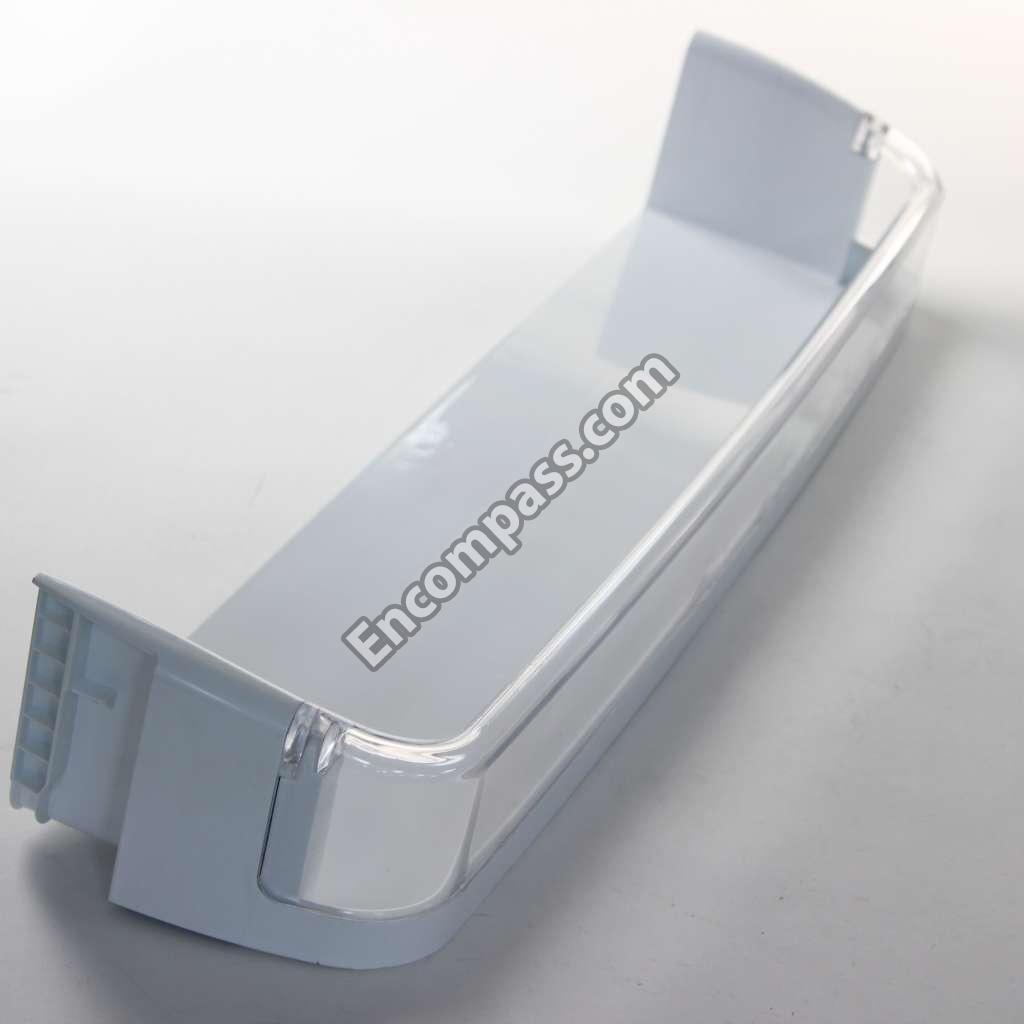

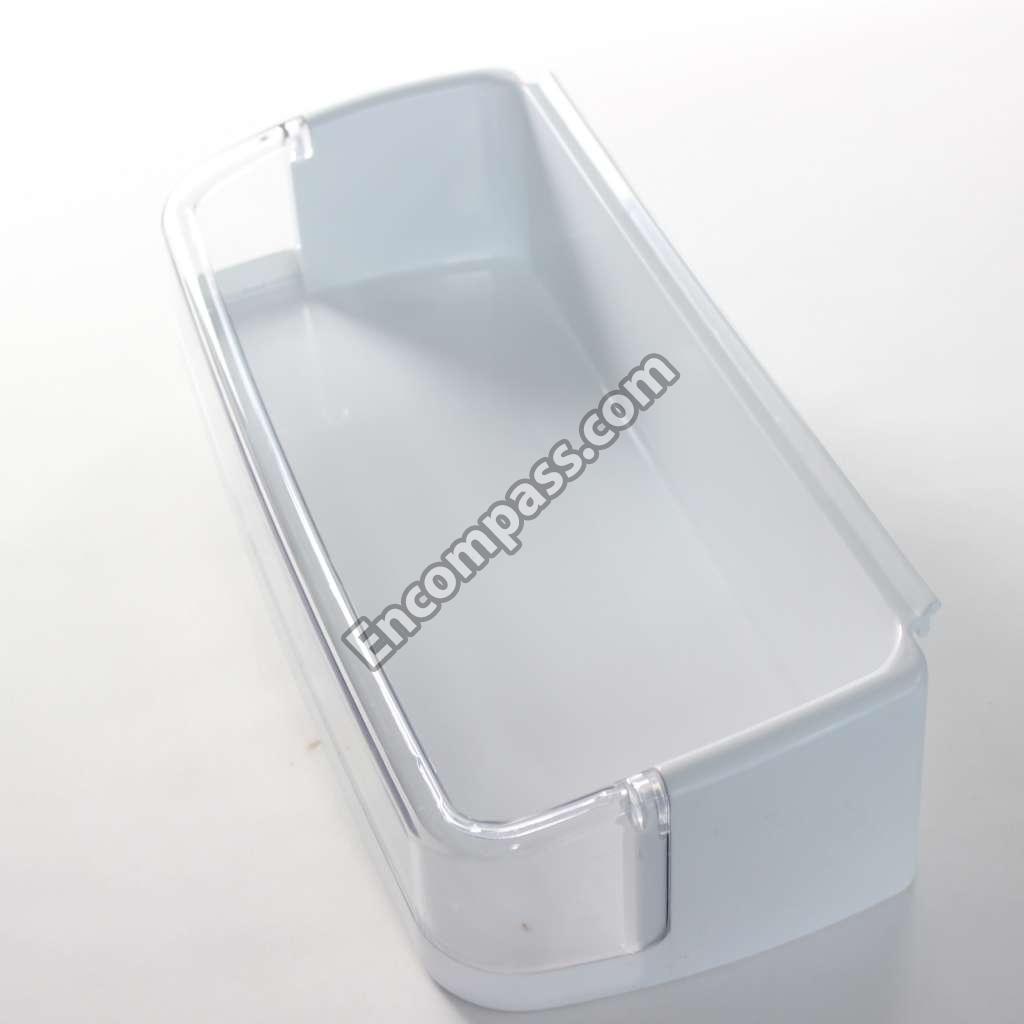

5005JJ2010E 5005JJ2010E BASKET,DOOR [241B]
4811JJ2002H 4811JJ2002H BRACKET ASSEMBLY,MOTOR
4811JJ2002A 4811JJ2002A BRACKET ASSEMBLY,MOTOR
4810JJ2005A 4810JJ2005A BRACKET,MOTOR [319E]
5074JJ1005A 5074JJ1005A BUCKET,DAIRY

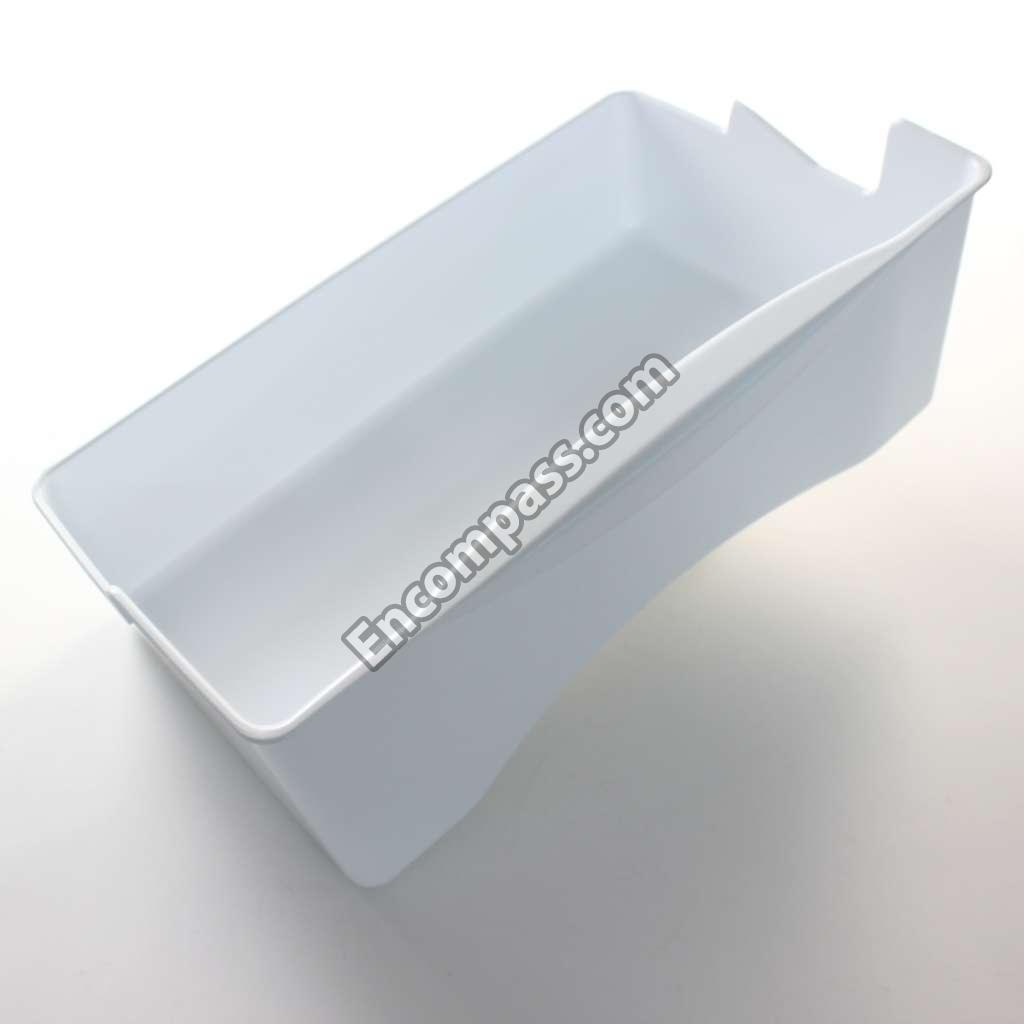

5074JJ1055A 5074JJ1055A BUCKET,ICE [131A]

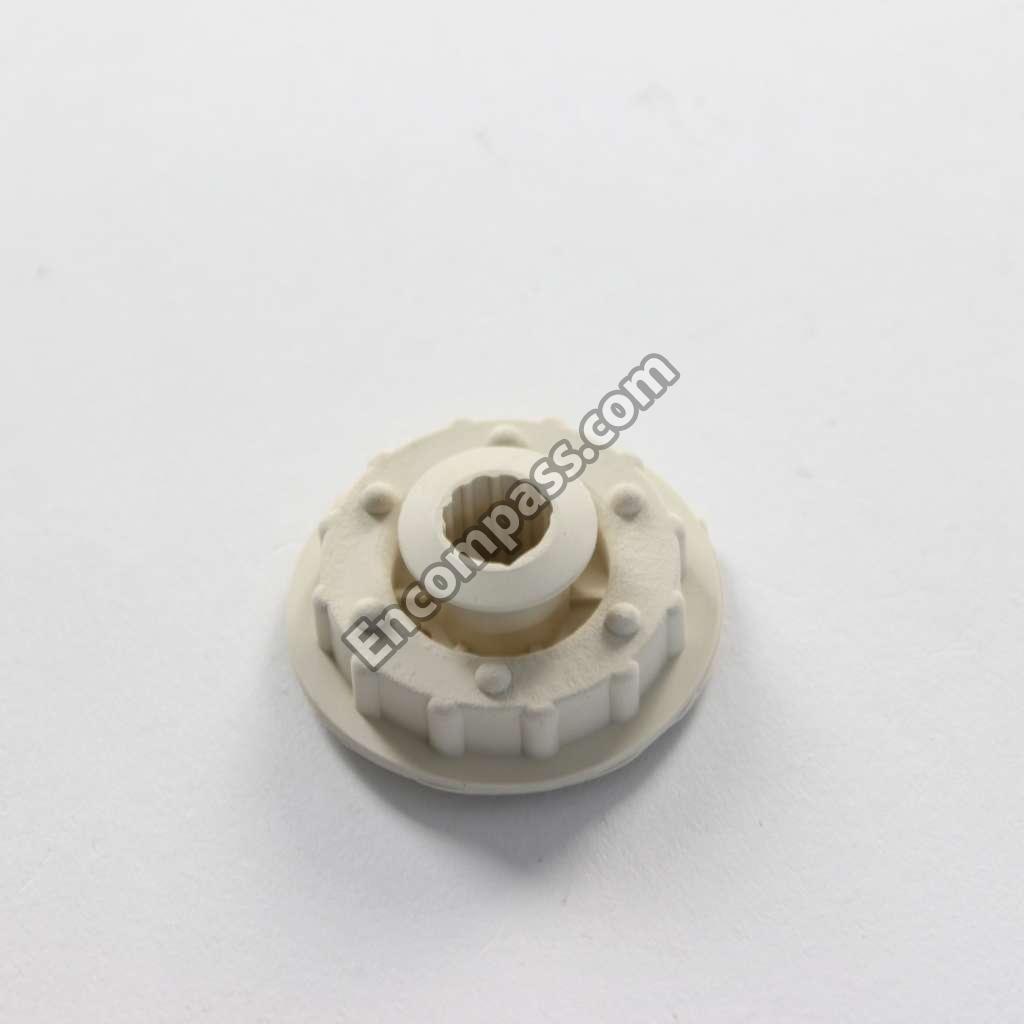

4984JJ3003A 4984JJ3003A BUSH [286A]
5006JJ2014A 5006JJ2014A CAP,COVER [205B]
5006JJ2014B 5006JJ2014B CAP,COVER [205C]
5006JA3034A 5006JA3034A CAP,DRAIN TUBE [327A]
5006JJ3016D 5006JJ3016D CAP,HANDLE [244E]
5006JJ3010A 5006JJ3010A CAP,HANDLE [282X]
5006JJ2001F 5006JJ2001F CAP,HINGE [282E]
5006JJ3004E 5006JJ3004E CAP,HINGE [282H]
0CZZJB2014L 0CZZJB2014L CAPACITOR,ELECTRIC APPLIANCE FILM,BOX [410G]
ABQ33905314 ABQ33905314 CASE ASSEMBLY,DISPLAY [503F]
ABQ33905301 ABQ33905301 CASE ASSEMBLY,DISPLAY [503F]
ABQ33905303 ABQ33905303 CASE ASSEMBLY,DISPLAY [503F]
3110JA1096A 3110JA1096A CASE,DISPLAY [503D]
5047JJ1001A 5047JJ1001A CASE,LOWER [146A]
TCA35931726 TCA35931726 COMPRESSOR,SET ASSEMBLY
2521CRA5715 2521CRA5715 COMPRESSOR,SET ASSEMBLY
TCA00271707 TCA00271707 COMPRESSOR,SET ASSEMBLY
5403JJ1007A 5403JJ1007A CONDENSER ASSEMBLY,WIRE
ACG73746801 ACG73746801 CONDENSER ASSEMBLY,WIRE [323B]
ACJ32471702 ACJ32471702 CONNECTOR ASSEMBLY [249C]
ACJ32471701 ACJ32471701 CONNECTOR ASSEMBLY [249D]
ACJ32308804 ACJ32308804 CONNECTOR ASSEMBLY [249J]
ACJ32308803 ACJ32308803 CONNECTOR ASSEMBLY [249K]
4403JJ3001A 4403JJ3001A CONNECTOR ASSEMBLY [250B]
4932JJ2006C 4932JJ2006C CONNECTOR,TILT [410C]
6615JB2005C 6615JB2005C CONTROLLER ASSEMBLY [401A]
3550JJ0006C 3550JJ0006C COVER ASSEMBLY,LOWER [103C]
3551JJ2008B 3551JJ2008B COVER ASSEMBLY,MACHINERY(REAR) [304A]

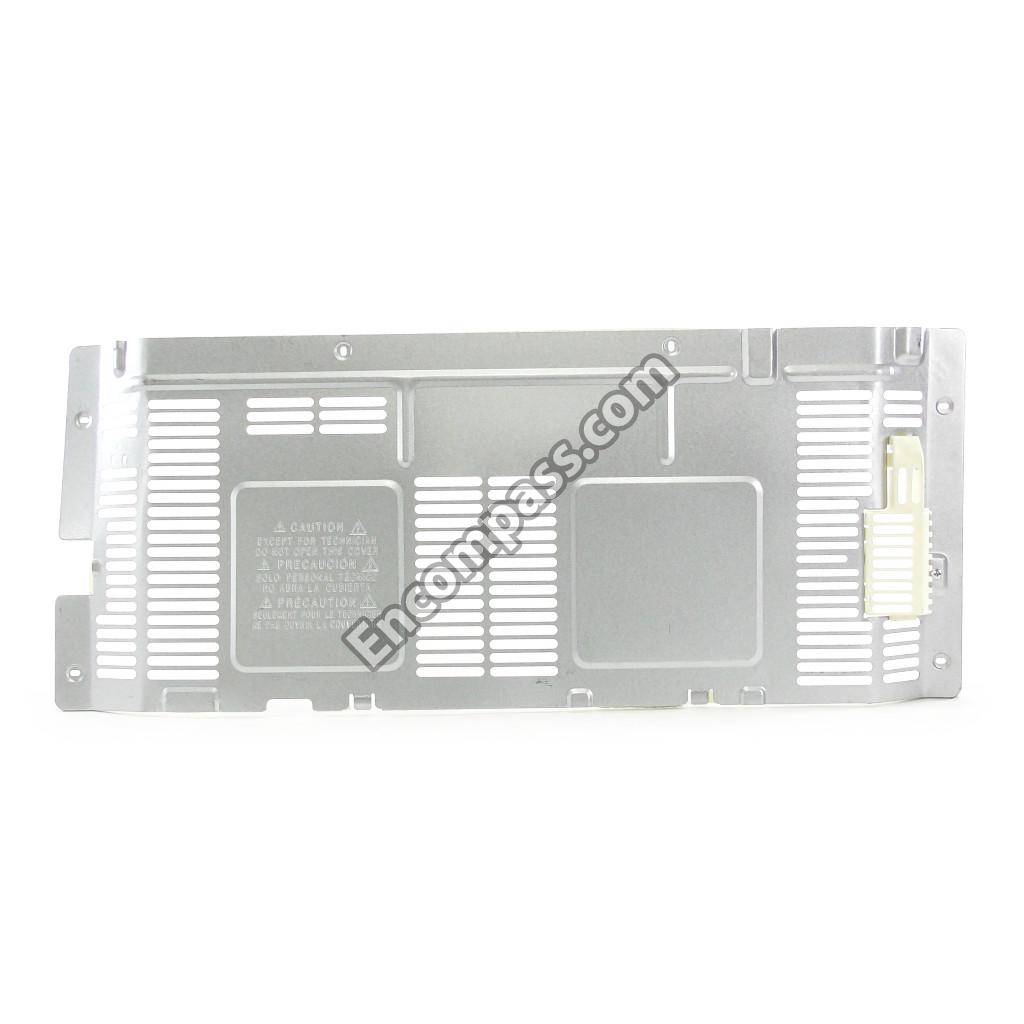

3551JJ1020A 3551JJ1020A COVER ASSEMBLY,PCB [501F]
3550JJ1017A 3550JJ1017A COVER,BUCKET
MCK30136701 MCK30136701 COVER,CONNECTOR [249L]
MCK30136702 MCK30136702 COVER,CONNECTOR [249M]
3550JA3120A 3550JA3120A COVER,CONNECTOR [284B]
3550JA2248A 3550JA2248A COVER,DISPLAY [503E]
3550JJ2030A 3550JJ2030A COVER,GRILLE FAN [135C]
3550JJ2044A 3550JJ2044A COVER,HINGE

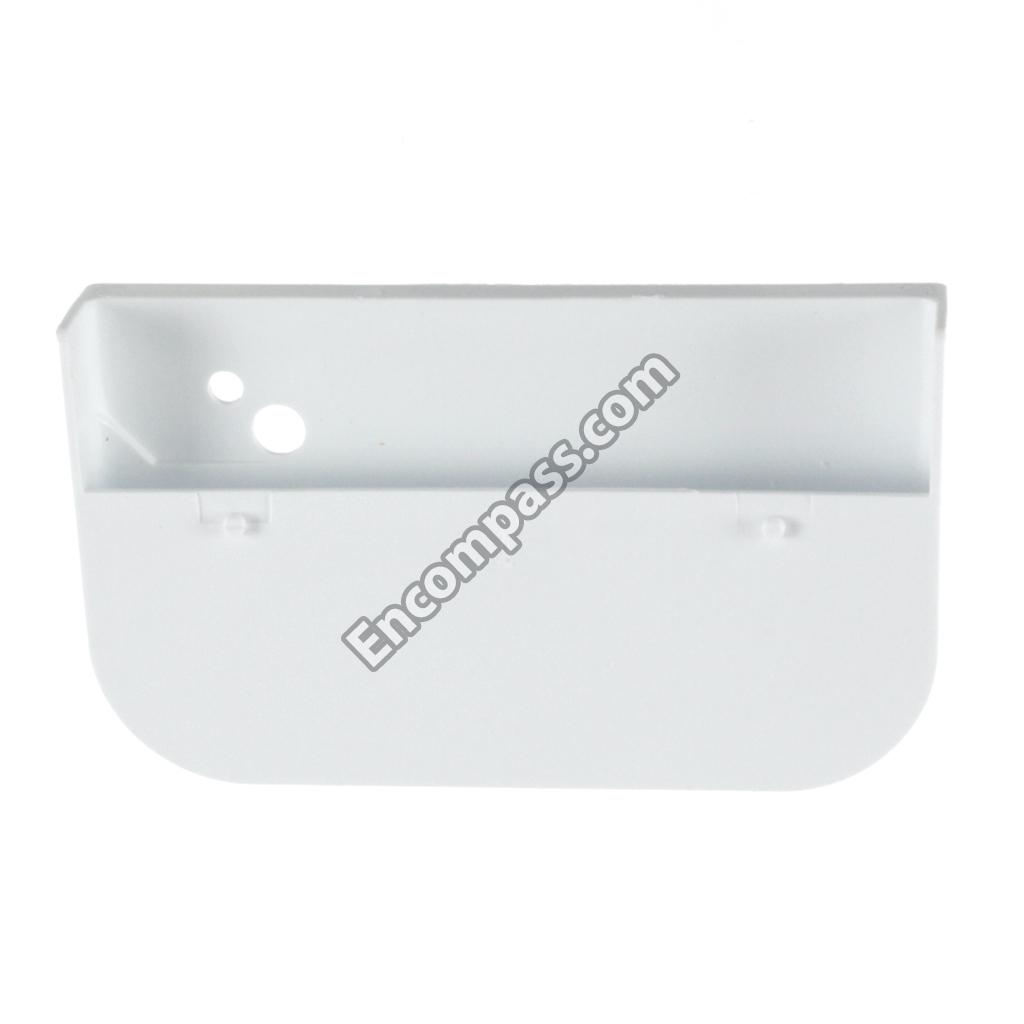

3550JJ2013C 3550JJ2013C COVER,HINGE [281A]
3550JA2267A 3550JA2267A COVER,HINGE [281D]

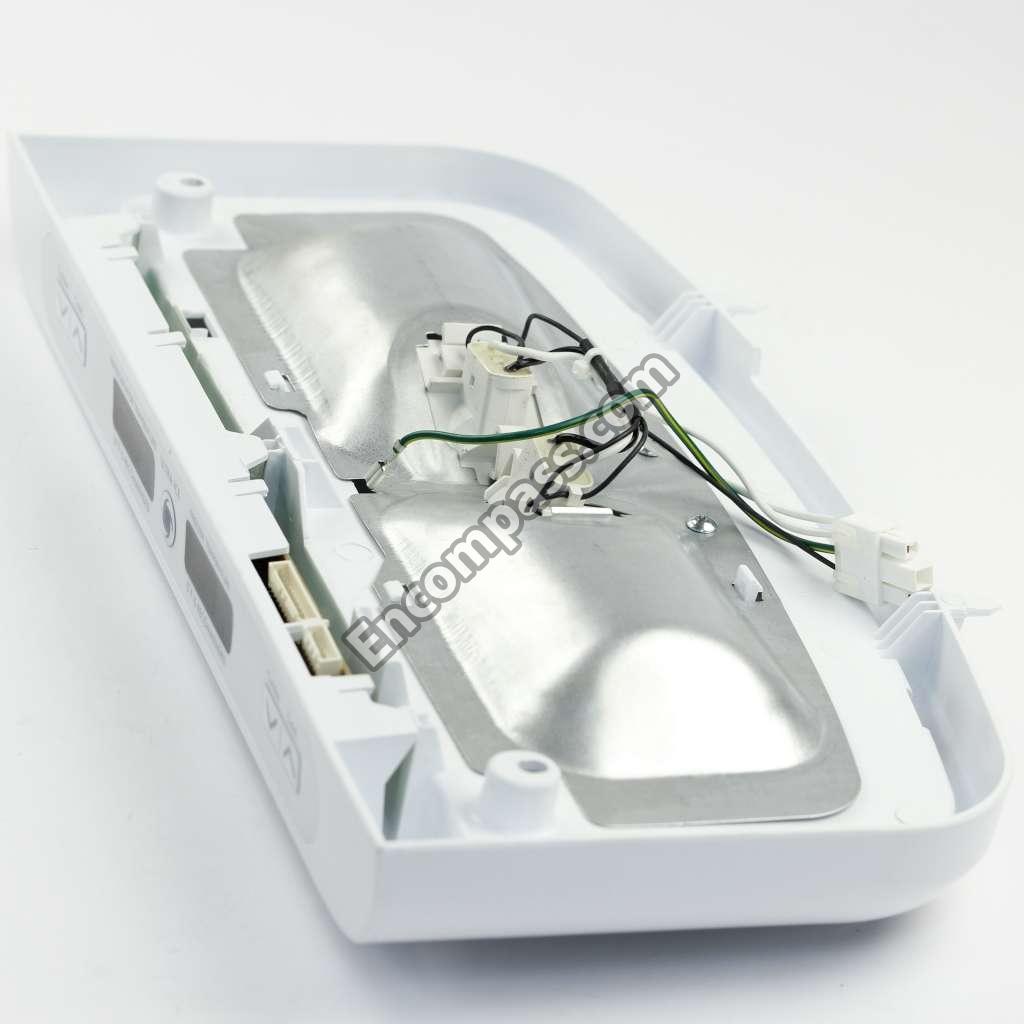

3550JA1388A 3550JA1388A COVER,LAMP
3550JA1388B 3550JA1388B COVER,LAMP [158A]
MCK30060901 MCK30060901 COVER,LAMP [158E]
3550JJ1035A 3550JJ1035A COVER,MAGIC ROOM [168A]

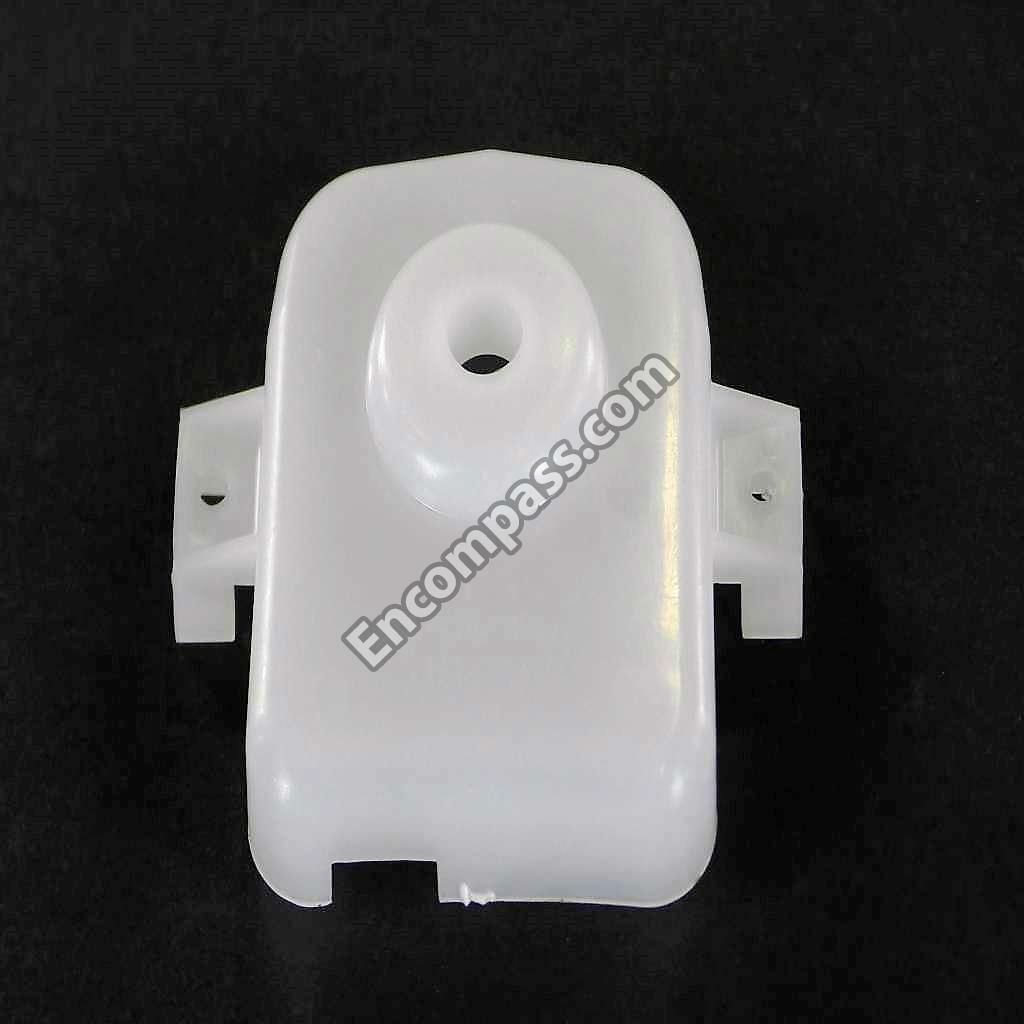

3550JA2042C 3550JA2042C COVER,PTC
3550JA2059A 3550JA2059A COVER,PTC
3550JJ8003A 3550JJ8003A COVER,PTC [310A]
3550JJ2020A 3550JJ2020A COVER,SENSOR [610A]
5005JJ2010F 5005JJ2010F COVER,TRAY [241A]
3550JJ3001A 3550JJ3001A COVER,TUBE [284E]
3550JJ2036A 3550JJ2036A COVER,TUBE [623H]
3551JJ1065C 3551JJ1065C COVER,TV [154A]
3550JJ2024A 3550JJ2024A COVER,VALVE [619B]
5040JJ3007A 5040JJ3007A DAMPER [313A]
5040JA3031A 5040JA3031A DAMPER,COMPRESSOR [312A]

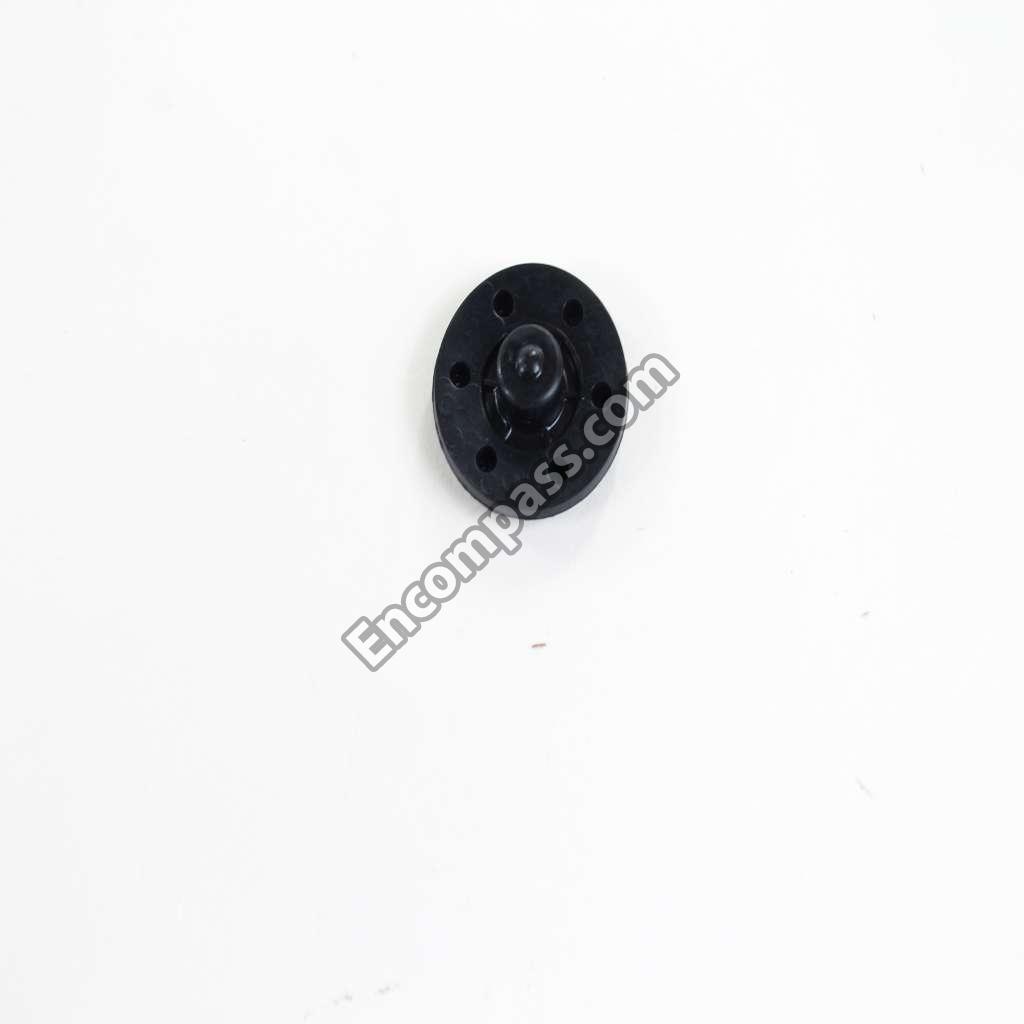

5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [405C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [405F]
4J03020A 4J03020A DAMPER,PIPE [328A]
3806JL1053A 3806JL1053A DECOR,CONTROL [503G]
3806JL2006F 3806JL2006F DECOR,DUCT [282F]

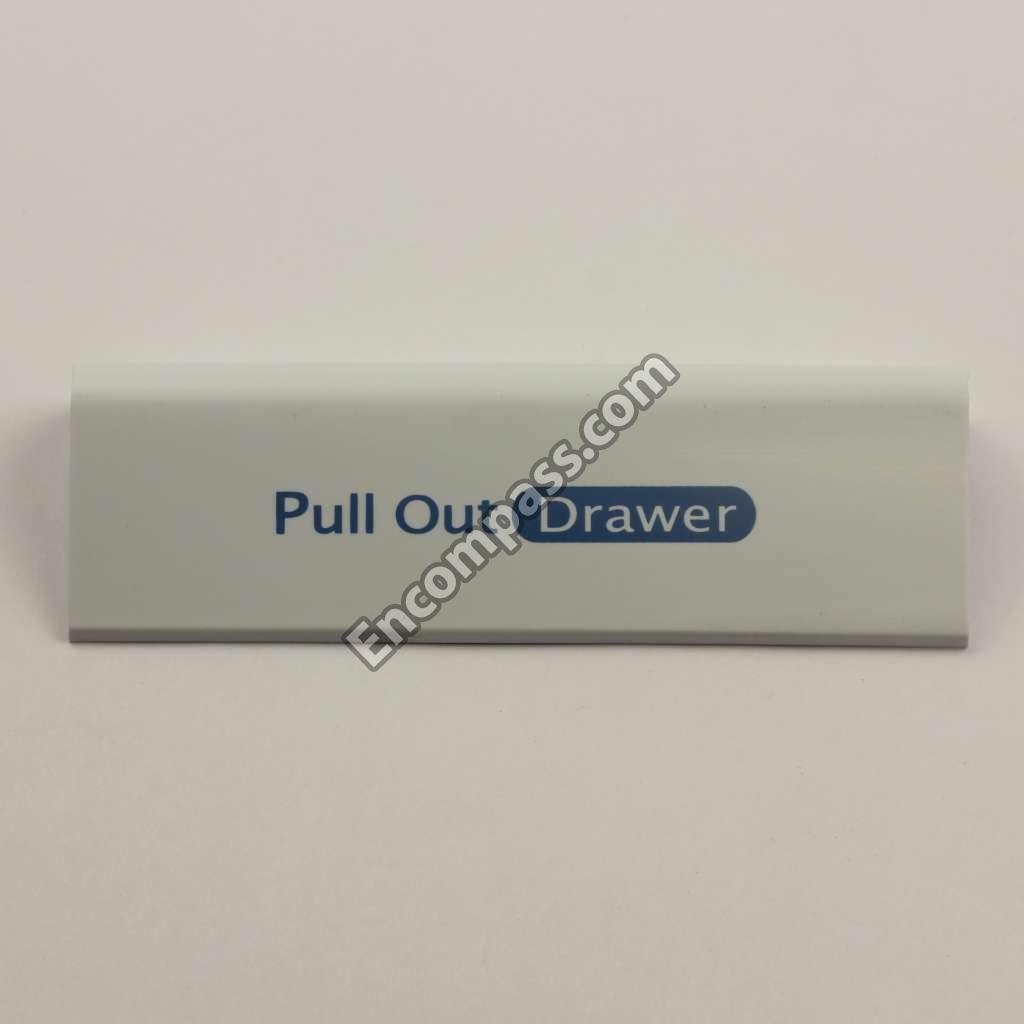

3806JJ1048A 3806JJ1048A DECOR,TRAY [248E]
3806JL2011A 3806JL2011A DECOR,TRAY [248F]
3581JJ8715C 3581JJ8715C DOOR ASSEMBLY,FREEZER [200A]
3581JJ8716C 3581JJ8716C DOOR ASSEMBLY,REFRIGERATOR [230A]

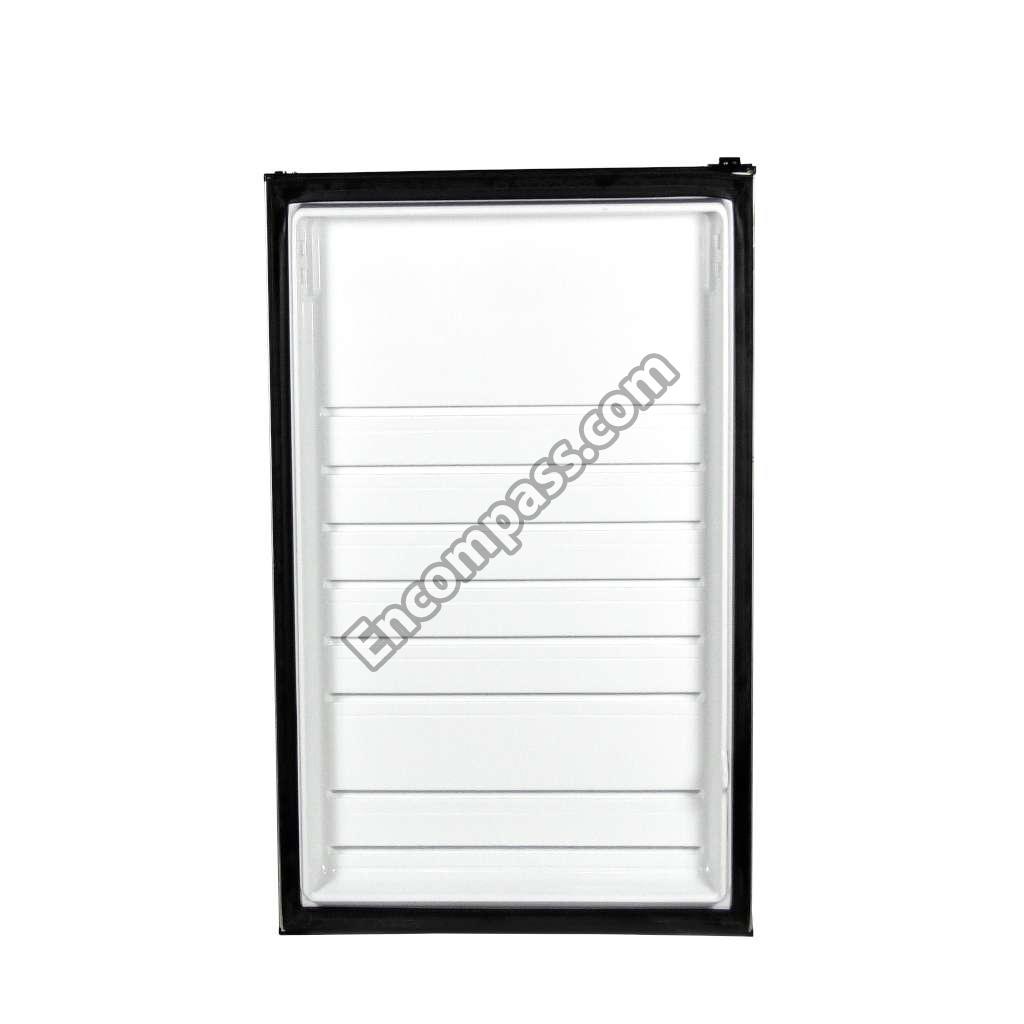

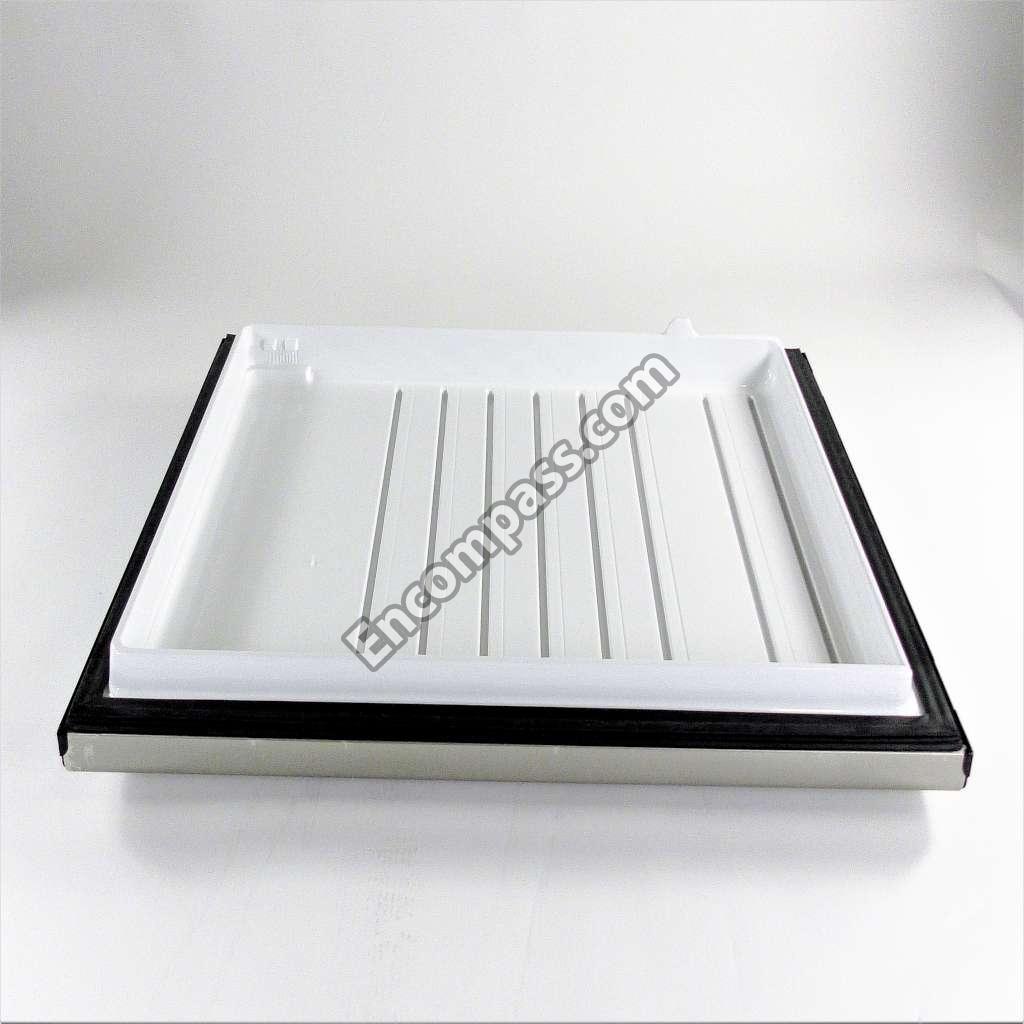

5433JJ0058M 5433JJ0058M DOOR FOAM ASSEMBLY,FREEZER [201A]
5433JJ0019Z 5433JJ0019Z DOOR FOAM ASSEMBLY,REFRIGERATOR
6621JK2003B 6621JK2003B DRAWING,ASSEMBLY [410A]
ADH73150210 ADH73150210 DRIER ASSEMBLY
ADH73150208 ADH73150208 DRIER ASSEMBLY [317A]
5851JJ2002F 5851JJ2002F DRIER ASSEMBLY [317A]
5209JJ1002A 5209JJ1002A DUCT ASSEMBLY,MULTI [120B]

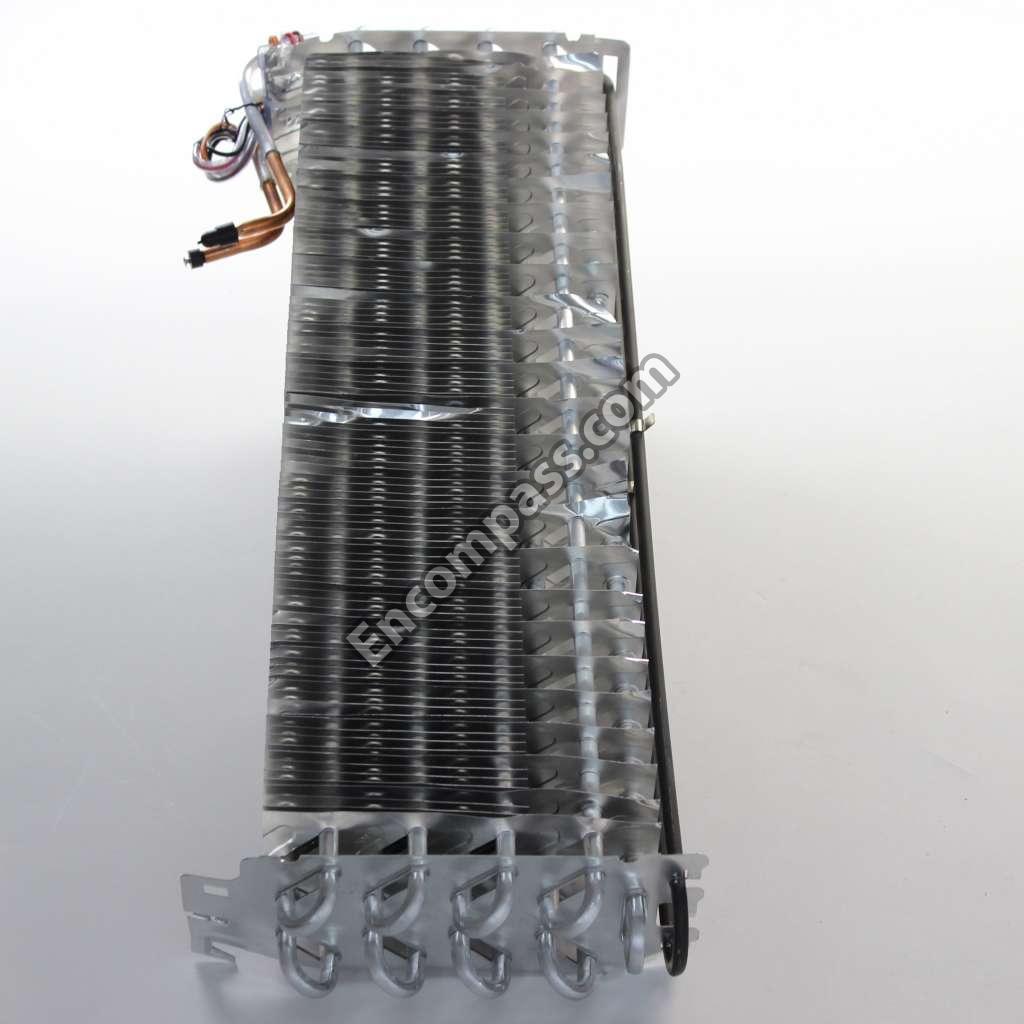

5421JJ1001B 5421JJ1001B EVAPORATOR ASSEMBLY [301A]

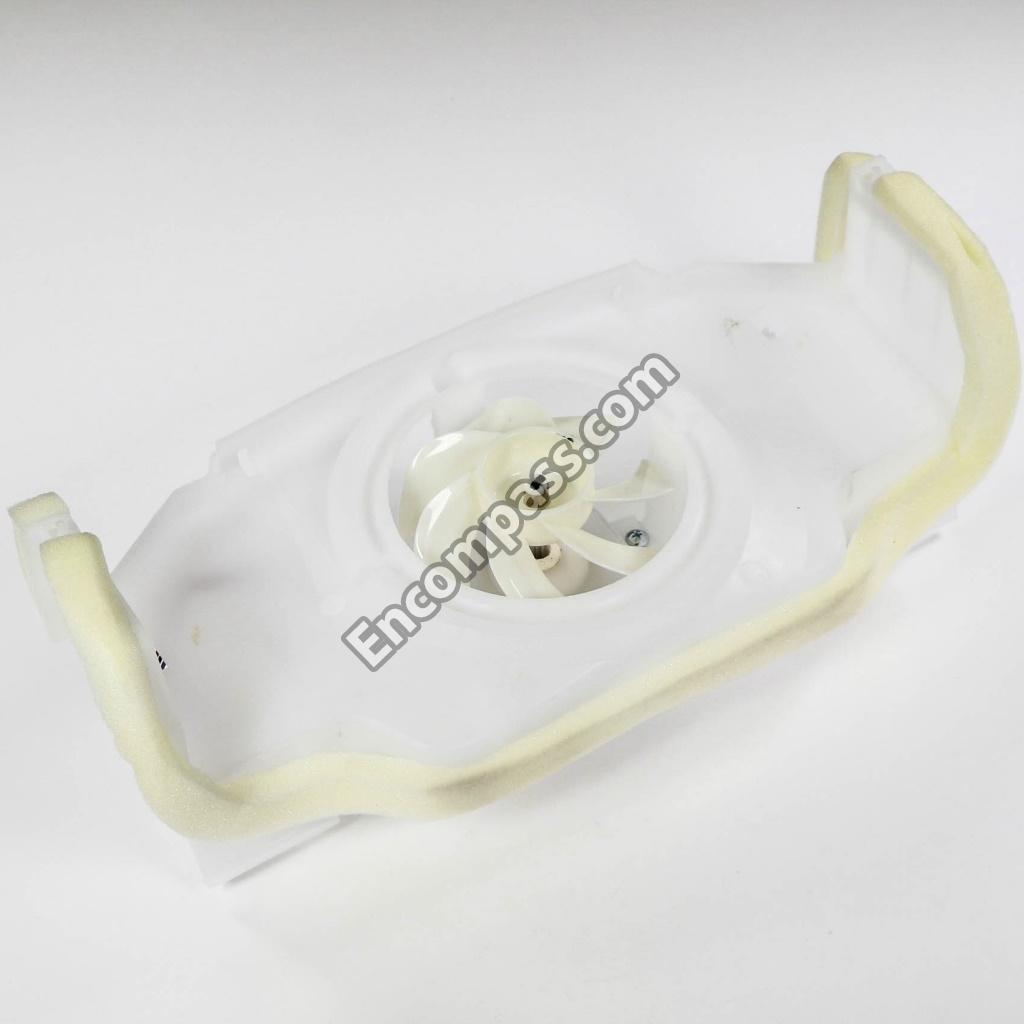

5901JA1022A 5901JA1022A FAN ASSEMBLY [329A]
5901JJ1004B 5901JJ1004B FAN ASSEMBLY [329C]

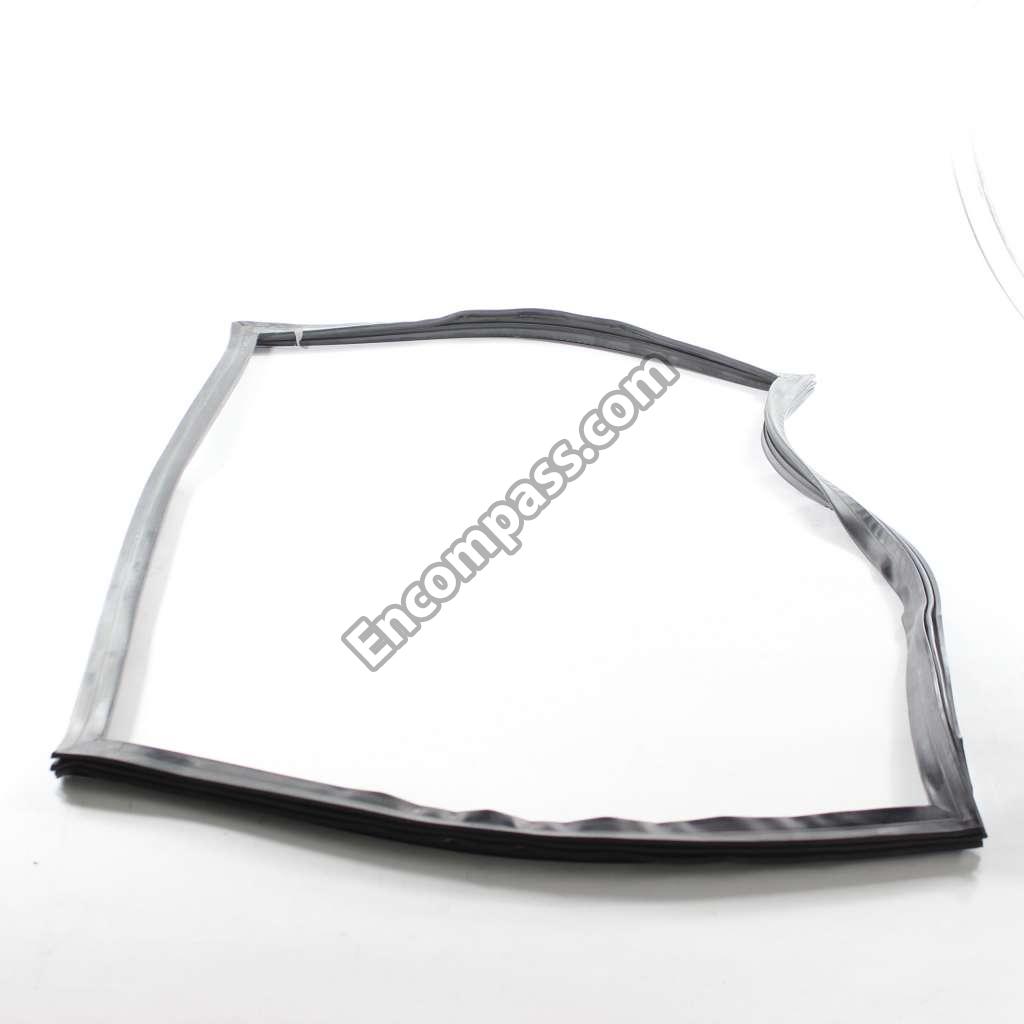

4987JJ1004E 4987JJ1004E GASKET ASSEMBLY,DOOR

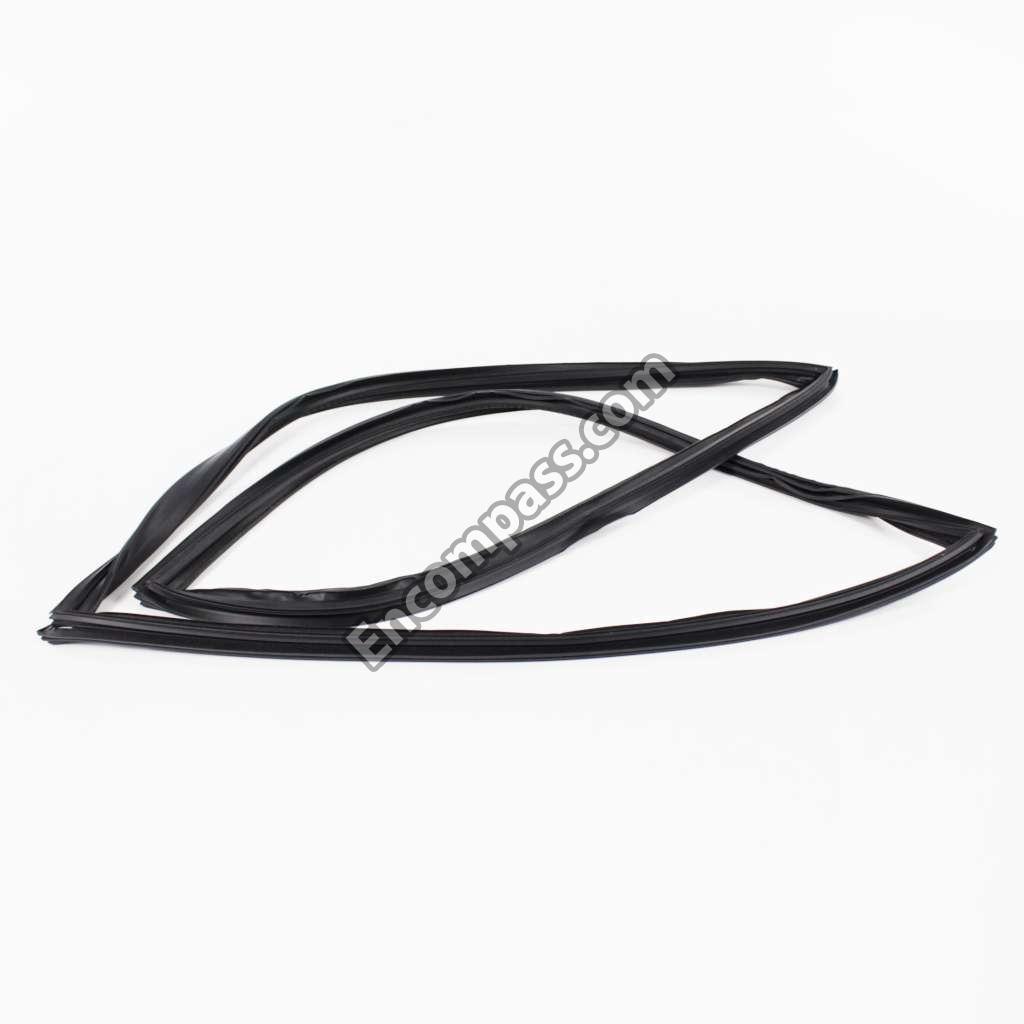

ADX73350926 ADX73350926 GASKET ASSEMBLY,DOOR [203A]
ADX73350929 ADX73350929 GASKET ASSEMBLY,DOOR [233A]
3531JJ1004R 3531JJ1004R GRILLE ASSEMBLY,FAN [332A]

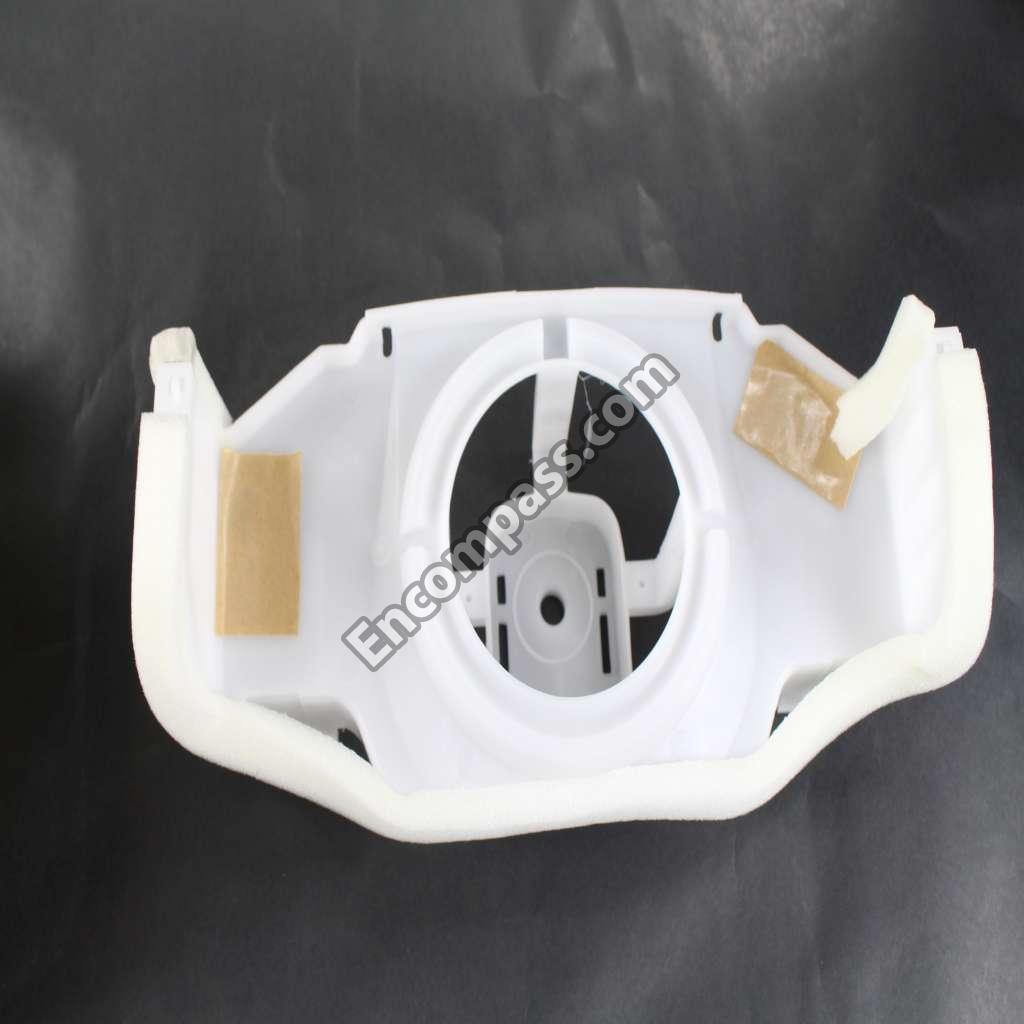

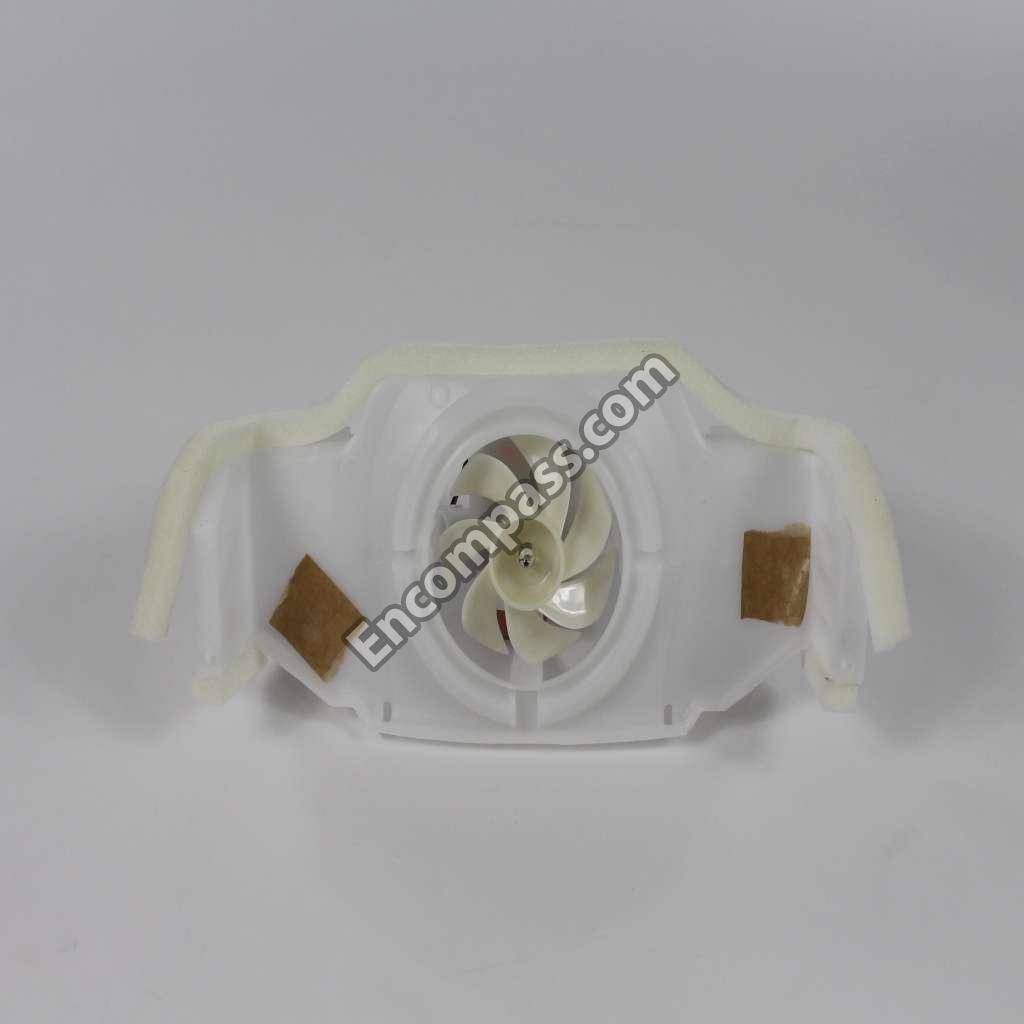

AEC72997402 AEC72997402 GUIDE ASSEMBLY,FAN

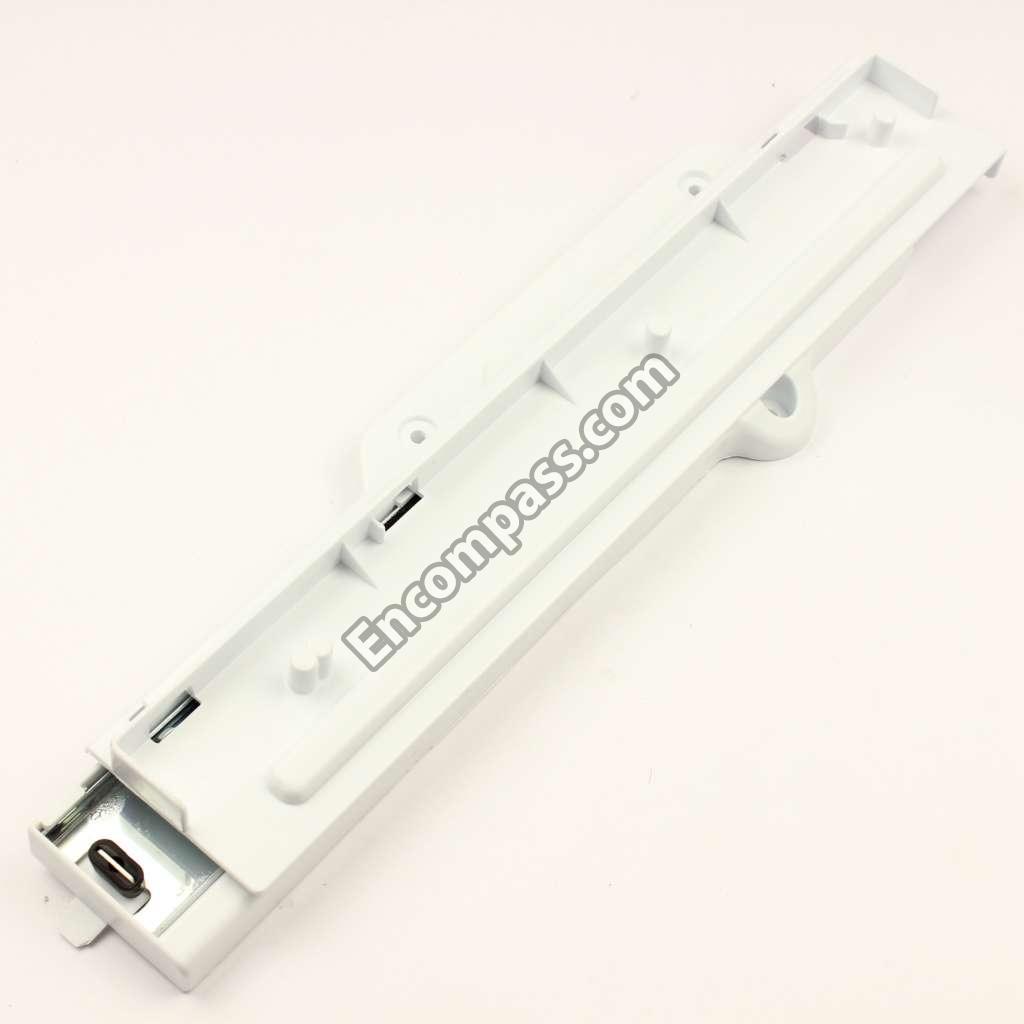

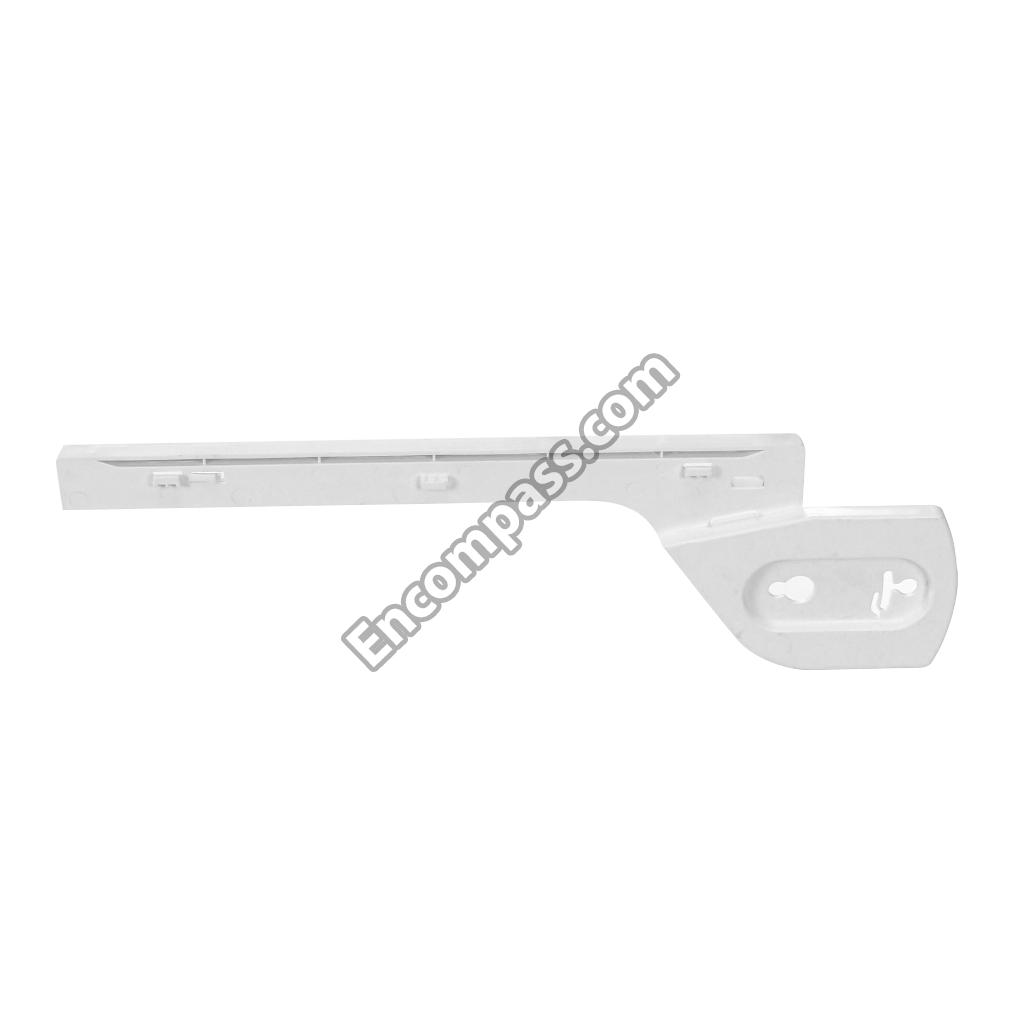

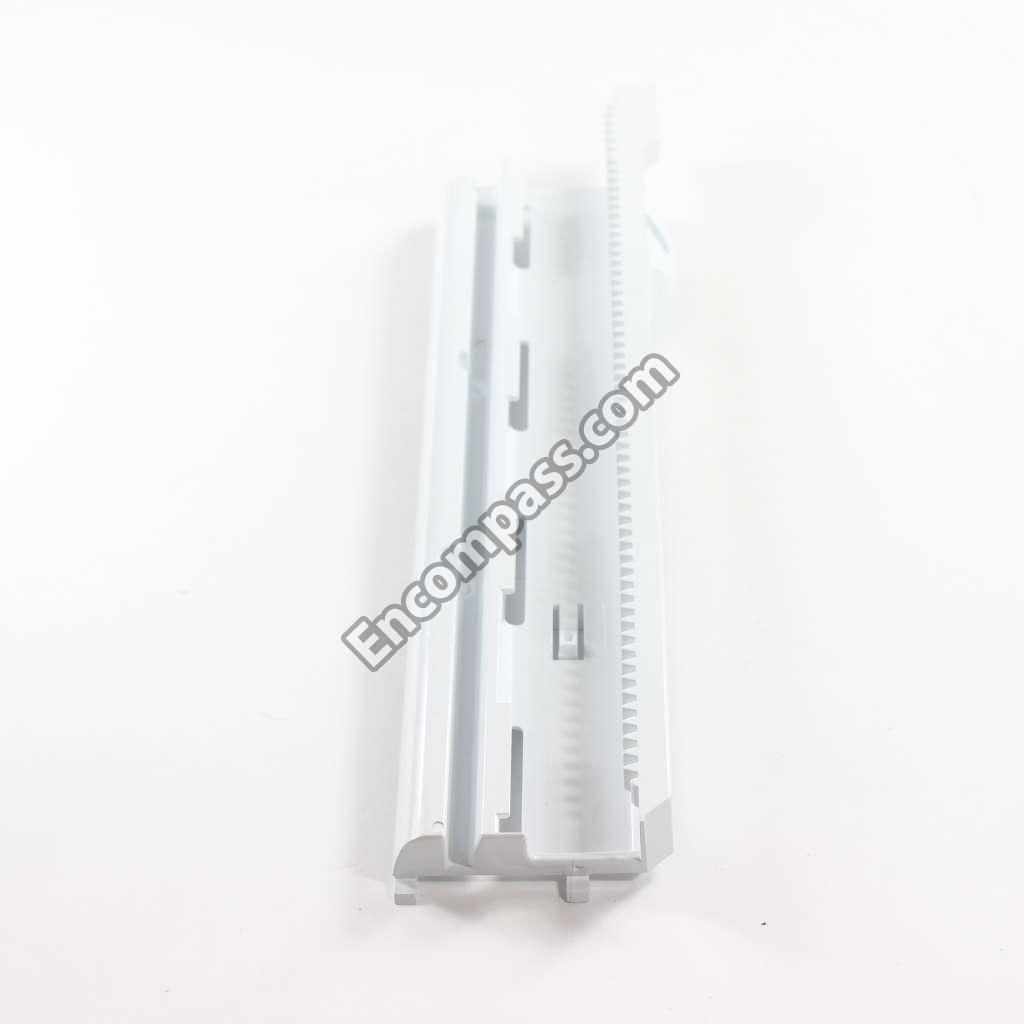

4975JJ2002A 4975JJ2002A GUIDE ASSEMBLY,RAIL [128A]
4975JJ2003D 4975JJ2003D GUIDE ASSEMBLY,RAIL [128C]
4975JJ2028C 4975JJ2028C GUIDE ASSEMBLY,RAIL [145C]
4975JJ2028D 4975JJ2028D GUIDE ASSEMBLY,RAIL [145F]
4974JJ2011A 4974JJ2011A GUIDE,AIR [128M]
4974JJ1021A 4974JJ1021A GUIDE,DRAWER [237C]
4974JJ1009A 4974JJ1009A GUIDE,FAN [319C]

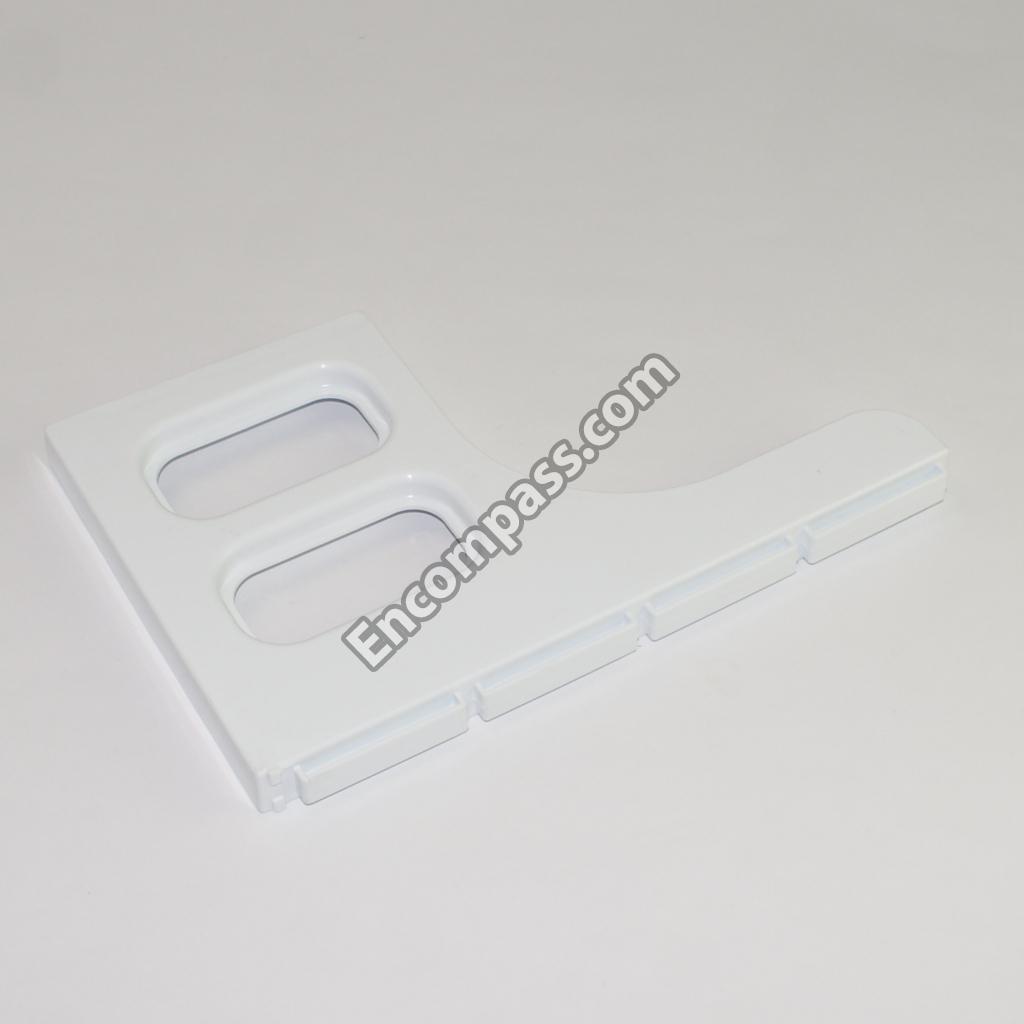

4974JJ2012A 4974JJ2012A GUIDE,PITCHER [237A]

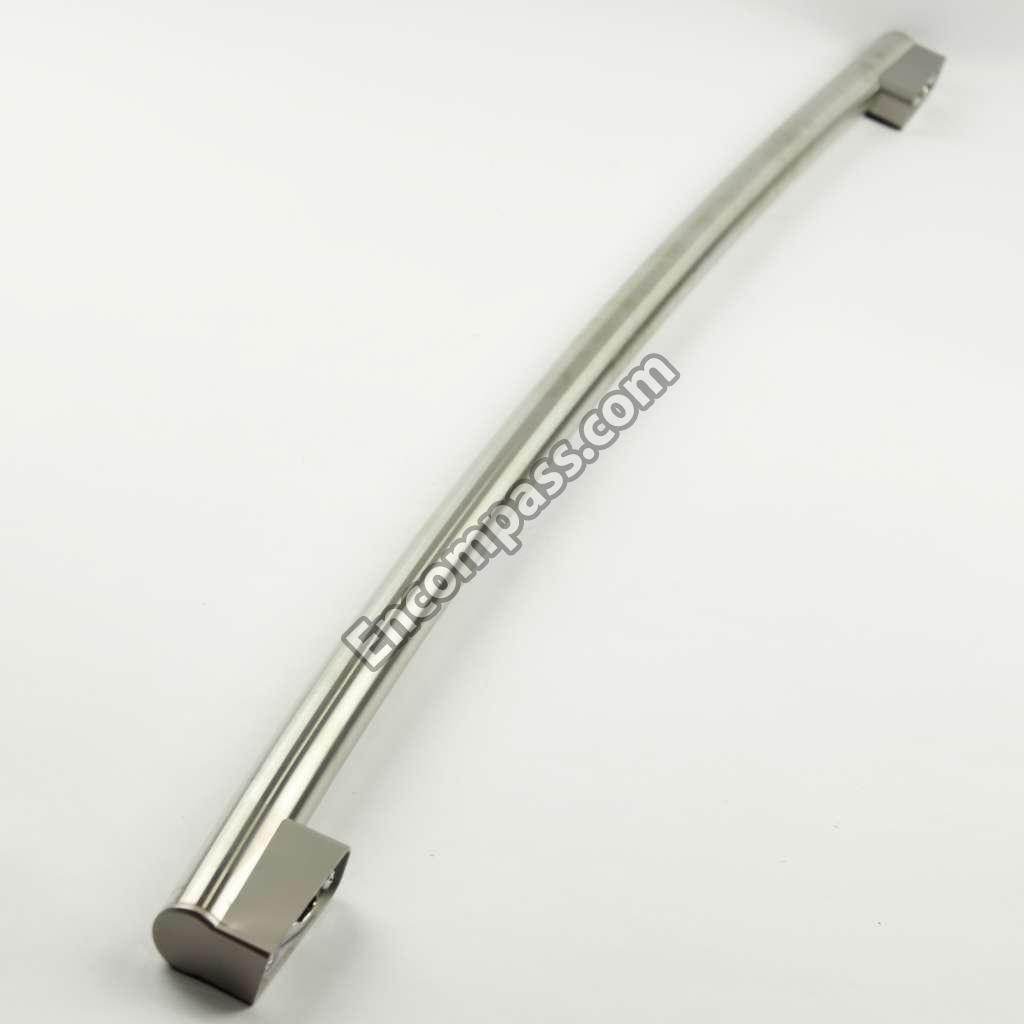

3651JA1023R 3651JA1023R HANDLE ASSEMBLY,FREEZER
3651JA1033J 3651JA1033J HANDLE ASSEMBLY,FREEZER [212A]
3650JJ2003M 3650JJ2003M HANDLE,REAR [103A]
MEB64014305 MEB64014305 HANDLE,REAR [103B]
6877JK2011D 6877JK2011D HARNESS ASSEMBLY

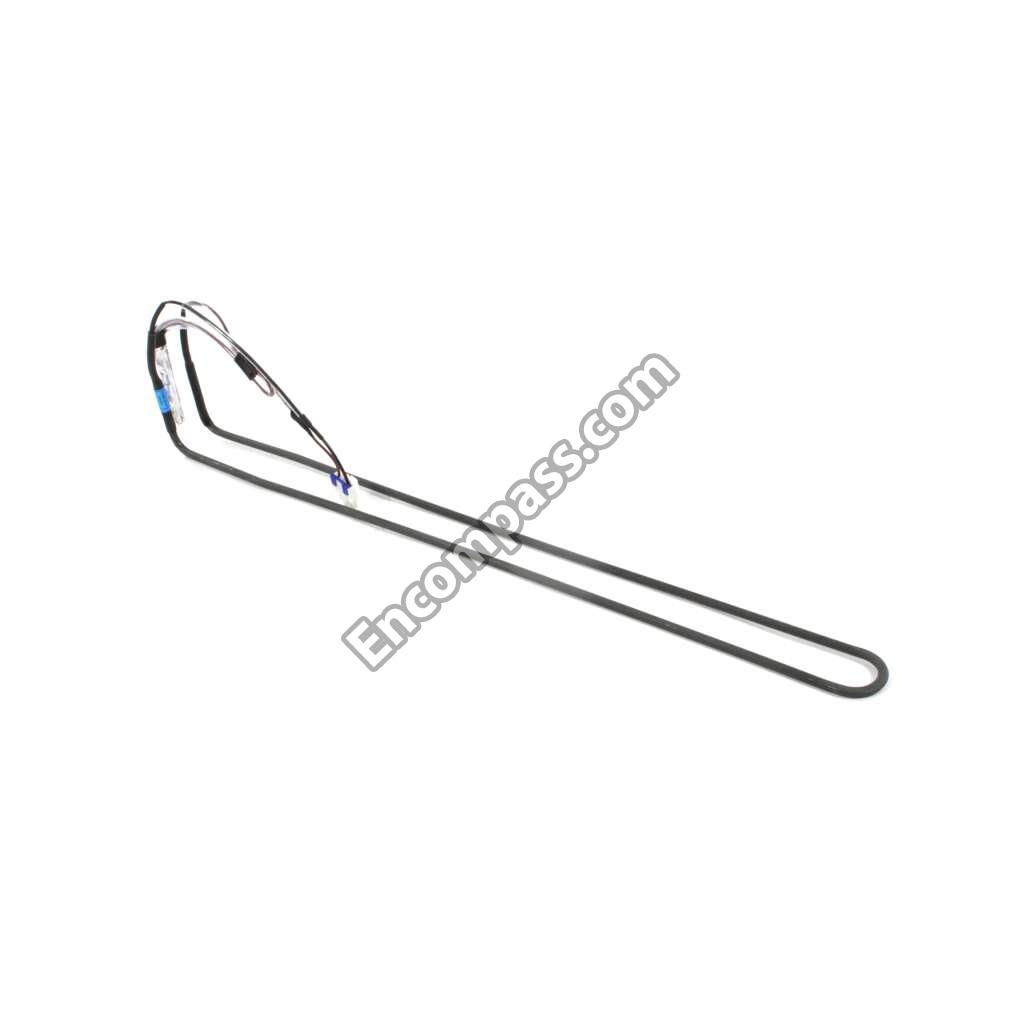

5300JB1100Q 5300JB1100Q HEATER,SHEATH [418A]
4775JJ2006H 4775JJ2006H HINGE ASSEMBLY,CENTER [282B]
4775JJ2011A 4775JJ2011A HINGE ASSEMBLY,LOWER
4775JJ2003B 4775JJ2003B HINGE ASSEMBLY,UPPER [281B]
4930JJ3007A 4930JJ3007A HOLDER,BRACKET [125D]
4930JJ2021A 4930JJ2021A HOLDER,COVER(LOWER)
4930JA3034A 4930JA3034A HOLDER,DRIER [318A]
MEG54557901 MEG54557901 HOLDER,RAIL [128E]
MEG54557902 MEG54557902 HOLDER,RAIL [128F]
4930JJ2003D 4930JJ2003D HOLDER,SHELF [145A]
4930JJ2004D 4930JJ2004D HOLDER,SHELF [145B]
6912JB2004M 6912JB2004M LAMP,INCANDESCENT
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [409B]
4779JA2003A 4779JA2003A LEG ASSEMBLY,ADJUST [106A]
4510JJ2003A 4510JJ2003A LEVER,SHUTTER [278C]
4520JJ2001A 4520JJ2001A LINK [128G]
4680JK1001B 4680JK1001B MOTOR,AC [420A]
4681JB1027N 4681JB1027N MOTOR,DC
MFT61843001 MFT61843001 NAME PLATE
MFT62346508 MFT62346508 NAME PLATE
MFT61843003 MFT61843003 NAME PLATE
MFT62346511 MFT62346511 NAME PLATE [212G]
6750JJ8002A 6750JJ8002A OVERLOAD PROTECT
6750C-0004S 6750C-0004S OVERLOAD PROTECT [309A]
ABQ33905317 ABQ33905317 PCB ASSEMBLY,DISPLAY [503C]

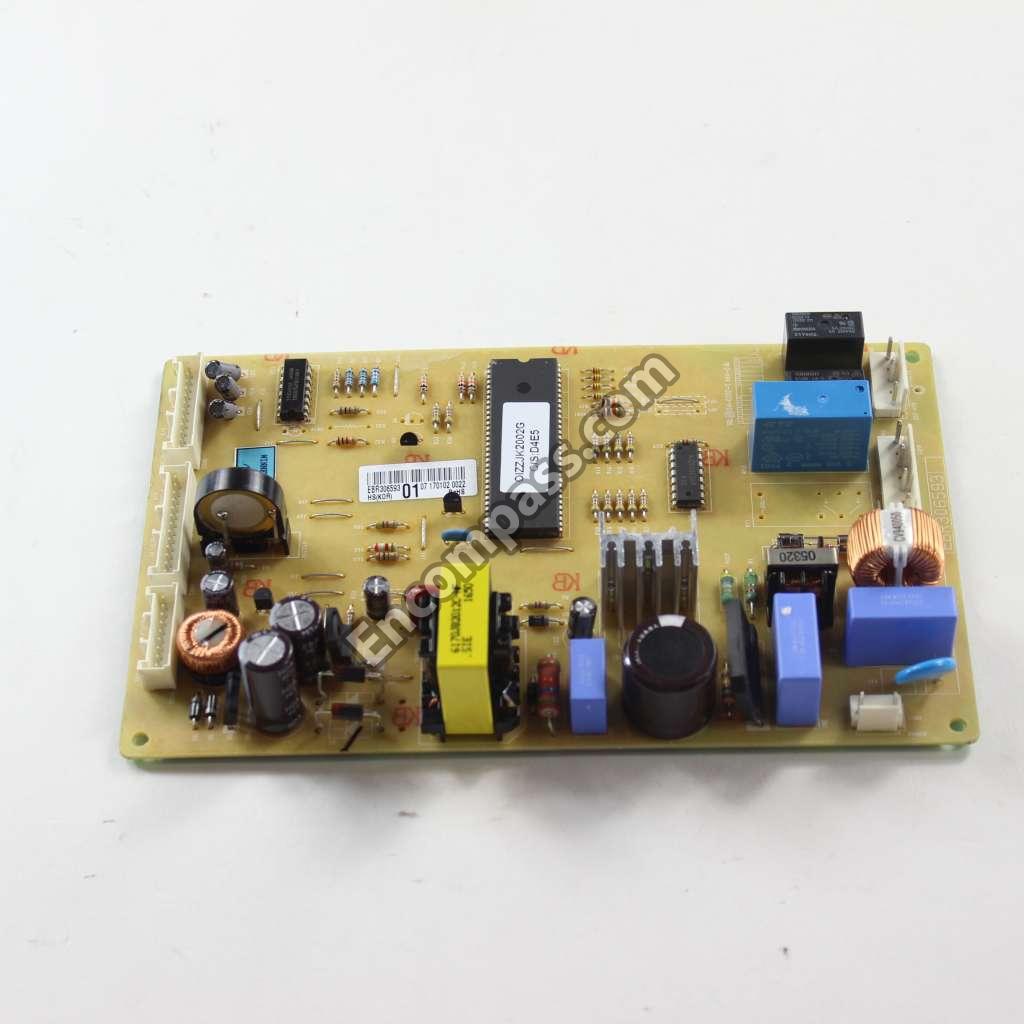

EBR30659302 EBR30659302 PCB ASSEMBLY,MAIN
EBR30659301 EBR30659301 PCB ASSEMBLY,MAIN [501A]
4J04238A 4J04238A PIN,COMMON [305C]
5200JJ3003E 5200JJ3003E PIPE,JOINT
6411JB1042Y 6411JB1042Y POWER CORD ASSEMBLY [411A]

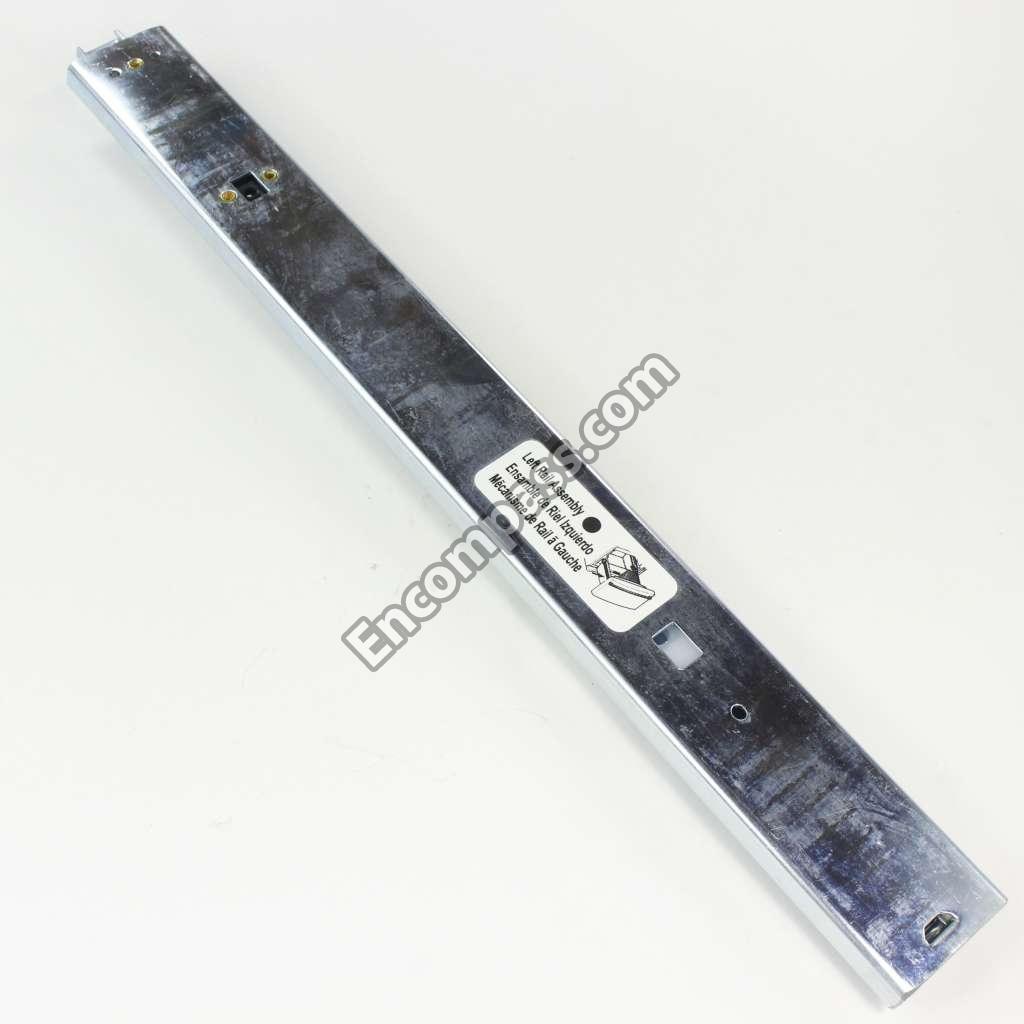

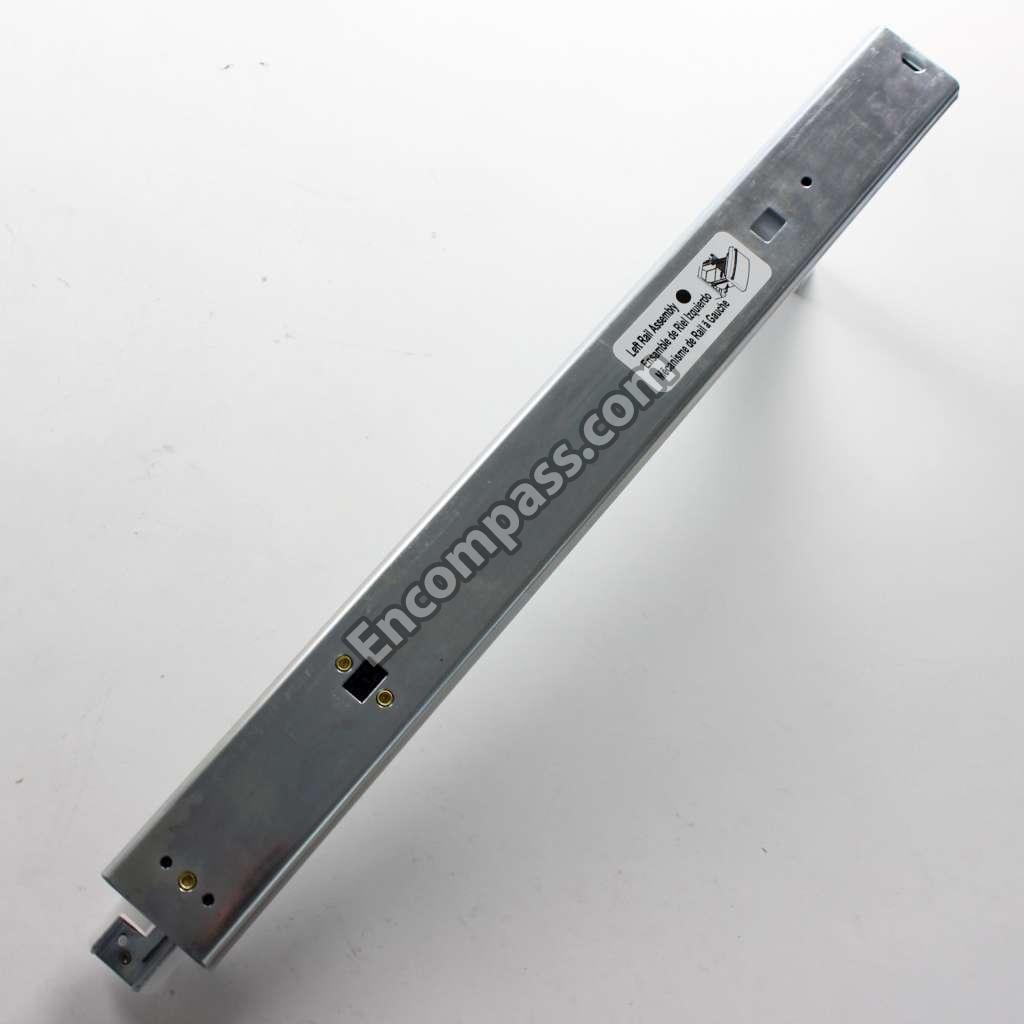

5218JJ3001A 5218JJ3001A RAIL,SLIDE [103E]
5218JA1010E 5218JA1010E RAIL,SLIDE [249E]
5218JA1010F 5218JA1010F RAIL,SLIDE [249F]
3034JJ1002B 3034JJ1002B REFLECTOR,LAMP [409D]
MHA62513601 MHA62513601 ROLLER [305B]
AHJ72989901 AHJ72989901 ROLLER [305D]

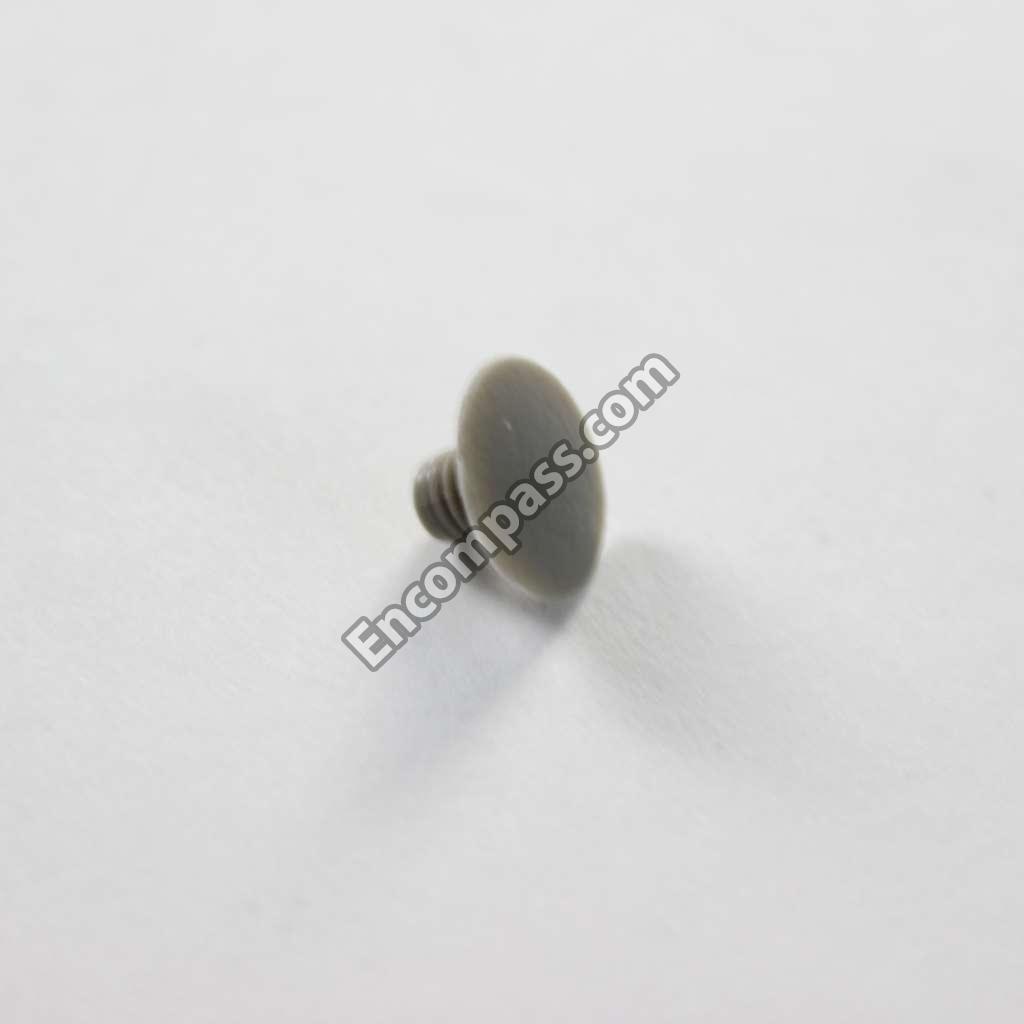

1SZZJJ3010A 1SZZJJ3010A SCREW,CUSTOMIZED
1STZJA3004F 1STZJA3004F SCREW,CUSTOMIZED [B01]
1STZJA3001B 1STZJA3001B SCREW,CUSTOMIZED [B04]
J471-00001J J471-00001J SCREW,CUSTOMIZED [S22]
1SZZJA3011B 1SZZJA3011B SCREW,CUSTOMIZED [S24]
4J01424C 4J01424C SCREW,CUSTOMIZED [S27]
4J00415D 4J00415D SCREW,CUSTOMIZED [S38]
6500JB2001B 6500JB2001B SENSOR [903D]
6500JB2002T 6500JB2002T SENSOR [903E]
5027JJ2005U 5027JJ2005U SHELF ASSEMBLY,NET [141C]
5027JJ2005V 5027JJ2005V SHELF ASSEMBLY,NET [141E]

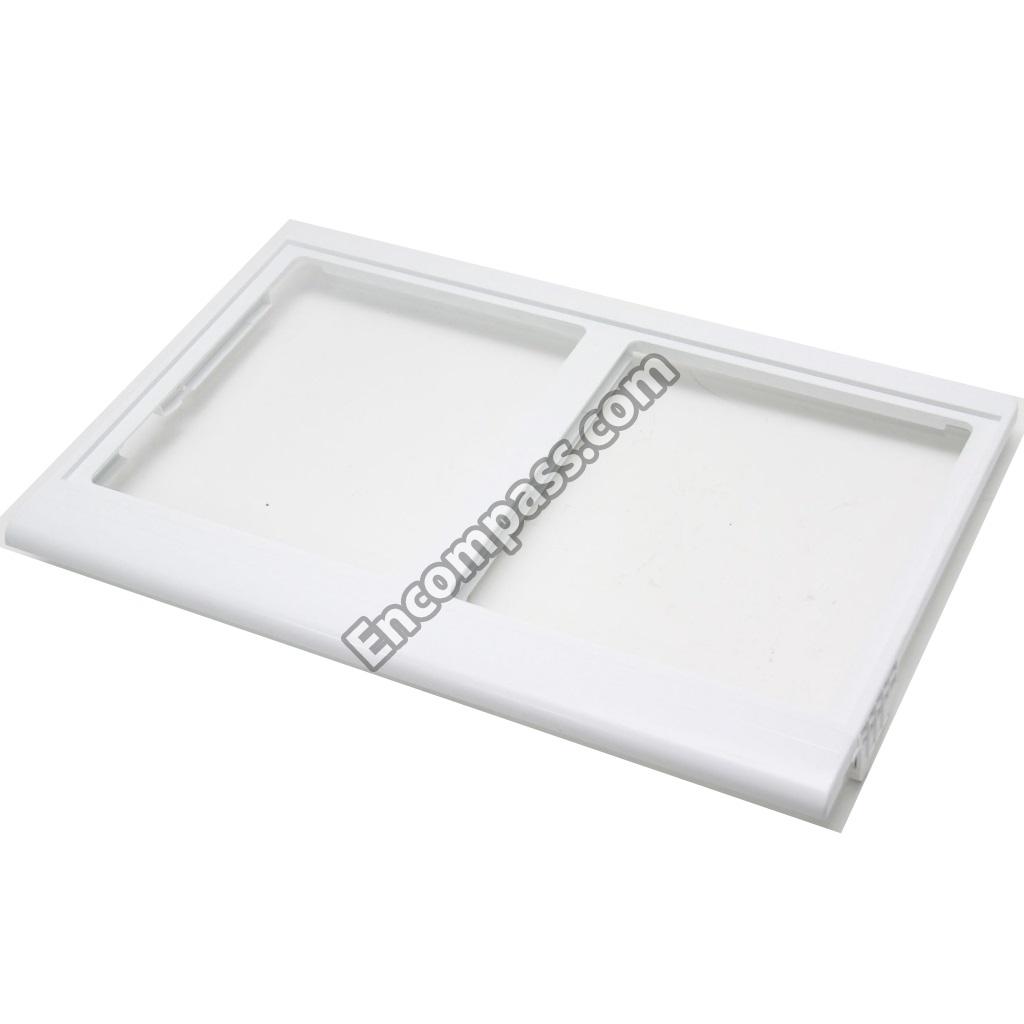

AHT72975002 AHT72975002 SHELF ASSEMBLY,REFRIGERATOR [141A]
5027JJ1038A 5027JJ1038A SHELF ASSEMBLY,REFRIGERATOR [141B]
AHT72974902 AHT72974902 SHELF ASSEMBLY,REFRIGERATOR [141D]
5027JJ1013J 5027JJ1013J SHELF ASSEMBLY,REFRIGERATOR [142A]
AHT57429702 AHT57429702 SHELF ASSEMBLY,REFRIGERATOR [142B]
4890JL1002N 4890JL1002N SHELF,GLASS [167B]
5026JJ2001L 5026JJ2001L SHELF,NET
AHT72974106 AHT72974106 SHELF,NET [142D]
5026JJ2001M 5026JJ2001M SHELF,NET [142E]
5070JJ3002A 5070JJ3002A SKIRT,LOWER [105F]
EAG62831801 EAG62831801 SOCKET,LAMP
4620JA3009A 4620JA3009A STOPPER,COMPRESSOR [314A]
4620JJ3006C 4620JJ3006C STOPPER,DOOR [243A]
4620JJ3007E 4620JJ3007E STOPPER,HANDLE [212J]
MJH62074601 MJH62074601 SUPPORTER,COVER TV [155B]
6600JB1010K 6600JB1010K SWITCH,PUSH BUTTON
6600JB1010A 6600JB1010A SWITCH,PUSH BUTTON [406B]
6748C-0004D 6748C-0004D THERMISTOR ASSEMBLY,PTC
6749C-0014E 6749C-0014E THERMISTOR ASSEMBLY,PTC [308A]
6748JJ8002A 6748JJ8002A THERMISTOR,PTC

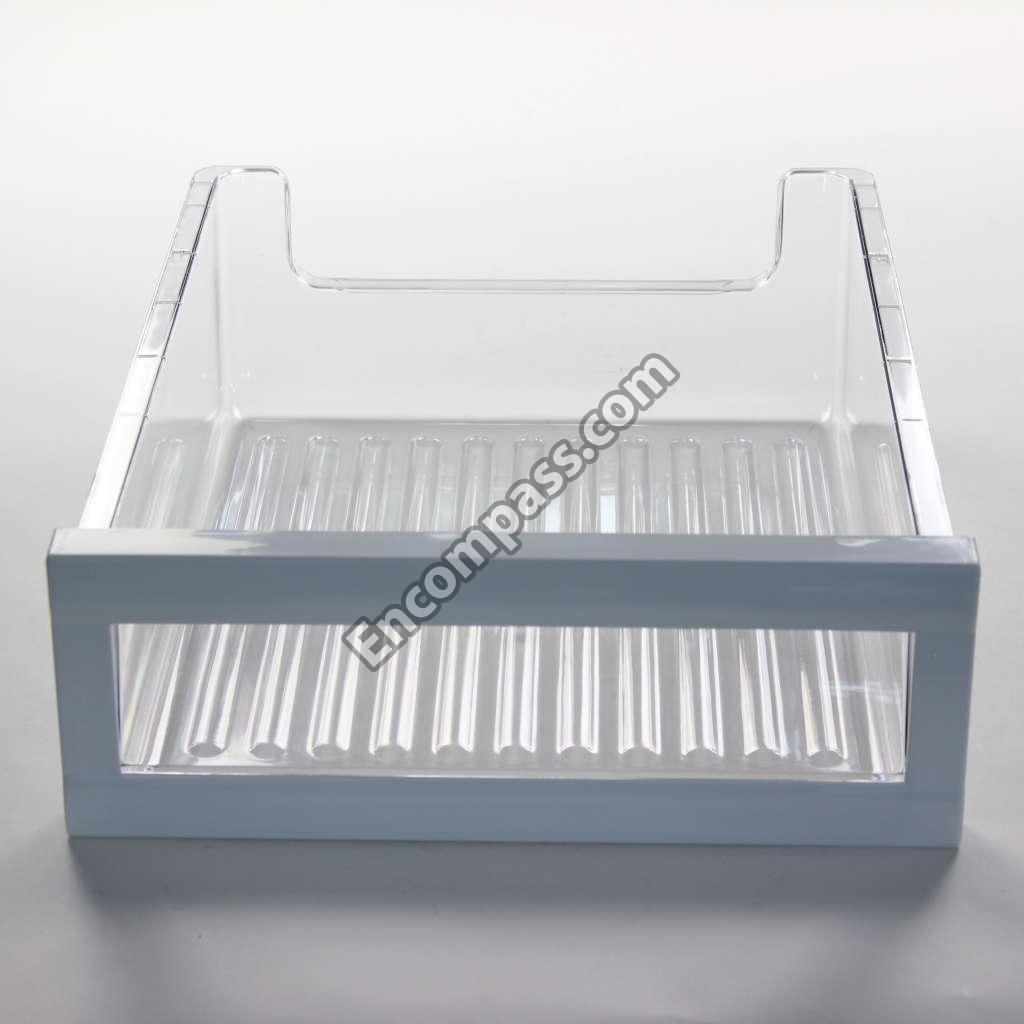

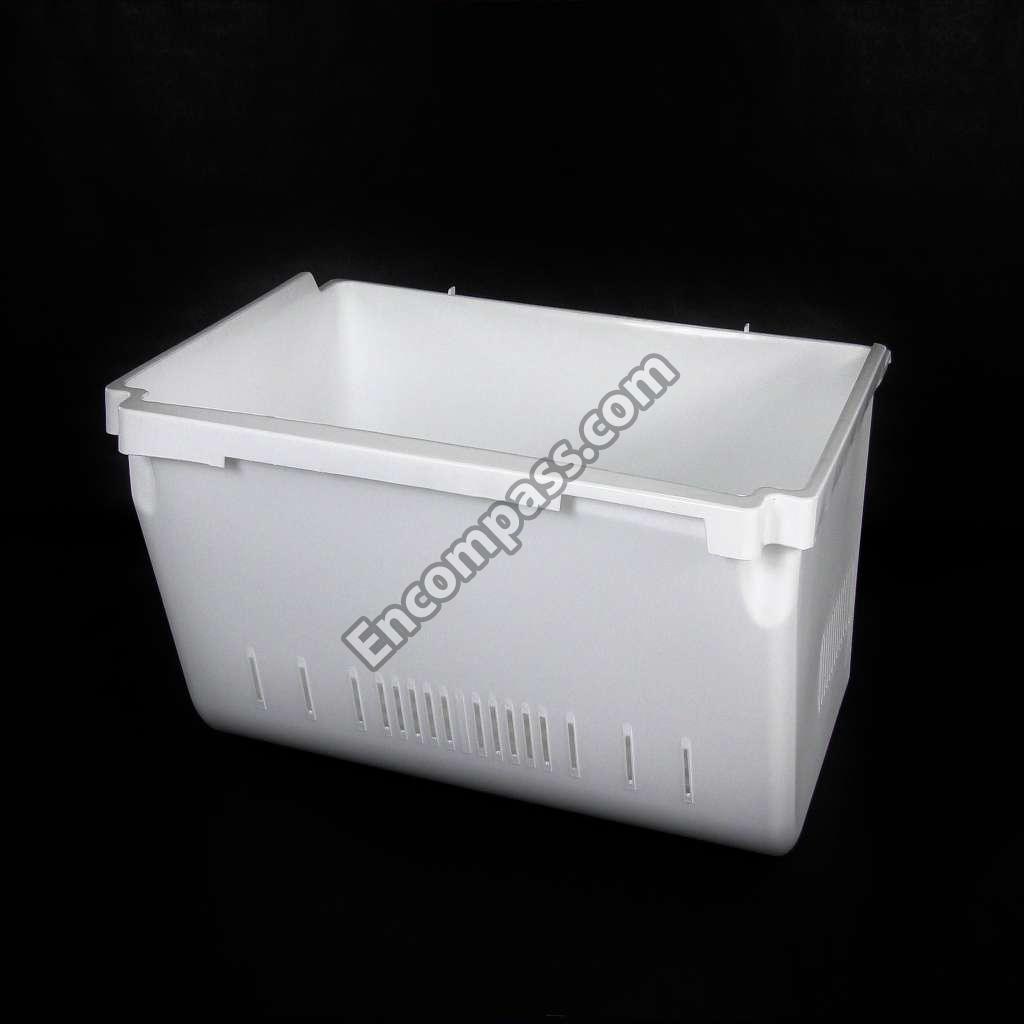

3391JJ1011B 3391JJ1011B TRAY ASSEMBLY,DRAWER [136A]
3391JJ2018D 3391JJ2018D TRAY ASSEMBLY,MEAT [170A]

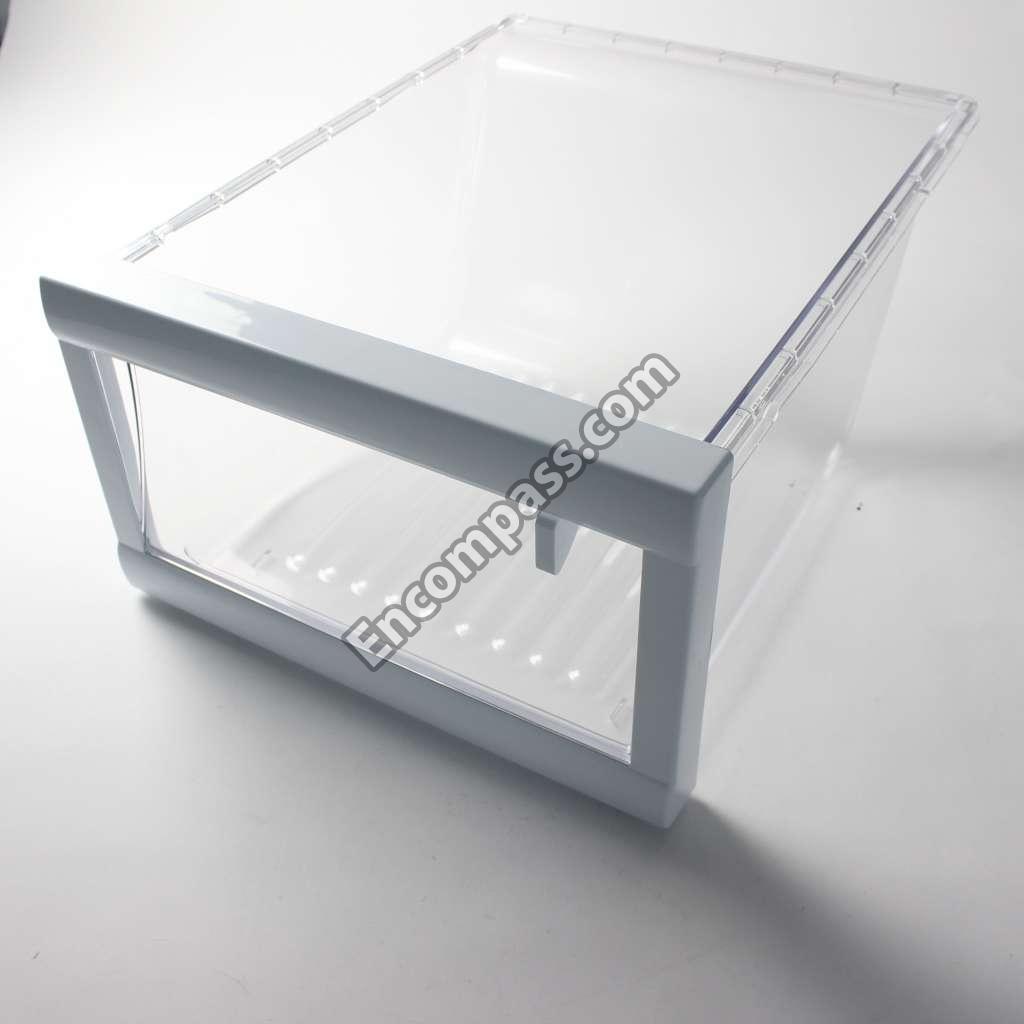

3391JJ1038B 3391JJ1038B TRAY ASSEMBLY,VEGETABLE [151A]
3390JJ1090B 3390JJ1090B TRAY,DRAWER [136B]
3390JJ0003A 3390JJ0003A TRAY,DRIP [319A]
3390JJ1023A 3390JJ1023A TRAY,ICE [125A]
5251JA3003D 5251JA3003D TUBE ASSEMBLY,DRAIN [105A]
4J00382C 4J00382C WASHER,COMMON [106B]
