Model Image
Manufacturer

LG

Model Number

LDNTH862S

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
5001DD4001L 5001DD4001L ACCESSORY ASSEMBLY
AAA74804736 AAA74804736 ACCESSORY ASSEMBLY
AGM30108001 AGM30108001 AIR GUIDE,PARTS ASSEMBLY,SVC
MAM66025701 MAM66025701 BASE,CABINET
MAM66025801 MAM66025801 BASE,CABINET
AAP30116901 AAP30116901 BASKET ASSEMBLY,SPOON
4830ED4001B 4830ED4001B BUSH
MBF65424601 MBF65424601 BUSH
ABN76534503 ABN76534503 CAP ASSEMBLY
MBL66496901 MBL66496901 CAP,COVER
MBN66491901 MBN66491901 CASE
ABQ76120501 ABQ76120501 CASE ASSEMBLY
ABQ75742505 ABQ75742505 CASE ASSEMBLY
ABQ75742401 ABQ75742401 CASE ASSEMBLY
AGM30073201 AGM30073201 CASE,PARTS ASSEMBLY,SVC
ACJ73790102 ACJ73790102 CONNECTOR ASSEMBLY
ACJ74110102 ACJ74110102 CONNECTOR ASSEMBLY
EBR30093202 EBR30093202 CONTROL BOARD
AGL30260902 AGL30260902 CONTROL PANEL
ACQ30670903 ACQ30670903 COVER ASSEMBLY,FRONT
ACQ30670905 ACQ30670905 COVER ASSEMBLY,FRONT
ACQ88920602 ACQ88920602 COVER ASSEMBLY,LOWER
MCK71867102 MCK71867102 COVER,LOWER
AGM75570312 AGM75570312 COVER,PARTS ASSEMBLY,SVC
AGM72573101 AGM72573101 COVER,PARTS ASSEMBLY,SVC
AGM75570317 AGM75570317 COVER,PARTS ASSEMBLY,SVC
MCK70272302 MCK70272302 COVER,PROTECT
MCK69283003 MCK69283003 COVER,SAFETY
MCQ68785515 MCQ68785515 DAMPER
MCQ68785516 MCQ68785516 DAMPER
ACV34326908 ACV34326908 DAMPER ASSEMBLY
MCU62221005 MCU62221005 DISPENSER
MCU62221006 MCU62221006 DISPENSER
AGM75469810 AGM75469810 DISPENSER,PARTS ASSEMBLY,SVC
ADE74775601 ADE74775601 DOOR LINER ASSEMBLY
ADE74775701 ADE74775701 DOOR LINER ASSEMBLY
MDJ64544303 MDJ64544303 FILTER
ADQ74693702 ADQ74693702 FILTER ASSEMBLY,MESH
MDQ64476401 MDQ64476401 FRAME
MDQ66841301 MDQ66841301 FRAME,LOWER
MDS65190102 MDS65190102 GASKET
MDS65210201 MDS65210201 GASKET
MDS65210412 MDS65210412 GASKET
AEC75973502 AEC75973502 GUIDE ASSEMBLY
AGM75509502 AGM75509502 GUIDE,PARTS ASSEMBLY,SVC
AGM75509602 AGM75509602 GUIDE,PARTS ASSEMBLY,SVC
MEA66399801 MEA66399801 GUIDE,WATER
MEA64230001 MEA64230001 GUIDE,WATER
AED30153401 AED30153401 HANDLE ASSEMBLY
AED30153901 AED30153901 HANDLE ASSEMBLY
EAD63647064 EAD63647064 HARNESS,MULTI
MEF64901101 MEF64901101 HINGE
MEF63061901 MEF63061901 HINGE
MEF63061902 MEF63061902 HINGE
AEH30065407 AEH30065407 HINGE ASSEMBLY
AEH30065408 AEH30065408 HINGE ASSEMBLY
MEG64438906 MEG64438906 HOLDER
MEG64438803 MEG64438803 HOLDER
MEG64438703 MEG64438703 HOLDER
MEG64438603 MEG64438603 HOLDER
MEG64438905 MEG64438905 HOLDER
MEG66740501 MEG66740501 HOLDER
MEG64418902 MEG64418902 HOLDER
MEG64439201 MEG64439201 HOLDER

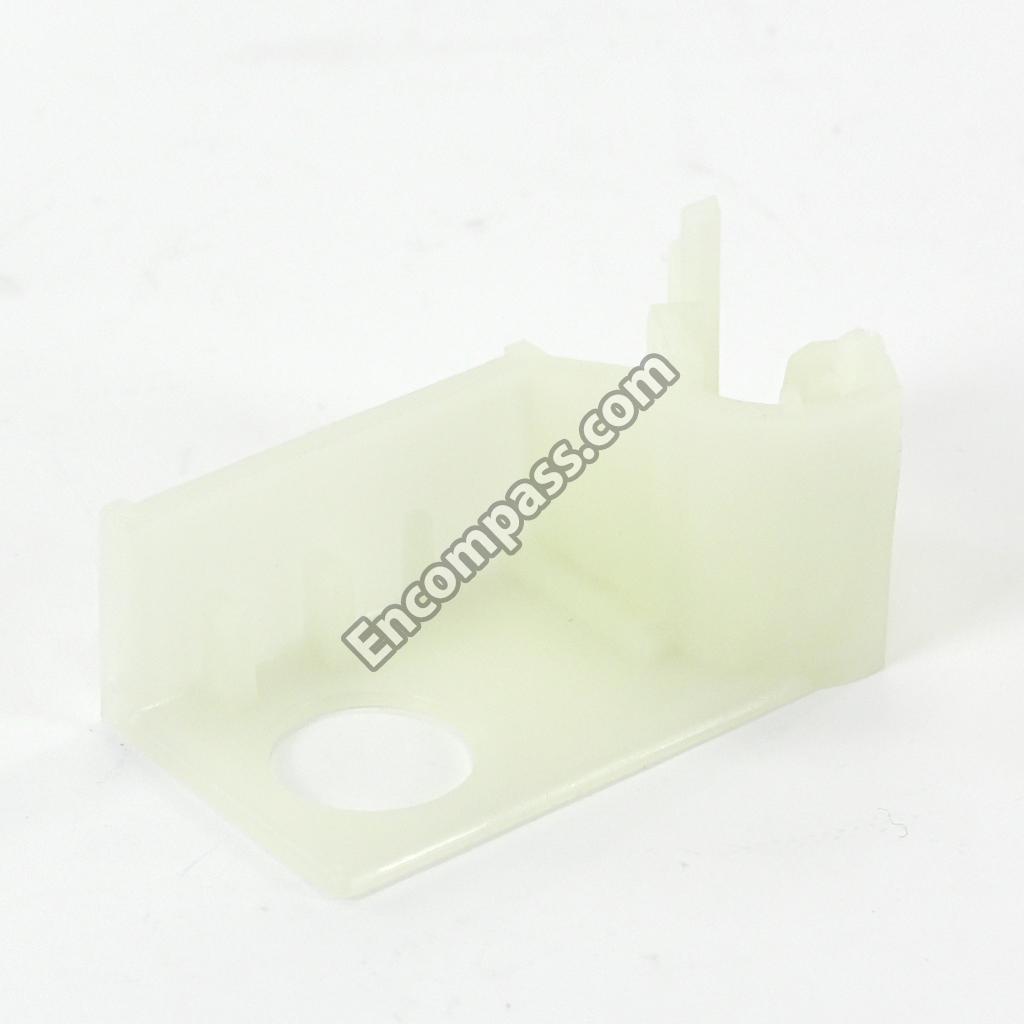

MEG64439202 MEG64439202 HOLDER
MEG64398801 MEG64398801 HOLDER
MEG64398901 MEG64398901 HOLDER
MEG64458801 MEG64458801 HOLDER,LOCK
AEM74512906 AEM74512906 HOSE ASSEMBLY,DRAIN
AEM74333104 AEM74333104 HOSE ASSEMBLY,DRAIN
AEM74512902 AEM74512902 HOSE ASSEMBLY,DRAIN
MEJ63424703 MEJ63424703 HOSE,CONNECTOR
MEJ63444901 MEJ63444901 HOSE,INLET
MEJ63424801 MEJ63424801 HOSE,INLET
AGM75469812 AGM75469812 INDICATOR,PARTS ASSEMBLY,SVC
EAQ61400805 EAQ61400805 LAMP,LED
MFA63022901 MFA63022901 LEG
MFF64124401 MFF64124401 LINK,HINGE
MFG63958701 MFG63958701 LOCKER,LOCK
AGM76209501 AGM76209501 LOCKER,PARTS ASSEMBLY,SVC
EBR34949668 EBR34949668 MAIN BOARD
EBR34949644 EBR34949644 MAIN BOARD
4681ED3001D 4681ED3001D MOTOR ASSEMBLY,AC,STEPPING
AGB74617501 AGB74617501 NOZZLE ASSEMBLY
5249DD1001J 5249DD1001J NOZZLE ASSEMBLY
AGB73912402 AGB73912402 NOZZLE ASSEMBLY
AGM30057110 AGM30057110 NOZZLE,PARTS ASSEMBLY,SVC
AGM30057112 AGM30057112 NOZZLE,PARTS ASSEMBLY,SVC
AGM30169302 AGM30169302 NOZZLE,PARTS ASSEMBLY,SVC
FAD33760803 FAD33760803 NUT,COMMON
3920DD3002L 3920DD3002L PACKING
3920DD3005H 3920DD3005H PACKING
AGM30016301 AGM30016301 PUMP,PARTS ASSEMBLY,SVC
MGR63004601 MGR63004601 RACK
MGR30503201 MGR30503201 RACK
MGR30503301 MGR30503301 RACK
MGR63005501 MGR63005501 RACK
MGR63005502 MGR63005502 RACK
MGR63005503 MGR63005503 RACK
MGR63005504 MGR63005504 RACK
MGR63005505 MGR63005505 RACK
MGR63005506 MGR63005506 RACK
MGR62482711 MGR62482711 RACK
MGR63005301 MGR63005301 RACK
MGR63005302 MGR63005302 RACK
MGR63005303 MGR63005303 RACK
MGR63005304 MGR63005304 RACK
MGR63005305 MGR63005305 RACK
MGR63005306 MGR63005306 RACK
MGR63005307 MGR63005307 RACK
MGR63005308 MGR63005308 RACK
MGR63005403 MGR63005403 RACK
MGR63005404 MGR63005404 RACK
MGR63005401 MGR63005401 RACK
MGR63005402 MGR63005402 RACK
AHB32984010 AHB32984010 RACK ASSEMBLY
AHB32983902 AHB32983902 RACK ASSEMBLY
AHB32984002 AHB32984002 RACK ASSEMBLY
AHB73410401 AHB73410401 RACK ASSEMBLY
AHC73855703 AHC73855703 RAIL ASSEMBLY
AHC73855701 AHC73855701 RAIL ASSEMBLY
AHC73855704 AHC73855704 RAIL ASSEMBLY
AHC73855702 AHC73855702 RAIL ASSEMBLY
MHA63252802 MHA63252802 ROLLER
MHA63252801 MHA63252801 ROLLER
4581DD3003F 4581DD3003F ROLLER ASSEMBLY
4581DD3003G 4581DD3003G ROLLER ASSEMBLY
4581DD3003H 4581DD3003H ROLLER ASSEMBLY
AHJ73610002 AHJ73610002 ROLLER ASSEMBLY
AHJ73609902 AHJ73609902 ROLLER ASSEMBLY
1SZZED3001G 1SZZED3001G SCREW,CUSTOMIZED
1SZZED3003G 1SZZED3003G SCREW,CUSTOMIZED
EBD62065301 EBD62065301 SENSOR ASSEMBLY
AHR73669802 AHR73669802 SHAFT ASSEMBLY
AGM75510001 AGM75510001 SHAFT ASSEMBLY,PARTS ASSEMBLY,SVC
4370ED3007C 4370ED3007C SHAFT,NOZZLE
MHY63963802 MHY63963802 SPRING,HINGE
AGM75469214 AGM75469214 SUMP,PARTS ASSEMBLY,SVC
EBF63014702 EBF63014702 SWITCH ASSEMBLY
6601ER2001C 6601ER2001C SWITCH ASSEMBLY,SAFETY
EBF64375201 EBF64375201 SWITCH,MICRO
EBF64375202 EBF64375202 SWITCH,MICRO
MJX63511301 MJX63511301 VALVE,CHECK
5221DD1001E 5221DD1001E WATER INLET VALVE
AJX75340502 AJX75340502 WINDOW ASSEMBLY
