Model Image
Manufacturer

LG

Model Number

LDP6809SS

Description

Top Control Smart Wi-fi Enabled Dishwasher With Qu

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5001DD4001C 5001DD4001C ACCESSORY ASSEMBLY
5001DD4001H 5001DD4001H ACCESSORY ASSEMBLY
AGM30108001 AGM30108001 AIR GUIDE,PARTS ASSEMBLY,SVC
MAM63444201 MAM63444201 BASE,CABINET
MAM63444102 MAM63444102 BASE,CABINET
MAM63444202 MAM63444202 BASE,CABINET
MAM63444101 MAM63444101 BASE,CABINET
AAP74471301 AAP74471301 BASKET ASSEMBLY,SPOON
4830ED4001B 4830ED4001B BUSH
MBF65424601 MBF65424601 BUSH
MBL66496901 MBL66496901 CAP,COVER
ABQ75742502 ABQ75742502 CASE ASSEMBLY
ABQ76120501 ABQ76120501 CASE ASSEMBLY
ABQ75742501 ABQ75742501 CASE ASSEMBLY
ABQ75742401 ABQ75742401 CASE ASSEMBLY
ABQ75742505 ABQ75742505 CASE ASSEMBLY
ABT73009401 ABT73009401 CASING ASSEMBLY
ABT72989205 ABT72989205 CASING ASSEMBLY,PUMP
ACJ73790102 ACJ73790102 CONNECTOR ASSEMBLY
ACJ74110102 ACJ74110102 CONNECTOR ASSEMBLY
ACQ88048307 ACQ88048307 COVER ASSEMBLY,FRONT
3551DD2001X 3551DD2001X COVER ASSEMBLY,LOWER
ACQ88920601 ACQ88920601 COVER ASSEMBLY,LOWER
ACQ90777001 ACQ90777001 COVER ASSEMBLY,LOWER
MCK68785601 MCK68785601 COVER,BLOWER
MCK71867102 MCK71867102 COVER,LOWER
MCK71867101 MCK71867101 COVER,LOWER
MCK69283003 MCK69283003 COVER,SAFETY
ACV34326904 ACV34326904 DAMPER ASSEMBLY
ACV74030101 ACV74030101 DAMPER ASSEMBLY
ACV74030104 ACV74030104 DAMPER ASSEMBLY
MCU62221003 MCU62221003 DISPENSER
MCU62221005 MCU62221005 DISPENSER
MCU62221004 MCU62221004 DISPENSER
MCU62221006 MCU62221006 DISPENSER
AGM75469810 AGM75469810 DISPENSER,PARTS ASSEMBLY,SVC
ADE73849702 ADE73849702 DOOR LINER ASSEMBLY
ADE73969702 ADE73969702 DOOR LINER ASSEMBLY
ADJ74312101 ADJ74312101 DUCT ASSEMBLY
MDJ64544301 MDJ64544301 FILTER
MDJ64544303 MDJ64544303 FILTER
EAM60991316 EAM60991316 FILTER ASSEMBLY
ADQ74693701 ADQ74693701 FILTER ASSEMBLY,MESH
ADQ74693702 ADQ74693702 FILTER ASSEMBLY,MESH
MDQ64476402 MDQ64476402 FRAME
MDQ64457601 MDQ64457601 FRAME,LOWER
MDQ64457603 MDQ64457603 FRAME,LOWER
MDS65210201 MDS65210201 GASKET
MDS65210403 MDS65210403 GASKET
MDS65210501 MDS65210501 GASKET
MDS65190101 MDS65190101 GASKET
MDS65190102 MDS65190102 GASKET
MDS65210409 MDS65210409 GASKET
AEC74357401 AEC74357401 GUIDE ASSEMBLY
AEC75117404 AEC75117404 GUIDE ASSEMBLY
MEA64230001 MEA64230001 GUIDE,WATER
MEB63694606 MEB63694606 HANDLE
MEB63694003 MEB63694003 HANDLE
MEB63694511 MEB63694511 HANDLE
EAD63647008 EAD63647008 HARNESS,MULTI
EAD63647039 EAD63647039 HARNESS,MULTI
MEF63061901 MEF63061901 HINGE
MEF63061902 MEF63061902 HINGE
AEH30065403 AEH30065403 HINGE ASSEMBLY
AEH30065404 AEH30065404 HINGE ASSEMBLY
MEG64438701 MEG64438701 HOLDER
MEG64438801 MEG64438801 HOLDER
MEG64438901 MEG64438901 HOLDER
MEG64438601 MEG64438601 HOLDER
MEG64438902 MEG64438902 HOLDER
MEG64439201 MEG64439201 HOLDER
MEG64439202 MEG64439202 HOLDER
MEG64398801 MEG64398801 HOLDER
MEG64398901 MEG64398901 HOLDER
MEG64438704 MEG64438704 HOLDER

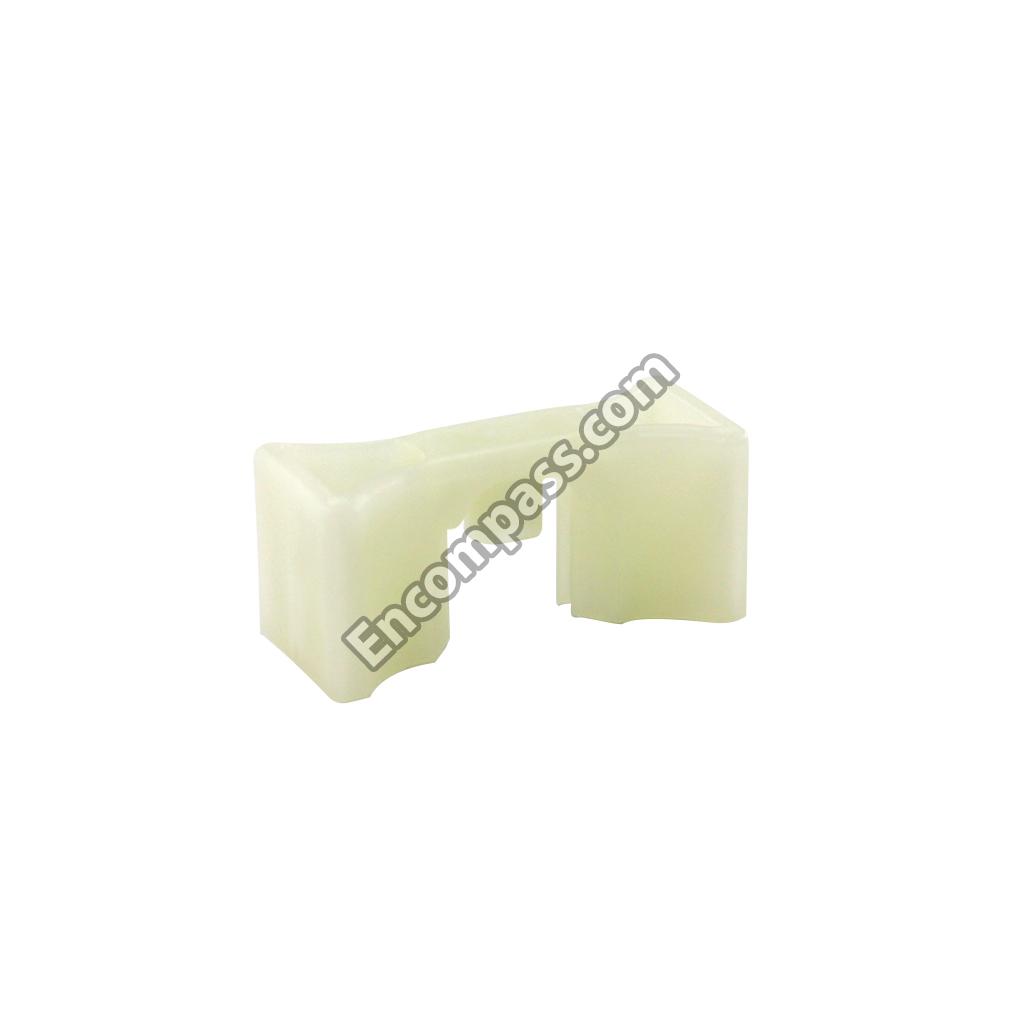

MEG64458801 MEG64458801 HOLDER,LOCK
AEM74512906 AEM74512906 HOSE ASSEMBLY,DRAIN
AEM74333104 AEM74333104 HOSE ASSEMBLY,DRAIN
AEM74512902 AEM74512902 HOSE ASSEMBLY,DRAIN
MEJ63424701 MEJ63424701 HOSE,CONNECTOR
MEJ63424703 MEJ63424703 HOSE,CONNECTOR
MEJ63444901 MEJ63444901 HOSE,INLET
MEJ63424801 MEJ63424801 HOSE,INLET
MFA63022901 MFA63022901 LEG
MFG63958701 MFG63958701 LOCKER,LOCK
4681ED3001D 4681ED3001D MOTOR ASSEMBLY,AC,STEPPING
AGB73932401 AGB73932401 NOZZLE ASSEMBLY
5249DD1001D 5249DD1001D NOZZLE ASSEMBLY
AGB73952501 AGB73952501 NOZZLE ASSEMBLY,STEAM
AGM30057105 AGM30057105 NOZZLE,PARTS ASSEMBLY,SVC
AGM30057111 AGM30057111 NOZZLE,PARTS ASSEMBLY,SVC

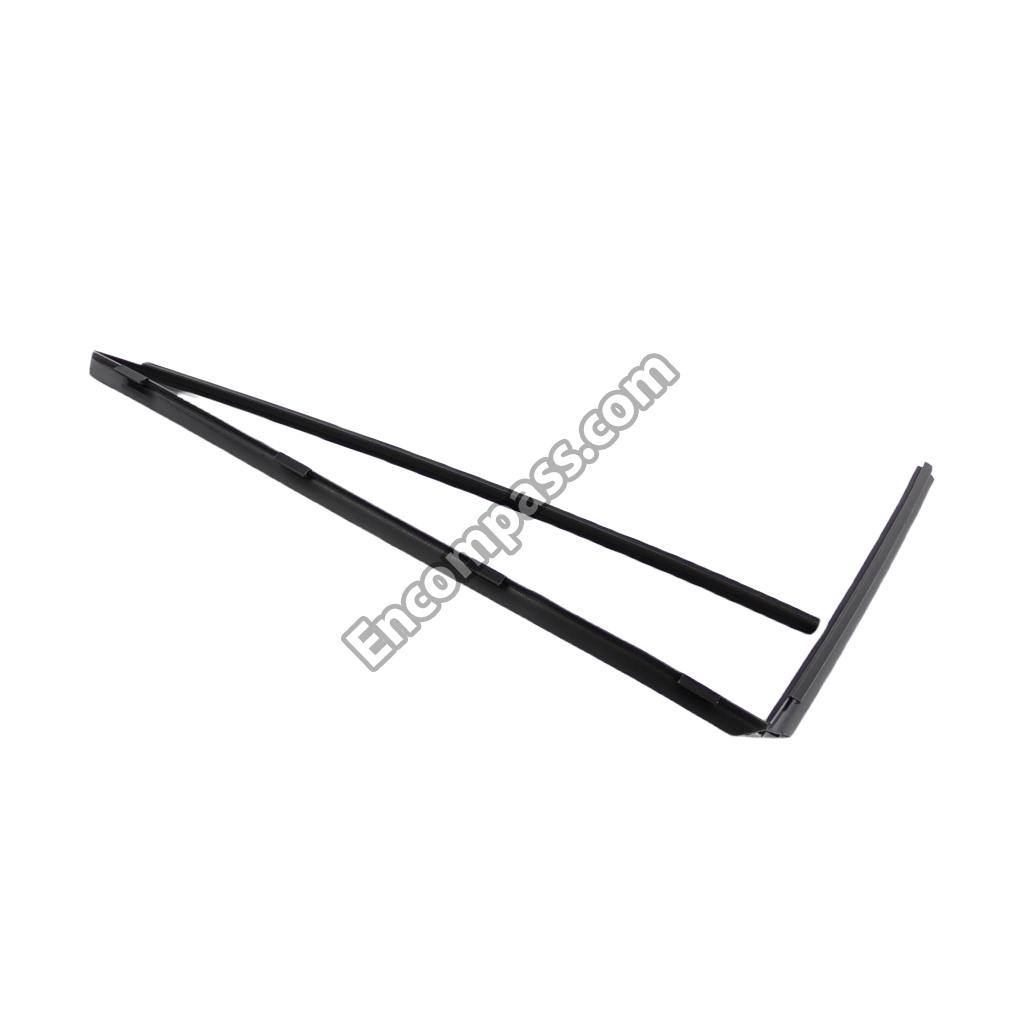

3920DD3002D 3920DD3002D PACKING
3920DD3005F 3920DD3005F PACKING
3920DD3005H 3920DD3005H PACKING
AGL75172636 AGL75172636 PANEL ASSEMBLY,CONTROL
AGM75509501 AGM75509501 PARTS ASSEMBLY
AGM75509601 AGM75509601 PARTS ASSEMBLY
AGM75550001 AGM75550001 PARTS ASSEMBLY
AGM76209501 AGM76209501 PARTS ASSEMBLY

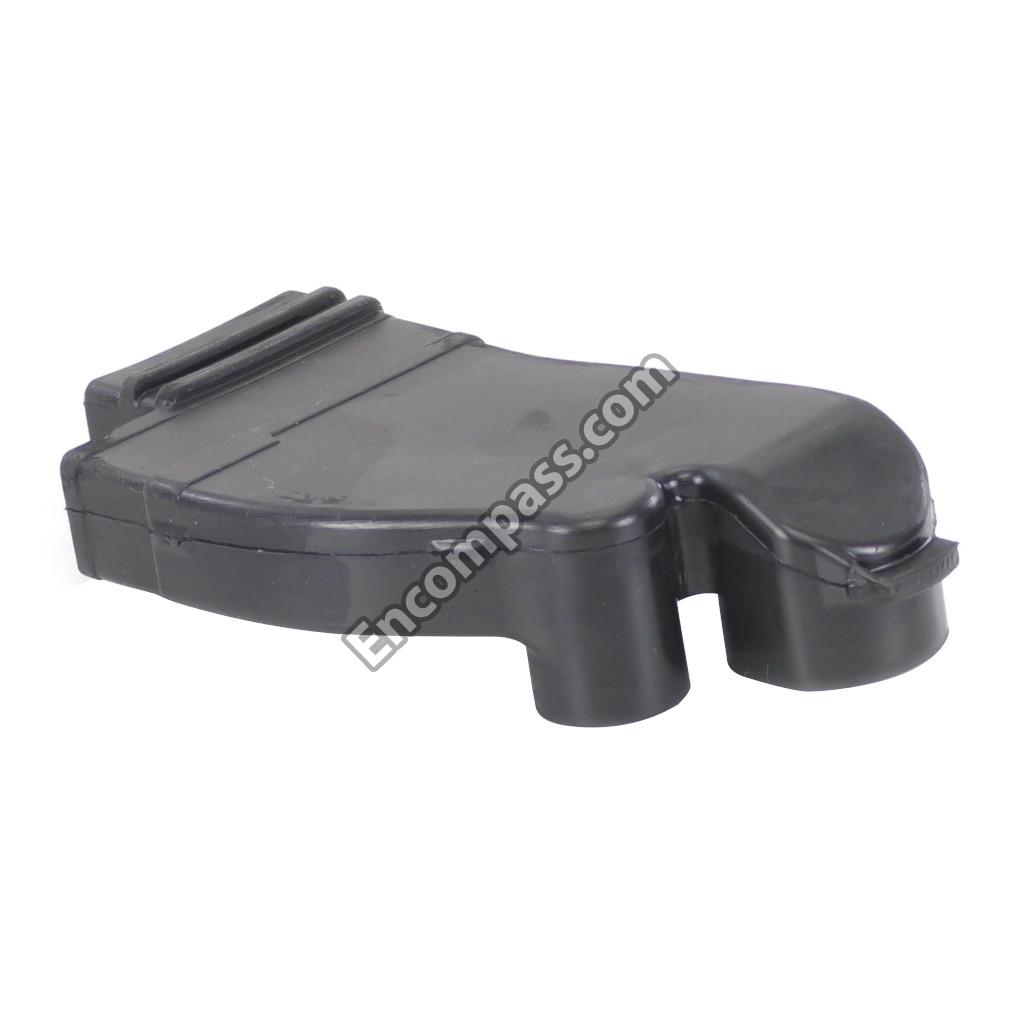

AGM30000201 AGM30000201 PARTS ASSEMBLY
AGM75549901 AGM75549901 PARTS ASSEMBLY
AGM75469801 AGM75469801 PARTS ASSEMBLY
AGM76429507 AGM76429507 PARTS ASSEMBLY
AGM75469201 AGM75469201 PARTS ASSEMBLY
AGM75510001 AGM75510001 PARTS ASSEMBLY

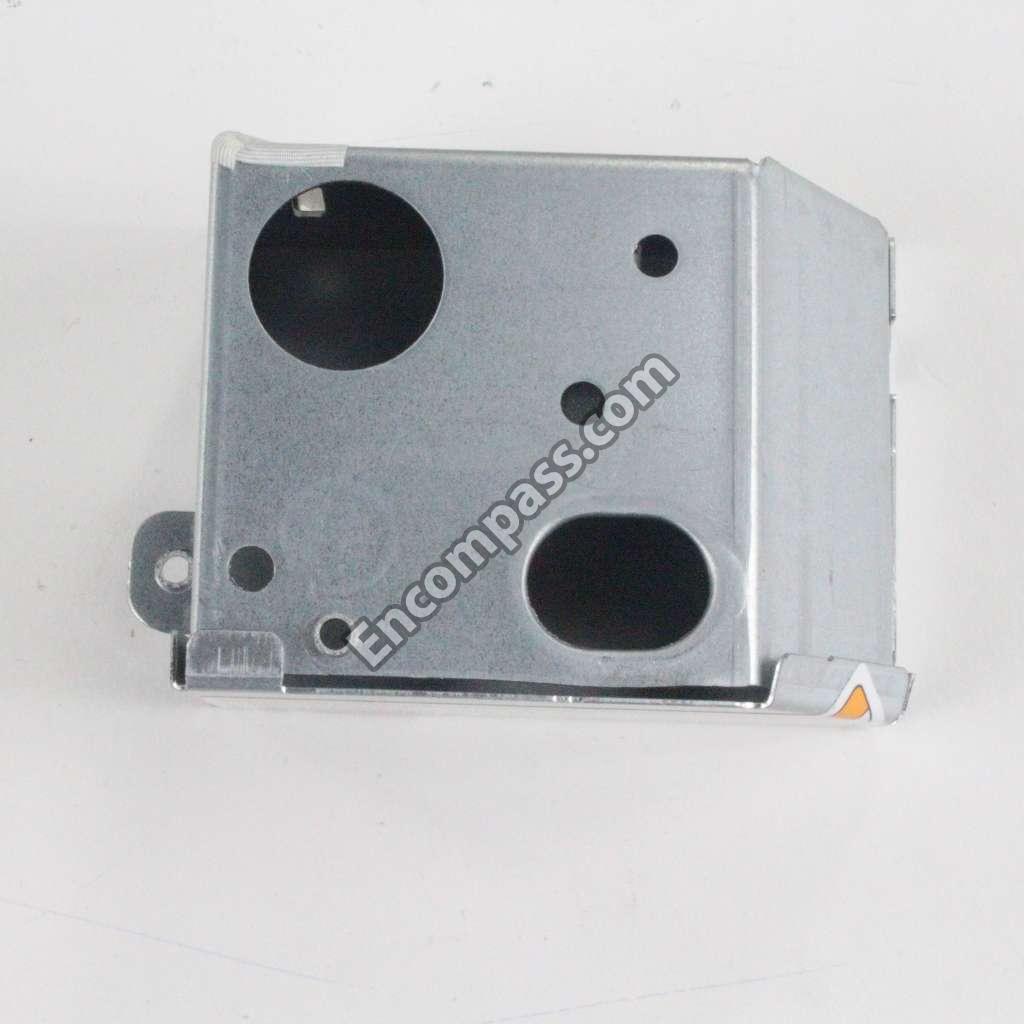

AGM72573101 AGM72573101 PARTS ASSEMBLY
AGM76429509 AGM76429509 PCBA,PARTS ASSEMBLY,SVC
AGM30016301 AGM30016301 PUMP,PARTS ASSEMBLY,SVC
MGR62762504 MGR62762504 RACK
MGR62762503 MGR62762503 RACK
MGR62762502 MGR62762502 RACK
MGR62762701 MGR62762701 RACK
MGR62482202 MGR62482202 RACK
AHB73249108 AHB73249108 RACK
MGR62422302 MGR62422302 RACK
MGR62482502 MGR62482502 RACK

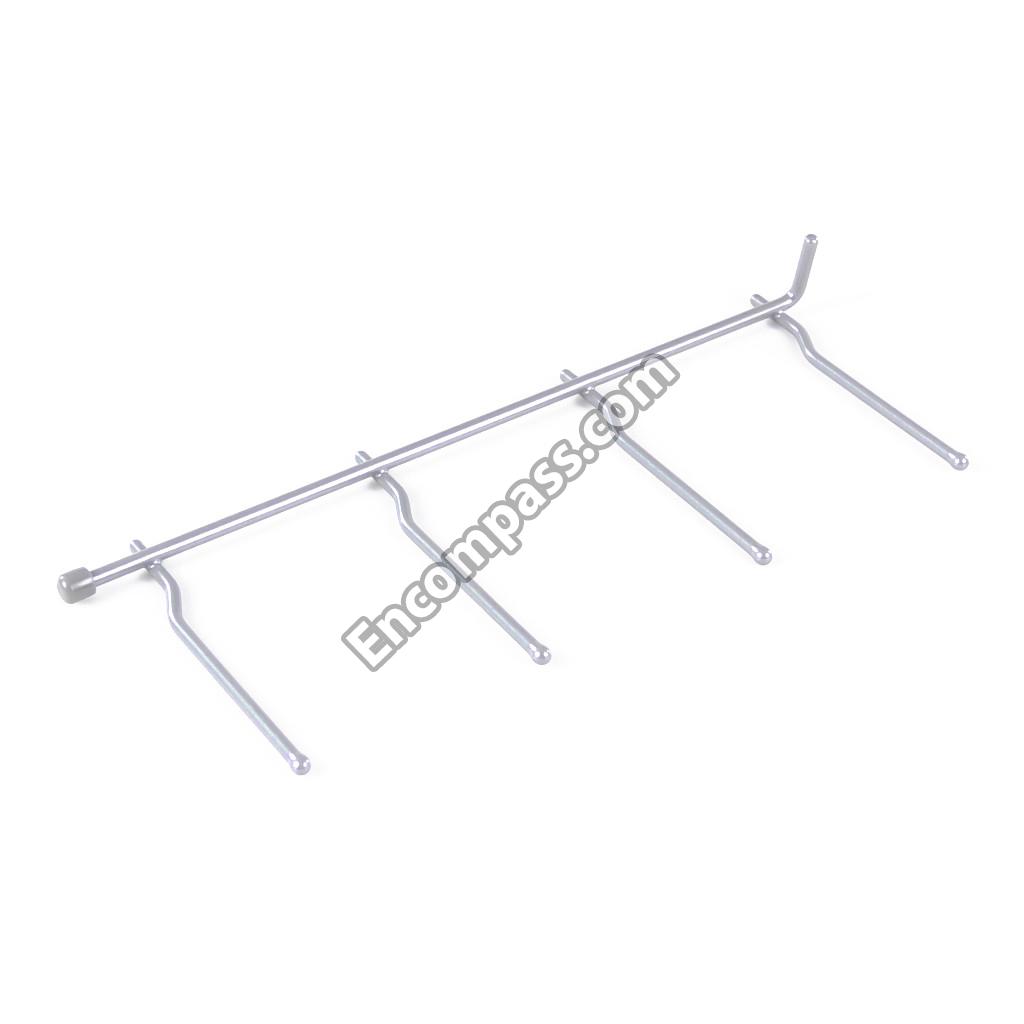

MGR62482001 MGR62482001 RACK
MGR62482002 MGR62482002 RACK
MGR62482003 MGR62482003 RACK
MGR62482004 MGR62482004 RACK
MGR62482005 MGR62482005 RACK
MGR62482006 MGR62482006 RACK
MGR62482007 MGR62482007 RACK
MGR62482008 MGR62482008 RACK
MGR62482102 MGR62482102 RACK
MGR62482103 MGR62482103 RACK
MGR62482104 MGR62482104 RACK

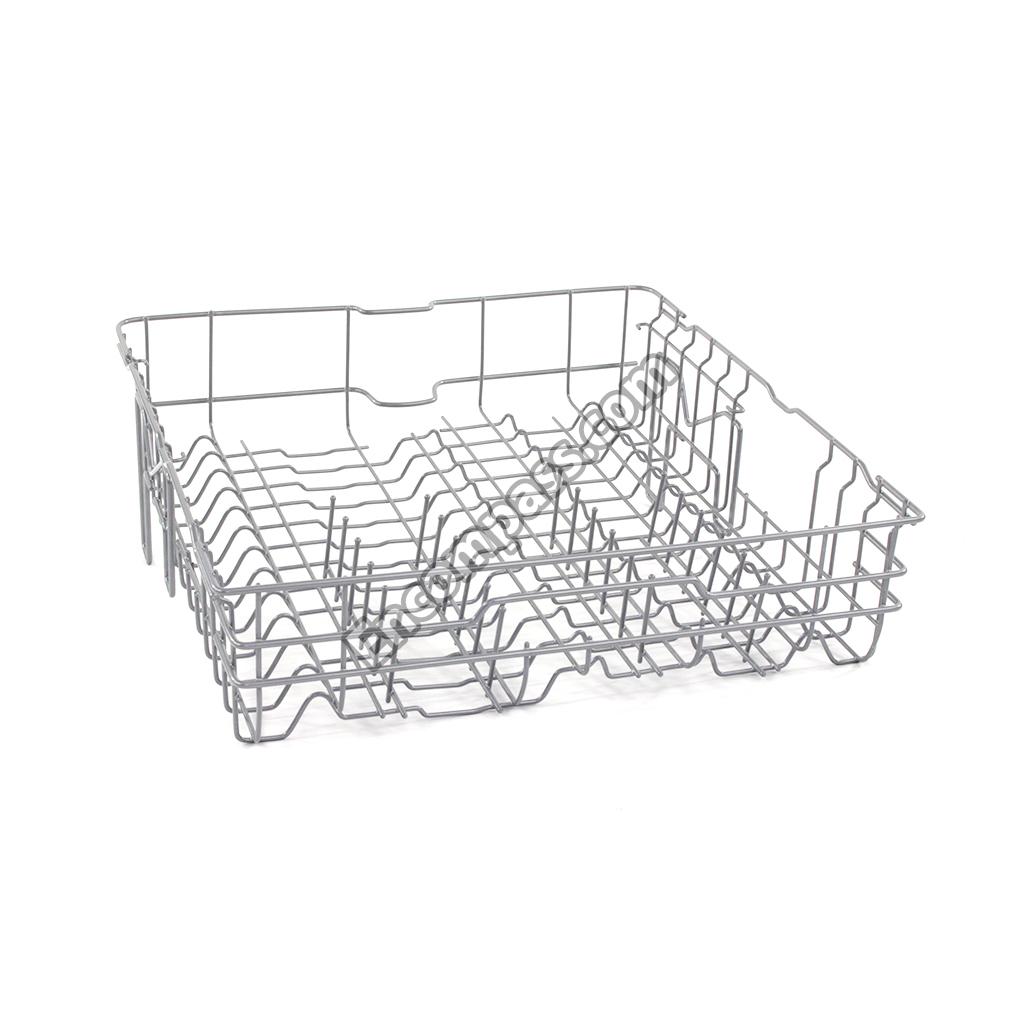

MGR62762102 MGR62762102 RACK
MGR62762702 MGR62762702 RACK
MGR62762401 MGR62762401 RACK
MGR62762402 MGR62762402 RACK
MGR62762403 MGR62762403 RACK
MGR62762404 MGR62762404 RACK
MGR62762405 MGR62762405 RACK
MGR62762406 MGR62762406 RACK
MGR62762407 MGR62762407 RACK
MGR62762408 MGR62762408 RACK
AHB73249208 AHB73249208 RACK ASSEMBLY

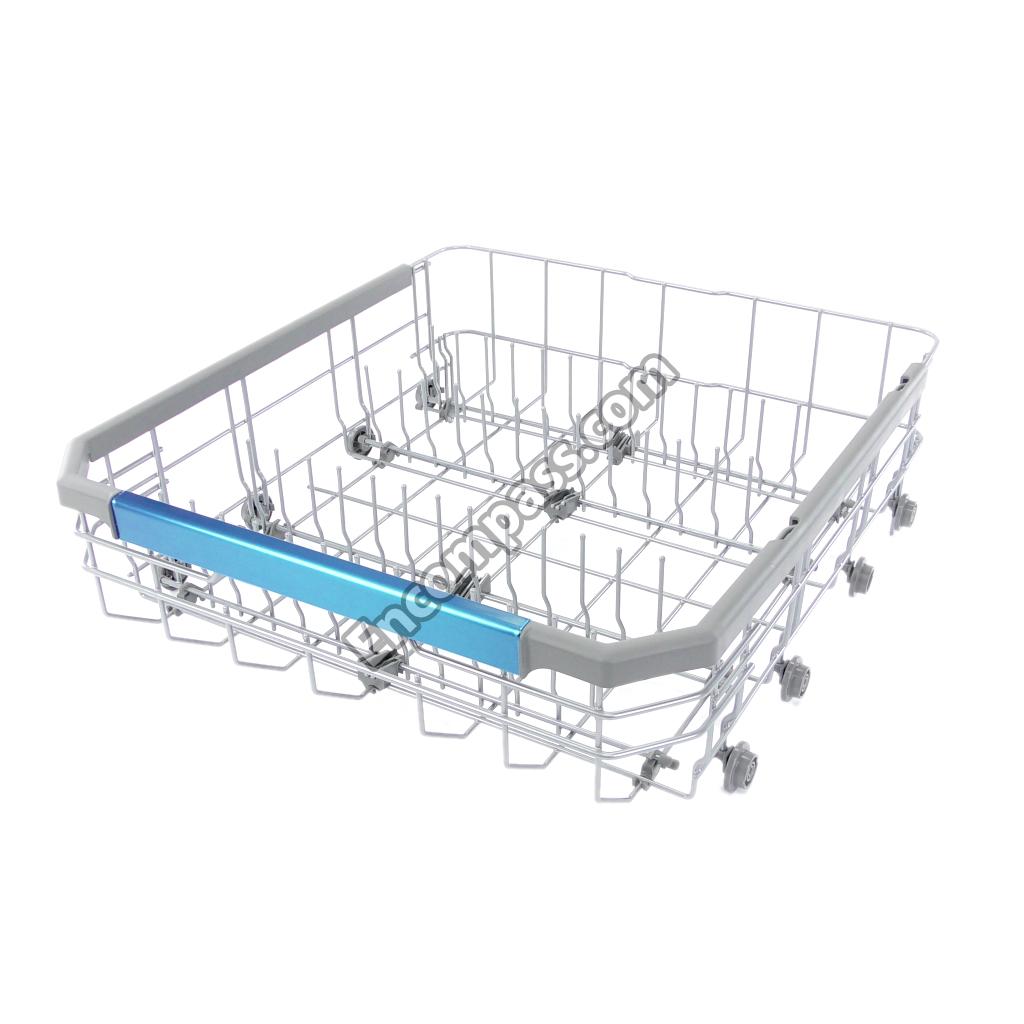

AHB73129108 AHB73129108 RACK ASSEMBLY
AHB73249230 AHB73249230 RACK ASSEMBLY
AHB73130101 AHB73130101 RACK ASSEMBLY
AHB73249106 AHB73249106 RACK ASSEMBLY
AHB73129208 AHB73129208 RACK ASSEMBLY
5219DD2002E 5219DD2002E RAIL ASSEMBLY
5219DD2001E 5219DD2001E RAIL ASSEMBLY
MHA63252802 MHA63252802 ROLLER
MHA63252801 MHA63252801 ROLLER
4581DD3003C 4581DD3003C ROLLER ASSEMBLY
AHJ73610001 AHJ73610001 ROLLER ASSEMBLY
AHJ73609901 AHJ73609901 ROLLER ASSEMBLY
6601ER2001C 6601ER2001C SAFETY SWITCH ASSEMBLY
1SZZED3002G 1SZZED3002G SCREW,CUSTOMIZED
1SZZED3003G 1SZZED3003G SCREW,CUSTOMIZED
EBD62065301 EBD62065301 SENSOR ASSEMBLY
AHR73669802 AHR73669802 SHAFT ASSEMBLY
4370ED3007C 4370ED3007C SHAFT,NOZZLE
4370ED3007B 4370ED3007B SHAFT,NOZZLE
MHY63963801 MHY63963801 SPRING,HINGE
4620ED3001C 4620ED3001C STOPPER,ROLLER
AGM75469214 AGM75469214 SUMP,PARTS ASSEMBLY,SVC
MJH63533303 MJH63533303 SUPPORTER,HINGE
MJH63533304 MJH63533304 SUPPORTER,HINGE
6601ER2001A 6601ER2001A SWITCH ASSEMBLY,SAFETY
3W40025L 3W40025L SWITCH,MICRO
EBF64375202 EBF64375202 SWITCH,MICRO
5221DD1001E 5221DD1001E VALVE ASSEMBLY,INLET
MJX63511301 MJX63511301 VALVE,CHECK
