Model Image
Manufacturer

LG

Model Number

LFD21860ST

Description

Lfd21860st

Interactive Exploded View

Parts List

Part Number Description
4770JA3001A 4770JA3001A BAND [623A]

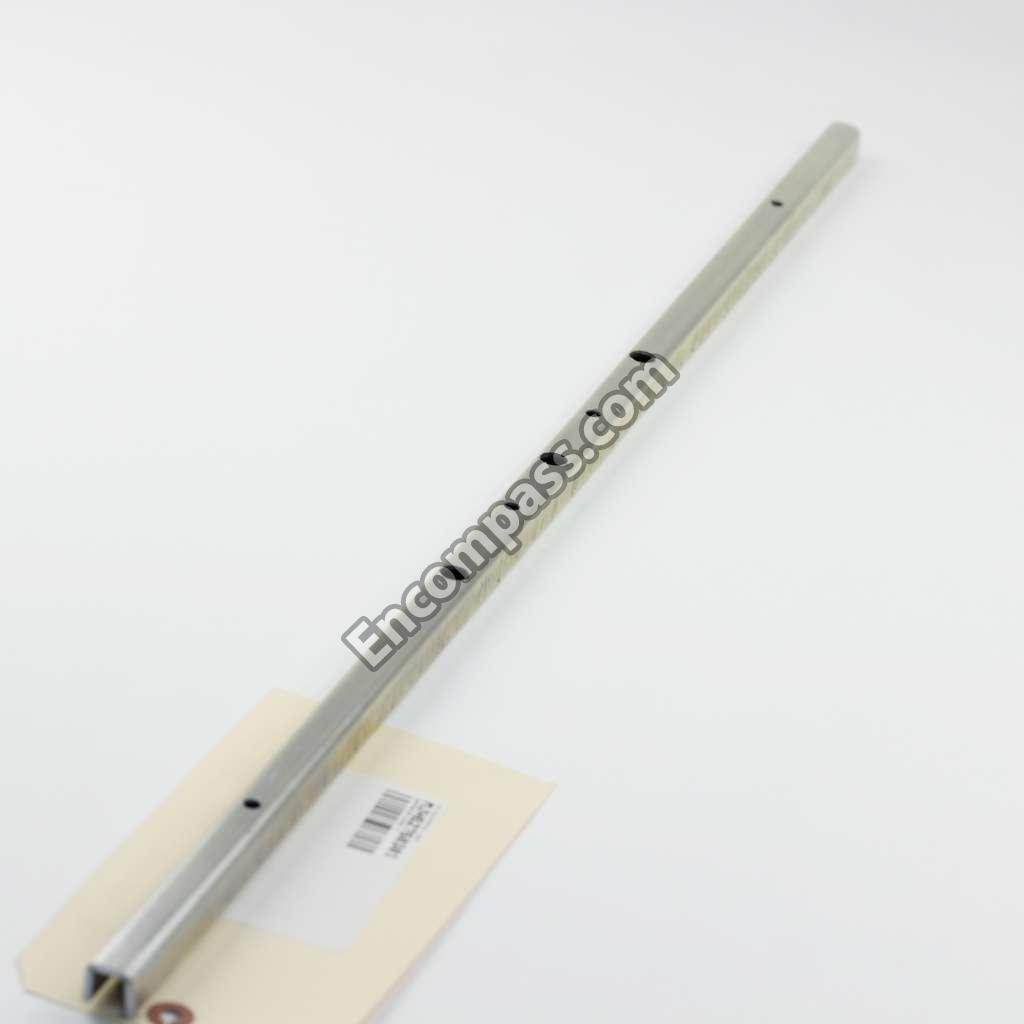

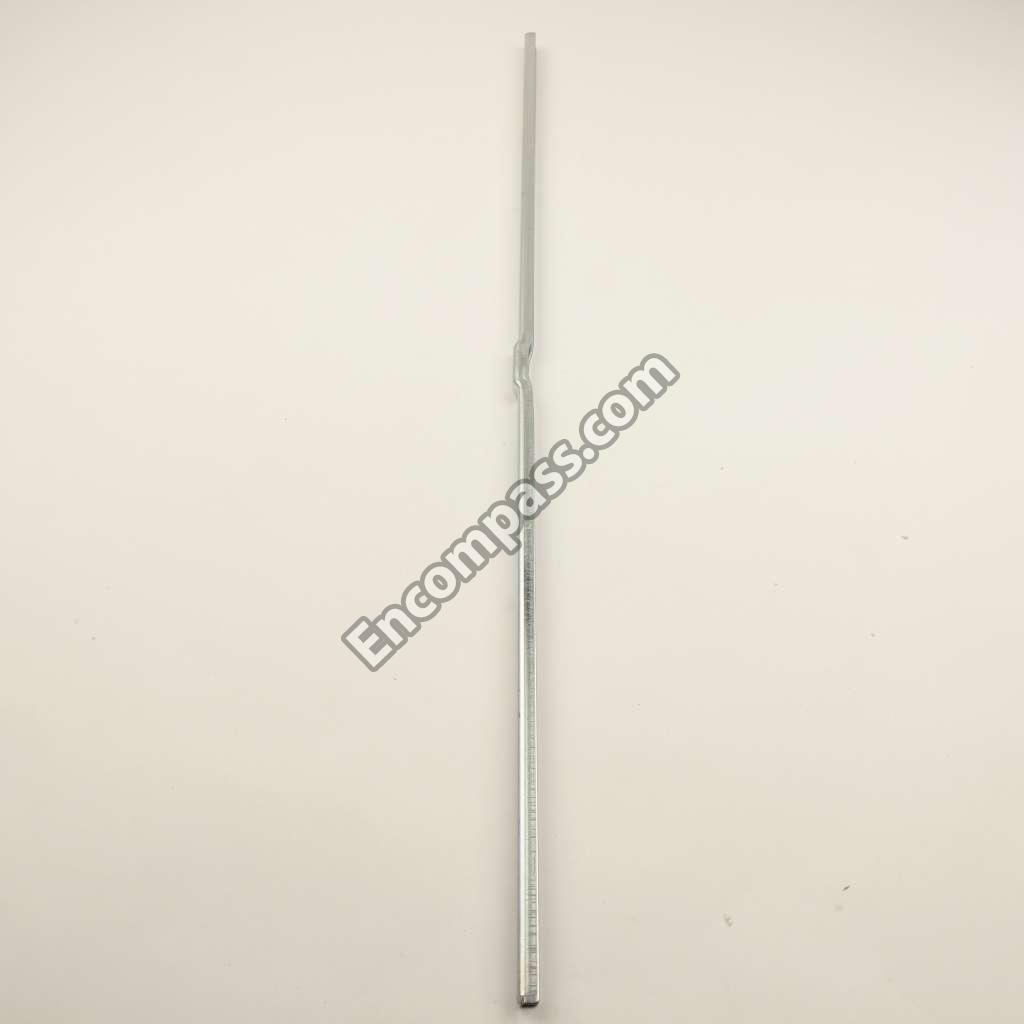

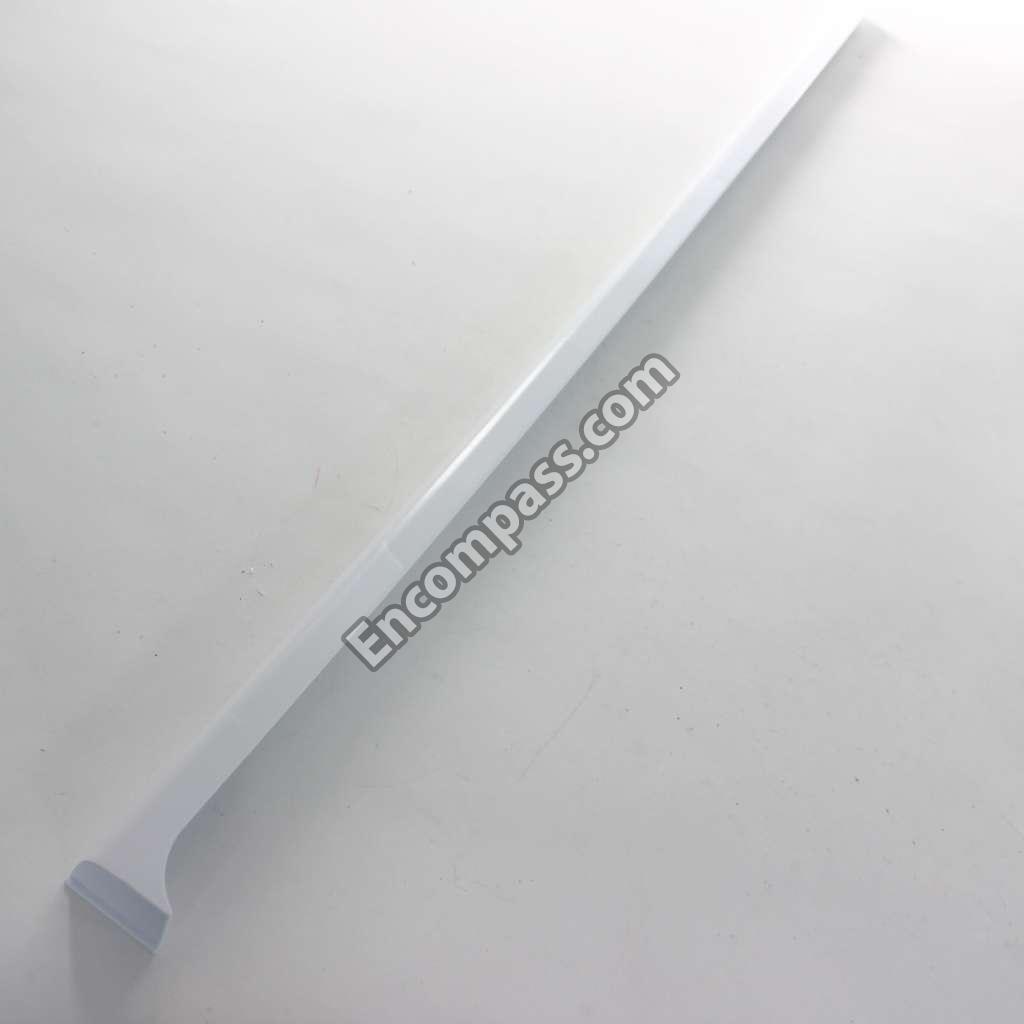

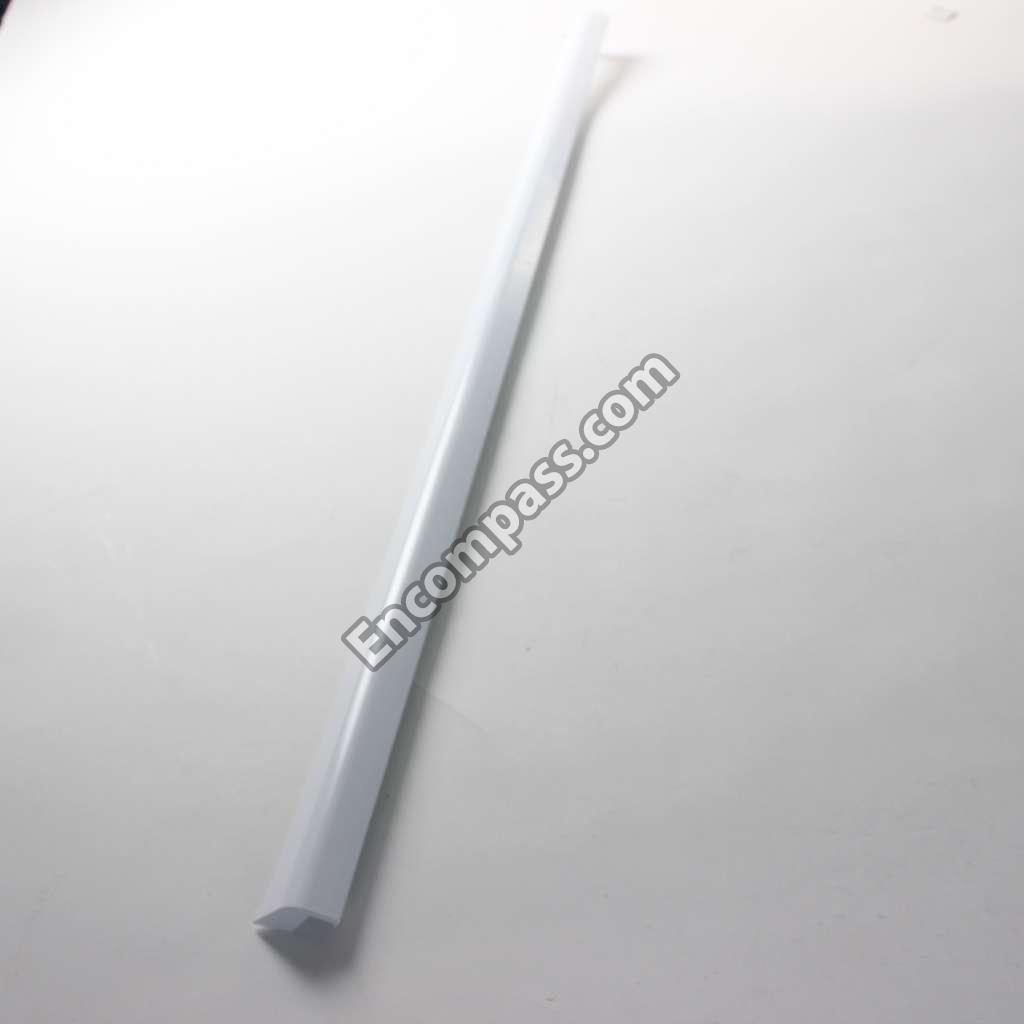

MAK39123901 MAK39123901 BAR [250A]
5005JJ2014A 5005JJ2014A BASKET ASSEMBLY,DOOR [241C]
1BZZJA2002A 1BZZJA2002A BOLT,COMMON [B04]
4810JA2129A 4810JA2129A BRACKET,MOTOR [405B]

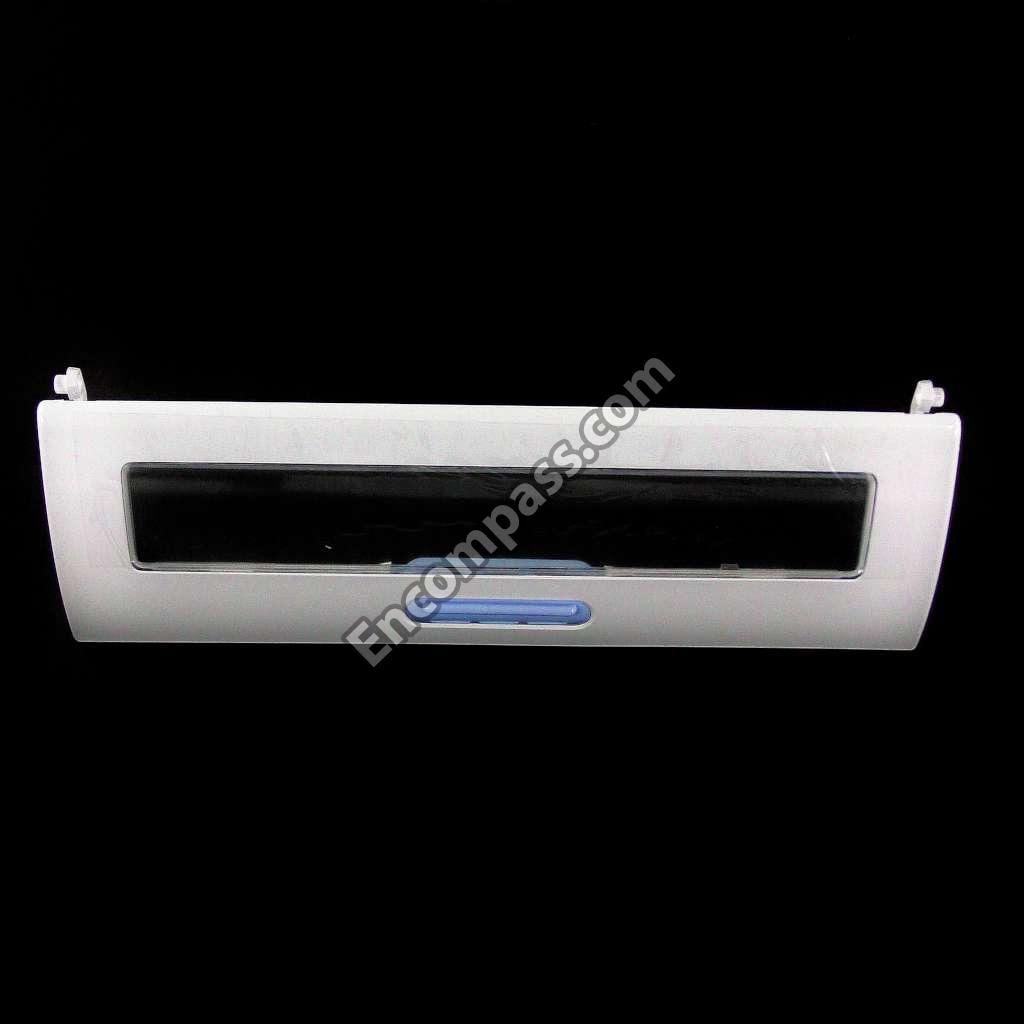

AAP73871504 AAP73871504 BUCKET,DAIRY [147A]

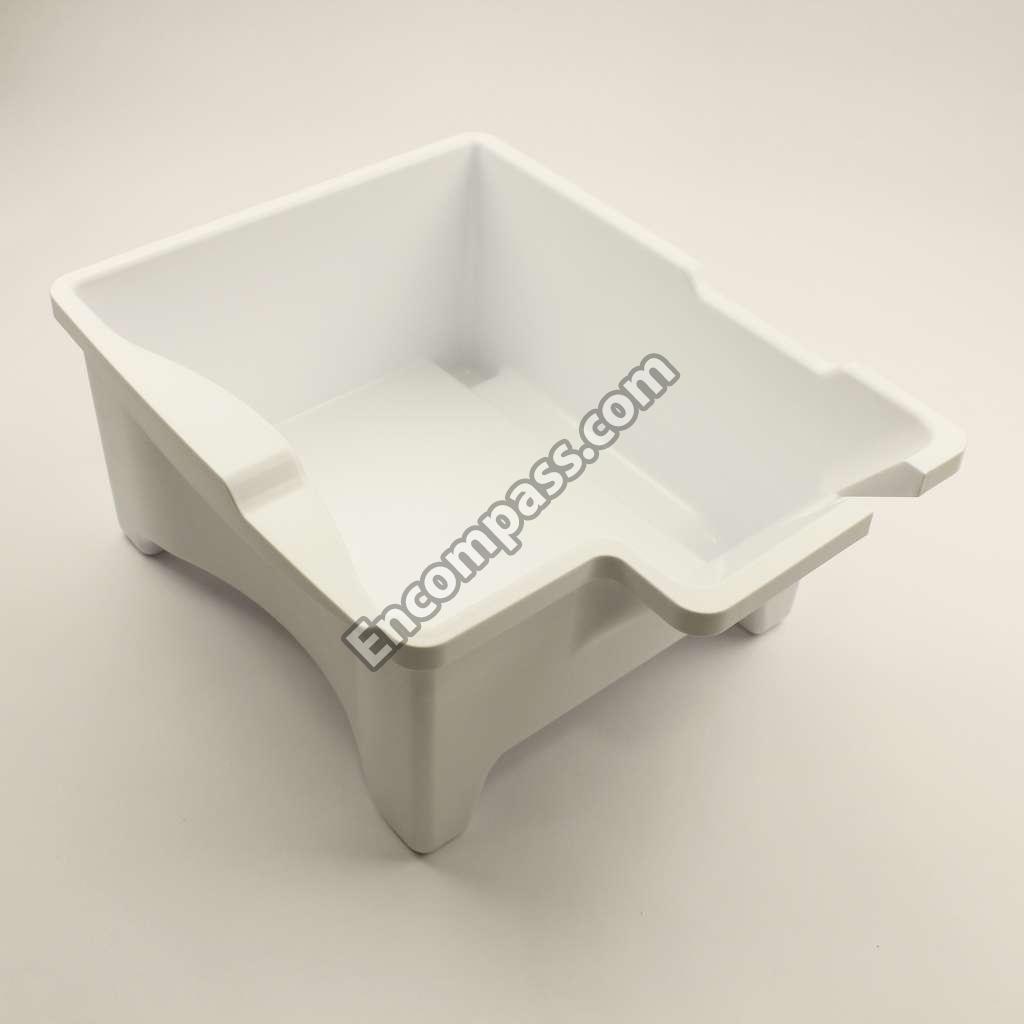

MKK61841901 MKK61841901 BUCKET,ICE [131A]
5021JA3020B 5021JA3020B BUTTON ASSEMBLY [293A]
4430JJ2004A 4430JJ2004A CAM,SHAFT [234A]
4430JJ2004B 4430JJ2004B CAM,SHAFT [234B]

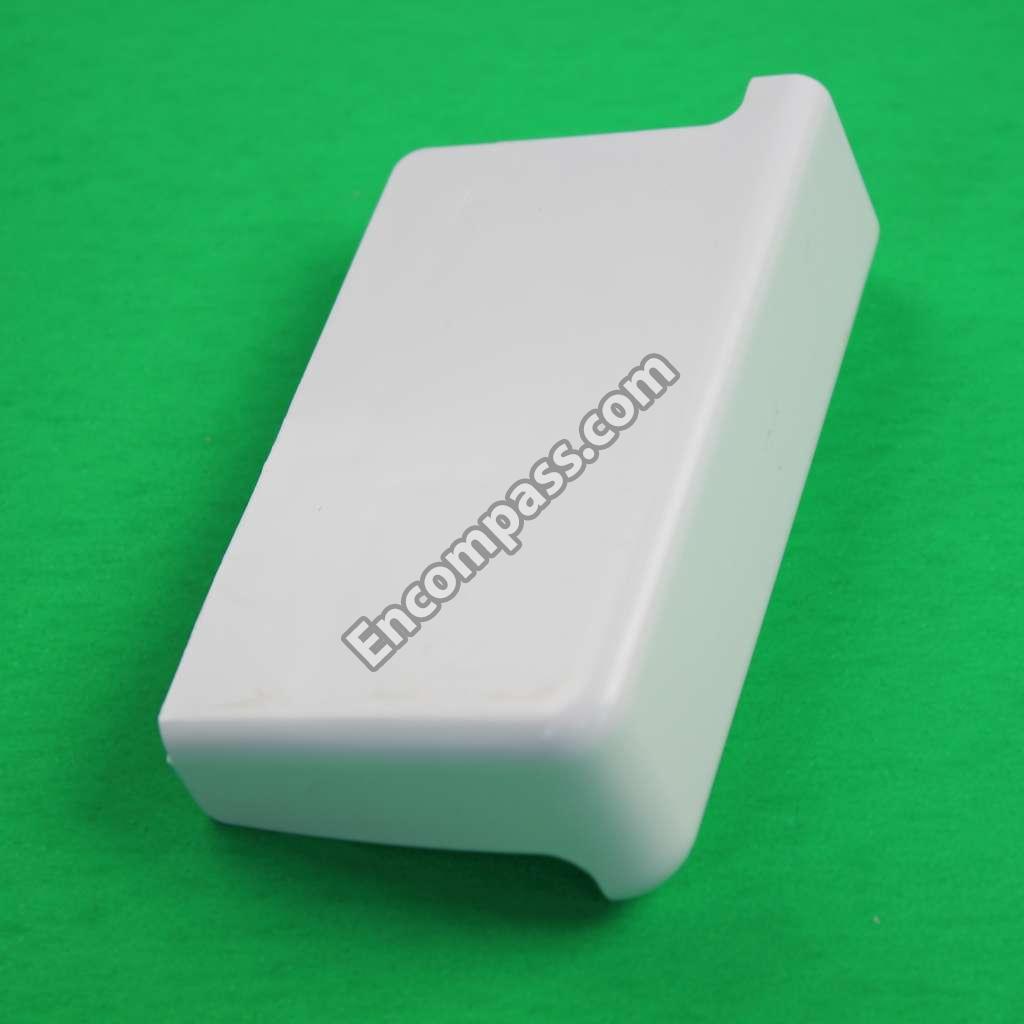

5006JJ2013A 5006JJ2013A CAP,COVER [205B]
5006JJ2013D 5006JJ2013D CAP,COVER [205C]
5006JA2069A 5006JA2069A CAP,COVER [250D]
5006JJ2009A 5006JJ2009A CAP,COVER [623B]
5006JA3016C 5006JA3016C CAP,DUCT [312C]
0CZZJB2014L 0CZZJB2014L CAPACITOR,ELECTRIC APPLIANCE FILM,BOX [410G]
3110JJ1014A 3110JJ1014A CASE,LAMP [503D]

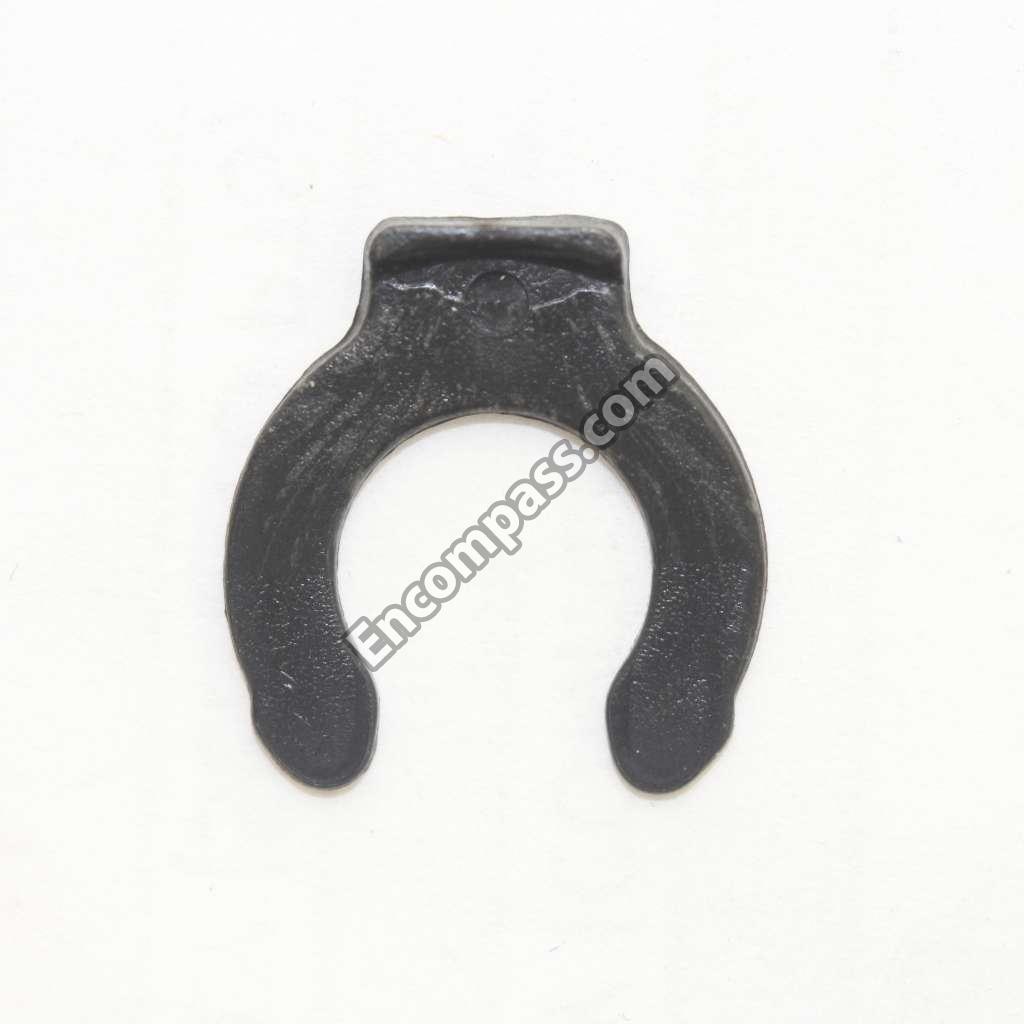

4004JA3002A 4004JA3002A CLIP [603A]
4004JA3003A 4004JA3003A CLIP [603C]

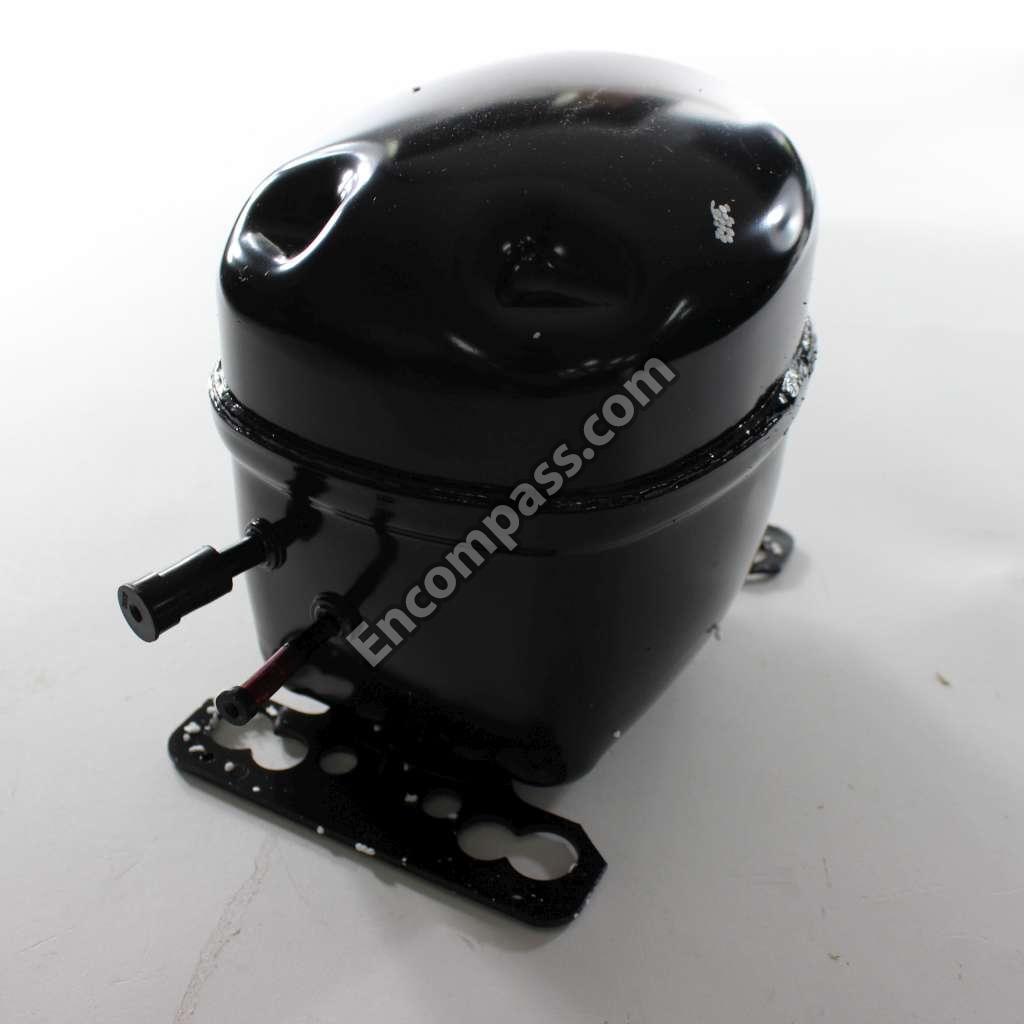

2521C-A5719 2521C-A5719 COMPRESSOR,SET ASSEMBLY [300A]
5098JJ2002R 5098JJ2002R CONNECTOR ASSEMBLY [249A]
5098JA2001F 5098JA2001F CONNECTOR ASSEMBLY [249G]
5098JA2001E 5098JA2001E CONNECTOR ASSEMBLY [249H]
4403JA3005A 4403JA3005A CONNECTOR ASSEMBLY [250B]
MCD62748402 MCD62748402 CONNECTOR,RAIL [145K]
4932JA1009A 4932JA1009A CONNECTOR,RAIL [145M]
4932JA1007D 4932JA1007D CONNECTOR,RAIL [249L]
4932JA1007C 4932JA1007C CONNECTOR,RAIL [249M]

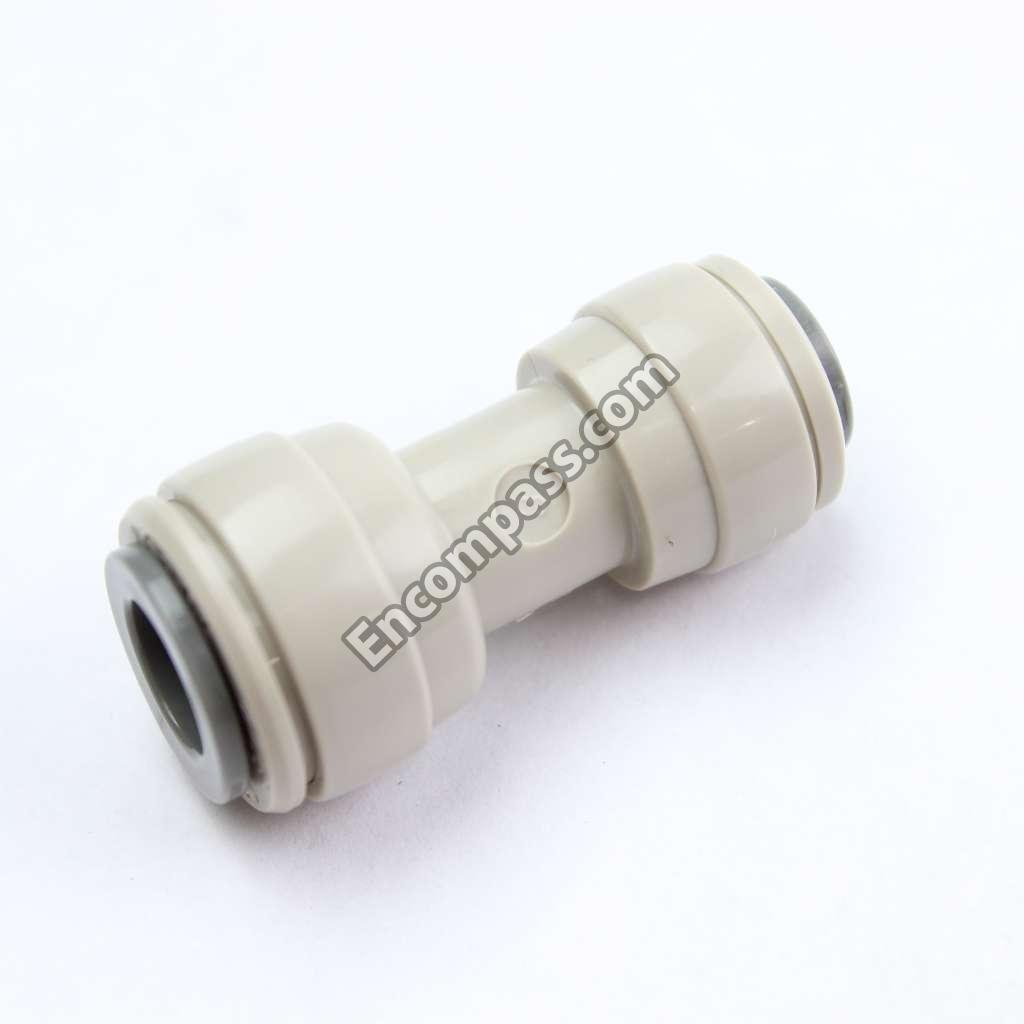

4932JA3002C 4932JA3002C CONNECTOR,TUBE [616H]
6615JB2005H 6615JB2005H CONTROLLER ASSEMBLY [400A]
3551JJ2030B 3551JJ2030B COVER ASSEMBLY,FRONT [233C]
3551JJ2030A 3551JJ2030A COVER ASSEMBLY,FRONT [233D]
ACQ55957511 ACQ55957511 COVER ASSEMBLY,LOWER [103C]
3551JJ2018A 3551JJ2018A COVER ASSEMBLY,MACHINERY(REAR) [313A]
3551JA2144D 3551JA2144D COVER ASSEMBLY,PCB [501F]
3551JA2144C 3551JA2144C COVER ASSEMBLY,PCB [501F]

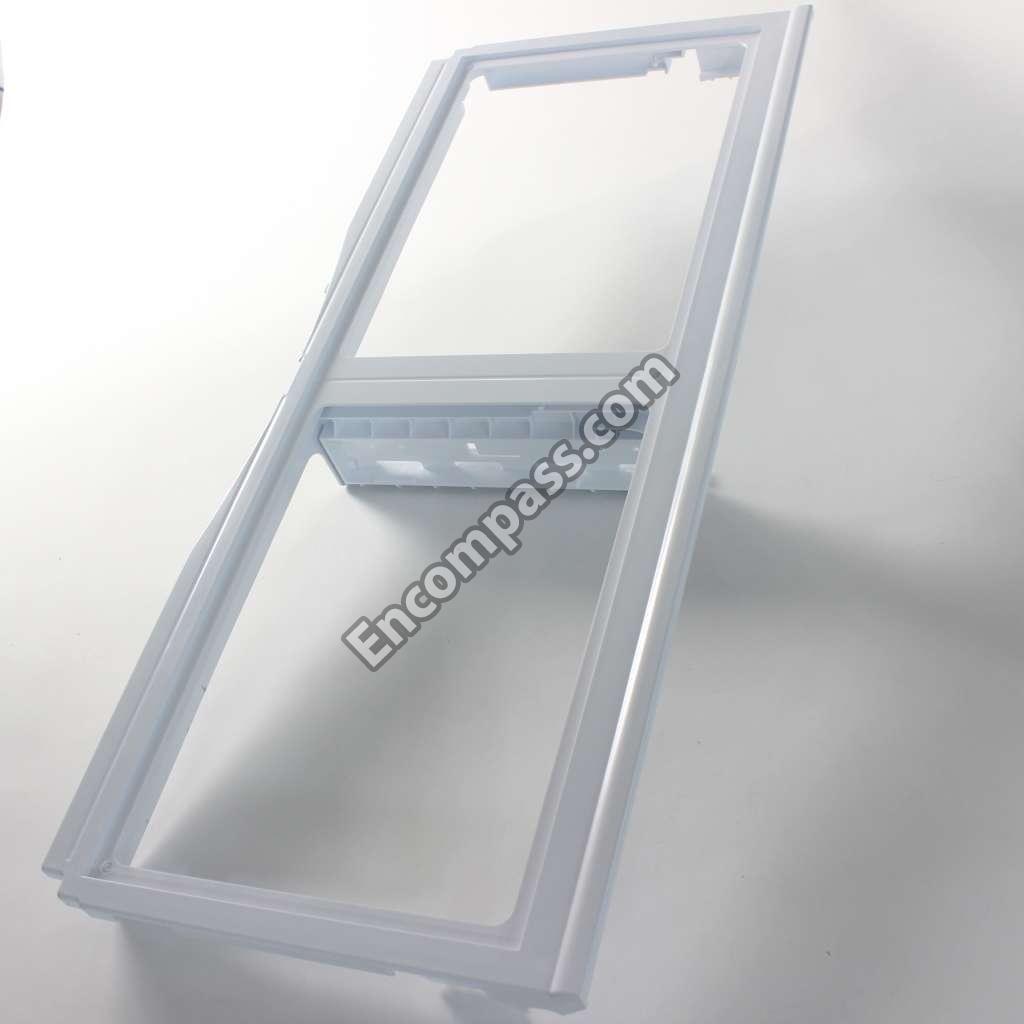

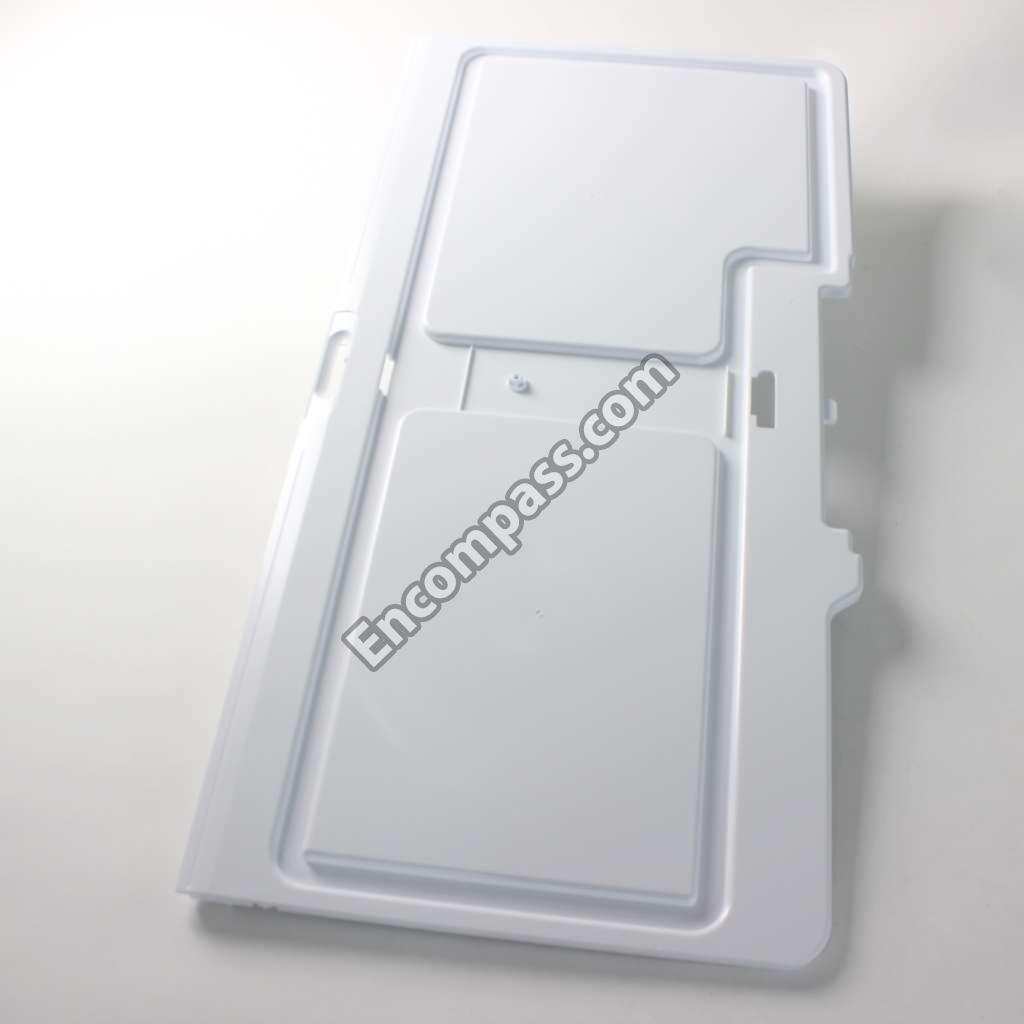

3551JJ2019D 3551JJ2019D COVER ASSEMBLY,TRAY [160B]
3551JJ2021A 3551JJ2021A COVER ASSEMBLY,TRAY [160C]
3550JA1456C 3550JA1456C COVER,CONNECTOR [249J]
3550JA1456D 3550JA1456D COVER,CONNECTOR [249K]

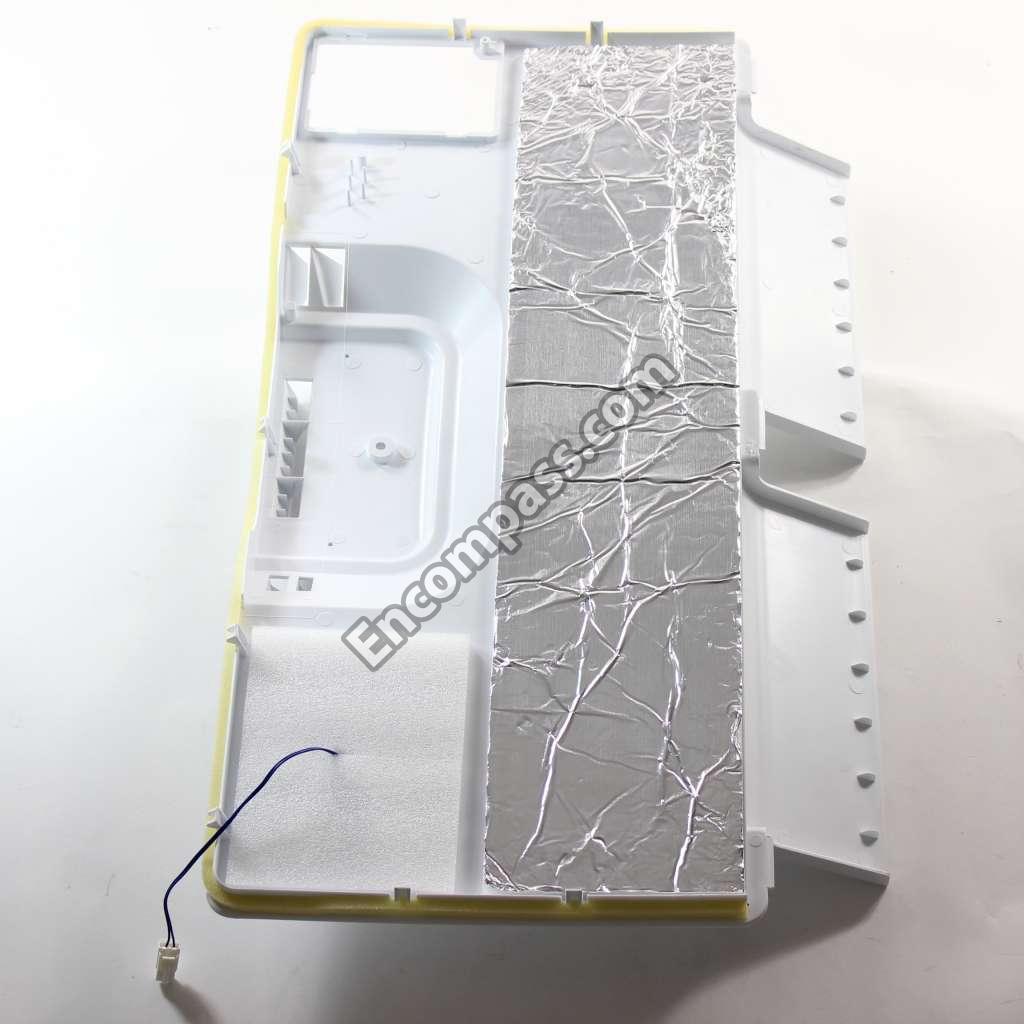

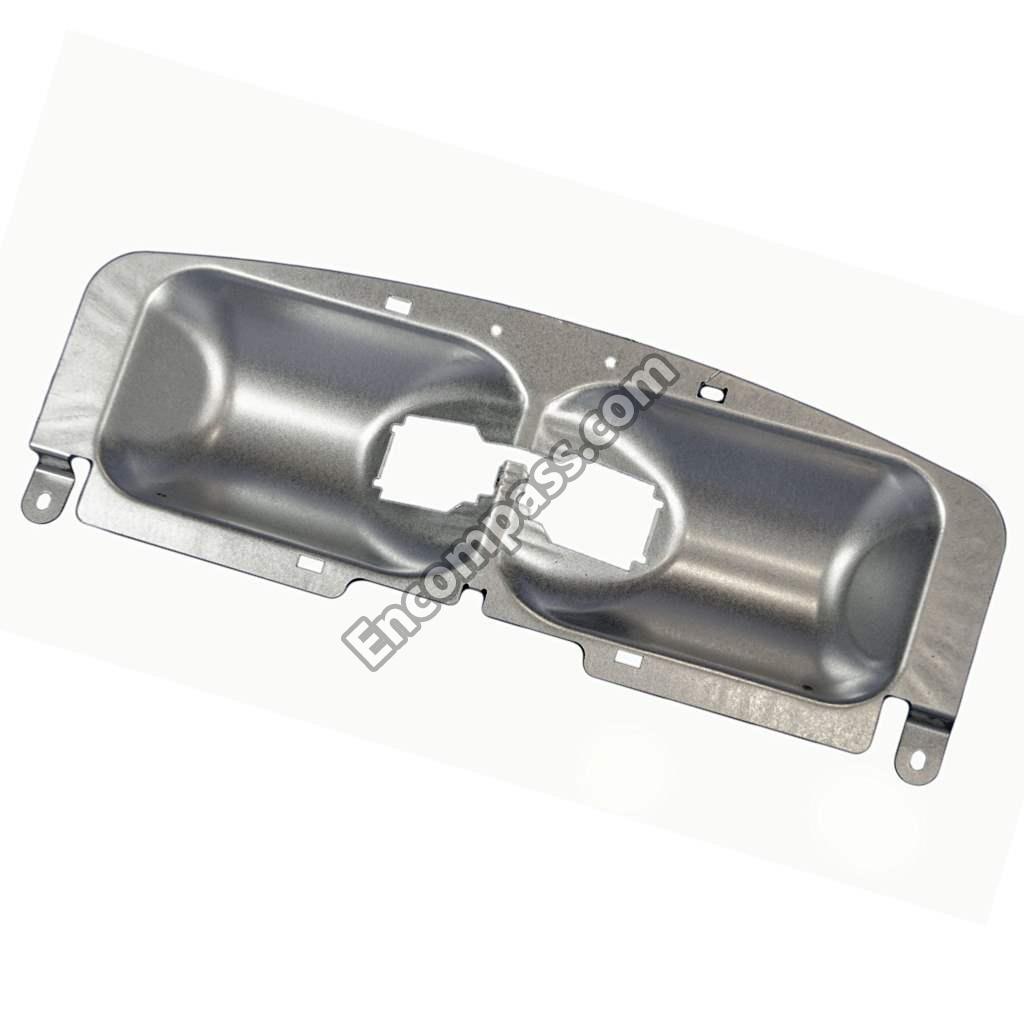

3550JA1491E 3550JA1491E COVER,DISPENSER [279B]
3550JD1128E 3550JD1128E COVER,FILTER [624C]
3550JL1014A 3550JL1014A COVER,FRONT [312B]
3550JA2263A 3550JA2263A COVER,GRILLE FAN [135C]

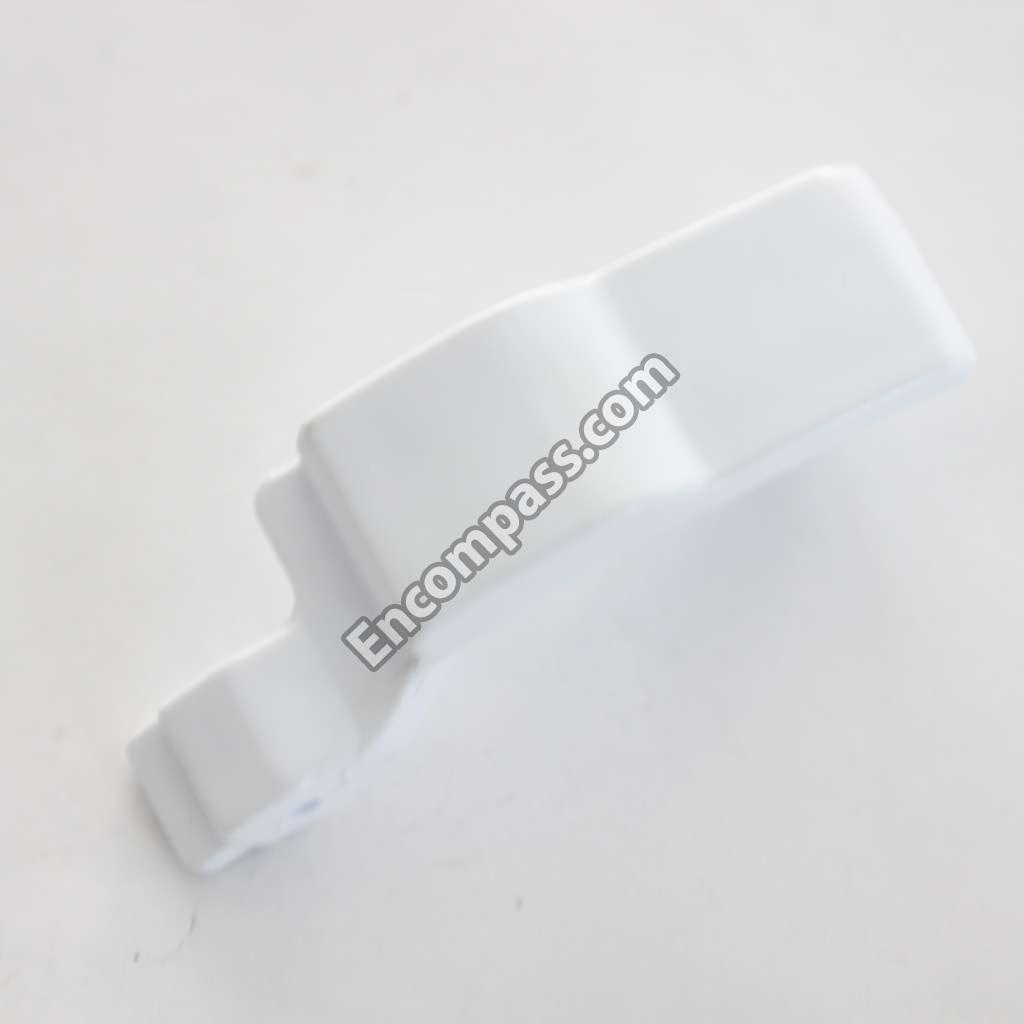

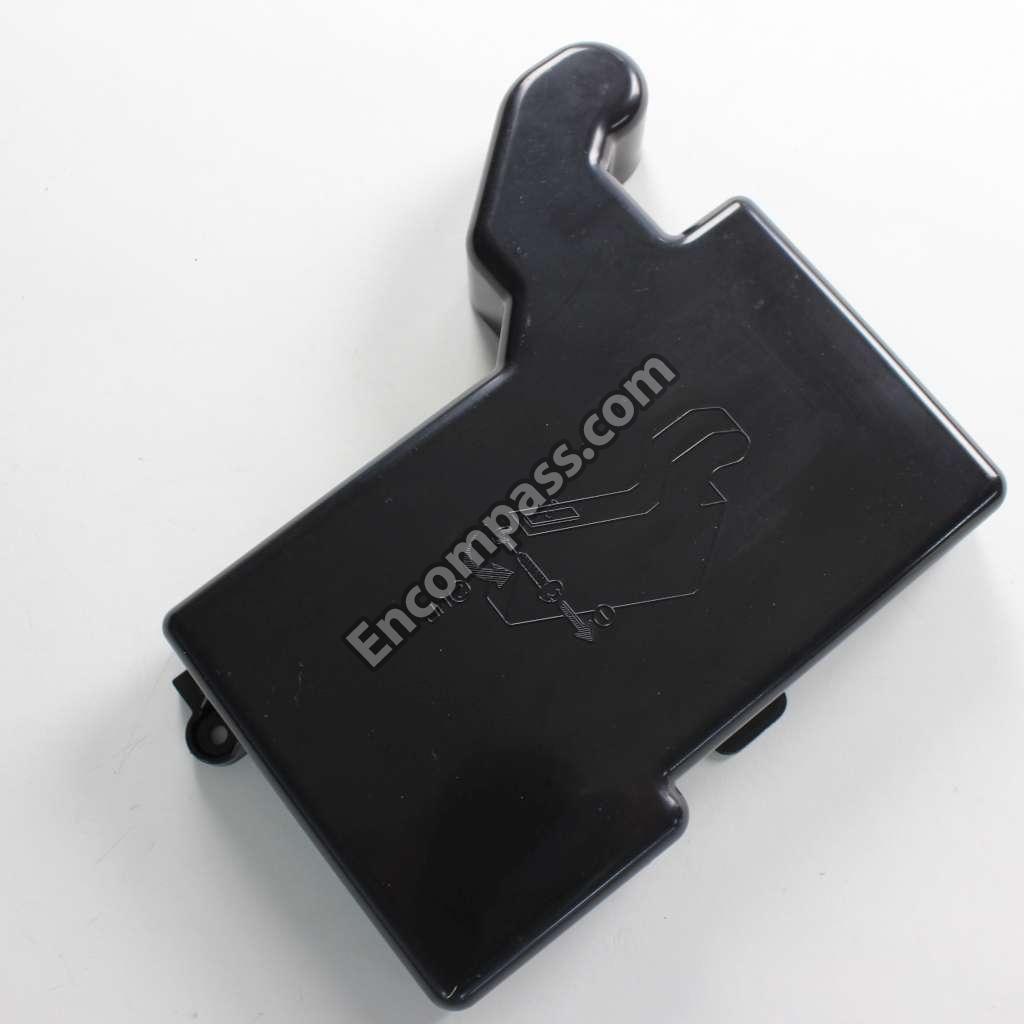

3550JJ1097E 3550JJ1097E COVER,HINGE [207A]
3550JJ1097F 3550JJ1097F COVER,HINGE [207B]
3550JA2267B 3550JA2267B COVER,HINGE [281D]
3550JA2267A 3550JA2267A COVER,HINGE [281E]
3550JA2264A 3550JA2264A COVER,HINGE [281F]

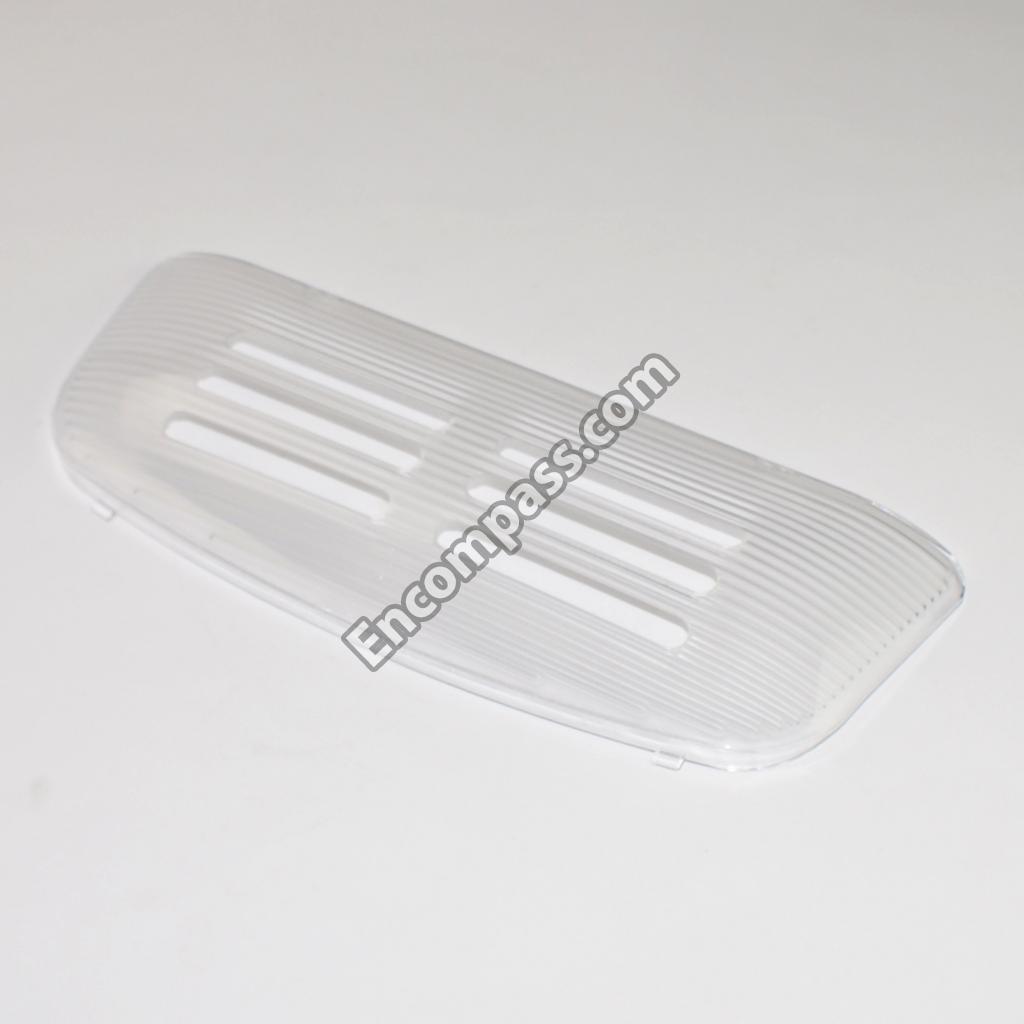

3550JJ1070B 3550JJ1070B COVER,LAMP [158A]
3550JA1386B 3550JA1386B COVER,LAMP [158B]

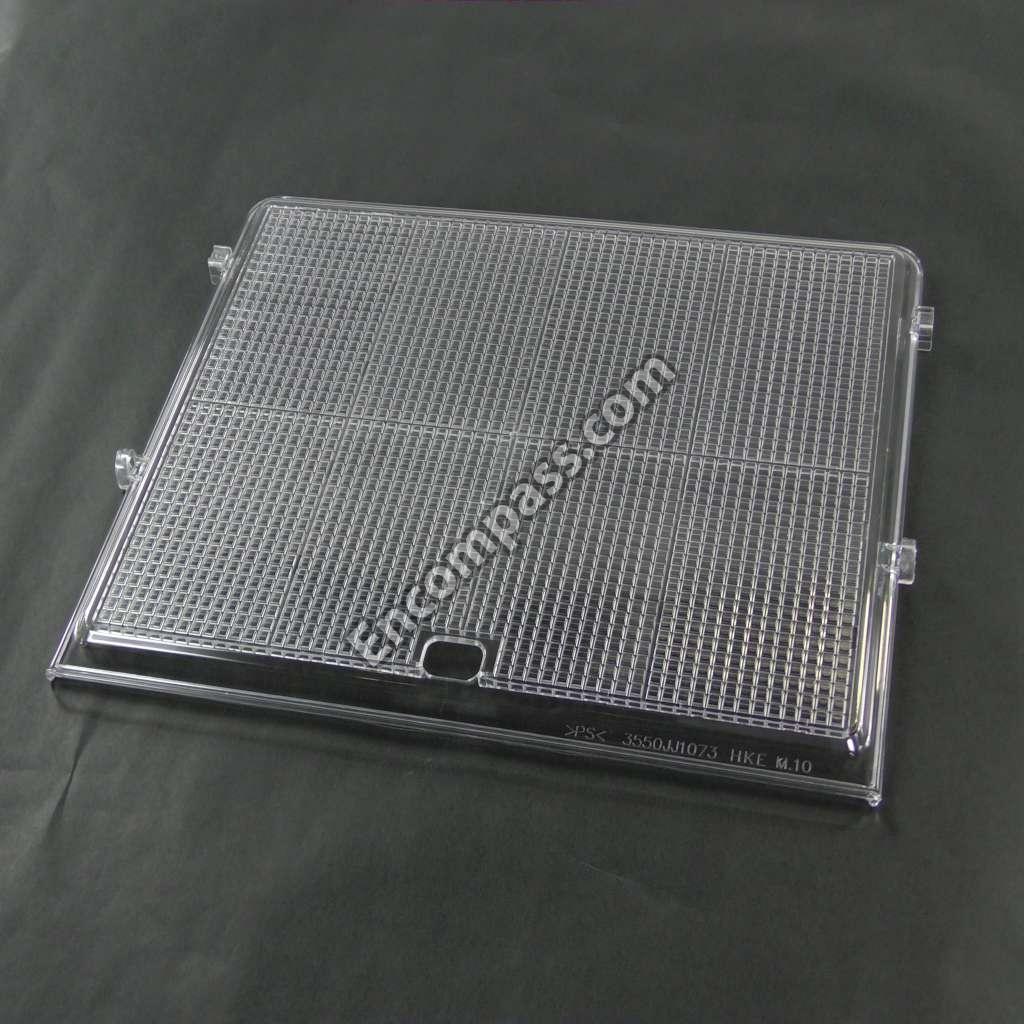

3550JJ1073A 3550JJ1073A COVER,MAGIC ROOM [167B]
3550JA2280A 3550JA2280A COVER,PCB [290A]
3550JA2158A 3550JA2158A COVER,PTC [304A]
3550JA2042C 3550JA2042C COVER,PTC [304A]

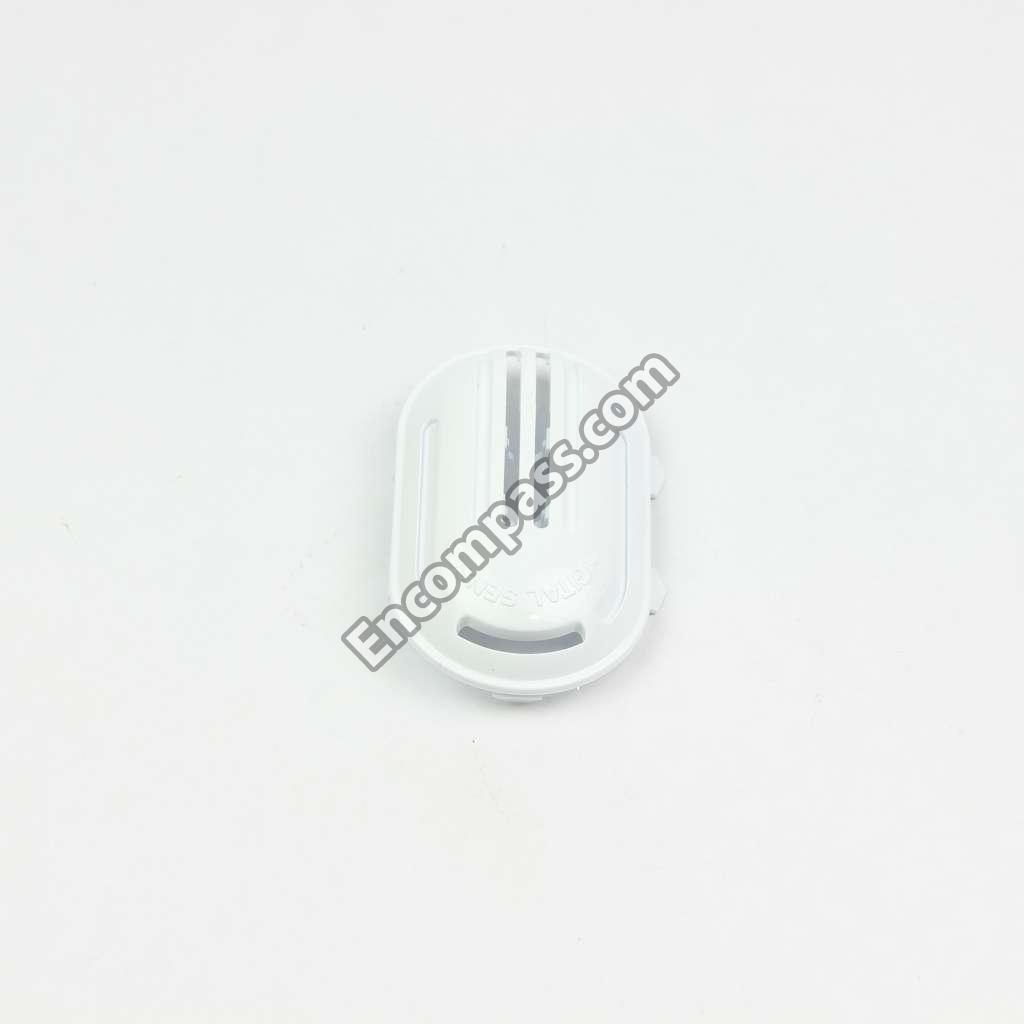

MCK39131501 MCK39131501 COVER,SENSOR [152B]
3550JA2247A 3550JA2247A COVER,SENSOR [610A]
3550JL1011B 3550JL1011B COVER,TRAY [145E]

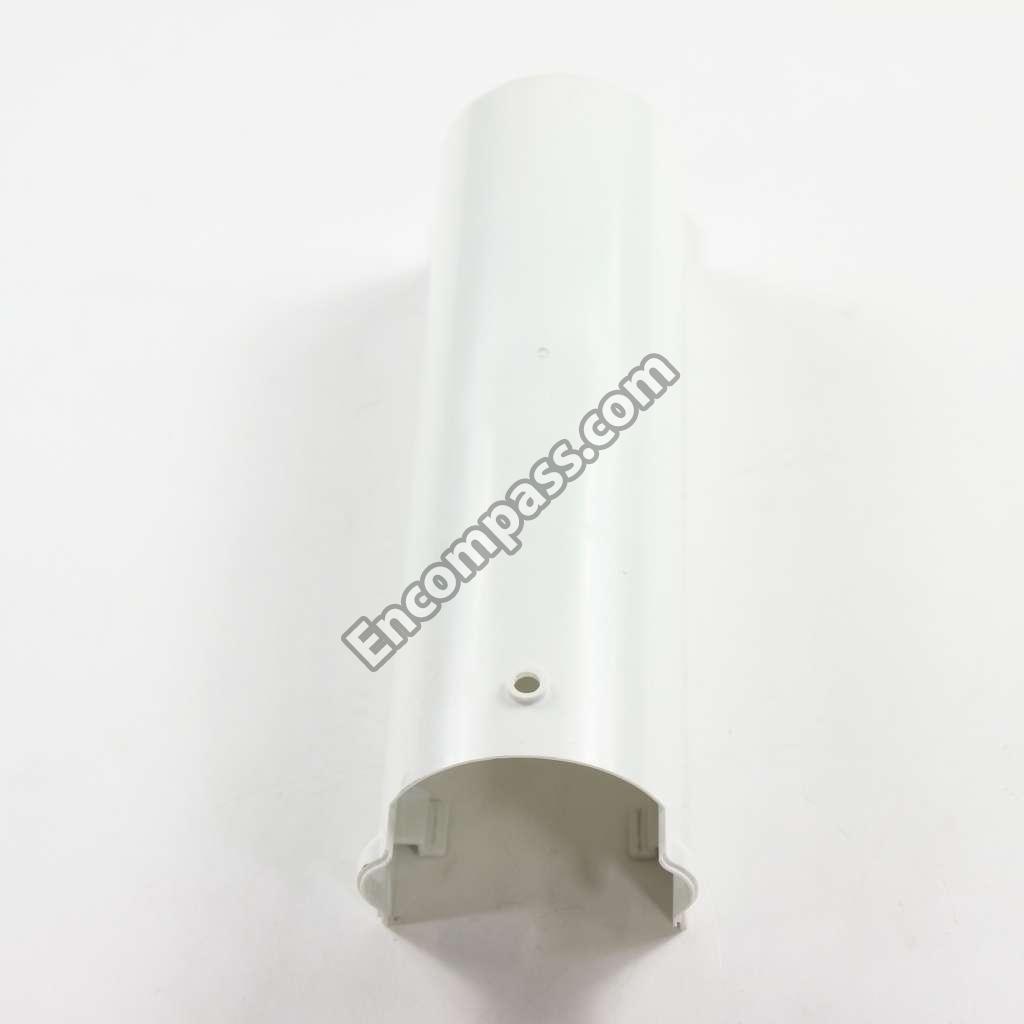

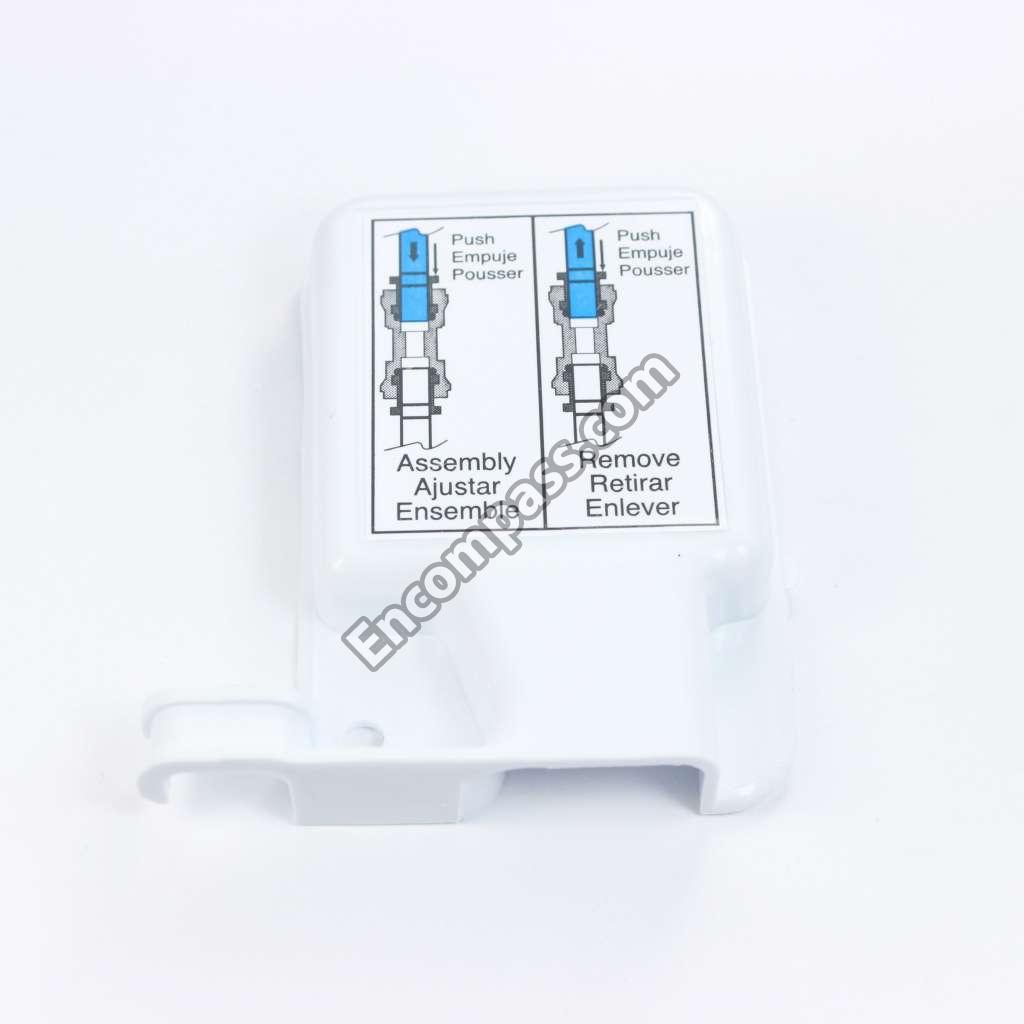

3550JA2184B 3550JA2184B COVER,TUBE [625A]

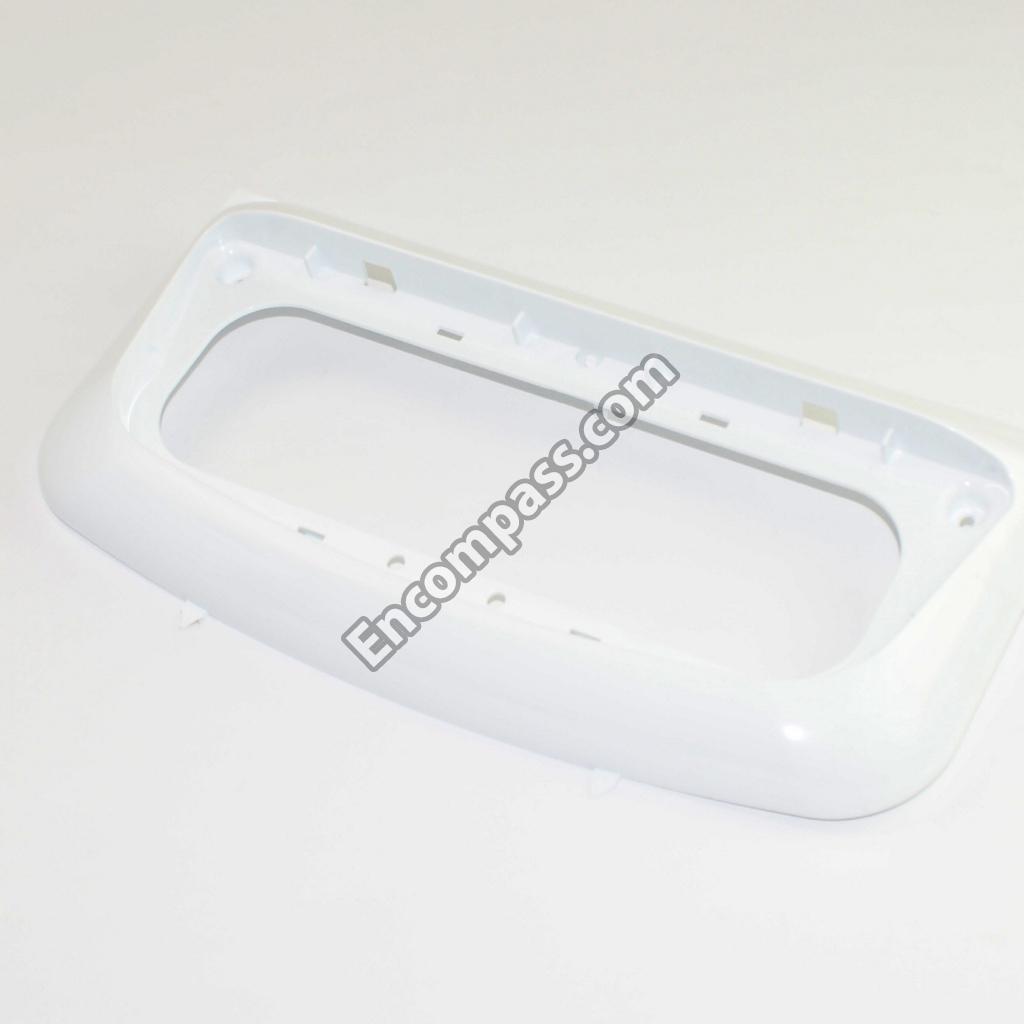

3550JJ1079A 3550JJ1079A COVER,TV [154A]
5040JA3075A 5040JA3075A DAMPER [281G]
5040JA3071A 5040JA3071A DAMPER,COMPRESSOR [312A]
5040JJ2001A 5040JJ2001A DAMPER,MOTOR SUPPORT [309B]
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [405C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [405F]
5072JA3003F 5072JA3003F DAMPER,NOISE [316A]
5072JA3003B 5072JA3003B DAMPER,NOISE [316B]

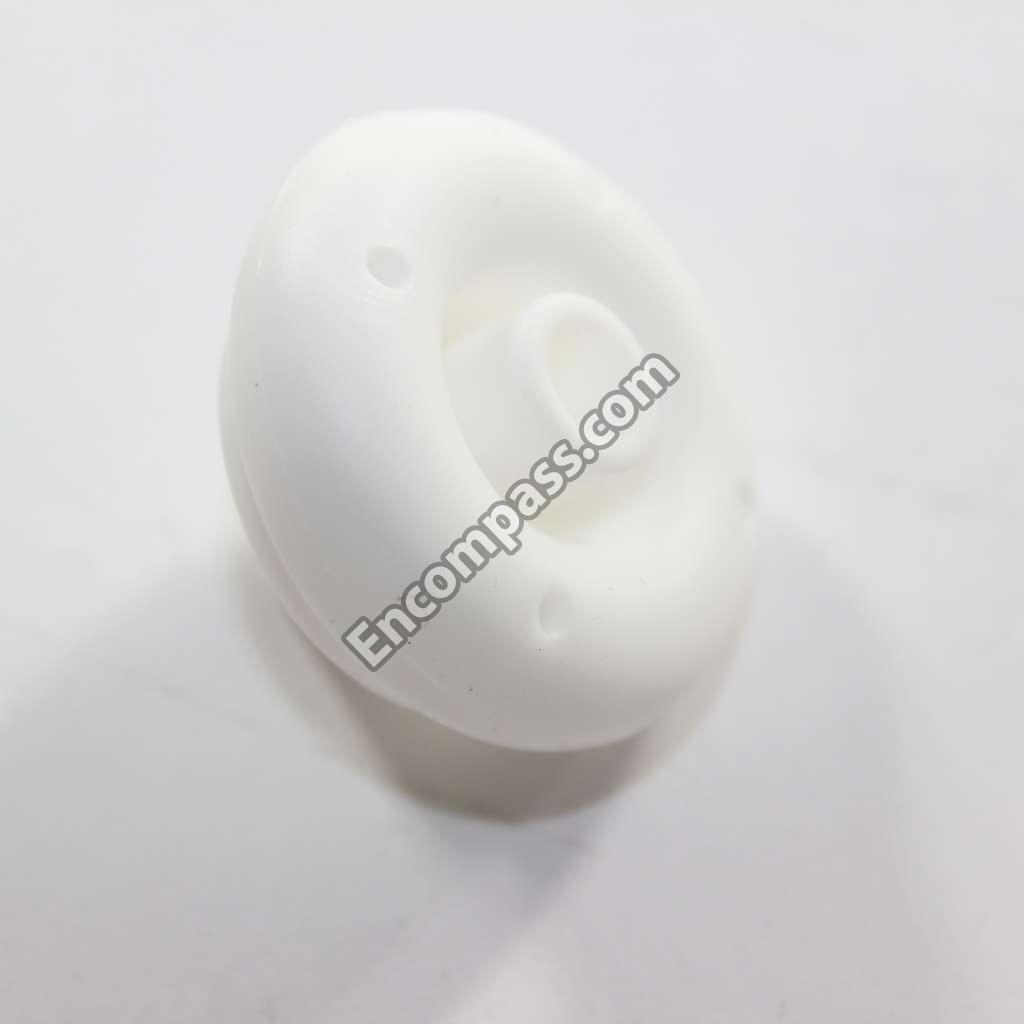

5040JA3056A 5040JA3056A DAMPER,PIPE [327A]
4J03020A 4J03020A DAMPER,PIPE [328A]

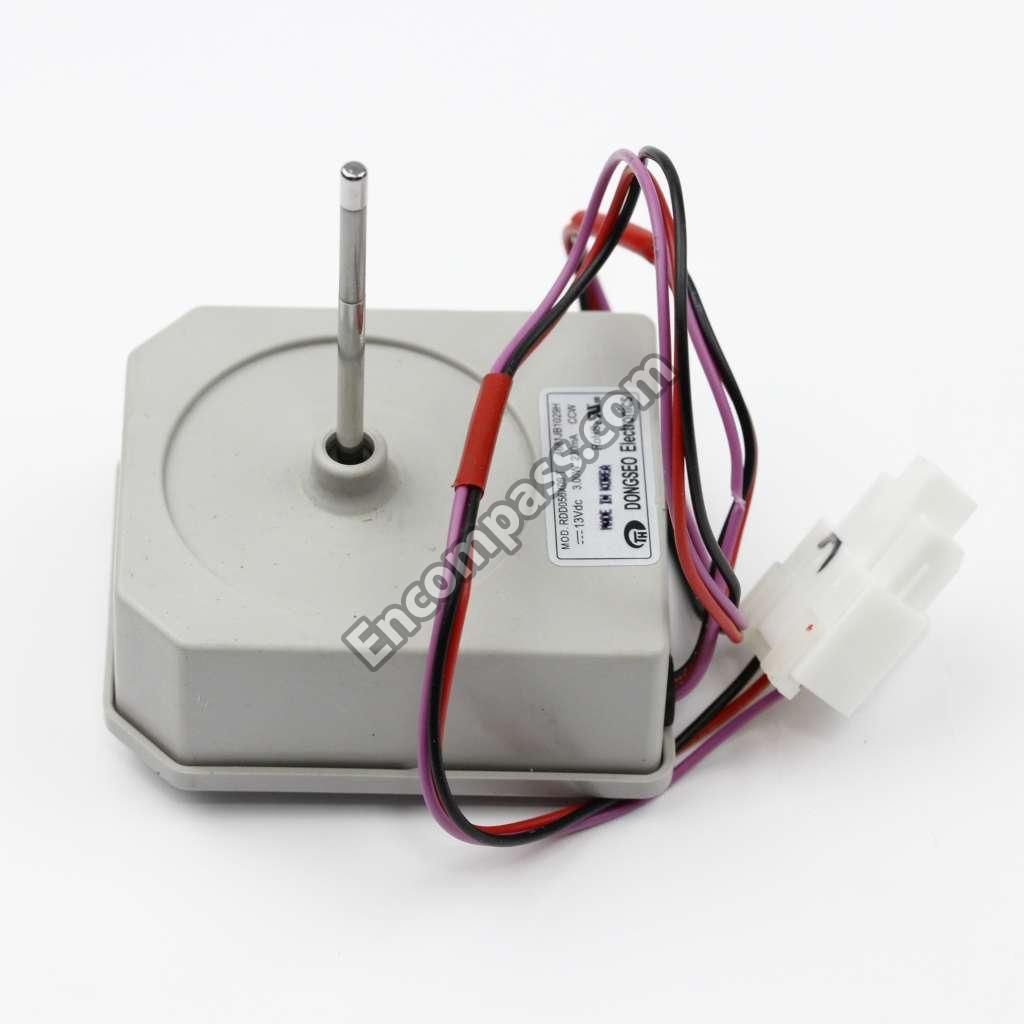

4681JB1029H 4681JB1029H DC MOTOR [404A]
3806JL1037C 3806JL1037C DECOR,DUCT [282F]
4890JD1110A 4890JD1110A DECOR,GLASS DOOR [291A]
3581JA8808D 3581JA8808D DOOR ASSEMBLY,REFRIGERATOR(LEFT) [230B]
6877JB2181A 6877JB2181A DRAWING,ASSEMBLY [295A]
6621JK2003B 6621JK2003B DRAWING,ASSEMBLY [410A]
6877JK2014B 6877JK2014B DRAWING,ASSEMBLY [619E]
5851JA2008R 5851JA2008R DRIER ASSEMBLY [317A]

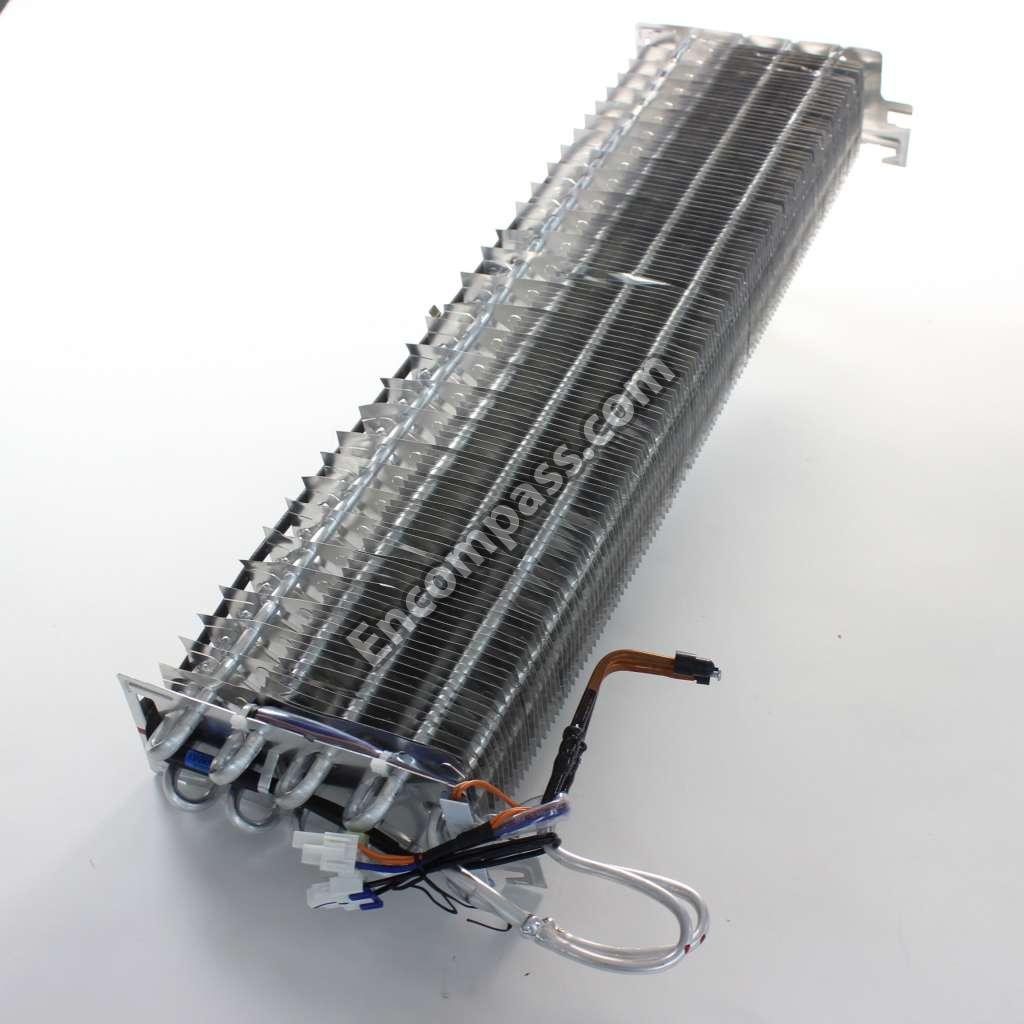

5421JJ1003S 5421JJ1003S EVAPORATOR ASSEMBLY [301A]
5901JA1022A 5901JA1022A FAN ASSEMBLY [329A]
J753-00011A J753-00011A FAN ASSEMBLY [329C]
5231JA2006F 5231JA2006F FILTER ASSEMBLY,HEAD [626A]
5230JA2003A 5230JA2003A FILTER,HEAD [624D]

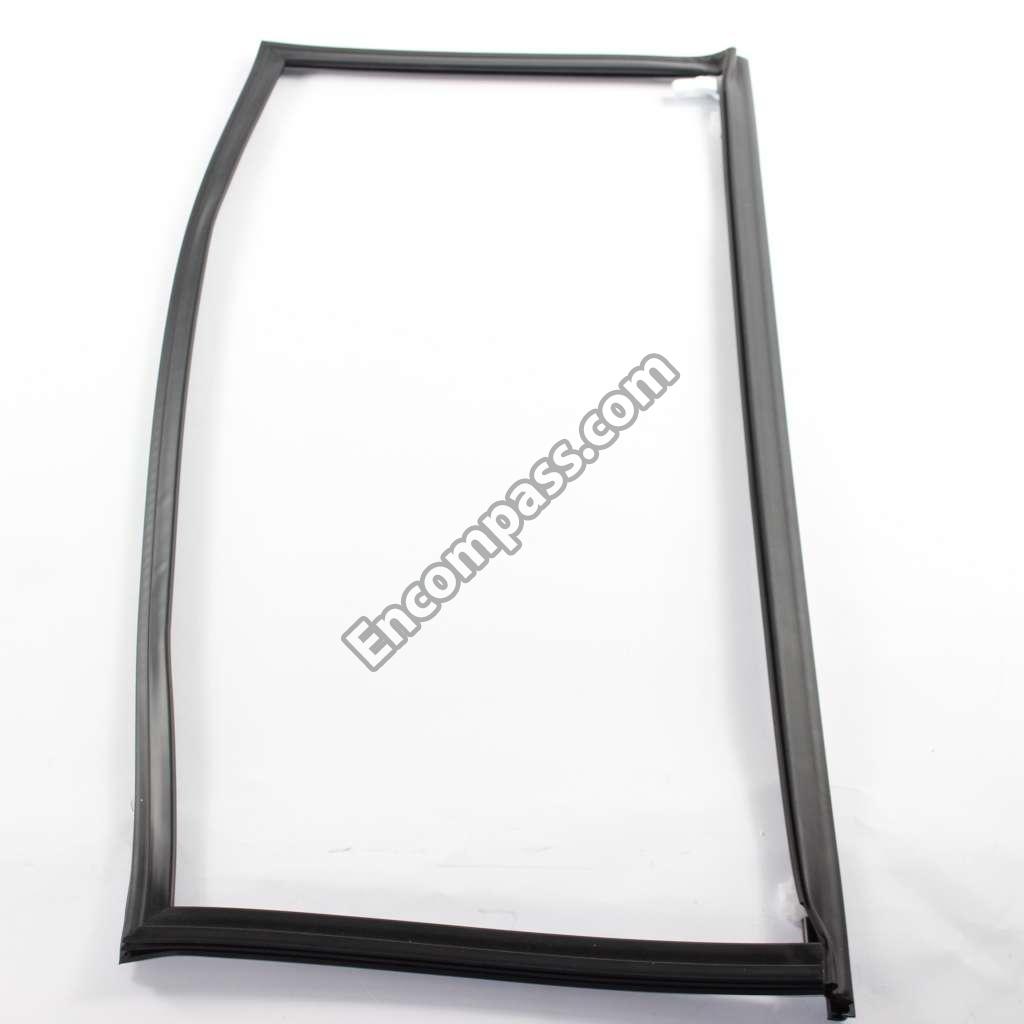

4987JJ2002Q 4987JJ2002Q GASKET ASSEMBLY,DOOR [233A]
4987JJ2002R 4987JJ2002R GASKET ASSEMBLY,DOOR [233B]

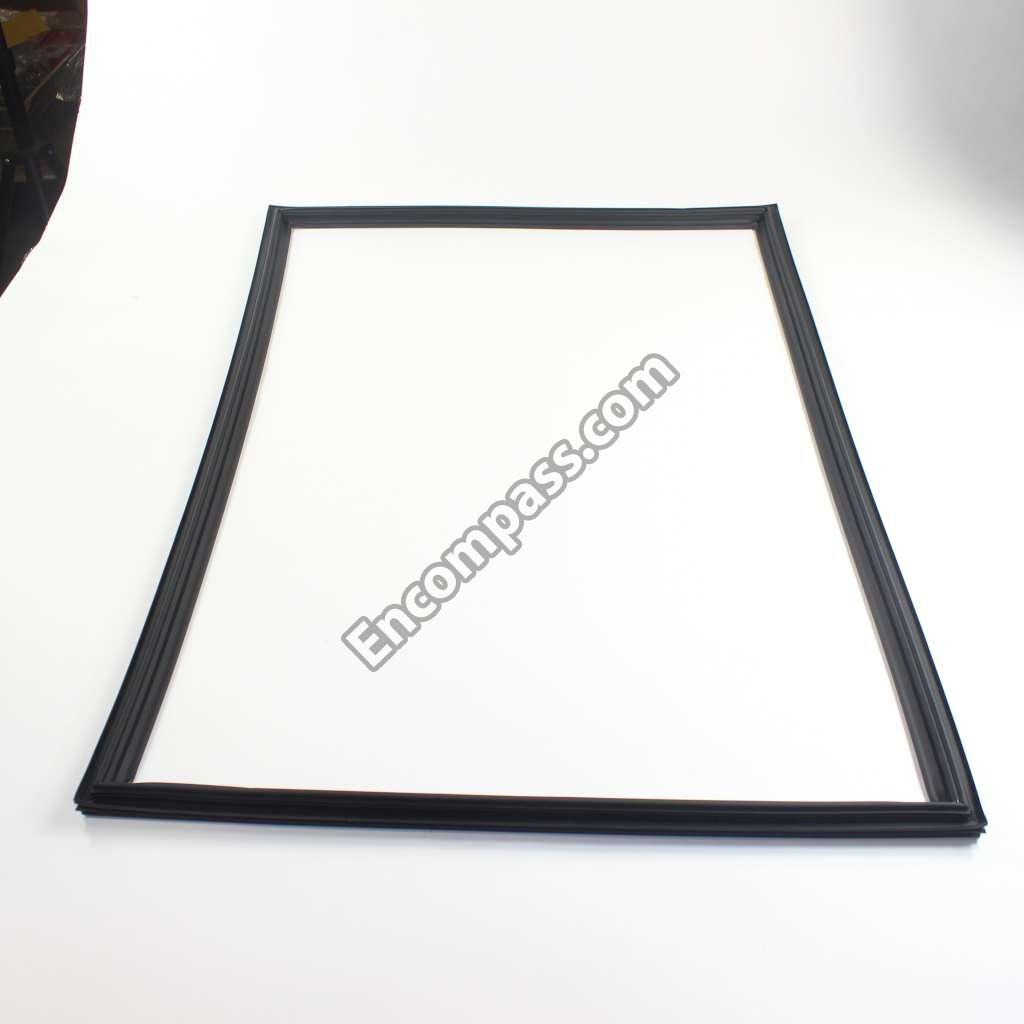

MDS64172918 MDS64172918 GASKET,DOOR [203A]

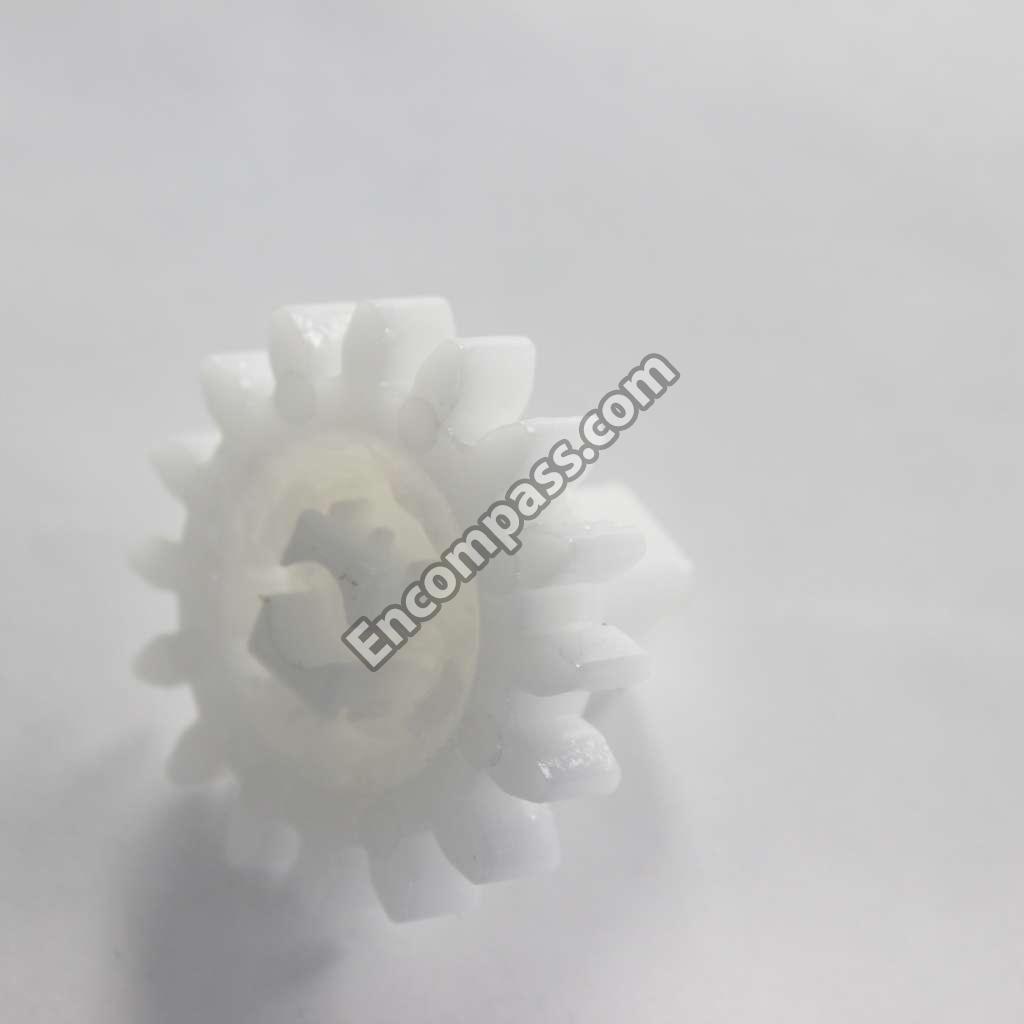

4470JA2008A 4470JA2008A GEAR,ICE [250C]
MDX63113401 MDX63113401 GRILLE,FAN [332A]

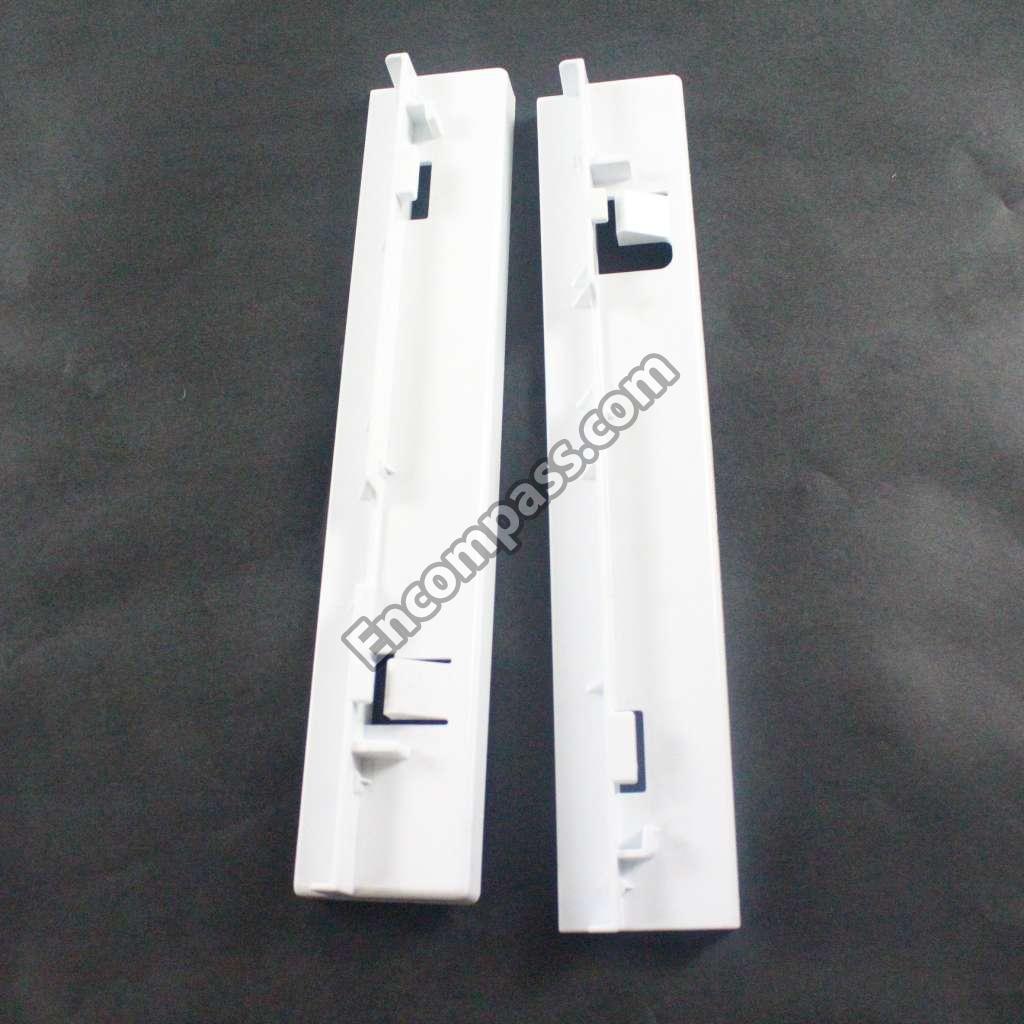

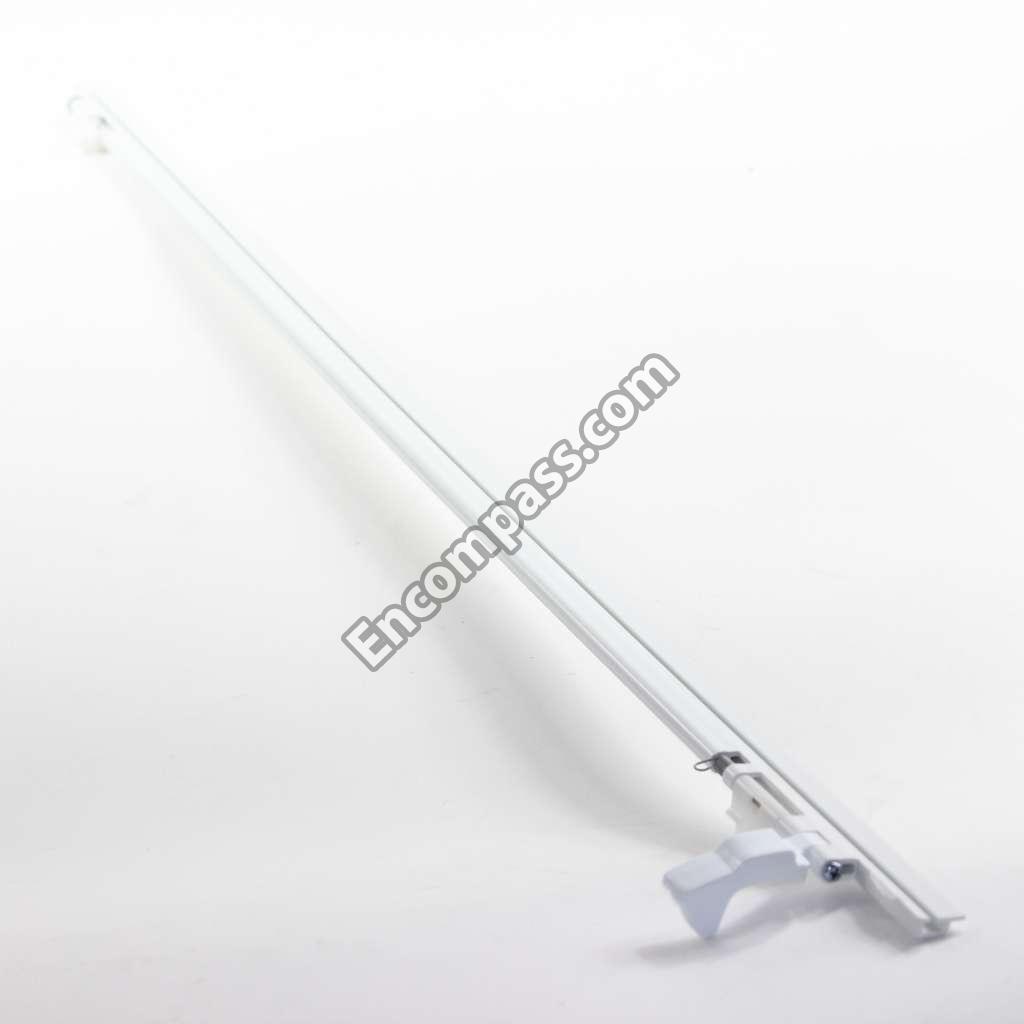

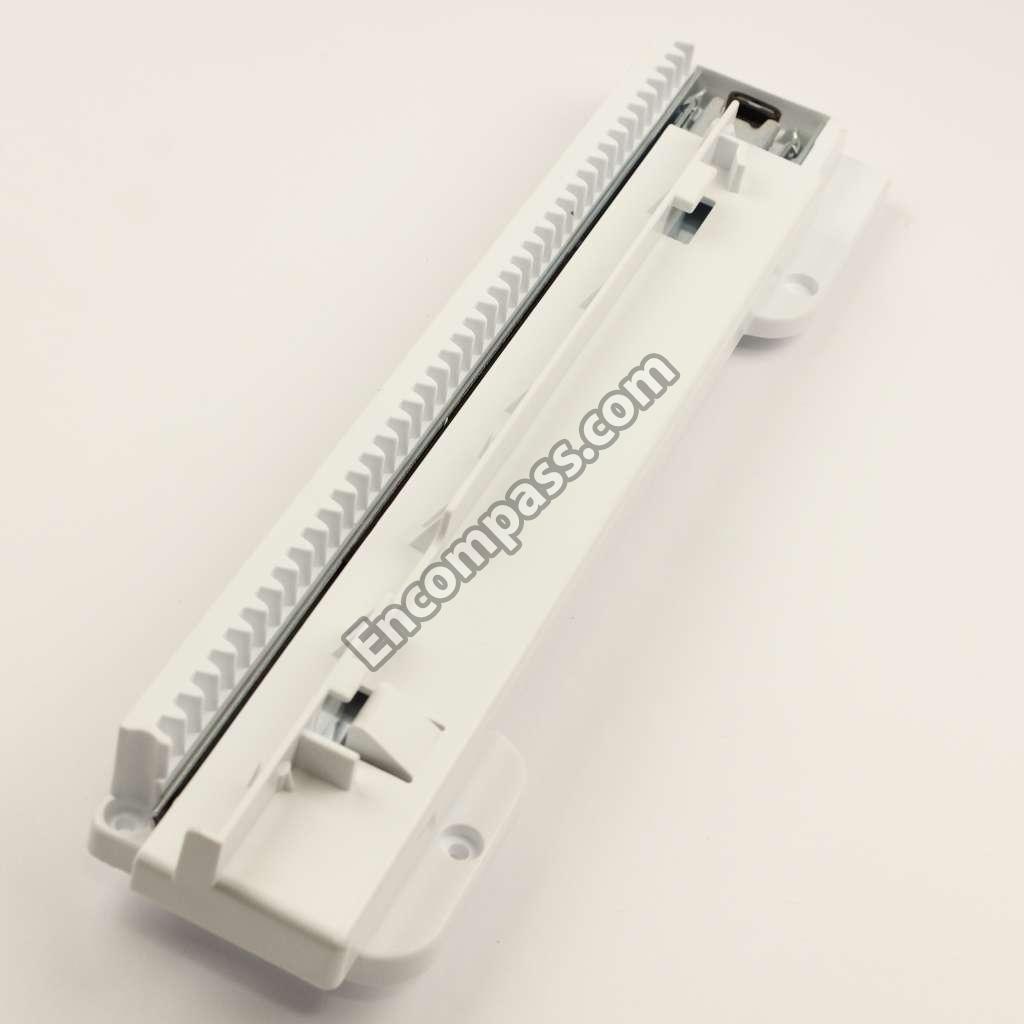

4975JJ2016A 4975JJ2016A GUIDE ASSEMBLY,RAIL [162A]
4975JJ2016B 4975JJ2016B GUIDE ASSEMBLY,RAIL [162B]
4974JJ1032A 4974JJ1032A GUIDE,DRAWER [237C]
4974JJ1036A 4974JJ1036A GUIDE,FAN [319C]

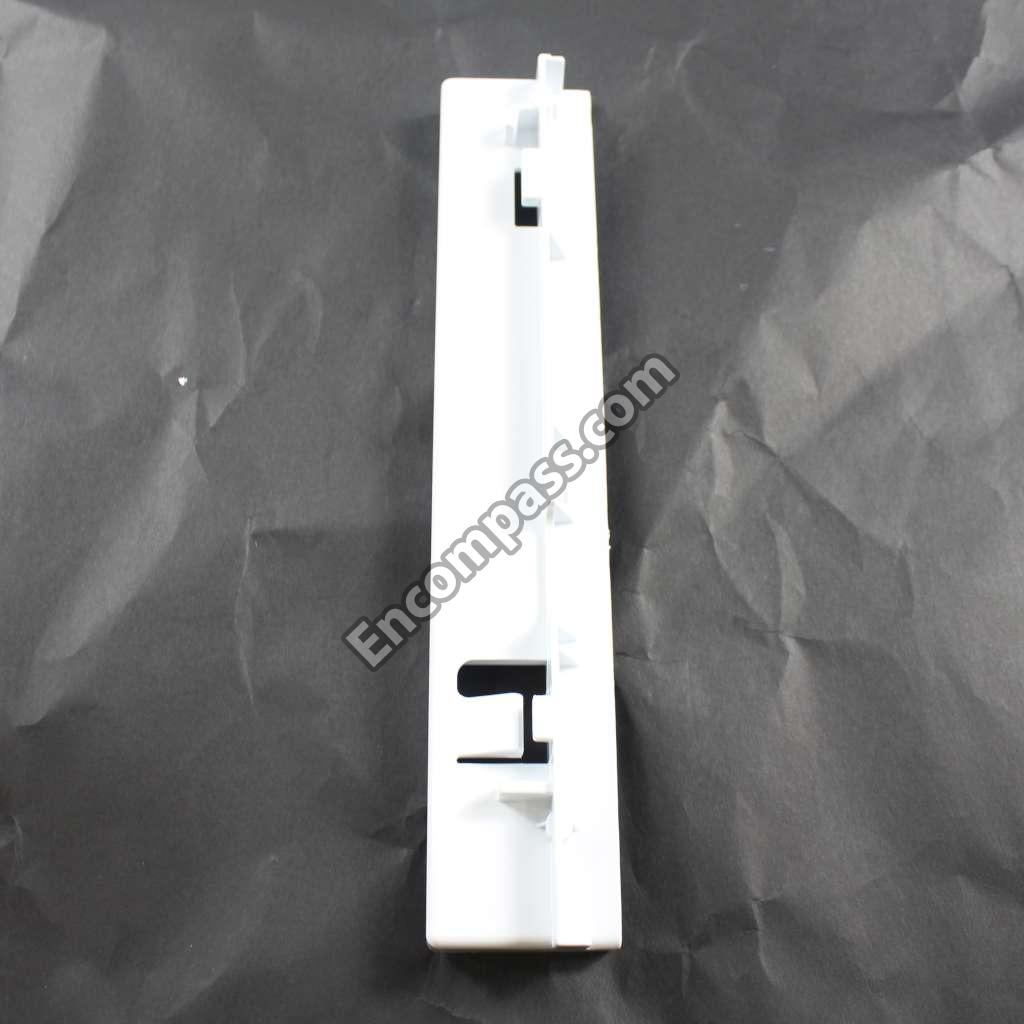

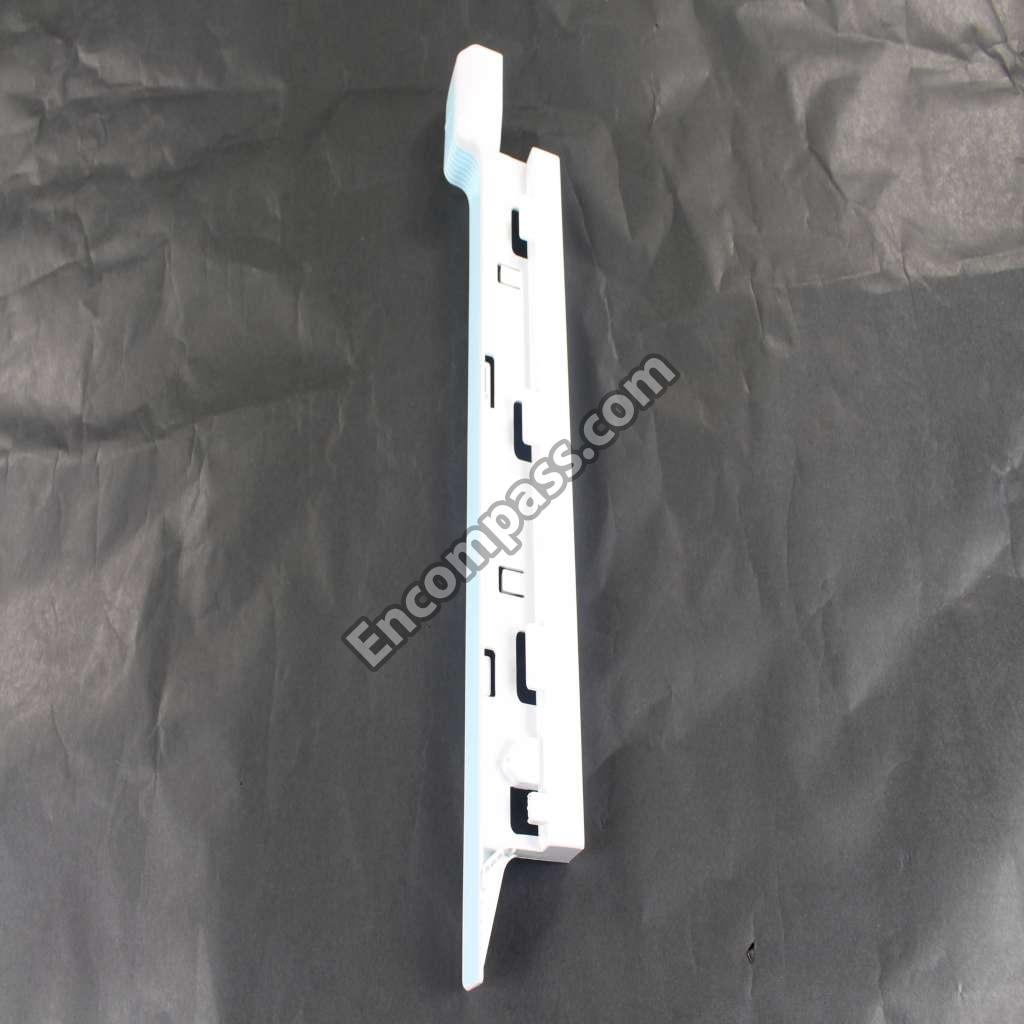

4974JA1153B 4974JA1153B GUIDE,RAIL [145G]
4974JA1153A 4974JA1153A GUIDE,RAIL [145H]
3650JA2113N 3650JA2113N HANDLE,REAR [103A]
3650JA2113P 3650JA2113P HANDLE,REAR [103B]
5300JK1005D 5300JK1005D HEATER,SHEATH [408A]

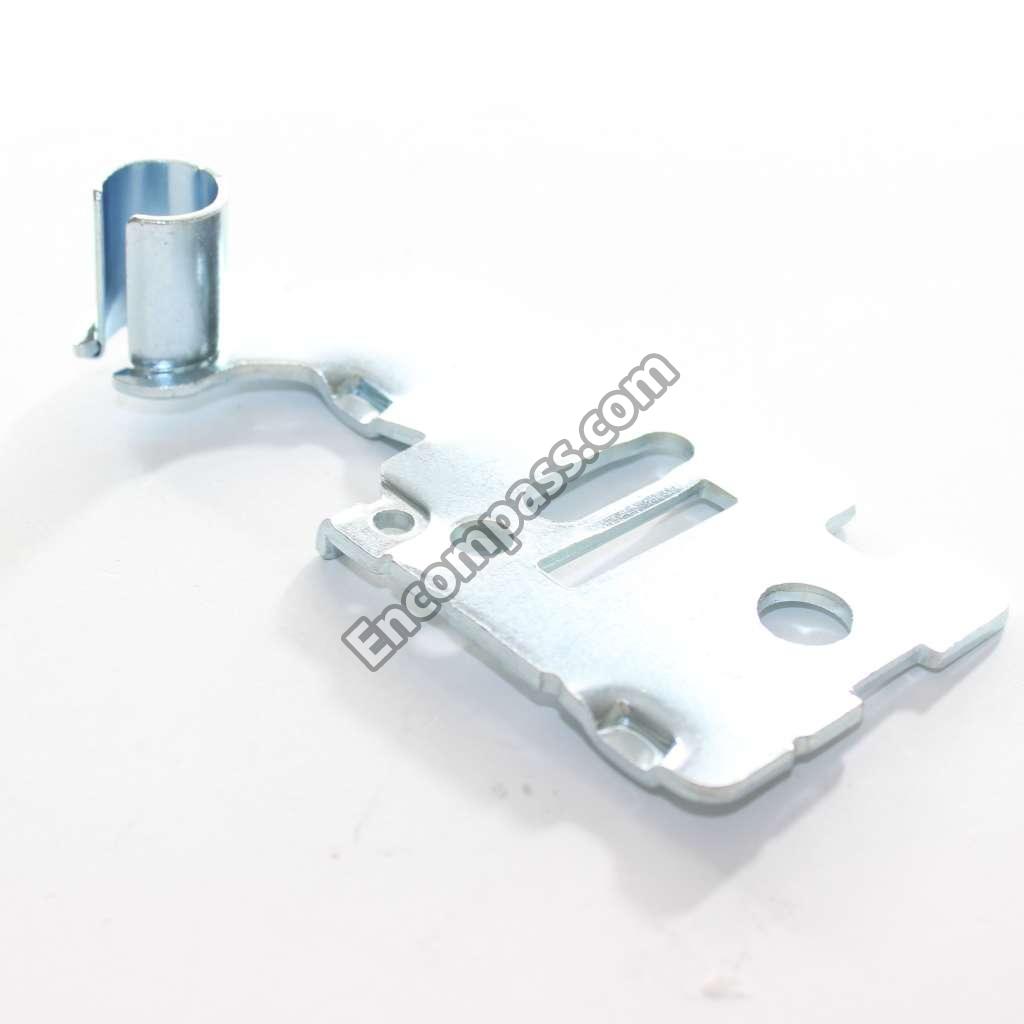

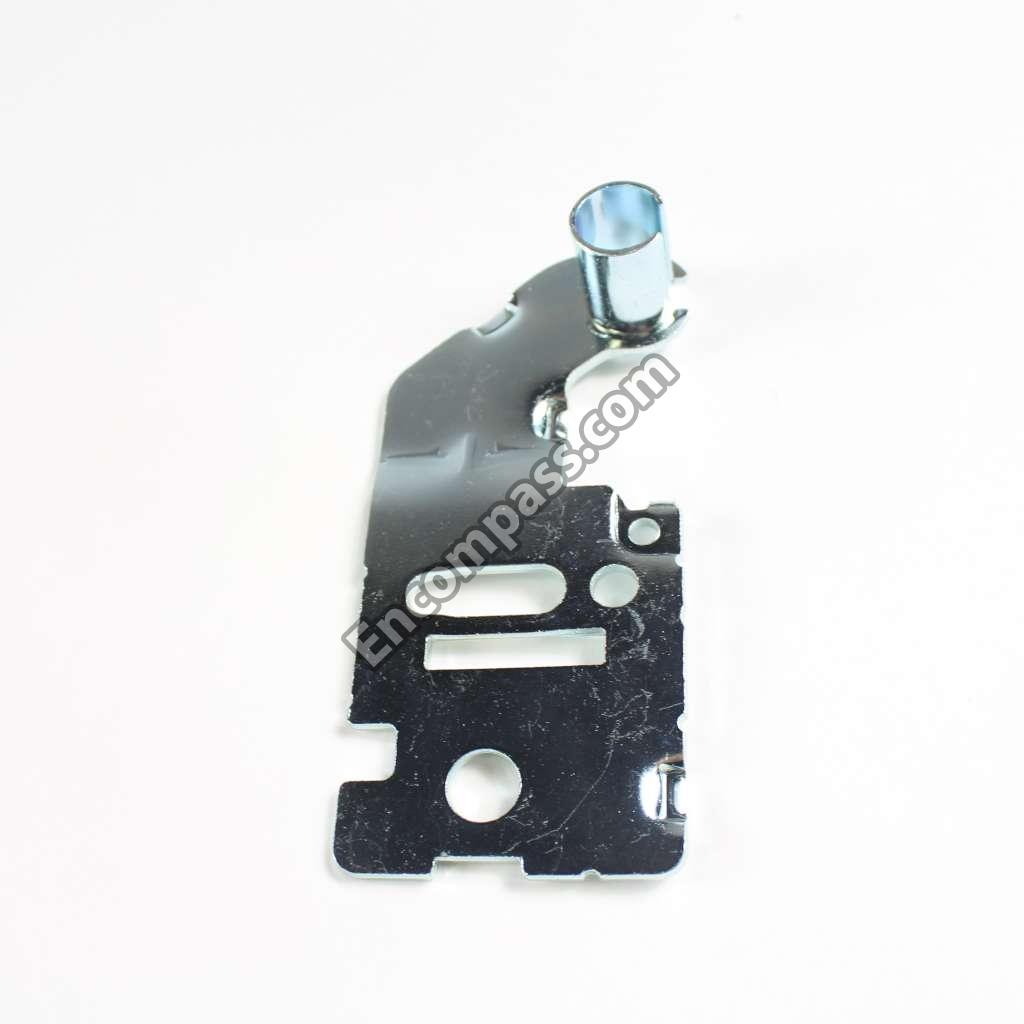

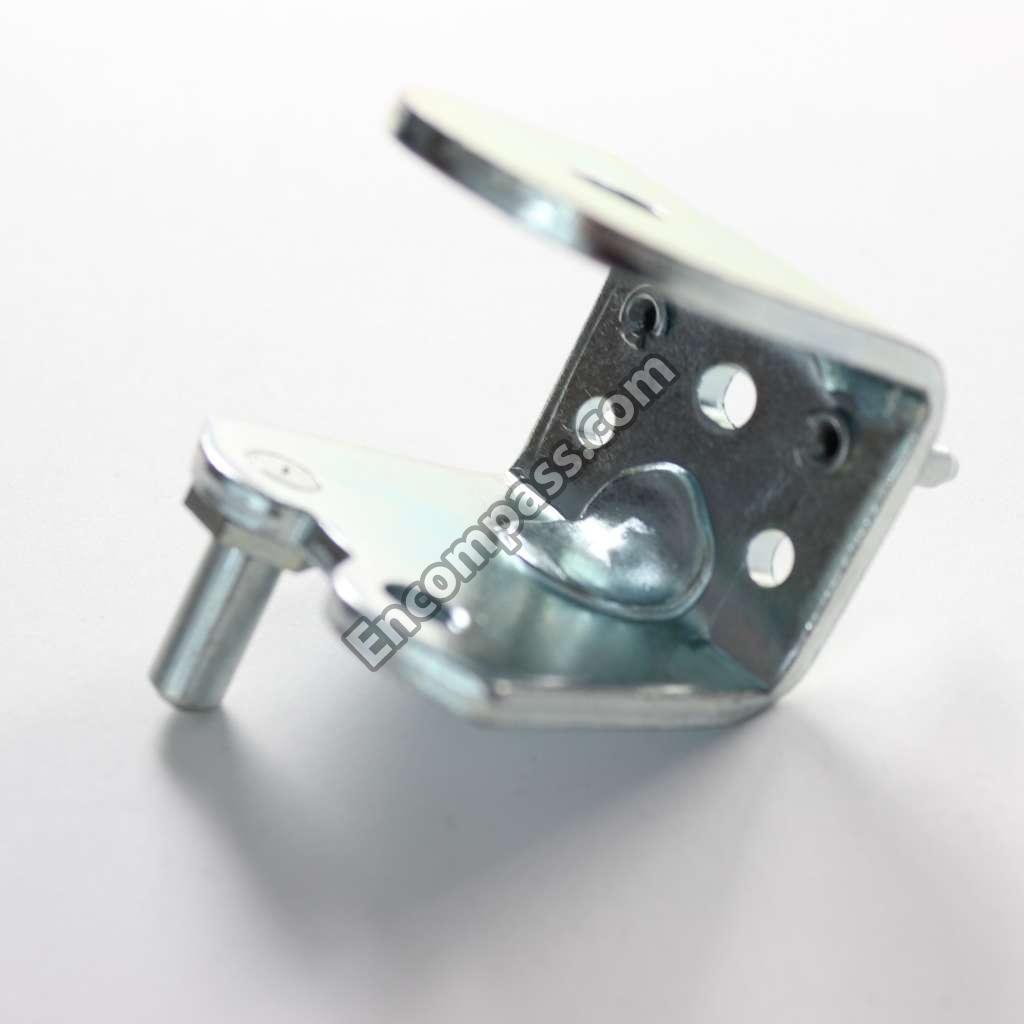

AEH73856203 AEH73856203 HINGE ASSEMBLY,CENTER [262B]
AEH73856204 AEH73856204 HINGE ASSEMBLY,CENTER [262H]
4775JJ2014B 4775JJ2014B HINGE ASSEMBLY,UPPER [271A]
AEH74216502 AEH74216502 HINGE ASSEMBLY,UPPER [271B]
4775JJ2014A 4775JJ2014A HINGE ASSEMBLY,UPPER [271C]
AEH60614101 AEH60614101 HINGE ASSEMBLY,UPPER [271D]
AEJ33488901 AEJ33488901 HOLDER ASSEMBLY,BRACKET [406A]
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET [607A]
4931JJ2002C 4931JJ2002C HOLDER ASSEMBLY,GASKET [234C]
4931JJ2002B 4931JJ2002B HOLDER ASSEMBLY,GASKET [234D]
4931JA3006A 4931JA3006A HOLDER ASSEMBLY,GASKET [406D]

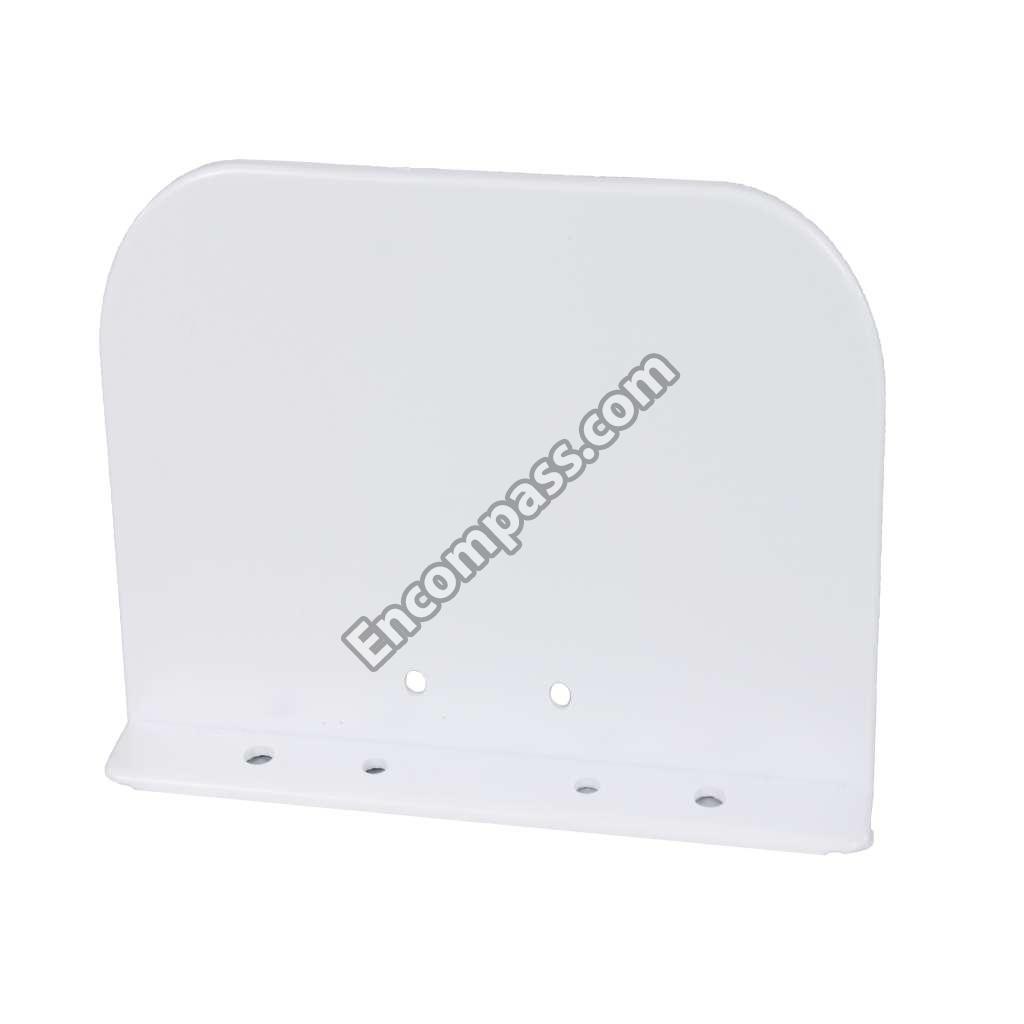

4930JA3090A 4930JA3090A HOLDER,BRACKET [602A]
4930JA3091A 4930JA3091A HOLDER,BRACKET [603B]
4930JA3093B 4930JA3093B HOLDER,BRACKET [603D]
4930JA3034C 4930JA3034C HOLDER,DRIER [318A]
4930JJ3018A 4930JJ3018A HOLDER,PIPE [627A]
4930JA3054A 4930JA3054A HOLDER,PIPE [627B]
4930JJ1018A 4930JJ1018A HOLDER,RAIL [161A]
4930JA1068A 4930JA1068A HOLDER,RAIL [249C]
4930JA1068B 4930JA1068B HOLDER,RAIL [249D]
4930JA2080C 4930JA2080C HOLDER,SHELF [145A]
4930JA2081C 4930JA2081C HOLDER,SHELF [145B]
AEQ57518201 AEQ57518201 ICE MAKER ASSEMBLY,KIT [600A]
4940JA2026D 4940JA2026D KNOB,SHUTTER [151C]
4940JJ2009B 4940JJ2009B KNOB,SHUTTER [155J]
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [409B]
4779JJ2001B 4779JJ2001B LEG ASSEMBLY,ADJUST [106A]

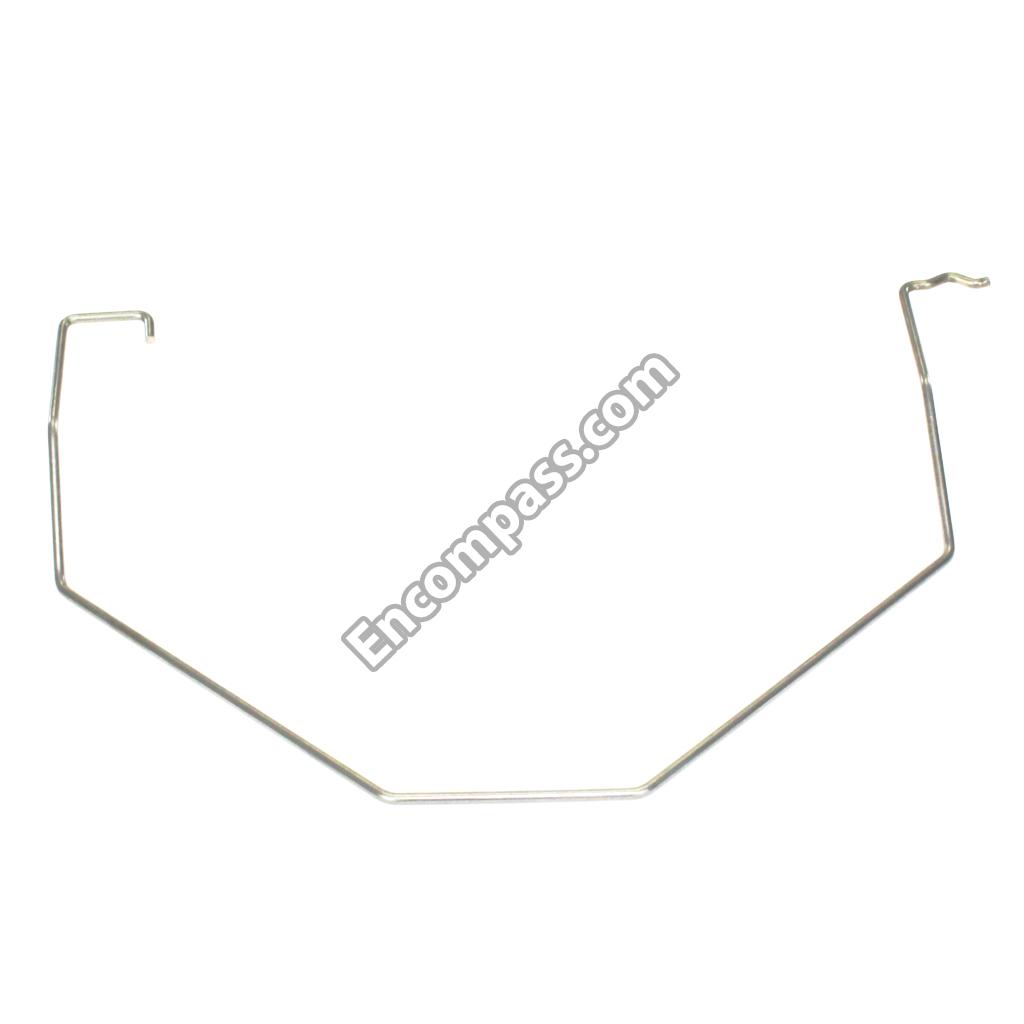

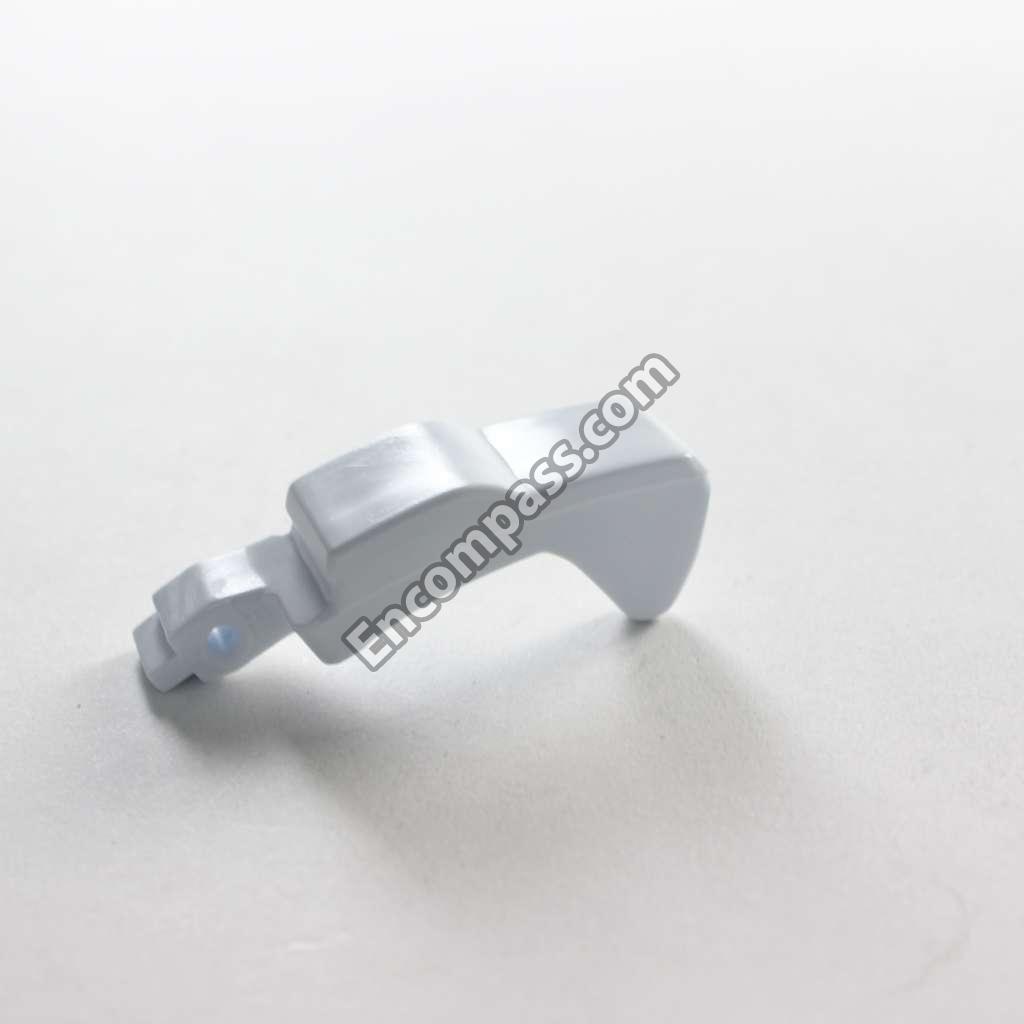

MFC39371401 MFC39371401 LEVER,ICE MAKER [600B]
4520JJ1004A 4520JJ1004A LINK [146B]
4681JB1029D 4681JB1029D MOTOR,DC [420A]
MFT62346511 MFT62346511 NAME PLATE [212G]
6750C-0005P 6750C-0005P OVERLOAD PROTECT [303C]
6750JA3001C 6750JA3001C OVERLOAD PROTECT [303C]
6871JB1433A 6871JB1433A PCB ASSEMBLY,DISPLAY [279A]

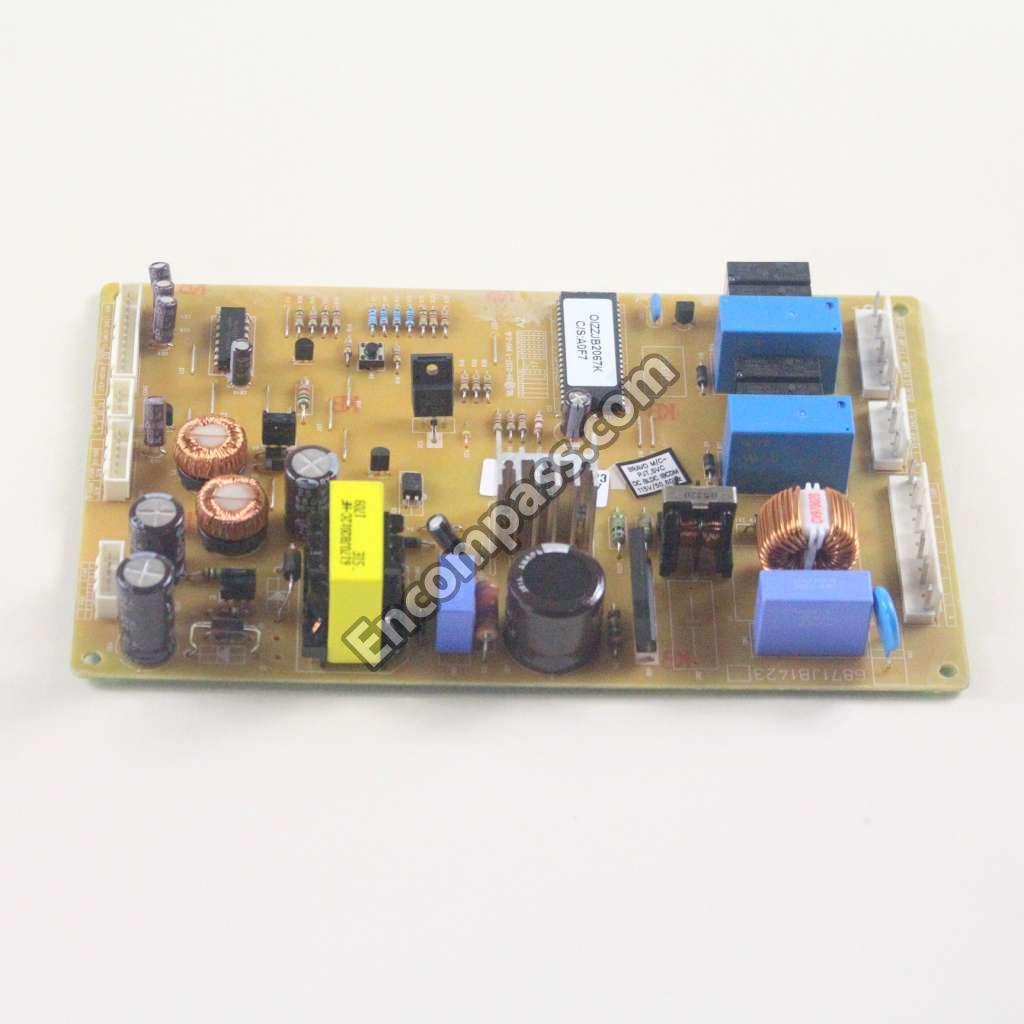

6871JB1423N 6871JB1423N PCB ASSEMBLY,MAIN [500A]
6871JB2074B 6871JB2074B PCB ASSEMBLY,SUB [292A]
1PZZJA3013B 1PZZJA3013B PIN,COMMON [315C]
5200JA1029A 5200JA1029A PIPE,JOINT [310B]
6411JB1042Y 6411JB1042Y POWER CORD ASSEMBLY [411A]
J469-00030A J469-00030A RACK [146A]

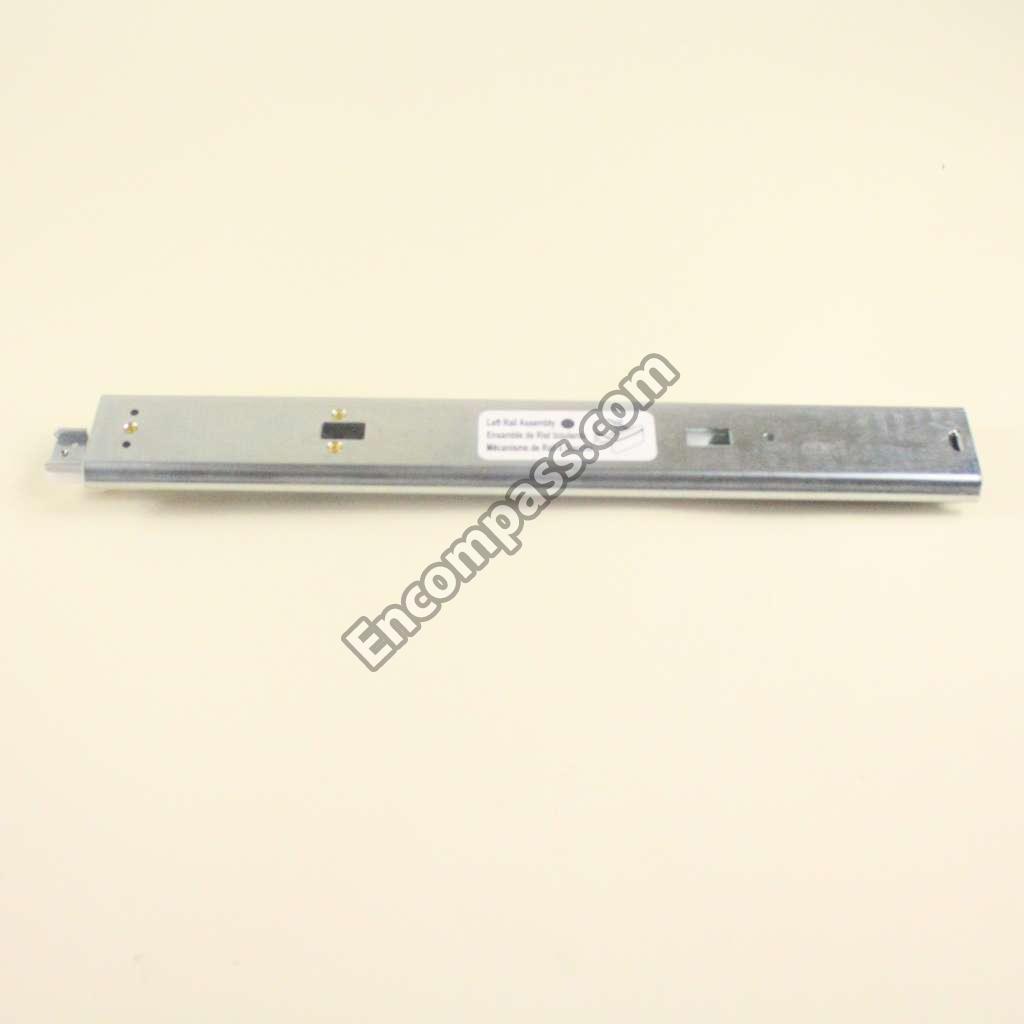

EBS61443362 EBS61443362 RAIL,SLIDE [145J]
5218JA1009E 5218JA1009E RAIL,SLIDE [249E]
5218JA1009F 5218JA1009F RAIL,SLIDE [249F]
3034JA1009A 3034JA1009A REFLECTOR,LAMP [409D]
4350JA3005B 4350JA3005B RING [262C]
MHA62513601 MHA62513601 ROLLER [315B]

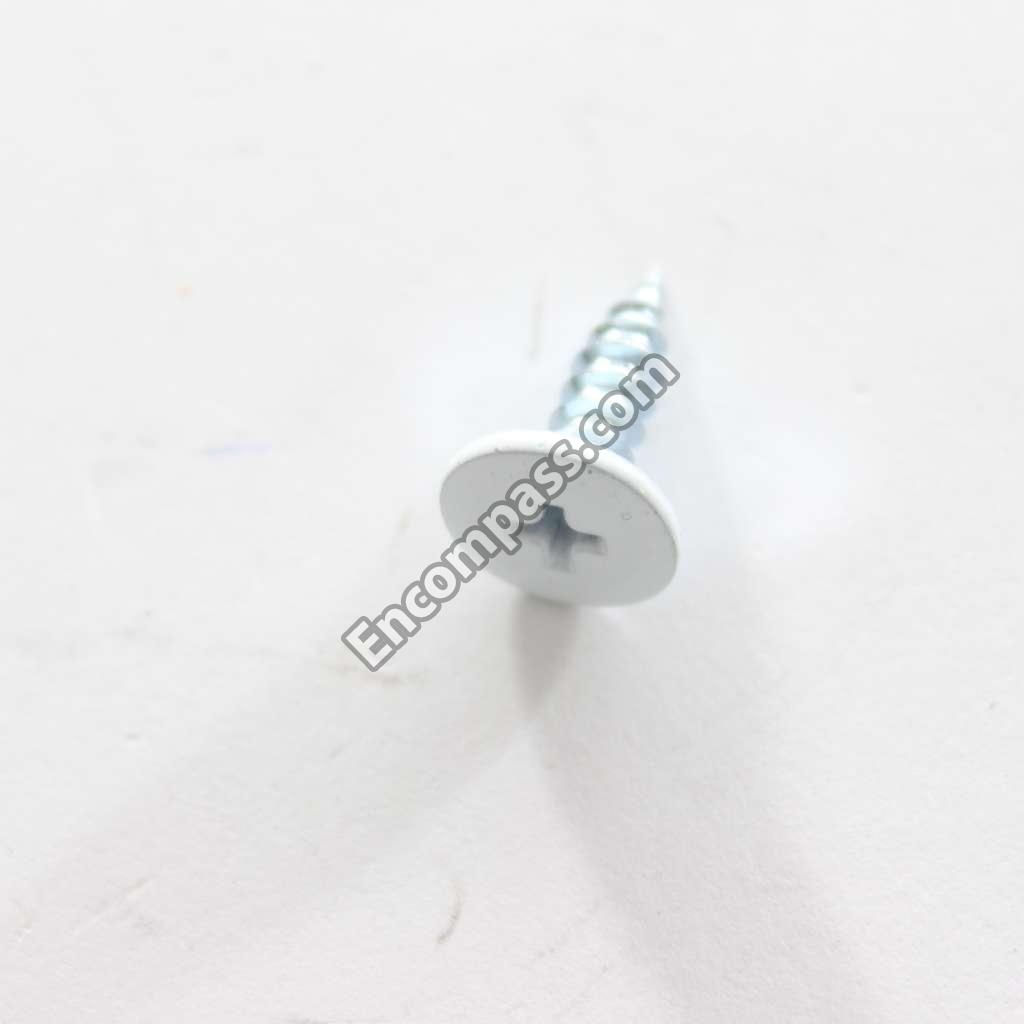

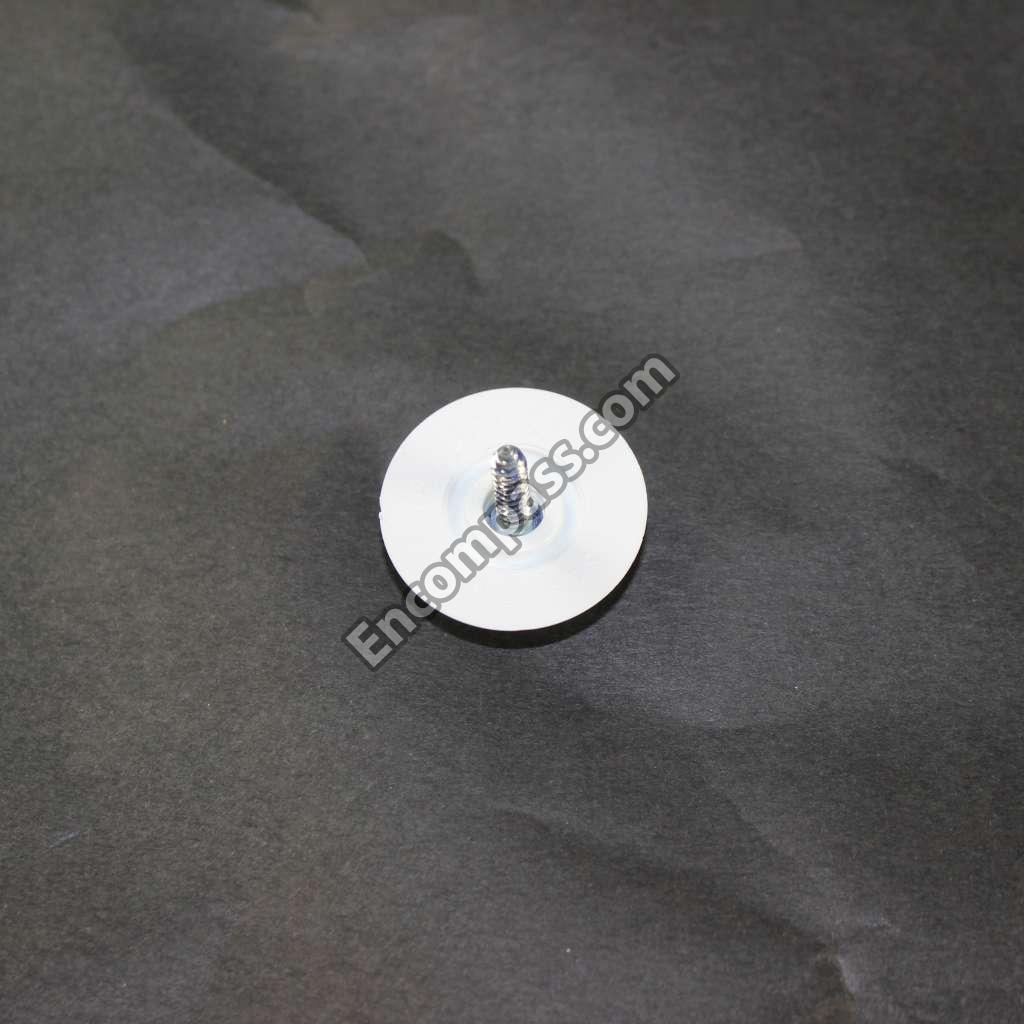

4000W4A003A 4000W4A003A SCREW,CUSTOMIZED [B01]
1STZJA3004Q 1STZJA3004Q SCREW,CUSTOMIZED [B02]
1STZJA3004F 1STZJA3004F SCREW,CUSTOMIZED [B03]
1SBZJA3004W 1SBZJA3004W SCREW,CUSTOMIZED [B06]
4J00415D 4J00415D SCREW,CUSTOMIZED [S01]
4J01424D 4J01424D SCREW,CUSTOMIZED [S08]
1SBZJA3004L 1SBZJA3004L SCREW,CUSTOMIZED [S10]
3J05696W 3J05696W SCREW,CUSTOMIZED [S11]
1SZZJJ3005E 1SZZJJ3005E SCREW,CUSTOMIZED [S13]
1SZZJJ3010D 1SZZJJ3010D SCREW,CUSTOMIZED [S14]
3J05696C 3J05696C SCREW,CUSTOMIZED [S16]
1SZZJA3005H 1SZZJA3005H SCREW,CUSTOMIZED [S17]
1SZZJA3016A 1SZZJA3016A SCREW,CUSTOMIZED [S20]
J471-00001J J471-00001J SCREW,CUSTOMIZED [S26]
1SZZJJ3001B 1SZZJJ3001B SCREW,CUSTOMIZED [S30]
FAB30025701 FAB30025701 SCREW,CUSTOMIZED [S34]

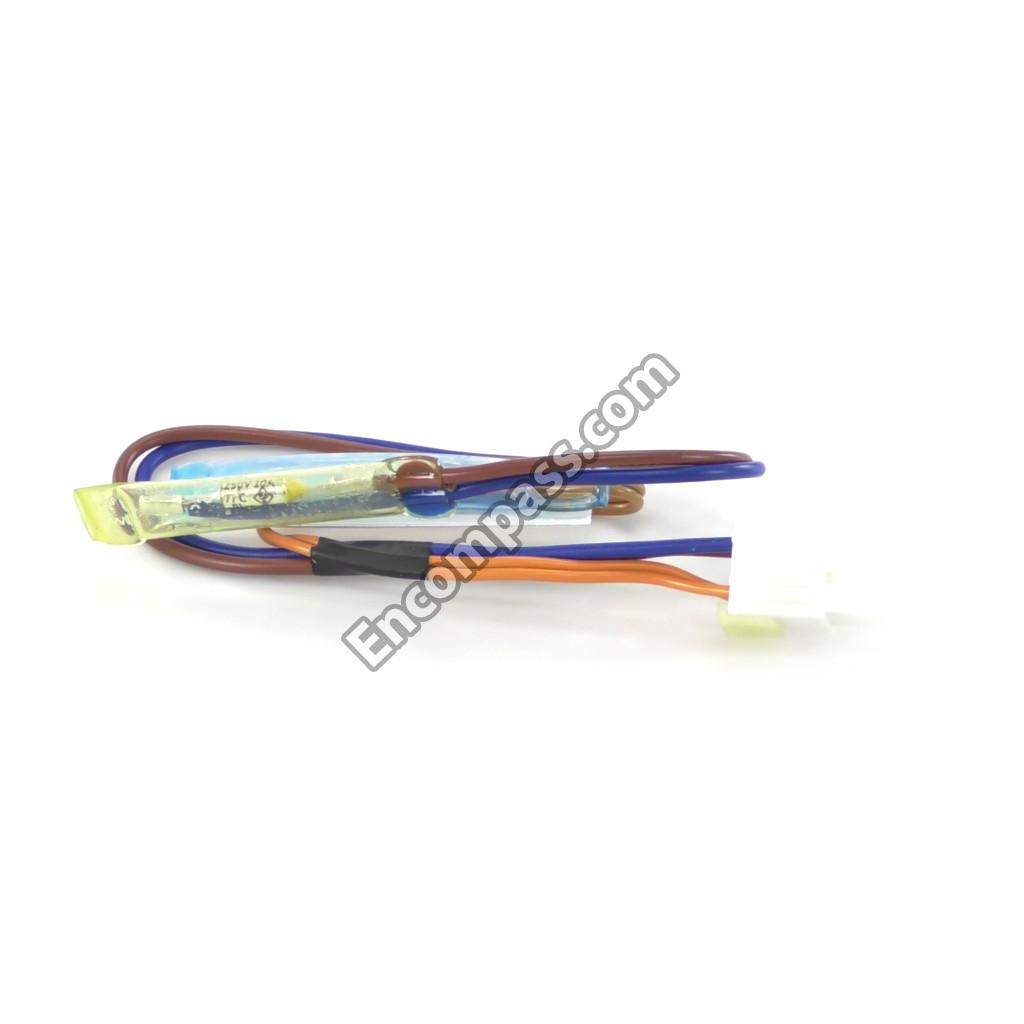

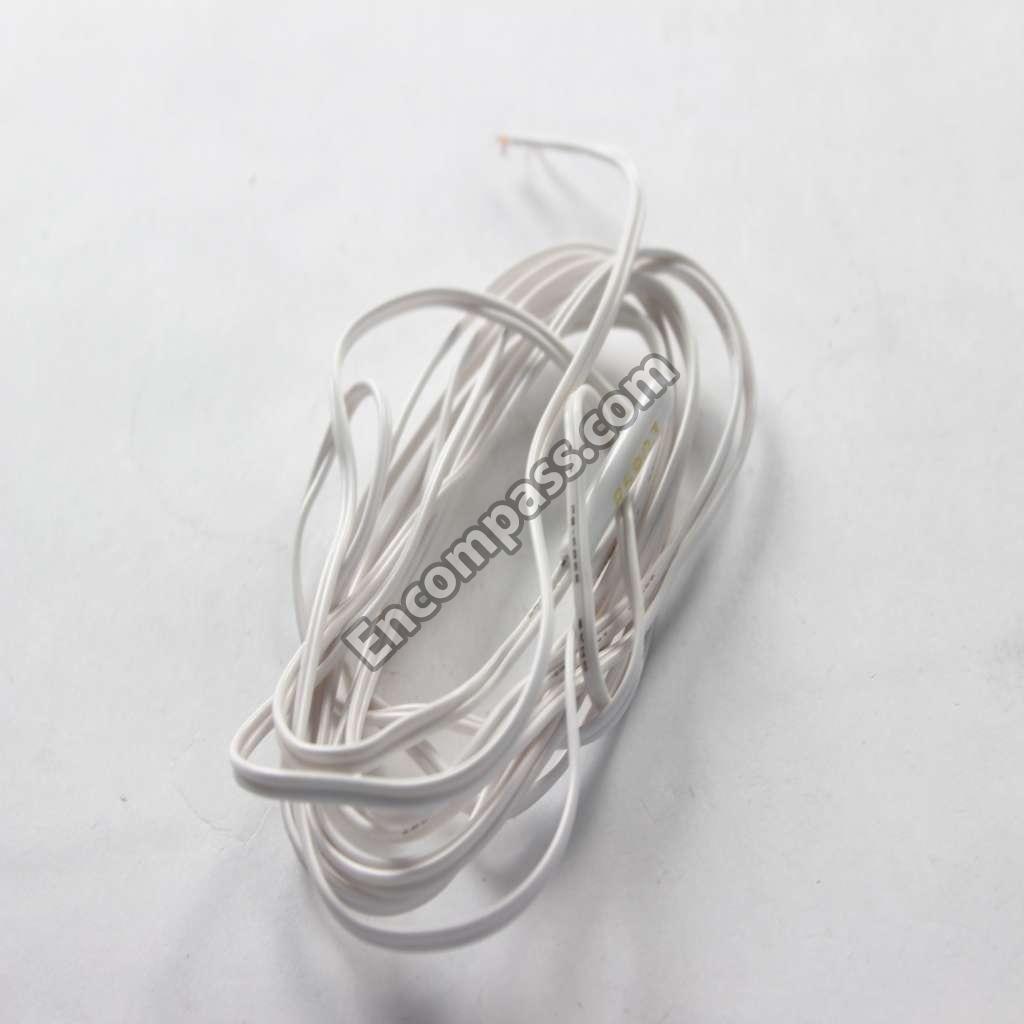

6500JB2002T 6500JB2002T SENSOR [610C]
6500JB2001B 6500JB2001B SENSOR [610D]
6500JB1001K 6500JB1001K SENSOR,TEMPERATURE [610B]
5027JJ2014G 5027JJ2014G SHELF ASSEMBLY,REFRIGERATOR [141A]
5026JJ1051A 5026JJ1051A SHELF,REFRIGERATOR [141B]
4620JA3015A 4620JA3015A STOPPER,COMPRESSOR [314A]
4620JJ3006C 4620JJ3006C STOPPER,DOOR [243A]
MJB63029901 MJB63029901 STOPPER,DOOR [243B]
MJH62760301 MJH62760301 SUPPORTER,HOLDER [248A]
4980JJ2014A 4980JJ2014A SUPPORTER,HOLDER [248H]
6600JB3001C 6600JB3001C SWITCH,MICRO [403A]

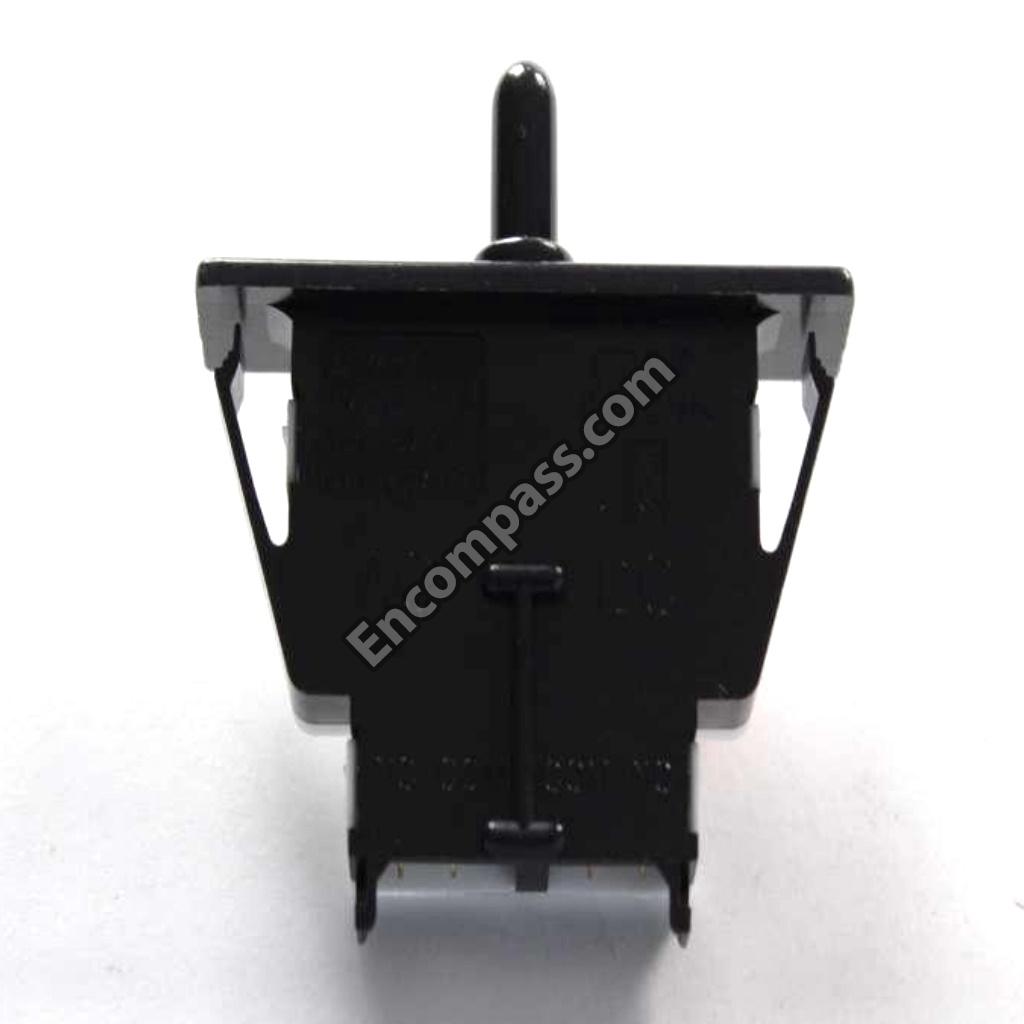

6600JB3007E 6600JB3007E SWITCH,PUSH BUTTON [402A]
6600JB1010K 6600JB1010K SWITCH,PUSH BUTTON [406B]
6749C-0014E 6749C-0014E THERMISTOR ASSEMBLY,PTC [303B]
3391JA1114D 3391JA1114D TRAY ASSEMBLY,DRAWER [136B]
3391JJ1030B 3391JJ1030B TRAY ASSEMBLY,FRESH ROOM [145D]

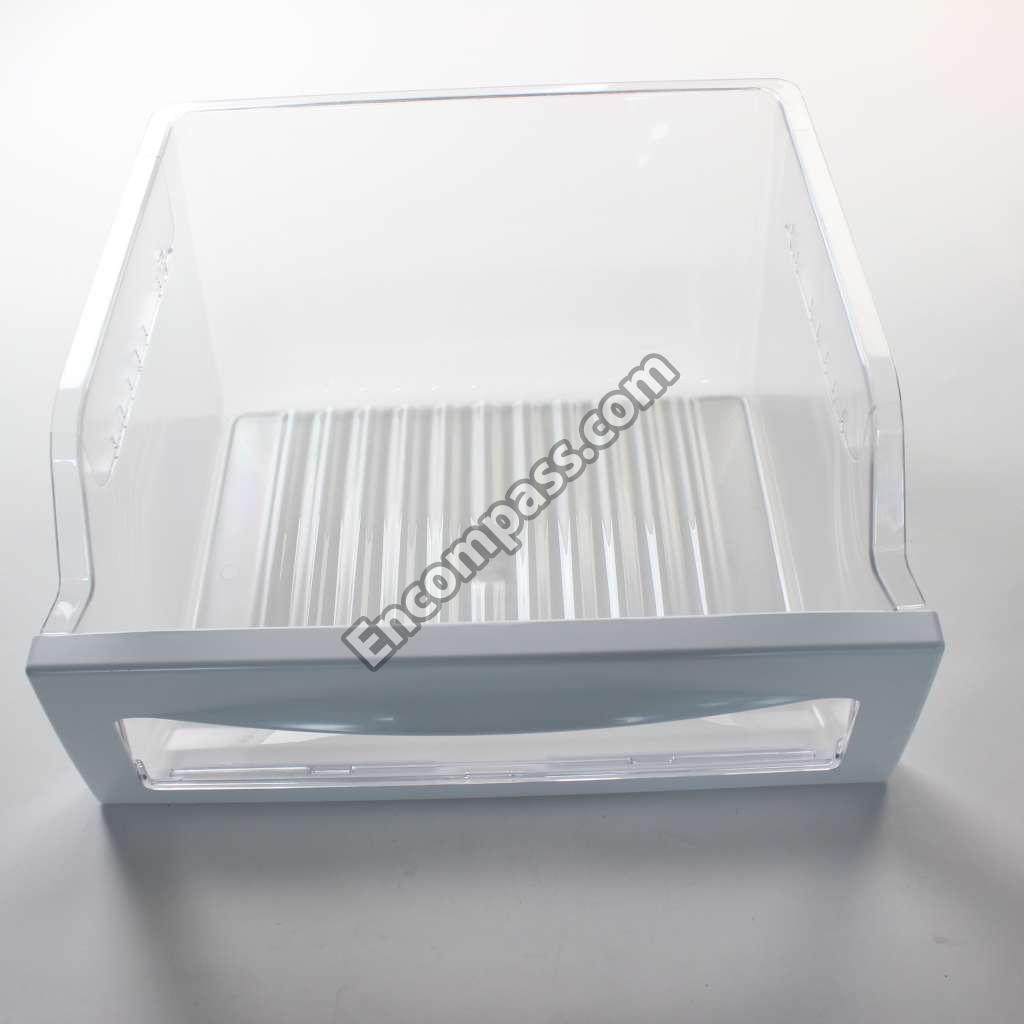

3391JJ2012C 3391JJ2012C TRAY ASSEMBLY,VEGETABLE [151A]
5251JA3003E 5251JA3003E TUBE ASSEMBLY,DRAIN [105A]
5210JA2012F 5210JA2012F TUBE,INJECT [616A]

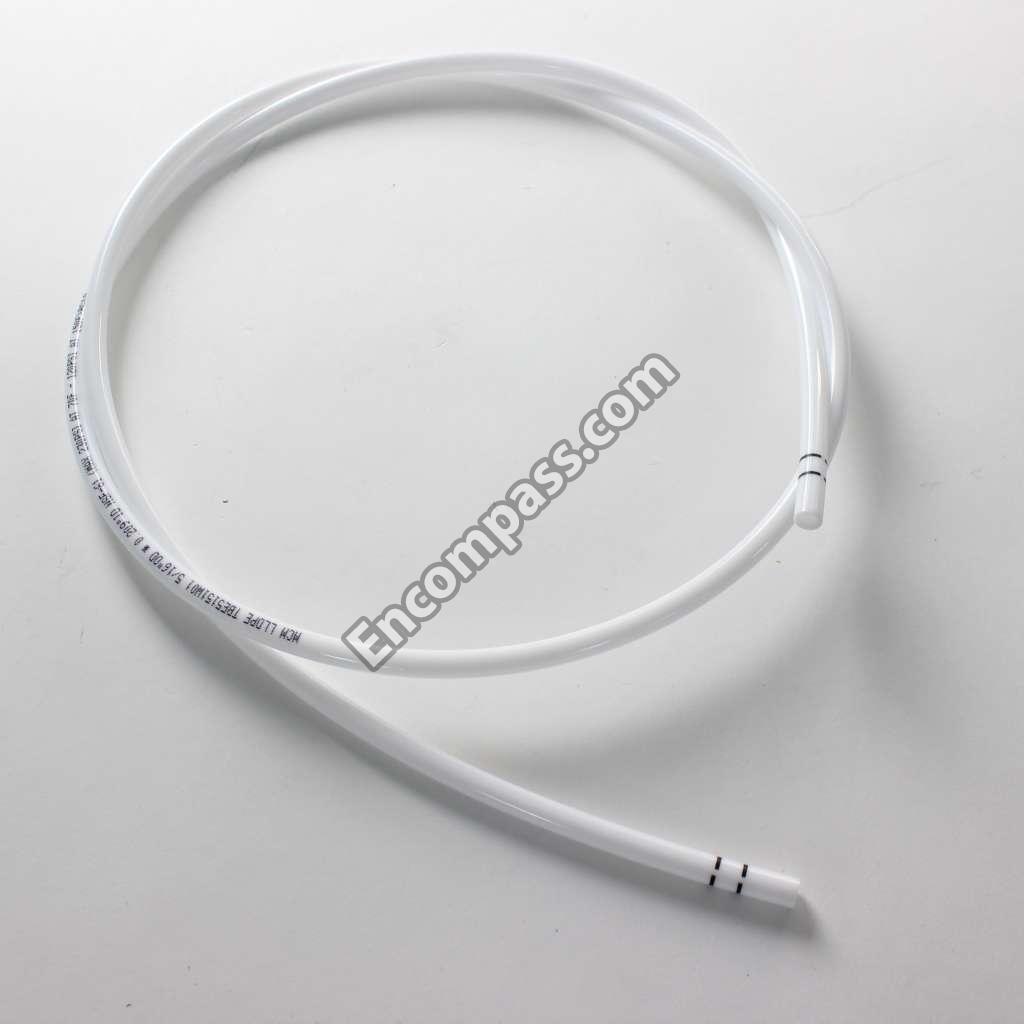

5210JA3004A 5210JA3004A TUBE,PLASTIC [616C]

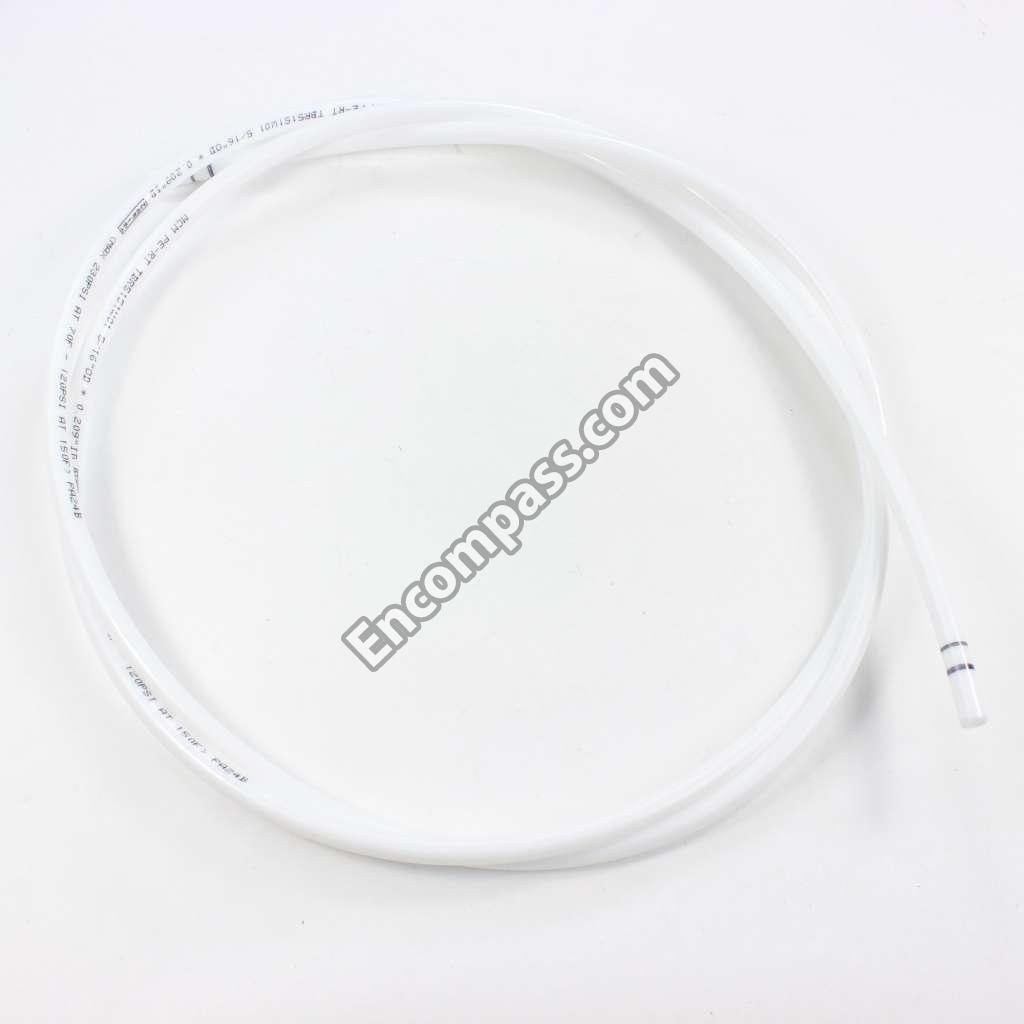

5210JA3005E 5210JA3005E TUBE,PLASTIC [616D]
MJU62070602 MJU62070602 TUBE,PLASTIC [616F]
5210JA3005W 5210JA3005W TUBE,PLASTIC [616J]

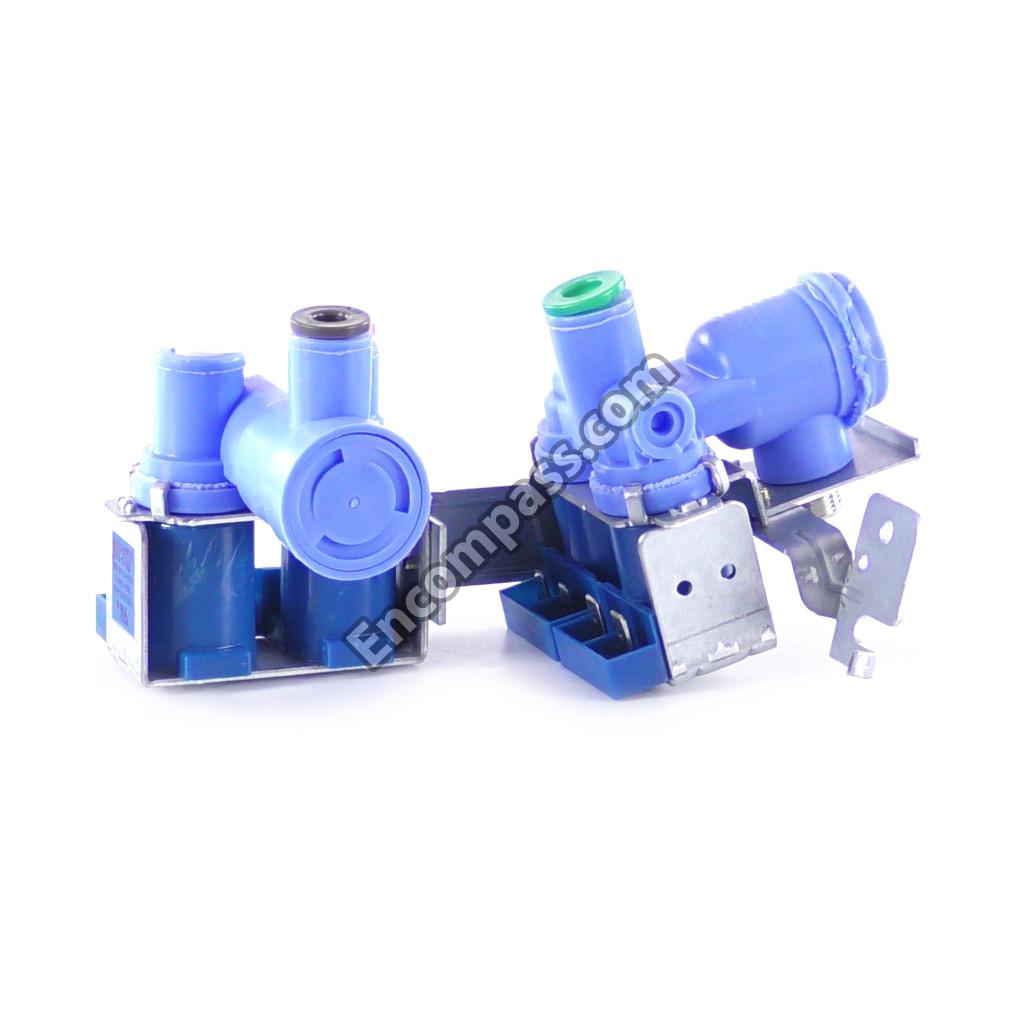

5221JB2006K 5221JB2006K VALVE ASSEMBLY,WATER [619A]
