Model Image
Manufacturer

LG

Model Number

LFX25778ST

Description

24.2 Cu. Ft Capacity 3-door French Door Refrigerat

Interactive Exploded View

Parts List

Part Number Description
4770JA3001E 4770JA3001E BAND
4270JA3009Q 4270JA3009Q BAR
AAN73232101 AAN73232101 BASE ASSEMBLY,COMPRESSOR

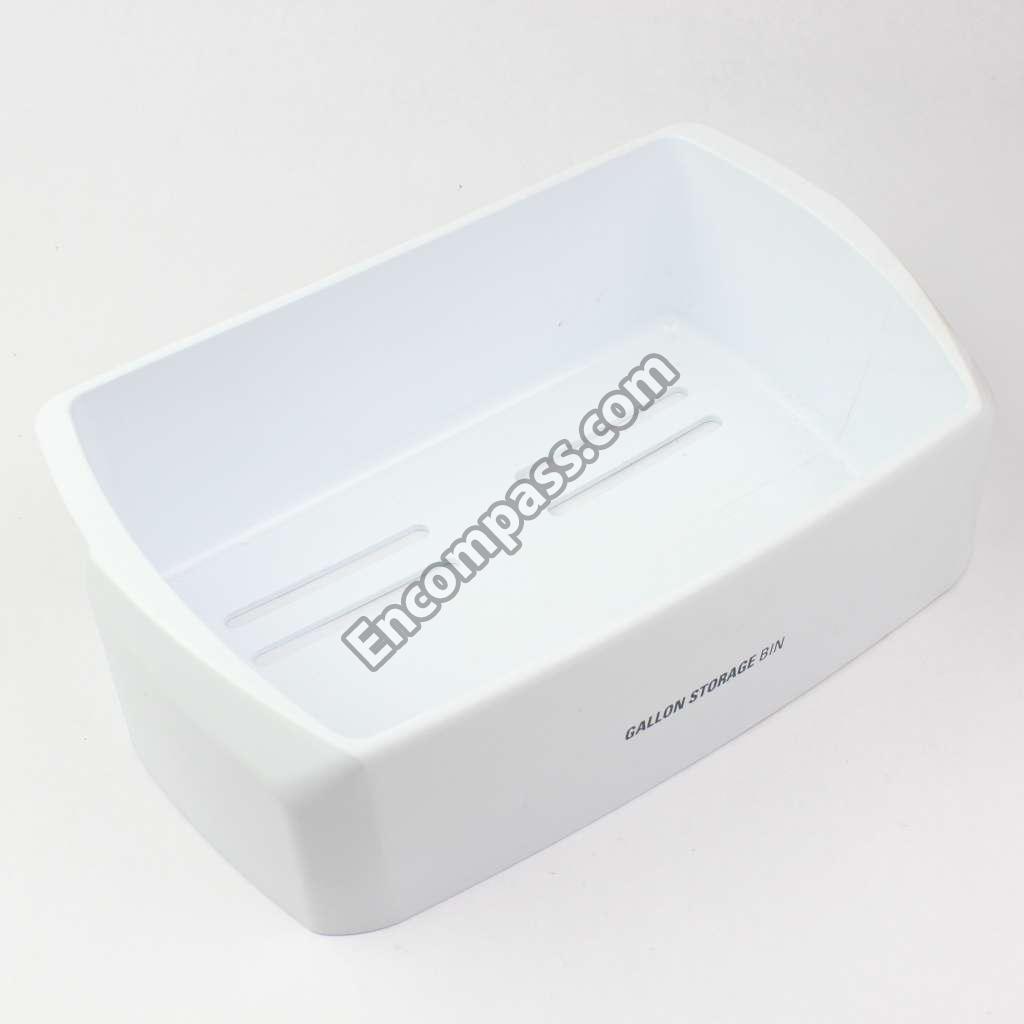

AAP73551401 AAP73551401 BASKET ASSEMBLY,DOOR
AAP73051402 AAP73051402 BASKET ASSEMBLY,DOOR

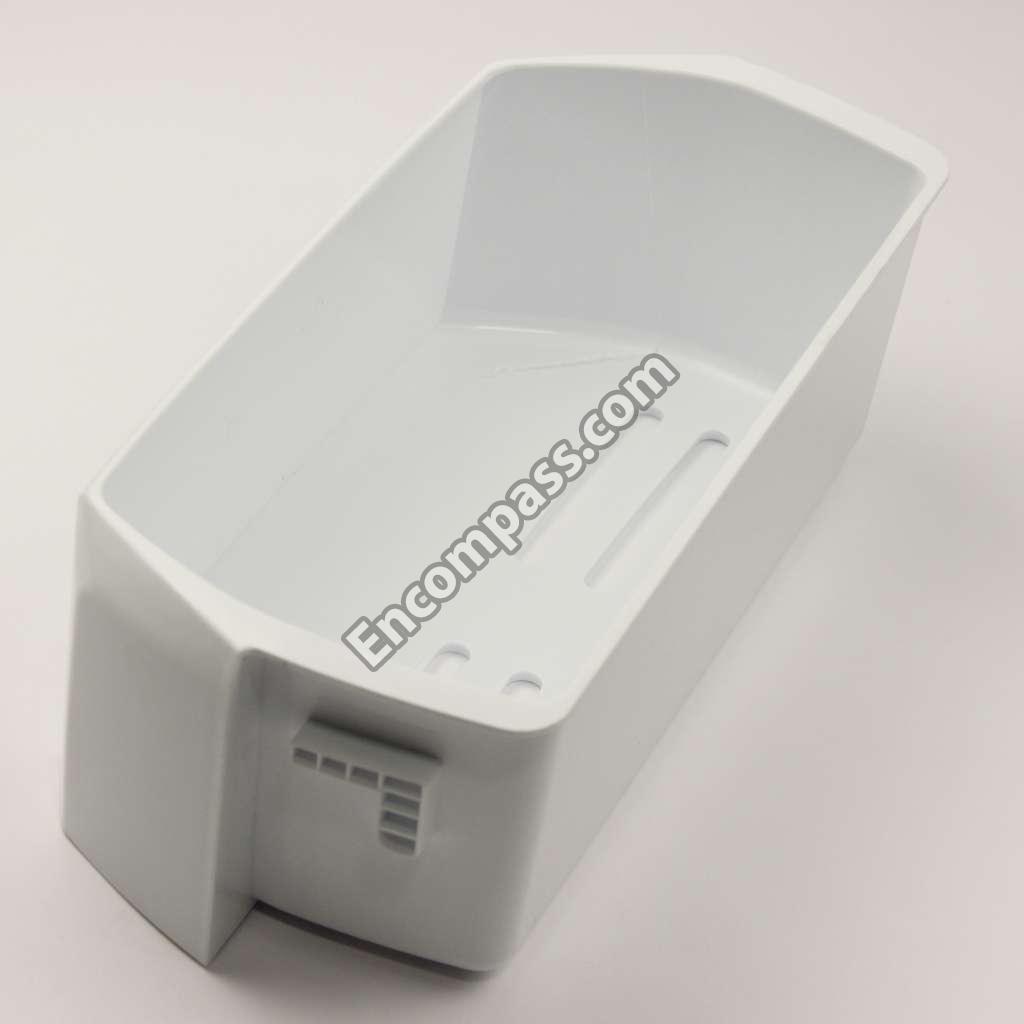

MAN62508901 MAN62508901 BASKET,DOOR
MAN62449101 MAN62449101 BASKET,DOOR
MAN62448701 MAN62448701 BASKET,DOOR
ABA72913304 ABA72913304 BRACKET ASSEMBLY,MOTOR
4810JJ2005A 4810JJ2005A BRACKET,MOTOR
AKC72949312 AKC72949312 BUCKET ASSEMBLY,ICE
ABN72938914 ABN72938914 CAP ASSEMBLY,DUCT
5007JA3007C 5007JA3007C CAP ASSEMBLY,HEAD
MBL67039201 MBL67039201 CAP,COVER
MBL64918601 MBL64918601 CAP,DUCT
EAE58905704 EAE58905704 CAPACITOR,ELEC APPLIANCE FILM,RADIAL
0CZZJB2014S 0CZZJB2014S CAPACITOR,ELECTRIC APPLIANCE FILM,BOX
MBN62023801 MBN62023801 CASE,LAMP
TCA35271201 TCA35271201 COMPRESSOR,SET ASSEMBLY
ACG73104504 ACG73104504 CONDENSER ASSEMBLY,WIRE
4403JJ3001B 4403JJ3001B CONNECTOR ASSEMBLY
MCD61841107 MCD61841107 CONNECTOR,RAIL
MCD61841106 MCD61841106 CONNECTOR,RAIL
MCD63827601 MCD63827601 CONNECTOR,TUBE
6615JB2005N 6615JB2005N CONTROLLER ASSEMBLY

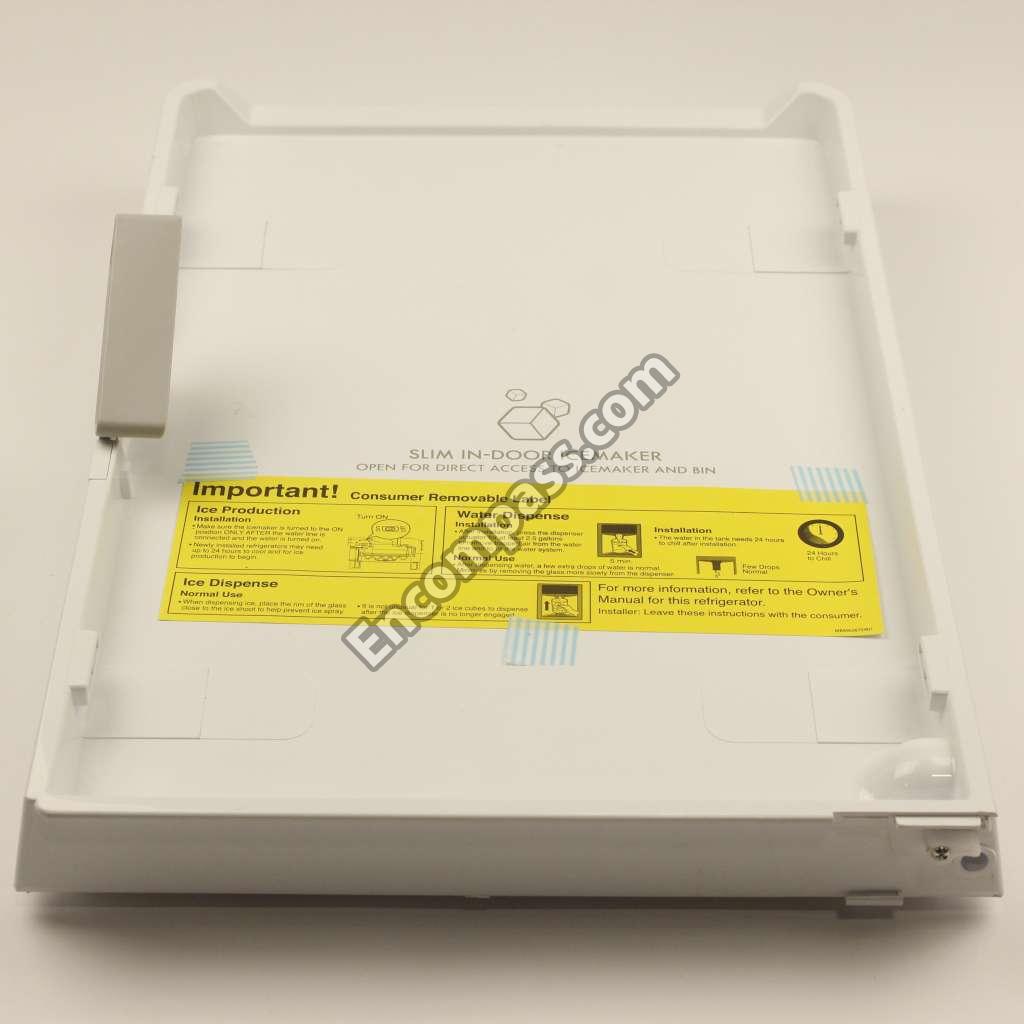

ACQ85995304 ACQ85995304 COVER ASSEMBLY,BUCKET ICE
ACQ75432132 ACQ75432132 COVER ASSEMBLY,DISPLAY
ACQ34533388 ACQ34533388 COVER ASSEMBLY,HINGE
ACQ34533347 ACQ34533347 COVER ASSEMBLY,HINGE
ACQ33676513 ACQ33676513 COVER ASSEMBLY,LAMP
ACQ55957506 ACQ55957506 COVER ASSEMBLY,LOWER
ACQ77080101 ACQ77080101 COVER ASSEMBLY,MACHINERY(REAR)
ACQ85329203 ACQ85329203 COVER ASSEMBLY,PCB
ACQ73152604 ACQ73152604 COVER ASSEMBLY,TRAY

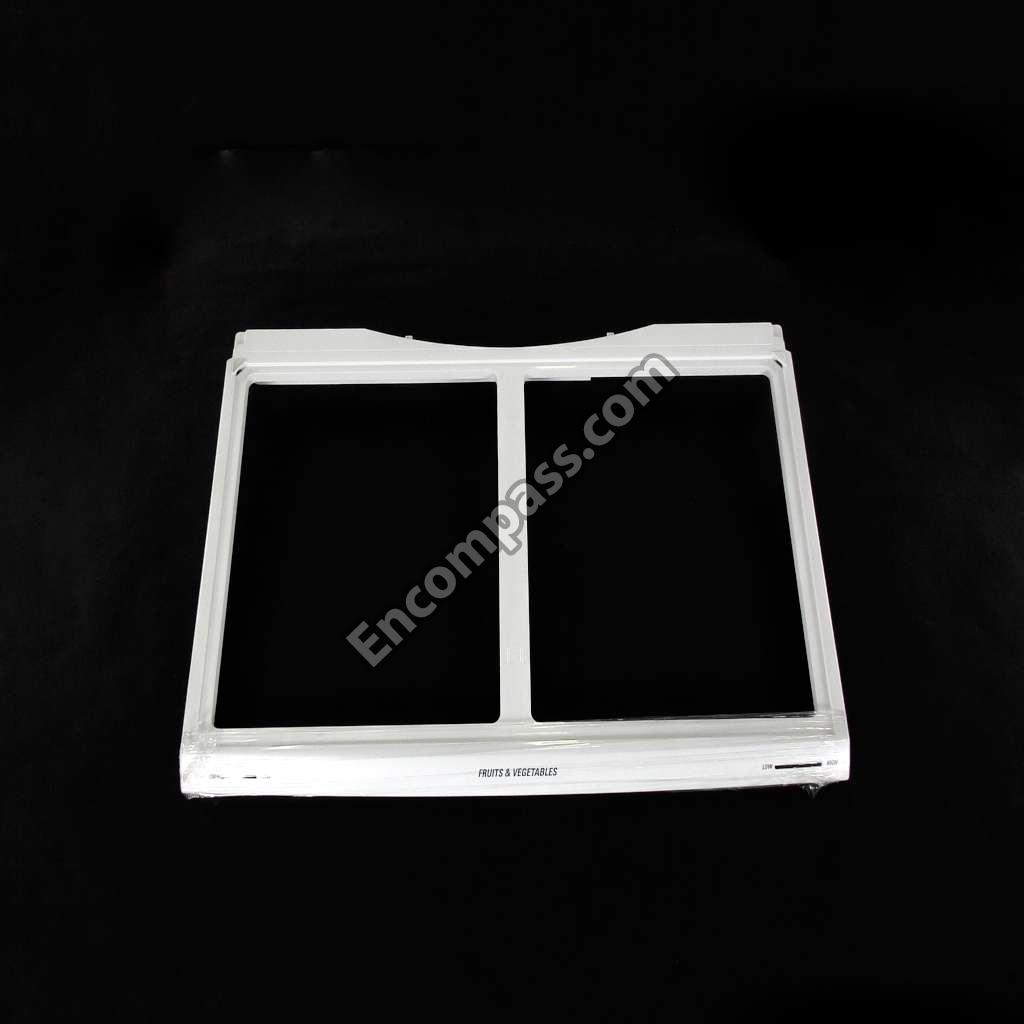

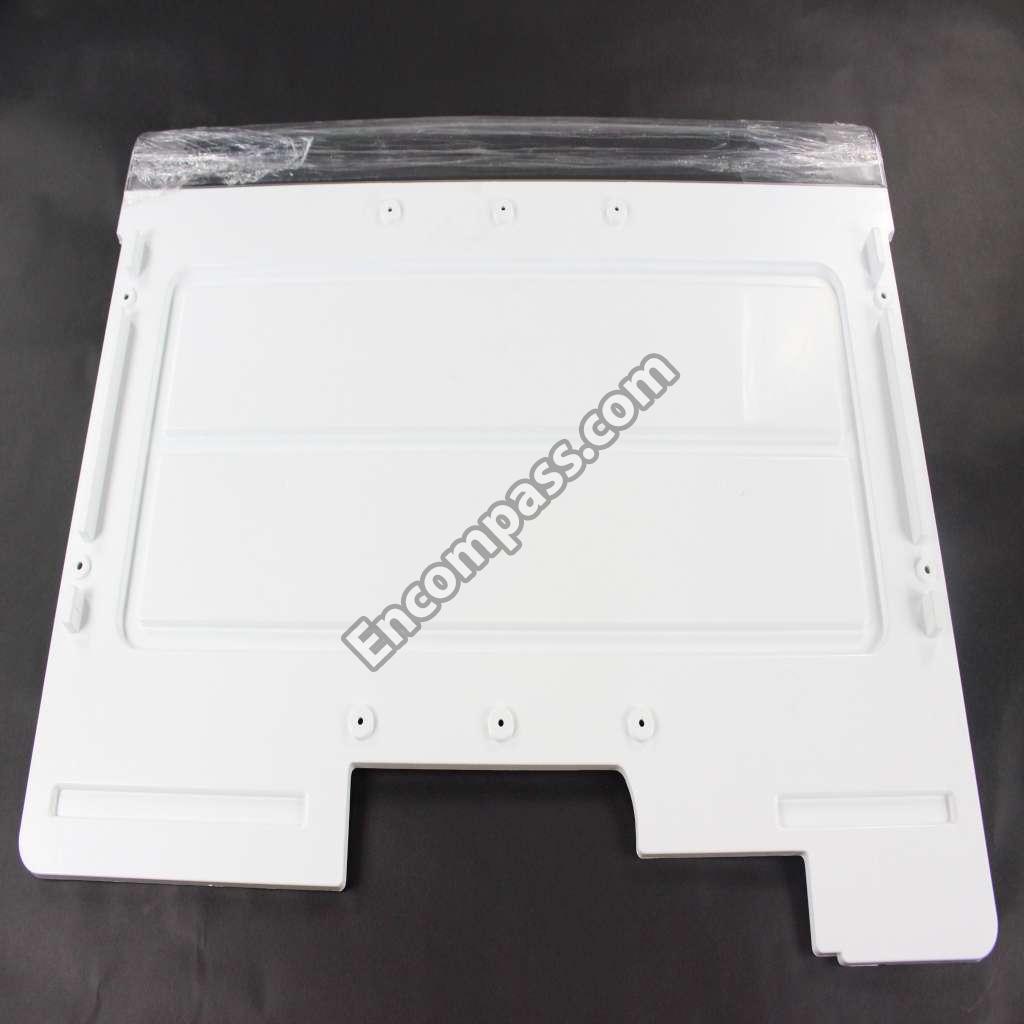

ACQ85626203 ACQ85626203 COVER ASSEMBLY,TRAY VEGETABLE
ACQ85624102 ACQ85624102 COVER ASSEMBLY,TRAY VEGETABLE
MCK63726801 MCK63726801 COVER,DISPLAY
MCK67227905 MCK67227905 COVER,DOOR SWITCH
MCK63645801 MCK63645801 COVER,FRONT
MCK66668601 MCK66668601 COVER,HOME BAR
MCK62375001 MCK62375001 COVER,LAMP
MCK63645501 MCK63645501 COVER,LAMP
MCK63765901 MCK63765901 COVER,LOWER
3550JA2110B 3550JA2110B COVER,PTC
MCK69290701 MCK69290701 COVER,TUBE
MCQ66921101 MCQ66921101 DAMPER,COMPRESSOR
5040JJ2001A 5040JJ2001A DAMPER,MOTOR SUPPORT
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT
5040JA2004B 5040JA2004B DAMPER,MOTOR SUPPORT

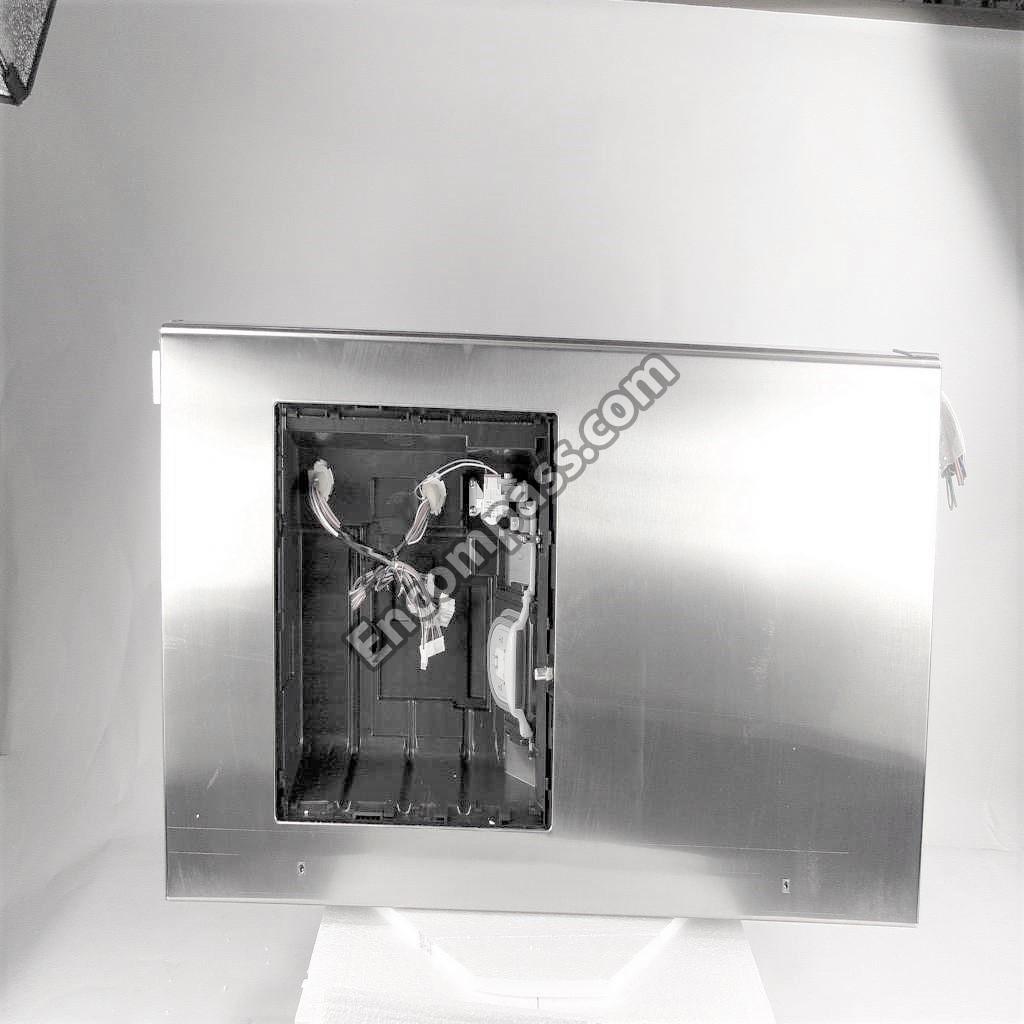

ADD73497602 ADD73497602 DOOR ASSEMBLY,REFRIGERATOR(LEFT)
ADD36429816 ADD36429816 DOOR ASSEMBLY,REFRIGERATOR(RIGHT)
ADC52734117 ADC52734117 DOOR FOAM ASSEMBLY,FREEZER
ADH73150208 ADH73150208 DRIER ASSEMBLY
ADJ72909822 ADJ72909822 DUCT ASSEMBLY,MULTI
MCZ62372201 MCZ62372201 DUCT,CONNECTOR
ADL73161702 ADL73161702 EVAPORATOR ASSEMBLY
ADP36665702 ADP36665702 FAN ASSEMBLY
ADP73694301 ADP73694301 FAN ASSEMBLY
ADQ72911006 ADQ72911006 FILTER ASSEMBLY,HEAD
5231JA2002A 5231JA2002A FILTER ASSEMBLY,WATER
ADX73571205 ADX73571205 GASKET ASSEMBLY,DOOR
ADX73350963 ADX73350963 GASKET ASSEMBLY,DOOR
ADX73350636 ADX73350636 GASKET ASSEMBLY,DOOR
ADX73350635 ADX73350635 GASKET ASSEMBLY,DOOR
AEB73564902 AEB73564902 GRILLE ASSEMBLY,FAN
AEC73438104 AEC73438104 GUIDE ASSEMBLY,RAIL
AEC73438101 AEC73438101 GUIDE ASSEMBLY,RAIL
AEC73437801 AEC73437801 GUIDE ASSEMBLY,RAIL
MEG62760504 MEG62760504 GUIDE ASSEMBLY,RAIL
AEC73437603 AEC73437603 GUIDE ASSEMBLY,RAIL
AEC73437604 AEC73437604 GUIDE ASSEMBLY,RAIL
AEC73437601 AEC73437601 GUIDE ASSEMBLY,RAIL
AEC73437902 AEC73437902 GUIDE ASSEMBLY,TRAY VEGETABLE
AEC73437901 AEC73437901 GUIDE ASSEMBLY,TRAY VEGETABLE
MEA62651201 MEA62651201 GUIDE,DRAWER
MEA62651101 MEA62651101 GUIDE,FAN
AED37133105 AED37133105 HANDLE ASSEMBLY,FREEZER
AED37082916 AED37082916 HANDLE ASSEMBLY,REFRIGERATOR
MEB64014304 MEB64014304 HANDLE,REAR
EAD61050803 EAD61050803 HARNESS ASSEMBLY
5300JB1100J 5300JB1100J HEATER,SHEATH
AEH71135372 AEH71135372 HINGE ASSEMBLY,CENTER
AEH71135310 AEH71135310 HINGE ASSEMBLY,CENTER
AEH36821910 AEH36821910 HINGE ASSEMBLY,CENTER
AEH36821908 AEH36821908 HINGE ASSEMBLY,CENTER
AEH36582701 AEH36582701 HINGE ASSEMBLY,LOWER
AEH75256504 AEH75256504 HINGE ASSEMBLY,UPPER
AEH75256503 AEH75256503 HINGE ASSEMBLY,UPPER
AEH73696402 AEH73696402 HINGE ASSEMBLY,UPPER
MEG62760302 MEG62760302 HOLDER ASSEMBLY
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET
MEG62760401 MEG62760401 HOLDER,BRACKET
MEG61899901 MEG61899901 HOLDER,DOOR
4930JA3034A 4930JA3034A HOLDER,DRIER
4930JA3043A 4930JA3043A HOLDER,LEVER
MEG62760301 MEG62760301 HOLDER,RAIL
4930JJ2004D 4930JJ2004D HOLDER,SHELF
4930JJ2003D 4930JJ2003D HOLDER,SHELF

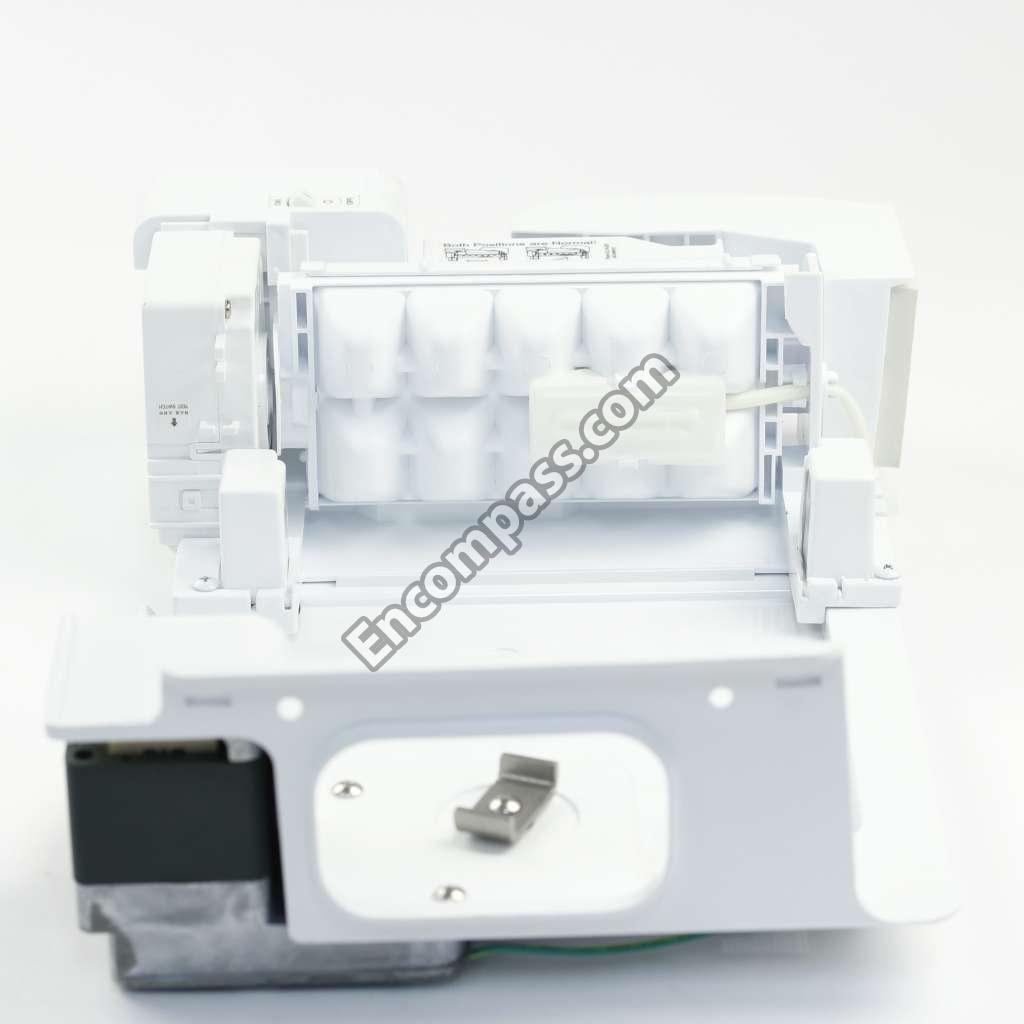

AEQ72910409 AEQ72910409 ICE MAKER ASSEMBLY,KIT
MEY62354001 MEY62354001 KNOB,SHUTTER
6912JB2004M 6912JB2004M LAMP,INCANDESCENT

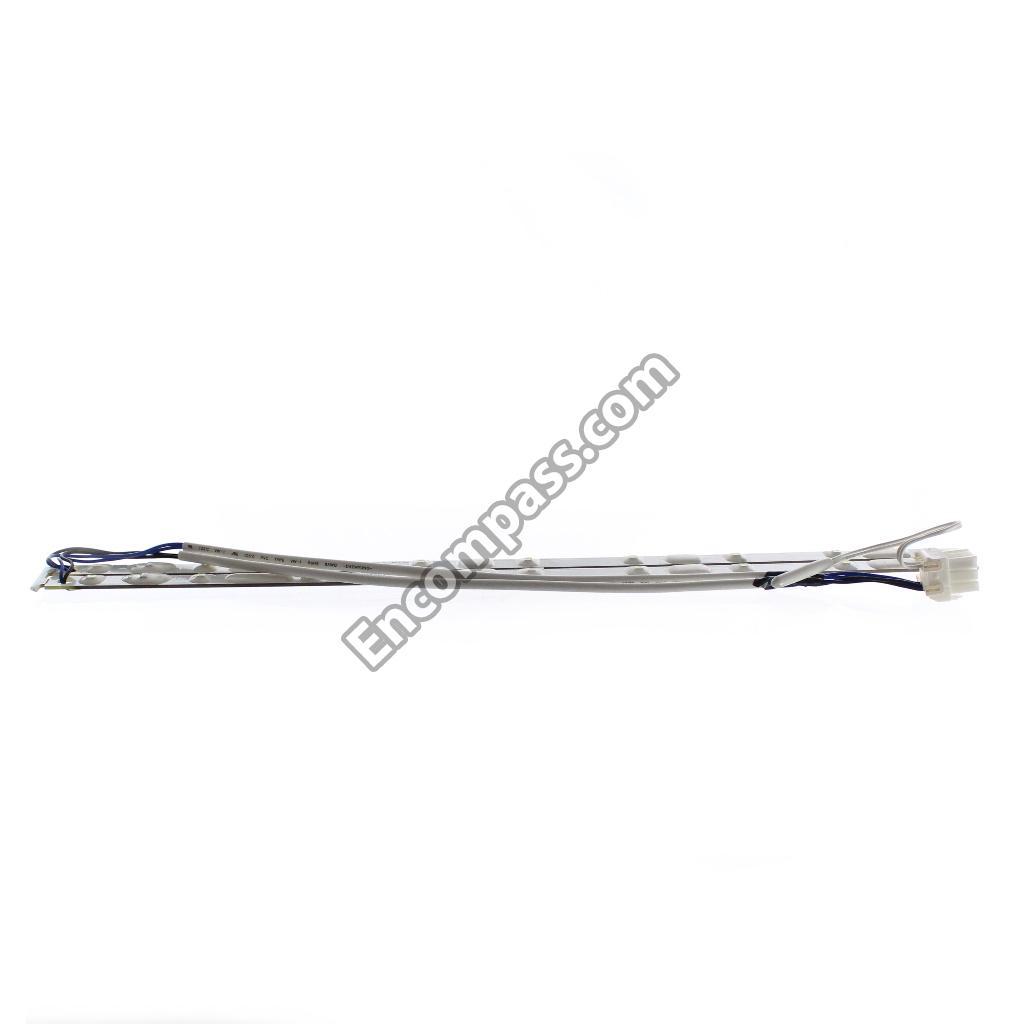

EAV62052302 EAV62052302 LED ASSEMBLY
4779JQ3003J 4779JQ3003J LEG ASSEMBLY,ADJUST
MFC62009502 MFC62009502 LEVER,DISPENSER
MFC62009501 MFC62009501 LEVER,DISPENSER
MFF62123001 MFF62123001 LINK
ADQ72910912 ADQ72910912 LT500P REFRIDGERATER WATER FILTER (3 PK)
ADQ72910911 ADQ72910911 LT500P REFRIGERATOR WATER FILTER
4681JB1029D 4681JB1029D MOTOR ASSEMBLY,DC,COOLING
EAU60784204 EAU60784204 MOTOR, AC INDOOR
EAU60783816 EAU60783816 MOTOR,AC
EAU59551204 EAU59551204 MOTOR,DC
4681JB1027C 4681JB1027C MOTOR,DC
MFT62346511 MFT62346511 NAME PLATE
6750CL0001D 6750CL0001D OVERLOAD PROTECT

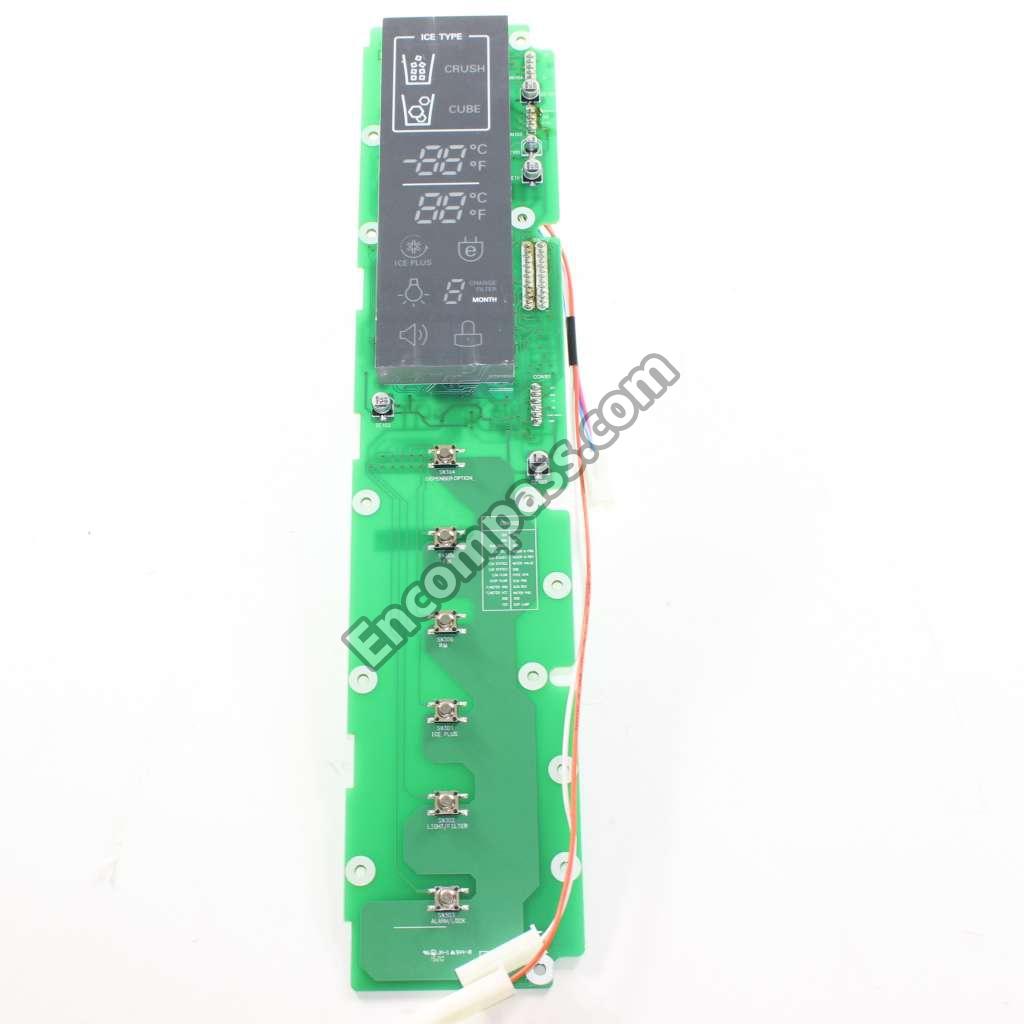

EBR67357902 EBR67357902 PCB ASSEMBLY,DISPLAY
EBR73304231 EBR73304231 PCB ASSEMBLY,MAIN
1PZZJA3013B 1PZZJA3013B PIN,COMMON
MGE39575306 MGE39575306 PIPE,COMPRESSOR SEALING
MGE62010602 MGE62010602 PIPE,COMPRESSOR SEALING
AGU75188619 AGU75188619 PLATE ASSEMBLY,FRONT
6411JB1042Z 6411JB1042Z POWER CORD ASSEMBLY
5218JA1010F 5218JA1010F RAIL,SLIDE
5218JA1010E 5218JA1010E RAIL,SLIDE
MGZ42997101 MGZ42997101 RING
4580JJ3001A 4580JJ3001A ROLLER
AHJ73150001 AHJ73150001 ROLLER ASSEMBLY
AHJ73130001 AHJ73130001 ROLLER ASSEMBLY
FAB30025701 FAB30025701 SCREW,CUSTOMIZED
FAB30138101 FAB30138101 SCREW,SET
6500JB2002X 6500JB2002X SENSOR,TEMPERATURE

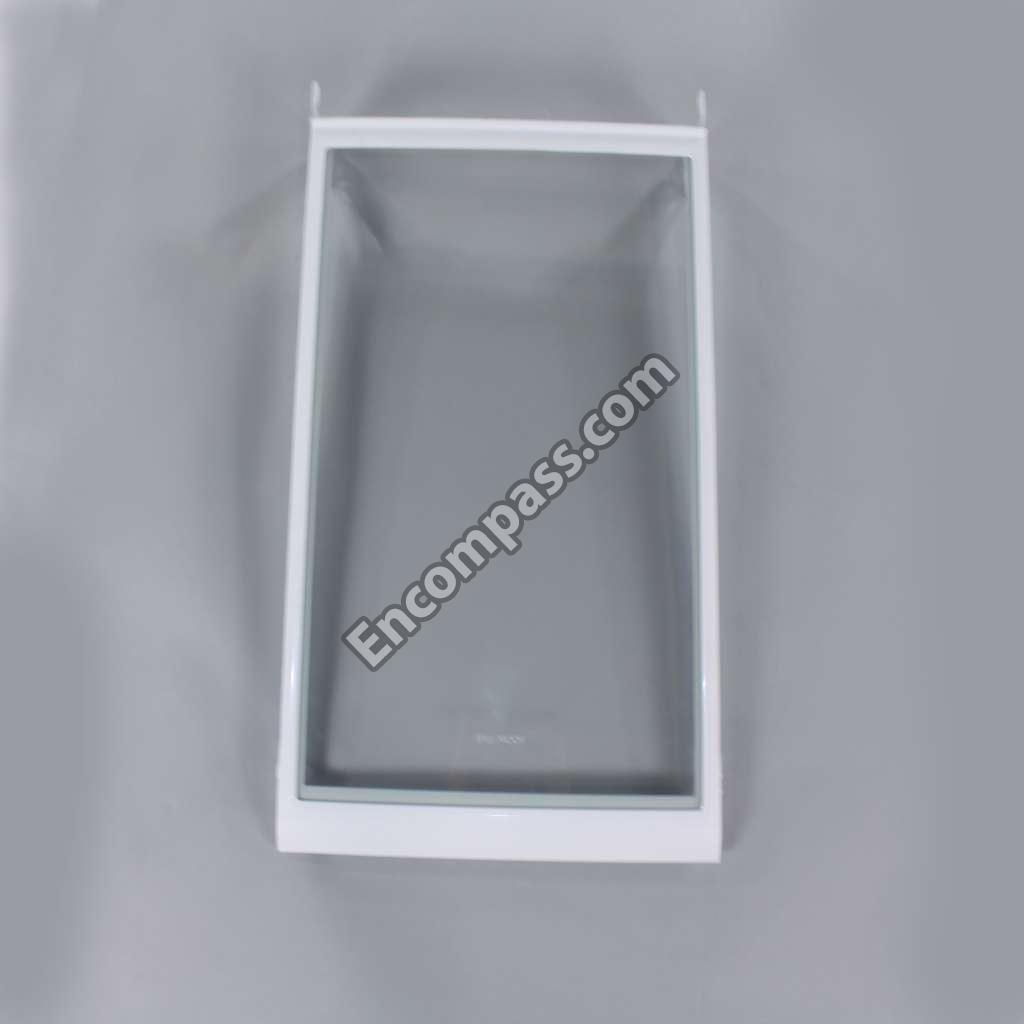

AHT73314106 AHT73314106 SHELF ASSEMBLY,REFRIGERATOR
AHT73314103 AHT73314103 SHELF ASSEMBLY,REFRIGERATOR

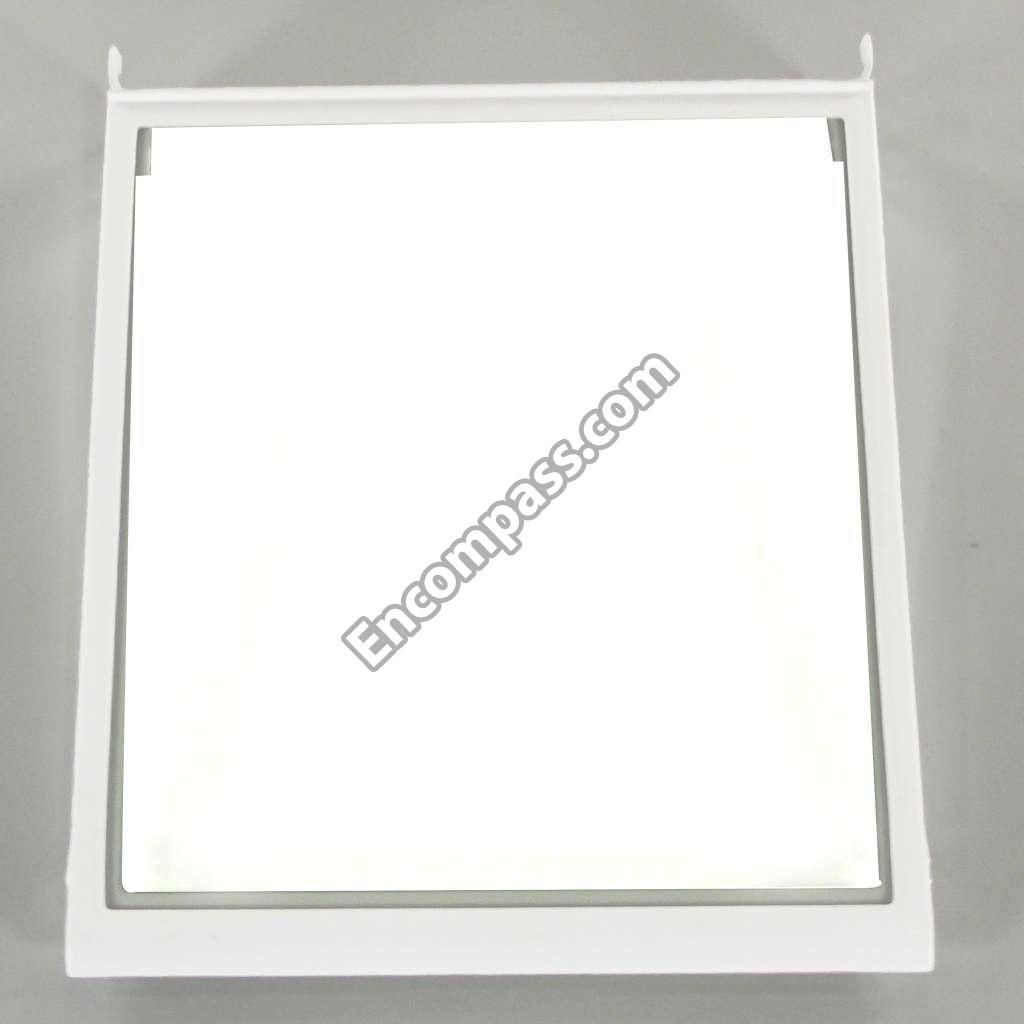

MHL42613217 MHL42613217 SHELF,GLASS
MHL38615404 MHL38615404 SHELF,NET
5026JJ2001G 5026JJ2001G SHELF,NET
MHN62322002 MHN62322002 SHROUD,FREEZER
5070JJ3004D 5070JJ3004D SKIRT,LOWER
MHU62101101 MHU62101101 SPANNER
4970JA3011K 4970JA3011K SPRING,LEVER
AJC73112301 AJC73112301 STOPPER ASSEMBLY,DOOR
AJC73112302 AJC73112302 STOPPER ASSEMBLY,DOOR
4620JA3015A 4620JA3015A STOPPER,COMPRESSOR
4620JJ2010H 4620JJ2010H STOPPER,HANDLE
6600JB3007K 6600JB3007K SWITCH,PUSH BUTTON
6600JB1010A 6600JB1010A SWITCH,PUSH BUTTON
4838JA2003E 4838JA2003E TANK,WATER
EBG60663205 EBG60663205 THERMISTOR ASSEMBLY,PTC
3391JJ2013F 3391JJ2013F TRAY ASSEMBLY,DRAIN

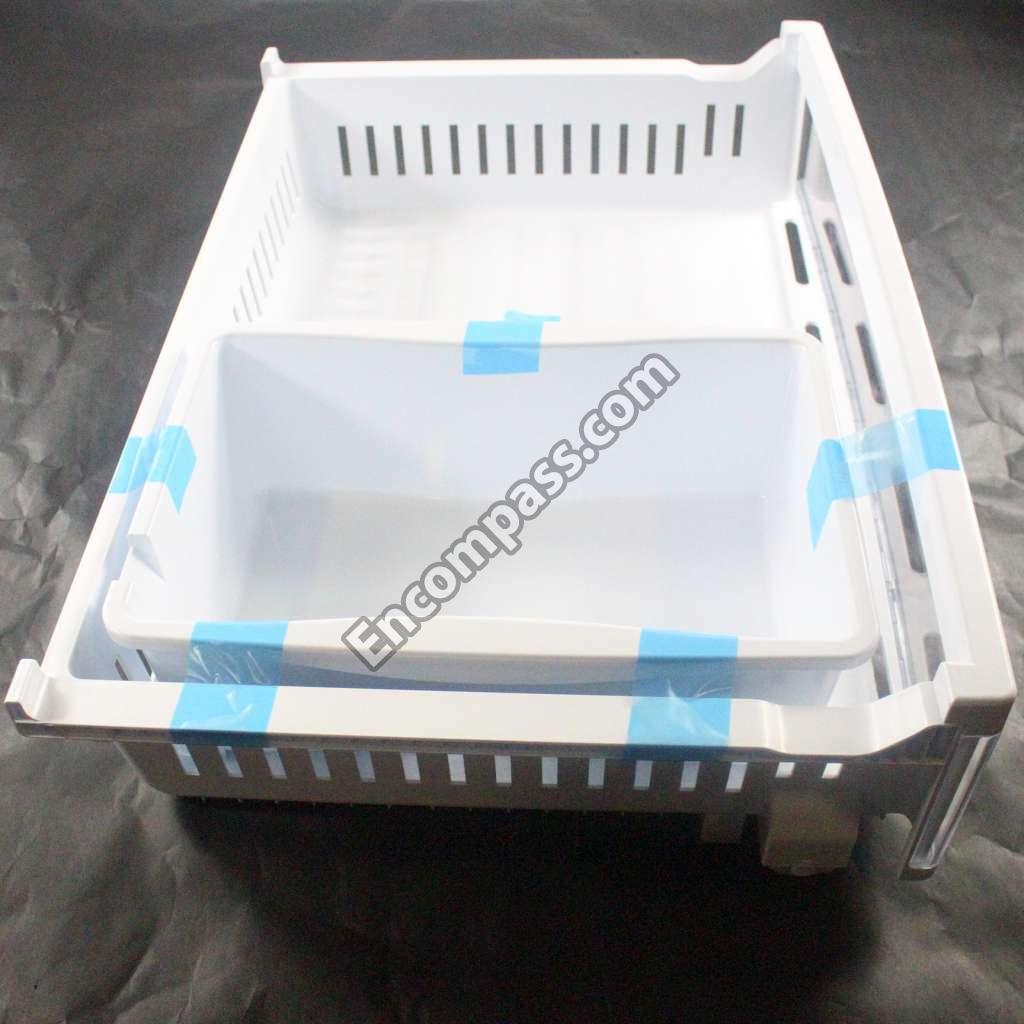

AJP72909907 AJP72909907 TRAY ASSEMBLY,DRAWER
AJP72909811 AJP72909811 TRAY ASSEMBLY,DRAWER
AJP73455001 AJP73455001 TRAY ASSEMBLY,FRESH ROOM
AJP73455407 AJP73455407 TRAY ASSEMBLY,VEGETABLE
AJP72910219 AJP72910219 TRAY ASSEMBLY,VEGETABLE
MJS63852101 MJS63852101 TRAY,DRAWER
MJS61991901 MJS61991901 TRAY,DRIP
AJP72909810 AJP72909810 TRAY,FREEZER
5251JA3003E 5251JA3003E TUBE ASSEMBLY,DRAIN
MJU62709001 MJU62709001 TUBE,PLASTIC
MJU62308106 MJU62308106 TUBE,PLASTIC
AJU72992601 AJU72992601 VALVE ASSEMBLY,WATER
5221JB2010U 5221JB2010U VALVE ASSEMBLY,WATER
4J00382C 4J00382C WASHER,COMMON
