Model Image
Manufacturer

LG

Model Number

LFX25980ST

Description

3-door French Door Refrigerator With Ice And Water

Interactive Exploded View

Parts List

Part Number Description
AJP73934505 AJP73934505 LG BAR
4270JA3009N 4270JA3009N LG BAR [250A]
3103JJ1001H 3103JJ1001H LG BASE ASSEMBLY,COMPRESSOR
AAP33686302 AAP33686302 LG BASKET ASSEMBLY,DOOR
AAP33751402 AAP33751402 LG BASKET ASSEMBLY,DOOR [241D]
AAP33726606 AAP33726606 LG BASKET ASSEMBLY,DOOR [241G]
AAP33726601 AAP33726601 LG BASKET ASSEMBLY,DOOR [241H]
MAN38154501 MAN38154501 LG BASKET,DOOR
AAP73871401 AAP73871401 LG BASKET,DOOR [205A]
5004JA2017A 5004JA2017A LG BASKET,TILT [205B]
5004JA2017B 5004JA2017B LG BASKET,TILT [205C]
MAN38143001 MAN38143001 LG BASKET,WINDOW [241C]
1BZZJA2002A 1BZZJA2002A LG BOLT,COMMON [B04]
4810JJ0003A 4810JJ0003A LG BRACKET,MOTOR
4810JA2129A 4810JA2129A LG BRACKET,MOTOR [405B]
5075JA1044E 5075JA1044E LG BUCKET ASSEMBLY,ICE
5074JA2004A 5074JA2004A LG BUCKET,ICE [131A]
ABH33740301 ABH33740301 LG BUTTON ASSEMBLY
ABH34641101 ABH34641101 LG BUTTON ASSEMBLY [277A]
ABH34641102 ABH34641102 LG BUTTON ASSEMBLY [277B]
ABH34641103 ABH34641103 LG BUTTON ASSEMBLY [277C]
ABH34641104 ABH34641104 LG BUTTON ASSEMBLY [277D]
ABH34641105 ABH34641105 LG BUTTON ASSEMBLY [277E]
ABH34641106 ABH34641106 LG BUTTON ASSEMBLY [277F]
ABH34641107 ABH34641107 LG BUTTON ASSEMBLY [277G]
ABH34641108 ABH34641108 LG BUTTON ASSEMBLY [277H]
ABH33777901 ABH33777901 LG BUTTON ASSEMBLY [279G]
ABH34641201 ABH34641201 LG BUTTON ASSEMBLY [500E]
MBG38252601 MBG38252601 LG BUTTON,LEVER [279J]
MBJ38219001 MBJ38219001 LG CAM,LOCKER [262C]
4430JJ2004A 4430JJ2004A LG CAM,SHAFT [234A]
4430JJ2004B 4430JJ2004B LG CAM,SHAFT [234B]
5007JA3006T 5007JA3006T LG CAP ASSEMBLY,DUCT [275A]
5006JA2069A 5006JA2069A LG CAP,COVER [250D]
MEG61879201 MEG61879201 LG CAP,COVER [623B]
MBL38019501 MBL38019501 LG CAP,DUCT [282F]
MBL38019801 MBL38019801 LG CAP,DUCT [282G]
0CZZJB2014S 0CZZJB2014S LG CAPACITOR,ELECTRIC APPLIANCE FILM,BOX
3111JB1017M 3111JB1017M LG CASE ASSEMBLY,PCB [410J]
MBN38018601 MBN38018601 LG CASE,LAMP [503D]
ACQ75432188 ACQ75432188 LG CASE,PCB [279D]
3110JA1108A 3110JA1108A LG CASE,PCB [502B]
ABY72909003 ABY72909003 LG CKD ASSEMBLY [1]
ABY72909007 ABY72909007 LG CKD ASSEMBLY [1]
ABY72909011 ABY72909011 LG CKD ASSEMBLY [1]
ABY72909002 ABY72909002 LG CKD ASSEMBLY [SVC]
4860JA3010A 4860JA3010A LG CLAMP [630M]
4860JA3010B 4860JA3010B LG CLAMP [630N]
4004JA3002A 4004JA3002A LG CLIP [603A]
4004JA3003A 4004JA3003A LG CLIP [603C]
TCA37091209 TCA37091209 LG COMPRESSOR,SET ASSEMBLY
2521C-A7256 2521C-A7256 LG COMPRESSOR,SET ASSEMBLY
ACG72984401 ACG72984401 LG CONDENSER ASSEMBLY,WIRE
ACG73964501 ACG73964501 LG CONDENSER ASSEMBLY,WIRE [323B]
ACJ36695101 ACJ36695101 LG CONNECTOR ASSEMBLY
ACJ36625801 ACJ36625801 LG CONNECTOR ASSEMBLY
ACJ36625802 ACJ36625802 LG CONNECTOR ASSEMBLY
ACJ36625808 ACJ36625808 LG CONNECTOR ASSEMBLY [249P]
ACJ36625807 ACJ36625807 LG CONNECTOR ASSEMBLY [249Q]
4403JA3005A 4403JA3005A LG CONNECTOR ASSEMBLY [250B]
MCD62748402 MCD62748402 LG CONNECTOR,RAIL [145K]
4932JA1010B 4932JA1010B LG CONNECTOR,RAIL [145K]
4932JA1009A 4932JA1009A LG CONNECTOR,RAIL [145M]
4932JA1010A 4932JA1010A LG CONNECTOR,RAIL [145M]
4932JJ2009B 4932JJ2009B LG CONNECTOR,TILT [249R]
4932JA3009A 4932JA3009A LG CONNECTOR,TUBE [616H]
6615JB2005H 6615JB2005H LG CONTROLLER ASSEMBLY [400A]
EBR35287601 EBR35287601 LG COVER ASSEMBLY,DISPLAY [279A]
3551JJ2030B 3551JJ2030B LG COVER ASSEMBLY,FRONT [233C]
3551JJ2030A 3551JJ2030A LG COVER ASSEMBLY,FRONT [233D]
3551JJ2028A 3551JJ2028A LG COVER ASSEMBLY,GRILLE FAN
ACQ33751001 ACQ33751001 LG COVER ASSEMBLY,LAMP [503F]
ACQ55957501 ACQ55957501 LG COVER ASSEMBLY,LOWER [103C]
3551JJ2018A 3551JJ2018A LG COVER ASSEMBLY,MACHINERY(REAR) [313A]
ACQ86388101 ACQ86388101 LG COVER ASSEMBLY,PCB [501F]
ACQ34639401 ACQ34639401 LG COVER ASSEMBLY,TV
3550JA1455C 3550JA1455C LG COVER,CONNECTOR [249G]
3550JA1455D 3550JA1455D LG COVER,CONNECTOR [249H]
MCK38022301 MCK38022301 LG COVER,DISPENSER
3550JD1128E 3550JD1128E LG COVER,FILTER [624C]
3550JA2279A 3550JA2279A LG COVER,FILTER [626A]
MCK38163201 MCK38163201 LG COVER,FRONT [312B]
MCK39813801 MCK39813801 LG COVER,GLASS
MCK67447705 MCK67447705 LG COVER,HINGE [207A]
3550JJ1097R 3550JJ1097R LG COVER,HINGE [207B]
3550JA2267B 3550JA2267B LG COVER,HINGE [281D]
3550JA2267A 3550JA2267A LG COVER,HINGE [281E]
3550JA2264A 3550JA2264A LG COVER,HINGE [281F]
3550JA3188A 3550JA3188A LG COVER,HOME BAR [630H]
MCK38019301 MCK38019301 LG COVER,LAMP [158A]
MCK38015101 MCK38015101 LG COVER,LAMP [158B]
MCK38209801 MCK38209801 LG COVER,PCB [279E]
3550JA1405A 3550JA1405A LG COVER,PCB [502A]
3550JA2042C 3550JA2042C LG COVER,PTC [304A]
MCK39131501 MCK39131501 LG COVER,SENSOR [152B]
3550JA2247A 3550JA2247A LG COVER,SENSOR [610A]
3550JA2184B 3550JA2184B LG COVER,TUBE [625A]
5040JA3075A 5040JA3075A LG DAMPER [281G]
5040JA3071A 5040JA3071A LG DAMPER,COMPRESSOR [312A]
5040JA2009B 5040JA2009B LG DAMPER,MOTOR SUPPORT [405C]
5040JA2004A 5040JA2004A LG DAMPER,MOTOR SUPPORT [405F]
5072JA3003F 5072JA3003F LG DAMPER,NOISE [316A]
5072JA3003B 5072JA3003B LG DAMPER,NOISE [316B]
MCQ42969201 MCQ42969201 LG DAMPER,PIPE [281G]
5040JA3056A 5040JA3056A LG DAMPER,PIPE [327A]
4J03020A 4J03020A LG DAMPER,PIPE [328A]
3806JA2146E 3806JA2146E LG DECOR ASSEMBLY,CASE [207C]
ACW33739001 ACW33739001 LG DECOR ASSEMBLY,TRAY [136C]
MCR38009801 MCR38009801 LG DECOR,DRAIN [281A]
3806JA2119A 3806JA2119A LG DECOR,HANDLE [630E]
3581JA1182H 3581JA1182H LG DOOR ASSEMBLY,FREEZE ROOM
3581JA8820U 3581JA8820U LG DOOR ASSEMBLY,FREEZER [200A]
3581JA8815V 3581JA8815V LG DOOR ASSEMBLY,REFRIGERATOR(LEFT) [230B]
3581JA8815X 3581JA8815X LG DOOR ASSEMBLY,REFRIGERATOR(LEFT) [230B]
3581JA8814Q 3581JA8814Q LG DOOR ASSEMBLY,REFRIGERATOR(RIGHT)
ADD33201001 ADD33201001 LG DOOR FOAM ASSEMBLY,FREEZER [201A]
5433JA2071C 5433JA2071C LG DOOR FOAM ASSEMBLY,HOME BAR [630B]
ADD33201401 ADD33201401 LG DOOR FOAM ASSEMBLY,REFRIGERATOR [231B]
ADD33201402 ADD33201402 LG DOOR FOAM ASSEMBLY,REFRIGERATOR [231B]
AJU72992601 AJU72992601 LG DRAWING,ASSEMBLY
6877JB2051F 6877JB2051F LG DRAWING,ASSEMBLY [303D]
ADH73150208 ADH73150208 LG DRIER ASSEMBLY [317A]
5209JA1044A 5209JA1044A LG DUCT ASSEMBLY,CONNECTOR [407A]
ADJ33675302 ADJ33675302 LG DUCT ASSEMBLY,MULTI
ADJ33675301 ADJ33675301 LG DUCT ASSEMBLY,MULTI [120A]
5421JJ1003S 5421JJ1003S LG EVAPORATOR ASSEMBLY [301A]
5901JA1022A 5901JA1022A LG FAN ASSEMBLY [329A]
5901JA1013A 5901JA1013A LG FAN ASSEMBLY [329C]
ADP36665705 ADP36665705 LG FAN ASSEMBLY [329C]
5231JA2006A 5231JA2006A LG FILTER ASSEMBLY,WATER
5231JA2006F 5231JA2006F LG FILTER ASSEMBLY,WATER [624A]
5230JA2003A 5230JA2003A LG FILTER,HEAD [624D]
MDR38029101 MDR38029101 LG FUNNEL
4987JJ2002R 4987JJ2002R LG GASKET ASSEMBLY,DOOR
4987JJ2002Q 4987JJ2002Q LG GASKET ASSEMBLY,DOOR
4987JJ2002S 4987JJ2002S LG GASKET ASSEMBLY,DOOR [233A]
4987JJ2002T 4987JJ2002T LG GASKET ASSEMBLY,DOOR [233B]
ADX72909701 ADX72909701 LG GASKET ASSEMBLY,DOOR [630C]
4987JA3025H 4987JA3025H LG GASKET ASSEMBLY,DOOR [630J]
MDS64172919 MDS64172919 LG GASKET,DOOR [203A]
4470JA2008A 4470JA2008A LG GEAR,ICE [250C]
AEB34270101 AEB34270101 LG GRILLE ASSEMBLY,FAN [332C]
AEC73877601 AEC73877601 LG GUIDE ASSEMBLY,RAIL
AEC73877602 AEC73877602 LG GUIDE ASSEMBLY,RAIL
AEC34652101 AEC34652101 LG GUIDE ASSEMBLY,RAIL [140C]
AEC34652102 AEC34652102 LG GUIDE ASSEMBLY,RAIL [140D]
AEC34513701 AEC34513701 LG GUIDE ASSEMBLY,TV [237C]
4974JJ1036A 4974JJ1036A LG GUIDE,FAN [319C]
MEA42257901 MEA42257901 LG GUIDE,FAN [319C]
4974JA2055A 4974JA2055A LG GUIDE,PITCHER
4974JA1154A 4974JA1154A LG GUIDE,RAIL [145H]
AED33208203 AED33208203 LG HANDLE ASSEMBLY,FREEZER [212D]
3651JA2281B 3651JA2281B LG HANDLE ASSEMBLY,REFRIGERATOR
3650JD1160D 3650JD1160D LG HANDLE,HOME BAR [630D]
MEB62055503 MEB62055503 LG HANDLE,REAR [103A]
3650JA2061X 3650JA2061X LG HANDLE,REAR [103B]
5300JK1005K 5300JK1005K LG HEATER,SHEATH [408A]
AEH34570002 AEH34570002 LG HINGE ASSEMBLY
AEH34570001 AEH34570001 LG HINGE ASSEMBLY
AEH33724102 AEH33724102 LG HINGE ASSEMBLY,CENTER
AEH33724104 AEH33724104 LG HINGE ASSEMBLY,CENTER [262H]
AEH74156201 AEH74156201 LG HINGE ASSEMBLY,LOWER [630G]
AEH74216502 AEH74216502 LG HINGE ASSEMBLY,UPPER
4775JJ2014A 4775JJ2014A LG HINGE ASSEMBLY,UPPER [271C]
AEH74216501 AEH74216501 LG HINGE ASSEMBLY,UPPER [271D]
4775JA2101A 4775JA2101A LG HINGE ASSEMBLY,UPPER [630F]
4774JJ3002A 4774JJ3002A LG HINGE,LOWER
AEJ73579702 AEJ73579702 LG HOLDER ASSEMBLY,BRACKET [607A]
4931JJ2002B 4931JJ2002B LG HOLDER ASSEMBLY,GASKET
4931JJ2002C 4931JJ2002C LG HOLDER ASSEMBLY,GASKET
4931JJ2002E 4931JJ2002E LG HOLDER ASSEMBLY,GASKET [234C]
4931JJ2002F 4931JJ2002F LG HOLDER ASSEMBLY,GASKET [234D]
4931JA3006A 4931JA3006A LG HOLDER ASSEMBLY,GASKET [406D]
4930JA3091A 4930JA3091A LG HOLDER,BRACKET [603B]
MEG38133301 MEG38133301 LG HOLDER,COVER [279K]
4930JA3034A 4930JA3034A LG HOLDER,DRIER [318A]
4930JA3054A 4930JA3054A LG HOLDER,PIPE [627A]
4930JA1066A 4930JA1066A LG HOLDER,RAIL [249C]
MEG41697601 MEG41697601 LG HOLDER,RAIL [249C]
4930JA1066B 4930JA1066B LG HOLDER,RAIL [249D]
MEG41697602 MEG41697602 LG HOLDER,RAIL [249D]
ADJ73852107 ADJ73852107 LG HOLDER,SHELF [145A]
MEG63060501 MEG63060501 LG HOLDER,SHELF [145B]
AEQ36756901 AEQ36756901 LG ICE MAKER ASSEMBLY,KIT [600A]
EAV33421101 EAV33421101 LG LED ASSEMBLY
AFC73349801 AFC73349801 LG LEG ASSEMBLY,ADJUST [106A]
MFA40012801 MFA40012801 LG LEG,ADJUST [262D]
5231JA2006K 5231JA2006K LG LT600P REFRIDGERATER WATER FILTER (3 PK)
4681JA1006D 4681JA1006D LG MOTOR,AC
EAU60943434 EAU60943434 LG MOTOR,AC [606A]
4681JB1027C 4681JB1027C LG MOTOR,DC [404A]
4681JB1029D 4681JB1029D LG MOTOR,DC [420A]
AFZ34128801 AFZ34128801 LG NAME PLATE ASSEMBLY [212G]
6750C-0004R 6750C-0004R LG OVERLOAD PROTECT [303C]
6871JB2074D 6871JB2074D LG PCB ASSEMBLY,DISPLAY [501D]
EBR34917101 EBR34917101 LG PCB ASSEMBLY,MAIN [500A]
EBR34917105 EBR34917105 LG PCB ASSEMBLY,MAIN [500A]
6871JB2061C 6871JB2061C LG PCB ASSEMBLY,SUB
EBR32820101 EBR32820101 LG PCB ASSEMBLY,SUB [500B]
EBR36498901 EBR36498901 LG PCB ASSEMBLY,TIMER/KEY [500D]
1PZZJA3013B 1PZZJA3013B LG PIN,COMMON [315C]
5201JJ1010N 5201JJ1010N LG PIPE ASSEMBLY,JOINT [310B]
4J00977P 4J00977P LG PIPE,COMPRESSOR SEALING [310B]
6411JB1042L 6411JB1042L LG POWER CORD ASSEMBLY [411A]
J469-00030B J469-00030B LG RACK [146A]
MGT39306304 MGT39306304 LG RAIL,SLIDE [161C]
MGT39306303 MGT39306303 LG RAIL,SLIDE [161D]
5218JA1010E 5218JA1010E LG RAIL,SLIDE [249E]
5218JA1010J 5218JA1010J LG RAIL,SLIDE [249E]
5218JA1010F 5218JA1010F LG RAIL,SLIDE [249F]
5218JA1010K 5218JA1010K LG RAIL,SLIDE [249F]
MHA62513601 MHA62513601 LG ROLLER [315B]
1SZZJJ3001B 1SZZJJ3001B LG SCREW,CUSTOMIZED [283D]
4000W4A003A 4000W4A003A LG SCREW,CUSTOMIZED [B01]
1STZJA3004F 1STZJA3004F LG SCREW,CUSTOMIZED [B02]
1SZZJA3005K 1SZZJA3005K LG SCREW,CUSTOMIZED [S01]
4J00415D 4J00415D LG SCREW,CUSTOMIZED [S02]
4J01424B 4J01424B LG SCREW,CUSTOMIZED [S03]
1SZZJJ3005E 1SZZJJ3005E LG SCREW,CUSTOMIZED [S08]
1SBZJA3004L 1SBZJA3004L LG SCREW,CUSTOMIZED [S10]
4J01425A 4J01425A LG SCREW,CUSTOMIZED [S11]
1SZZJJ3010C 1SZZJJ3010C LG SCREW,CUSTOMIZED [S14]
1SZZJA3016A 1SZZJA3016A LG SCREW,CUSTOMIZED [S20]
6500JB1008A 6500JB1008A LG SENSOR,TEMPERATURE [600B]
AHT33676301 AHT33676301 LG SHELF ASSEMBLY,REFRIGERATOR [140A]
AHT33676302 AHT33676302 LG SHELF ASSEMBLY,REFRIGERATOR [140B]
AHT33676201 AHT33676201 LG SHELF ASSEMBLY,REFRIGERATOR [141A]
EBE60661303 EBE60661303 LG SOLENOID ASSEMBLY [614A]
6421JB2002R 6421JB2002R LG SOLENOID,REVERSING,VALVE
MHU38218901 MHU38218901 LG SPANNER [262E]
4970JA3004J 4970JA3004J LG SPRING
4970JA3044A 4970JA3044A LG SPRING [630K]
4970JA3045A 4970JA3045A LG SPRING [630L]
4970JA3011K 4970JA3011K LG SPRING,LEVER [276A]
4620JA3015A 4620JA3015A LG STOPPER,COMPRESSOR [314A]
MJB38054102 MJB38054102 LG STOPPER,DOOR [243A]
MJB38054101 MJB38054101 LG STOPPER,DOOR [243B]
4620JJ2010B 4620JJ2010B LG STOPPER,HANDLE [B06]
MJH38067301 MJH38067301 LG SUPPORTER,COVER TV [154C]
6600JB3001C 6600JB3001C LG SWITCH,MICRO [402C]
6600JB3007K 6600JB3007K LG SWITCH,PUSH BUTTON [402A]
6600JB1010A 6600JB1010A LG SWITCH,PUSH BUTTON [406B]
4838JA2003A 4838JA2003A LG TANK,WATER
EBG31940225 EBG31940225 LG THERMISTOR ASSEMBLY,PTC
EBG32952202 EBG32952202 LG THERMISTOR ASSEMBLY,PTC [303B]
6749C-0014E 6749C-0014E LG THERMISTOR ASSEMBLY,PTC [303B]
AJP73574402 AJP73574402 LG TRAY ASSEMBLY,DRAIN [312C]
3391JA2054G 3391JA2054G LG TRAY ASSEMBLY,DRAWER [136B]
3391JA2054K 3391JA2054K LG TRAY ASSEMBLY,DRAWER [136B]
AJP33676001 AJP33676001 LG TRAY ASSEMBLY,SNACK [140F]

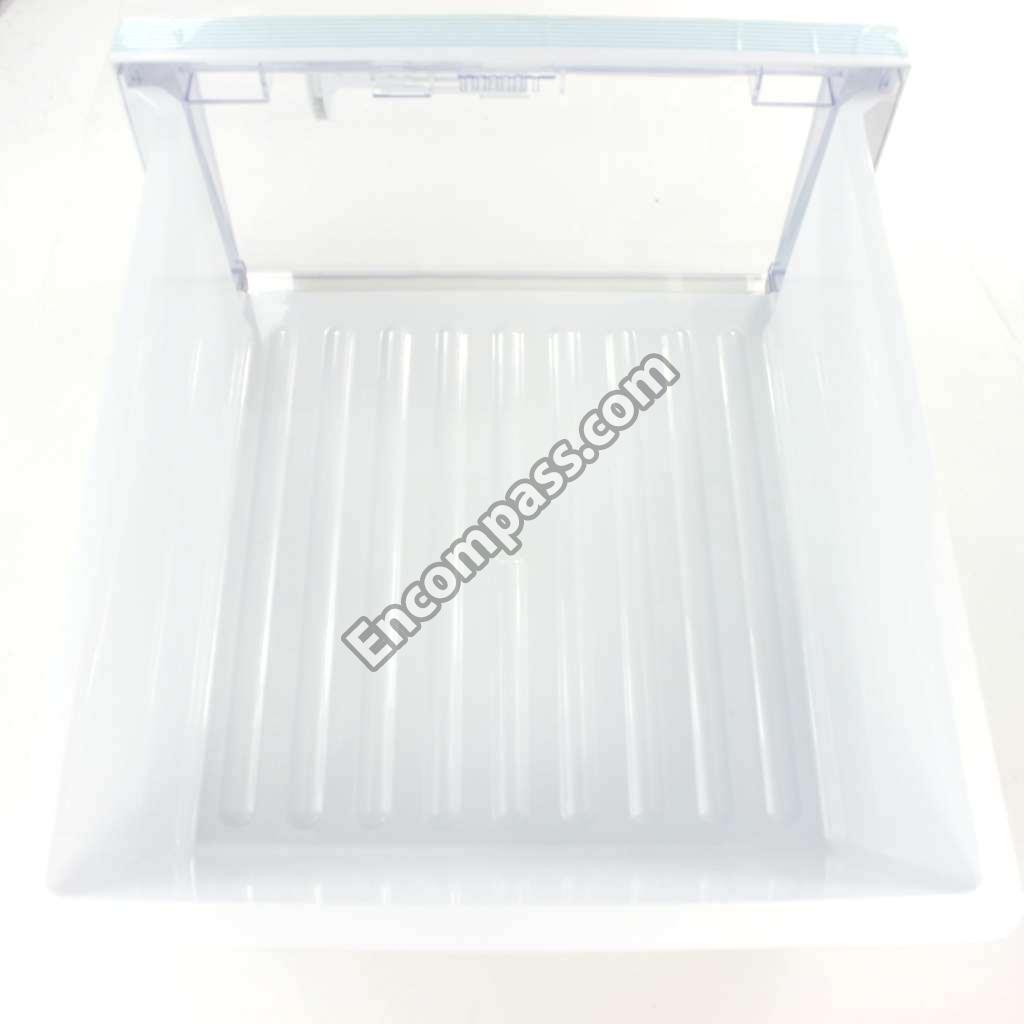

AJP33740401 AJP33740401 LG TRAY ASSEMBLY,VEGETABLE [151A]
AJP33740402 AJP33740402 LG TRAY ASSEMBLY,VEGETABLE [151A]
MJS38017701 MJS38017701 LG TRAY,DRAIN [281B]
3390JJ1072A 3390JJ1072A LG TRAY,DRAWER
3390JA0040A 3390JA0040A LG TRAY,DRIP
AJP36774401 AJP36774401 LG TRAY,DRIP [319A]
MJS61891805 MJS61891805 LG TRAY,VEGETABLE [-]
5251JA3003D 5251JA3003D LG TUBE ASSEMBLY,DRAIN [105A]
MJU62070602 MJU62070602 LG TUBE,PLASTIC
MJU39256423 MJU39256423 LG TUBE,PLASTIC [616D]
5210JA3005E 5210JA3005E LG TUBE,PLASTIC [616J]
5221JB2010G 5221JB2010G LG VALVE ASSEMBLY,WATER
MJX41178908 MJX41178908 LG VALVE,WATER [619A]
MKC38029901 MKC38029901 LG WINDOW [500F]
Main Menu x
