Model Image
Manufacturer

LG

Model Number

LGMVEM1825D

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4810W1A313D 4810W1A313D BRACKET,CAPACITOR
4810W1A313A 4810W1A313A BRACKET,CAPACITOR
MAZ67568801 MAZ67568801 BRACKET,CONTROL PANEL
4810W1A151A 4810W1A151A BRACKET,IDLE
4810W1A150D 4810W1A150D BRACKET,LAMP
6851W1A002E 6851W1A002E CABLE,ASSEMBLY
0CZZW1H004C 0CZZW1H004C CAPACITOR,HIGH VOLTAGE
4922W5A057G 4922W5A057G CARD,TEMPLATE
MBN63104530 MBN63104530 CASE,U BENDING
4051W3A001H 4051W3A001H CONNECTOR ASSEMBLY
4051W3A001A 4051W3A001A CONNECTOR ASSEMBLY
EBR32418503 EBR32418503 CONTROL BOARD,WIFI
ACM76190402 ACM76190402 CONTROLLER ASSEMBLY,SUB
ACM76190306 ACM76190306 CONTROLLER ASSEMBLY,TOUCH
3552W1A032J 3552W1A032J COVER,CHOKE
MCK69074906 MCK69074906 COVER,INSULATOR
3550W1A126B 3550W1A126B COVER,STIRRER FAN
4900W1A001B 4900W1A001B DAMPER
ADC30016523 ADC30016523 DOOR ASSEMBLY,FULL
AGM73170615 AGM73170615 DOOR,PARTS ASSEMBLY,SVC
MCZ62854507 MCZ62854507 DUCT
5893W3A002G 5893W3A002G FAN ASSEMBLY
5892W1A003A 5892W1A003A FAN,STIRRER
ADQ75393201 ADQ75393201 FILTER ASSEMBLY,NOISE

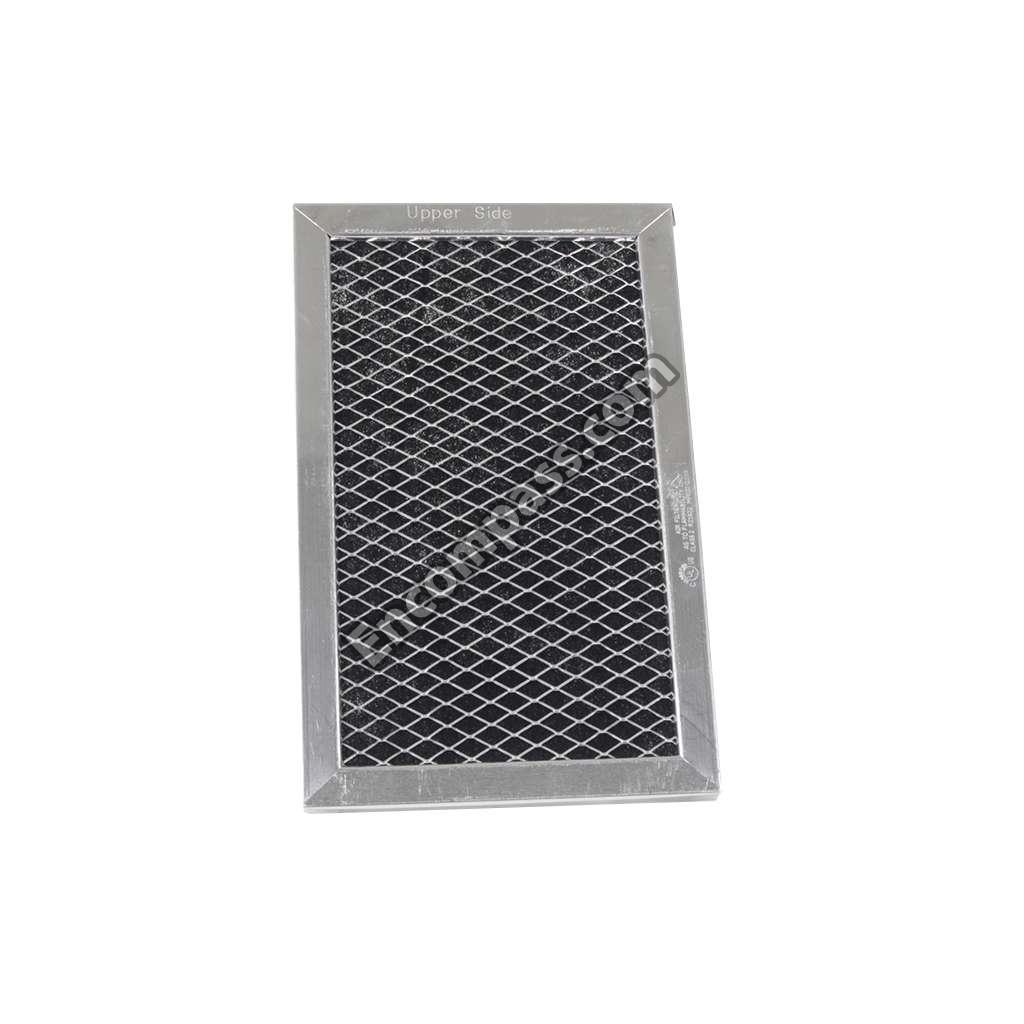

5230W1A011F 5230W1A011F FILTER,CHARCOAL
5230W1A011E 5230W1A011E FILTER,CHARCOAL
5230W1A012F 5230W1A012F FILTER,GREASE
5230W1A012E 5230W1A012E FILTER,GREASE
5230W1A012B 5230W1A012B FILTER,GREASE
3213W1A049F 3213W1A049F FRAME ASSEMBLY,DOOR
EAF36358314 EAF36358314 FUSE ASSEMBLY
3B74133Q 3B74133Q FUSE,TIME DELAY
MDX65460901 MDX65460901 GRILLE,VENT

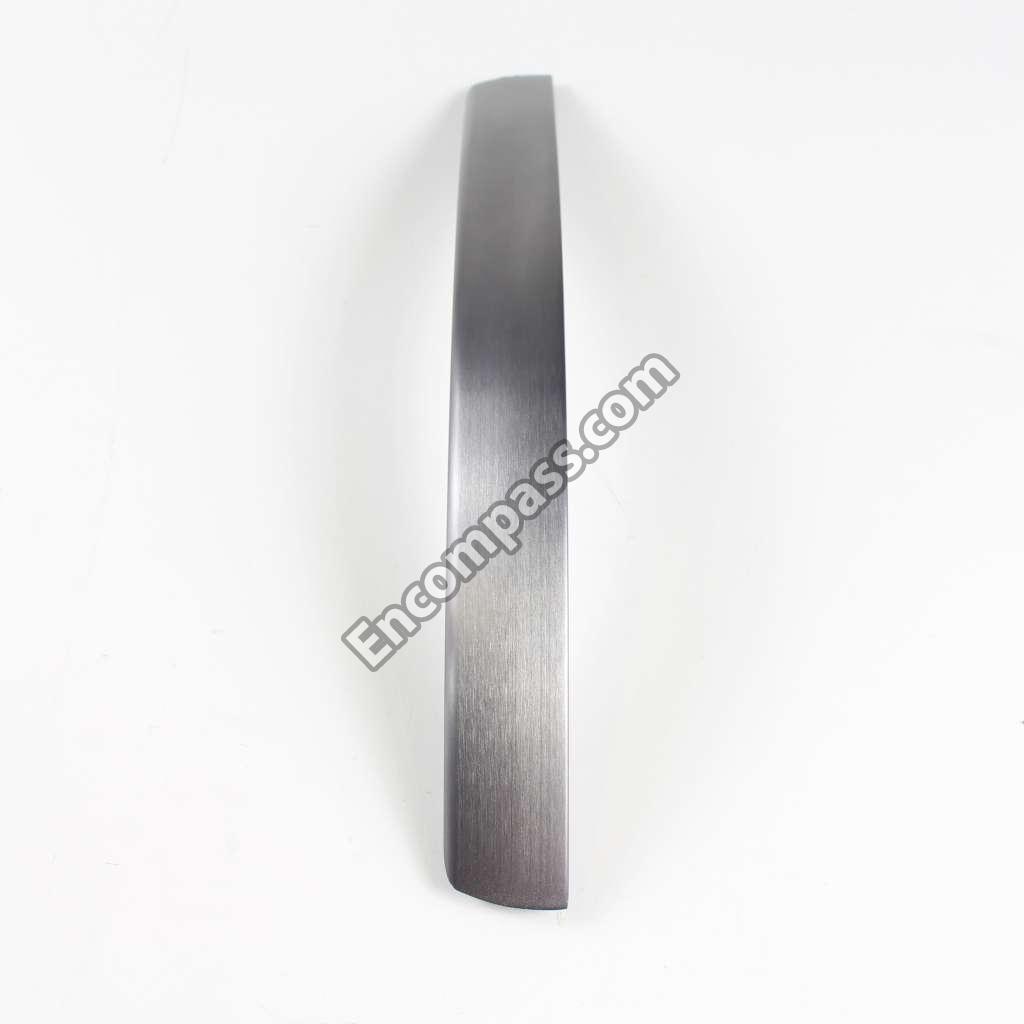

MEB55508904 MEB55508904 HANDLE,DOOR
EAD60756919 EAD60756919 HARNESS,SINGLE
4021W3A001A 4021W3A001A HOLDER ASSEMBLY
4931W1A011F 4931W1A011F HOLDER ASSEMBLY
AEJ74859428 AEJ74859428 HOLDER ASSEMBLY,LAMP
AEJ74859414 AEJ74859414 HOLDER ASSEMBLY,LAMP
3501W1A019S 3501W1A019S HOLDER ASSEMBLY,LOCKER
MEG61890701 MEG61890701 HOLDER,LOCKER
4930W1A068B 4930W1A068B HOLDER,STIRRER FAN
3861W2A006K 3861W2A006K KIT ASSEMBLY
6912A40002K 6912A40002K LAMP,HALOGEN
4510W3A012B 4510W3A012B LEVER
MFG61876301 MFG61876301 LOCKER
EBR37718501 EBR37718501 MAIN BOARD
EAS42851957 EAS42851957 MICROWAVE MAGNETRON
2B71165R 2B71165R MICROWAVE MAGNETRON
6549W1S013Z 6549W1S013Z MOTOR, AC SYNCHRONOUS
6549W1S013H 6549W1S013H MOTOR, AC SYNCHRONOUS
EAU51230509 EAU51230509 MOTOR, AC VENTILATION
EAU51230511 EAU51230511 MOTOR, AC VENTILATION
MGJ42525102 MGJ42525102 PLATE
AGU30114301 AGU30114301 PLATE ASSEMBLY,BOTTOM
MGJ62922407 MGJ62922407 PLATE,BASE
3300W1A046G 3300W1A046G PLATE,BOTTOM
3300W1A046D 3300W1A046D PLATE,BOTTOM
3300W1A045C 3300W1A045C PLATE,BOTTOM
3300W0A045A 3300W0A045A PLATE,MOUNT
EAD65946101 EAD65946101 POWER CORD ASSEMBLY
EAD62027832 EAD62027832 POWER CORD ASSEMBLY
FAB30216602 FAB30216602 SCREW,CUSTOMIZED
4B70188C 4B70188C SCREW,CUSTOMIZED
1TPL0302418 1TPL0302418 SCREW,TAPPING
1TTL0402818 1TTL0402818 SCREW,TAPPING
1SBF0402418 1SBF0402418 SCREW,TAPTITE
6501W1A013A 6501W1A013A SENSOR ASSEMBLY
6501W1A013C 6501W1A013C SENSOR ASSEMBLY
4370W1A006F 4370W1A006F SHAFT,TURNTABLE
4970WRA001G 4970WRA001G SPRING
AJJ34381202 AJJ34381202 SUPPORTER ASSEMBLY
MJH61956601 MJH61956601 SUPPORTER,FILTER
6600W1K001C 6600W1K001C SWITCH,MICRO
6600W1K001D 6600W1K001D SWITCH,MICRO
3536W1A012K 3536W1A012K TAPE,SEALING
3536W1A012B 3536W1A012B TAPE,SEALING

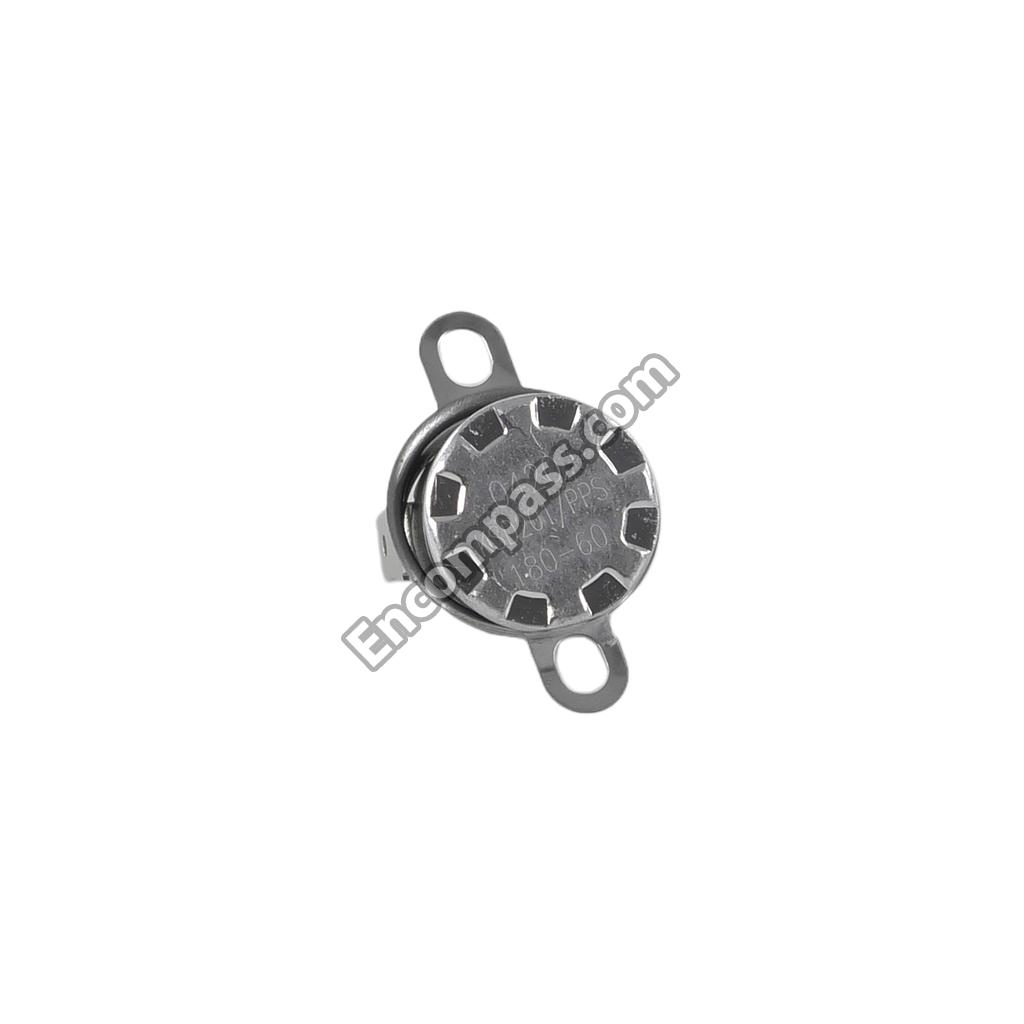

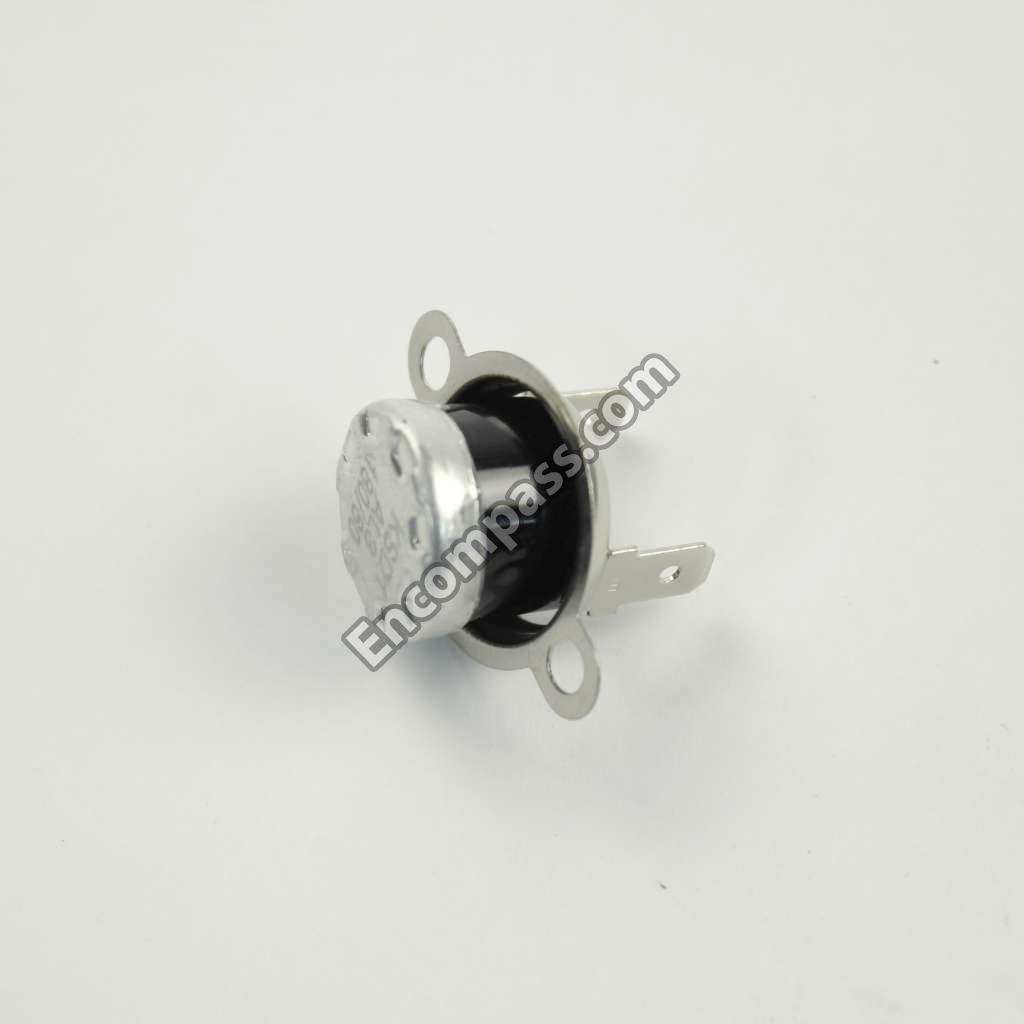

6930W1A007R 6930W1A007R THERMOSTAT
6930W1A003Z 6930W1A003Z THERMOSTAT
6930W1A007P 6930W1A007P THERMOSTAT
6930W1A007H 6930W1A007H THERMOSTAT
6930W1A007K 6930W1A007K THERMOSTAT
6930W1A003J 6930W1A003J THERMOSTAT
EBJ60664621 EBJ60664621 TRANSFORMER,HIGH VOLTAGE
EBJ60664618 EBJ60664618 TRANSFORMER,HIGH VOLTAGE
EBJ60664617 EBJ60664617 TRANSFORMER,HIGH VOLTAGE
MJS65336701 MJS65336701 TRAY,GLASS
5889W2A012Q 5889W2A012Q TURNTABLE ASSEMBLY
4890W1A045A 4890W1A045A WINDOW,GLASS
