Model Image
Manufacturer

LG

Model Number

LMC0975AST

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
MBL67000901 MBL67000901 CAP
MBN64626203 MBN64626203 CASE,U BENDING
EBR82899409 EBR82899409 CONTROL BOARD,INVERTER
ACM74779363 ACM74779363 CONTROLLER ASSEMBLY,TOUCH
MCK69565101 MCK69565101 COVER,CHOKE
MCK68990601 MCK68990601 COVER,DISPLAY
MCK69074905 MCK69074905 COVER,INSULATOR

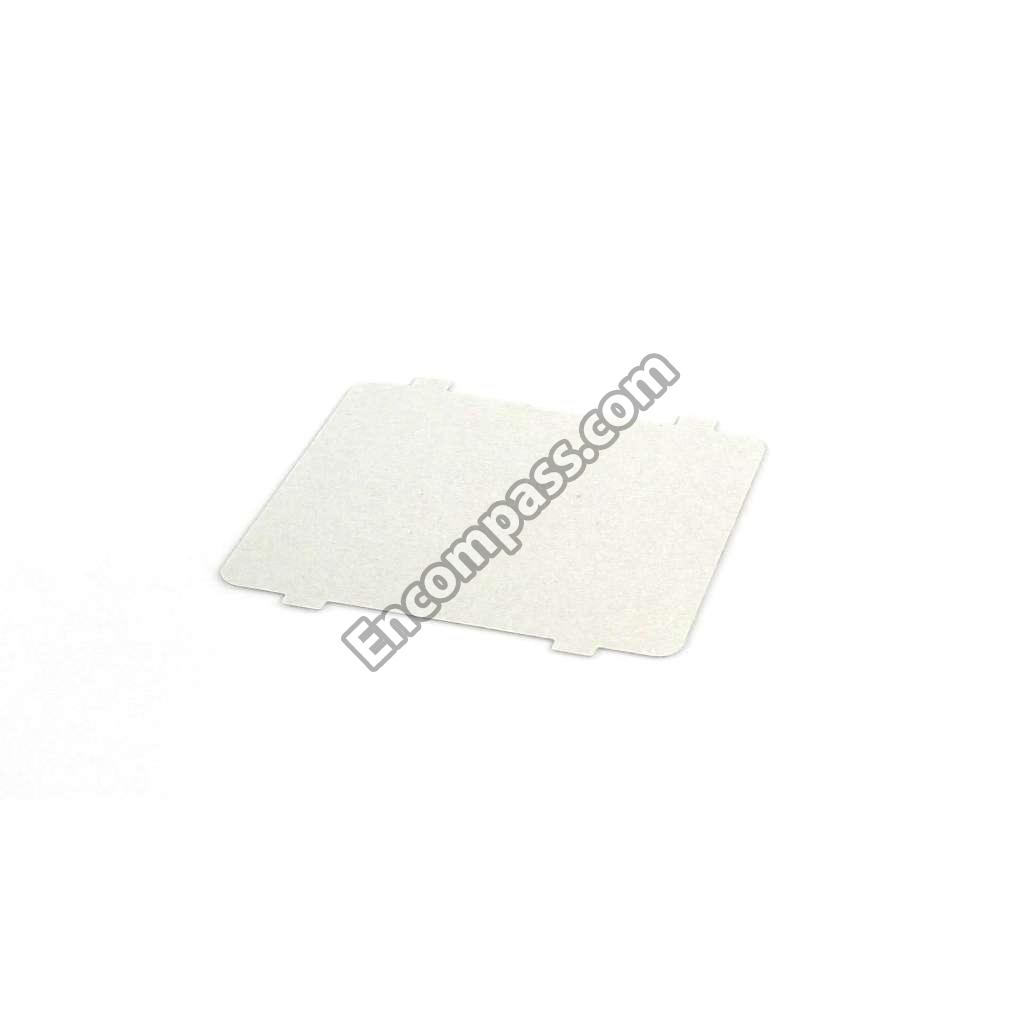

MCK69074904 MCK69074904 COVER,INSULATOR
FAB33319201 FAB33319201 CUSTOMIZED SCREW
ADC75387220 ADC75387220 DOOR ASSEMBLY,FULL
ADC75485708 ADC75485708 DOOR ASSEMBLY,SUB
MCZ64391901 MCZ64391901 DUCT
MDG63042801 MDG63042801 FAN,PROPELLER
ADQ74913206 ADQ74913206 FILTER ASSEMBLY,NOISE
ADQ74813801 ADQ74813801 FILTER ASSEMBLY,NOISE
ADU73009001 ADU73009001 FOOT ASSEMBLY
ADV76228002 ADV76228002 FRAME ASSEMBLY,DOOR
3B74133Q 3B74133Q FUSE,TIME DELAY
MEA64431003 MEA64431003 GUIDE,AIR
MEA64470604 MEA64470604 GUIDE,SUCTION
EAD63729202 EAD63729202 HARNESS,SINGLE
EAD63945909 EAD63945909 HARNESS,SINGLE
EAD63789203 EAD63789203 HARNESS,SINGLE
AEJ74859415 AEJ74859415 HOLDER ASSEMBLY,LAMP
AEJ74859401 AEJ74859401 HOLDER ASSEMBLY,LAMP
AEJ74780002 AEJ74780002 HOLDER ASSEMBLY,LOCKER
EBR82899406 EBR82899406 INVERTER PCB ASSEMBLY
MFG63839001 MFG63839001 LOCKER
EAS61382907 EAS61382907 MAGNETRON
EBR38183003 EBR38183003 MAIN BOARD
EBR80969685 EBR80969685 MAIN PCB ASSEMBLY
MFM63876903 MFM63876903 MEMBRANE
6549W1S011E 6549W1S011E MOTOR, AC SYNCHRONOUS
EAU42744404 EAU42744404 MOTOR,AC FAN
MGC64361115 MGC64361115 PANEL,CONTROL

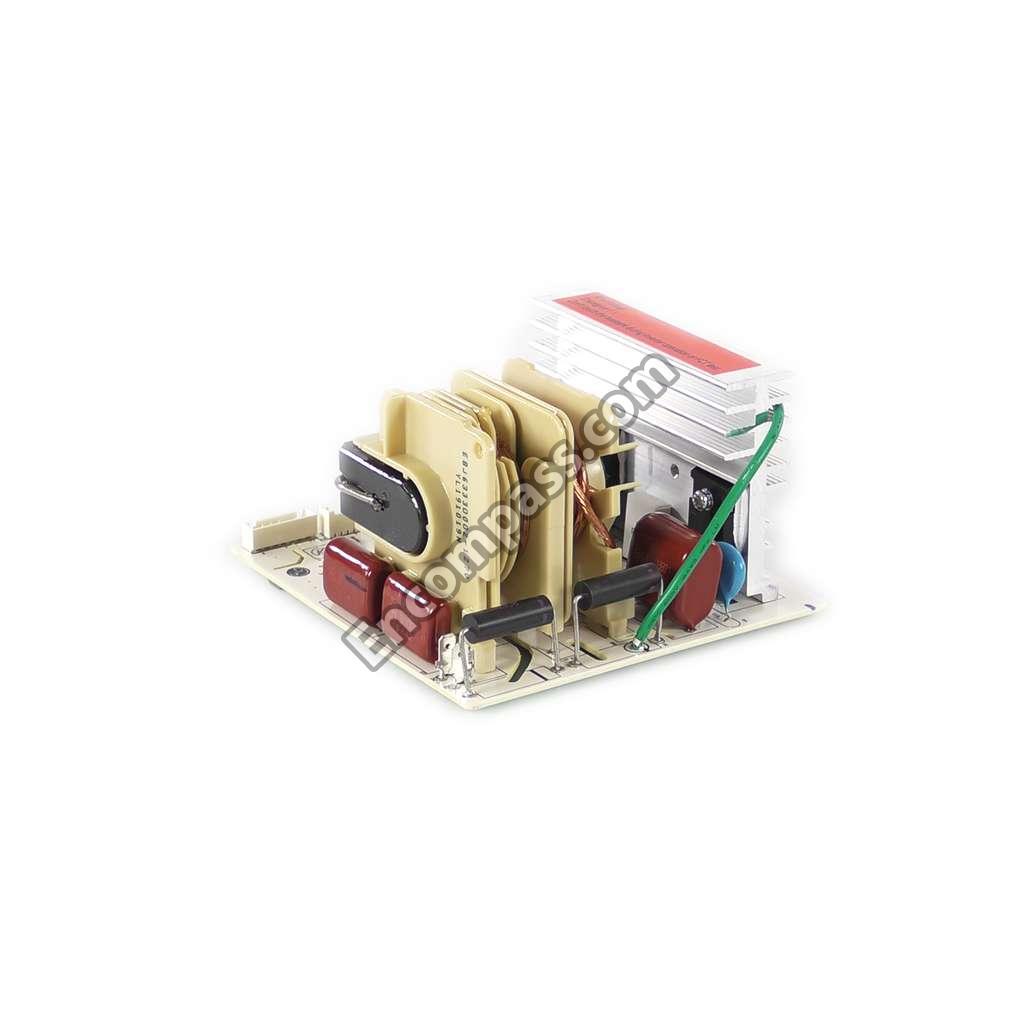

EBR82899405 EBR82899405 PCB ASSEMBLY,INVERTER
EBR80969678 EBR80969678 PCB ASSEMBLY,MAIN
AJJ75138533 AJJ75138533 PCB SUPPORTER ASSEMBLY
AGU75509701 AGU75509701 PLATE ASSEMBLY,BASE
EAD62027836 EAD62027836 POWER CORD ASSEMBLY

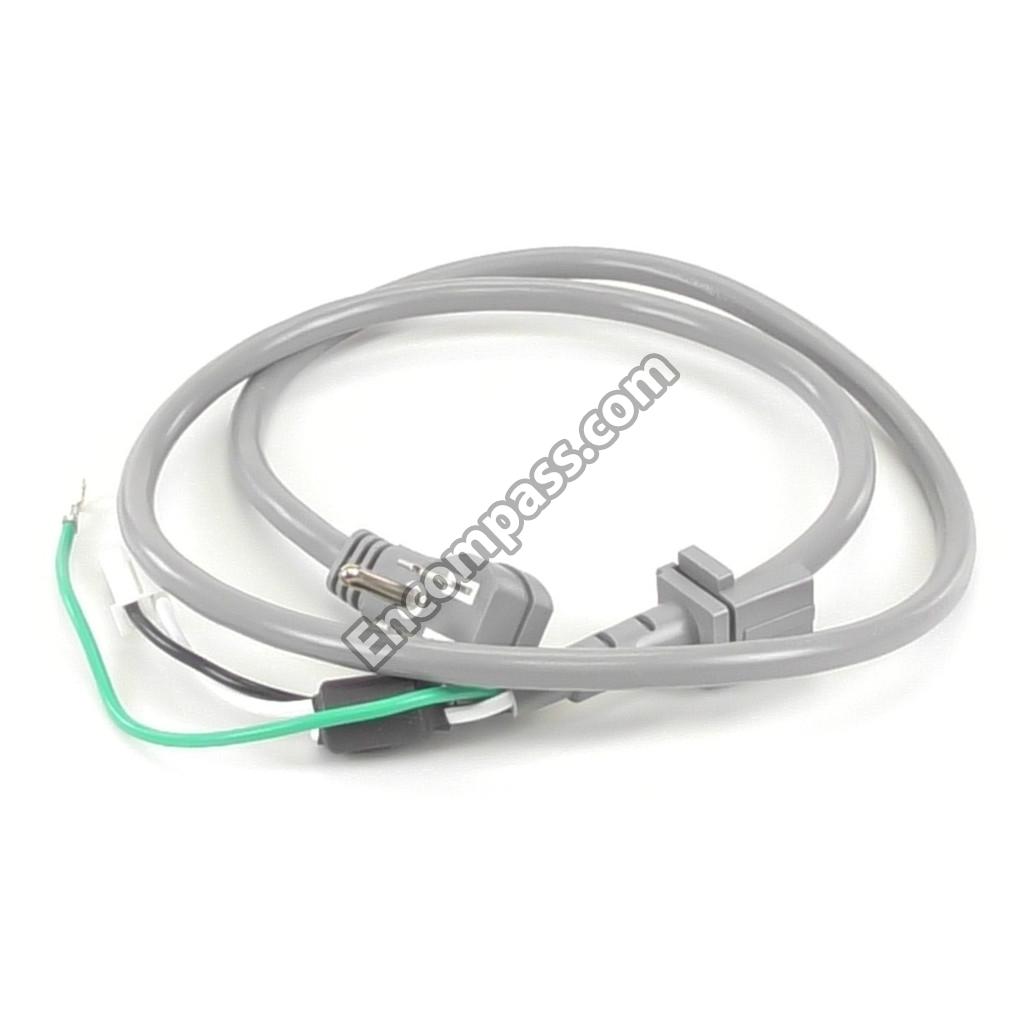

EAD62027826 EAD62027826 POWER CORD ASSEMBLY
EAD62027827 EAD62027827 POWER CORD ASSEMBLY
4000W4A003A 4000W4A003A SCREW,CUSTOMIZED
FAB33219701 FAB33219701 SCREW,CUSTOMIZED
FAB33360002 FAB33360002 SCREW,CUSTOMIZED
FAB33439001 FAB33439001 SCREW,TAPPING
1TTG0402422 1TTG0402422 SCREW,TAPTITE
4370W1A006B 4370W1A006B SHAFT,TURNTABLE
MHJ64115301 MHJ64115301 SHAFT,TURNTABLE
4970WRA001C 4970WRA001C SPRING
MJH64235103 MJH64235103 SUPPORTER
AJJ75138543 AJJ75138543 SUPPORTER ASSEMBLY,PCB
AJJ75138546 AJJ75138546 SUPPORTER ASSEMBLY,PCB
AJJ75138531 AJJ75138531 SUPPORTER ASSEMBLY,PCB
MJN69967001 MJN69967001 TAPE,SEALING
1SBF0402418 1SBF0402418 TAPTITE SCREW
6930W1A004L 6930W1A004L THERMOSTAT
6930W1A004X 6930W1A004X THERMOSTAT
6930W1A003B 6930W1A003B THERMOSTAT
6930W1A004N 6930W1A004N THERMOSTAT
6930W1A003A 6930W1A003A THERMOSTAT
ACM74779365 ACM74779365 TOUCH CONTROLLER ASSEMBLY
MJS63771903 MJS63771903 TRAY,GLASS

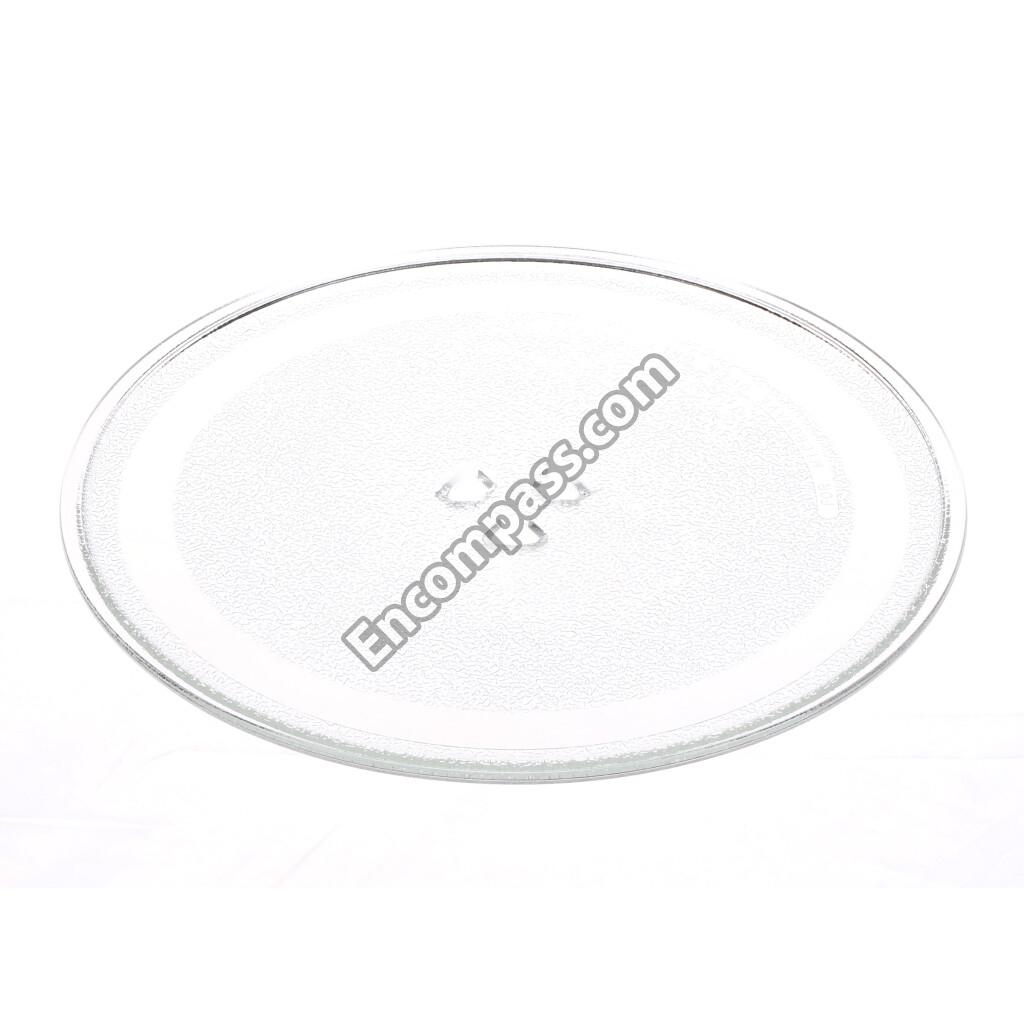

MJS63771901 MJS63771901 TRAY,GLASS
AJS73129204 AJS73129204 TURNTABLE ASSEMBLY
AJS73129202 AJS73129202 TURNTABLE ASSEMBLY
