Model Image
Manufacturer

LG

Model Number

LMC1275SB

Description

1.2 Cu. Ft. Neochef Countertop Microwave With Smar

Interactive Exploded View
Exploded View

Parts List

Part Number Description
MBN64566301 MBN64566301 CASE,U BENDING
EBR82899409 EBR82899409 CONTROL BOARD,INVERTER
ACM74958927 ACM74958927 CONTROLLER ASSEMBLY,TOUCH
MCK69565201 MCK69565201 COVER,CHOKE
MCK69126601 MCK69126601 COVER,DISPLAY
MCK69074905 MCK69074905 COVER,INSULATOR
MCK69074904 MCK69074904 COVER,INSULATOR
FAB33319201 FAB33319201 CUSTOMIZED SCREW
4B73438T 4B73438T DAMPER
ADC75486607 ADC75486607 DOOR ASSEMBLY,FULL
ADC75486704 ADC75486704 DOOR ASSEMBLY,SUB
MCZ63931901 MCZ63931901 DUCT
MDG63082802 MDG63082802 FAN,PROPELLER
ADQ74813801 ADQ74813801 FILTER ASSEMBLY,NOISE
ADU73009001 ADU73009001 FOOT ASSEMBLY
ADV76207502 ADV76207502 FRAME ASSEMBLY,DOOR
3B74133Q 3B74133Q FUSE,TIME DELAY
MEA64431003 MEA64431003 GUIDE,AIR
MEA64470604 MEA64470604 GUIDE,SUCTION
EAD63946012 EAD63946012 HARNESS,SINGLE
EAD63789209 EAD63789209 HARNESS,SINGLE
AEJ74859416 AEJ74859416 HOLDER ASSEMBLY,LAMP
AEJ74859402 AEJ74859402 HOLDER ASSEMBLY,LAMP
AEJ74780002 AEJ74780002 HOLDER ASSEMBLY,LOCKER

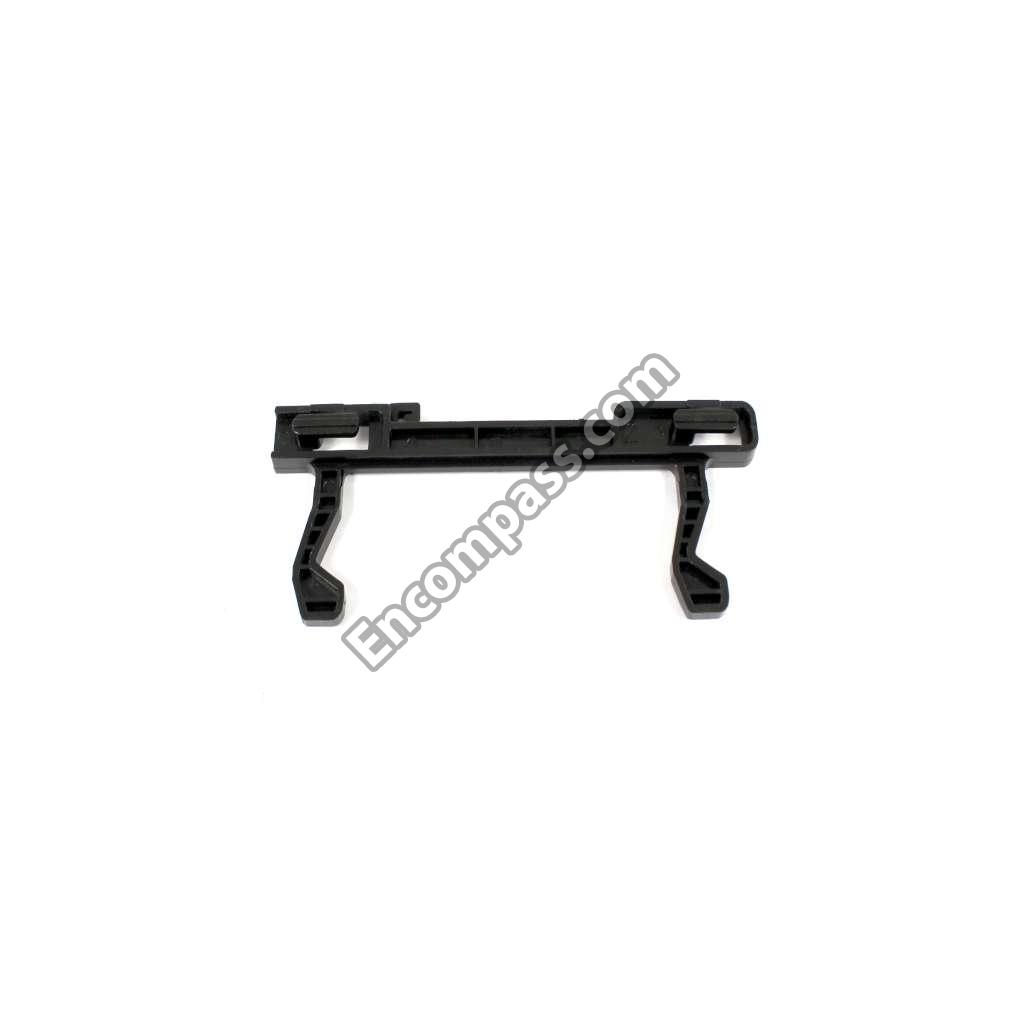

MFG63839001 MFG63839001 LOCKER
EAS61382907 EAS61382907 MAGNETRON
MFM63896703 MFM63896703 MEMBRANE
6549W1S011E 6549W1S011E MOTOR, AC SYNCHRONOUS
EAU42744405 EAU42744405 MOTOR,AC FAN
MGC64399419 MGC64399419 PANEL,CONTROL
EBR82899405 EBR82899405 PCB ASSEMBLY,INVERTER
EBR81132255 EBR81132255 PCB ASSEMBLY,MAIN
AGU75510204 AGU75510204 PLATE ASSEMBLY,BASE
EAD62027837 EAD62027837 POWER CORD ASSEMBLY
EAD62027829 EAD62027829 POWER CORD ASSEMBLY
EAD62027830 EAD62027830 POWER CORD ASSEMBLY
EAD62027831 EAD62027831 POWER CORD ASSEMBLY
1SZZW2A002A 1SZZW2A002A SCREW,CUSTOMIZED
4000W4A003A 4000W4A003A SCREW,CUSTOMIZED
FAB33219701 FAB33219701 SCREW,CUSTOMIZED
FAB33360001 FAB33360001 SCREW,CUSTOMIZED
FAB33439001 FAB33439001 SCREW,TAPPING
1TTG0402422 1TTG0402422 SCREW,TAPTITE
4370W1A006B 4370W1A006B SHAFT,TURNTABLE
4970WRA001G 4970WRA001G SPRING
4970WRA001B 4970WRA001B SPRING
MJH64235103 MJH64235103 SUPPORTER
AJJ75138542 AJJ75138542 SUPPORTER ASSEMBLY,PCB
AJJ75138544 AJJ75138544 SUPPORTER ASSEMBLY,PCB
AJJ75138530 AJJ75138530 SUPPORTER ASSEMBLY,PCB
MJN69967101 MJN69967101 TAPE,SEALING
1SBF0402418 1SBF0402418 TAPTITE SCREW
6930W1A004X 6930W1A004X THERMOSTAT
6930W1A003B 6930W1A003B THERMOSTAT
6930W1A004N 6930W1A004N THERMOSTAT

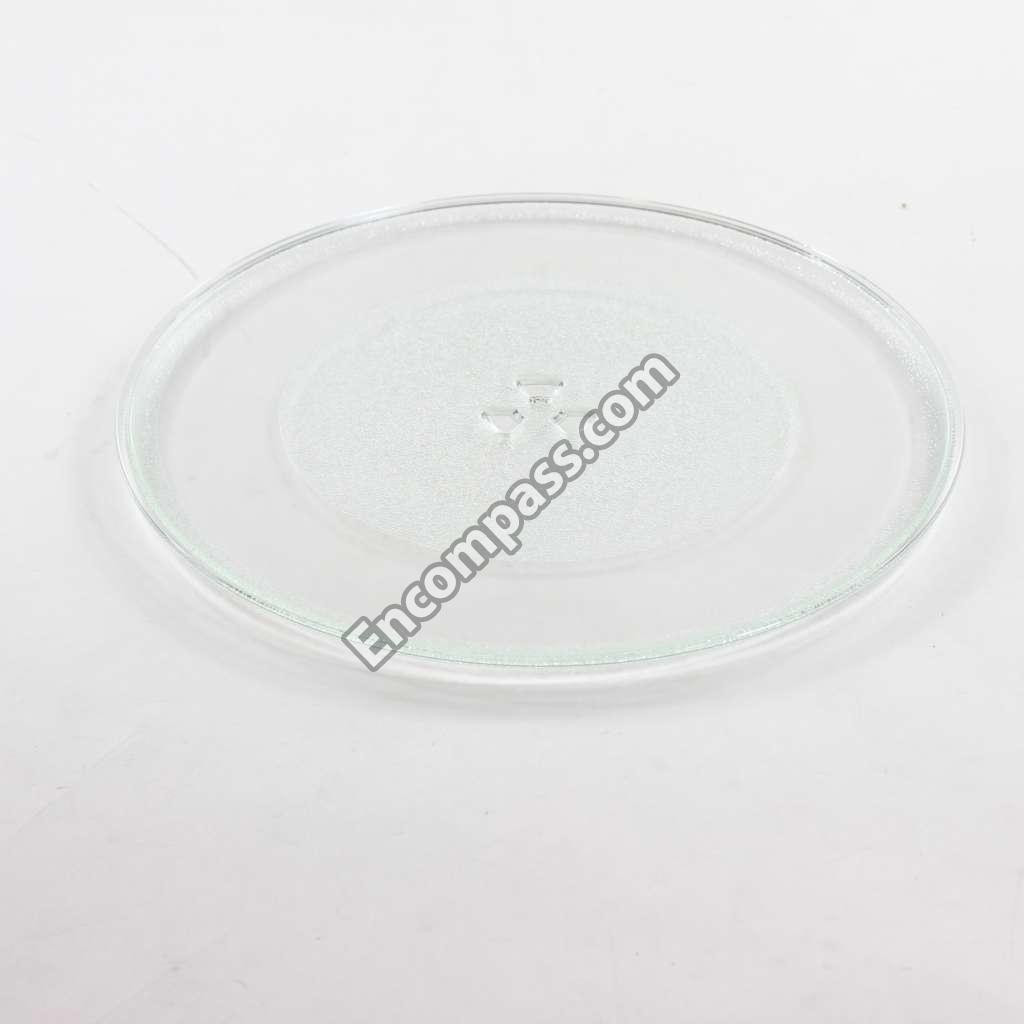

MJS47373304 MJS47373304 TRAY,GLASS
MJS47373302 MJS47373302 TRAY,GLASS
AJS73129204 AJS73129204 TURNTABLE ASSEMBLY
AJS73129202 AJS73129202 TURNTABLE ASSEMBLY
