Model Image
Manufacturer

LG

Model Number

LMC2075ABD

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

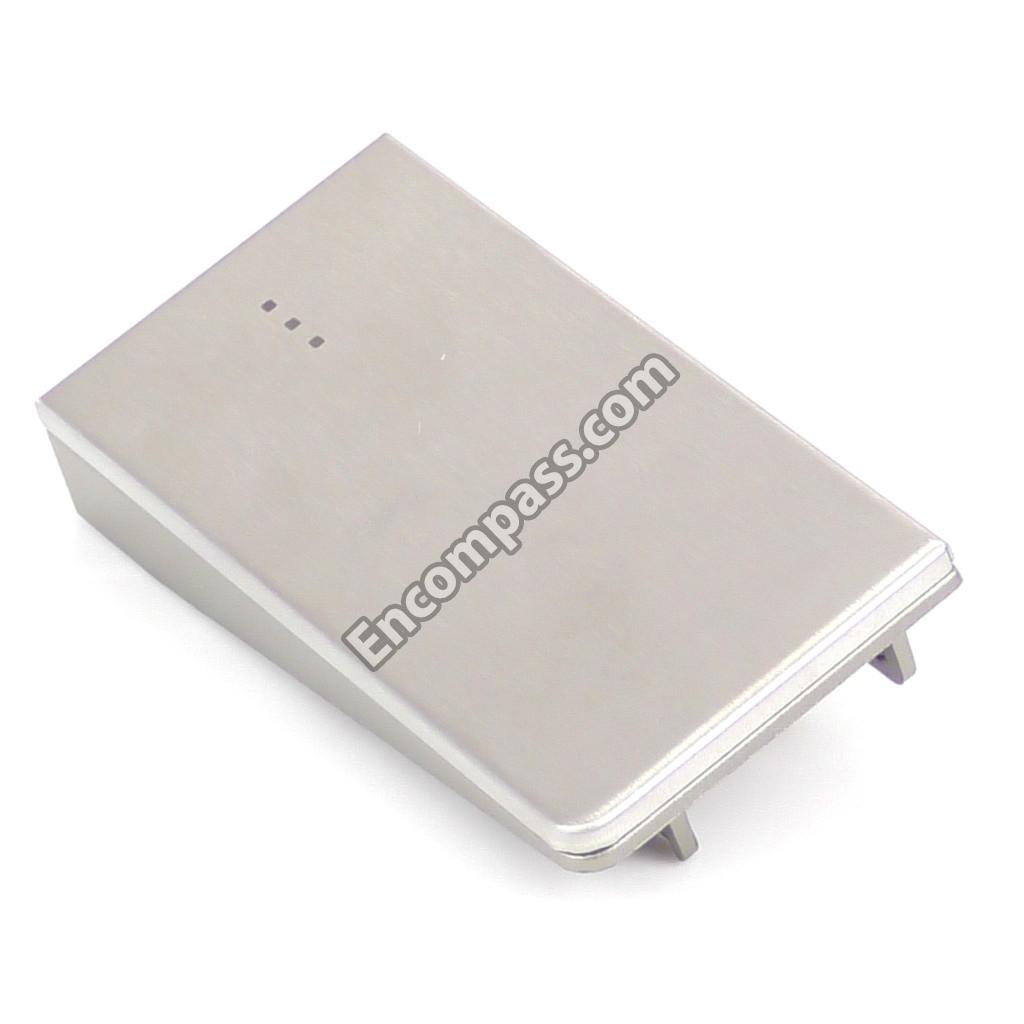

ABH76119601 ABH76119601 BUTTON ASSEMBLY
5006W3A019A 5006W3A019A CAP,BASE PLATE
3112W0U072P 3112W0U072P CASE,U BENDING
ACM75218801 ACM75218801 CONTROLLER ASSEMBLY,SUB
ACM75218701 ACM75218701 CONTROLLER ASSEMBLY,TOUCH
3552W1A035B 3552W1A035B COVER,CHOKE
3052W2A021D 3052W2A021D COVER,RESIN
ADC75785601 ADC75785601 DOOR ASSEMBLY,FULL
ADC75785701 ADC75785701 DOOR ASSEMBLY,SUB
5208W1A034B 5208W1A034B DUCT
5208W1A012B 5208W1A012B DUCT
MDG63082802 MDG63082802 FAN,PROPELLER
ADQ74813801 ADQ74813801 FILTER ASSEMBLY,NOISE
3213W0A001L 3213W0A001L FRAME ASSEMBLY,DOOR
3B74133Q 3B74133Q FUSE,TIME DELAY
MEA64431003 MEA64431003 GUIDE,AIR
MEA64470601 MEA64470601 GUIDE,SUCTION
EAD63789210 EAD63789210 HARNESS,SINGLE
EAD63946003 EAD63946003 HARNESS,SINGLE
AEJ74859403 AEJ74859403 HOLDER ASSEMBLY,LAMP
3501W1A053A 3501W1A053A HOLDER ASSEMBLY,LOCKER
3500W1A018C 3500W1A018C HOLDER,LOCKER
MEV64392901 MEV64392901 INSULATOR
4510W3L003A 4510W3L003A LEVER
4026W2A016A 4026W2A016A LOCKER
EAS61382905 EAS61382905 MAGNETRON
6549W1S011B 6549W1S011B MOTOR, AC SYNCHRONOUS

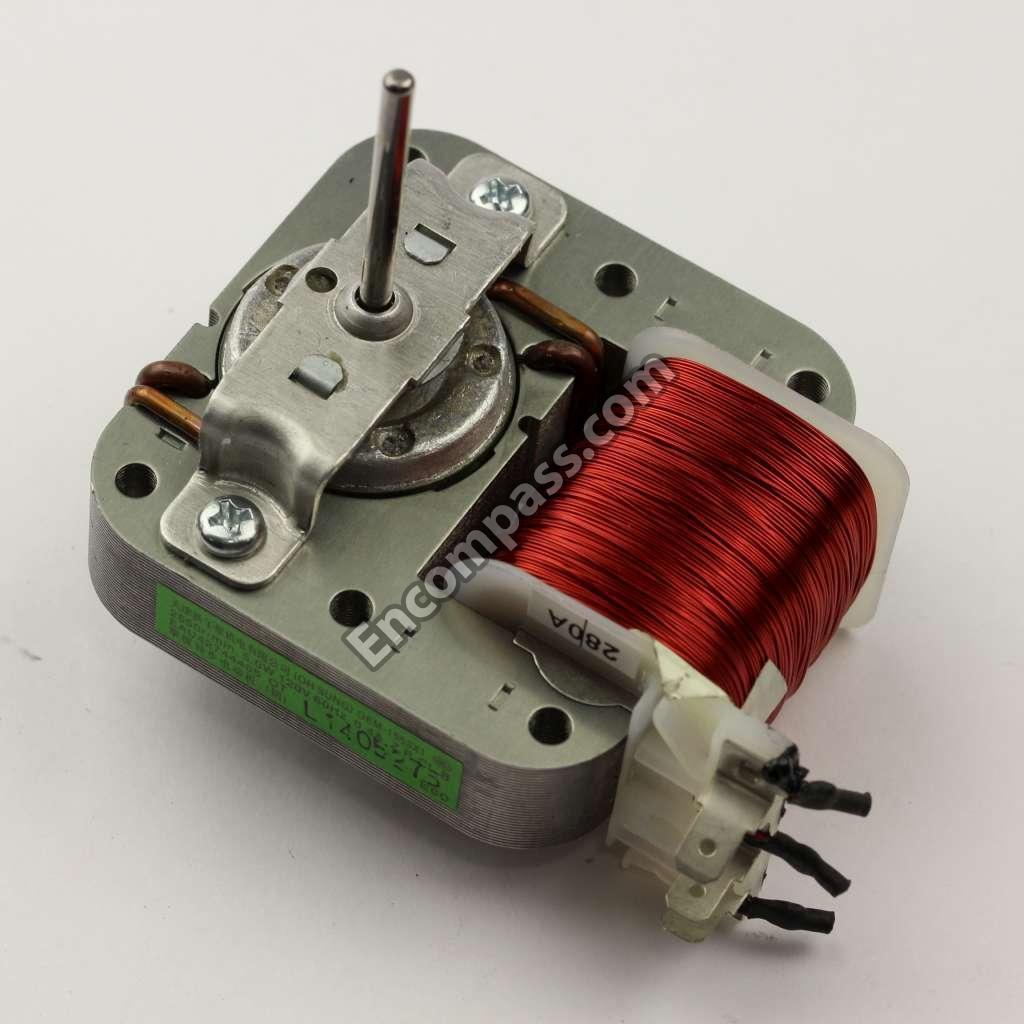

EAU42744405 EAU42744405 MOTOR,AC FAN
EBR81816904 EBR81816904 PCB ASSEMBLY

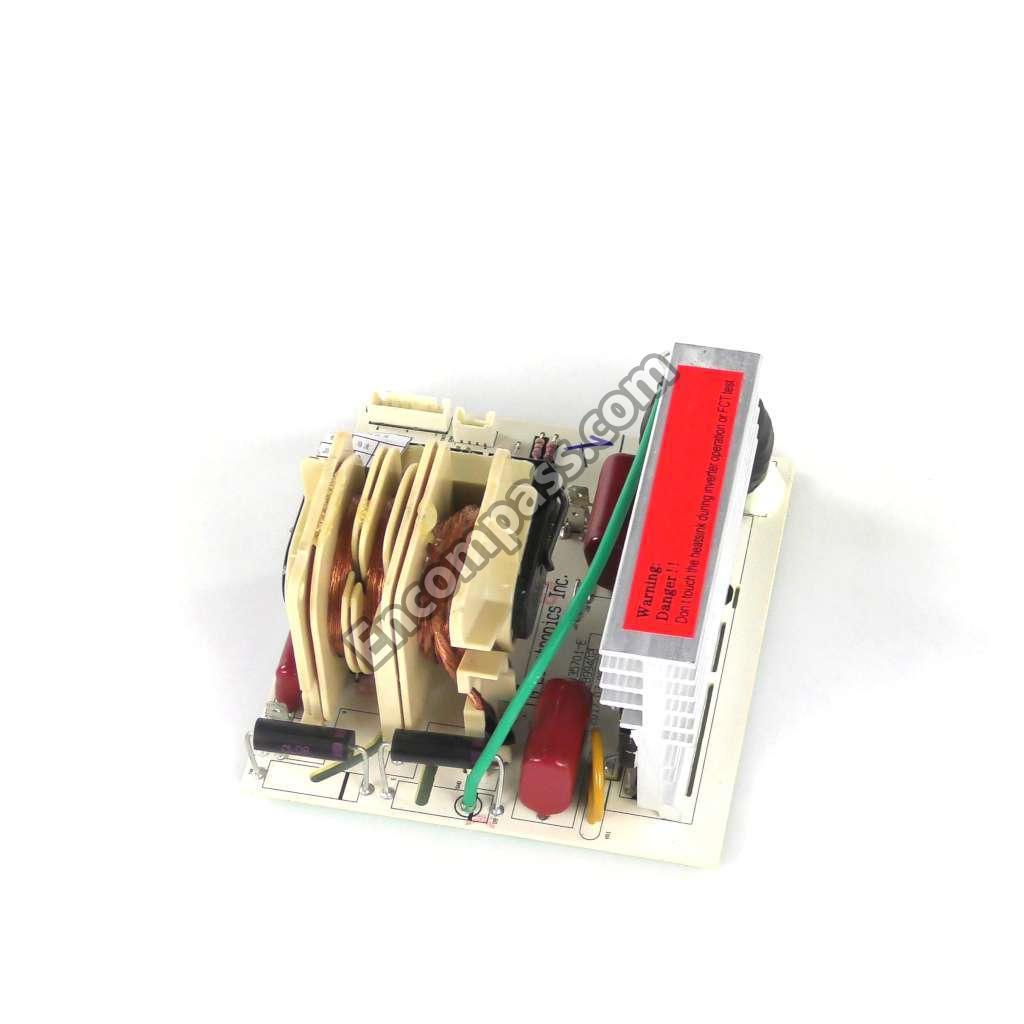

EBR82899402 EBR82899402 PCB ASSEMBLY,SUB
3303W1A076E 3303W1A076E PLATE ASSEMBLY,BASE
4000W4A003A 4000W4A003A SCREW,CUSTOMIZED
1SZZW2A002A 1SZZW2A002A SCREW,CUSTOMIZED
4B70188C 4B70188C SCREW,CUSTOMIZED
FAB33439001 FAB33439001 SCREW,TAPPING
1TTG0402422 1TTG0402422 SCREW,TAPTITE
6501W1A006A 6501W1A006A SENSOR ASSEMBLY

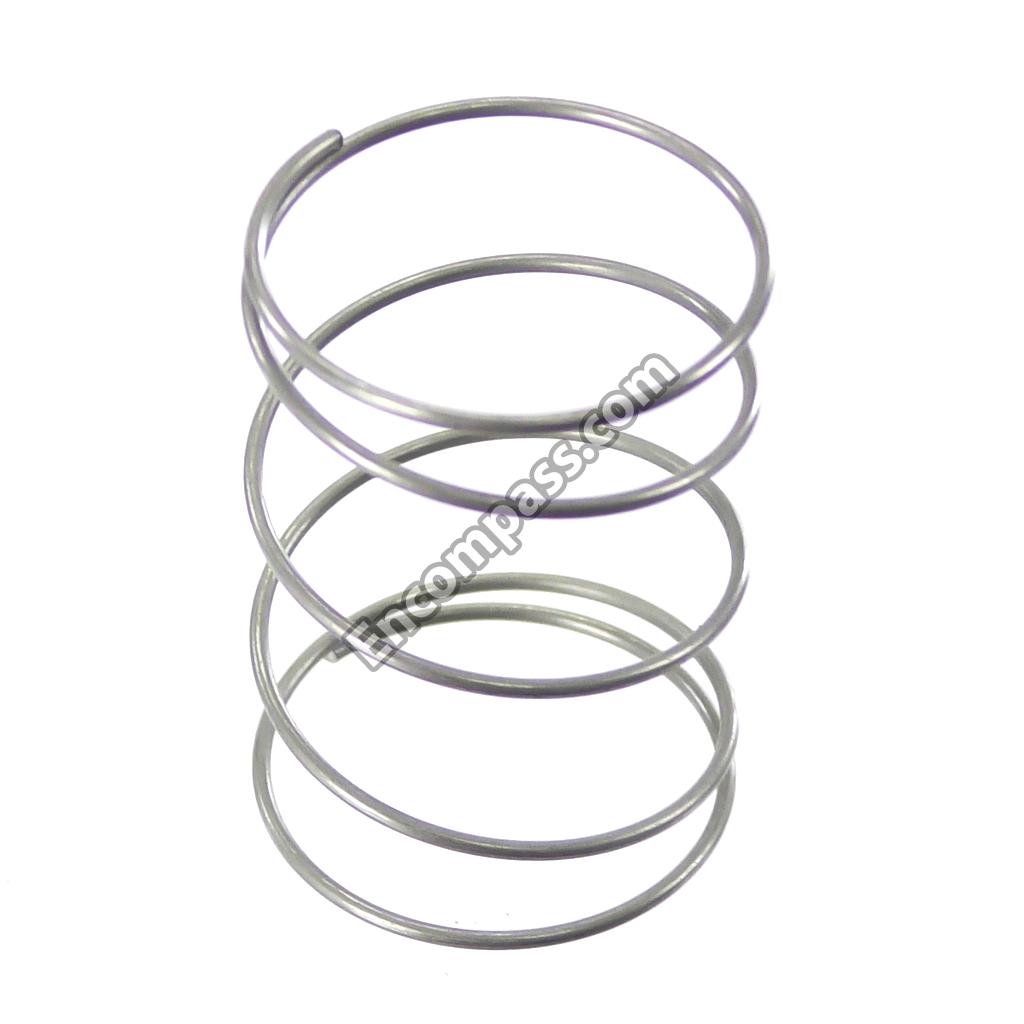

MHY37118501 MHY37118501 SPRING
4970WRA001B 4970WRA001B SPRING
MJH64235103 MJH64235103 SUPPORTER

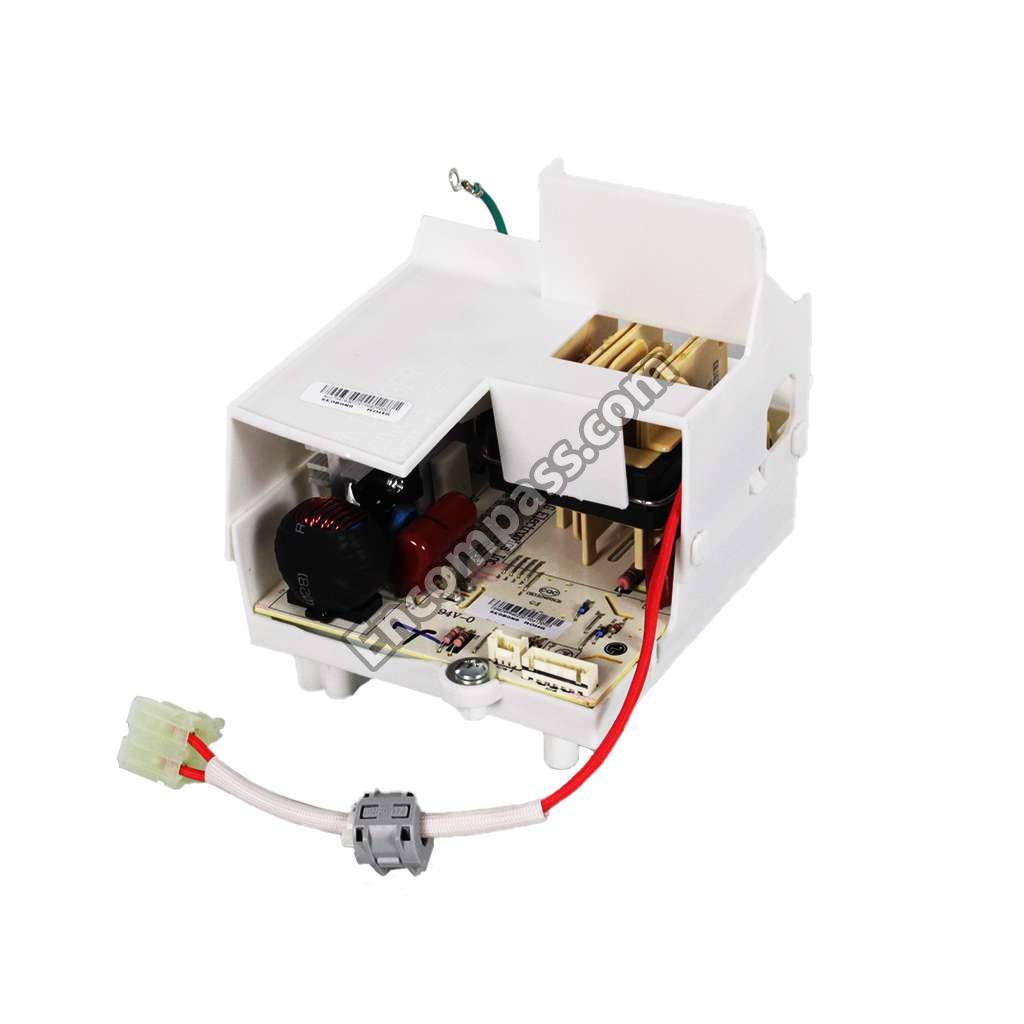

AJJ75478302 AJJ75478302 SUPPORTER ASSEMBLY,PCB
6600W1K001C 6600W1K001C SWITCH,MICRO
6600W1K001D 6600W1K001D SWITCH,MICRO
3536W1A009A 3536W1A009A TAPE,SEALING
6930W1A004N 6930W1A004N THERMOSTAT
6930W1A003B 6930W1A003B THERMOSTAT

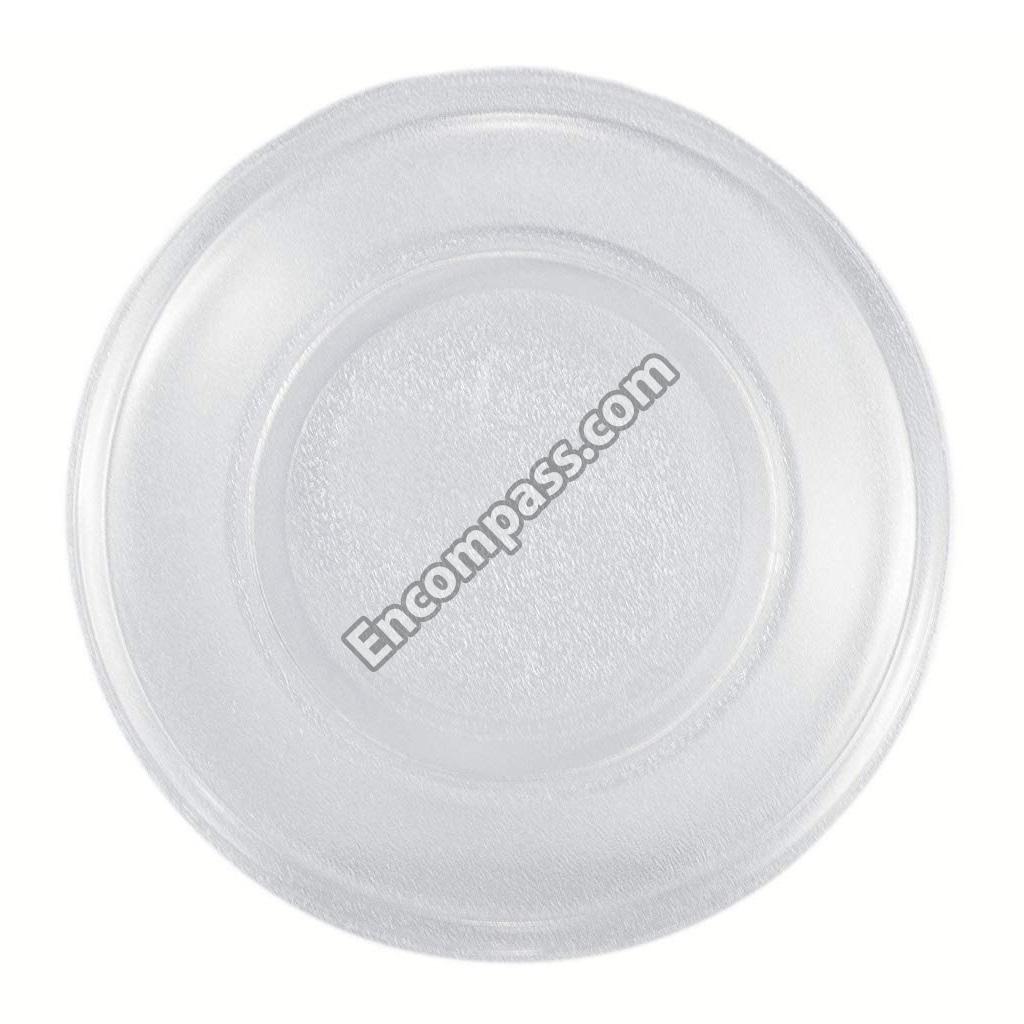

3390W1G006B 3390W1G006B TRAY,GLASS

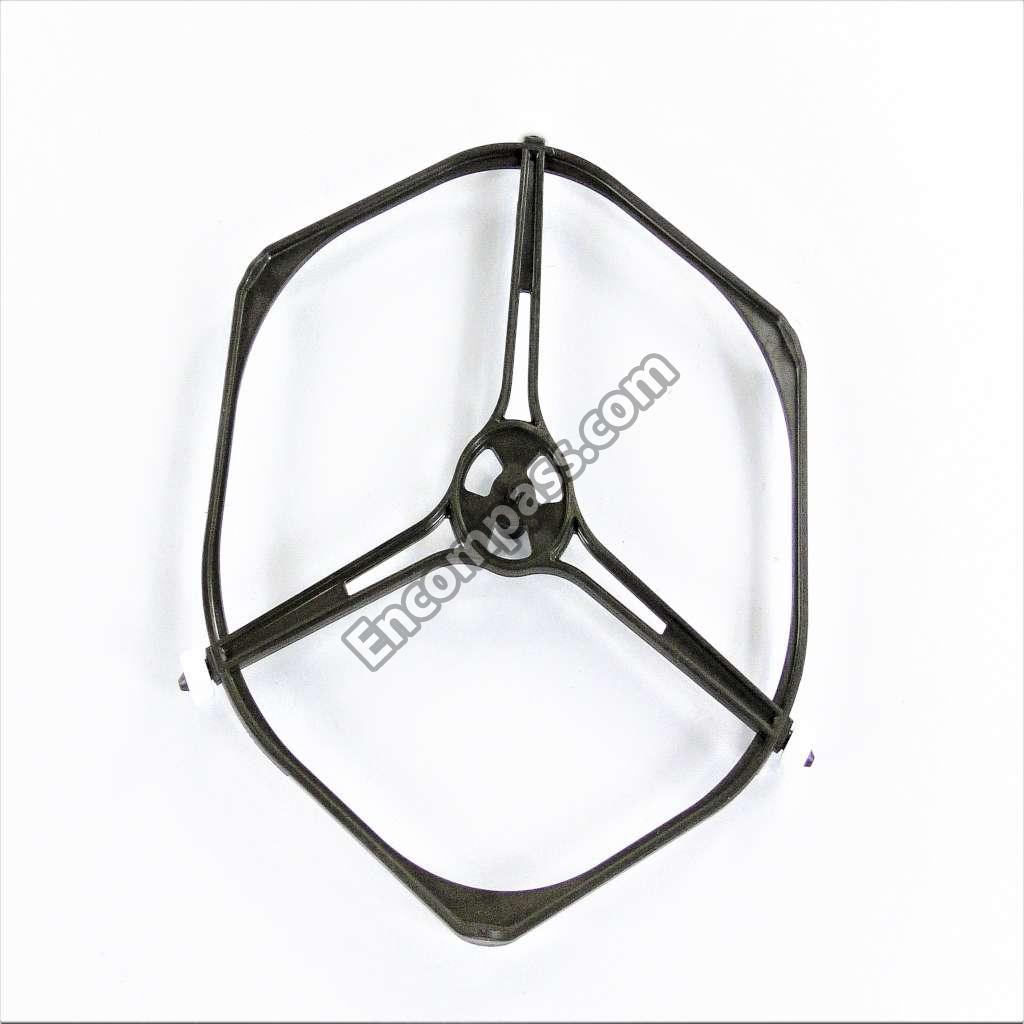

AJS73149201 AJS73149201 TURNTABLE ASSEMBLY
