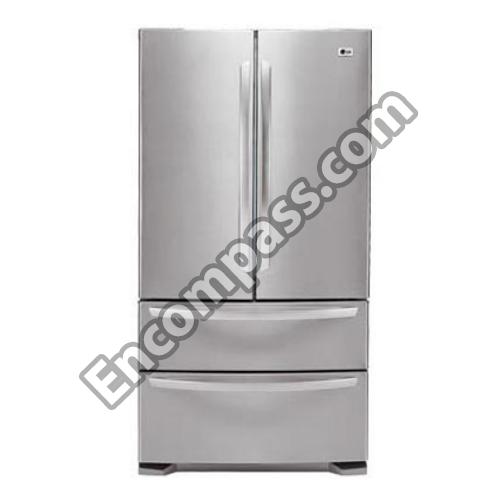

Model Image
Manufacturer

LG

Model Number

LMC25780AL

Description

Lg French Door Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4770JA3001A 4770JA3001A BAND [623A]

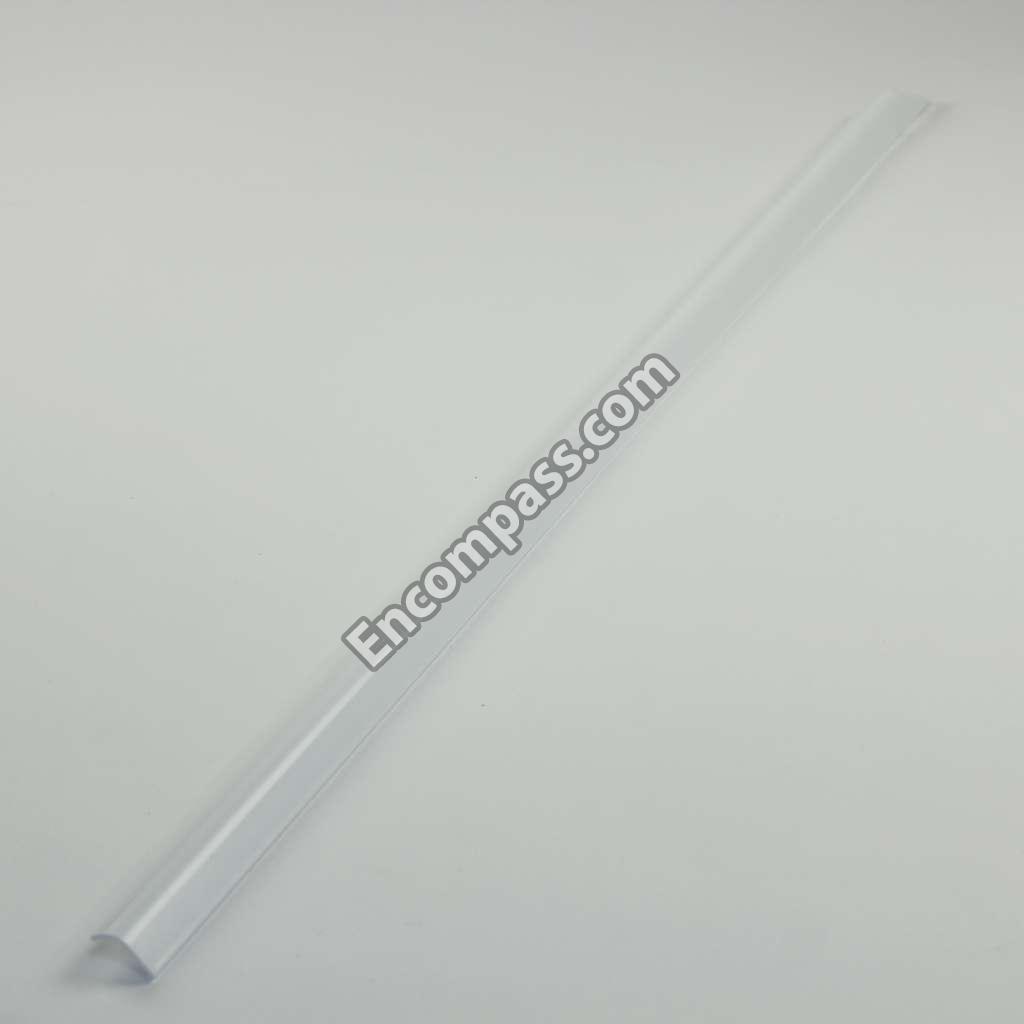

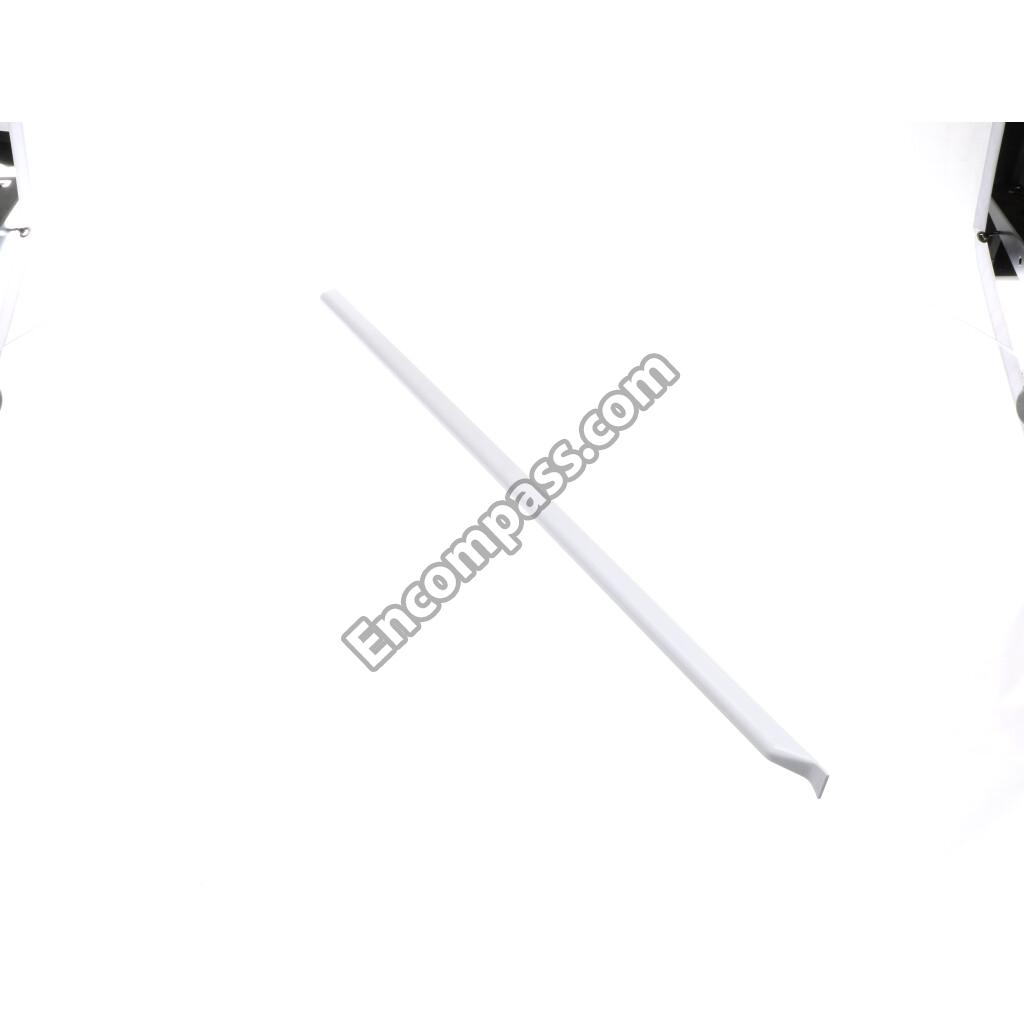

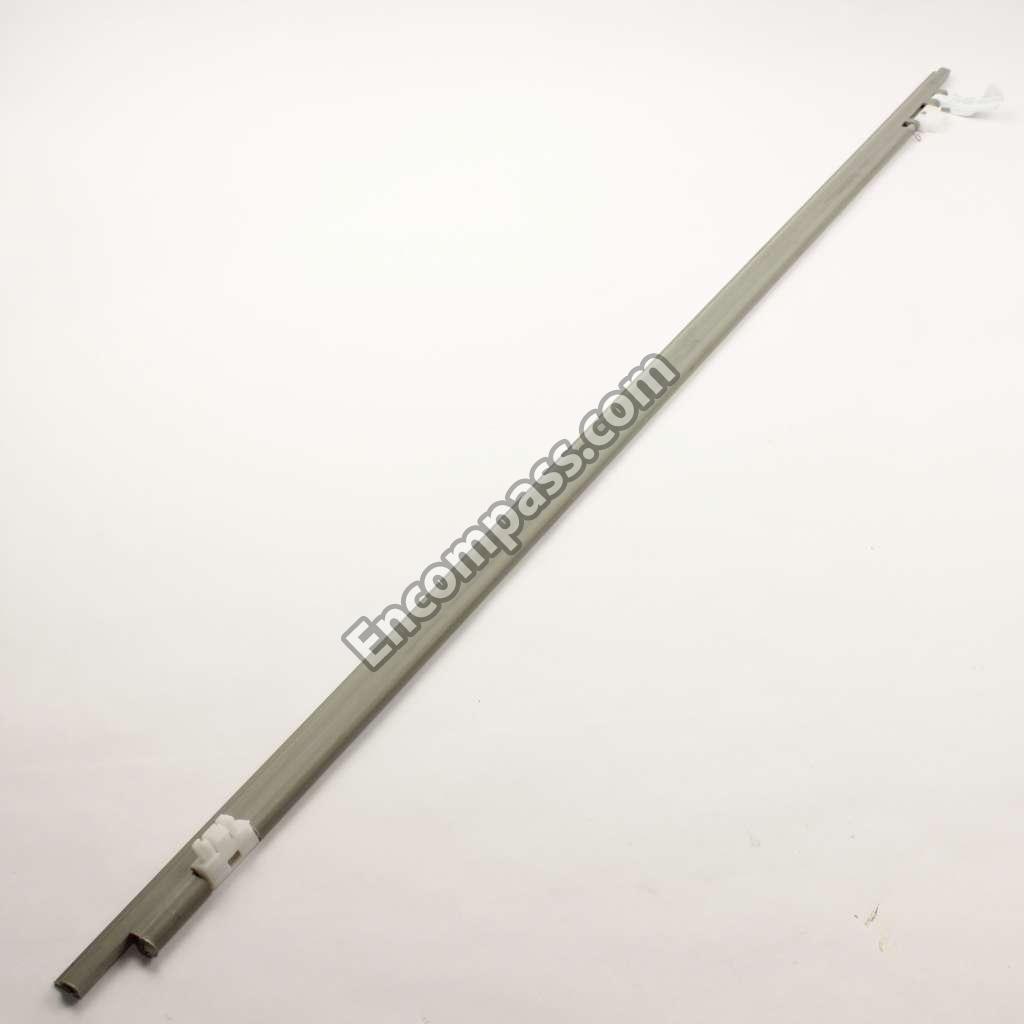

MAK39123901 MAK39123901 BAR [250A]

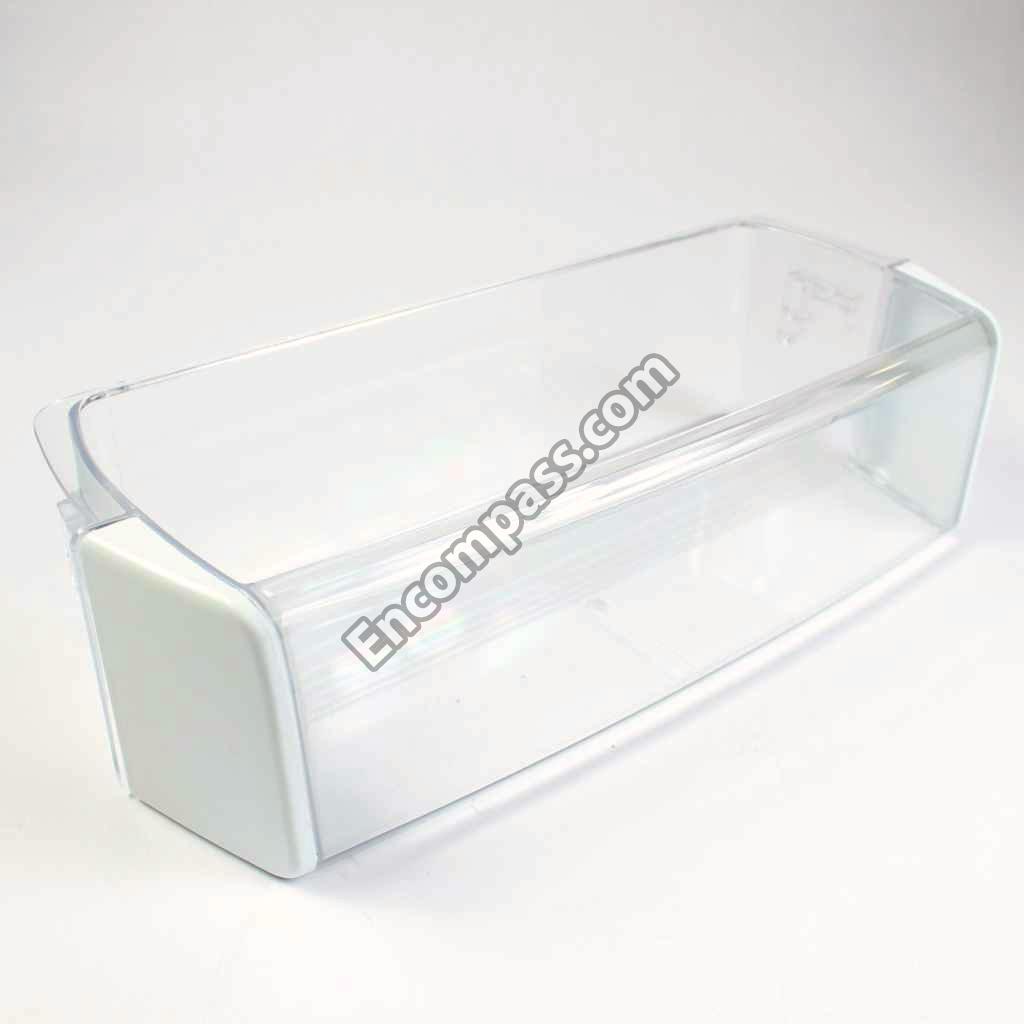

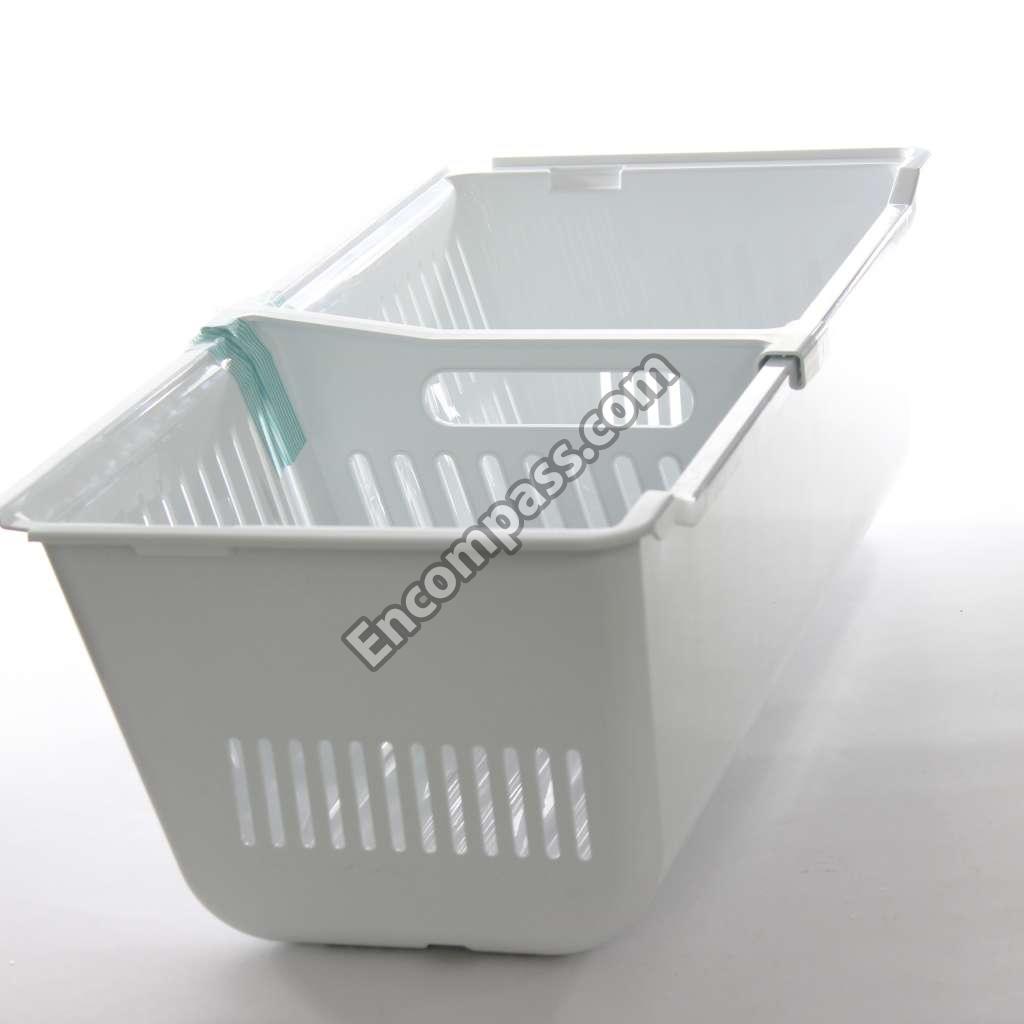

AAP33686302 AAP33686302 BASKET ASSEMBLY,DOOR [241A]

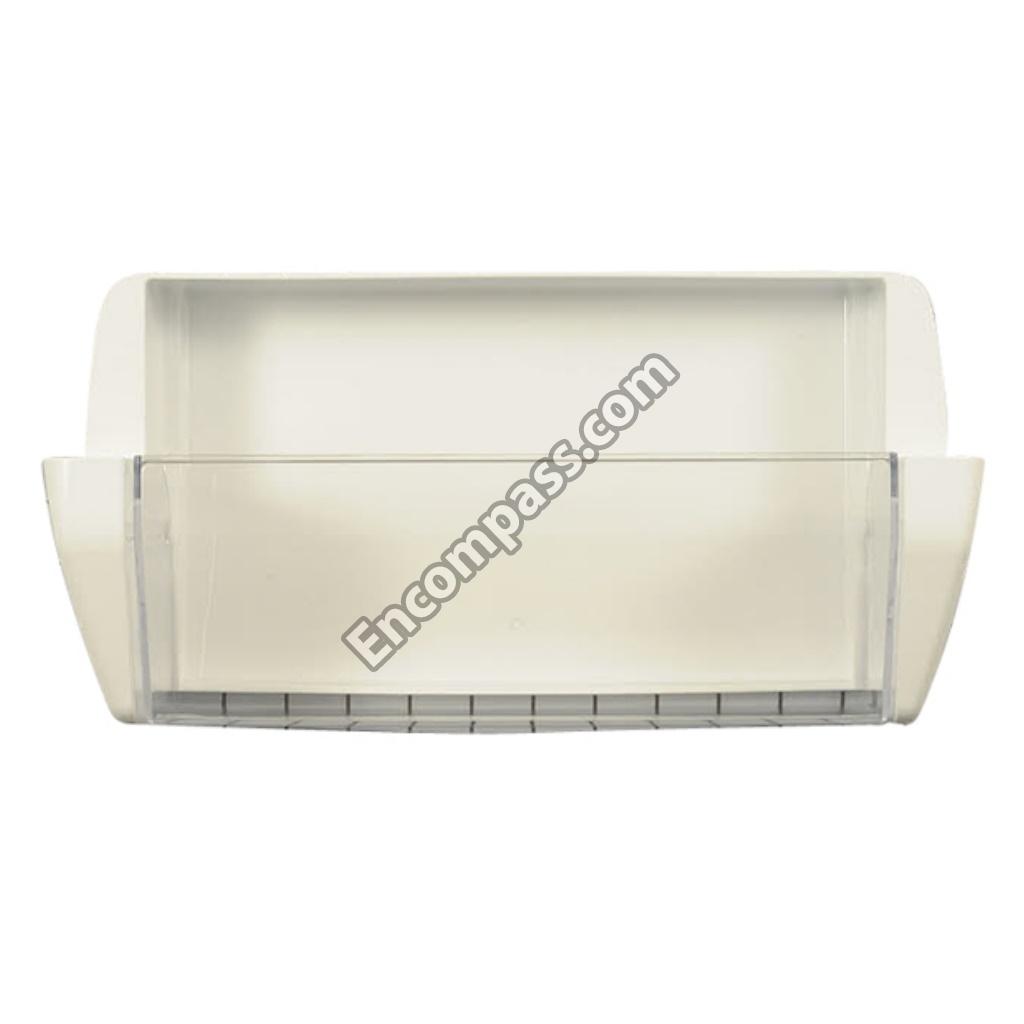

AAP73871501 AAP73871501 BASKET ASSEMBLY,DOOR [241D]
AAP73871601 AAP73871601 BASKET ASSEMBLY,DOOR [241E]

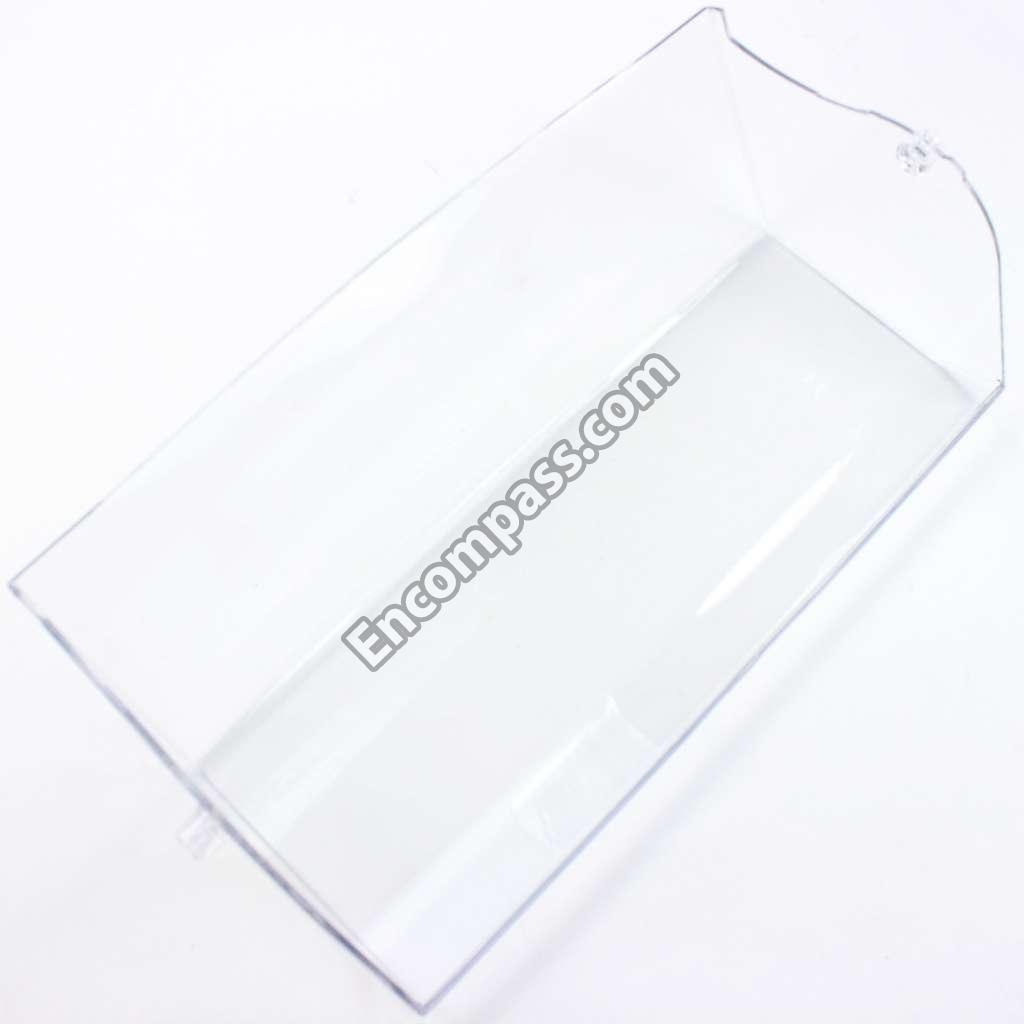

MAN38143001 MAN38143001 BASKET,WINDOW [241C]
1BZZJA2002A 1BZZJA2002A BOLT,COMMON [B04]
4810JA2129A 4810JA2129A BRACKET,MOTOR [405B]
4810JJ0003B 4810JJ0003B BRACKET,MOTOR [407B]

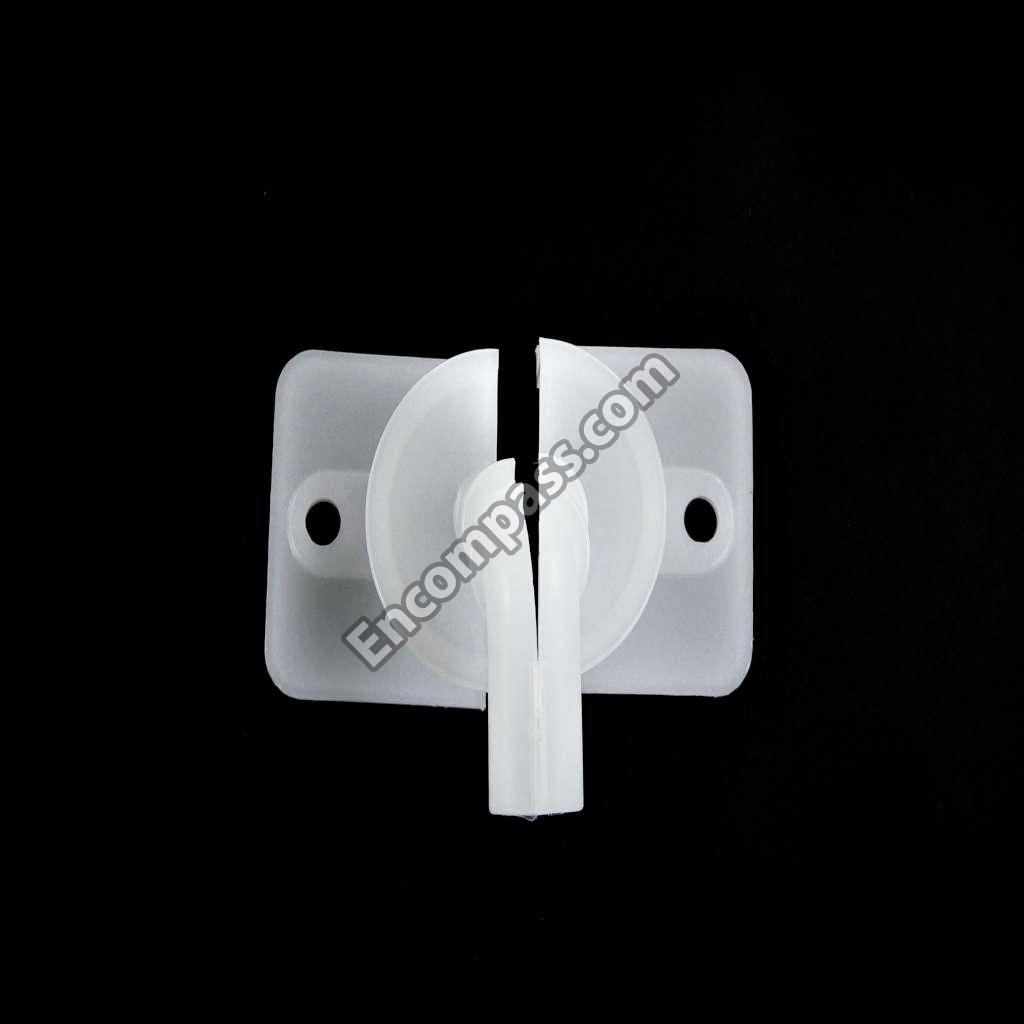

4430JJ2004A 4430JJ2004A CAM,SHAFT [234A]
4430JJ2004B 4430JJ2004B CAM,SHAFT [234B]

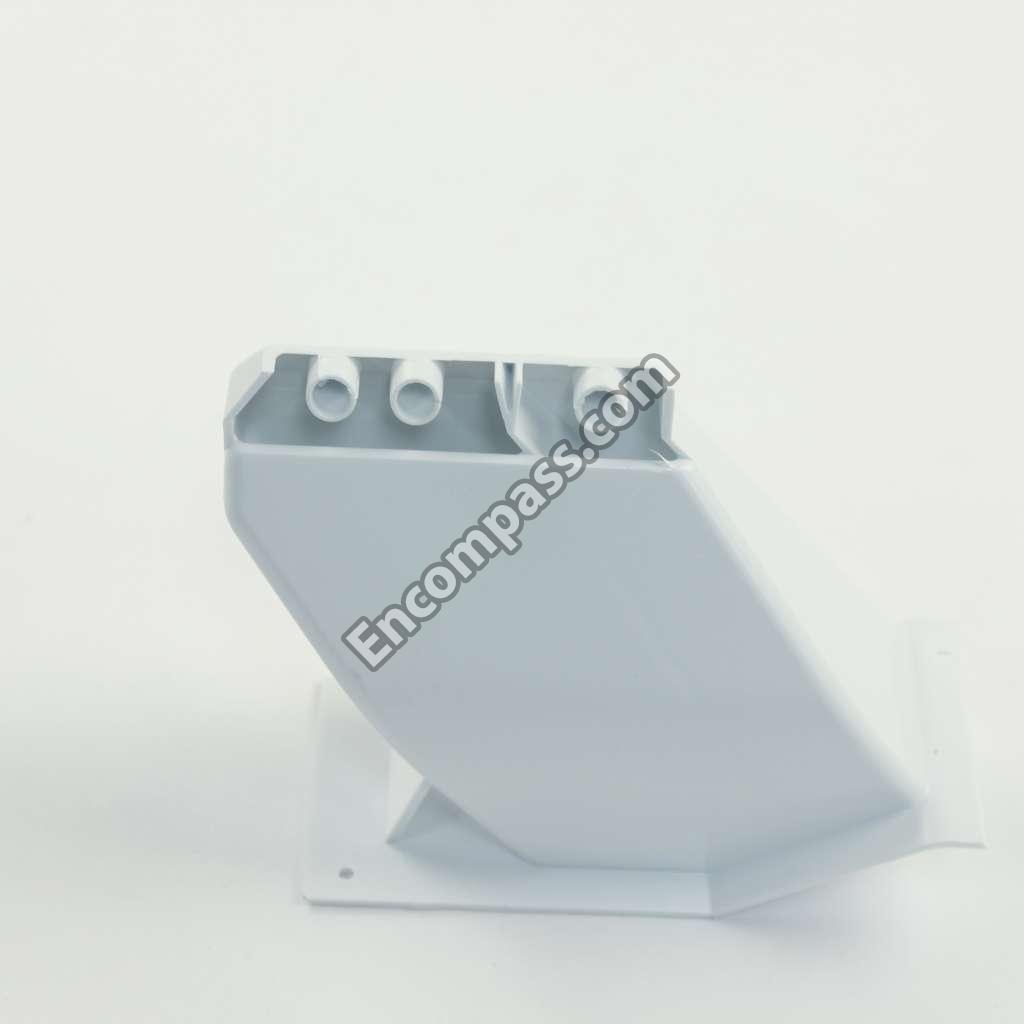

MBL38019501 MBL38019501 CAP,DUCT [282F]
5006JA3111A 5006JA3111A CAP,DUCT [282G]
0CZZJB2014K 0CZZJB2014K CAPACITOR,ELECTRIC APPLIANCE FILM,BOX [410G]
3110JA1096A 3110JA1096A CASE,DISPLAY [503D]

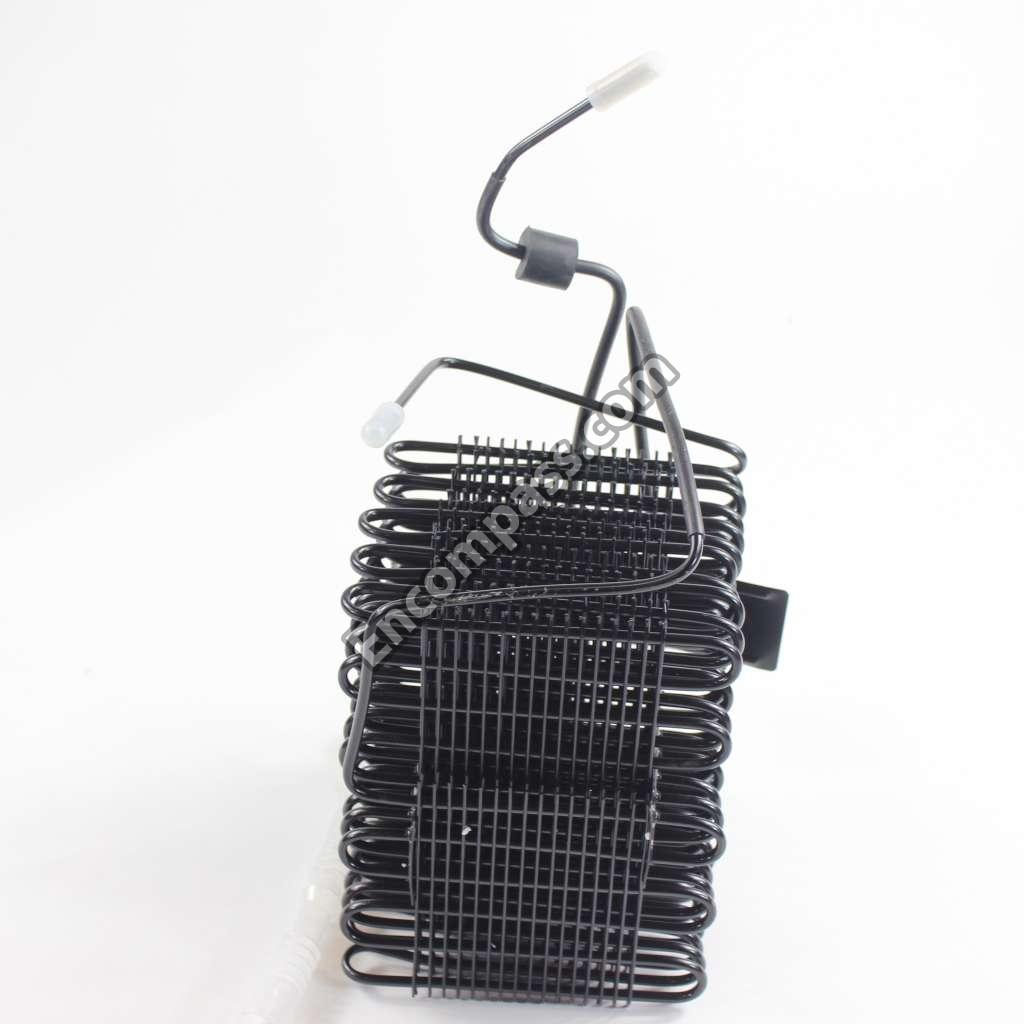

ACG73964501 ACG73964501 CONDENSER ASSEMBLY,WIRE [323B]
ACJ50677703 ACJ50677703 CONNECTOR ASSEMBLY [249A]
ACJ50677704 ACJ50677704 CONNECTOR ASSEMBLY [249B]
MCD42341602 MCD42341602 CONNECTOR,RAIL [249J]
MCD42341601 MCD42341601 CONNECTOR,RAIL [249K]
6615JB2005H 6615JB2005H CONTROLLER ASSEMBLY [400A]
ACQ36979201 ACQ36979201 COVER ASSEMBLY,FRONT [251A]
ACQ55957509 ACQ55957509 COVER ASSEMBLY,LOWER [103C]
3551JJ2018A 3551JJ2018A COVER ASSEMBLY,MACHINERY(REAR) [313A]
3551JA2144C 3551JA2144C COVER ASSEMBLY,PCB [501F]

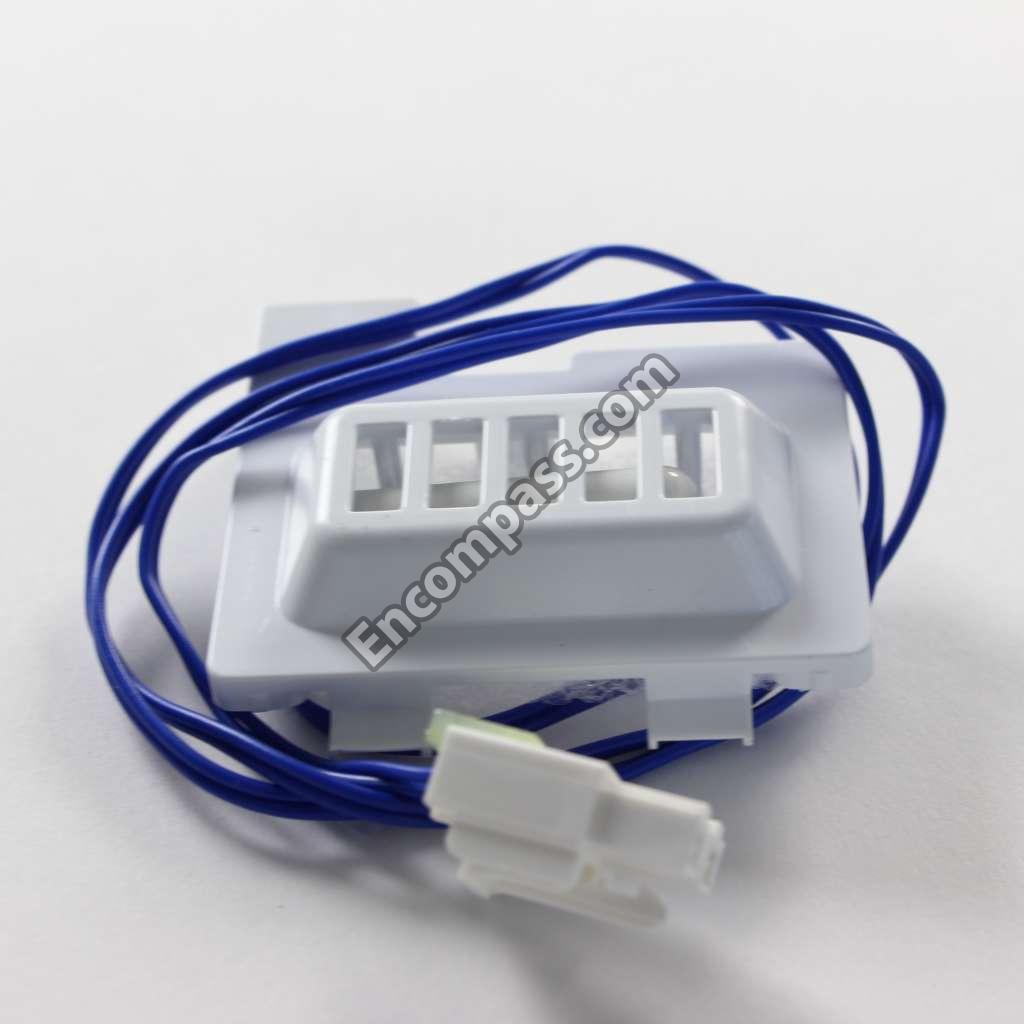

ACQ73244001 ACQ73244001 COVER ASSEMBLY,SENSOR [610C]

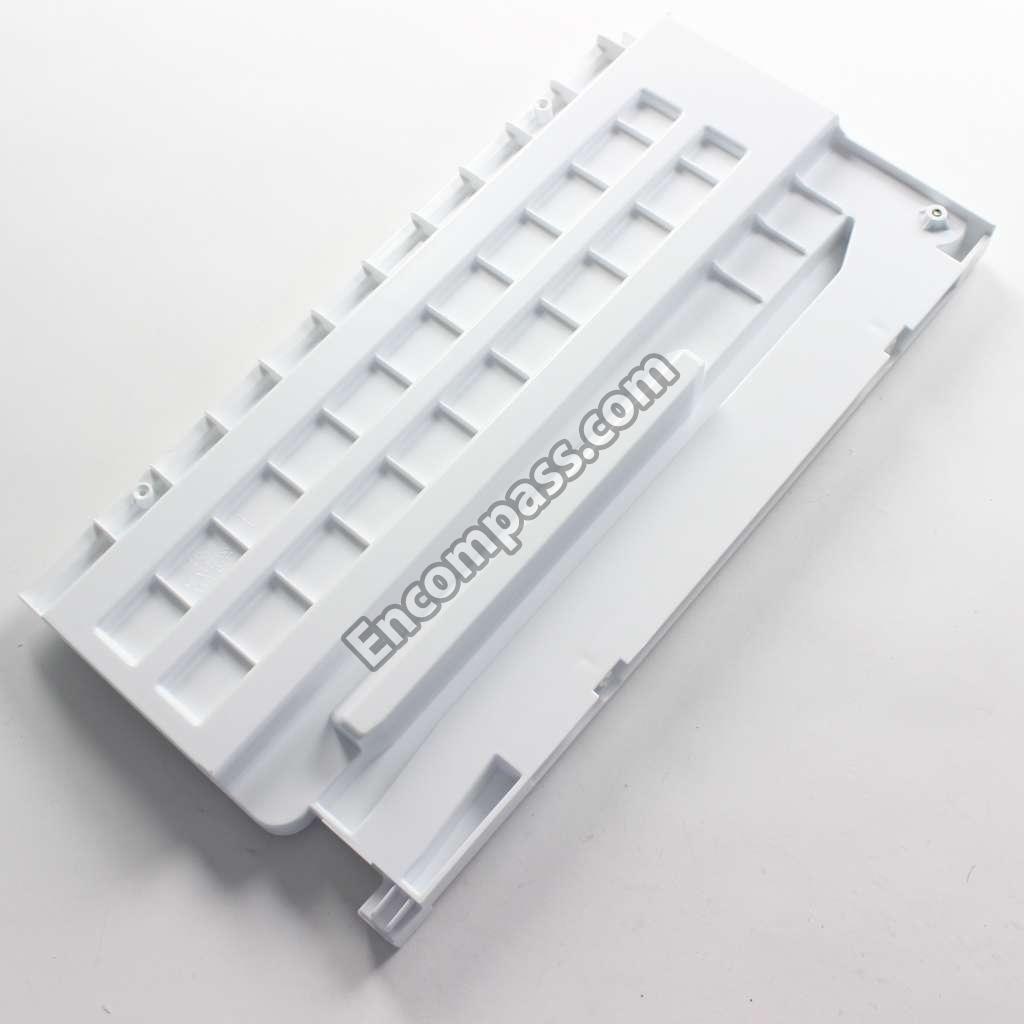

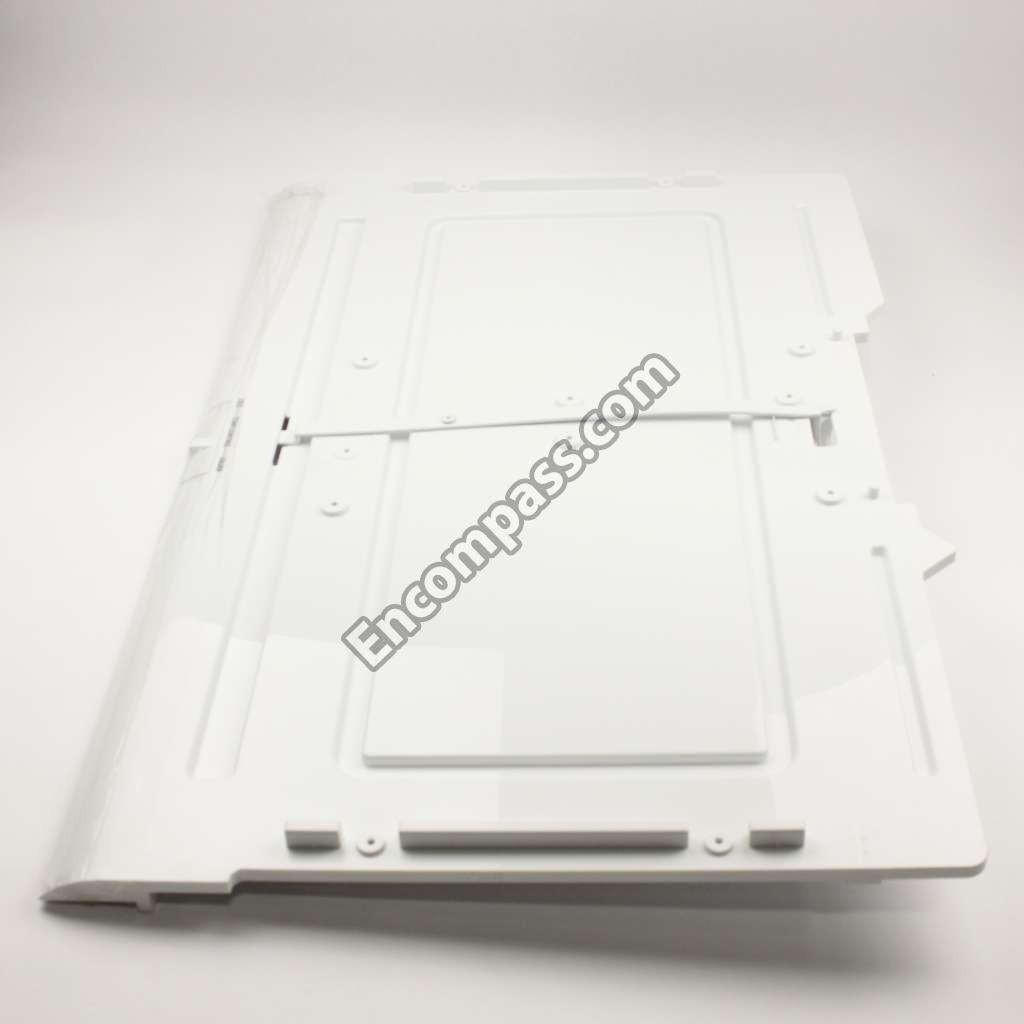

ACQ86509710 ACQ86509710 COVER ASSEMBLY,TRAY [146E]

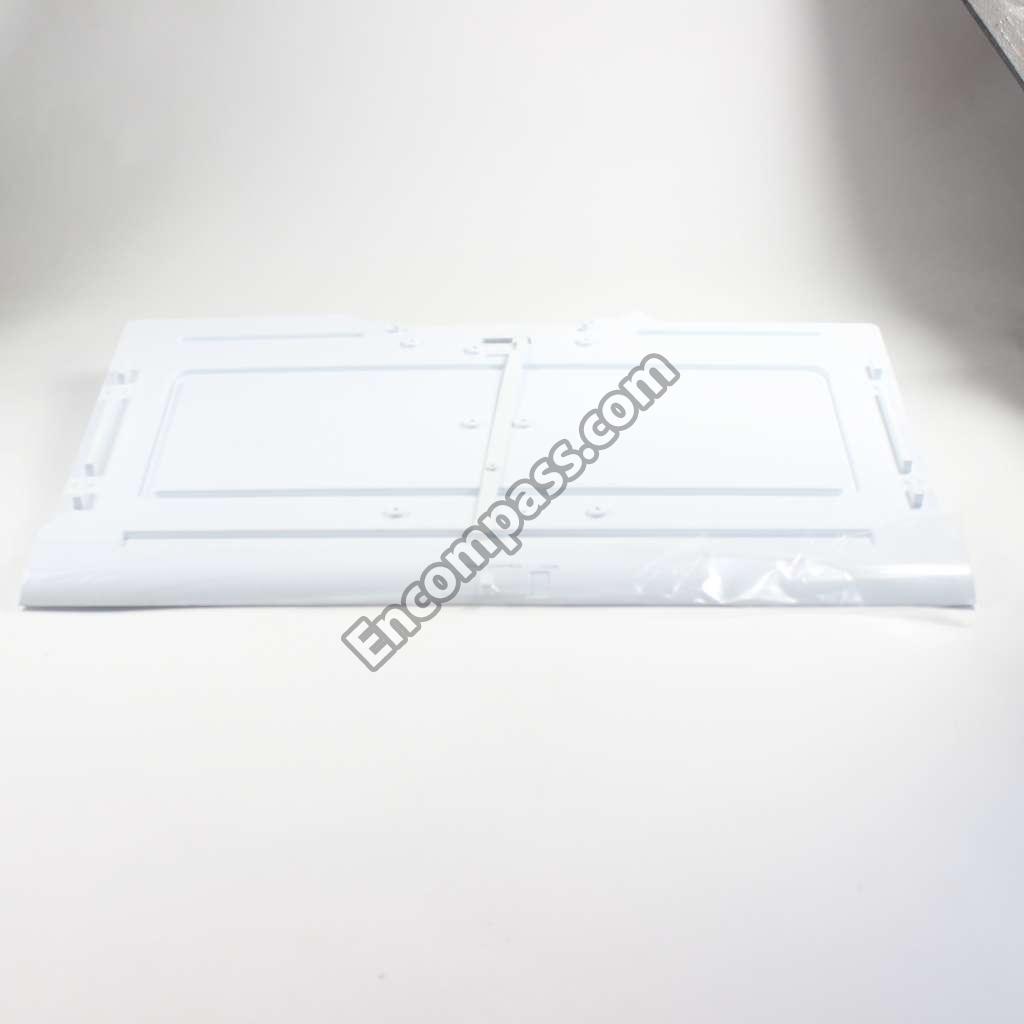

ACQ86509709 ACQ86509709 COVER ASSEMBLY,TV [154A]
3550JA2248A 3550JA2248A COVER,DISPLAY [503E]
MCK59045801 MCK59045801 COVER,FRAME [233C]
MCK59045802 MCK59045802 COVER,FRAME [233D]
3550JA2263B 3550JA2263B COVER,GRILLE FAN [135C]
MCK67447705 MCK67447705 COVER,HINGE [207A]
3550JJ1097R 3550JJ1097R COVER,HINGE [207B]

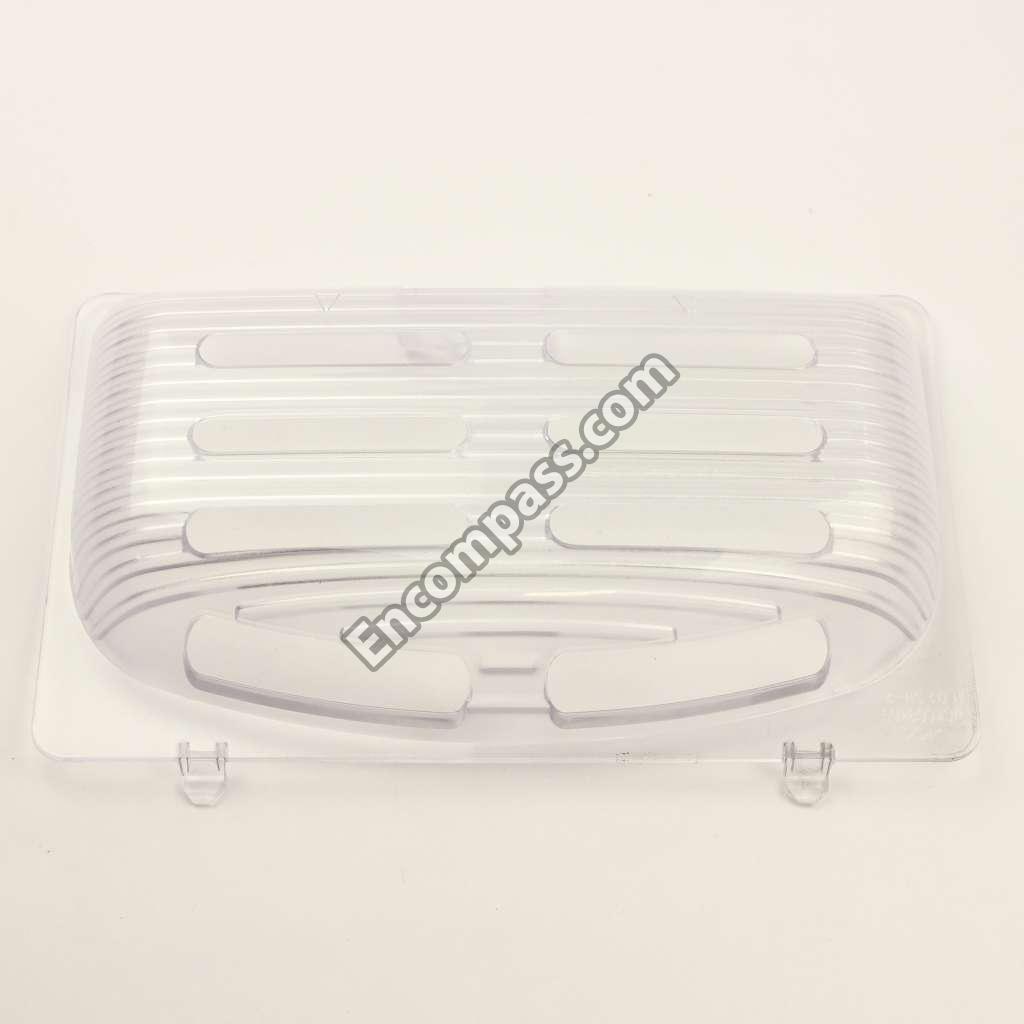

3550JA1388B 3550JA1388B COVER,LAMP [158A]
MCK66846501 MCK66846501 COVER,LAMP [158B]
3550JA2042C 3550JA2042C COVER,PTC [304A]
3550JA2247A 3550JA2247A COVER,SENSOR [610A]
5040JA3071A 5040JA3071A DAMPER,COMPRESSOR [312A]
5040JJ2001A 5040JJ2001A DAMPER,MOTOR SUPPORT [309B]
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [405C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [405F]
5072JA3003F 5072JA3003F DAMPER,NOISE [316A]
3806JL1035B 3806JL1035B DECOR,CONTROL [503G]
ADC57512113 ADC57512113 DOOR ASSEMBLY,FREEZER(LOWER) [200B]
ADC57512013 ADC57512013 DOOR ASSEMBLY,FREEZER(UPPER) [200A]
ADC55626824 ADC55626824 DOOR ASSEMBLY,REFRIGERATOR(LEFT) [230B]
6877JB3036K 6877JB3036K DRAWING,ASSEMBLY [619E]
ADH73150208 ADH73150208 DRIER ASSEMBLY [317A]
MCZ42230901 MCZ42230901 DUCT,MULTI [120B]
MCZ61849401 MCZ61849401 DUCT,MULTI [610E]
5421JJ1003S 5421JJ1003S EVAPORATOR ASSEMBLY [302B]
5901JA1022A 5901JA1022A FAN ASSEMBLY [329A]
ADP36665701 ADP36665701 FAN ASSEMBLY [329C]

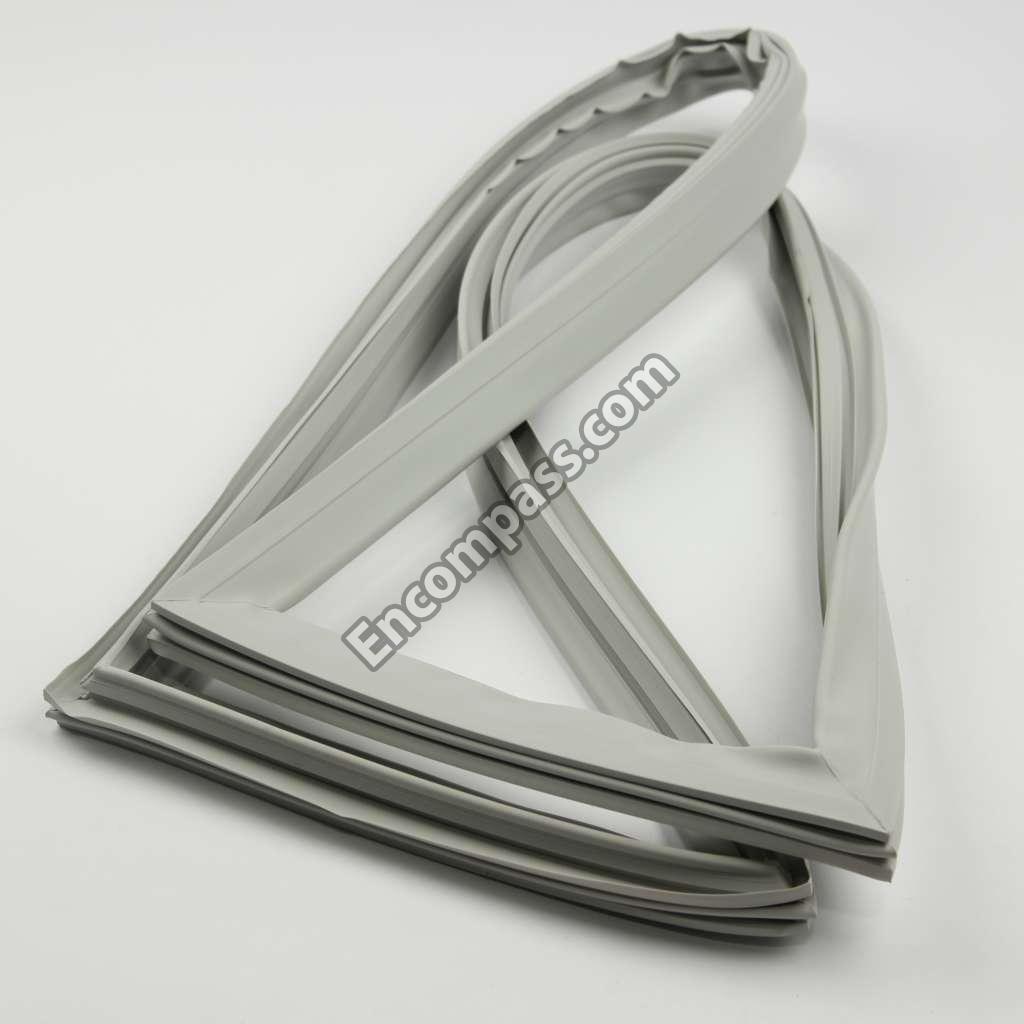

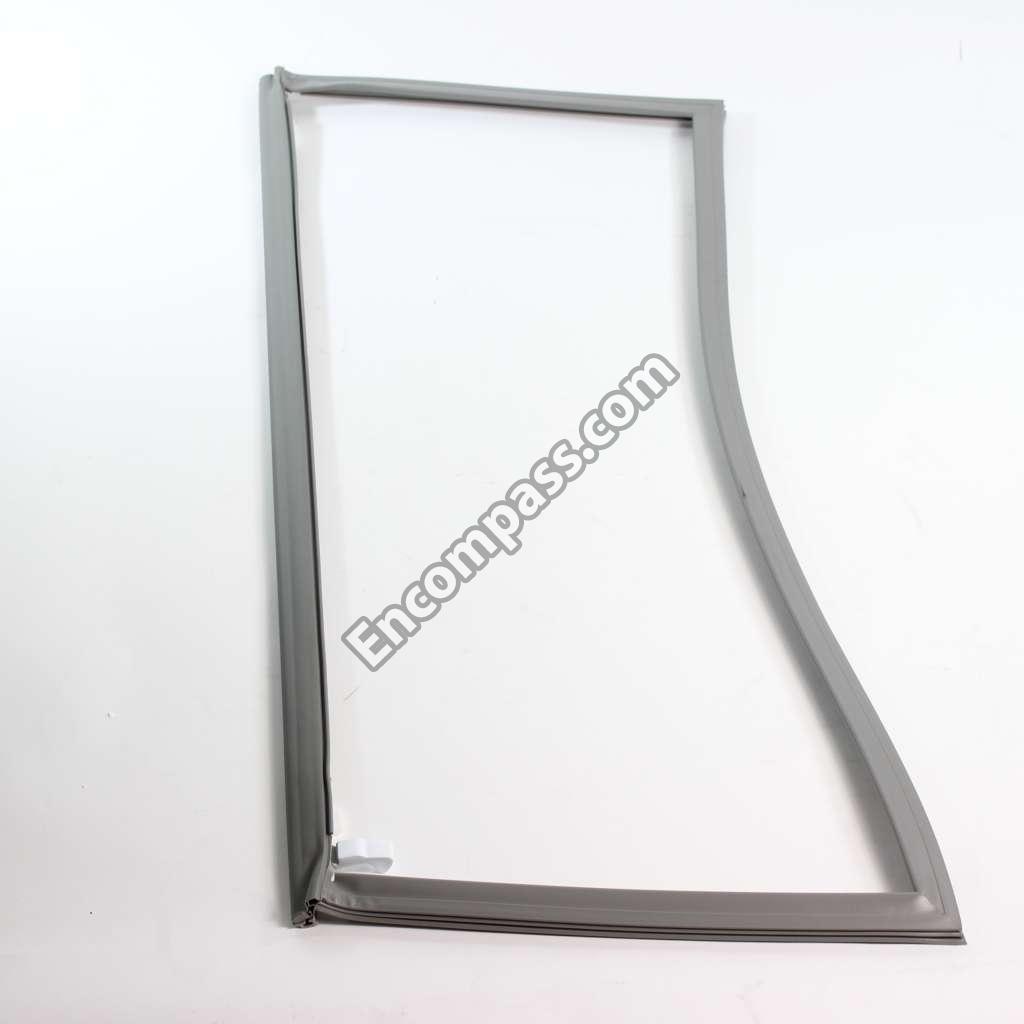

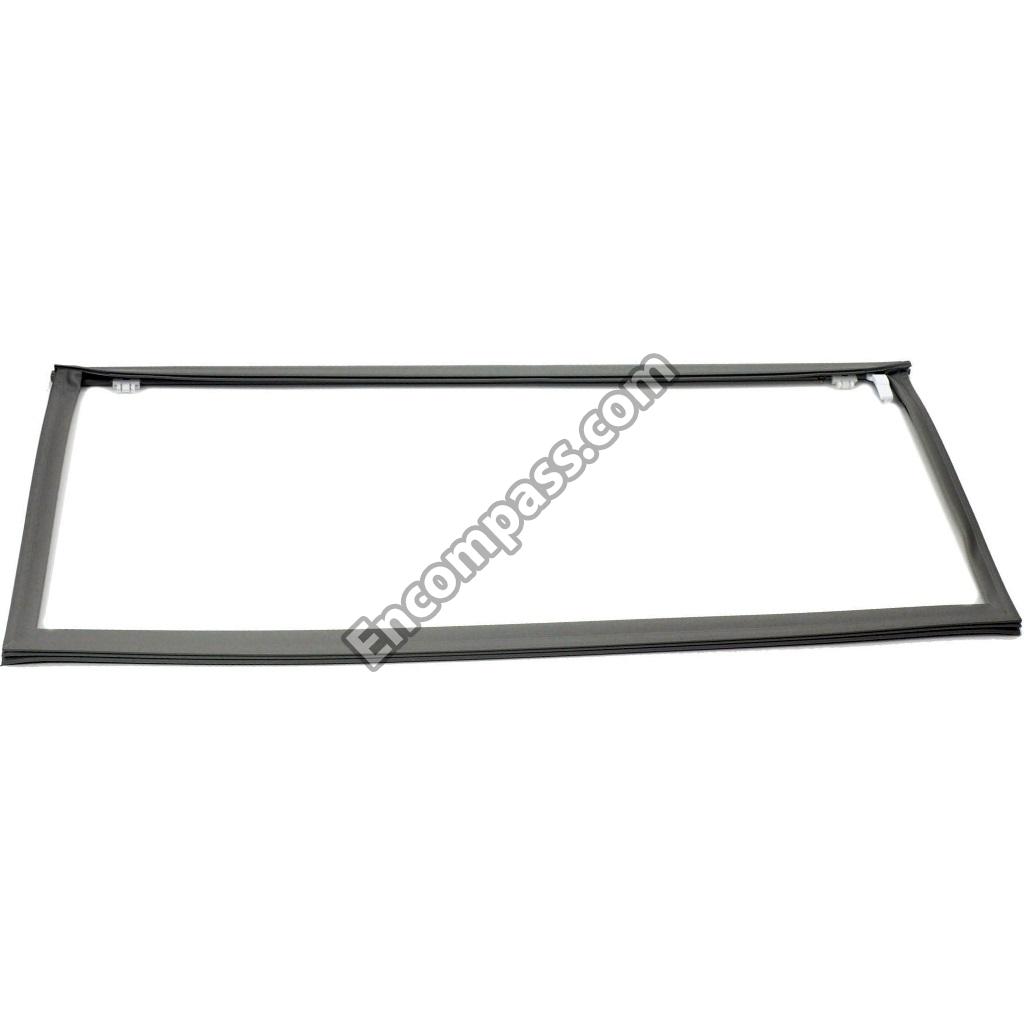

ADX73730401 ADX73730401 GASKET ASSEMBLY,DOOR [203A]
4987JJ2002S 4987JJ2002S GASKET ASSEMBLY,DOOR [233A]
4987JJ2002T 4987JJ2002T GASKET ASSEMBLY,DOOR [233B]
MDS42267902 MDS42267902 GASKET,DOOR [203C]
MDS42267901 MDS42267901 GASKET,DOOR [203D]

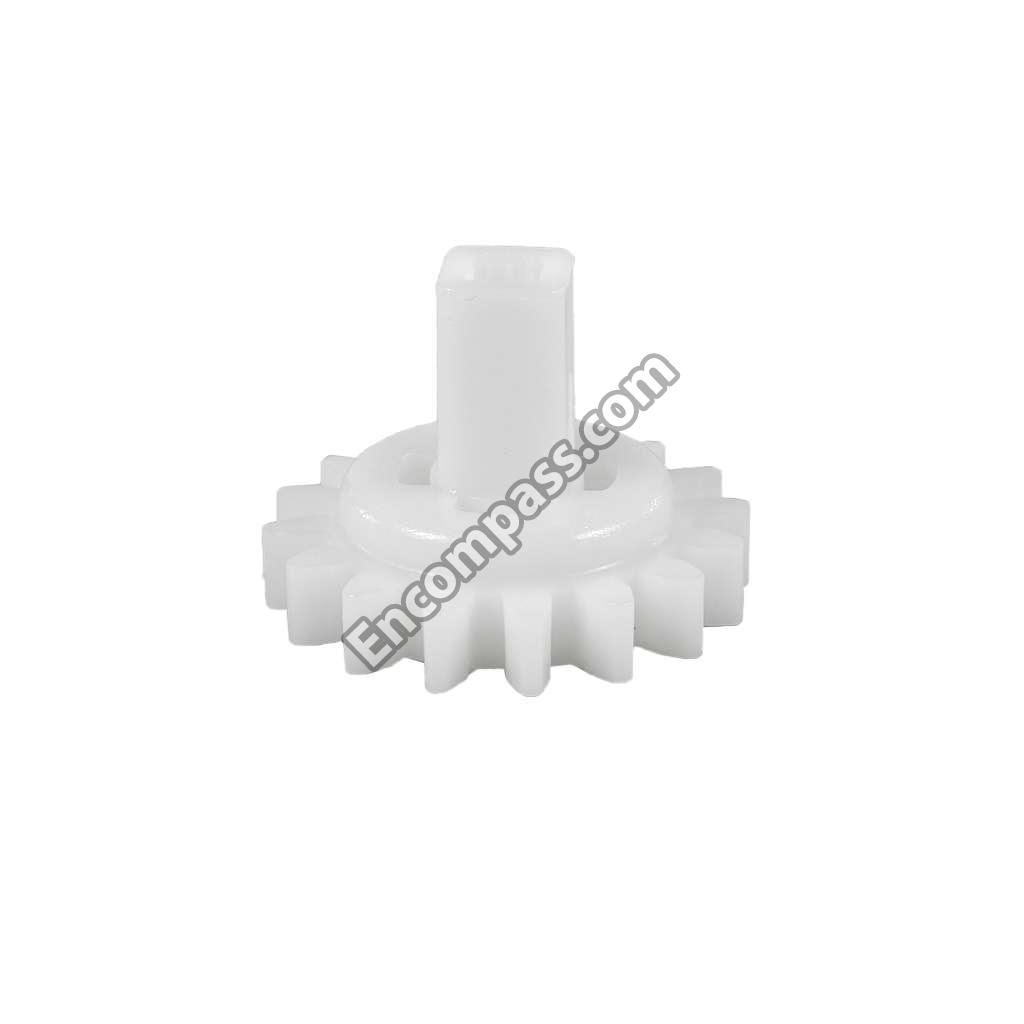

4470JA2007A 4470JA2007A GEAR,ICE [250B]

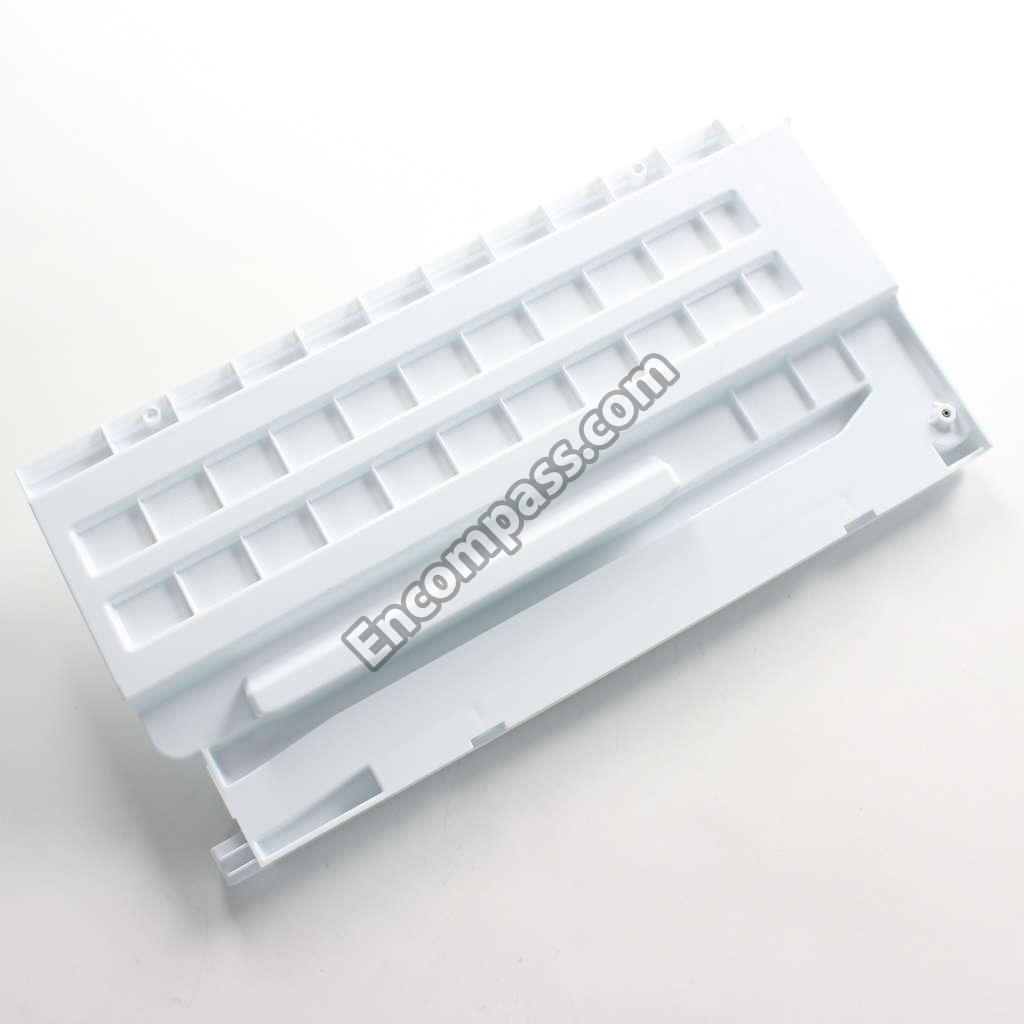

MDX63113401 MDX63113401 GRILLE,FAN [332A]

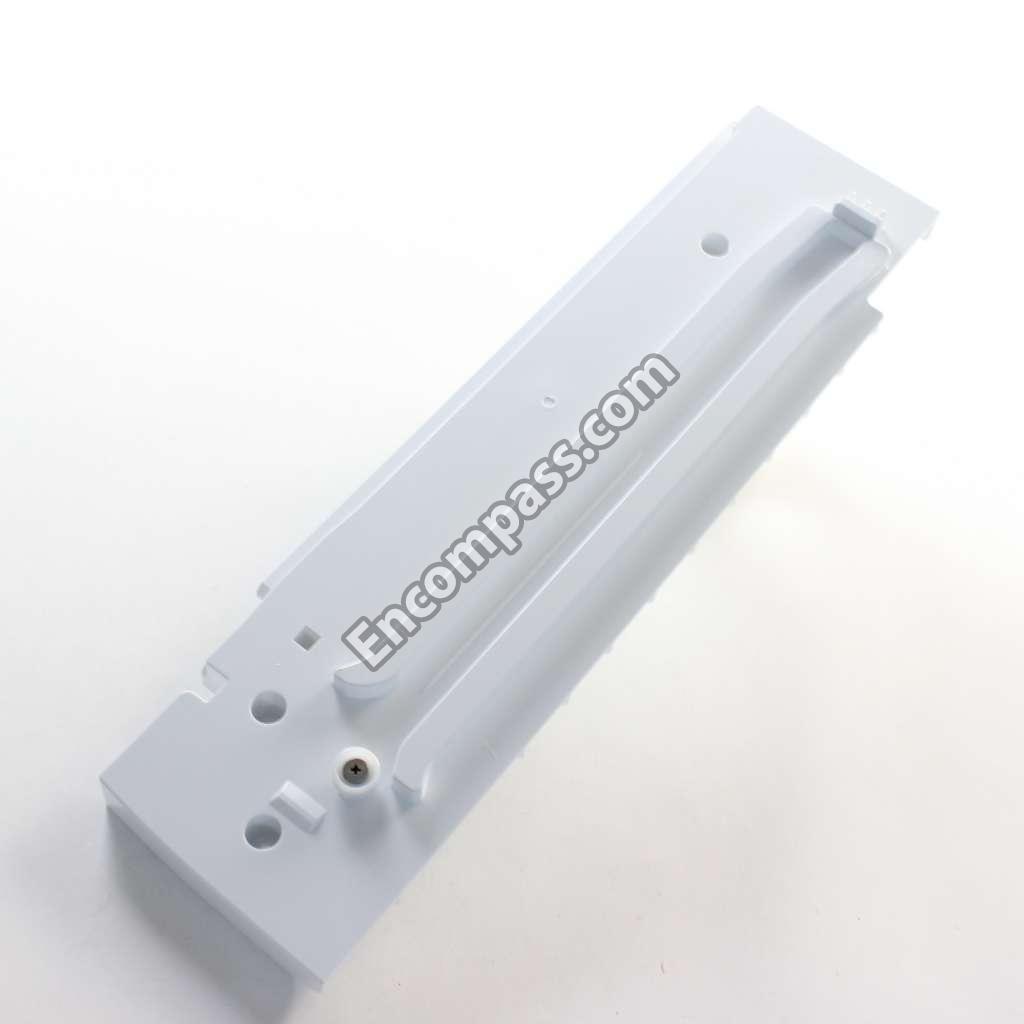

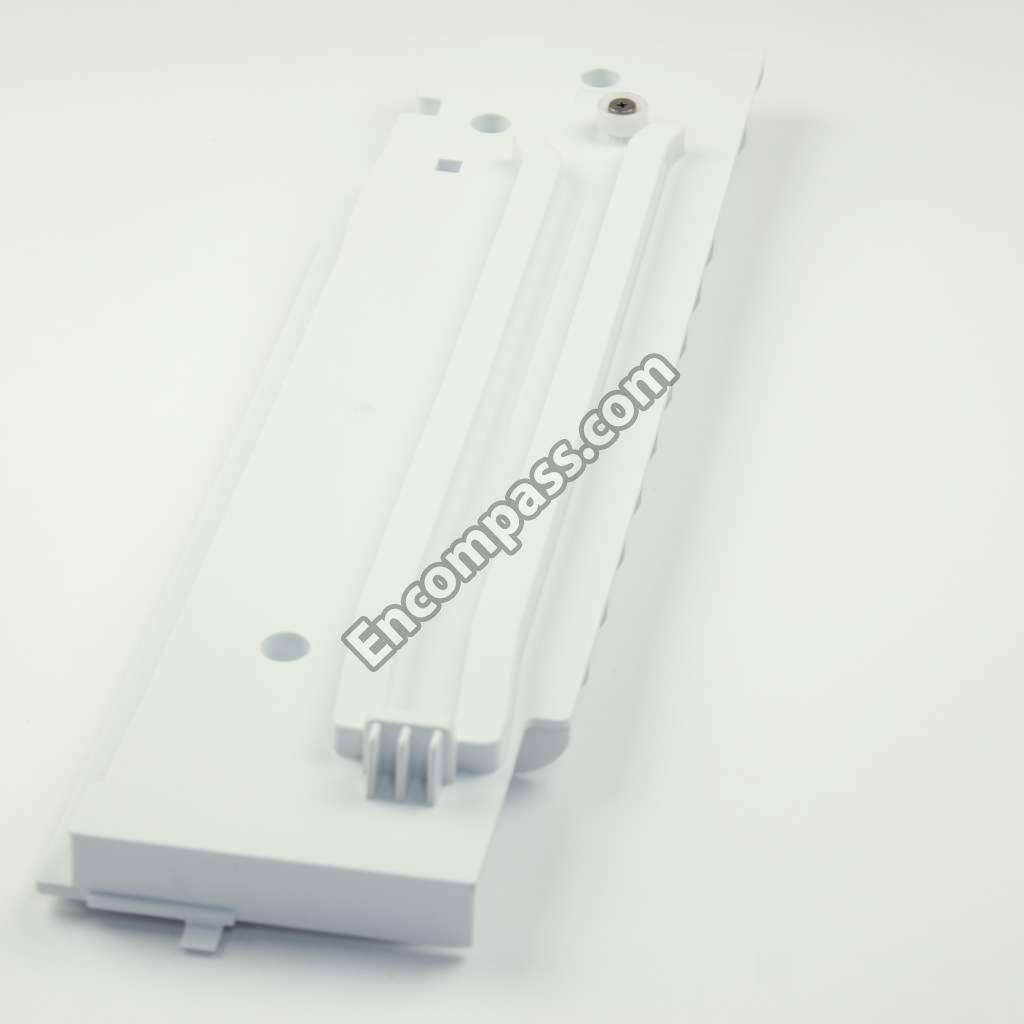

AEC73877502 AEC73877502 GUIDE ASSEMBLY,RAIL [161C]
AEC73857401 AEC73857401 GUIDE ASSEMBLY,RAIL [162A]
AEC73857402 AEC73857402 GUIDE ASSEMBLY,RAIL [162B]
AEC73877402 AEC73877402 GUIDE ASSEMBLY,TV [161A]
AEC73877401 AEC73877401 GUIDE ASSEMBLY,TV [161B]
MEA42263801 MEA42263801 GUIDE,DRAWER [237C]
MEA42257901 MEA42257901 GUIDE,FAN [319C]
AED37133117 AED37133117 HANDLE ASSEMBLY,FREEZER [212D]
AED37082916 AED37082916 HANDLE ASSEMBLY,REFRIGERATOR [244A]
3650JA2061X 3650JA2061X HANDLE,REAR [103A]
MEB62055503 MEB62055503 HANDLE,REAR [103B]
5300JK1005D 5300JK1005D HEATER,SHEATH [408A]
AEH71135346 AEH71135346 HINGE ASSEMBLY,CENTER [262B]
AEH71135348 AEH71135348 HINGE ASSEMBLY,CENTER [262H]

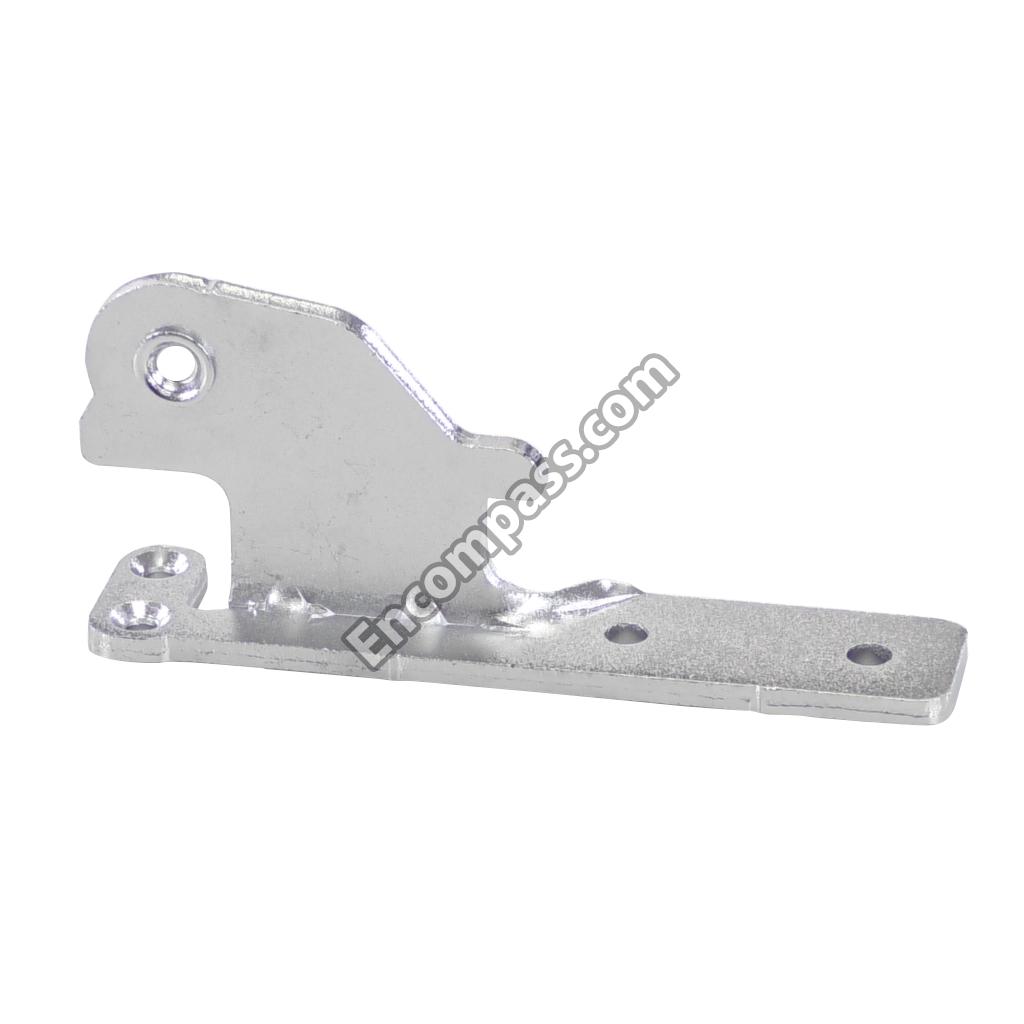

AEH74216502 AEH74216502 HINGE ASSEMBLY,UPPER [271B]
AEH60614101 AEH60614101 HINGE ASSEMBLY,UPPER [271D]
4931JJ2002E 4931JJ2002E HOLDER ASSEMBLY,GASKET [234C]
4931JJ2002F 4931JJ2002F HOLDER ASSEMBLY,GASKET [234D]
4931JA3006A 4931JA3006A HOLDER ASSEMBLY,GASKET [406D]
4930JA3034C 4930JA3034C HOLDER,DRIER [318A]
MEG61879201 MEG61879201 HOLDER,PIPE [616E]
4930JA2080C 4930JA2080C HOLDER,SHELF [145A]
4930JA2081C 4930JA2081C HOLDER,SHELF [145B]

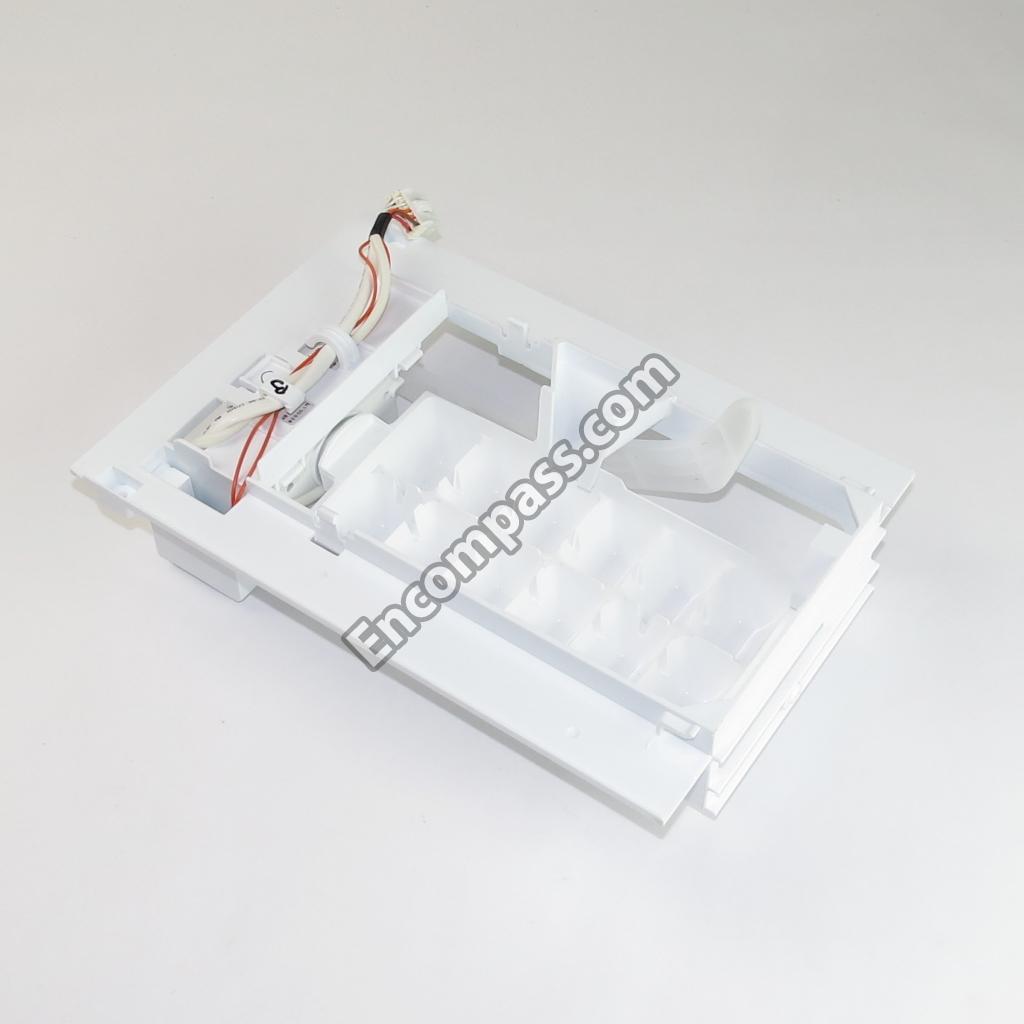

AEQ72909603 AEQ72909603 ICE MAKER ASSEMBLY,KIT [600A]
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [409B]
AFC72909201 AFC72909201 LEG ASSEMBLY,ADJUST [106A]

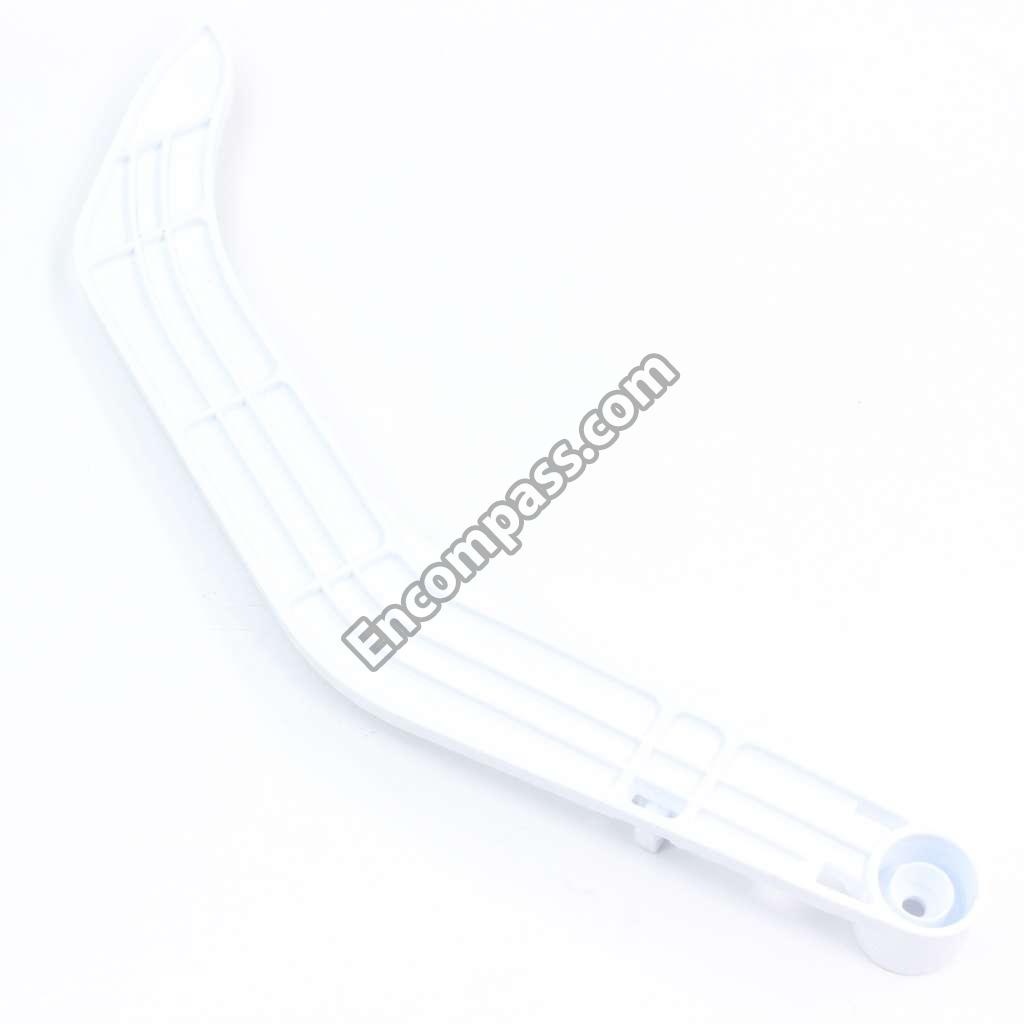

4510JA3003D 4510JA3003D LEVER,ICE MAKER [600B]
4681JB1027C 4681JB1027C MOTOR,DC [404A]
4681JB1029D 4681JB1029D MOTOR,DC [420A]
MFT62346511 MFT62346511 NAME PLATE [212G]

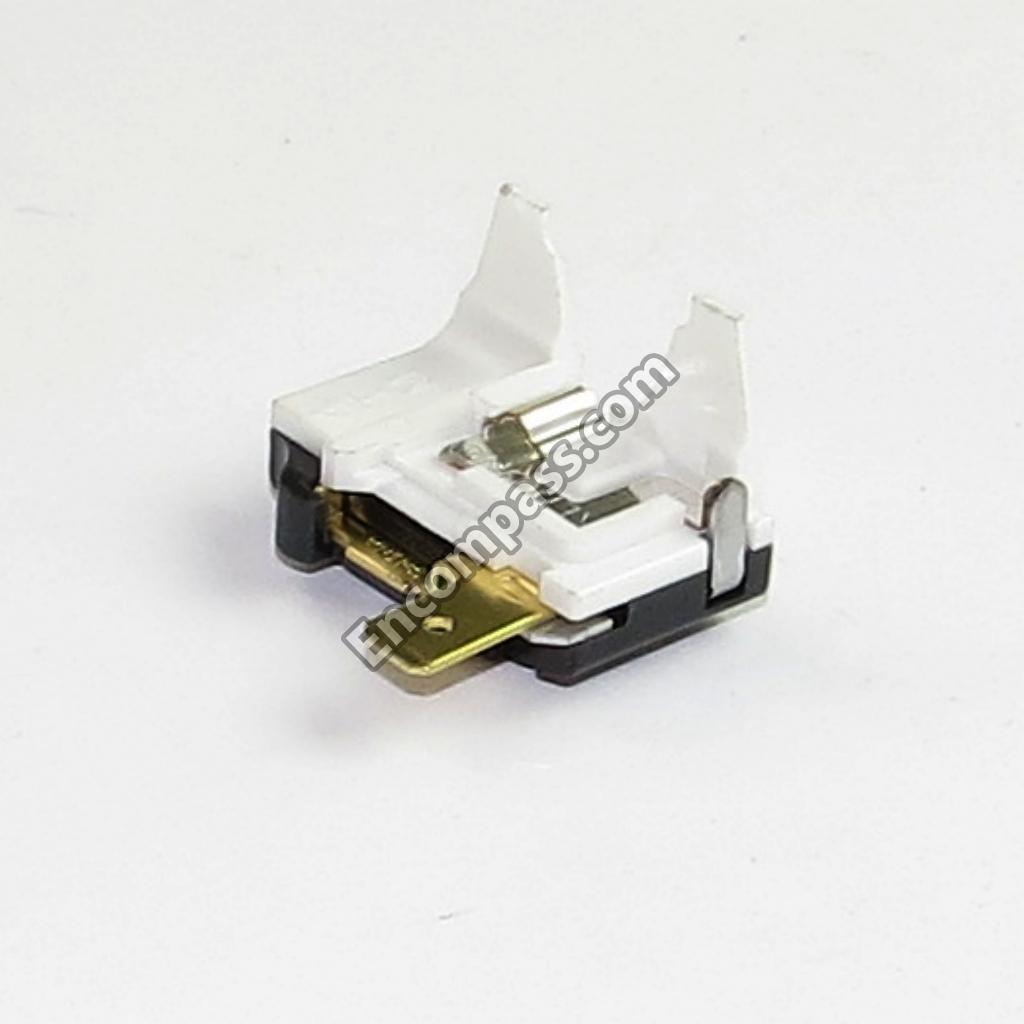

6750C-0004R 6750C-0004R OVERLOAD PROTECT [303C]
6871JB1374H 6871JB1374H PCB ASSEMBLY,DISPLAY [503C]
EBR52304402 EBR52304402 PCB ASSEMBLY,MAIN [500A]
1PZZJA3013B 1PZZJA3013B PIN,COMMON [315C]

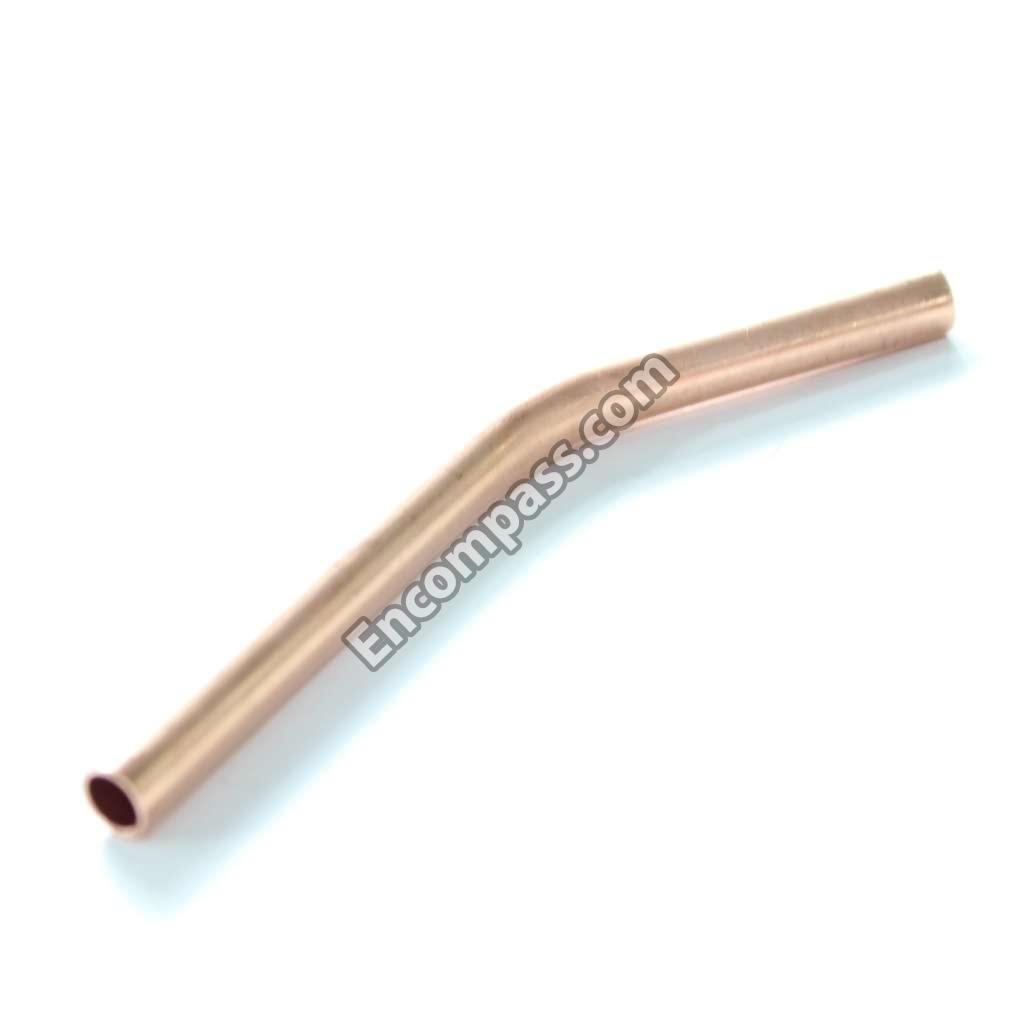

4J00977P 4J00977P PIPE,COMPRESSOR SEALING [310B]
AGU36765304 AGU36765304 PLATE ASSEMBLY,CENTER [251B]
6411JB1042X 6411JB1042X POWER CORD ASSEMBLY [411A]

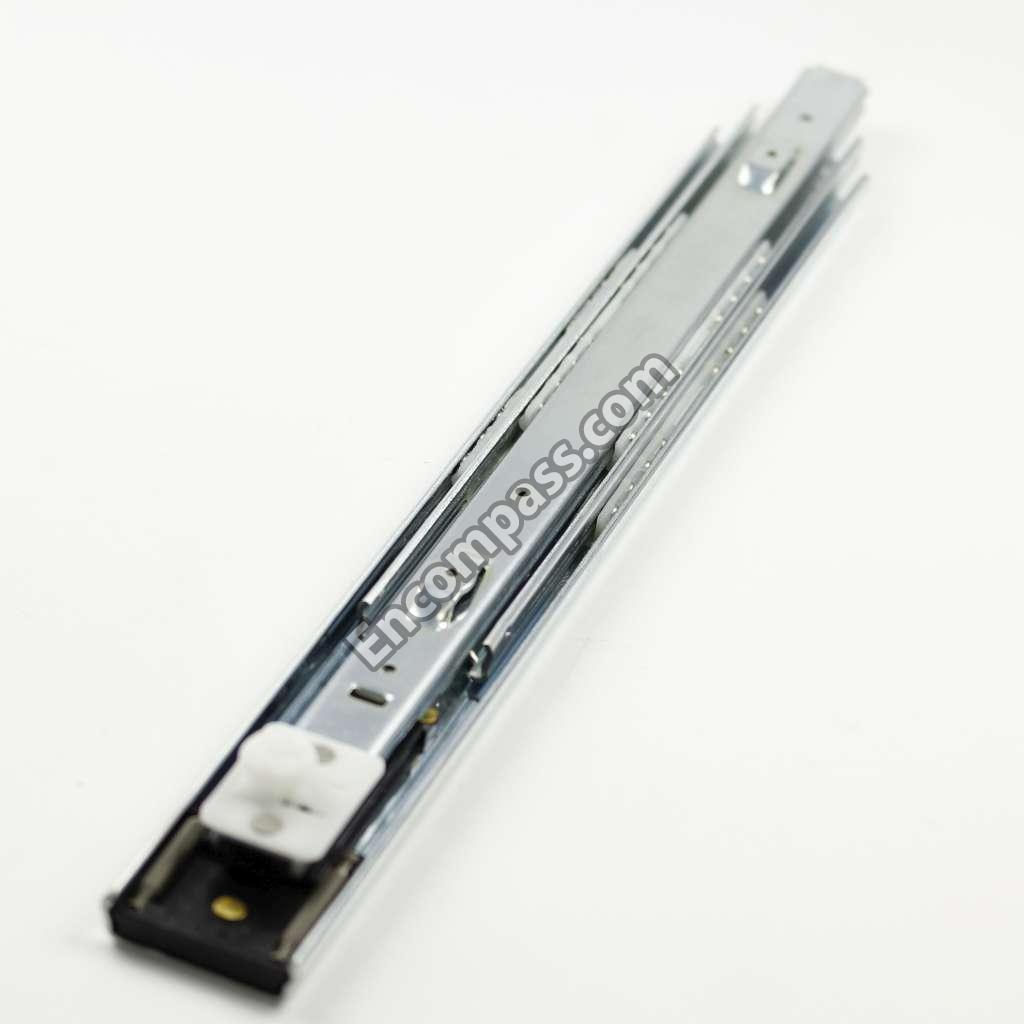

MGT42902801 MGT42902801 RAIL,SLIDE [249E]

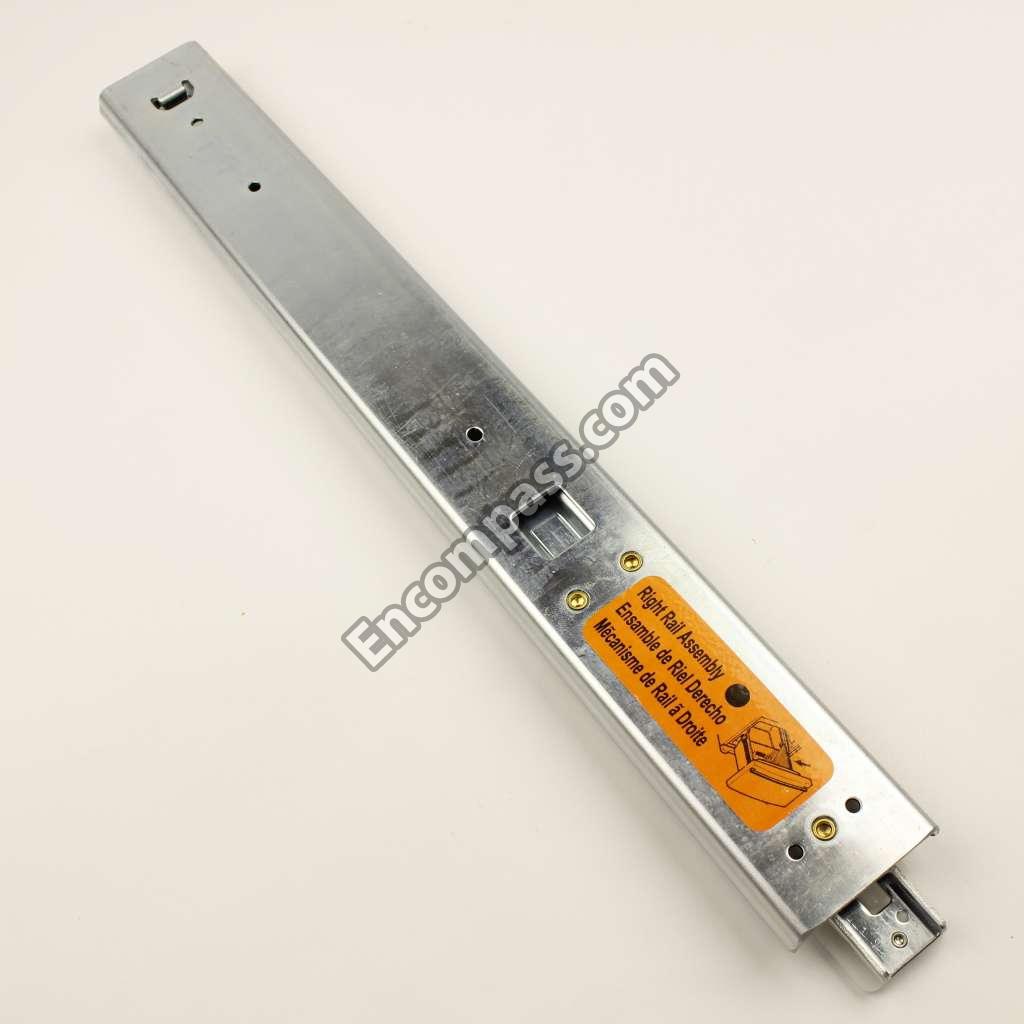

MGT42902802 MGT42902802 RAIL,SLIDE [249F]
3034JA1009A 3034JA1009A REFLECTOR,LAMP [409D]
4350JA3005B 4350JA3005B RING [262C]
MHA62513601 MHA62513601 ROLLER [315B]
4000W4A003A 4000W4A003A SCREW,CUSTOMIZED [B01]
1STZJA3004F 1STZJA3004F SCREW,CUSTOMIZED [B02]
1SZZJA3005K 1SZZJA3005K SCREW,CUSTOMIZED [S01]
4J00415D 4J00415D SCREW,CUSTOMIZED [S02]
4J01424B 4J01424B SCREW,CUSTOMIZED [S03]
4J01424D 4J01424D SCREW,CUSTOMIZED [S08]
4J01425A 4J01425A SCREW,CUSTOMIZED [S10]
3J05696W 3J05696W SCREW,CUSTOMIZED [S11]
1SZZJJ3003D 1SZZJJ3003D SCREW,CUSTOMIZED [S12]
1SZZJA3016A 1SZZJA3016A SCREW,CUSTOMIZED [S20]
6500JB2001B 6500JB2001B SENSOR [610D]
6500JB1001K 6500JB1001K SENSOR,TEMPERATURE [610B]
AHT73734102 AHT73734102 SHELF ASSEMBLY,NET [141C]
AHT36764306 AHT36764306 SHELF ASSEMBLY,REFRIGERATOR [141A]

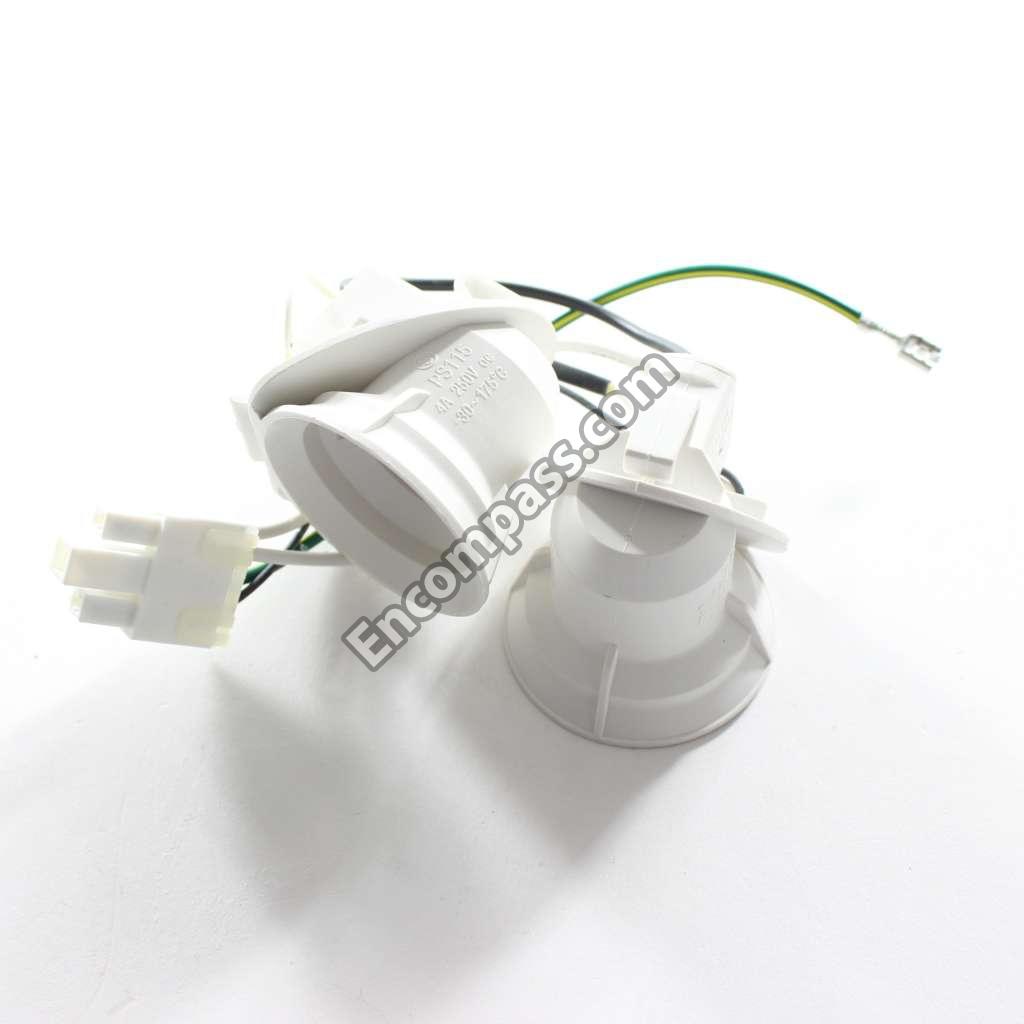

EAG40099101 EAG40099101 SOCKET,LAMP [410A]
4620JA3015A 4620JA3015A STOPPER,COMPRESSOR [314A]

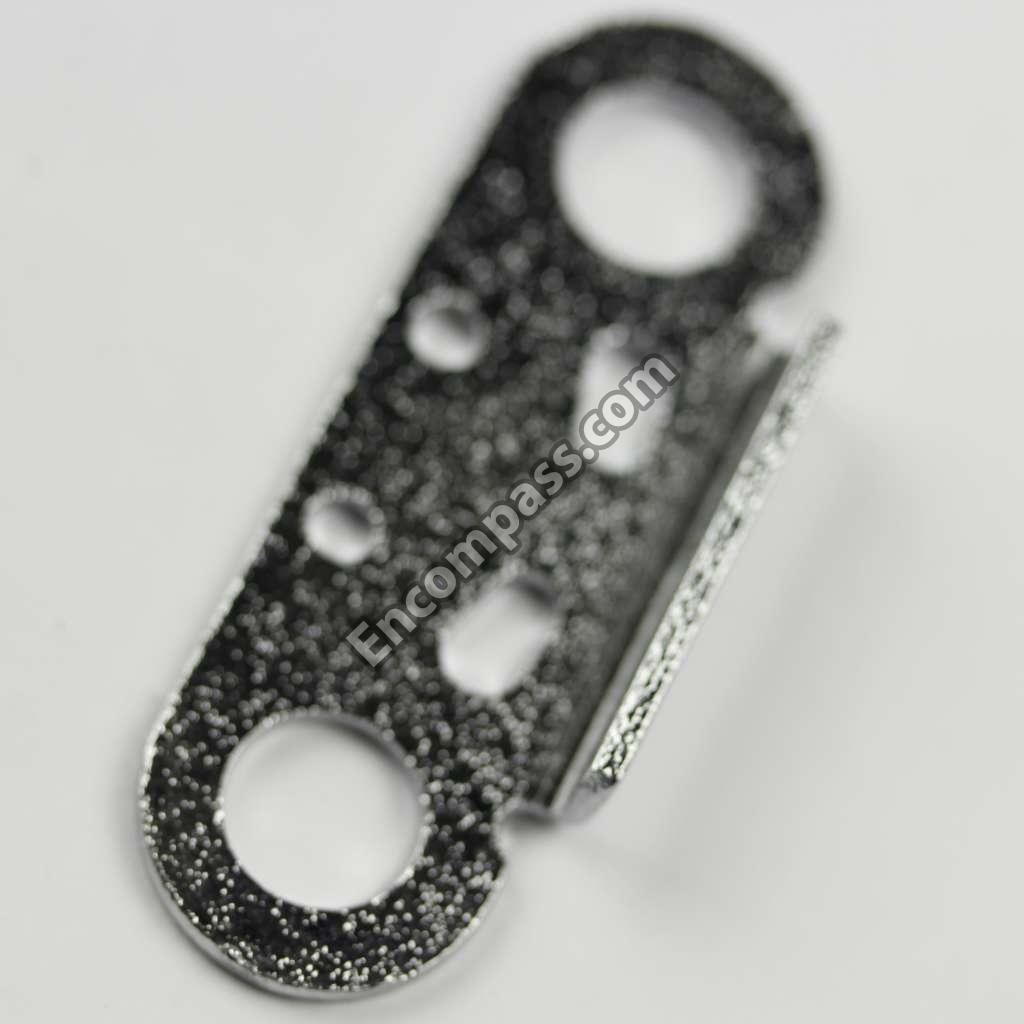

4620JJ3006N 4620JJ3006N STOPPER,DOOR [243A]
MJB63029901 MJB63029901 STOPPER,DOOR [243B]
MJB63190001 MJB63190001 STOPPER,HANDLE [B05]
MJH48434601 MJH48434601 SUPPORTER,HOLDER [250G]

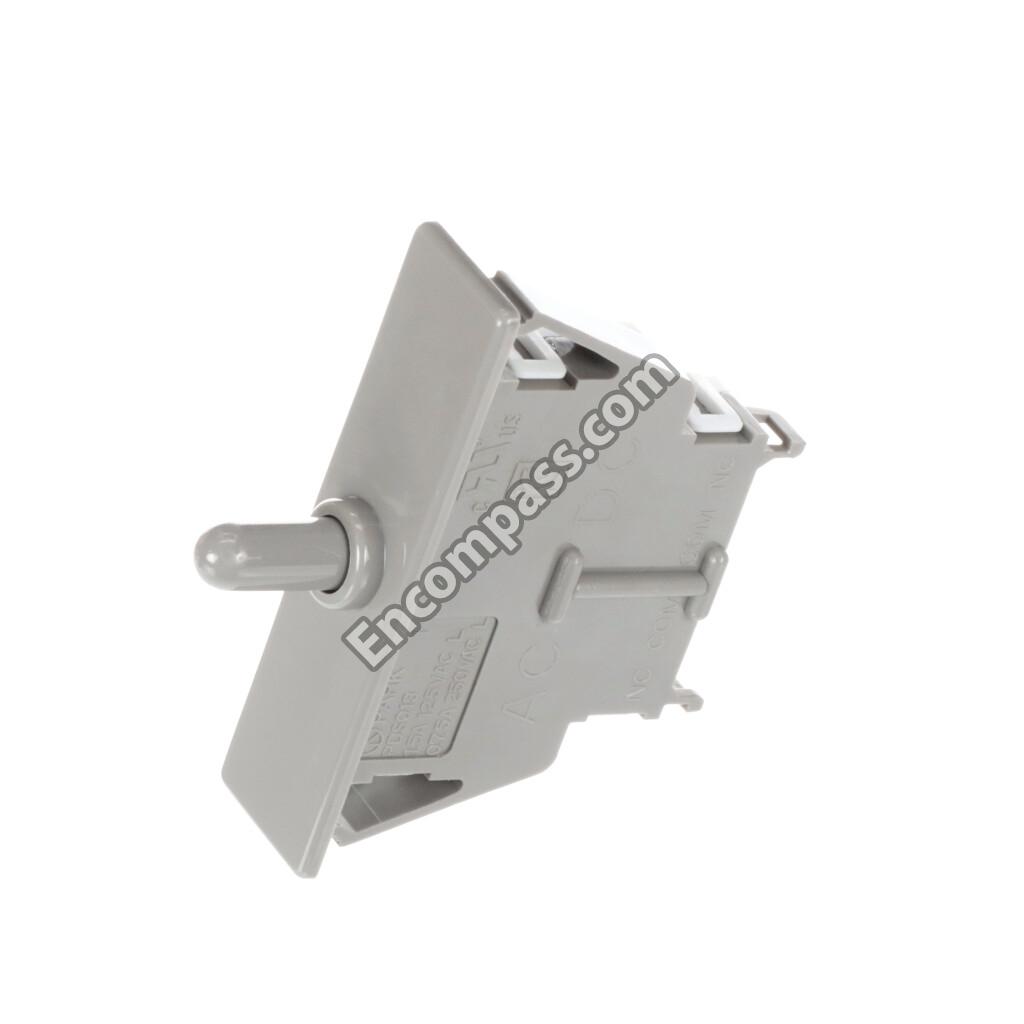

6600JB3007B 6600JB3007B SWITCH,PUSH BUTTON [402A]
6600JB1010H 6600JB1010H SWITCH,PUSH BUTTON [406B]
EBG31940245 EBG31940245 THERMISTOR ASSEMBLY,PTC [303A]
6749C-0014E 6749C-0014E THERMISTOR ASSEMBLY,PTC [303B]
3391JJ2013B 3391JJ2013B TRAY ASSEMBLY,DRAIN [312C]

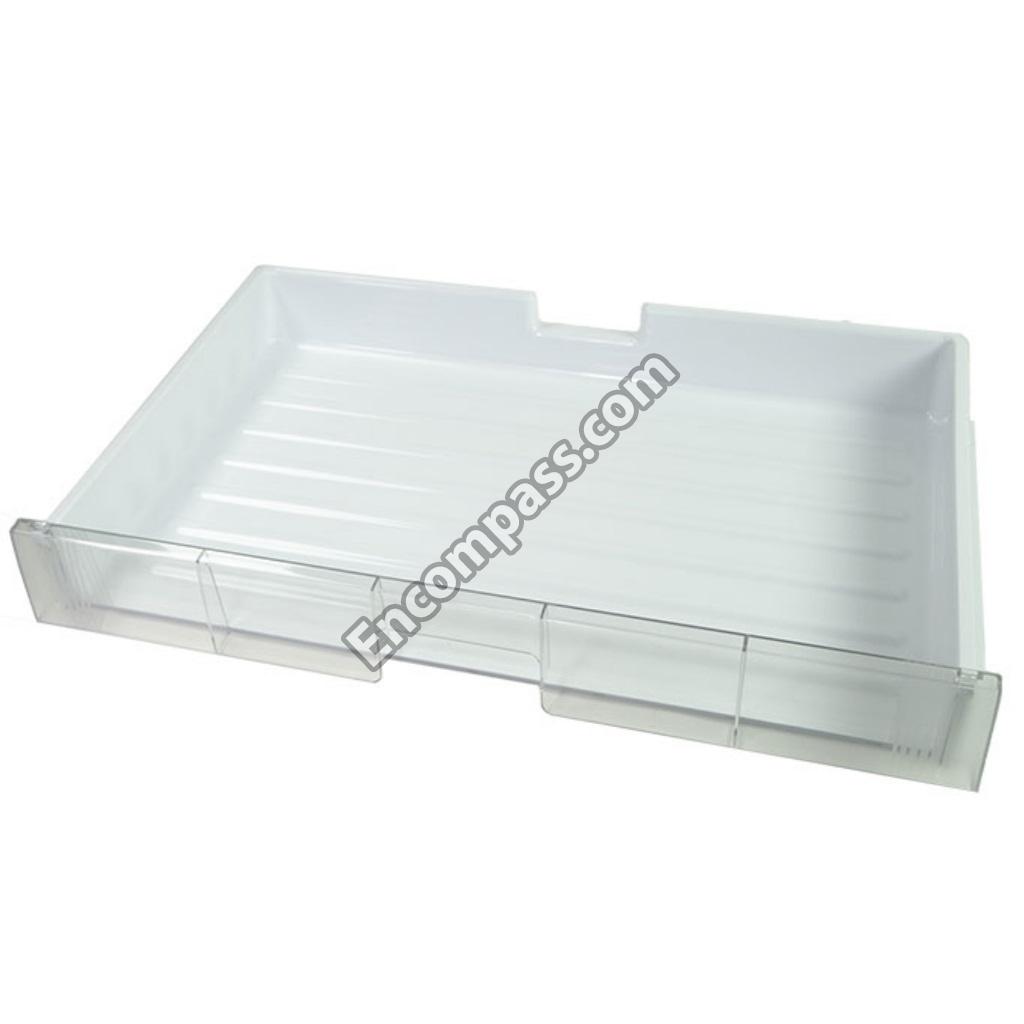

AJP73935801 AJP73935801 TRAY ASSEMBLY,DRAWER [136A]
AJP73874601 AJP73874601 TRAY ASSEMBLY,FRESH ROOM [145D]

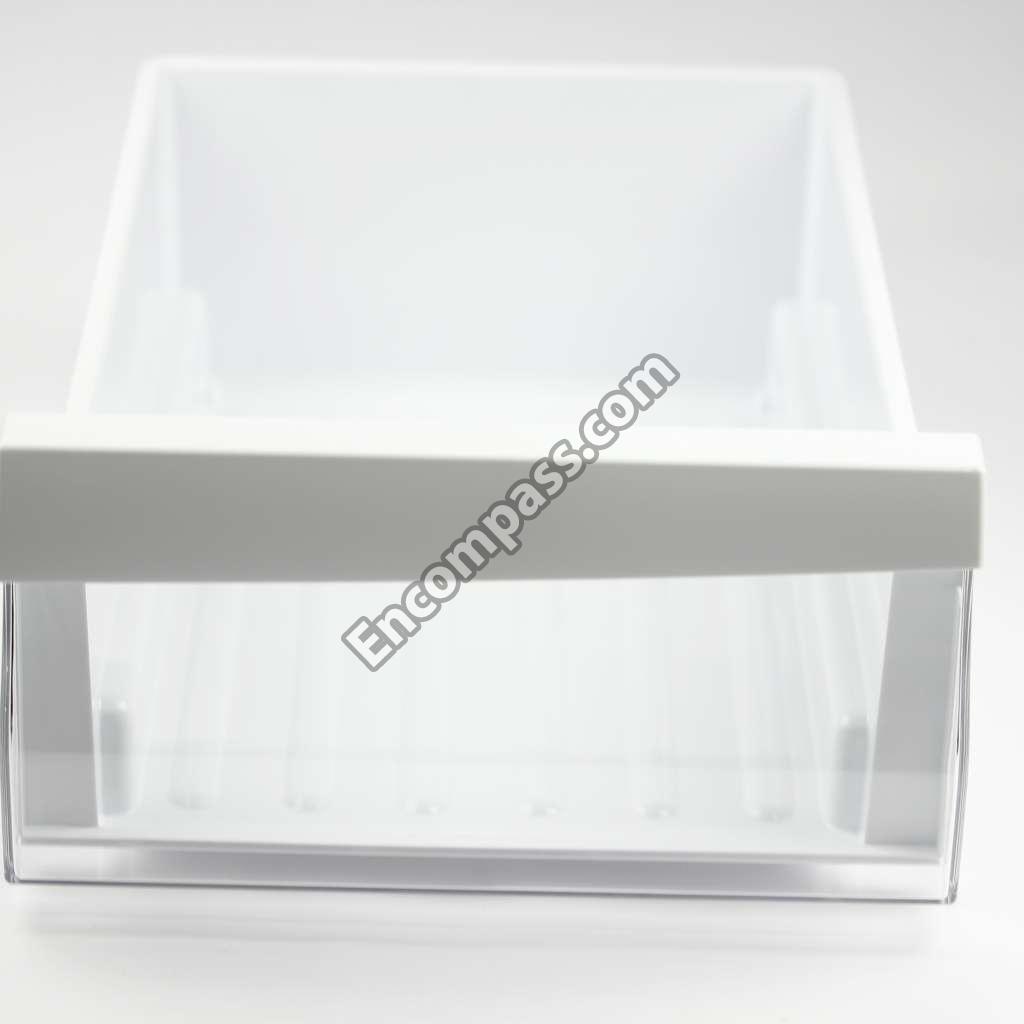

AJP73914504 AJP73914504 TRAY ASSEMBLY,VEGETABLE [151A]
AJP73914503 AJP73914503 TRAY ASSEMBLY,VEGETABLE [151B]
MJS42262502 MJS42262502 TRAY,DRAWER [136B]
AJP36774401 AJP36774401 TRAY,DRIP [319A]
MJS61849401 MJS61849401 TRAY,FREEZER [131A]
5251JA3003E 5251JA3003E TUBE ASSEMBLY,DRAIN [105A]
MJU39256404 MJU39256404 TUBE,PLASTIC [623B]
5220JB2010A 5220JB2010A VALVE,WATER [619A]
