Model Image
Manufacturer

LG

Model Number

LMV1831SB

Description

1.8 Cu. Ft. Over-the-range Microwave

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4760W1A017B 4760W1A017B BAFFLE
ABA34926501 ABA34926501 BRACKET ASSEMBLY
4810W1A313A 4810W1A313A BRACKET,CAPACITOR
MAZ62069501 MAZ62069501 BRACKET,CONTROL PANEL
4810W1A150D 4810W1A150D BRACKET,LAMP
4810W1A150C 4810W1A150C BRACKET,LAMP
4810W1A151A 4810W1A151A BRACKET,MISC
4810W1A180A 4810W1A180A BRACKET,MISC
6851W1A002E 6851W1A002E CABLE,ASSEMBLY
0CZZW1H004C 0CZZW1H004C CAPACITOR,DRAWING[HIGH VOLTAGE
4922W5A057G 4922W5A057G CARD,TEMPLATE
MBN63104604 MBN63104604 CASE,U BENDING
5230W1A011F 5230W1A011F CHARCOAL FILTER
4051W3A001H 4051W3A001H CONNECTOR ASSEMBLY
ACM72981011 ACM72981011 CONTROLLER ASSEMBLY,KEYPAD
3552W1A032J 3552W1A032J COVER,CHOKE
MCK67667404 MCK67667404 COVER,LAMP
3052W1A002E 3052W1A002E COVER,RESIN
3550W1A126B 3550W1A126B COVER,STIRRER FAN
4900W1A001B 4900W1A001B DAMPER
ADC73028306 ADC73028306 DOOR ASSEMBLY,FULL
3213W1A049F 3213W1A049F DOOR FRAME ASSEMBLY
MCZ62854501 MCZ62854501 DUCT
5893W3A002D 5893W3A002D FAN ASSEMBLY
5893W3A002G 5893W3A002G FAN ASSEMBLY
5892W1A003A 5892W1A003A FAN,STIRRER
ADQ75393201 ADQ75393201 FILTER ASSEMBLY,NOISE
5230W1A011B 5230W1A011B FILTER(MECH),CHARCOAL
5230W1A012E 5230W1A012E FILTER(MECH),GREASE
5230W1A011E 5230W1A011E FILTER,CHARCOAL
5230W1A012B 5230W1A012B FILTER,GREASE

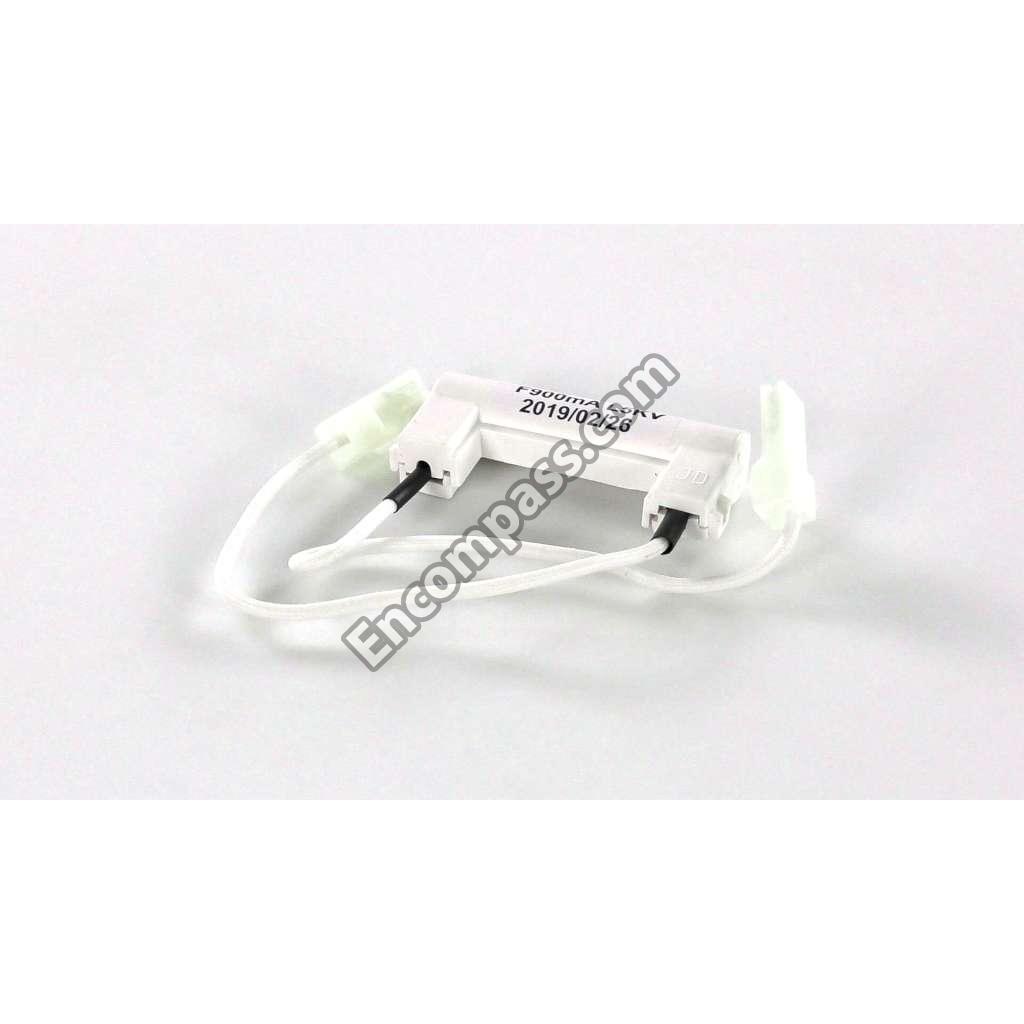

EAF36358314 EAF36358314 FUSE ASSEMBLY
3B74133Q 3B74133Q FUSE,DRAWING
4890W1A045A 4890W1A045A GLASS
5230W1A012F 5230W1A012F GREASE FILTER
MDX61914501 MDX61914501 GRILLE,VENT
MEB41908102 MEB41908102 HANDLE,DOOR
EAD60756907 EAD60756907 HARNESS,SINGLE
3501W1A019S 3501W1A019S HOLDER ASSEMBLY,LOCKER
4930W1A069B 4930W1A069B HOLDER,COOK AUXILIARY
MEG61890701 MEG61890701 HOLDER,LOCKER
4930W1A068B 4930W1A068B HOLDER,STIRRER FAN
3861W2A006K 3861W2A006K KIT ASSEMBLY
6620G00007C 6620G00007C LAMP HOLDER
6912W1Z004B 6912W1Z004B LAMP,DRAWING

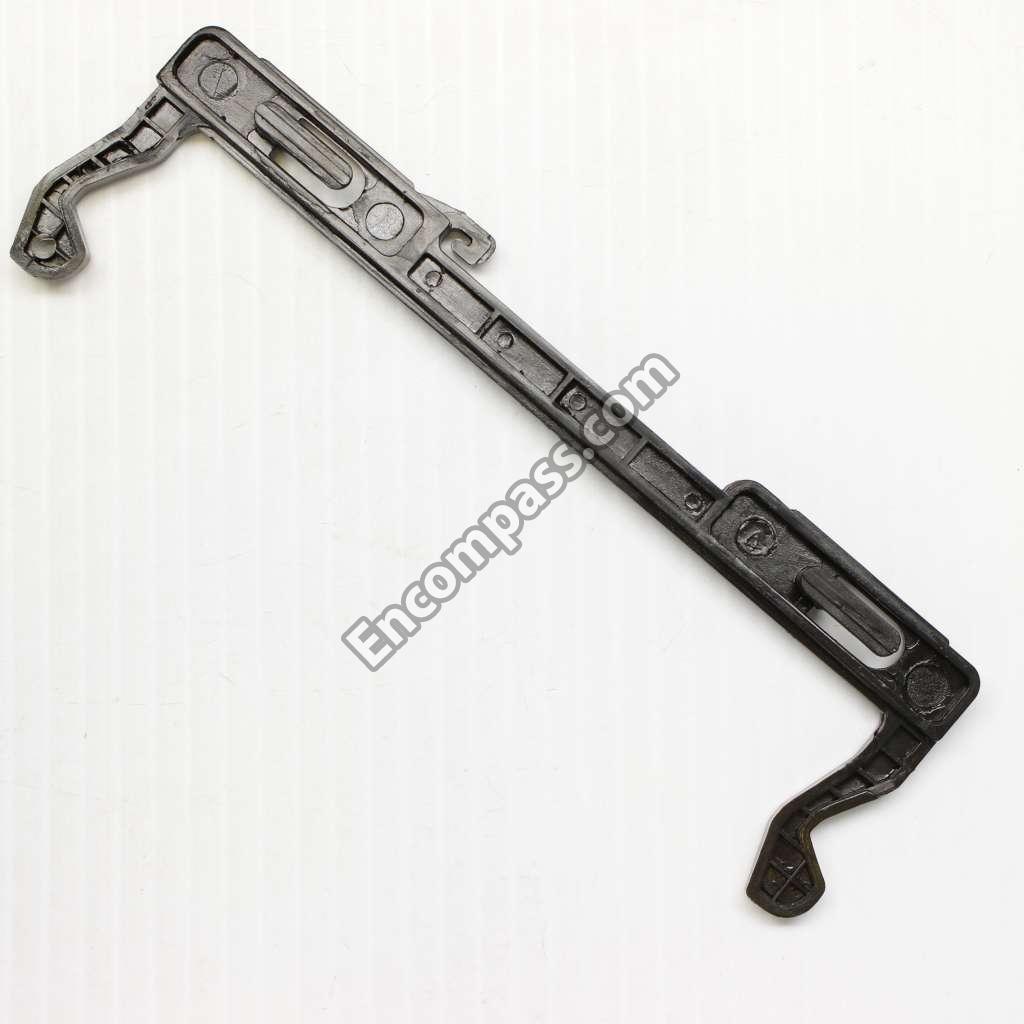

4026W2A015A 4026W2A015A LATCH,ALL
4510W3A012B 4510W3A012B LEVER
4026W2A019A 4026W2A019A LOCKER
2B71165R 2B71165R MAGNETRON
MFM62937903 MFM62937903 MFM62937903
MFM62937904 MFM62937904 MFM62937904
6549W1S013H 6549W1S013H MOTOR(CIRC),SYNCHRONOUS
6549W1S013X 6549W1S013X MOTOR, AC SYNCHRONOUS
EAU51230508 EAU51230508 MOTOR, AC VENTILATION
EAU51230507 EAU51230507 MOTOR, AC VENTILATION
4021W3A001A 4021W3A001A NUT ASSY
AGM73170705 AGM73170705 PARTS ASSEMBLY
AGM73170605 AGM73170605 PARTS ASSEMBLY

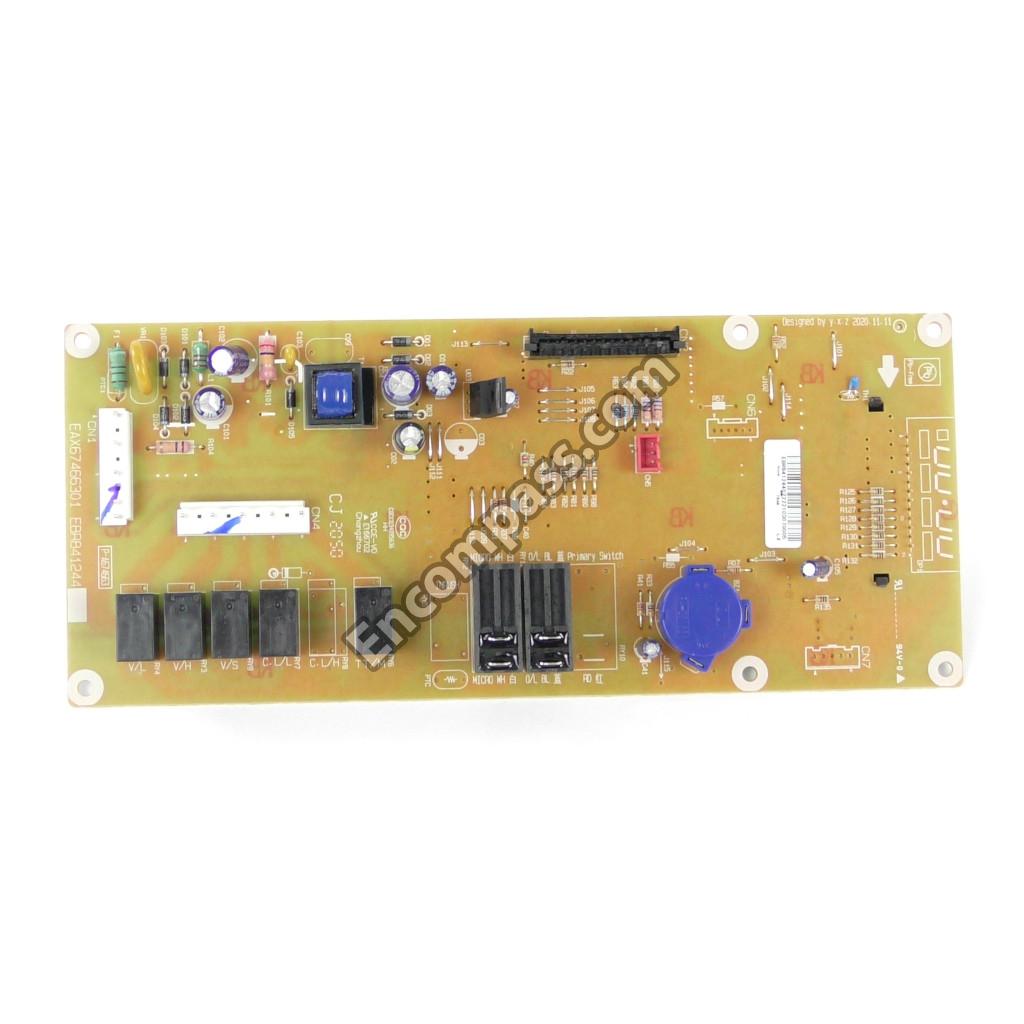

EBR89657302 EBR89657302 PCB ASSEMBLY
EBR84124402 EBR84124402 PCB ASSEMBLY
MGJ42525102 MGJ42525102 PLATE
AGU30077701 AGU30077701 PLATE ASSEMBLY
AGU73568103 AGU73568103 PLATE ASSEMBLY,BASE
AGU30114301 AGU30114301 PLATE ASSEMBLY,BOTTOM
MGJ62922407 MGJ62922407 PLATE,BASE
MGJ62922401 MGJ62922401 PLATE,BASE
3300W1A046G 3300W1A046G PLATE,BOTTOM
3300W1A046D 3300W1A046D PLATE,BOTTOM
3300W1A045C 3300W1A045C PLATE,BOTTOM
3300W0A045A 3300W0A045A PLATE,MOUNT

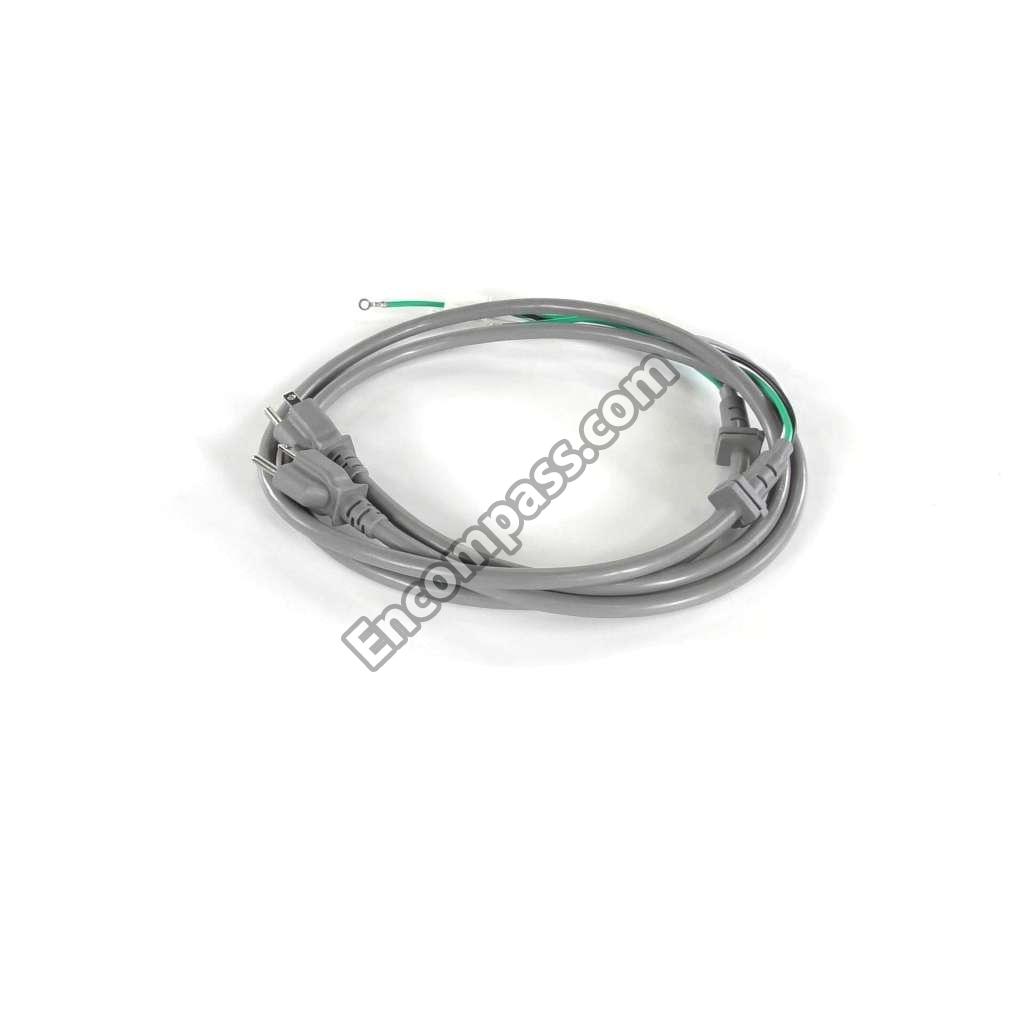

EAD62027813 EAD62027813 POWER CORD ASSEMBLY
EAD62027832 EAD62027832 POWER CORD ASSEMBLY
4051W3A001A 4051W3A001A RIVET ASSY (ALL)
FAB30216601 FAB30216601 SCREW,CUSTOMIZED
1SBF0402418 1SBF0402418 SCREW,TAPTITE
3536W1A012B 3536W1A012B SEAL TAPE
6501W1A013A 6501W1A013A SENSOR ASSEMBLY
4370W1A006F 4370W1A006F SHAFT,TURNTABLE
MHL54382302 MHL54382302 SHELF
6620G00007B 6620G00007B SOCKET(CIRC),LAMP
4B70188C 4B70188C SPECIAL SCREW-D MV-1003T MVH1
4970WRA001G 4970WRA001G SPRING
AJJ34381202 AJJ34381202 SUPPORTER ASSEMBLY
MJH61956601 MJH61956601 SUPPORTER,FILTER
6600W1K001C 6600W1K001C SWITCH MICRO
6600W1K001D 6600W1K001D SWITCH,MICRO
3B73362F 3B73362F SWITCH,MICRO
1TTG0402422 1TTG0402422 TAP TITE SCREW+D4.0 L8.0MA-117
3536W1A012K 3536W1A012K TAPE,SEALING
6930W1A007K 6930W1A007K THERMOSTAT
6930W1A003J 6930W1A003J THERMOSTAT
6930W1A003D 6930W1A003D THERMOSTAT
6930W1A003X 6930W1A003X THERMOSTAT
EBJ60664609 EBJ60664609 TRANSFORMER,HIGH VOLTAGE
EBJ60664610 EBJ60664610 TRANSFORMER,HIGH VOLTAGE
MJS65336701 MJS65336701 TRAY,GLASS
5889W2A012H 5889W2A012H TURNTABLE ASSEMBLY
5889W2A012Q 5889W2A012Q TURNTABLE ASSEMBLY
