Model Image
Manufacturer

LG

Model Number

LMV1925SB

Description

Lmv1925sb

Interactive Exploded View

Parts List

Part Number Description
4760W1A013A 4760W1A013A BAFFLE [1011]
3890W3Y874T 3890W3Y874T BOX [01-MAY]
4810W3C006A 4810W3C006A BRACKET,CAPACITOR [5002]
4810W1A074A 4810W1A074A BRACKET,CONTROL PANEL [2008]
4810W1A151A 4810W1A151A BRACKET,IDLE [6010]
4810W1A149A 4810W1A149A BRACKET,MOUNT
4811W1A008B 4811W1A008B BRACKET,MOUNT [3029]
6021W3B001U 6021W3B001U CABLE,ASSEMBLY [5018]
6021W3B001R 6021W3B001R CABLE,ASSEMBLY [5018]
6021W3B001V 6021W3B001V CABLE,ASSEMBLY [5018]
6120W3H003H 6120W3H003H CAPACITOR,HIGH VOLTAGE
0CZZW1H004B 0CZZW1H004B CAPACITOR,HIGH VOLTAGE [5000]
3840W1T0036 3840W1T0036 CARD,TECHNICAL [MBM2]
4922W5A060A 4922W5A060A CARD,TEMPLATE
4922W1A029A 4922W1A029A CARD,TEMPLATE [MBM4]
3112W0F013C 3112W0F013C CASE,FLAT [3001]
4051W3A001A 4051W3A001A CONNECTOR ASSEMBLY
4781W1M306G 4781W1M306G CONTROLLER ASSEMBLY,KEYPAD [2004]
3552W0A001B 3552W0A001B COVER,CHOKE [1004]
3550W2L001A 3550W2L001A COVER,LAMP
3550W1A189A 3550W1A189A COVER,LAMP [5045]
3550W3A084A 3550W3A084A COVER,POWER CORD [3031]
3052W3A015A 3052W3A015A COVER,RESIN
3550W1A327A 3550W1A327A COVER,STIRRER FAN [5044]
4900W1A001A 4900W1A001A DAMPER
4900W1A001B 4900W1A001B DAMPER [6011]
3581W1A351G 3581W1A351G DOOR ASSEMBLY [1005]
5262W0A009A 5262W0A009A DUCT [5006]
5893W3A002A 5893W3A002A FAN ASSEMBLY [5024]
5900W1A004A 5900W1A004A FAN [5007]
5892W3A006A 5892W3A006A FAN [5058]
EAM35001801 EAM35001801 FILTER,AC LINE [5041]

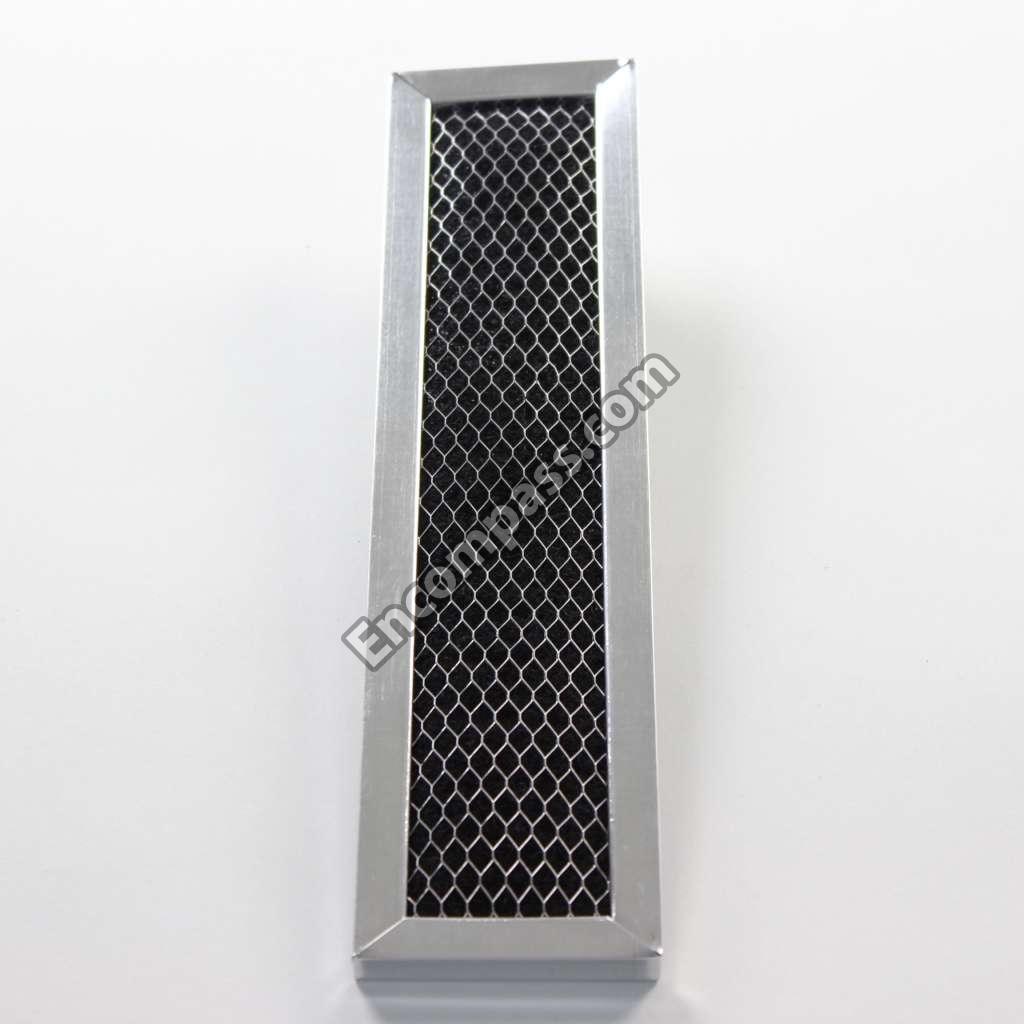

5230W2A003A 5230W2A003A FILTER,CHARCOAL

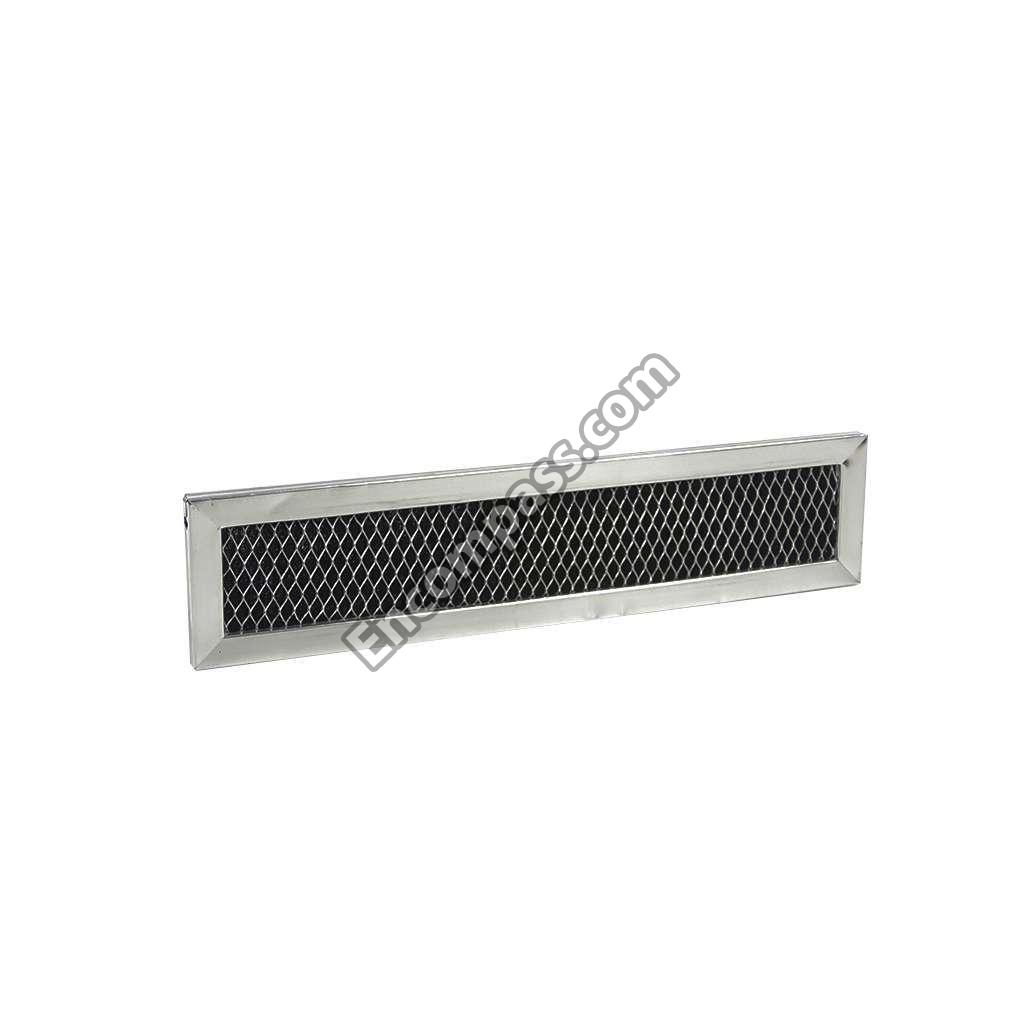

5230W1A011G 5230W1A011G FILTER,CHARCOAL [5037]
5230W2A004A 5230W2A004A FILTER,GREASE
3213W0A003D 3213W0A003D FRAME ASSEMBLY,DOOR [1000]
3B72974C 3B72974C FUSE ASSEMBLY
3B74133J 3B74133J FUSE,TIME DELAY
3B74133Q 3B74133Q FUSE,TIME DELAY [5001]
3B74133C 3B74133C FUSE,TIME DELAY [5001]
3530W0A028B 3530W0A028B GRILLE,VENT
5238W1A003A 5238W1A003A GUIDE,AIR [5049]
3651W1A009B 3651W1A009B HANDLE ASSEMBLY
6877W2A004B 6877W2A004B HARNESS,SINGLE [3014]
6877W1A364A 6877W1A364A HARNESS,SINGLE [5014]
6877W2S002E 6877W2S002E HARNESS,SINGLE [5019]

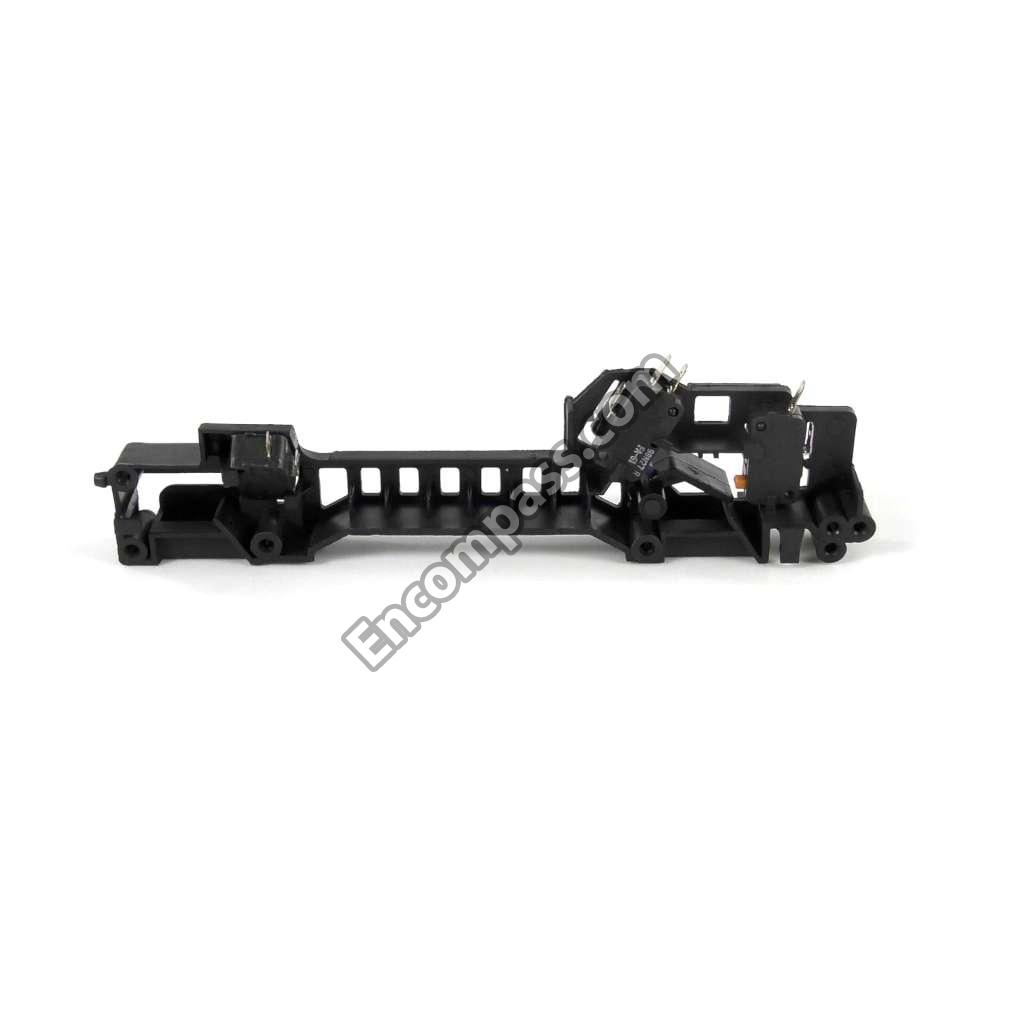

3501W1A036B 3501W1A036B HOLDER ASSEMBLY,LOCKER [4001]
3501W1A019J 3501W1A019J HOLDER ASSEMBLY,LOCKER [4001]
4930W1A027A 4930W1A027A HOLDER,COOK AUXILIARY [3036]
3500W1A028B 3500W1A028B HOLDER,LOCKER
3500W1A028A 3500W1A028A HOLDER,LOCKER [4000]
4930W3A013A 4930W3A013A HOLDER,STIRRER FAN [5043]
2B72771J 2B72771J KIT ASSEMBLY
3861W1A043C 3861W1A043C KIT ASSEMBLY [6009]
3850W2A233B 3850W2A233B LABEL,COOKING GUIDE [MEZ1]
6912W1Z004B 6912W1Z004B LAMP,INCANDESCENT
6912W1Z004A 6912W1Z004A LAMP,INCANDESCENT
6912W3Q001D 6912W3Q001D LAMP,INCANDESCENT
6912W1Z004C 6912W1Z004C LAMP,INCANDESCENT [3028]
3501W1A044B 3501W1A044B LEVER [4004]
4026W2A015A 4026W2A015A LOCKER [1006]
6324W1A001L 6324W1A001L MAGNETRON [5009]
3828W5U0448 3828W5U0448 MANUAL,INSTALLATION
3828W5A2264 3828W5A2264 MANUAL,OWNERS [MFL1]
3506W1A272B 3506W1A272B MEMBRANE [2002]
6549W1S011L 6549W1S011L MOTOR, AC SYNCHRONOUS
6549W1S011E 6549W1S011E MOTOR, AC SYNCHRONOUS [3009]
6549W1V006A 6549W1V006A MOTOR, AC VENTILATION [3027]
6549W1V008C 6549W1V008C MOTOR, AC VENTILATION [3027]
6549W1F001W 6549W1F001W MOTOR,AC FAN [5012]
3720W0C045B 3720W0C045B PANEL,CONTROL [2000]
3720W0D254E 3720W0D254E PANEL,DOOR [1003]
6871W2S245F 6871W2S245F PCB ASSEMBLY,SUB [2006]
3300W0A030A 3300W0A030A PLATE ASSEMBLY [6008]
3303W1A047B 3303W1A047B PLATE ASSEMBLY,BASE [6001]
4960W1A008B 4960W1A008B PLATE [3010]
3302W0A021B 3302W0A021B PLATE,BASE [6000]
3300W1B001A 3300W1B001A PLATE,BOTTOM [5035]
3300W0A030C 3300W0A030C PLATE,MOUNT
6411W1A014N 6411W1A014N POWER CORD ASSEMBLY [5010]
6411W2A002E 6411W2A002E POWER CORD ASSEMBLY [5010]
3034W2A002B 3034W2A002B REFLECTOR
3034W2A003B 3034W2A003B REFLECTOR [3032]
4B70188C 4B70188C SCREW,CUSTOMIZED [W111]
1TPL0302018 1TPL0302018 SCREW,TAPPING [W104]
1TTL0402418 1TTL0402418 SCREW,TAPPING [W105]
1TTL0402818 1TTL0402818 SCREW,TAPPING [W109]
1TPL0302418 1TPL0302418 SCREW,TAPPING [W136]
1TTL0402816 1TTL0402816 SCREW,TAPPING [W142]
1TTL0403418 1TTL0403418 SCREW,TAPPING [W146]
1TTG0402422 1TTG0402422 SCREW,TAPTITE [W101]
6501W1A006C 6501W1A006C SENSOR ASSEMBLY [5011]
4370W3A001A 4370W3A001A SHAFT,TURNTABLE [3012]
5026W1A053B 5026W1A053B SHELF
5026W1A053D 5026W1A053D SHELF [3018]
3303W1A061A 3303W1A061A SOCKET,LAMP [5038]
4970WRA001G 4970WRA001G SPRING [1007]
3B73362F 3B73362F SWITCH,MICRO [4002]
6600W1K001C 6600W1K001C SWITCH,MICRO [4003]
3B73361E 3B73361E SWITCH,MICRO [4003]
3536W1A006D 3536W1A006D TAPE,SEALING [1002]
3536WRA001T 3536WRA001T TAPE,SEALING [1002]
3B72543Q 3B72543Q THERMOSTAT
6930W1A003J 6930W1A003J THERMOSTAT
6930WRT003C 6930WRT003C THERMOSTAT
6930W1A003H 6930W1A003H THERMOSTAT [5020]
6170W1D052D 6170W1D052D TRANSFORMER,HIGH VOLTAGE [5008]
3390W1G014A 3390W1G014A TRAY,GLASS [3002]
5889W2A015A 5889W2A015A TURNTABLE ASSEMBLY [3008]
4890W1A021W 4890W1A021W WINDOW,GLASS [1008]
