Model Image
Manufacturer

LG

Model Number

LRDN20720BQ

Description

Bottom Freezer Refrigerator

Interactive Exploded View

Parts List

Part Number Description
5075JJ1001B 5075JJ1001B BANK ASSEMBLY,ICE
5074JJ1005A 5074JJ1005A BANK,DAIRY
5004JJ1042A 5004JJ1042A BASKET,DOOR
5004JJ1035A 5004JJ1035A BASKET,DOOR
5004JJ1030A 5004JJ1030A BASKET,DOOR
5004JJ1028A 5004JJ1028A BASKET,DOOR
5004JA2017B 5004JA2017B BASKET,TILT
5004JJ2005A 5004JJ2005A BASKET,TILT
1STZJA3004F 1STZJA3004F BOLT, HINGE
1BHZJA3003D 1BHZJA3003D BOLT,DRAWING
4811JJ2002A 4811JJ2002A BRACKET ASSEMBLY,MOTOR
4810JJ0002A 4810JJ0002A BRACKET,MOTOR
4810JA3007A 4810JA3007A BRACKET,MOTOR
4984JJ3003A 4984JJ3003A BUSH
5006JA3034A 5006JA3034A CAP,DRAIN PIPE
5006JJ3016B 5006JJ3016B CAP,HANDLE
5006JJ3010A 5006JJ3010A CAP,HANDLE
5006JJ3004A 5006JJ3004A CAP,HINGE
5006JJ2001E 5006JJ2001E CAP,HINGE
0CZZJB2002B 0CZZJB2002B CAPACITOR,DRAWING
ABQ33905301 ABQ33905301 CASE ASSEMBLY,DISPLAY
3110JJ1005A 3110JJ1005A CASE,DISPLAY
3103JJ1001K 3103JJ1001K COMP BASE ASSEMBLY,STD
TCA32196201 TCA32196201 COMPRESSOR,SET ASSEMBLY
2521CRA5715 2521CRA5715 COMPRESSOR,SET ASSEMBLY
TCA00271707 TCA00271707 COMPRESSOR,SET ASSEMBLY
5403JJ1008A 5403JJ1008A CONDENSER ASSEMBLY,WIRE
3550JA1388B 3550JA1388B CONFIRMED NLA 11/16/06
4932JJ2001B 4932JJ2001B CONNECTOR (MECH),DOOR
6615JB2005C 6615JB2005C CONTROL ASSEMBLY,DEF
ACQ76219902 ACQ76219902 COVER ASSEMBLY,BACK-M/C
3551JJ1020A 3551JJ1020A COVER ASSEMBLY,PCB
3550JA3120A 3550JA3120A COVER,CONNECTOR
3550JJ2031A 3550JJ2031A COVER,DISPLAY
3550JL1008B 3550JL1008B COVER,FILTER
3550JJ2030A 3550JJ2030A COVER,GRILLE FAN
3550JJ2013B 3550JJ2013B COVER,HINGE
3550JJ2004B 3550JJ2004B COVER,HINGE
MCK30060901 MCK30060901 COVER,LAMP
3550JJ0005B 3550JJ0005B COVER,LOWER
3550JJ1036A 3550JJ1036A COVER,MAGIC ROOM
3550JJ8003A 3550JJ8003A COVER,P.T.C
3550JA2059A 3550JA2059A COVER,P.T.C
3550JA2042C 3550JA2042C COVER,PTC
3550JJ2020A 3550JJ2020A COVER,SENSOR
3551JJ1069S 3551JJ1069S COVER,T/V
3551JJ1069D 3551JJ1069D COVER,T/V
3551JJ1005X 3551JJ1005X COVER,T/V
3551JJ1069C 3551JJ1069C COVER,T/V
3550JJ1034A 3550JJ1034A COVER,T/V
5005JJ2013D 5005JJ2013D COVER,TRAY
3550JL2003J 3550JL2003J COVER,TRAY
5005JJ2010F 5005JJ2010F COVER,TRAY
3550JJ1024A 3550JJ1024A COVER,TRAY
3550JJ2025A 3550JJ2025A COVER,TRAY
3550JJ3001A 3550JJ3001A COVER,TUBE
3550JJ2036A 3550JJ2036A COVER,TUBE
3550JJ2024A 3550JJ2024A COVER,VALVE
3806JL2006E 3806JL2006E DECO,DUCT
3806JL1004F 3806JL1004F DECO,DUCT
3806JL1004E 3806JL1004E DECO,DUCT
3806JL1004D 3806JL1004D DECO,DUCT
3806JJ1020D 3806JJ1020D DECO,HANDLE
3806JJ1020C 3806JJ1020C DECO,HANDLE
3806JJ2012A 3806JJ2012A DECO,TRAY
3806JJ2011A 3806JJ2011A DECO,TRAY
3806JJ2036A 3806JJ2036A DECO,TRAY
3806JL1009B 3806JL1009B DECOR,CONTROL
3581JJ8022S 3581JJ8022S DOOR ASSEMBLY,F
3581JJ8027S 3581JJ8027S DOOR ASSEMBLY,R
5004JJ0002A 5004JJ0002A DOOR BASKET
5433JJ0017M 5433JJ0017M DOOR FOAM ASSEMBLY,FREEZER
ADD73476402 ADD73476402 DOOR FOAM ASSEMBLY,REFRIG
5433JJ0016F 5433JJ0016F DOOR FOAM ASSEMBLY,REFRIGERATOR
5251JA3003B 5251JA3003B DRAIN ASSEMBLY,PIPE-Z
5851JJ2002F 5851JJ2002F DRIER ASSEMBLY
ADH73150210 ADH73150210 DRIER ASSEMBLY
5209JJ1002A 5209JJ1002A DUCT ASSEMBLY,MULTI

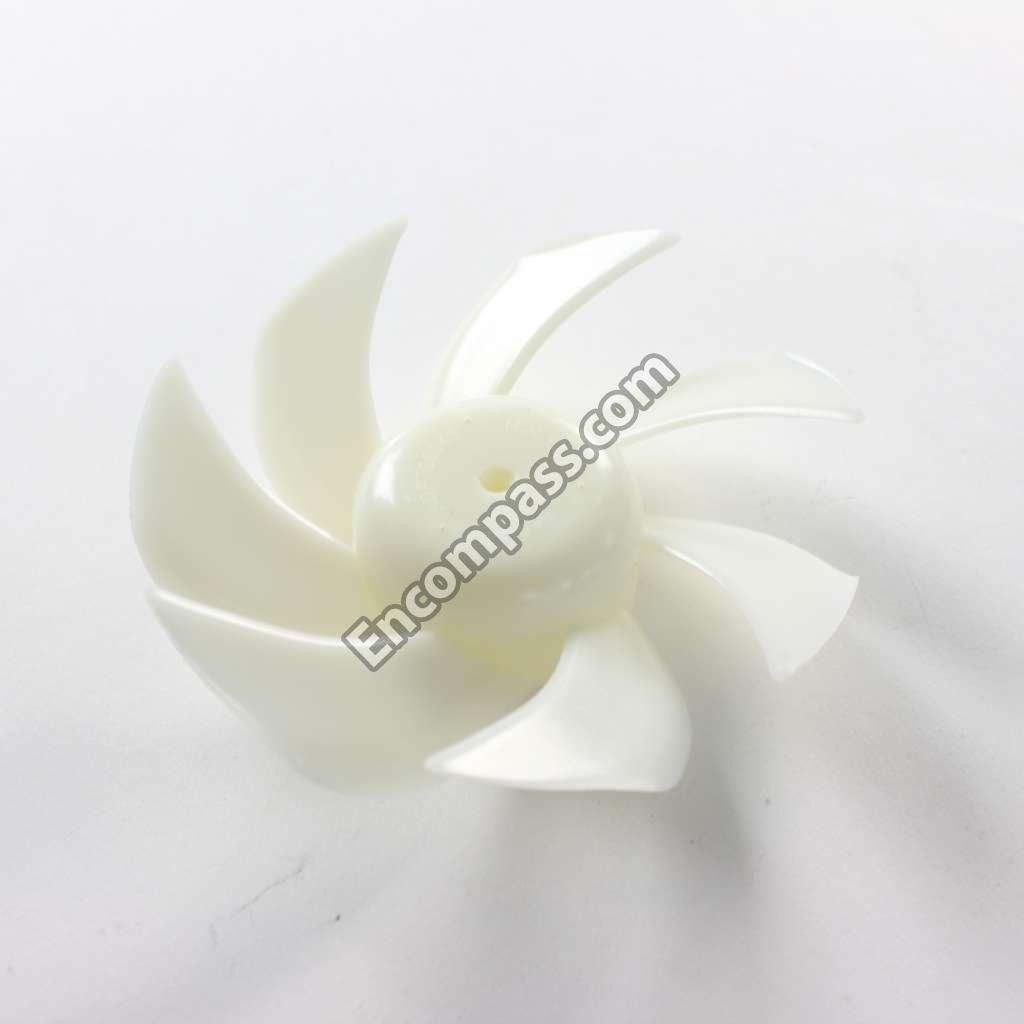

ADP73694301 ADP73694301 FAN ASSEMBLY
5901JJ1004B 5901JJ1004B FAN ASSEMBLY
ADX73350922 ADX73350922 GASKET ASS"Y, REFRIG DOOR
ADX73350901 ADX73350901 GASKET ASSEMBLY,DOOR
4890JL1002J 4890JL1002J GLASS,SHELF
3531JJ1006S 3531JJ1006S GRILLE ASSEMBLY,FAN
3531JJ1005C 3531JJ1005C GRILLE ASSEMBLY,FAN
3531JJ1004B 3531JJ1004B GRILLE ASSEMBLY,FAN
AEC72997402 AEC72997402 GUIDE ASSEMBLY,FAN
4975JJ2007G 4975JJ2007G GUIDE ASSEMBLY,RAIL
4975JJ2005H 4975JJ2005H GUIDE ASSEMBLY,RAIL
4975JJ2003C 4975JJ2003C GUIDE ASSEMBLY,RAIL
4975JJ2002B 4975JJ2002B GUIDE ASSEMBLY,RAIL
4975JJ2002A 4975JJ2002A GUIDE ASSEMBLY,RAIL
4974JJ2021A 4974JJ2021A GUIDE,BOTTLE
4974JJ1021A 4974JJ1021A GUIDE,DRAWER
4974JJ1009A 4974JJ1009A GUIDE,FAN
4974JJ1012A 4974JJ1012A GUIDE,RAIL
4974JJ1011A 4974JJ1011A GUIDE,RAIL
3650JJ0006B 3650JJ0006B HANDLE REFRIGERATOR
MEB64014301 MEB64014301 HANDLE,BACK
3650JJ0005B 3650JJ0005B HANDLE,F
EAG62831801 EAG62831801 HARNESS
6877JK2011D 6877JK2011D HARNESS ASSEMBLY
5300JB1100D 5300JB1100D HEATER,SHEATH
4775JJ2006K 4775JJ2006K HINGE ASSEMBLY,C
4775JJ2003B 4775JJ2003B HINGE ASSEMBLY,U
4930JJ2021A 4930JJ2021A HOLDER,COVER LOWER

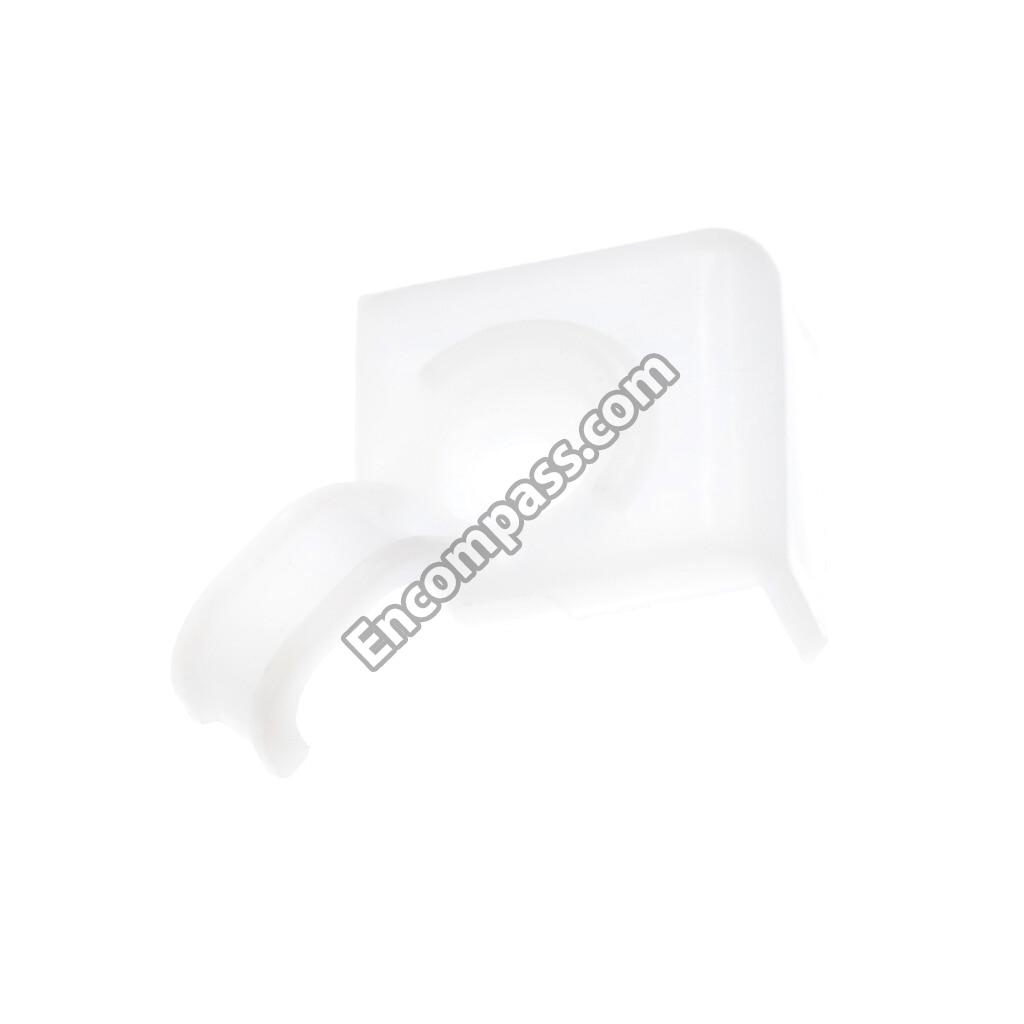

4930JA3034A 4930JA3034A HOLDER,DRIER
4930JJ1013B 4930JJ1013B HOLDER,HANDLE
4930JJ1013A 4930JJ1013A HOLDER,HANDLE
4930JJ2004D 4930JJ2004D HOLDER,SHELF
4930JJ2004A 4930JJ2004A HOLDER,SHELF
4930JJ2003D 4930JJ2003D HOLDER,SHELF
4940JL2001B 4940JL2001B KNOB,SHUTTER
4940JA2026F 4940JA2026F KNOB,SHUTTER
6912JB2004M 6912JB2004M LAMP,INCANDESCENT
6912JK2002E 6912JK2002E LAMP,[INCANDESCENT] REVEAL
5219JJ2002B 5219JJ2002B LEFT RAIL, (CONNECTOR & HOLDER)
4779JA2003A 4779JA2003A LEG ASSEMBLY,ADJUST
4681JK1001B 4681JK1001B MOTOR(MECH),COOLING
4680JK1002B 4680JK1002B MOTOR(MECH),FAN
MFT62346501 MFT62346501 NAME PLATE
MFT62346511 MFT62346511 NAME PLATE
6750JJ8002A 6750JJ8002A O.L.P
6750CR0004S 6750CR0004S O.L.P

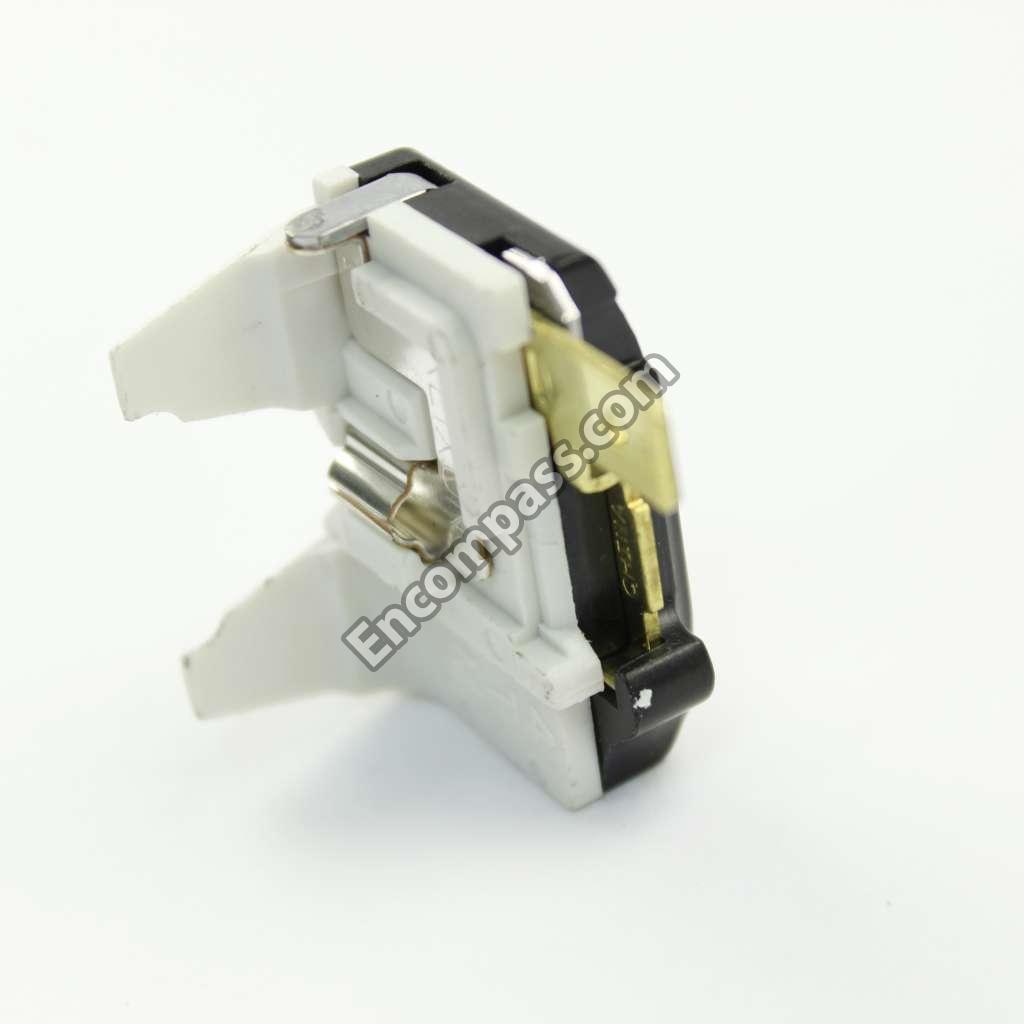

6748JJ8002A 6748JJ8002A P.T.C
6871JB1215A 6871JB1215A PCB ASSEMBLY,MAIN
6871JB1215J 6871JB1215J PCB ASSEMBLY,MAIN
5200JJ3003E 5200JJ3003E PIPE,JOINT
EAD61445204 EAD61445204 POWER CORD ASSEMBLY
6871JB2047A 6871JB2047A PWB(PCB) ASSEMBLY,DISPLAY
5218JJ3001A 5218JJ3001A RAIL,SLIDE
3034JJ1002B 3034JJ1002B REFLECTOR,LAMP
4930JJ1005C 4930JJ1005C RIGHT RAIL, (RAIL + CONNECTOR)
4580JJ3001A 4580JJ3001A ROLLER
1PZZJA3010A 1PZZJA3010A ROLLER PIN

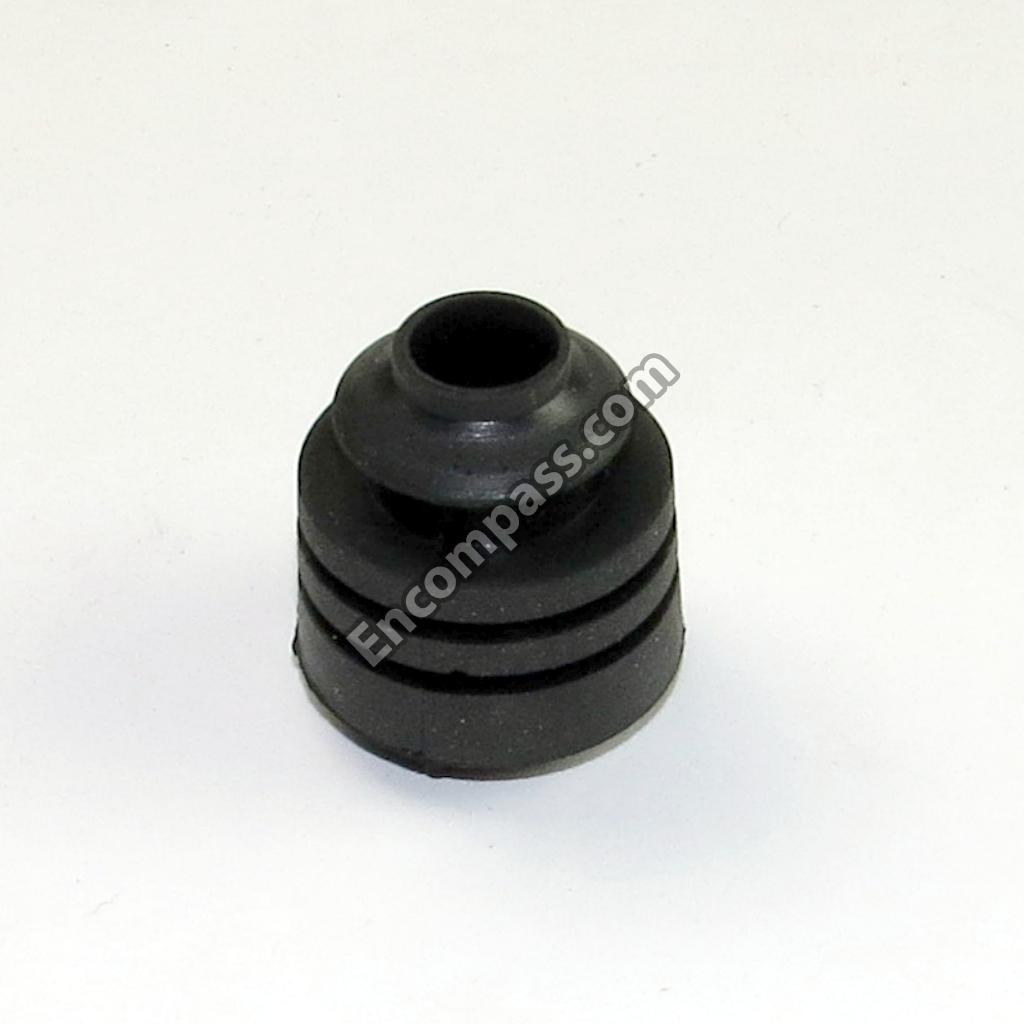

J756-00008A J756-00008A RUBBER MOTOR-N
MCQ66921101 MCQ66921101 RUBBER,SEAT
4J03020A 4J03020A RUBBER-S JZ
4J01424C 4J01424C SCREW TAPPING 4J01424-03, GR-
4J00415D 4J00415D SCREW TAPPTING, GR-510W/C
3J05696C 3J05696C SCREW,DRAWING
1SZZJJ3011C 1SZZJJ3011C SCREW,DRAWING
1SZZJJ3010A 1SZZJJ3010A SCREW,DRAWING
1SZZJA3011B 1SZZJA3011B SCREW,DRAWING
6500JK1004A 6500JK1004A SENSOR
6500JK1003A 6500JK1003A SENSOR
AHT72996101 AHT72996101 SHELF ASSEMBLY,R
AHT72996102 AHT72996102 SHELF ASSEMBLY,R
5026JL1001B 5026JL1001B SHELF,F
5026JJ2001M 5026JJ2001M SHELF,NET
5026JJ2001L 5026JJ2001L SHELF,NET
MHL38615404 MHL38615404 SHELF,NET
5026JJ2001G 5026JJ2001G SHELF,NET
5070JJ3002A 5070JJ3002A SKIRT,LOWER
6621JK2003B 6621JK2003B SOCKET ASSEMBLY,LAMP
4620JA3009A 4620JA3009A STOPPER
4620JJ3006B 4620JJ3006B STOPPER,DOOR
4981JJ2001A 4981JJ2001A SUPPORTER ASSEMBLY,COVER-T/V
4980JJ2005B 4980JJ2005B SUPPORTER,HOLDER
6600JB1010A 6600JB1010A SWITCH,PUSH BUTTON
6748C-0004D 6748C-0004D THERMISTOR ASSEMBLY,PTC
3391JJ1033A 3391JJ1033A TRAY ASSEMBLY,DRAWER
3391JJ1011A 3391JJ1011A TRAY ASSEMBLY,DRAWER
3391JJ1009B 3391JJ1009B TRAY ASSEMBLY,ICE
3391JJ2004J 3391JJ2004J TRAY ASSEMBLY,MEAT
3391JJ2004H 3391JJ2004H TRAY ASSEMBLY,MEAT
3391JJ2004G 3391JJ2004G TRAY ASSEMBLY,MEAT
3391JJ1019F 3391JJ1019F TRAY ASSEMBLY,VEGETABLE
3390JJ1088A 3390JJ1088A TRAY,DRAWER
3390JJ0003A 3390JJ0003A TRAY,DRIP
4J00382C 4J00382C WASHER,DRAWING
