Model Image
Manufacturer

LG

Model Number

LRDN22734TT

Description

Lrdn22734tt

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4811JJ2002K 4811JJ2002K AC MOTOR [404A]
3103JJ1001Z 3103JJ1001Z BASE ASSEMBLY,COMPRESSOR [315A]
5005JJ2017A 5005JJ2017A BASKET ASSEMBLY,DOOR [241C]
5005JJ2020A 5005JJ2020A BASKET ASSEMBLY,DOOR [241D]
5005JJ2018A 5005JJ2018A BASKET ASSEMBLY,DOOR [241E]
5005JJ2010G 5005JJ2010G BASKET ASSEMBLY,DOOR [241F]
5004JJ1042B 5004JJ1042B BASKET,DOOR
5004JJ1021B 5004JJ1021B BASKET,DOOR [241B]
5004JJ2005A 5004JJ2005A BASKET,TILT
5004JA2017B 5004JA2017B BASKET,TILT [205B]
5004JA2017A 5004JA2017A BASKET,TILT [205C]
4811JJ2004B 4811JJ2004B BRACKET ASSEMBLY,DOOR [410B]
4811JJ2002H 4811JJ2002H BRACKET ASSEMBLY,MOTOR
4811JJ2002A 4811JJ2002A BRACKET ASSEMBLY,MOTOR
4810JJ2005A 4810JJ2005A BRACKET,MOTOR [319E]
5075JJ1001B 5075JJ1001B BUCKET ASSEMBLY,ICE [131A]
5074JJ1005A 5074JJ1005A BUCKET,DAIRY
4984JJ3003A 4984JJ3003A BUSH [286A]
5006JA3034A 5006JA3034A CAP,DRAIN TUBE [327A]
5006JJ3010A 5006JJ3010A CAP,HANDLE [282X]
5006JJ2001G 5006JJ2001G CAP,HINGE [282E]
5006JJ3004F 5006JJ3004F CAP,HINGE [282H]
0CZZJB2010H 0CZZJB2010H CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [410G]
ABQ33905314 ABQ33905314 CASE ASSEMBLY,DISPLAY [503F]
3111JJ1001B 3111JJ1001B CASE ASSEMBLY,DISPLAY [503F]
3110JA1096A 3110JA1096A CASE,DISPLAY [503D]
5044JJ1001A 5044JJ1001A CASE,SERVER [146A]
TCA35931726 TCA35931726 COMPRESSOR,SET ASSEMBLY
2521CRA5715 2521CRA5715 COMPRESSOR,SET ASSEMBLY
TCA00271707 TCA00271707 COMPRESSOR,SET ASSEMBLY
5403JJ1007A 5403JJ1007A CONDENSER ASSEMBLY,WIRE
ACG73746801 ACG73746801 CONDENSER ASSEMBLY,WIRE [323B]
6615JB2005C 6615JB2005C CONTROLLER ASSEMBLY [401A]
3550JJ0006D 3550JJ0006D COVER ASSEMBLY,LOWER [103C]
3551JJ2008B 3551JJ2008B COVER ASSEMBLY,MACHINERY(REAR) [304A]
3551JJ1020A 3551JJ1020A COVER ASSEMBLY,PCB [501F]
3550JJ1017A 3550JJ1017A COVER,BUCKET
3550JA3120A 3550JA3120A COVER,CONNECTOR [284B]
3550JA2248A 3550JA2248A COVER,DISPLAY [503E]
3550JJ2030A 3550JJ2030A COVER,GRILLE FAN [135C]
3550JJ2044A 3550JJ2044A COVER,HINGE
3550JJ2013D 3550JJ2013D COVER,HINGE [281A]
3550JA2267A 3550JA2267A COVER,HINGE [281D]
3550JA1388A 3550JA1388A COVER,LAMP
3550JA1388B 3550JA1388B COVER,LAMP [158A]
MCK30060901 MCK30060901 COVER,LAMP [158E]
3550JJ1035A 3550JJ1035A COVER,MAGIC ROOM [168A]
3550JJ8003A 3550JJ8003A COVER,PTC [310A]
3550JA2042C 3550JA2042C COVER,PTC [310A]
3550JJ2020A 3550JJ2020A COVER,SENSOR [610A]
3550JJ2026A 3550JJ2026A COVER,TRAY [161A]
5005JJ2010F 5005JJ2010F COVER,TRAY [241A]
3550JJ3001A 3550JJ3001A COVER,TUBE [284E]
3550JJ2036A 3550JJ2036A COVER,TUBE [623H]
3550JJ1033A 3550JJ1033A COVER,TV [154A]
3550JJ2024A 3550JJ2024A COVER,VALVE [619B]
5040JJ3007A 5040JJ3007A DAMPER [313A]
5040JA3031A 5040JA3031A DAMPER,COMPRESSOR [312A]
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [405C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [405F]
4J03020A 4J03020A DAMPER,PIPE [328A]
3806JL1010A 3806JL1010A DECOR,CONTROL [503G]
3806JL2006E 3806JL2006E DECOR,DUCT [282F]
3806JJ2012A 3806JJ2012A DECOR,TRAY
3806JJ2035A 3806JJ2035A DECOR,TRAY [248E]
3581JJ8018J 3581JJ8018J DOOR ASSEMBLY,FREEZER [200A]
3581JJ8024U 3581JJ8024U DOOR ASSEMBLY,REFRIGERATOR [230A]
5433JJ0058P 5433JJ0058P DOOR FOAM ASSEMBLY,FREEZER [201A]
5433JJ0019V 5433JJ0019V DOOR FOAM ASSEMBLY,REFRIGERATOR [231A]
6621JK2003B 6621JK2003B DRAWING,ASSEMBLY [410A]
ADH73150210 ADH73150210 DRIER ASSEMBLY
ADH73150208 ADH73150208 DRIER ASSEMBLY [317A]
5851JJ2002F 5851JJ2002F DRIER ASSEMBLY [317A]
5209JJ1002A 5209JJ1002A DUCT ASSEMBLY,MULTI [120B]
5421JJ1001B 5421JJ1001B EVAPORATOR ASSEMBLY [301A]
5901JA1022A 5901JA1022A FAN ASSEMBLY [329A]
5901JJ1004B 5901JJ1004B FAN ASSEMBLY [329C]

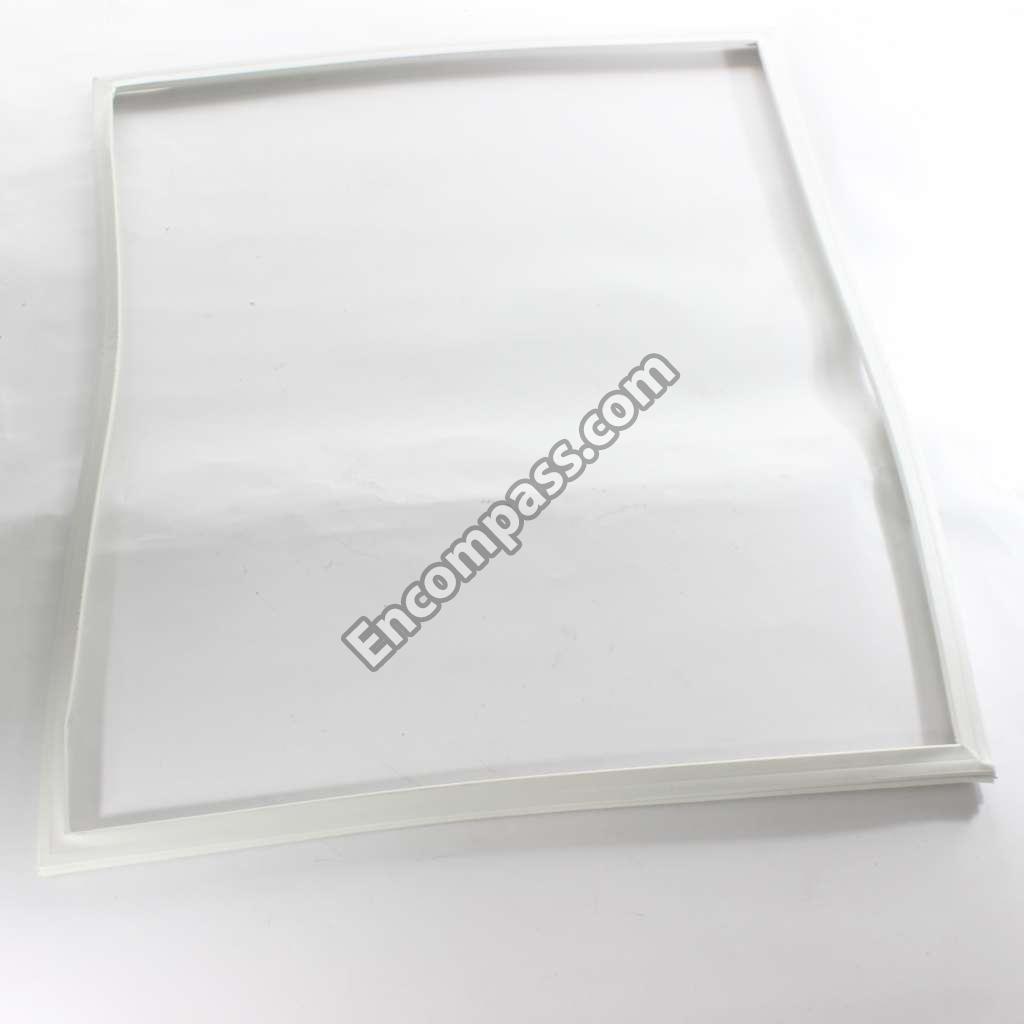

ADX73350925 ADX73350925 GASKET ASSEMBLY,DOOR [203A]
ADX73350928 ADX73350928 GASKET ASSEMBLY,DOOR [233A]
3531JJ1004R 3531JJ1004R GRILLE ASSEMBLY,FAN [332A]
AEC72997402 AEC72997402 GUIDE ASSEMBLY,FAN
4975JJ2002A 4975JJ2002A GUIDE ASSEMBLY,RAIL [128A]
4975JJ2002B 4975JJ2002B GUIDE ASSEMBLY,RAIL [128B]
4975JJ2003C 4975JJ2003C GUIDE ASSEMBLY,RAIL [128C]
4975JJ2005H 4975JJ2005H GUIDE ASSEMBLY,RAIL [145G]
4975JJ2007G 4975JJ2007G GUIDE ASSEMBLY,RAIL [285A]
4974JJ2011A 4974JJ2011A GUIDE,AIR [128M]
4974JJ1021A 4974JJ1021A GUIDE,DRAWER [237C]
4974JJ1009A 4974JJ1009A GUIDE,FAN [319C]
4974JJ2012A 4974JJ2012A GUIDE,PITCHER [237A]
4974JJ1012A 4974JJ1012A GUIDE,RAIL [145D]
4974JJ1011A 4974JJ1011A GUIDE,RAIL [249G]
3651JJ2010N 3651JJ2010N HANDLE ASSEMBLY,FREEZER
3651JJ2017A 3651JJ2017A HANDLE ASSEMBLY,REFRIGERATOR
3650JJ1041A 3650JJ1041A HANDLE,FREEZER
3650JJ2003H 3650JJ2003H HANDLE,REAR [103A]
3650JJ2003D 3650JJ2003D HANDLE,REAR [103B]
3650JJ1034A 3650JJ1034A HANDLE,REFRIGERATOR
6877JK2011D 6877JK2011D HARNESS ASSEMBLY
5300JB1100Q 5300JB1100Q HEATER,SHEATH [418A]

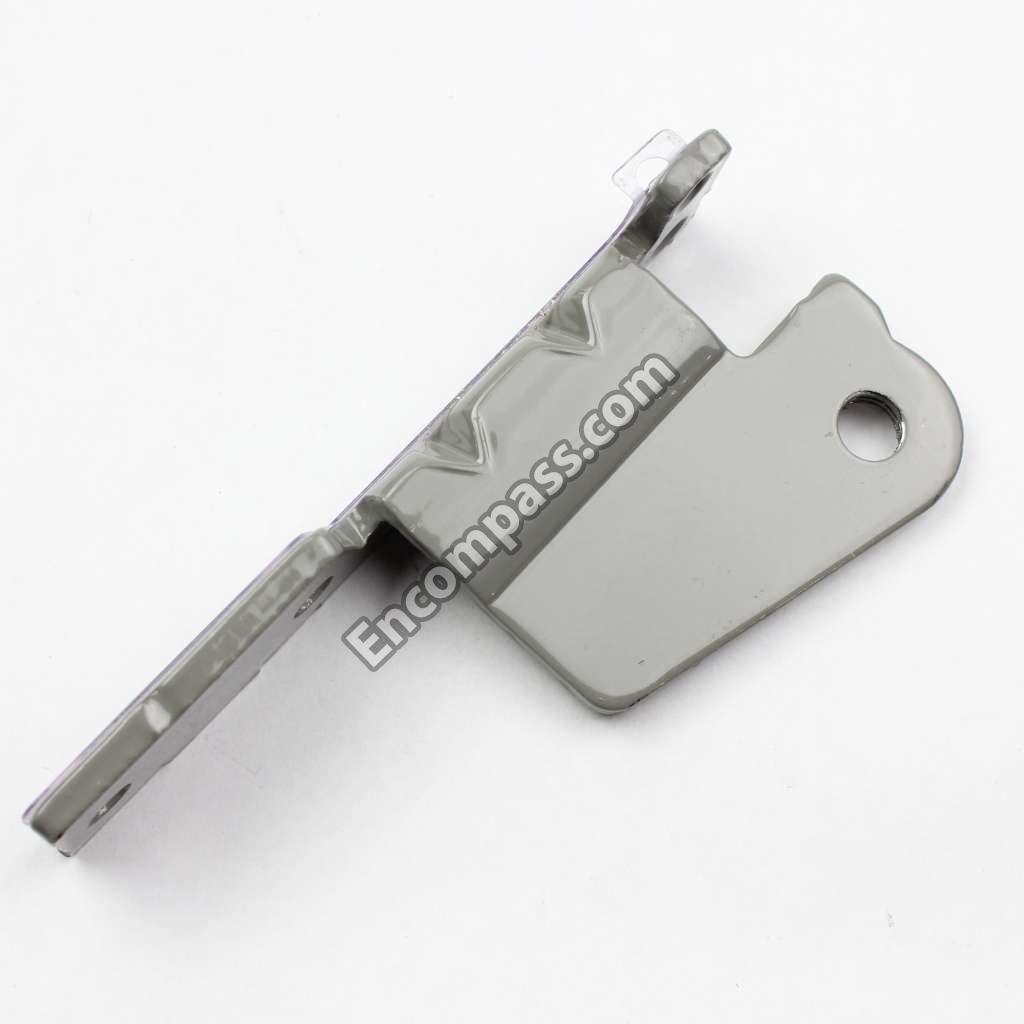

4775JJ2006M 4775JJ2006M HINGE ASSEMBLY,CENTER [282B]
4775JJ2011A 4775JJ2011A HINGE ASSEMBLY,LOWER
4775JJ2003B 4775JJ2003B HINGE ASSEMBLY,UPPER [281B]
4930JJ2021A 4930JJ2021A HOLDER,COVER(LOWER)
4930JA3034A 4930JA3034A HOLDER,DRIER [318A]
4930JJ2020B 4930JJ2020B HOLDER,HANDLE
4930JJ2019B 4930JJ2019B HOLDER,HANDLE
4930JJ2022A 4930JJ2022A HOLDER,HANDLE
4930JJ2023A 4930JJ2023A HOLDER,HANDLE
4930JJ2003D 4930JJ2003D HOLDER,SHELF [145A]
4930JJ2004D 4930JJ2004D HOLDER,SHELF [145B]
4940JA2026F 4940JA2026F KNOB,SHUTTER
4940JA2026D 4940JA2026D KNOB,SHUTTER [151C]
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [409B]
4779JA2003A 4779JA2003A LEG ASSEMBLY,ADJUST [106A]
4510JJ2002A 4510JJ2002A LEVER,SHUTTER [278C]
4520JJ2001A 4520JJ2001A LINK [128G]
4680JK1001B 4680JK1001B MOTOR,AC [420A]
4681JB1027N 4681JB1027N MOTOR,DC
MFT61843001 MFT61843001 NAME PLATE
MFT62346508 MFT62346508 NAME PLATE
MFT61843003 MFT61843003 NAME PLATE
MFT62346511 MFT62346511 NAME PLATE [212G]
6750JJ8002A 6750JJ8002A OVERLOAD PROTECT
6750C-0004S 6750C-0004S OVERLOAD PROTECT [309A]
ABQ33905317 ABQ33905317 PCB ASSEMBLY,DISPLAY [503C]
EBR30659302 EBR30659302 PCB ASSEMBLY,MAIN
EBR30659301 EBR30659301 PCB ASSEMBLY,MAIN [501A]
4J04238A 4J04238A PIN,COMMON [305C]
5200JJ3003E 5200JJ3003E PIPE,JOINT
6411JB1042Y 6411JB1042Y POWER CORD ASSEMBLY [411A]
5219JJ2002B 5219JJ2002B RAIL ASSEMBLY,SLIDE
5219JJ2002A 5219JJ2002A RAIL ASSEMBLY,SLIDE [248N]
5218JJ3001A 5218JJ3001A RAIL,SLIDE [103E]
3034JJ1002B 3034JJ1002B REFLECTOR,LAMP [409D]
MHA62513601 MHA62513601 ROLLER [305B]
1SZZJJ3010A 1SZZJJ3010A SCREW,CUSTOMIZED
1STZJA3004F 1STZJA3004F SCREW,CUSTOMIZED [B01]
FAB30025701 FAB30025701 SCREW,CUSTOMIZED [B04]
J471-00001J J471-00001J SCREW,CUSTOMIZED [S22]
1SZZJA3011B 1SZZJA3011B SCREW,CUSTOMIZED [S24]
4J01424C 4J01424C SCREW,CUSTOMIZED [S27]
4J00415D 4J00415D SCREW,CUSTOMIZED [S38]
6500JB2001B 6500JB2001B SENSOR [903D]
6500JB2002T 6500JB2002T SENSOR [903E]
5027JJ2005F 5027JJ2005F SHELF ASSEMBLY,NET [140F]
5027JJ2005C 5027JJ2005C SHELF ASSEMBLY,NET [141C]
5027JJ2005D 5027JJ2005D SHELF ASSEMBLY,NET [141E]
5027JJ2009D 5027JJ2009D SHELF ASSEMBLY,REFRIGERATOR
5027JJ1014D 5027JJ1014D SHELF ASSEMBLY,REFRIGERATOR [140A]
5027JJ1005A 5027JJ1005A SHELF ASSEMBLY,REFRIGERATOR [140B]
5027JJ1014B 5027JJ1014B SHELF ASSEMBLY,REFRIGERATOR [141A]
AHT72974902 AHT72974902 SHELF ASSEMBLY,REFRIGERATOR [141D]
5027JJ1013U 5027JJ1013U SHELF ASSEMBLY,REFRIGERATOR [142A]
5027JJ1006A 5027JJ1006A SHELF ASSEMBLY,REFRIGERATOR [142B]
4890JL1002R 4890JL1002R SHELF,GLASS [167B]
5026JJ2001L 5026JJ2001L SHELF,NET
AHT72974106 AHT72974106 SHELF,NET [142D]
5026JJ2001M 5026JJ2001M SHELF,NET [142E]
5070JJ3002A 5070JJ3002A SKIRT,LOWER [105F]
4620JA3009A 4620JA3009A STOPPER,COMPRESSOR [314A]
4620JJ3006D 4620JJ3006D STOPPER,DOOR [243A]
4620JJ3007E 4620JJ3007E STOPPER,HANDLE [212J]
4981JJ2001A 4981JJ2001A SUPPORTER ASSEMBLY,COVER TV [155B]
4980JJ2005A 4980JJ2005A SUPPORTER,HOLDER
6600JB1010K 6600JB1010K SWITCH,PUSH BUTTON
6600JB1010A 6600JB1010A SWITCH,PUSH BUTTON [406B]
6748C-0004D 6748C-0004D THERMISTOR ASSEMBLY,PTC
6749C-0014E 6749C-0014E THERMISTOR ASSEMBLY,PTC [308A]
6748JJ8002A 6748JJ8002A THERMISTOR,PTC
3391JJ1011B 3391JJ1011B TRAY ASSEMBLY,DRAWER [136A]
3391JJ1033B 3391JJ1033B TRAY ASSEMBLY,DRAWER [136F]
3391JJ1009B 3391JJ1009B TRAY ASSEMBLY,ICE [125A]
3391JJ2004H 3391JJ2004H TRAY ASSEMBLY,MEAT [170A]
3391JJ1019E 3391JJ1019E TRAY ASSEMBLY,VEGETABLE
3390JJ2003A 3390JJ2003A TRAY,BUTTER [147D]
3390JJ0003A 3390JJ0003A TRAY,DRIP [319A]
3390JJ1014A 3390JJ1014A TRAY,EGG [147B]
3390JJ1087A 3390JJ1087A TRAY,VEGETABLE [136B]
5251JA3003D 5251JA3003D TUBE ASSEMBLY,DRAIN [105A]
4J00382C 4J00382C WASHER,COMMON [106B]
