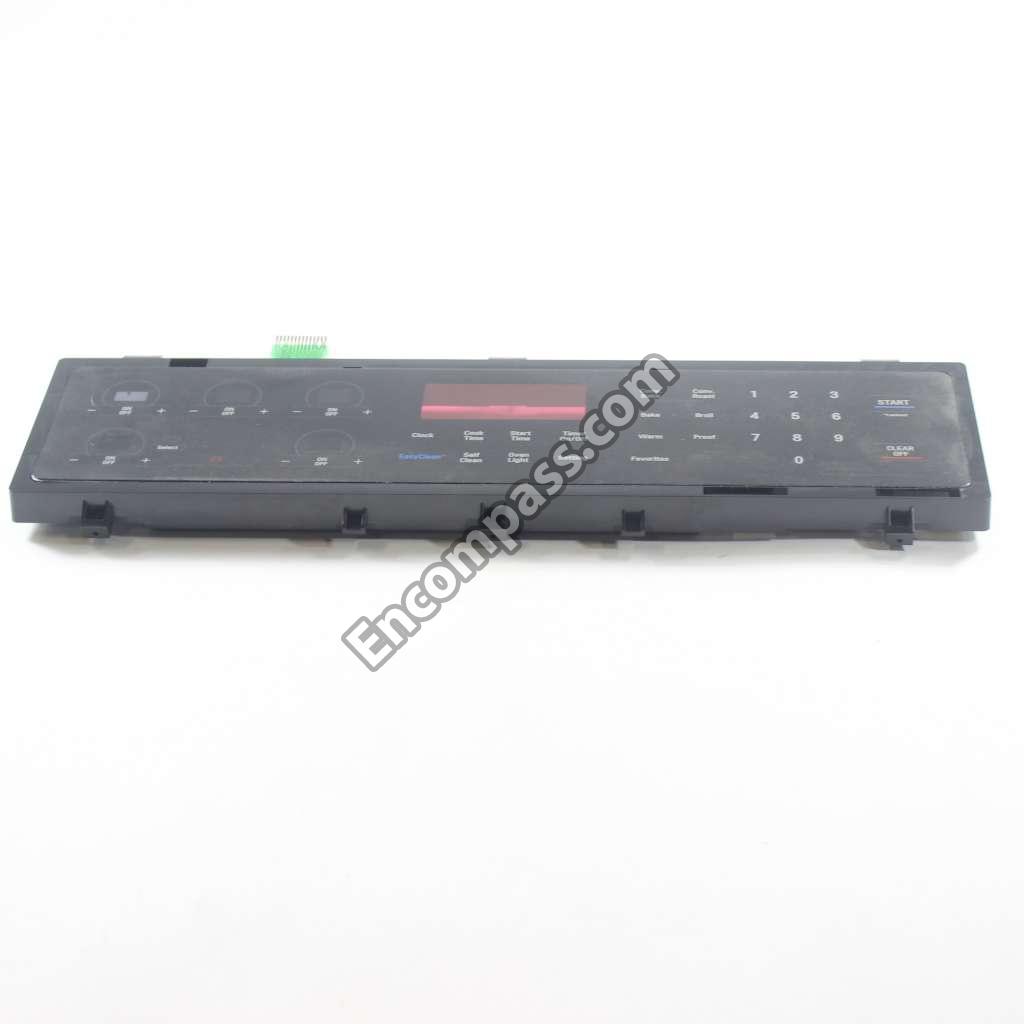

Model Image
Manufacturer

LG

Model Number

LRE3083ST

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
AAA74970601 AAA74970601 ACCESSORY ASSEMBLY
AAA77169702 AAA77169702 ACCESSORY ASSEMBLY
AAA74970401 AAA74970401 ACCESSORY ASSEMBLY
FAK30249601 FAK30249601 ANCHOR,CUSTOMIZED
4270W1N001B 4270W1N001B BAR
MAL62344203 MAL62344203 BARRIER
MAL62344201 MAL62344201 BARRIER
MAZ63478606 MAZ63478606 BRACKET
MAZ63478604 MAZ63478604 BRACKET
ABA73249402 ABA73249402 BRACKET ASSEMBLY
MAZ63283501 MAZ63283501 BRACKET,DOOR
4810W1N022A 4810W1N022A BRACKET,HEATER
MAZ63491301 MAZ63491301 BRACKET,HEATER
MAZ63488304 MAZ63488304 BRACKET,HEATER
MAZ63488301 MAZ63488301 BRACKET,HEATER
MAZ63310801 MAZ63310801 BRACKET,HEATER
MAZ63548103 MAZ63548103 BRACKET,HINGE
MAZ63548102 MAZ63548102 BRACKET,HINGE
MAZ63249701 MAZ63249701 BRACKET,HINGE

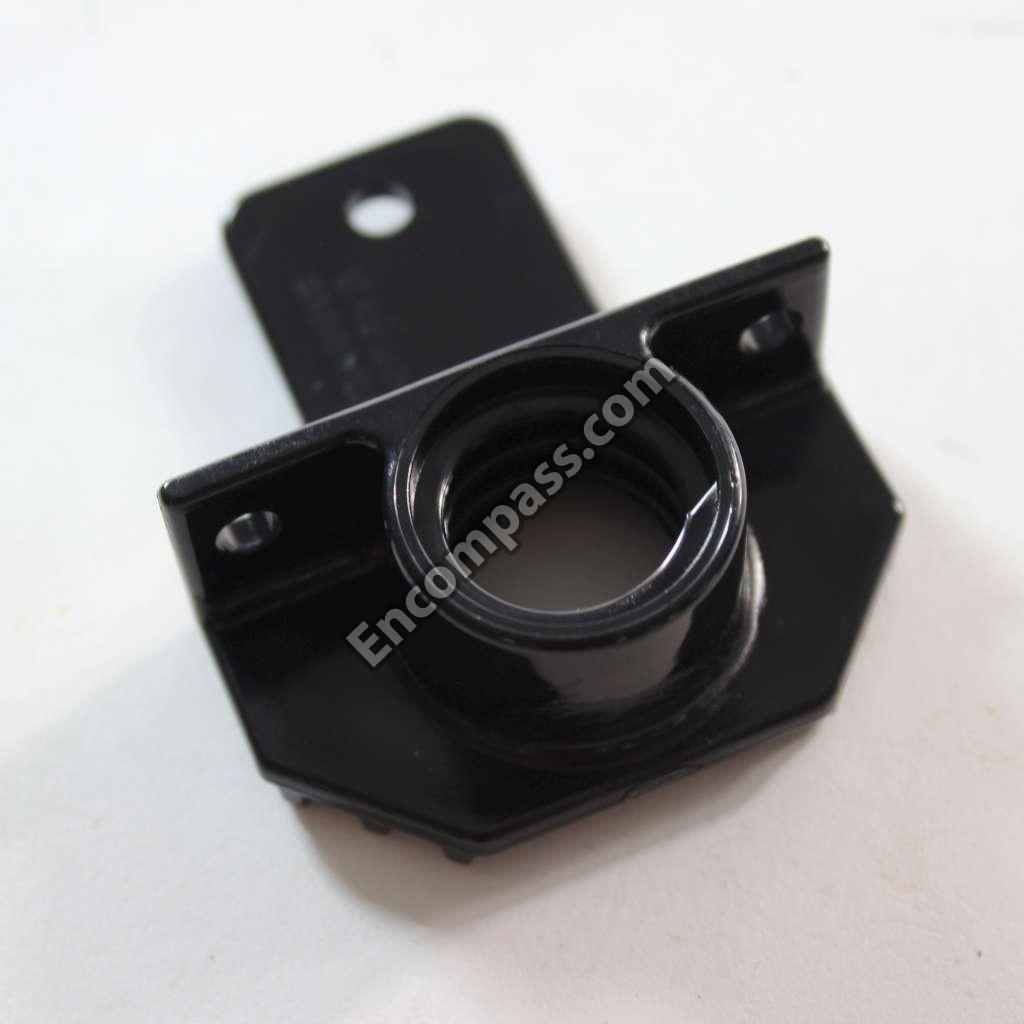

MAZ64590501 MAZ64590501 BRACKET,IDLE
MAZ34877102 MAZ34877102 BRACKET,IDLE
4810W3G135A 4810W3G135A BRACKET,IDLE
MAZ63250603 MAZ63250603 BRACKET,MOUNT
MAZ63250601 MAZ63250601 BRACKET,MOUNT
MAZ63250903 MAZ63250903 BRACKET,MOUNT
MAZ63250901 MAZ63250901 BRACKET,MOUNT
MAZ61672111 MAZ61672111 BRACKET,MOUNT
MAZ61672112 MAZ61672112 BRACKET,MOUNT
MAZ60113209 MAZ60113209 BRACKET,MOUNT
MBR62041703 MBR62041703 CHAMBER
EAG32629301 EAG32629301 CONNECTOR,TERMINAL BLOCK
ACQ86699901 ACQ86699901 COVER ASSEMBLY,POISE
MCK66822310 MCK66822310 COVER,HEATER
MCK66822306 MCK66822306 COVER,HEATER
MCK66838101 MCK66838101 COVER,INNER
MCK66822403 MCK66822403 COVER,POWER CORD
MCK66822801 MCK66822801 COVER,REAR
MCK66822706 MCK66822706 COVER,REAR
MCK66822705 MCK66822705 COVER,REAR
MCK66822601 MCK66822601 COVER,REAR
MCX61961507 MCX61961507 DRAWER

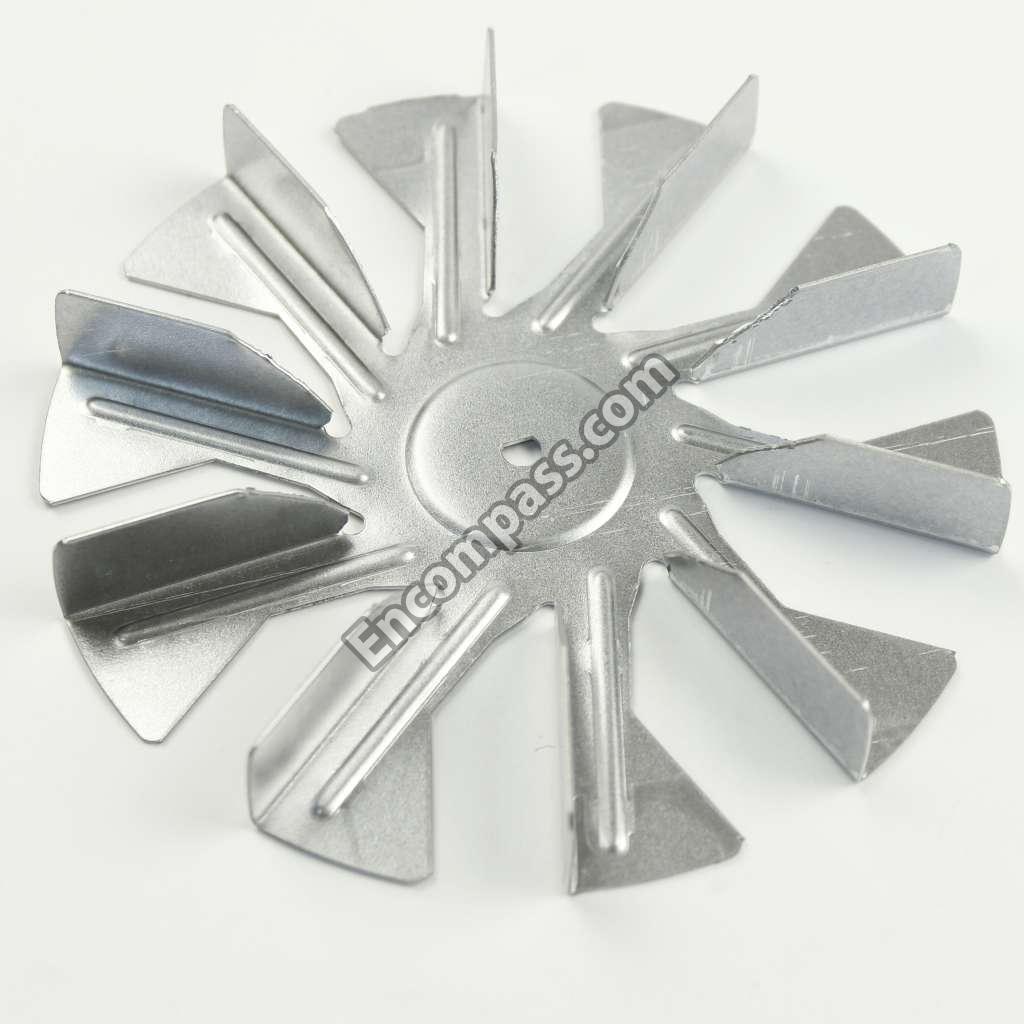

MDG62162801 MDG62162801 FAN,CONVECTION
5230W1N001F 5230W1N001F FILTER,CHARCOAL
5230W1N001B 5230W1N001B FILTER,CHARCOAL
4778W1N001B 4778W1N001B FOOT

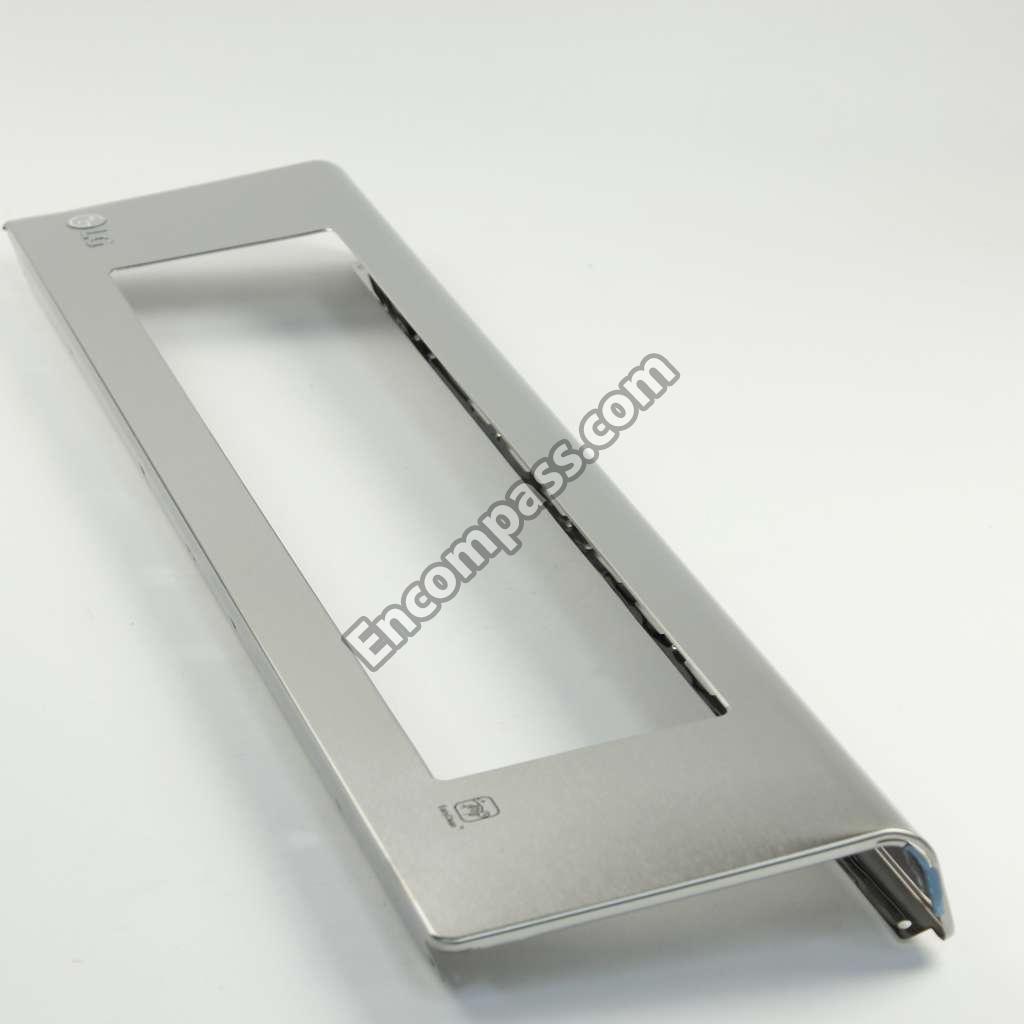

ADV74549302 ADV74549302 FRAME ASSEMBLY,DOOR
MDQ63019801 MDQ63019801 FRAME,DOOR
MEB42058901 MEB42058901 HANDLE,DOOR

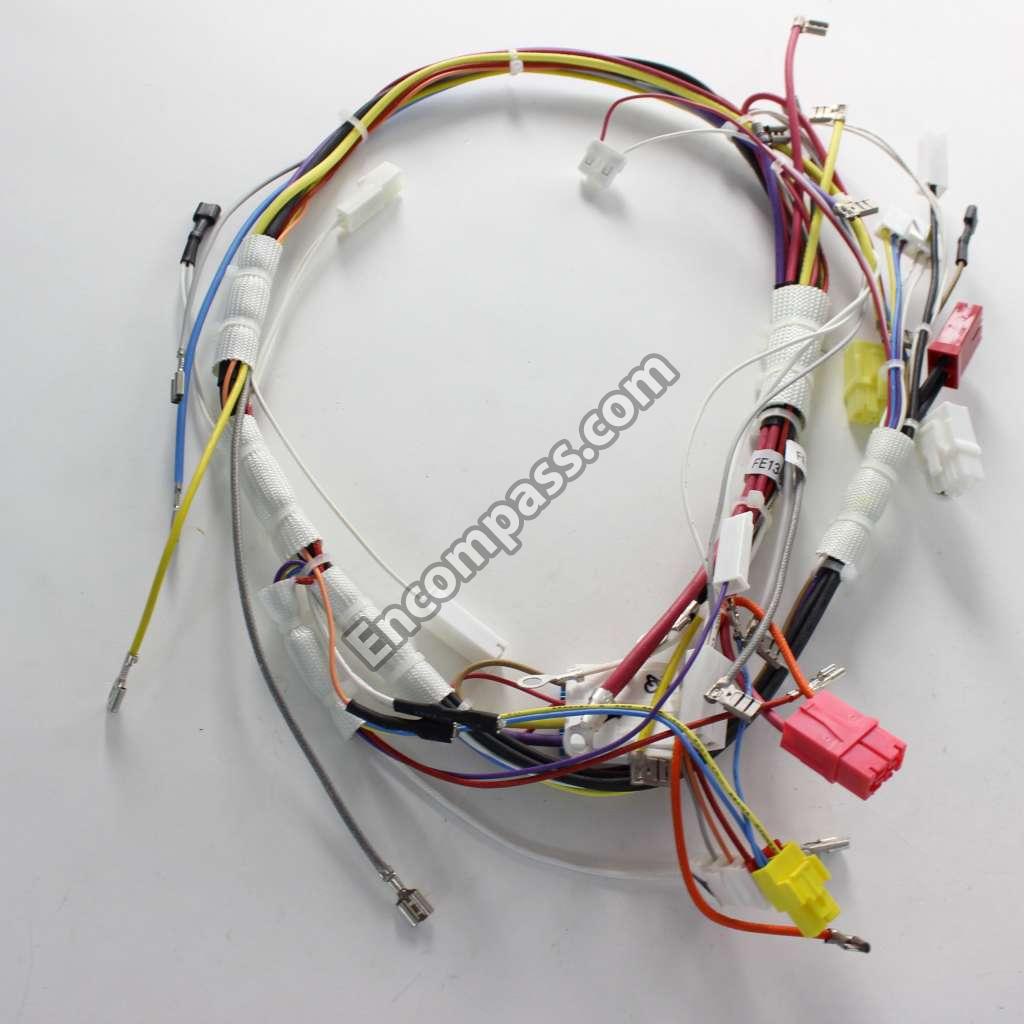

EAD60833506 EAD60833506 HARNESS,SINGLE
6877W1N024F 6877W1N024F HARNESS,SINGLE

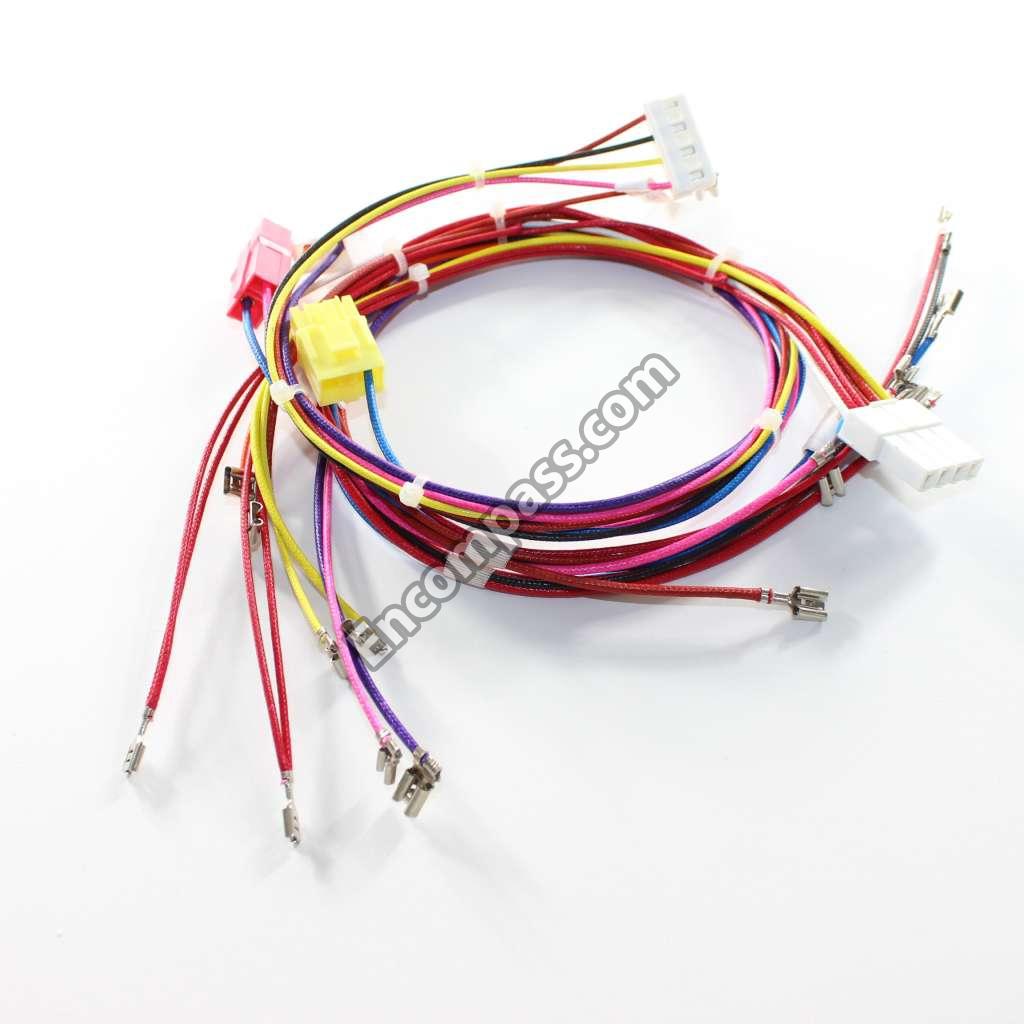

EAD61076101 EAD61076101 HARNESS,SINGLE
EAD61850507 EAD61850507 HARNESS,SINGLE
EAD61850402 EAD61850402 HARNESS,SINGLE
EAD34822910 EAD34822910 HARNESS,SINGLE
EAD34822916 EAD34822916 HARNESS,SINGLE
AEG33897003 AEG33897003 HEATER ASSEMBLY

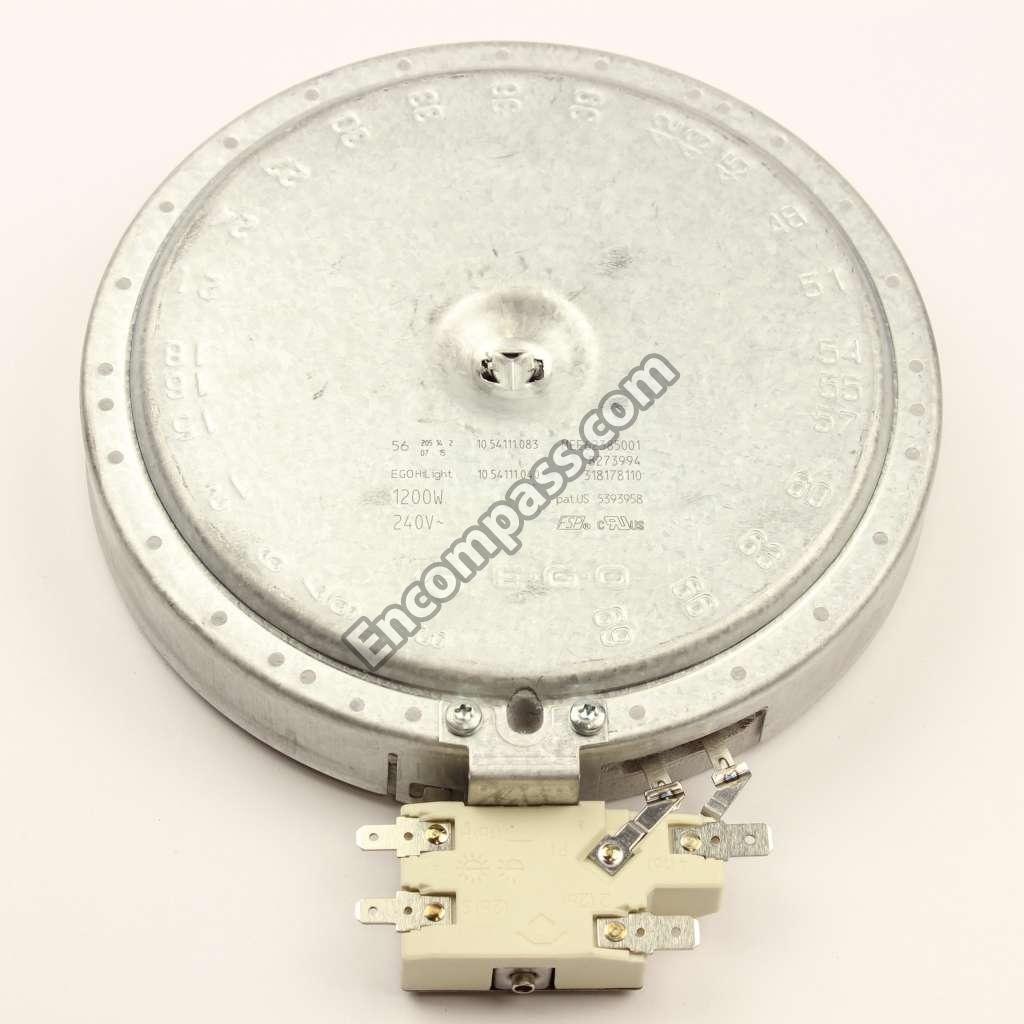

MEE62385001 MEE62385001 HEATER,RADIATION
MEE62385201 MEE62385201 HEATER,RADIATION
MEE62385101 MEE62385101 HEATER,RADIATION

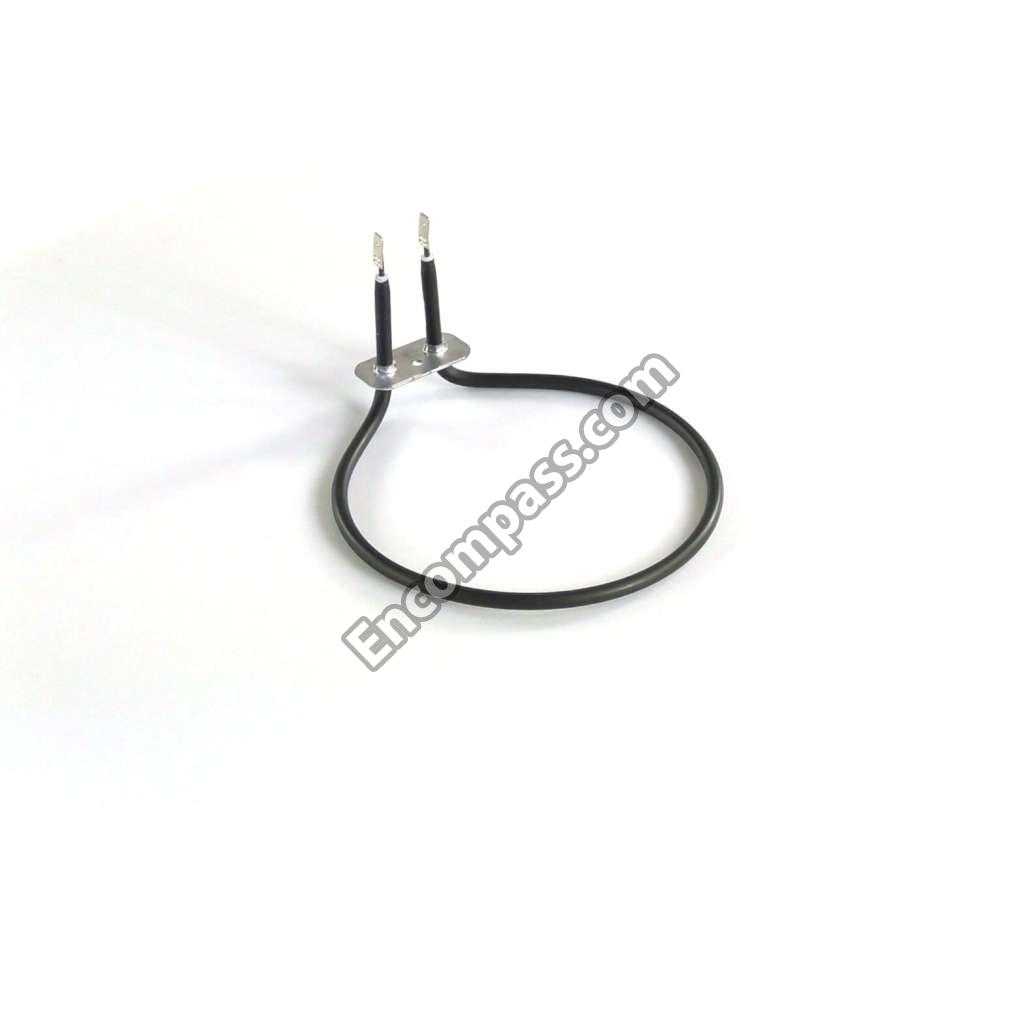

MEE32902206 MEE32902206 HEATER,SHEATH
MEE62306504 MEE62306504 HEATER,SHEATH

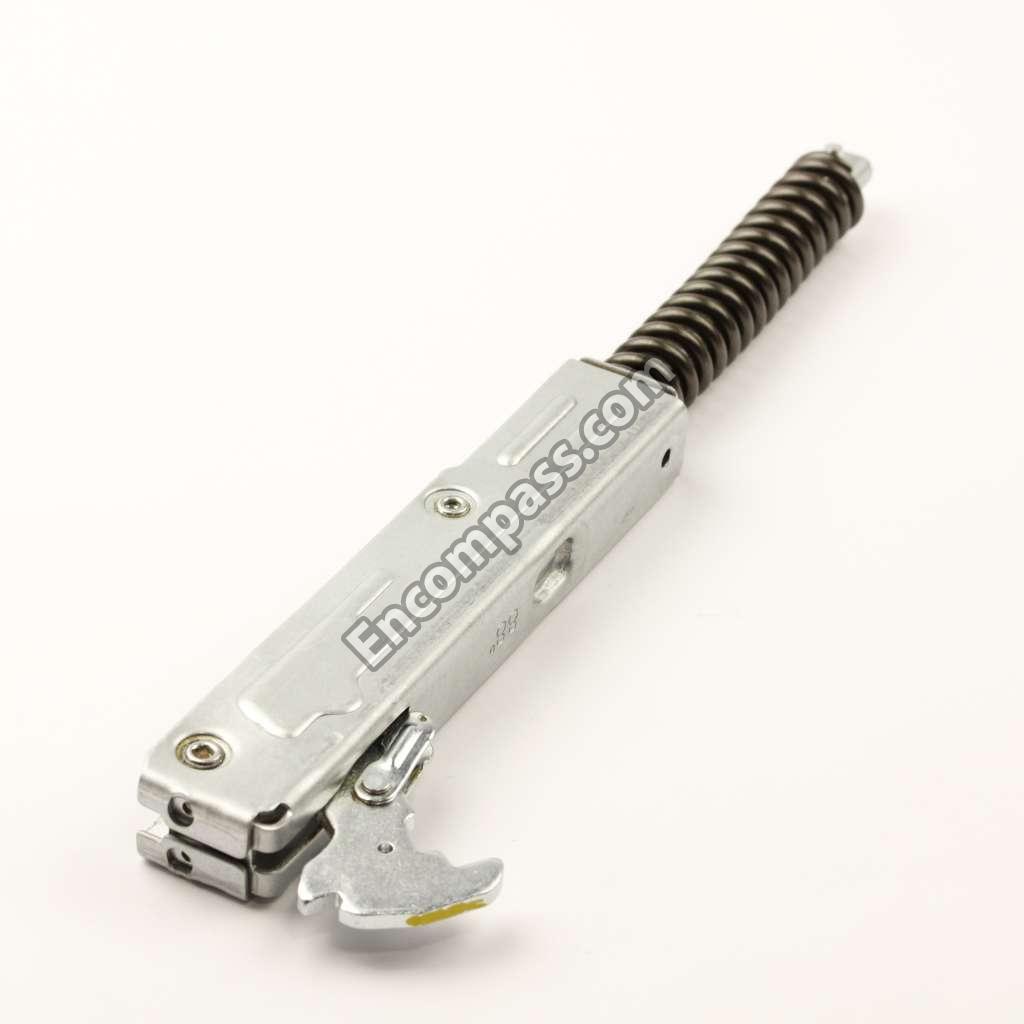

AEH72957502 AEH72957502 HINGE ASSEMBLY
4B72510F 4B72510F HOLDER,WIRE
MEV63876303 MEV63876303 INSULATOR
MEV63876302 MEV63876302 INSULATOR
MEV63876201 MEV63876201 INSULATOR
5012W1N016D 5012W1N016D INSULATOR
MEV63910901 MEV63910901 INSULATOR
MEV64132605 MEV64132605 INSULATOR
MEV64132603 MEV64132603 INSULATOR
MEV64132620 MEV64132620 INSULATOR
6913W1N002H 6913W1N002H LAMP,INCANDESCENT
6913W1N002C 6913W1N002C LAMP,INCANDESCENT
6549W1S025B 6549W1S025B MOTOR ASSEMBLY,AC,SYNCHRONOUS
EAU61865301 EAU61865301 MOTOR,AC FAN
1NHB0500032 1NHB0500032 NUT,COMMON
AGF77021020 AGF77021020 PACKAGE ASSEMBLY,C/SKD
3920W1N013A 3920W1N013A PACKING,GASKET
MFZ63174201 MFZ63174201 PACKING,GASKET
3920W1N014A 3920W1N014A PACKING,IDLE
MGC62641504 MGC62641504 PANEL,DRAWER
MGC62640806 MGC62640806 PANEL,REAR
MGC62640805 MGC62640805 PANEL,REAR
MGC62644005 MGC62644005 PANEL,SIDE
AGM74209504 AGM74209504 PARTS ASSEMBLY
AGM74310003 AGM74310003 PARTS ASSEMBLY
AGM73551649 AGM73551649 PARTS ASSEMBLY
EBR74164805 EBR74164805 PCB ASSEMBLY
EBR64624906 EBR64624906 PCB ASSEMBLY,DISPLAY
EBR77562705 EBR77562705 PCB ASSEMBLY,MAIN
AGU73969703 AGU73969703 PLATE ASSEMBLY
MGJ63629901 MGJ63629901 PLATE,BASE
MGJ63105903 MGJ63105903 PLATE,FRONT
3300W1N003L 3300W1N003L PLATE,SHIELD
4000W4A001E 4000W4A001E SCREW,CUSTOMIZED
1SZZW5N001A 1SZZW5N001A SCREW,CUSTOMIZED
1SZZW1N003A 1SZZW1N003A SCREW,CUSTOMIZED
1SZZW5N001E 1SZZW5N001E SCREW,CUSTOMIZED
1SZZW5N001C 1SZZW5N001C SCREW,CUSTOMIZED
1TTG0402422 1TTG0402422 SCREW,TAPTITE
MHL63411403 MHL63411403 SHELF
MHS62022201 MHS62022201 SLIDER
MHS62022301 MHS62022301 SLIDER
4980W1N013A 4980W1N013A SUPPORTER
MJH62535601 MJH62535601 SUPPORTER
4980W1N014A 4980W1N014A SUPPORTER
MJH62535808 MJH62535808 SUPPORTER
MJH62535708 MJH62535708 SUPPORTER
MJH62758801 MJH62758801 SUPPORTER,HOLDER
MJH63054101 MJH63054101 SUPPORTER,PCB
EBF60663403 EBF60663403 SWITCH,TACT
EBG61305805 EBG61305805 THERMISTOR,PTC
6930W1A003X 6930W1A003X THERMOSTAT
AJV73009301 AJV73009301 VENT ASSEMBLY
1WZZ81N001A 1WZZ81N001A WASHER,CUSTOMIZED
1WZZW3Z003B 1WZZW3Z003B WASHER,CUSTOMIZED
4890W1N005A 4890W1N005A WINDOW,GLASS
