Model Image
Manufacturer

LG

Model Number

LRFC25750TT

Description

Lrfc25750tt

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4680JK1001B 4680JK1001B AC MOTOR [420A]
4770JA3001A 4770JA3001A BAND [623A]
MAK39123901 MAK39123901 BAR
3103JJ1001H 3103JJ1001H BASE ASSEMBLY,COMPRESSOR

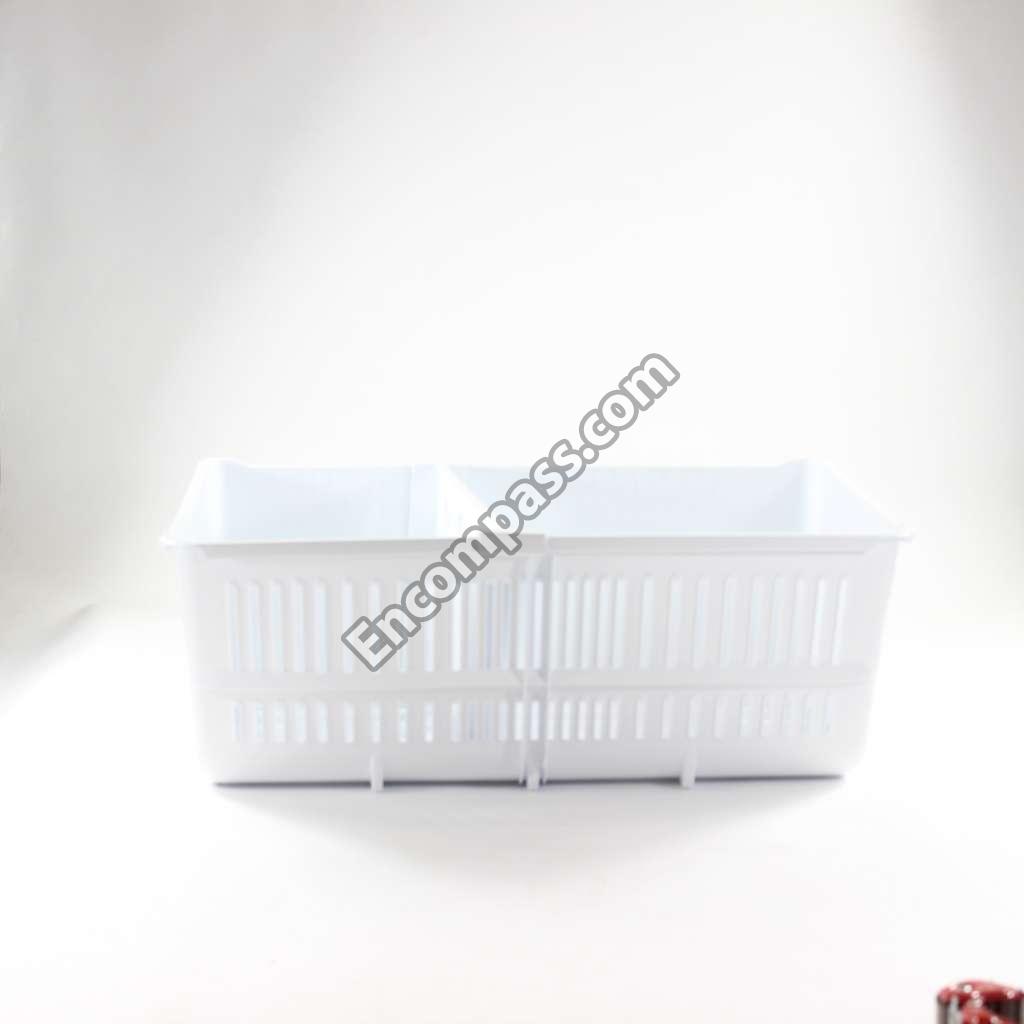

5005JJ2014J 5005JJ2014J BASKET ASSEMBLY,DOOR
5005JJ2014A 5005JJ2014A BASKET ASSEMBLY,DOOR [241C]
5004JJ1057A 5004JJ1057A BASKET,DOOR

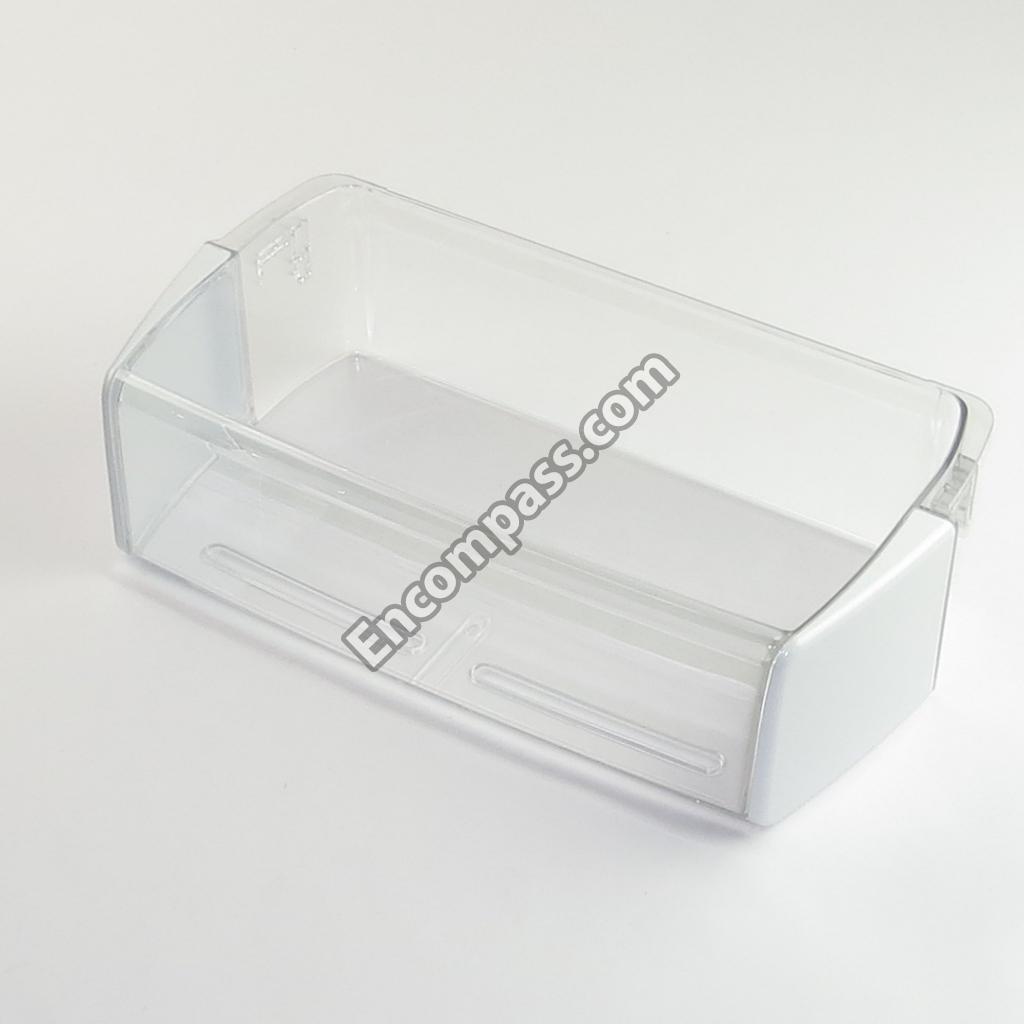

AAP73871401 AAP73871401 BASKET,DOOR [205A]
5004JA2017A 5004JA2017A BASKET,TILT [205B]
5004JA2017B 5004JA2017B BASKET,TILT [205C]

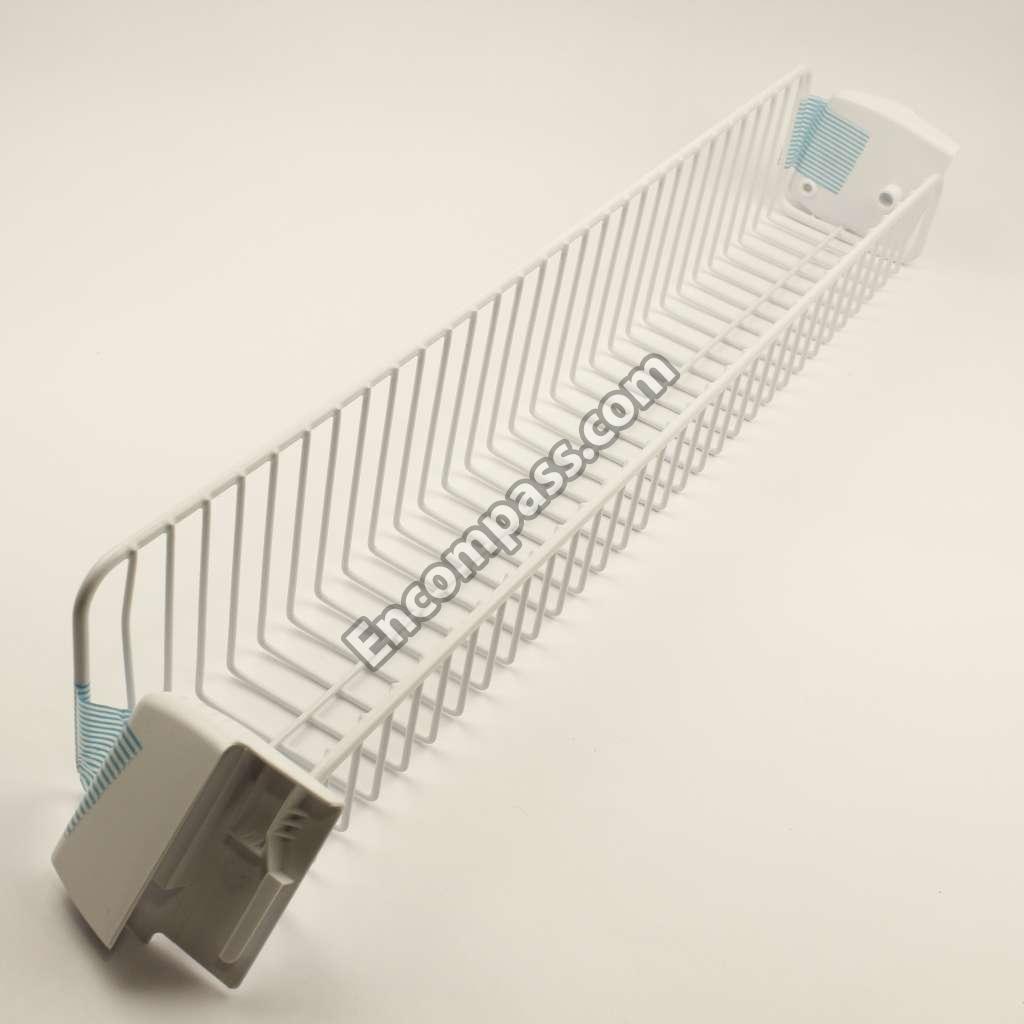

5004JL1006A 5004JL1006A BASKET,WINDOW
1BZZJA2002A 1BZZJA2002A BOLT,COMMON [B04]
4810JJ0003A 4810JJ0003A BRACKET,MOTOR
4810JA2129A 4810JA2129A BRACKET,MOTOR [405B]
5075JJ2002D 5075JJ2002D BUCKET ASSEMBLY,ICE
AAP73871504 AAP73871504 BUCKET,DAIRY
AAP73871501 AAP73871501 BUCKET,DAIRY [147A]
J326-00012A J326-00012A BUSH
4430JJ2004A 4430JJ2004A CAM,SHAFT [234A]
4430JJ2004B 4430JJ2004B CAM,SHAFT [234B]
0CZZJB2014L 0CZZJB2014L CAPACITOR,ELECTRIC APPLIANCE FILM,BOX [410G]
3110JA1096A 3110JA1096A CASE,DISPLAY [503D]
TCA35931726 TCA35931726 COMPRESSOR,SET ASSEMBLY [300A]
ACG72984401 ACG72984401 CONDENSER ASSEMBLY,WIRE
5098JJ2002J 5098JJ2002J CONNECTOR ASSEMBLY
5098JJ2002K 5098JJ2002K CONNECTOR ASSEMBLY
5098JJ2004G 5098JJ2004G CONNECTOR ASSEMBLY
5098JJ2002M 5098JJ2002M CONNECTOR ASSEMBLY [249A]
5098JJ2004H 5098JJ2004H CONNECTOR ASSEMBLY [249B]
5098JJ2002L 5098JJ2002L CONNECTOR ASSEMBLY [249B]
4932JA2001C 4932JA2001C CONNECTOR,DOOR
6615JB2005H 6615JB2005H CONTROLLER ASSEMBLY [400A]
3551JJ2030B 3551JJ2030B COVER ASSEMBLY,FRONT [233C]
3551JJ2030A 3551JJ2030A COVER ASSEMBLY,FRONT [233D]
3551JJ2028A 3551JJ2028A COVER ASSEMBLY,GRILLE FAN
3551JJ2018A 3551JJ2018A COVER ASSEMBLY,MACHINERY(REAR) [313A]
3551JA2144C 3551JA2144C COVER ASSEMBLY,PCB
ACQ86388101 ACQ86388101 COVER ASSEMBLY,PCB [501F]
3551JA2144D 3551JA2144D COVER ASSEMBLY,PCB [501F]

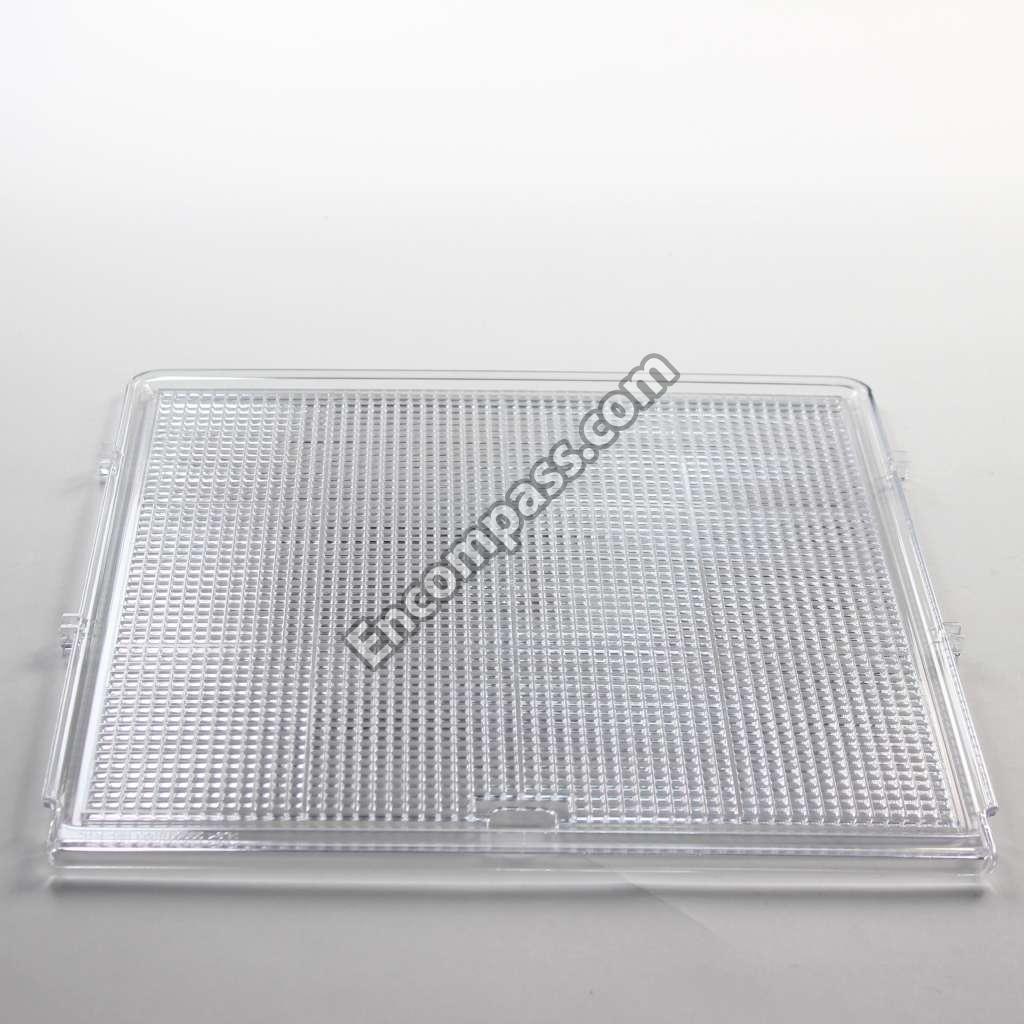

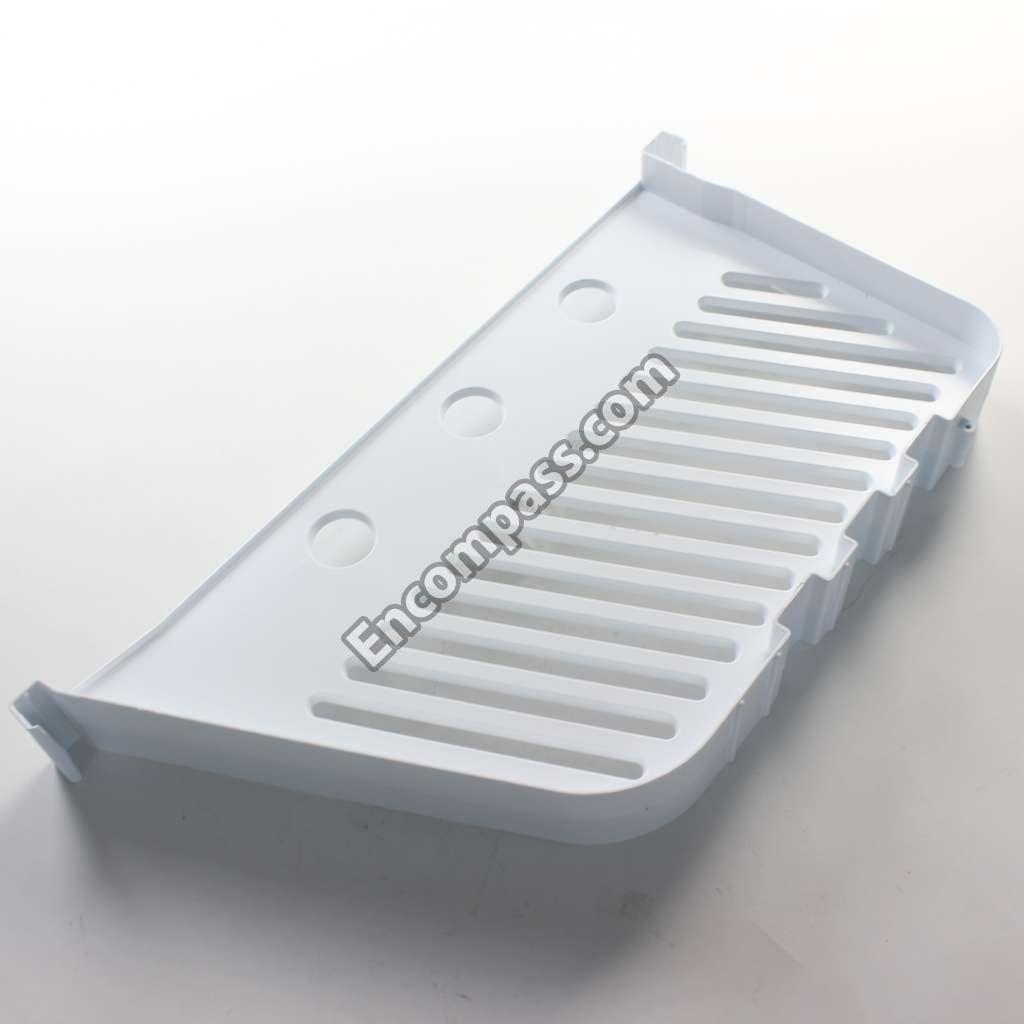

3551JJ2019D 3551JJ2019D COVER ASSEMBLY,TRAY [160B]
3551JJ2021A 3551JJ2021A COVER ASSEMBLY,TRAY [160C]
3550JJ1084A 3550JJ1084A COVER,BUCKET
3550JA1387B 3550JA1387B COVER,CONNECTOR
3550JA1387A 3550JA1387A COVER,CONNECTOR
3550JA2293B 3550JA2293B COVER,CONNECTOR
3550JA2293A 3550JA2293A COVER,CONNECTOR
3550JA2248A 3550JA2248A COVER,DISPLAY [503E]
4890JD1072C 4890JD1072C COVER,GLASS
3550JA2263A 3550JA2263A COVER,GRILLE FAN [135C]

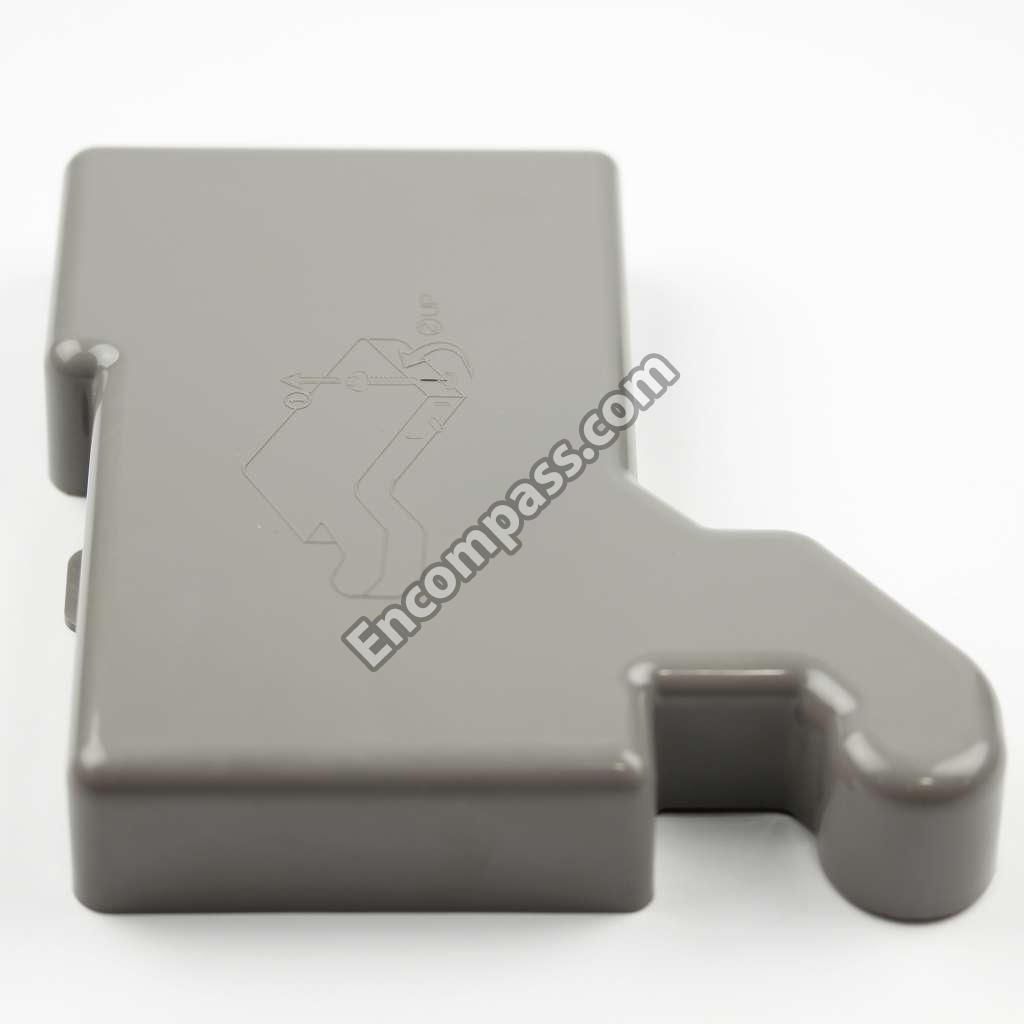

MCK67447705 MCK67447705 COVER,HINGE [207A]
3550JJ1097R 3550JJ1097R COVER,HINGE [207B]
3550JA1388B 3550JA1388B COVER,LAMP [158A]
3550JA1386B 3550JA1386B COVER,LAMP [158B]
3550JJ0008D 3550JJ0008D COVER,LOWER [103C]
3550JJ1069A 3550JJ1069A COVER,MAGIC ROOM [167B]
3550JJ1078A 3550JJ1078A COVER,PCB [501F]
3550JA2042C 3550JA2042C COVER,PTC [304A]
MCK39131501 MCK39131501 COVER,SENSOR [152B]
3550JA2247A 3550JA2247A COVER,SENSOR [610A]

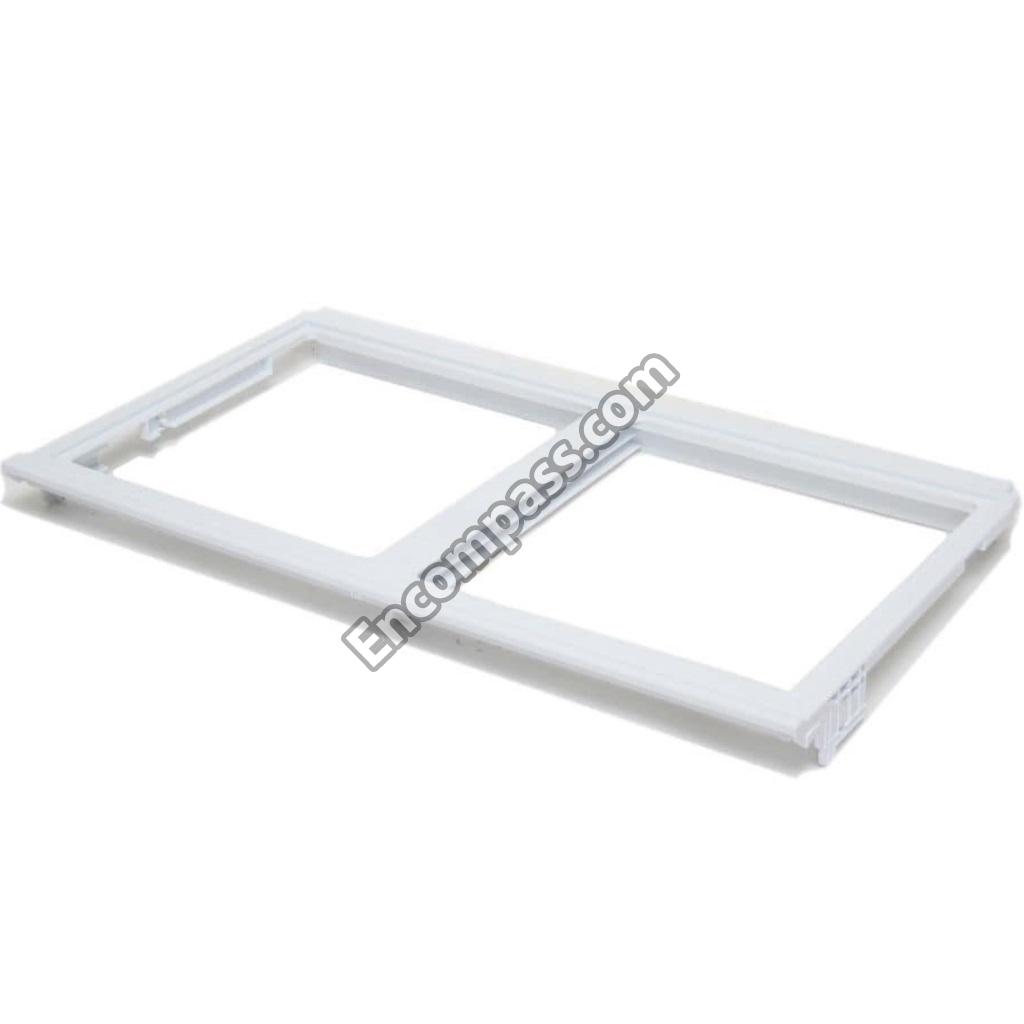

3550JL1010B 3550JL1010B COVER,TRAY [145E]
3550JJ0009A 3550JJ0009A COVER,TV [154A]
5040JA3071A 5040JA3071A DAMPER,COMPRESSOR [312A]
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [405C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [405F]
5072JA3003F 5072JA3003F DAMPER,NOISE [316A]
5072JA3003B 5072JA3003B DAMPER,NOISE [316B]
5040JA3056A 5040JA3056A DAMPER,PIPE [327A]
4J03020A 4J03020A DAMPER,PIPE [328A]

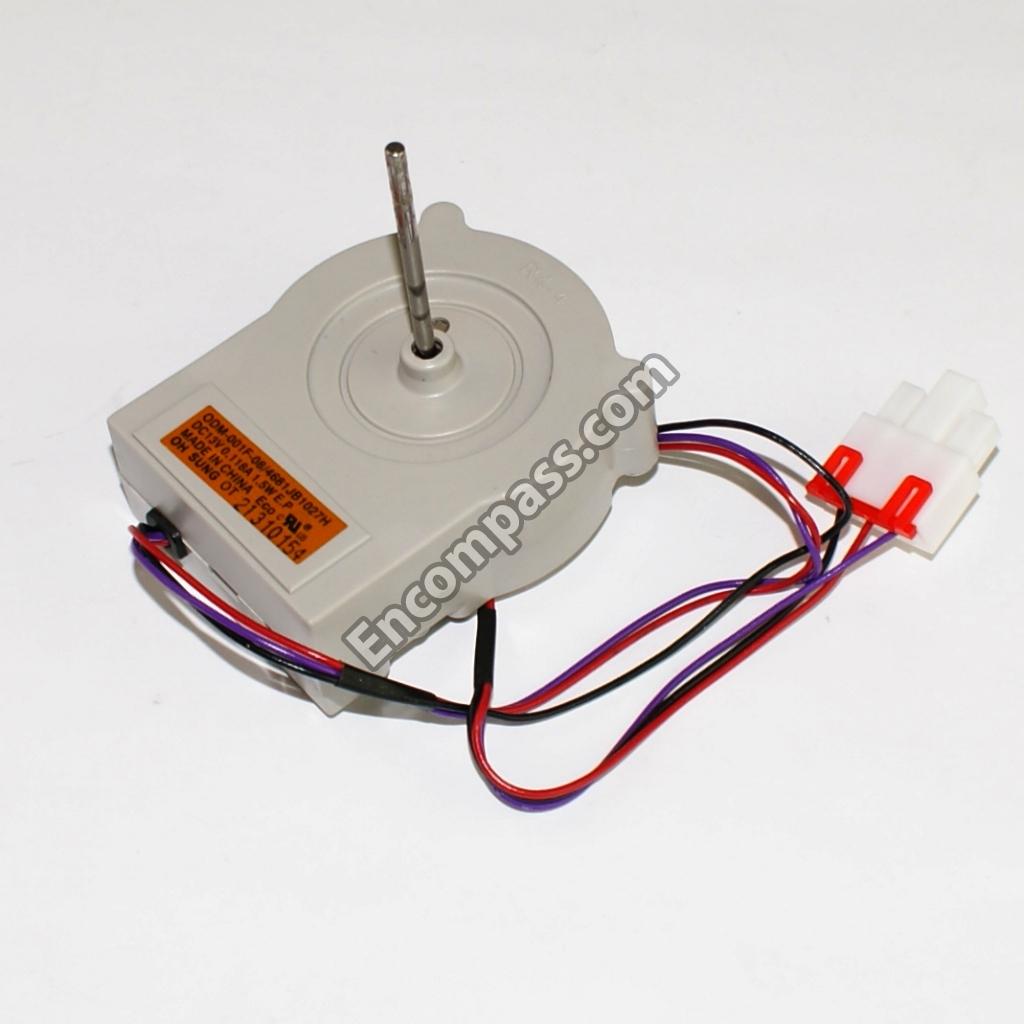

4681JB1027H 4681JB1027H DC MOTOR
4681JB1029H 4681JB1029H DC MOTOR [404A]

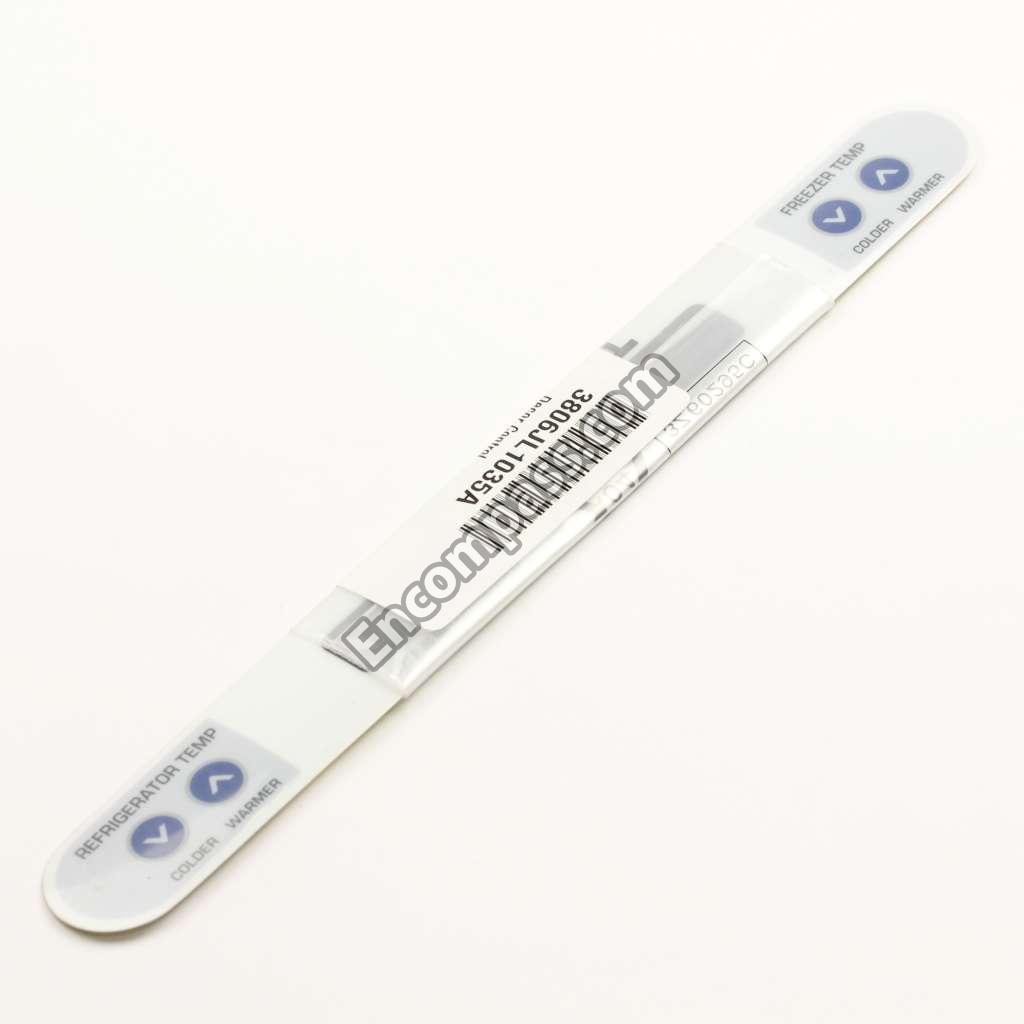

3806JL1035A 3806JL1035A DECOR,CONTROL [503G]
3806JL1037B 3806JL1037B DECOR,DUCT [282F]

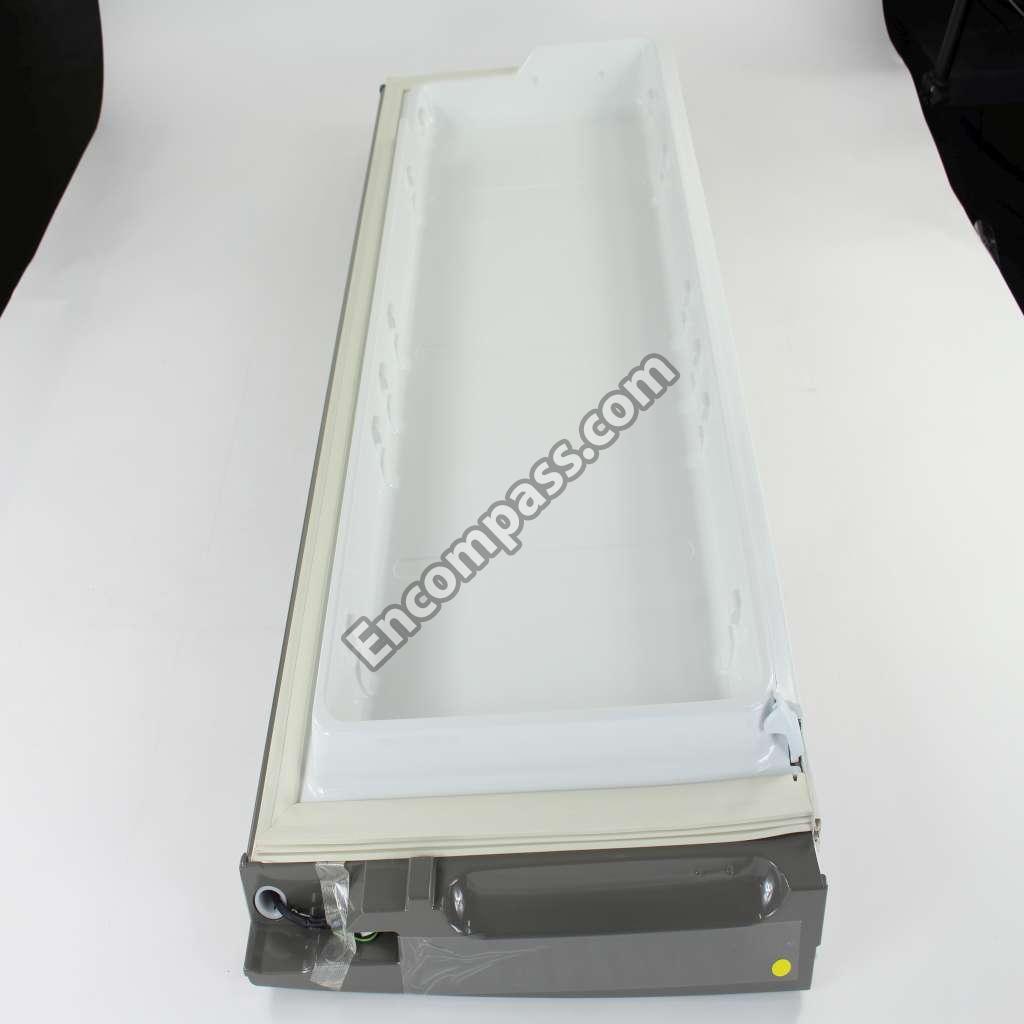

3581JJ8044E 3581JJ8044E DOOR ASSEMBLY,FREEZER [200A]
3581JJ8043C 3581JJ8043C DOOR ASSEMBLY,REFRIGERATOR(LEFT) [230B]
3581JJ8041C 3581JJ8041C DOOR ASSEMBLY,REFRIGERATOR(RIGHT)
5433JJ0050E 5433JJ0050E DOOR FOAM ASSEMBLY,FREEZER [201A]
5433JJ0049C 5433JJ0049C DOOR FOAM ASSEMBLY,REFRIGERATOR
5433JJ0048C 5433JJ0048C DOOR FOAM ASSEMBLY,REFRIGERATOR
6621JK2003B 6621JK2003B DRAWING,ASSEMBLY [410A]
6877JB3036K 6877JB3036K DRAWING,ASSEMBLY [619E]
ADH73150210 ADH73150210 DRIER ASSEMBLY
ADH73150208 ADH73150208 DRIER ASSEMBLY [317A]

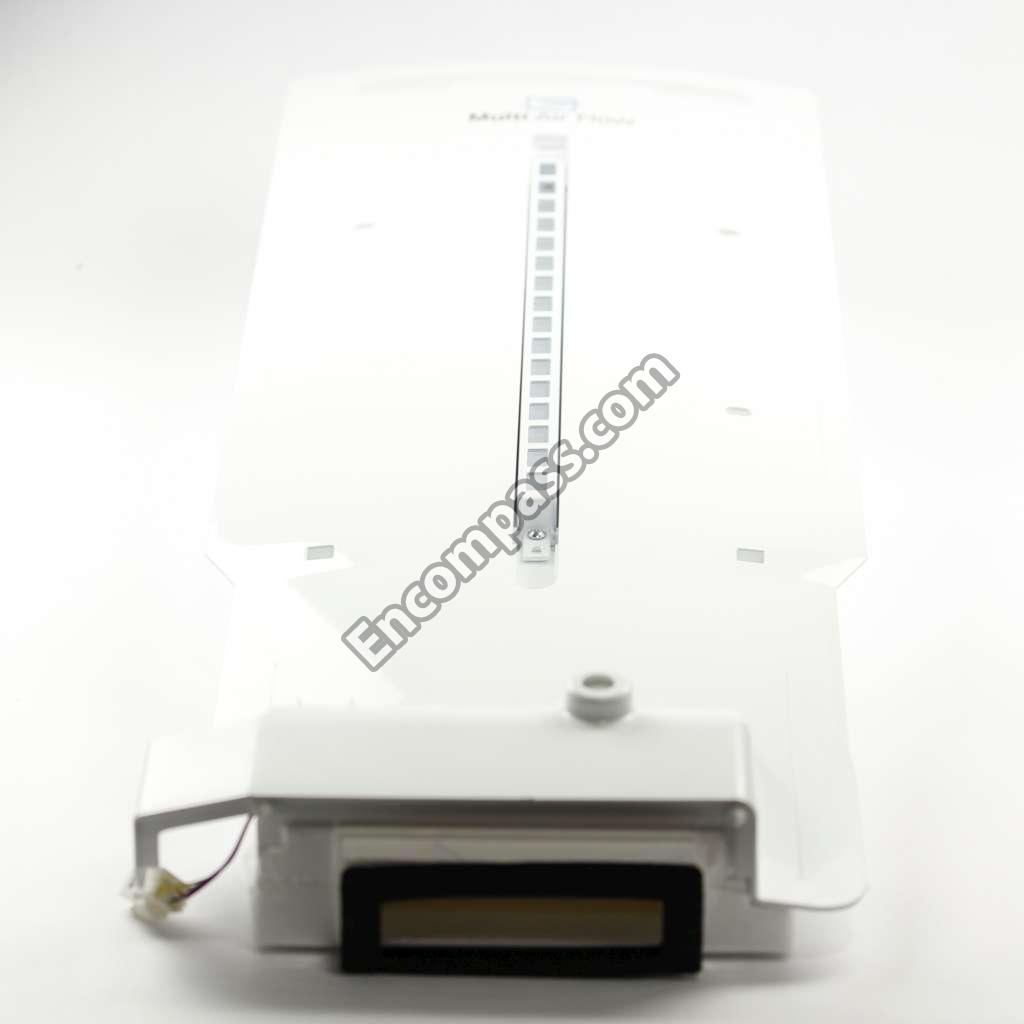

5209JJ1009A 5209JJ1009A DUCT ASSEMBLY,MULTI

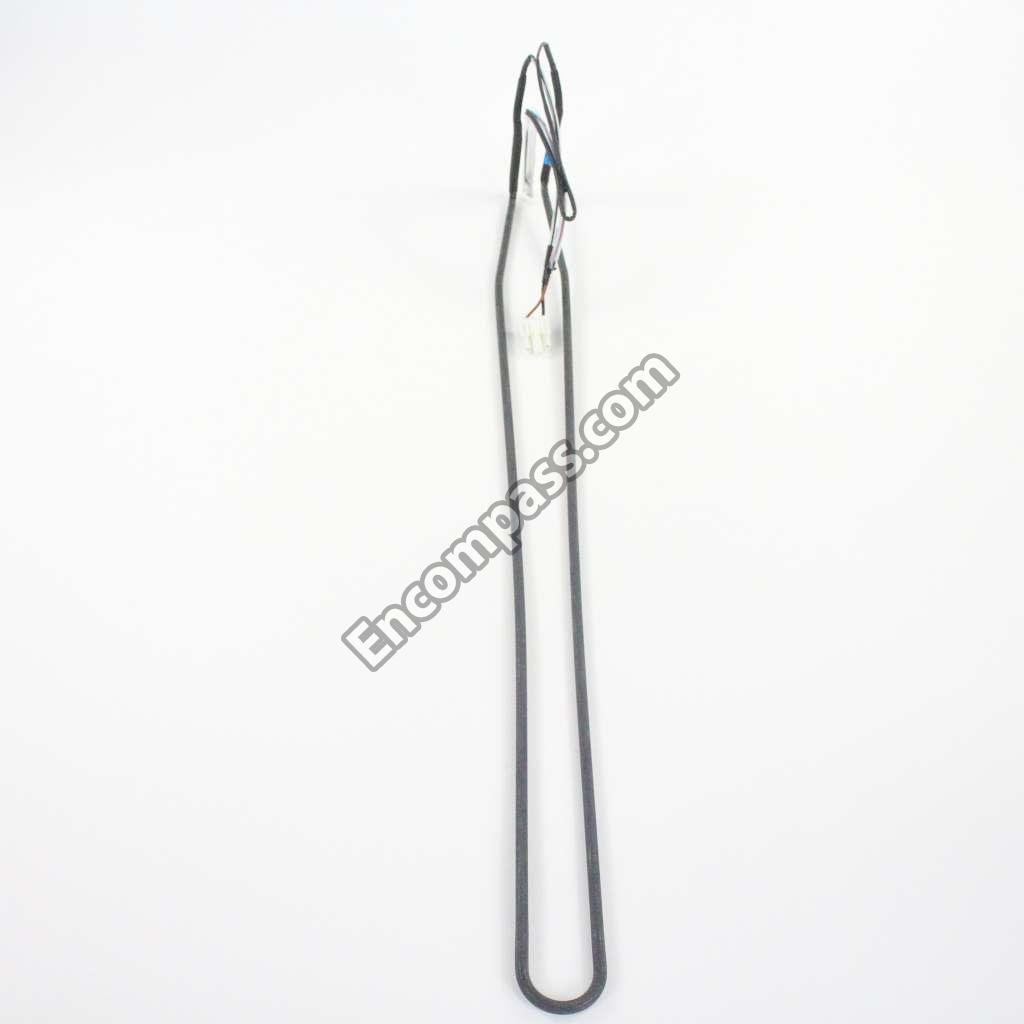

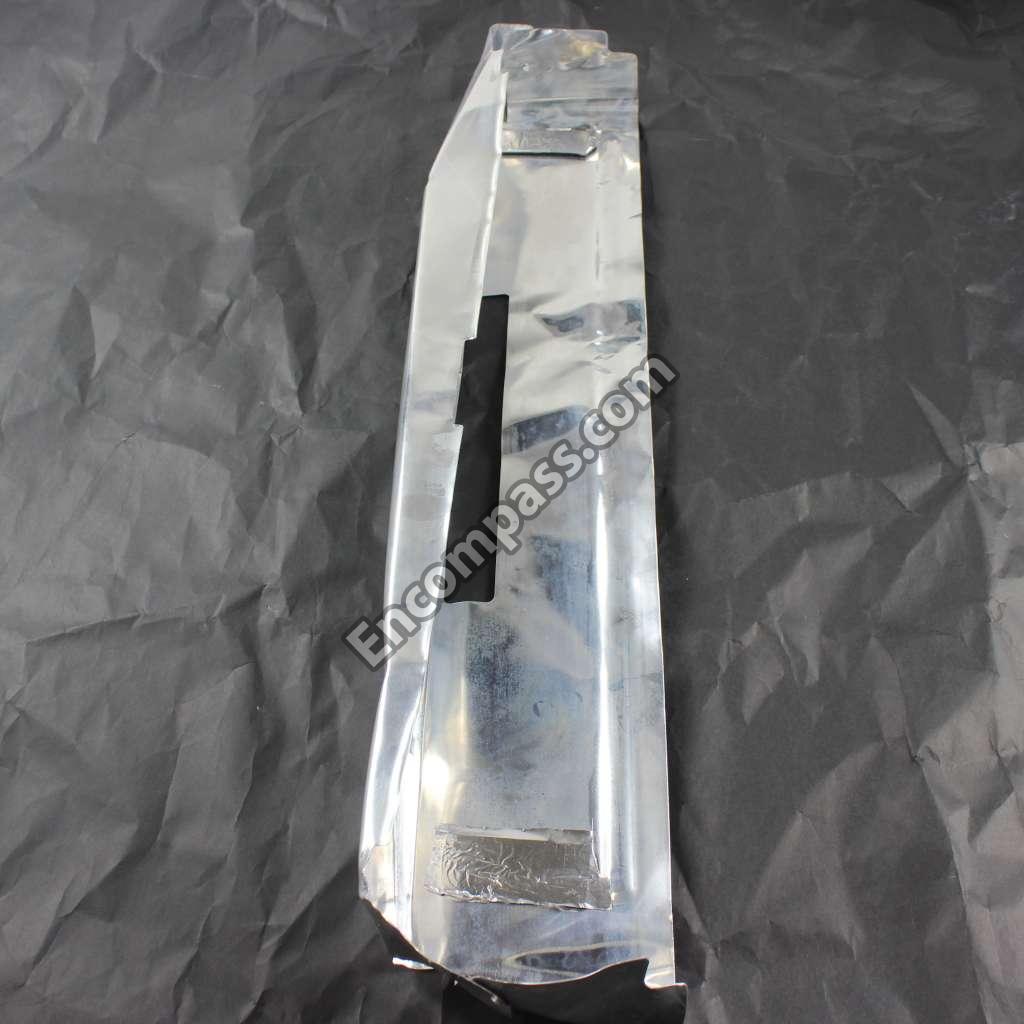

5300JK1005K 5300JK1005K Defrost Heater Assembly
5421JJ1003S 5421JJ1003S EVAPORATOR ASSEMBLY [301A]

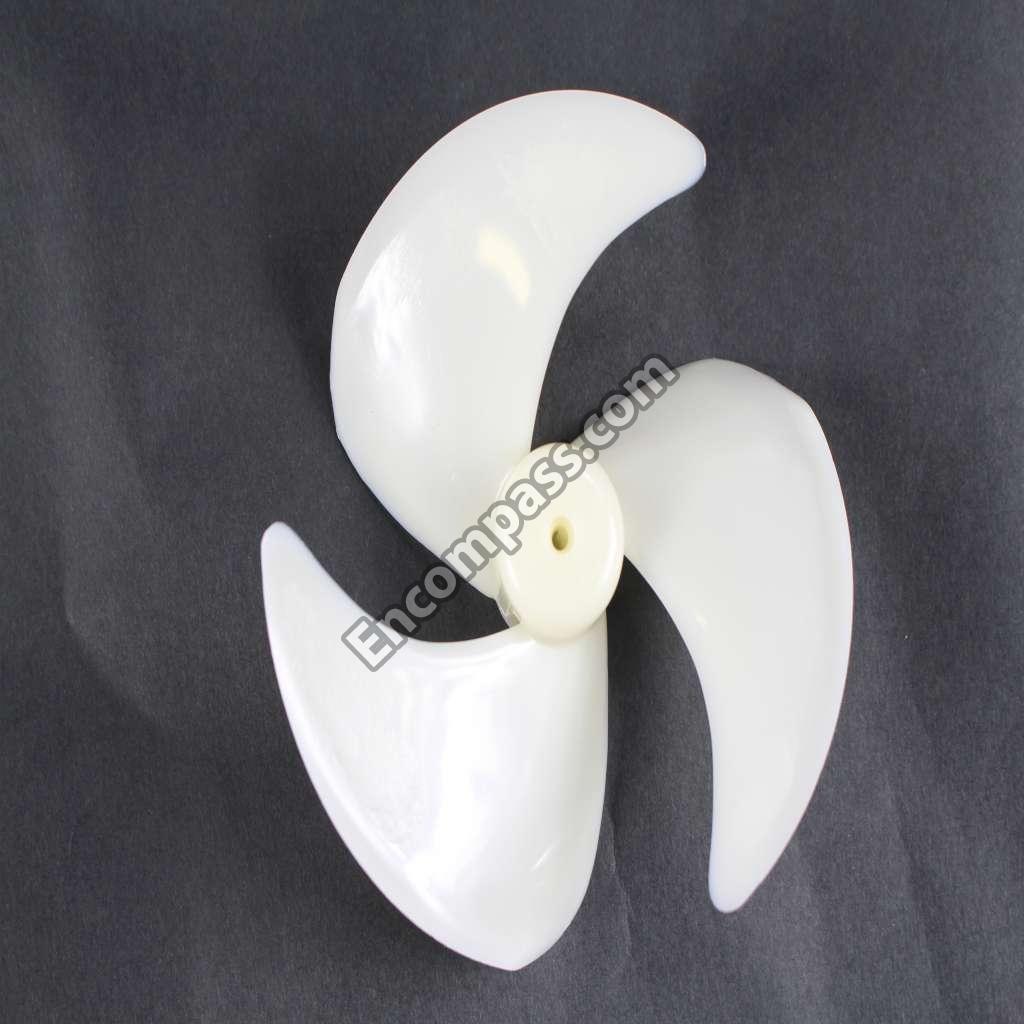

5901JA1022A 5901JA1022A FAN ASSEMBLY [329A]
5901JA1013A 5901JA1013A FAN ASSEMBLY [329C]

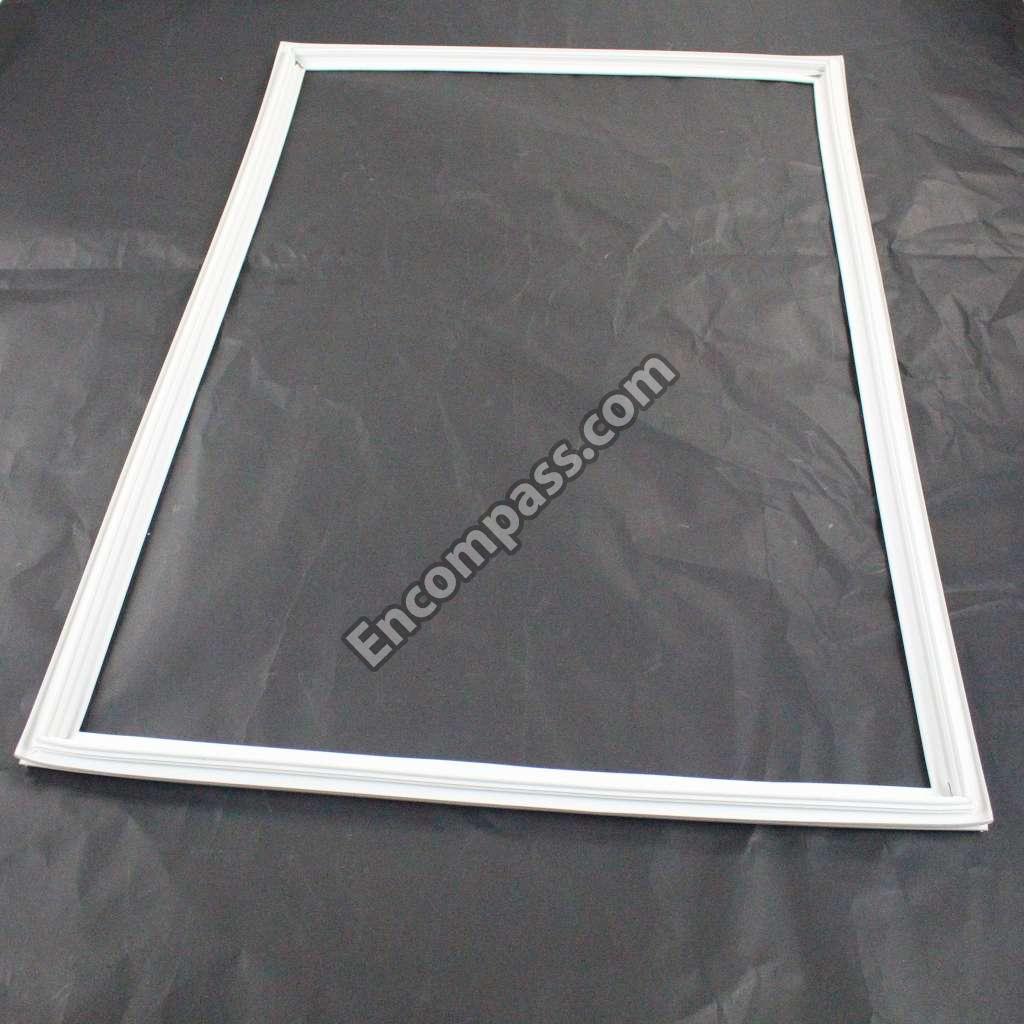

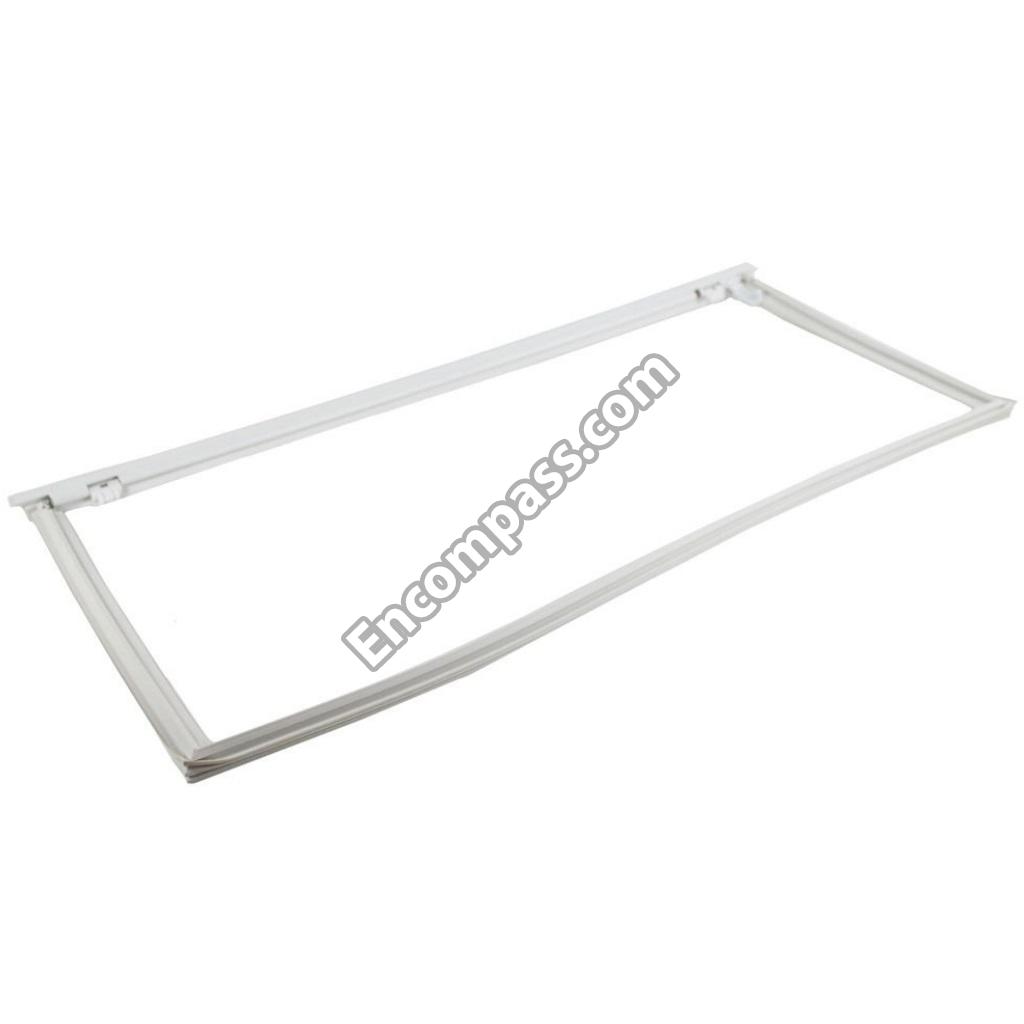

4987JJ2002R 4987JJ2002R GASKET ASSEMBLY,DOOR
4987JJ2002Q 4987JJ2002Q GASKET ASSEMBLY,DOOR
4987JJ2002N 4987JJ2002N GASKET ASSEMBLY,DOOR [233A]
4987JJ2002P 4987JJ2002P GASKET ASSEMBLY,DOOR [233B]
MDS38201415 MDS38201415 GASKET,DOOR
MDS64172917 MDS64172917 GASKET,DOOR [203A]
MDX63113401 MDX63113401 GRILLE,FAN [332A]

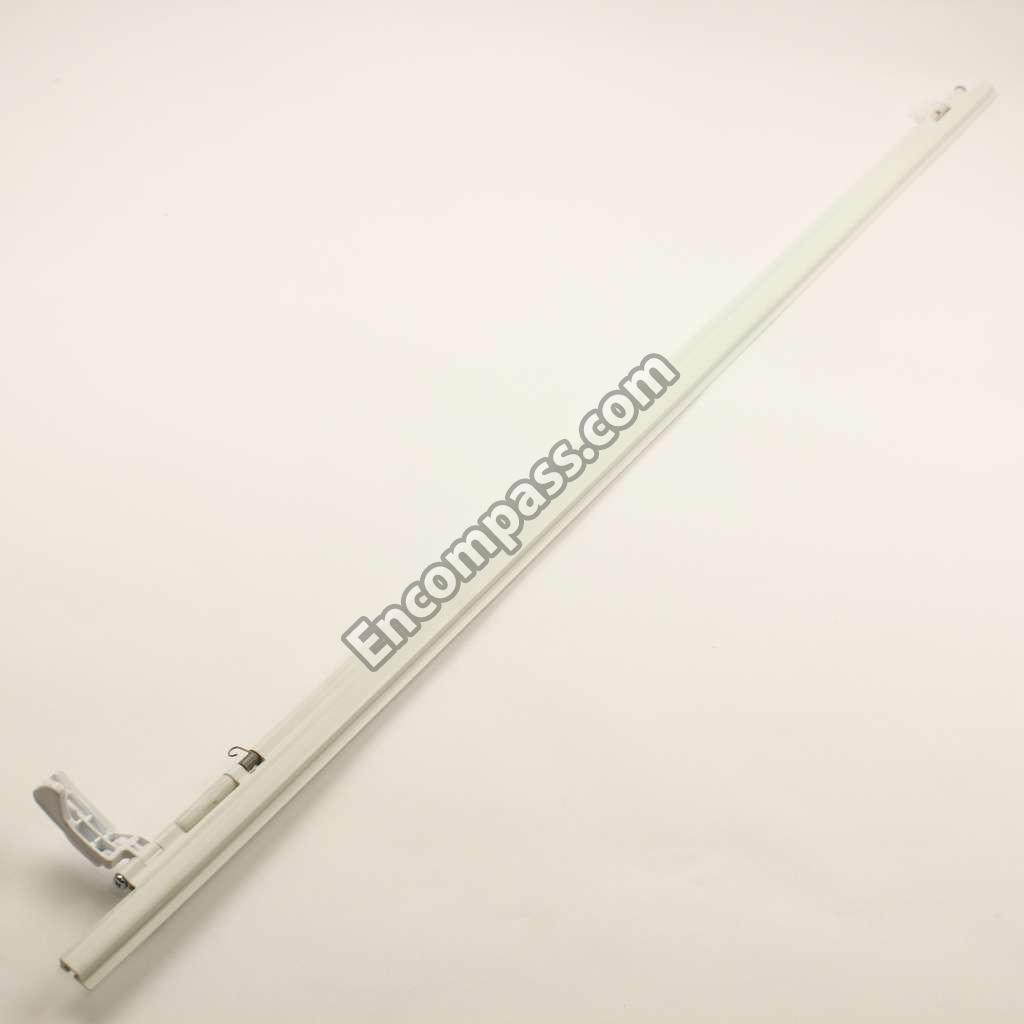

4975JJ2007E 4975JJ2007E GUIDE ASSEMBLY,RAIL [145C]
4975JJ2005F 4975JJ2005F GUIDE ASSEMBLY,RAIL [145F]
4975JJ2016A 4975JJ2016A GUIDE ASSEMBLY,RAIL [162A]
4975JJ2016B 4975JJ2016B GUIDE ASSEMBLY,RAIL [162B]
4974JJ1031A 4974JJ1031A GUIDE,DRAWER [237C]
4974JJ1036B 4974JJ1036B GUIDE,FAN [319C]
4974JA2055A 4974JA2055A GUIDE,PITCHER

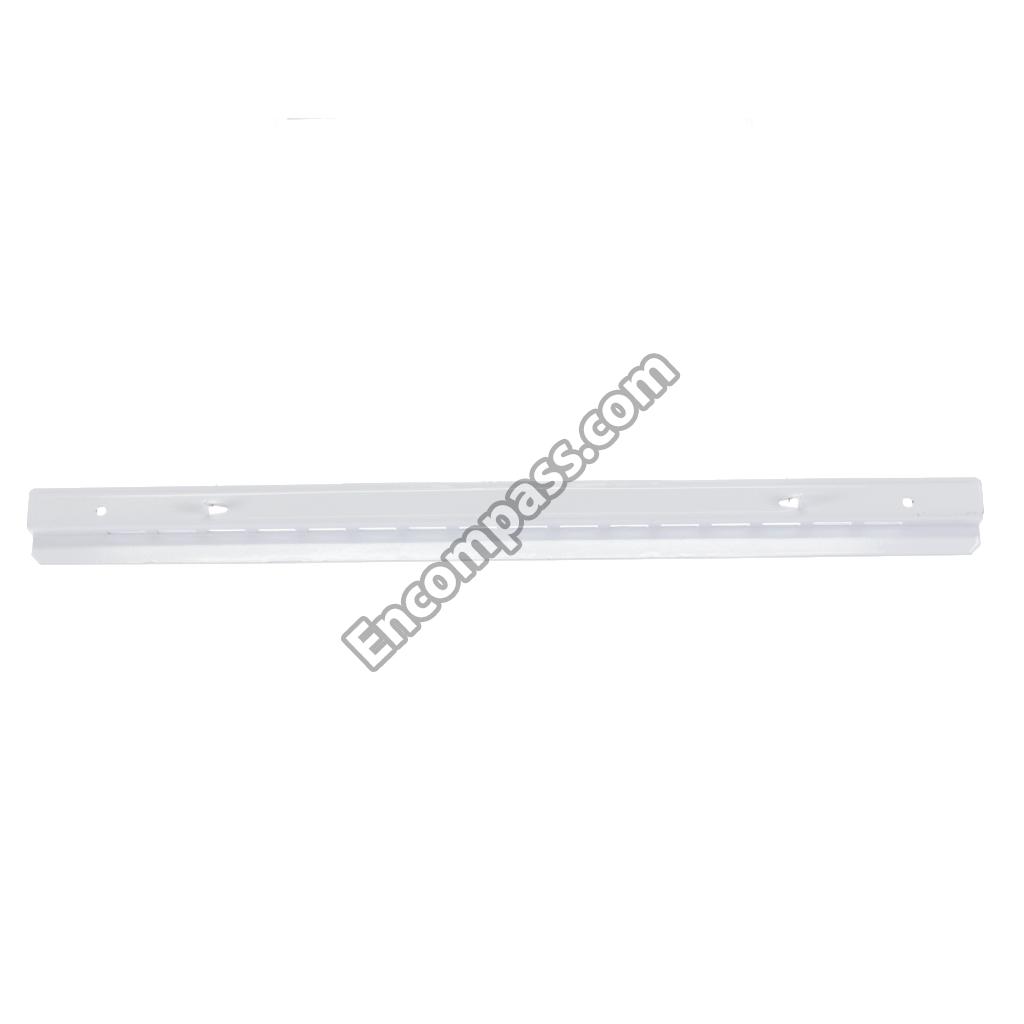

4974JA1127A 4974JA1127A GUIDE,RAIL [177B]
3651JA2268C 3651JA2268C HANDLE ASSEMBLY,FREEZER
3651JA2269M 3651JA2269M HANDLE ASSEMBLY,REFRIGERATOR
3650JA2061X 3650JA2061X HANDLE,REAR [103A]
MEB62055503 MEB62055503 HANDLE,REAR [103B]
AEH73856207 AEH73856207 HINGE ASSEMBLY,CENTER [262B]
AEH73856208 AEH73856208 HINGE ASSEMBLY,CENTER [262H]

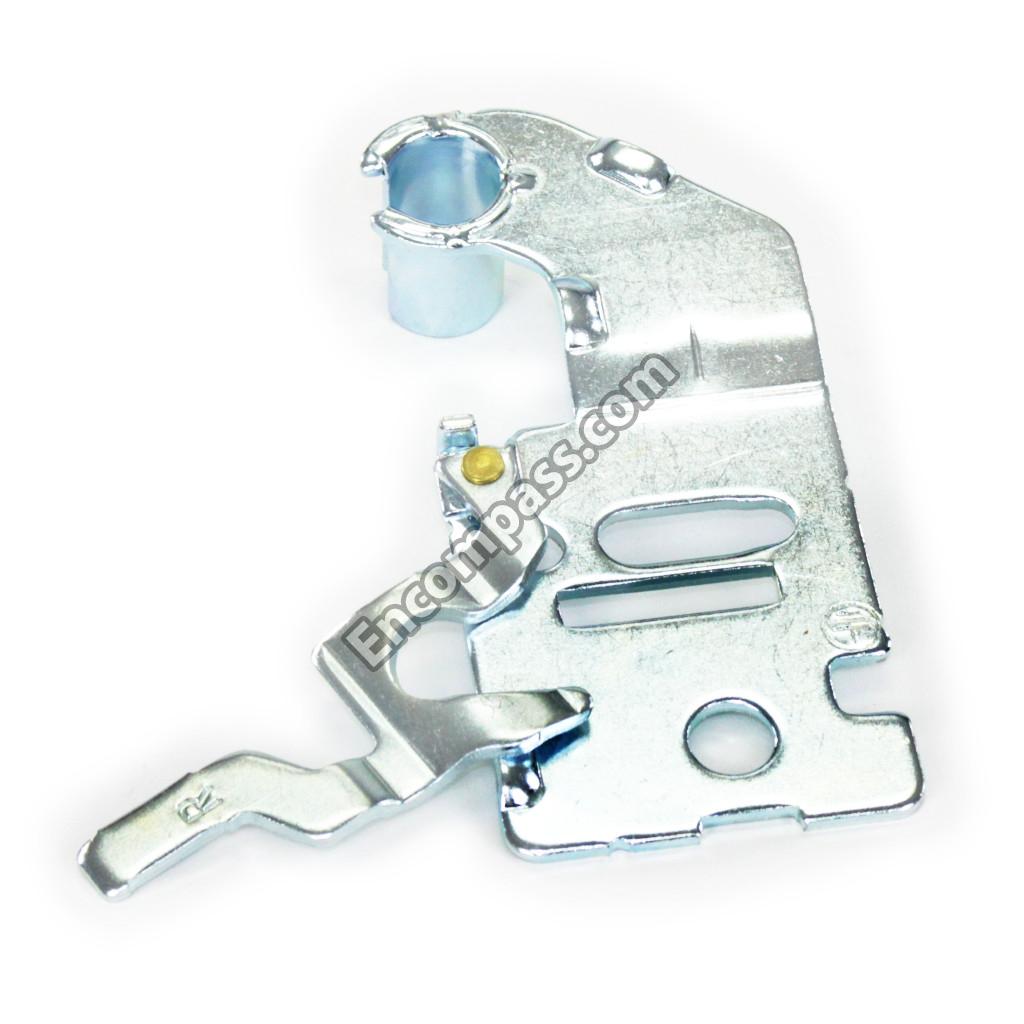

4775JJ2008E 4775JJ2008E HINGE ASSEMBLY,LOWER [283B]
AEH60614102 AEH60614102 HINGE ASSEMBLY,UPPER
4775JJ2014B 4775JJ2014B HINGE ASSEMBLY,UPPER [271A]
AEH74216502 AEH74216502 HINGE ASSEMBLY,UPPER [271B]
4775JJ2014A 4775JJ2014A HINGE ASSEMBLY,UPPER [271C]
AEH60614101 AEH60614101 HINGE ASSEMBLY,UPPER [271D]
AEJ33488901 AEJ33488901 HOLDER ASSEMBLY,BRACKET [406A]
4931JJ2002C 4931JJ2002C HOLDER ASSEMBLY,GASKET
4931JJ2002A 4931JJ2002A HOLDER ASSEMBLY,GASKET [234C]
4931JJ2002B 4931JJ2002B HOLDER ASSEMBLY,GASKET [234D]
4931JA3006A 4931JA3006A HOLDER ASSEMBLY,GASKET [406D]
4930JA3090A 4930JA3090A HOLDER,BRACKET [602A]
MEG39133601 MEG39133601 HOLDER,BRACKET [607A]
4930JA3034A 4930JA3034A HOLDER,DRIER [318A]
4930JA3054A 4930JA3054A HOLDER,PIPE [627B]
4930JJ1016A 4930JJ1016A HOLDER,RAIL
4930JJ1016B 4930JJ1016B HOLDER,RAIL [249D]
ADJ73852107 ADJ73852107 HOLDER,SHELF [145A]
MEG63060501 MEG63060501 HOLDER,SHELF [145B]
5989JA0002N 5989JA0002N ICE MAKER ASSEMBLY,KIT [600A]
4940JJ2009B 4940JJ2009B KNOB,SHUTTER
4940JA2026D 4940JA2026D KNOB,SHUTTER [151C]
4940JJ2009C 4940JJ2009C KNOB,SHUTTER [155J]

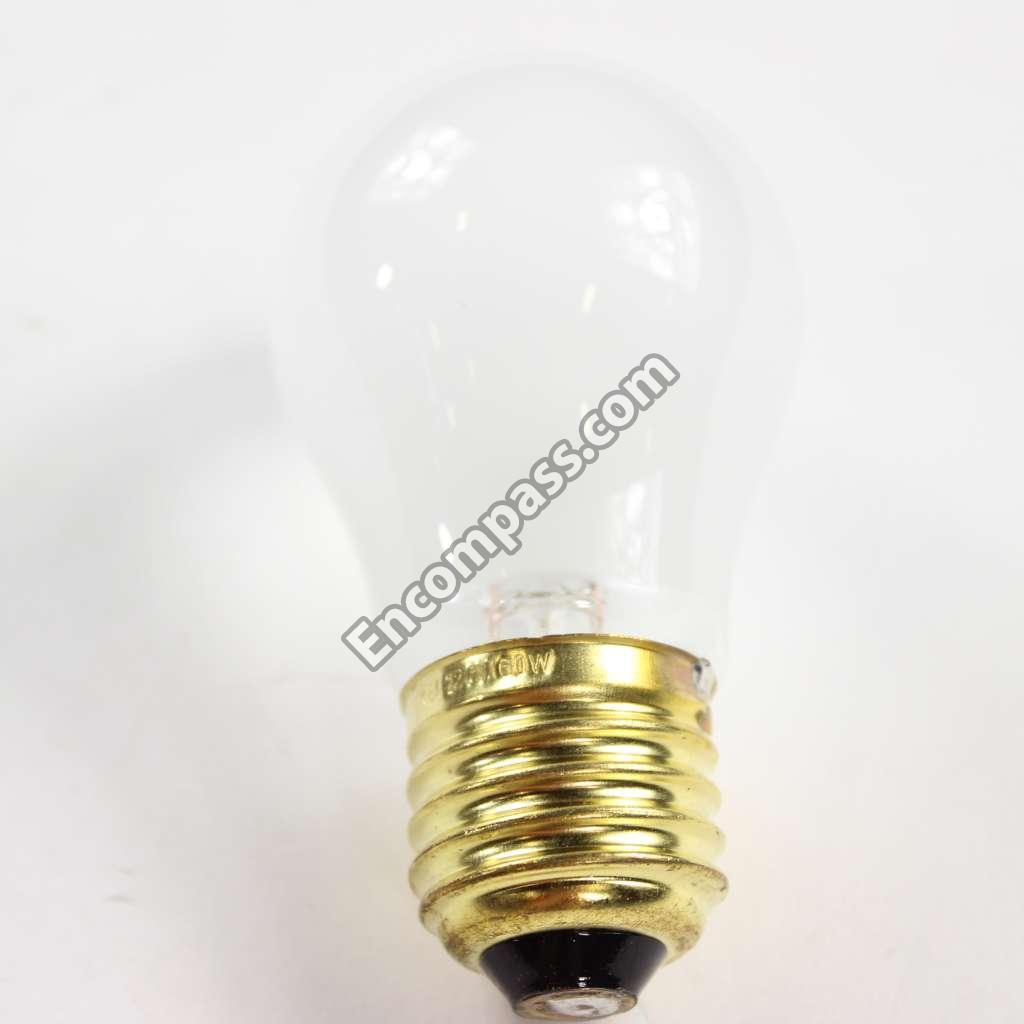

6912JB2004K 6912JB2004K LAMP,INCANDESCENT
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [409B]

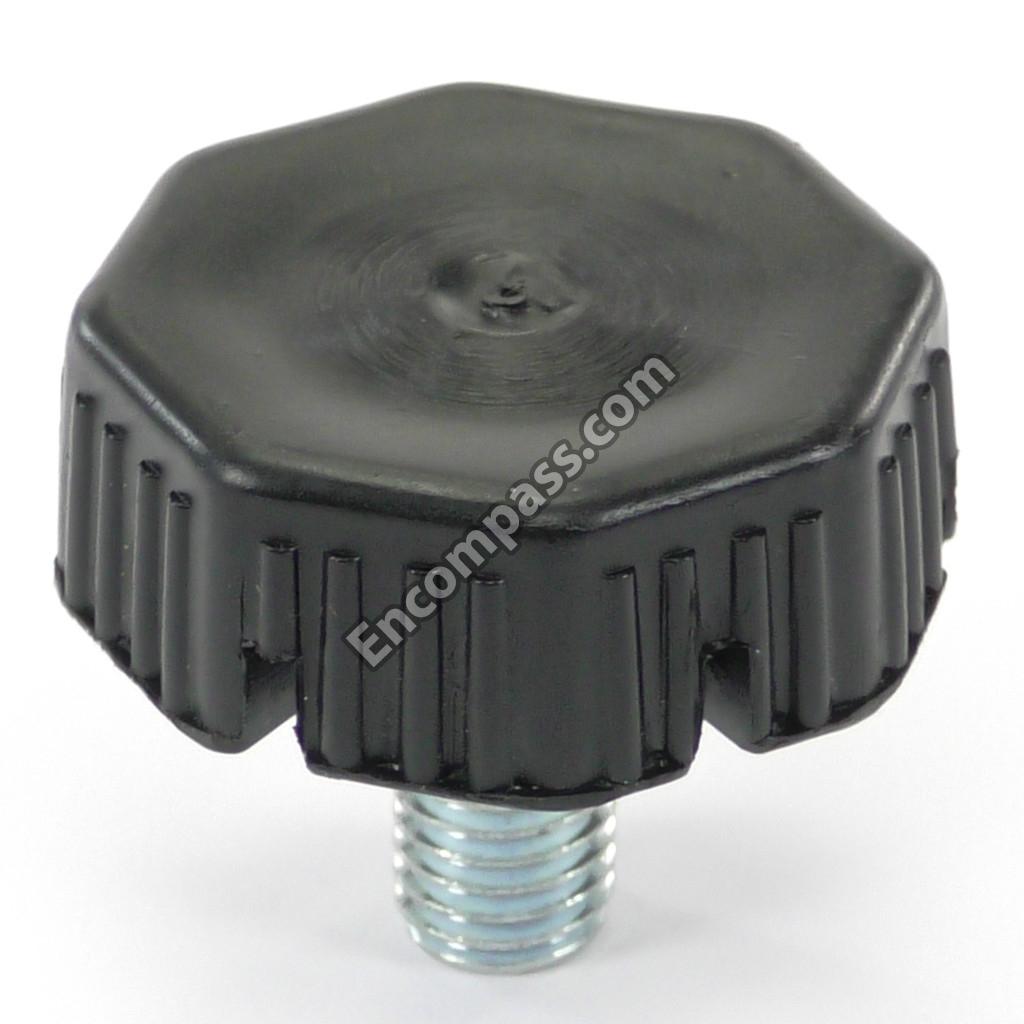

AFC73349801 AFC73349801 LEG ASSEMBLY,ADJUST [106A]
MFC39559901 MFC39559901 LEVER,ICE MAKER [600B]
4520JJ1003A 4520JJ1003A LINK [146B]
4681JK1001B 4681JK1001B MOTOR ASSEMBLY,COOLING
3846JD1007E 3846JD1007E NAME PLATE
6750C-0005P 6750C-0005P OVERLOAD PROTECT [303C]
ABQ33905317 ABQ33905317 PCB ASSEMBLY,DISPLAY [503C]
6871JB1284M 6871JB1284M PCB ASSEMBLY,MAIN
1PZZJA3013B 1PZZJA3013B PIN,COMMON [315C]
5200JA1029A 5200JA1029A PIPE,JOINT [310B]
6411JB1042Y 6411JB1042Y POWER CORD ASSEMBLY [411A]
J469-00030A J469-00030A RACK [146A]
5218JA1010A 5218JA1010A RAIL,SLIDE [249E]
5218JA1010B 5218JA1010B RAIL,SLIDE [249F]
3034JA1009A 3034JA1009A REFLECTOR,LAMP [409D]
4350JA3005B 4350JA3005B RING [262C]
MHA62513601 MHA62513601 ROLLER [315B]

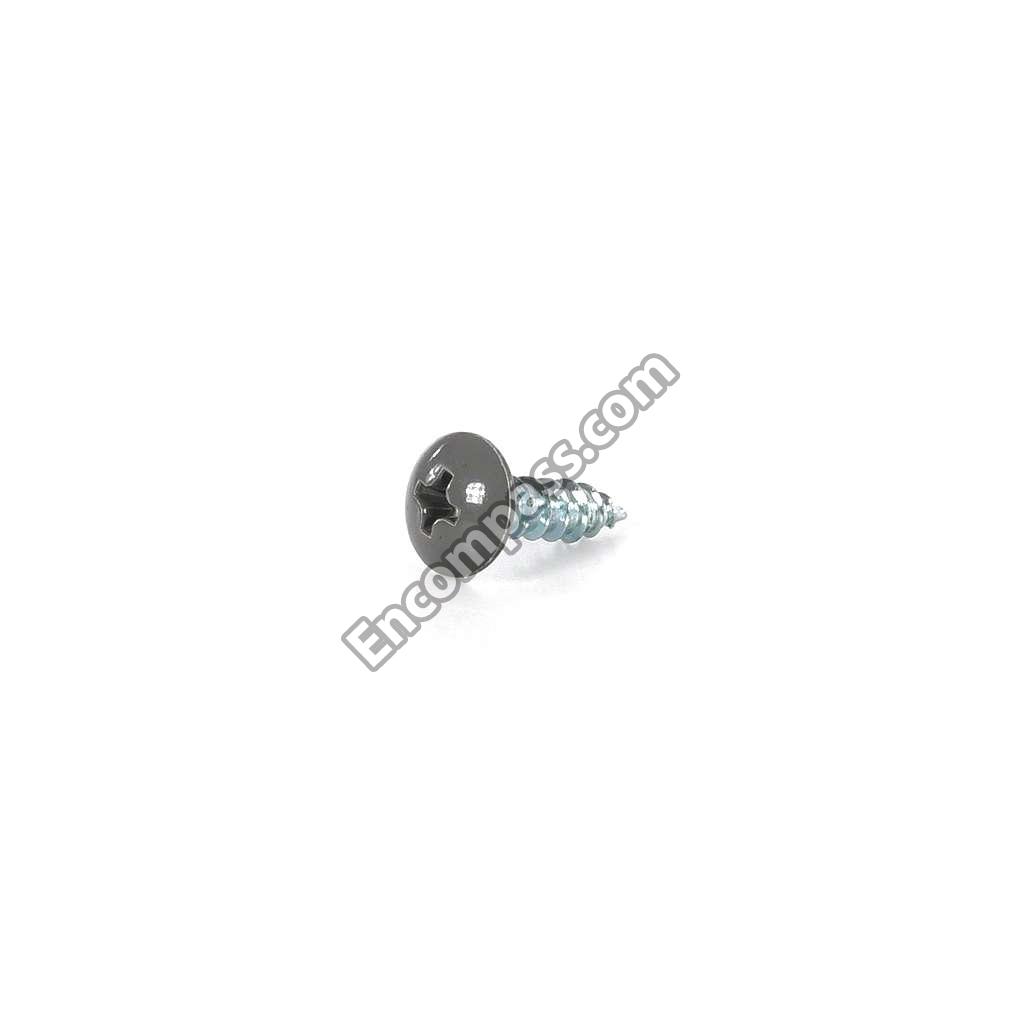

4000W4A003A 4000W4A003A SCREW,CUSTOMIZED [B01]
1STZJA3004F 1STZJA3004F SCREW,CUSTOMIZED [B02]
4J00415D 4J00415D SCREW,CUSTOMIZED [S02]
4J01424B 4J01424B SCREW,CUSTOMIZED [S03]
4J01424D 4J01424D SCREW,CUSTOMIZED [S08]
3J05696W 3J05696W SCREW,CUSTOMIZED [S11]
4J01424A 4J01424A SCREW,CUSTOMIZED [S12]
1SZZJJ3003D 1SZZJJ3003D SCREW,CUSTOMIZED [S13]
1SZZJJ3010C 1SZZJJ3010C SCREW,CUSTOMIZED [S14]
3J05696C 3J05696C SCREW,CUSTOMIZED [S16]
1SZZJA3005K 1SZZJA3005K SCREW,CUSTOMIZED [S17]
1SZZJA3016A 1SZZJA3016A SCREW,CUSTOMIZED [S20]
6500JB2002P 6500JB2002P SENSOR [610C]
6500JB2001L 6500JB2001L SENSOR,TEMPERATURE [610B]
5027JJ2012T 5027JJ2012T SHELF ASSEMBLY,NET
AHT73734101 AHT73734101 SHELF ASSEMBLY,NET [141C]

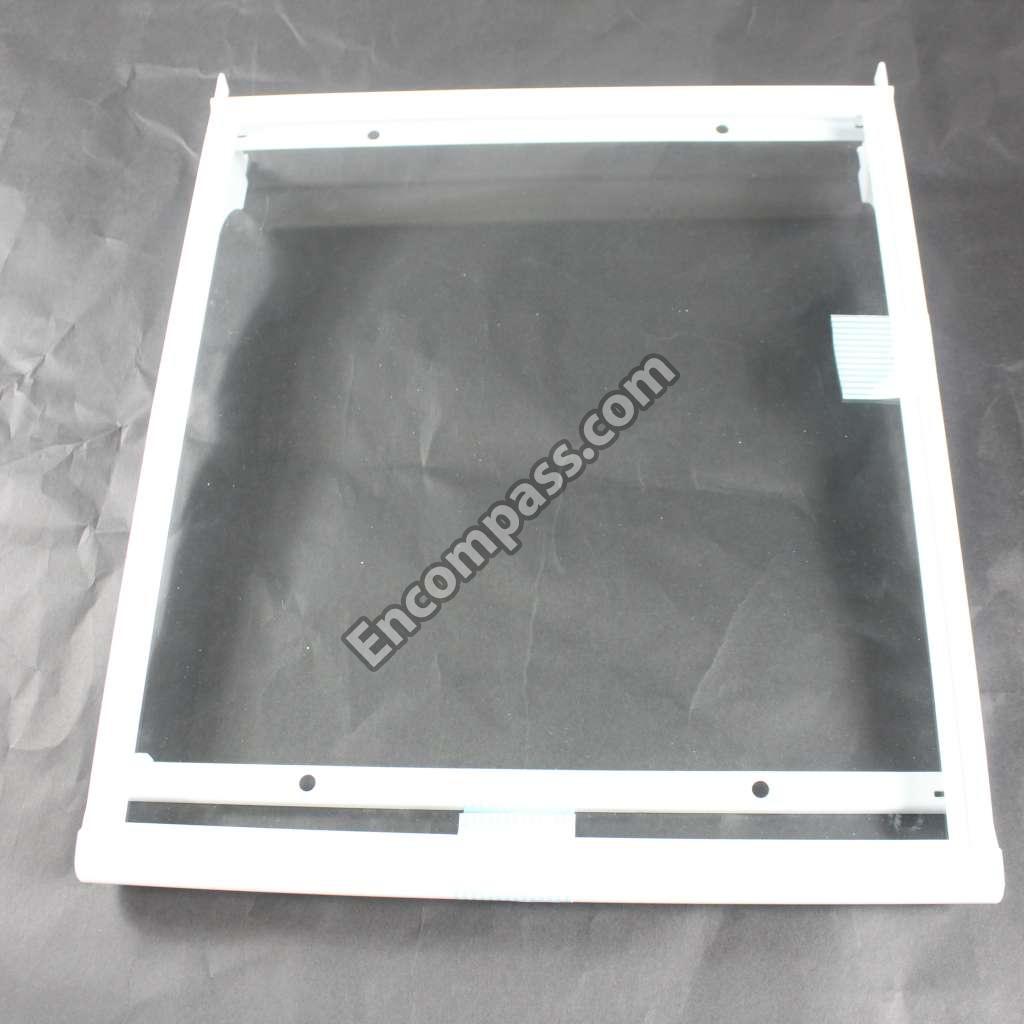

5027JJ2014H 5027JJ2014H SHELF ASSEMBLY,REFRIGERATOR
5026JJ1050A 5026JJ1050A SHELF,REFRIGERATOR
4620JA3015A 4620JA3015A STOPPER,COMPRESSOR [314A]

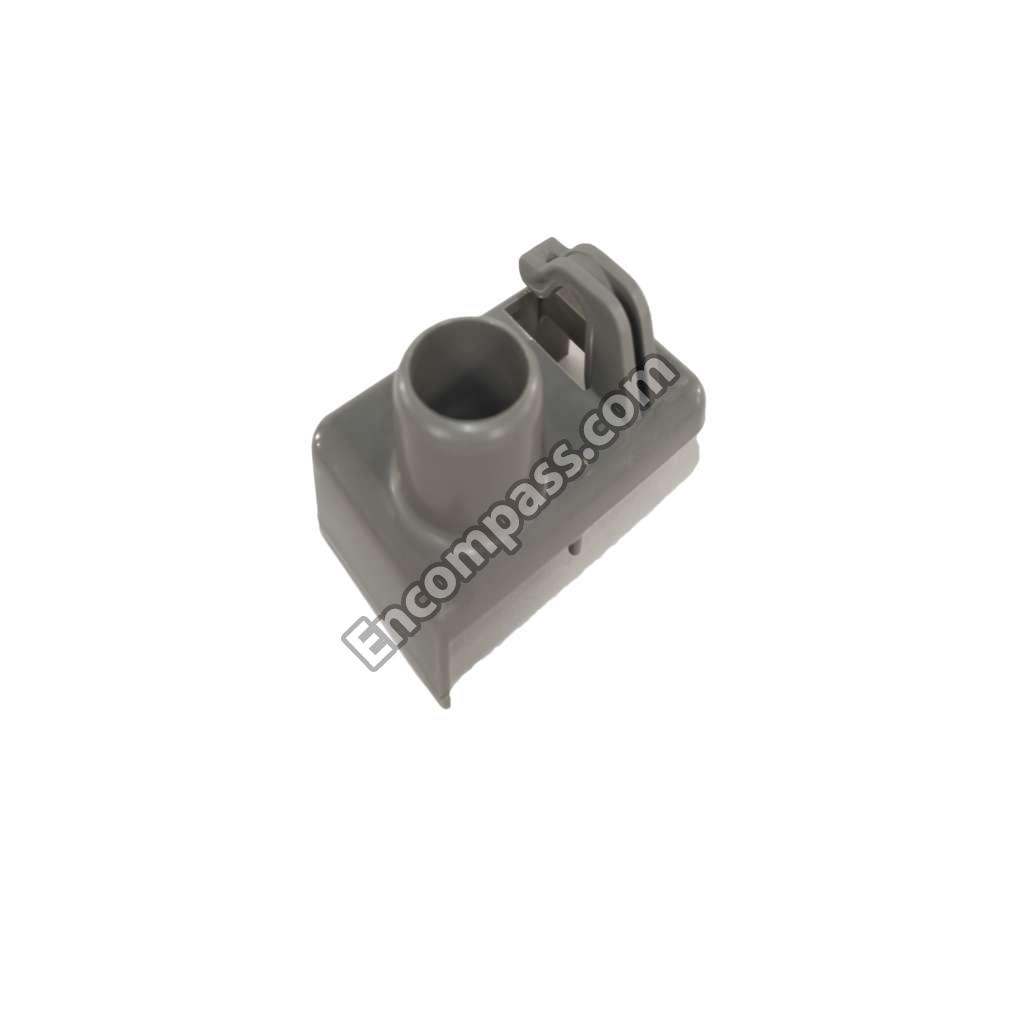

4620JJ2009A 4620JJ2009A STOPPER,DOOR
4620JJ3006C 4620JJ3006C STOPPER,DOOR [243A]
MJB63029901 MJB63029901 STOPPER,DOOR [243B]

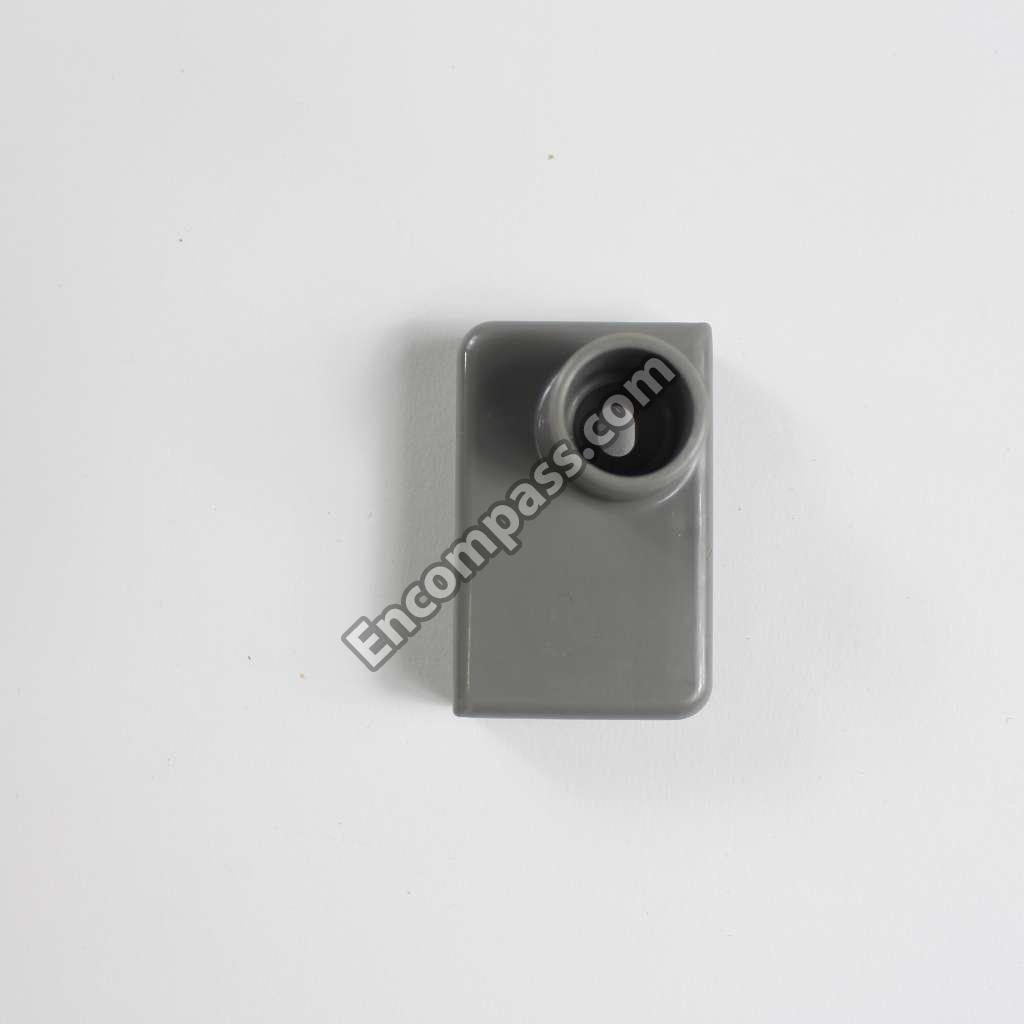

4980JJ2012A 4980JJ2012A SUPPORTER,HOLDER
MJH62760301 MJH62760301 SUPPORTER,HOLDER [248A]
4980JJ2014A 4980JJ2014A SUPPORTER,HOLDER [248H]
6600JB3007K 6600JB3007K SWITCH,PUSH BUTTON [402A]
6600JB1010A 6600JB1010A SWITCH,PUSH BUTTON [406B]
6749C-0014E 6749C-0014E THERMISTOR ASSEMBLY,PTC [303B]
AJP73574402 AJP73574402 TRAY ASSEMBLY,DRAIN [312C]
3391JJ2010F 3391JJ2010F TRAY ASSEMBLY,DRAWER
3391JJ2011M 3391JJ2011M TRAY ASSEMBLY,DRAWER
AJP73934401 AJP73934401 TRAY ASSEMBLY,DRAWER [136A]
3391JJ1030A 3391JJ1030A TRAY ASSEMBLY,FRESH ROOM [145D]

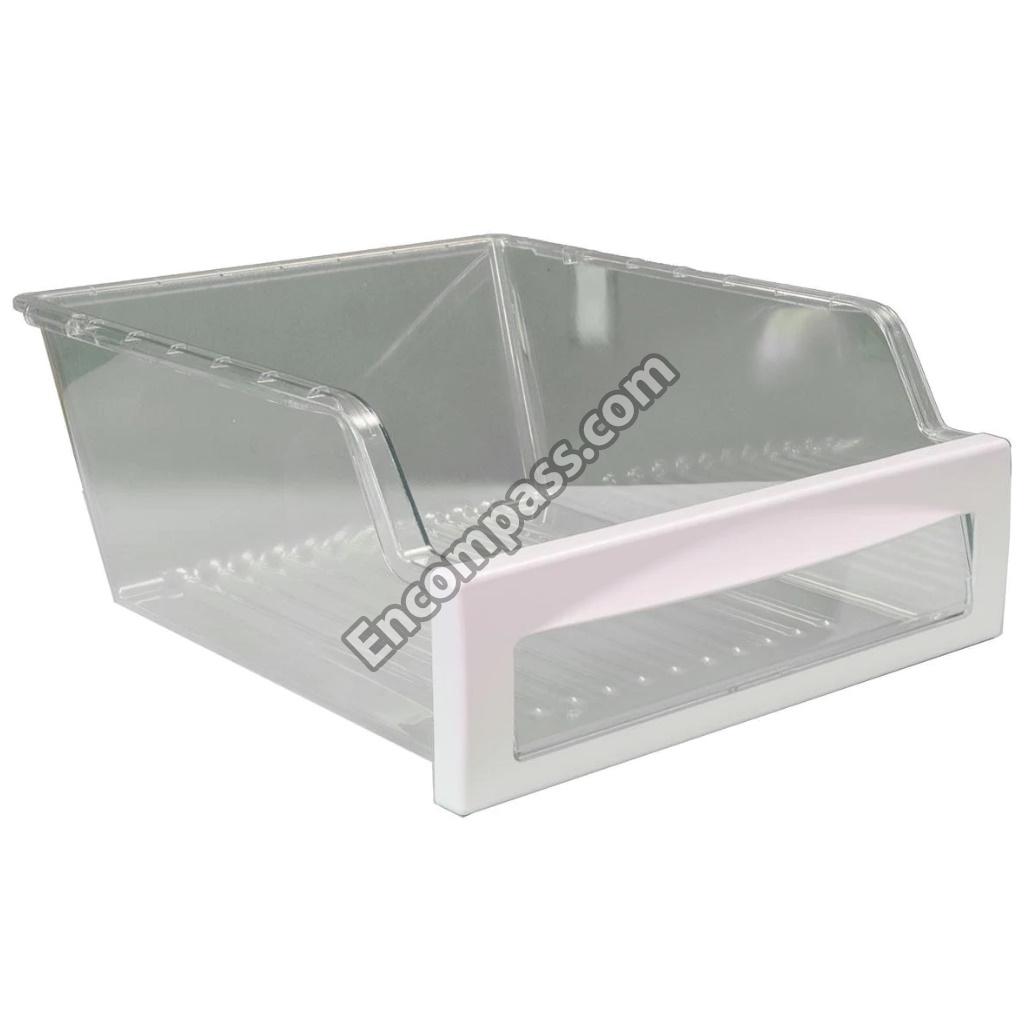

3391JJ2012D 3391JJ2012D TRAY ASSEMBLY,VEGETABLE [151A]
3390JJ0007B 3390JJ0007B TRAY,DRIP [319A]
3390JJ1082A 3390JJ1082A TRAY,EGG
5251JA3003D 5251JA3003D TUBE ASSEMBLY,DRAIN [105A]
MJU47992202 MJU47992202 TUBE,INJECT
5040JA2015A 5040JA2015A TUBE,INLET [616E]

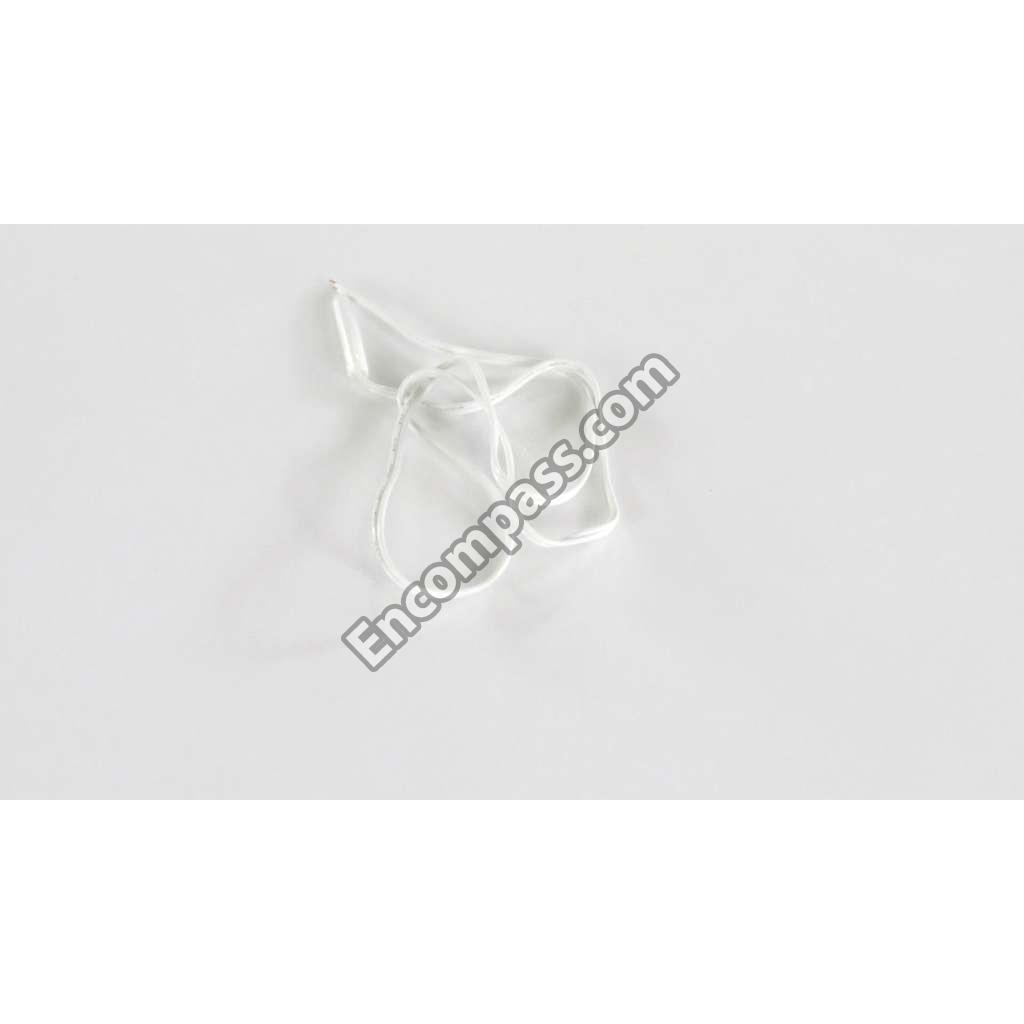

5210JA3005W 5210JA3005W TUBE,PLASTIC [623B]
5220JB2010A 5220JB2010A VALVE,WATER [619A]
