Model Image
Manufacturer

LG

Model Number

LRSC21934SW

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4770JA3001E 4770JA3001E BAND [623A]
4770JA3001B 4770JA3001B BAND [623B]
3103JA1014B 3103JA1014B BASE ASSEMBLY,COMPRESSOR [305A]
5005JA2036A 5005JA2036A BASKET ASSEMBLY,DOOR
5005JA2034B 5005JA2034B BASKET ASSEMBLY,DOOR
5005JA1015B 5005JA1015B BASKET ASSEMBLY,DOOR
5005JA1014A 5005JA1014A BASKET ASSEMBLY,DOOR [241A]
5004JD1155B 5004JD1155B BASKET,DOOR [210A]
5004JD1152A 5004JD1152A BASKET,DOOR [241B]
4810JA3059A 4810JA3059A BRACKET,COVER [622A]
4810JA1015A 4810JA1015A BRACKET,ICE MAKER [602A]
4810JA2055A 4810JA2055A BRACKET,MOTOR [136B]
5075JA1029E 5075JA1029E BUCKET ASSEMBLY,ICE [610A]
5075JA1007A 5075JA1007A BUCKET,DAIRY
5020JA3027A 5020JA3027A BUTTON,DECOR
5020JA3027C 5020JA3027C BUTTON,DECOR
5020JA3021A 5020JA3021A BUTTON,LINK [280E]
5079JA1013C 5079JA1013C CAP ASSEMBLY,DECOR REFRIGERATOR [206B]
5079JA1012K 5079JA1012K CAP ASSEMBLY,DECOR REFRIGERATOR [206D]
ABN75058701 ABN75058701 CAP ASSEMBLY,HEAD
5040JA3032A 5040JA3032A CAP,RUBBER [617A]
J513-00012P J513-00012P CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [407A]
0CZZJB2005F 0CZZJB2005F CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [407B]
4995JA1030H 4995JA1030H CASE ASSEMBLY,CONTROL REFRIGERATOR [115A]
3111JA2007B 3111JA2007B CASE ASSEMBLY,DISPENSER [155A]
3110JA1010A 3110JA1010A CASE,PCB [502B]
2521C-A7256 2521C-A7256 COMPRESSOR,SET ASSEMBLY
5403JA1003A 5403JA1003A CONDENSER ASSEMBLY,WIRE [301A]
4932JA3002A 4932JA3002A CONNECTOR,TUBE
4932JA3009A 4932JA3009A CONNECTOR,TUBE [626B]
4932JA3009B 4932JA3009B CONNECTOR,TUBE [626C]
3551JA1062A 3551JA1062A COVER ASSEMBLY,LOWER [105B]
3551JA1024A 3551JA1024A COVER ASSEMBLY,MACHINERY(REAR) [313A]
3551JA1031D 3551JA1031D COVER ASSEMBLY,MOTOR [606A]
3551JA1101A 3551JA1101A COVER ASSEMBLY,PCB [502A]
3551JA1101L 3551JA1101L COVER ASSEMBLY,PCB [502A]
3551JA1026Q 3551JA1026Q COVER ASSEMBLY,TRAY [166A]
3551JA1044C 3551JA1044C COVER ASSEMBLY,TV [161A]
3550JD1021K 3550JD1021K COVER,BUCKET ICE [611B]
3550JA2215A 3550JA2215A COVER,DEODORIZER [151C]
3550JD1085J 3550JD1085J COVER,DISPENSER [279B]
3550JA1265E 3550JA1265E COVER,HINGE [270A]
3550JA1265F 3550JA1265F COVER,HINGE [270B]
3550JA1208A 3550JA1208A COVER,LAMP
3550JA1495A 3550JA1495A COVER,LAMP [130A]
3550JA1206A 3550JA1206A COVER,LAMP [150A]
3550JA2147A 3550JA2147A COVER,MOTOR [308C]
3550JA2042C 3550JA2042C COVER,PTC [304A]
3550JA2035D 3550JA2035D COVER,SENSOR [152A]
3550JA3095A 3550JA3095A COVER,SENSOR [603A]
3550JA2067A 3550JA2067A COVER,TRAY
3550JA1199A 3550JA1199A COVER,TRAY [241C]
3550JA2184B 3550JA2184B COVER,TUBE [625A]
3550JA1221A 3550JA1221A COVER,TV [161B]
5040JA3073A 5040JA3073A DAMPER,COMPRESSOR [306A]
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [136C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [136D]
5040JA2009A 5040JA2009A DAMPER,MOTOR SUPPORT [309C]
5072JA3003F 5072JA3003F DAMPER,NOISE [316A]
4J03020A 4J03020A DAMPER,PIPE [328A]
3806JA0019D 3806JA0019D DECOR,DISPENSER [279C]
3806JA2046C 3806JA2046C DECOR,DRAIN [281A]
3806JA2045D 3806JA2045D DECOR,FRAME DISPLAY [279E]
3581JA8646M 3581JA8646M DOOR ASSEMBLY,FREEZER [200A]
3581JA8587U 3581JA8587U DOOR ASSEMBLY,REFRIGERATOR [230A]
5433JA8473L 5433JA8473L DOOR FOAM ASSEMBLY,REFRIGERATOR [231A]
6877JB3019F 6877JB3019F DRAWING,ASSEMBLY [404A]
6877JB2074B 6877JB2074B DRAWING,ASSEMBLY [404B]
ADH73150208 ADH73150208 DRIER ASSEMBLY
5209JA1027D 5209JA1027D DUCT ASSEMBLY,INSULATION [116A]
5421JA1124K 5421JA1124K EVAPORATOR ASSEMBLY [302B]
5901JA1011A 5901JA1011A FAN ASSEMBLY [136A]
5901JA1012A 5901JA1012A FAN ASSEMBLY [309A]
ADQ72911006 ADQ72911006 FILTER ASSEMBLY,HEAD [626A]
ADQ72910911 ADQ72910911 FILTER ASSEMBLY,WATER [624A]
3211JA2054D 3211JA2054D FRAME ASSEMBLY,DISPLAY [279A]
3210JA2005C 3210JA2005C FRAME,DISPLAY [279D]

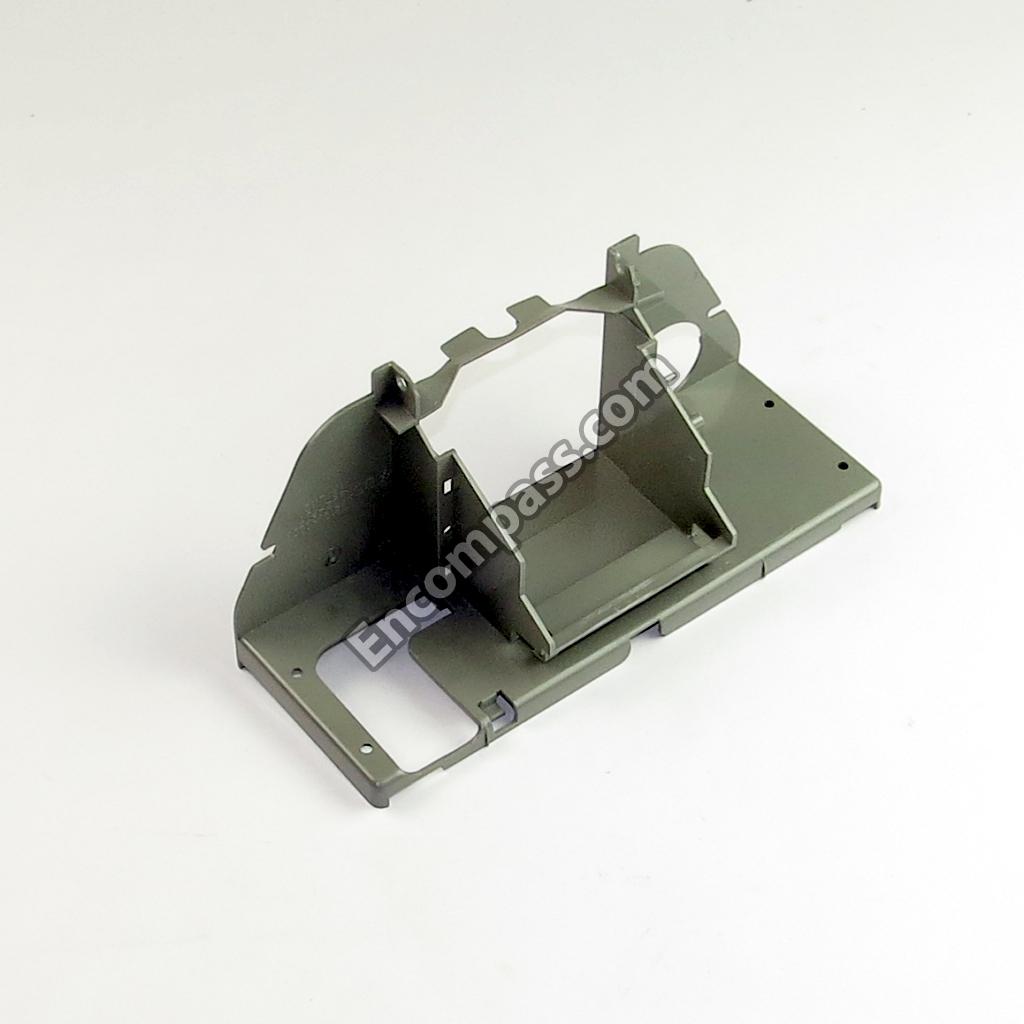

3210JA0006S 3210JA0006S FRAME,FUNNEL
3017JA2004C 3017JA2004C FUNNEL ASSEMBLY
3017JA2003A 3017JA2003A FUNNEL ASSEMBLY
3017JA2004M 3017JA2004M FUNNEL ASSEMBLY [278A]
3017JA2004W 3017JA2004W FUNNEL ASSEMBLY [278A]
3016JA2002C 3016JA2002C FUNNEL [278D]
4987JA1033A 4987JA1033A GASKET ASSEMBLY,DOOR [202A]
ADX62799502 ADX62799502 GASKET ASSEMBLY,DOOR [232A]
4986JA3007C 4986JA3007C GASKET,COVER TRAY [161C]
4986JA3005E 4986JA3005E GASKET,COVER TRAY [161D]
4986JA3005B 4986JA3005B GASKET,COVER TRAY [166B]
4986JA3005D 4986JA3005D GASKET,COVER TRAY [166C]
3531JA2013K 3531JA2013K GRILLE ASSEMBLY,FAN [135A]
3531JA2015J 3531JA2015J GRILLE ASSEMBLY,FAN [135B]
4975JA2012A 4975JA2012A GUIDE ASSEMBLY,RAIL [162A]
4975JA2012B 4975JA2012B GUIDE ASSEMBLY,RAIL [162B]
4975JA2022A 4975JA2022A GUIDE ASSEMBLY,RAIL [177A]
4975JA2022B 4975JA2022B GUIDE ASSEMBLY,RAIL [177B]
4974JA1053A 4974JA1053A GUIDE,FAN [308B]
4974JA3028A 4974JA3028A GUIDE,ICE [613A]
4974JA2055A 4974JA2055A GUIDE,PITCHER
4974JA1043A 4974JA1043A GUIDE,RAIL [128E]
4974JA1043B 4974JA1043B GUIDE,RAIL [128F]
4974JA1106A 4974JA1106A GUIDE,RAIL [171A]
4974JA1106B 4974JA1106B GUIDE,RAIL [171B]
4974JA2023A 4974JA2023A GUIDE,RAIL [612A]
4974JA2024A 4974JA2024A GUIDE,RAIL [612B]
3651JA2241D 3651JA2241D HANDLE ASSEMBLY,FREEZER [205A]
3650JA2101D 3650JA2101D HANDLE,BASE
3650JA2100D 3650JA2100D HANDLE,BASE [205C]
3650JA2099C 3650JA2099C HANDLE,DECOR [205E]
3650JA2098C 3650JA2098C HANDLE,DECOR [205F]
3650JA1164D 3650JA1164D HANDLE,FREEZER [205B]
3650JA3032R 3650JA3032R HANDLE,REAR [101A]
3650JA3032Q 3650JA3032Q HANDLE,REAR [101B]
5300JB1092D 5300JB1092D HEATER,SHEATH [408A]
4775JA2017J 4775JA2017J HINGE ASSEMBLY,LOWER [272A]
4775JA2017H 4775JA2017H HINGE ASSEMBLY,LOWER [272B]
4775JA2074A 4775JA2074A HINGE ASSEMBLY,UPPER [271A]
4775JA2075A 4775JA2075A HINGE ASSEMBLY,UPPER [271C]
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET [607A]
4930JA2059B 4930JA2059B HOLDER,BUTTON
4930JA3034A 4930JA3034A HOLDER,DRIER [317B]
4930JA3054A 4930JA3054A HOLDER,PIPE [627A]
5989JA1002D 5989JA1002D ICE MAKER ASSEMBLY,KIT

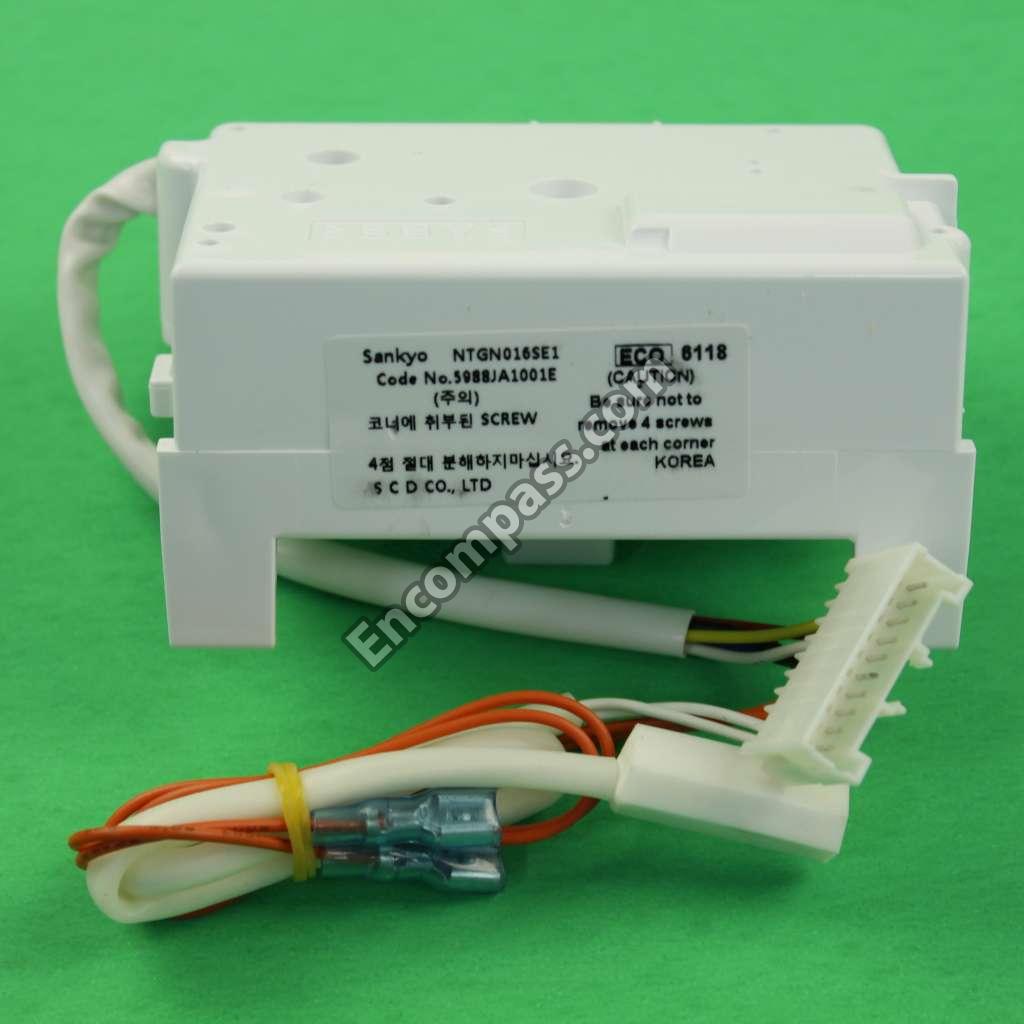

5988JA1001E 5988JA1001E ICE MAKER,UNIT [605A]
6912JB2004M 6912JB2004M LAMP,INCANDESCENT
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [401A]
6912JB2002G 6912JB2002G LAMP,INCANDESCENT [401C]

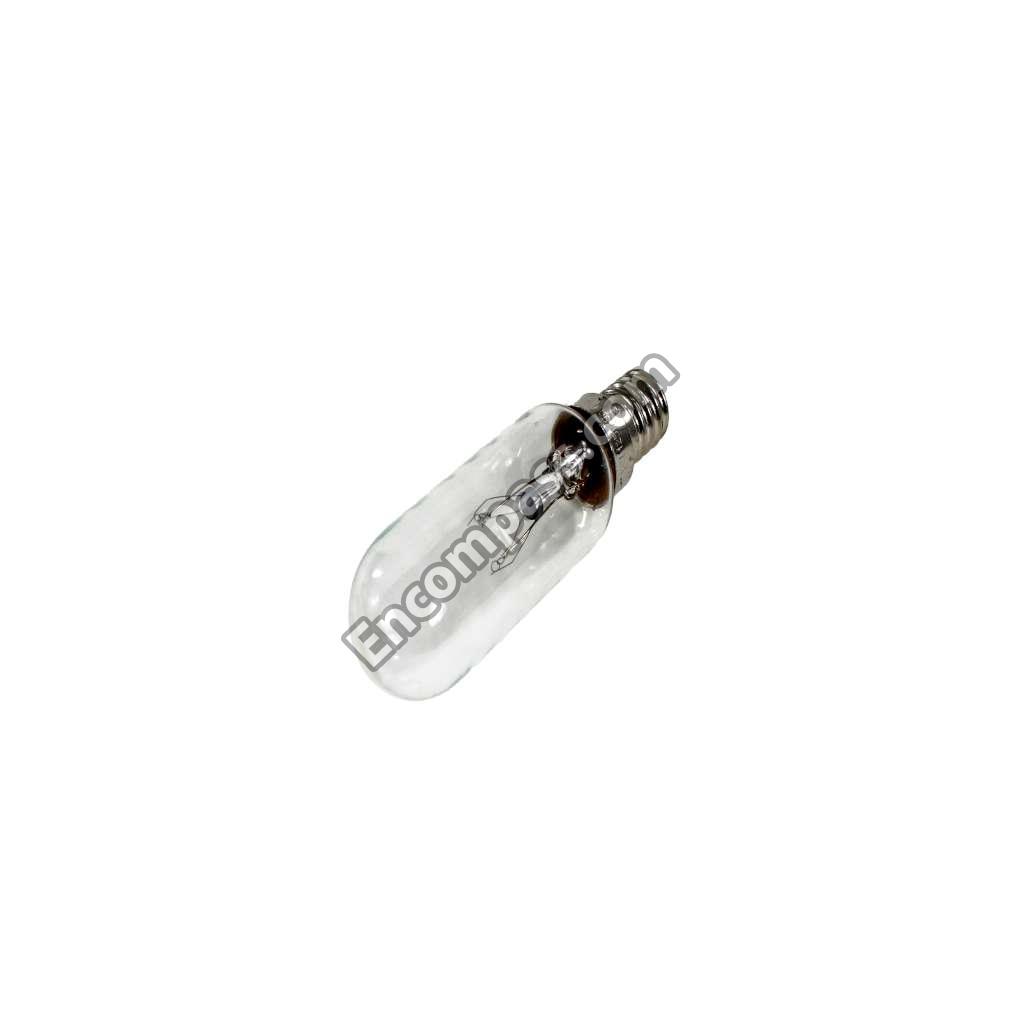

6912JB2007B 6912JB2007B LAMP,INCANDESCENT [409B]
4779JA3001D 4779JA3001D LEG ASSEMBLY,ADJUST [103A]
4510JA2022A 4510JA2022A LEVER,DISPENSER [278C]
4510JA2017C 4510JA2017C LEVER,DISPENSER [280B]
4510JA3004A 4510JA3004A LEVER,HINGE [271B]
4510JA3003C 4510JA3003C LEVER,ICE MAKER [604A]
ADQ72910912 ADQ72910912 LT500P REFRIDGERATER WATER FILTER (3 PK)
3828JD8632Z 3828JD8632Z MANUAL,OWNERS [OM]
4681JB1029B 4681JB1029B MOTOR ASSEMBLY,DC,COOLING
4681JB1029A 4681JB1029A MOTOR,DC [403A]
3846JD1007B 3846JD1007B NAME PLATE [239A]
6750C-0004R 6750C-0004R OVERLOAD PROTECT [303C]
3920JC3025E 3920JC3025E PACKING,DOOR [PD]
3920JC3042A 3920JC3042A PACKING,DOOR [PD]
6871JB1292U 6871JB1292U PCB ASSEMBLY,DISPLAY

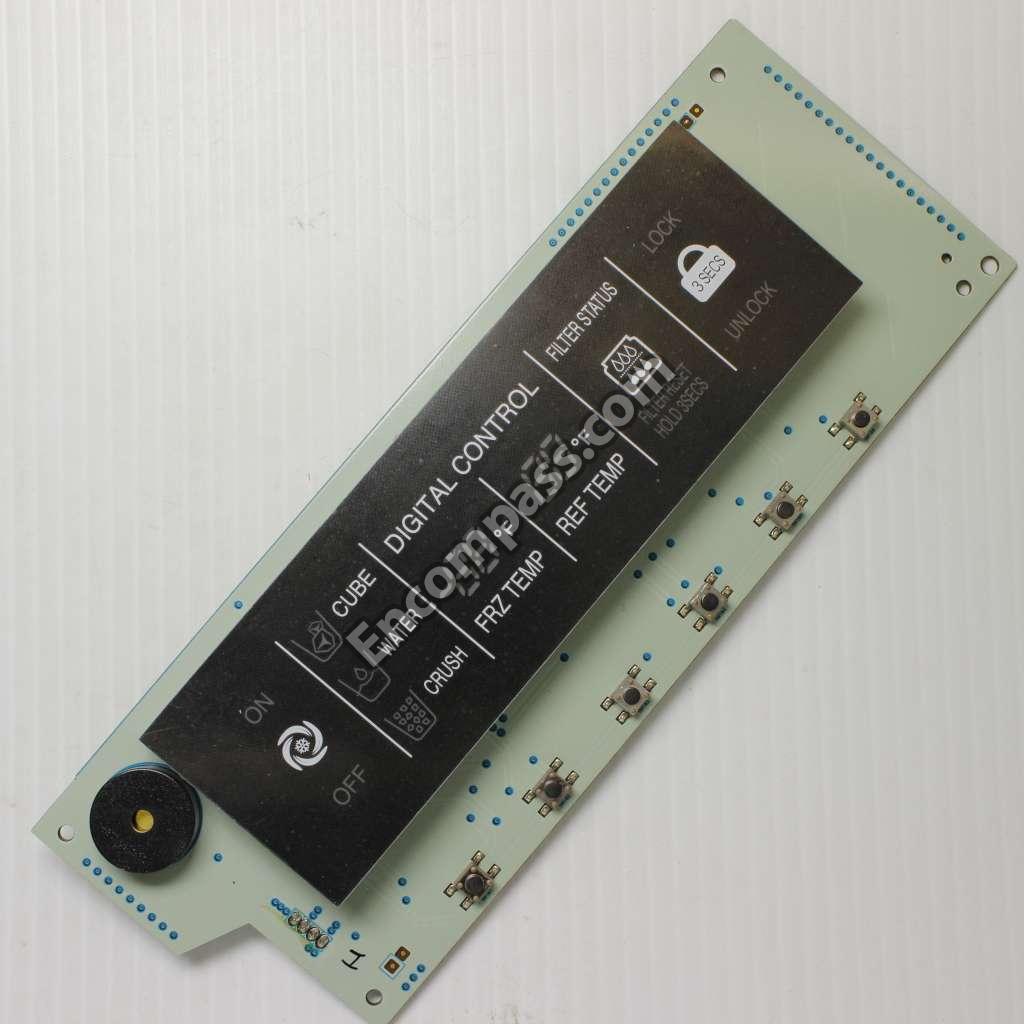

6871JB1264J 6871JB1264J PCB ASSEMBLY,DISPLAY [501A]
6871JB1292V 6871JB1292V PCB ASSEMBLY,MAIN
6871JB1292T 6871JB1292T PCB ASSEMBLY,MAIN
6871JB1292S 6871JB1292S PCB ASSEMBLY,MAIN
6871JB1292R 6871JB1292R PCB ASSEMBLY,MAIN
6871JB1292Q 6871JB1292Q PCB ASSEMBLY,MAIN
6871JB1292P 6871JB1292P PCB ASSEMBLY,MAIN
6871JB1292N 6871JB1292N PCB ASSEMBLY,MAIN
6871JB1292M 6871JB1292M PCB ASSEMBLY,MAIN
6871JB1292L 6871JB1292L PCB ASSEMBLY,MAIN
6871JB1292K 6871JB1292K PCB ASSEMBLY,MAIN
6871JB1292J 6871JB1292J PCB ASSEMBLY,MAIN
6871JB1292H 6871JB1292H PCB ASSEMBLY,MAIN
6871JB1292G 6871JB1292G PCB ASSEMBLY,MAIN
6871JB1292F 6871JB1292F PCB ASSEMBLY,MAIN
6871JB1292E 6871JB1292E PCB ASSEMBLY,MAIN
6871JB1292W 6871JB1292W PCB ASSEMBLY,MAIN
1PZZJA3013A 1PZZJA3013A PIN,COMMON [305C]
5201JA3011F 5201JA3011F PIPE ASSEMBLY,INJECT [616E]
5201JA1038C 5201JA1038C PIPE ASSEMBLY,JOINT [310B]
5200JA1019A 5200JA1019A PIPE,JOINT [310A]
6411JB1009B 6411JB1009B POWER CORD ASSEMBLY [406A]
5035JA2001A 5035JA2001A RACK [146A]
4580JA3024A 4580JA3024A ROLLER [305B]
3858JA3005C 3858JA3005C SHEET,DUCT [278F]
5027JA2036F 5027JA2036F SHELF ASSEMBLY,FREEZER
5027JA1088D 5027JA1088D SHELF ASSEMBLY,REFRIGERATOR
5027JA1084D 5027JA1084D SHELF ASSEMBLY,REFRIGERATOR [141B]
5027JA1082A 5027JA1082A SHELF ASSEMBLY,REFRIGERATOR [141D]
5027JA2083A 5027JA2083A SHELF ASSEMBLY,REFRIGERATOR [149C]
4999JA2019D 4999JA2019D SHROUD ASSEMBLY,FREEZER [137A]
4998JA0024A 4998JA0024A SHROUD,FREEZER [137B]
6421JA3001D 6421JA3001D SOLENOID ASSEMBLY [614A]
6421JB2002R 6421JB2002R SOLENOID,REVERSING,VALVE [405A]
4970JA3011A 4970JA3011A SPRING,LEVER [276B]
4621JA3002L 4621JA3002L STOPPER ASSEMBLY,DOOR
AJC34211602 AJC34211602 STOPPER ASSEMBLY,DOOR [233A]
4J03277A 4J03277A STOPPER,COMPRESSOR [307A]
4980JA2019B 4980JA2019B SUPPORTER,GEAR MOTOR [612C]
6600JB3001C 6600JB3001C SWITCH,MICRO [402C]
6600JB1010A 6600JB1010A SWITCH,PUSH BUTTON
6600JB1004H 6600JB1004H SWITCH,PUSH BUTTON [402A]
6749JA2016Z 6749JA2016Z THERMISTOR ASSEMBLY,PTC [303A]
EBG32952202 EBG32952202 THERMISTOR ASSEMBLY,PTC [303B]
3391JA2016B 3391JA2016B TRAY ASSEMBLY,DRAIN [312A]
3391JA1053H 3391JA1053H TRAY ASSEMBLY,DRAWER
3391JA1053G 3391JA1053G TRAY ASSEMBLY,DRAWER [125A]
3391JA1096B 3391JA1096B TRAY ASSEMBLY,SNACK [170A]
3391JA1061A 3391JA1061A TRAY ASSEMBLY,VEGETABLE
3391JA1062A 3391JA1062A TRAY ASSEMBLY,VEGETABLE [160A]
3390JA1109A 3390JA1109A TRAY,DRIP
3390JA1150A 3390JA1150A TRAY,ICE [601A]
5251JA3004B 5251JA3004B TUBE ASSEMBLY,DRAIN [104A]
5040JA2011A 5040JA2011A TUBE,INLET [618A]
5210JA3005A 5210JA3005A TUBE,PLASTIC
5221JQ2002X 5221JQ2002X TUBE,PLASTIC [616D]
5221JA2006D 5221JA2006D VALVE ASSEMBLY,WATER [619A]
