Model Number

LRSC21935TT

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4770JA3001E 4770JA3001E BAND [623A]
3103JA1014B 3103JA1014B BASE ASSEMBLY,COMPRESSOR [305A]
5005JA1014A 5005JA1014A BASKET ASSEMBLY,DOOR [241A]
5004JD1155B 5004JD1155B BASKET,DOOR [210A]
5004JD1152A 5004JD1152A BASKET,DOOR [241B]
4811JA2009A 4811JA2009A BRACKET ASSEMBLY,MOTOR [136B]
4810JA3059A 4810JA3059A BRACKET,COVER [622A]
4810JA1015A 4810JA1015A BRACKET,ICE MAKER [602A]
5075JA1029E 5075JA1029E BUCKET ASSEMBLY,ICE [610A]
5020JA2040E 5020JA2040E BUTTON,LEVER [280B]
5007JA3006R 5007JA3006R CAP ASSEMBLY,DUCT [275A]
ABN75058701 ABN75058701 CAP ASSEMBLY,HEAD [624C]
J513-00012P J513-00012P CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [407A]
0CZZJB2010H 0CZZJB2010H CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [407B]
4995JA1030H 4995JA1030H CASE ASSEMBLY,CONTROL REFRIGERATOR [115A]
3111JA2007B 3111JA2007B CASE ASSEMBLY,DISPENSER [155A]
4994JA0014A 4994JA0014A CASE,CONTROL REFRIGERATOR [115B]
3110JA1010A 3110JA1010A CASE,PCB [502B]
5403JA1003A 5403JA1003A CONDENSER ASSEMBLY,WIRE [301A]
4932JA3002A 4932JA3002A CONNECTOR,TUBE [621B]
4932JA3009A 4932JA3009A CONNECTOR,TUBE [626B]
4932JA3009B 4932JA3009B CONNECTOR,TUBE [626C]
ACM73079207 ACM73079207 CONTROLLER ASSEMBLY [400A]
3551JA1062B 3551JA1062B COVER ASSEMBLY,LOWER [105B]
3551JA1024A 3551JA1024A COVER ASSEMBLY,MACHINERY(REAR) [313A]
3551JA1031J 3551JA1031J COVER ASSEMBLY,MOTOR [606A]
3551JA1101P 3551JA1101P COVER ASSEMBLY,PCB [502A]
3551JA1101C 3551JA1101C COVER ASSEMBLY,PCB [502A]
3551JA1026Q 3551JA1026Q COVER ASSEMBLY,TRAY [166A]
3551JA1044C 3551JA1044C COVER ASSEMBLY,TV [166D]
3550JD1021K 3550JD1021K COVER,BUCKET ICE [611B]
3550JA2215A 3550JA2215A COVER,DEODORIZER [151C]
4890JD1021K 4890JD1021K COVER,GLASS [166B]
3550JA1265C 3550JA1265C COVER,HINGE [270A]
3550JA1265D 3550JA1265D COVER,HINGE [270B]
3550JA1495A 3550JA1495A COVER,LAMP [130A]
3550JA1206A 3550JA1206A COVER,LAMP [150A]
3550JA2147A 3550JA2147A COVER,MOTOR [308C]
3550JA2042C 3550JA2042C COVER,PTC [304A]
3550JA2035D 3550JA2035D COVER,SENSOR [152A]
3550JA3095A 3550JA3095A COVER,SENSOR [603A]
3550JA1199A 3550JA1199A COVER,TRAY [241C]
3550JA2184B 3550JA2184B COVER,TUBE [625A]
3550JA1221A 3550JA1221A COVER,TV [161B]
5040JA3073A 5040JA3073A DAMPER,COMPRESSOR [306A]
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [136C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [136D]
5040JA2009A 5040JA2009A DAMPER,MOTOR SUPPORT [309C]
5072JA3003F 5072JA3003F DAMPER,NOISE [316A]
5072JA3003B 5072JA3003B DAMPER,NOISE [316B]
5040JA3056A 5040JA3056A DAMPER,PIPE [327A]
4J03020A 4J03020A DAMPER,PIPE [328A]
3806JA2046B 3806JA2046B DECOR,DRAIN [281A]
3581JA8695H 3581JA8695H DOOR ASSEMBLY,FREEZER [200A]
5433JA8475H 5433JA8475H DOOR FOAM ASSEMBLY,FREEZER [201A]
5433JA8476F 5433JA8476F DOOR FOAM ASSEMBLY,REFRIGERATOR [231A]
6877JB2074B 6877JB2074B DRAWING,ASSEMBLY [404B]
ADH73150208 ADH73150208 DRIER ASSEMBLY [317A]
5209JA1027D 5209JA1027D DUCT ASSEMBLY,INSULATION [116A]
5421JA1124K 5421JA1124K EVAPORATOR ASSEMBLY [302B]
5901JA1011A 5901JA1011A FAN ASSEMBLY [136A]
5901JA1012A 5901JA1012A FAN ASSEMBLY [309A]
4200JD1021B 4200JD1021B FILM,INMOLD [115C]
ADQ72911006 ADQ72911006 FILTER ASSEMBLY,HEAD [626A]
ADQ72910911 ADQ72910911 FILTER ASSEMBLY,WATER [624A]
3017JA2004M 3017JA2004M FUNNEL ASSEMBLY [278A]
ADX62799501 ADX62799501 GASKET ASSEMBLY,DOOR [202A]
ADX62799502 ADX62799502 GASKET ASSEMBLY,DOOR [232A]
4986JA3005D 4986JA3005D GASKET,COVER TRAY [166C]
4986JA3005E 4986JA3005E GASKET,COVER TRAY [166E]
3531JA2013K 3531JA2013K GRILLE ASSEMBLY,FAN [135A]
3531JA2015J 3531JA2015J GRILLE ASSEMBLY,FAN [135B]
4975JA2012A 4975JA2012A GUIDE ASSEMBLY,RAIL [162A]
4975JA2012B 4975JA2012B GUIDE ASSEMBLY,RAIL [162B]
4975JA2022A 4975JA2022A GUIDE ASSEMBLY,RAIL [177A]
4975JA2022B 4975JA2022B GUIDE ASSEMBLY,RAIL [177B]
4974JA1053A 4974JA1053A GUIDE,FAN [308B]
4974JA3028A 4974JA3028A GUIDE,ICE [613A]
4974JA1043A 4974JA1043A GUIDE,RAIL [128E]
4974JA1043B 4974JA1043B GUIDE,RAIL [128F]
4974JA1106A 4974JA1106A GUIDE,RAIL [171C]
4974JA1106B 4974JA1106B GUIDE,RAIL [171D]
4974JA2023A 4974JA2023A GUIDE,RAIL [612A]
4974JA2024A 4974JA2024A GUIDE,RAIL [612B]
3651JA1023P 3651JA1023P HANDLE ASSEMBLY,FREEZER [205A]
3650JA3041X 3650JA3041X HANDLE,REAR [101A]
3650JA3041W 3650JA3041W HANDLE,REAR [101B]
5300JB1092D 5300JB1092D HEATER,SHEATH [408A]
4775JA2017J 4775JA2017J HINGE ASSEMBLY,LOWER [272A]
4775JA2017H 4775JA2017H HINGE ASSEMBLY,LOWER [272B]
4775JA2074A 4775JA2074A HINGE ASSEMBLY,UPPER [271A]
4775JA2075A 4775JA2075A HINGE ASSEMBLY,UPPER [271C]
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET [607A]
4930JA3034A 4930JA3034A HOLDER,DRIER [317B]
4930JA3043A 4930JA3043A HOLDER,LEVER [278B]
4930JA3054A 4930JA3054A HOLDER,PIPE [627A]
5988JA1001E 5988JA1001E ICE MAKER,UNIT [605A]
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [401A]
6912JB2002G 6912JB2002G LAMP,INCANDESCENT [401C]
6912JB2007B 6912JB2007B LAMP,INCANDESCENT [409B]
4779JA3001E 4779JA3001E LEG ASSEMBLY,ADJUST [103A]
4510JA2022A 4510JA2022A LEVER,DISPENSER [278C]
4510JA3004A 4510JA3004A LEVER,HINGE [271B]
4510JA3003C 4510JA3003C LEVER,ICE MAKER [604A]
ADQ72910912 ADQ72910912 LT500P REFRIDGERATER WATER FILTER (3 PK)
4681JB1029B 4681JB1029B MOTOR, DC COOLING [403B]
4681JB1029A 4681JB1029A MOTOR,DC [403A]
6750C-0004R 6750C-0004R OVERLOAD PROTECT [303C]
6871JB1264J 6871JB1264J PCB ASSEMBLY,DISPLAY [501A]
1PZZJA3013A 1PZZJA3013A PIN,COMMON [305C]
5201JA3011F 5201JA3011F PIPE ASSEMBLY,INJECT [616E]
5200JA1019A 5200JA1019A PIPE,JOINT [310A]
5200JA1009G 5200JA1009G PIPE,JOINT [310B]
6411JB1009B 6411JB1009B POWER CORD ASSEMBLY [406A]
5035JA2001A 5035JA2001A RACK [146A]
4580JA3024A 4580JA3024A ROLLER [305B]
3858JA3005C 3858JA3005C SHEET,DUCT [278F]
5027JA1084D 5027JA1084D SHELF ASSEMBLY,REFRIGERATOR [140A]
5027JA2083A 5027JA2083A SHELF ASSEMBLY,REFRIGERATOR [142A]
5027JA1082A 5027JA1082A SHELF ASSEMBLY,REFRIGERATOR [142B]
4999JA2019D 4999JA2019D SHROUD ASSEMBLY,FREEZER [137A]
4999JA2014A 4999JA2014A SHROUD ASSEMBLY,FREEZER [137B]
6421JA3001D 6421JA3001D SOLENOID ASSEMBLY [614A]
6421JB2002R 6421JB2002R SOLENOID,REVERSING,VALVE [405A]
4970JA3011K 4970JA3011K SPRING,LEVER [276A]
4621JA3002L 4621JA3002L STOPPER ASSEMBLY,DOOR [203A]
AJC34211602 AJC34211602 STOPPER ASSEMBLY,DOOR [233A]
4J03277A 4J03277A STOPPER,COMPRESSOR [307A]
4980JA2019B 4980JA2019B SUPPORTER,GEAR MOTOR [612C]
6600JB3001C 6600JB3001C SWITCH,MICRO [402C]
6600JB1010A 6600JB1010A SWITCH,PUSH BUTTON [402A]
6600JB1010H 6600JB1010H SWITCH,PUSH BUTTON [406B]
6749JA2016Z 6749JA2016Z THERMISTOR ASSEMBLY,PTC [303A]
EBG32952202 EBG32952202 THERMISTOR ASSEMBLY,PTC [303B]
3391JA2016B 3391JA2016B TRAY ASSEMBLY,DRAIN [312A]
3391JA1053G 3391JA1053G TRAY ASSEMBLY,DRAWER [125A]
3391JA1096B 3391JA1096B TRAY ASSEMBLY,SNACK [170A]
3391JA1062A 3391JA1062A TRAY ASSEMBLY,VEGETABLE [165B]
3390JA1150A 3390JA1150A TRAY,ICE [601A]
5251JA3004B 5251JA3004B TUBE ASSEMBLY,DRAIN [104A]
5040JA2011A 5040JA2011A TUBE,INLET [618A]
5221JQ2002X 5221JQ2002X TUBE,PLASTIC [616D]
MJU62070602 MJU62070602 TUBE,PLASTIC [616F]
5210JA3005E 5210JA3005E TUBE,PLASTIC [616G]

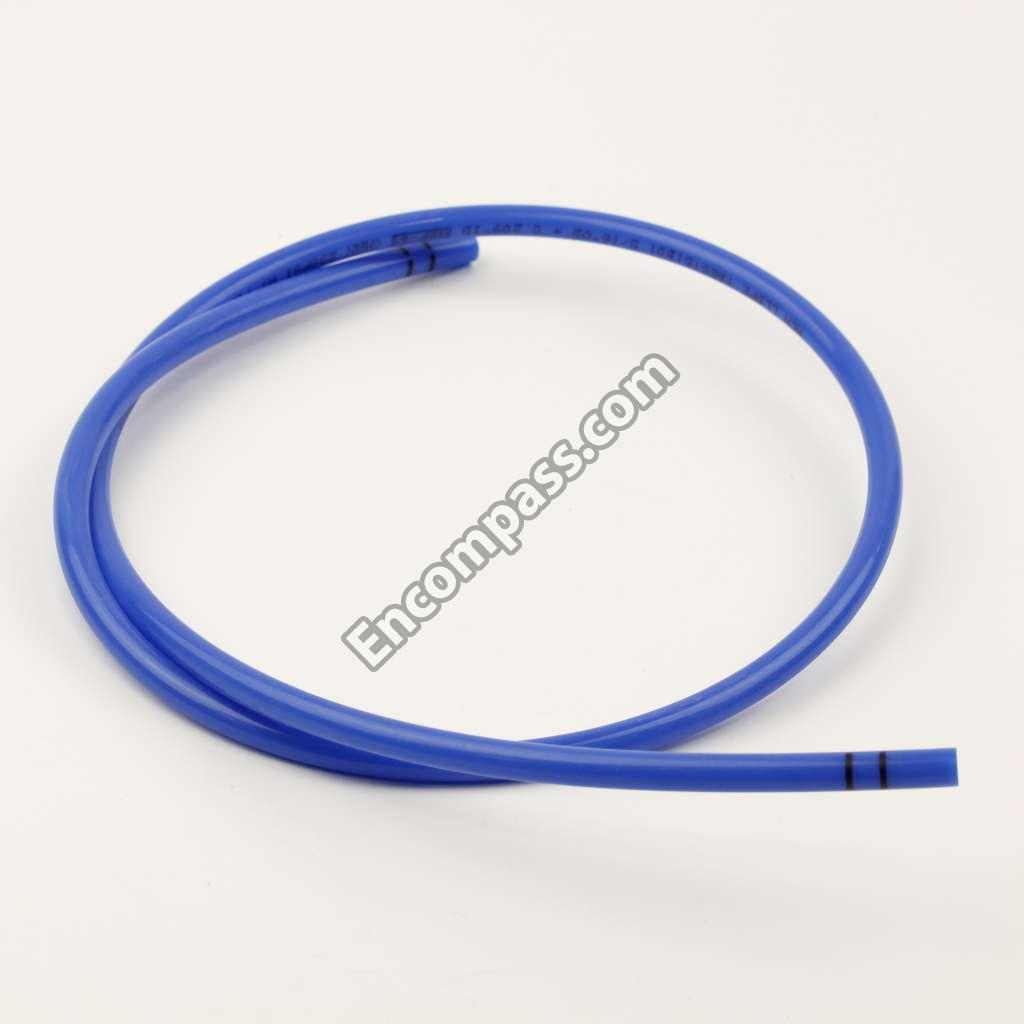

5210JA3004T 5210JA3004T TUBE,PLASTIC [624B]
5221JA2006D 5221JA2006D VALVE ASSEMBLY,WATER [619A]
