Model Image
Manufacturer

LG

Model Number

LRSC26915SW

Description

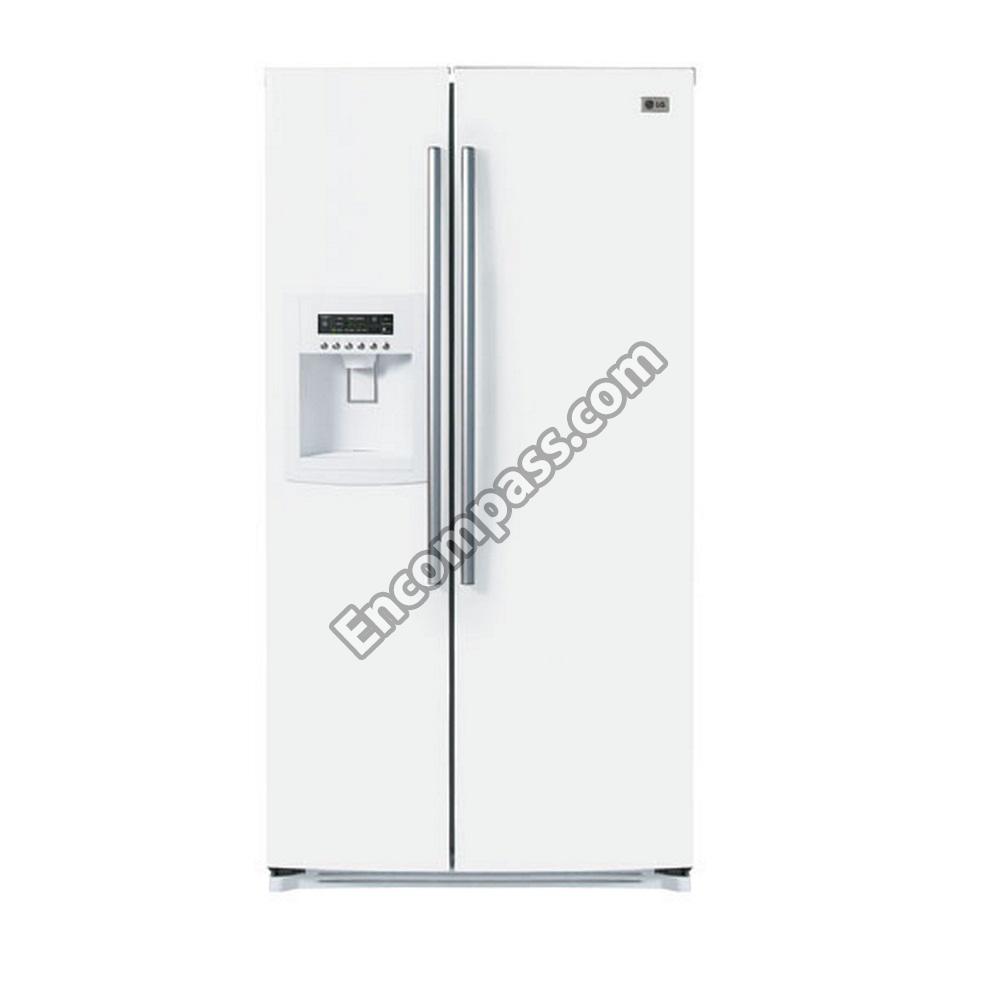

25.9 Cu. Ft. Side By Side Refrigerator - White

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4770JA3001E 4770JA3001E BAND [623A]
3103JA1036C 3103JA1036C BASE ASSEMBLY,COMPRESSOR [305A]
5005JA1026B 5005JA1026B BASKET ASSEMBLY,DOOR
5005JA1016C 5005JA1016C BASKET ASSEMBLY,DOOR [241A]
5005JA1016D 5005JA1016D BASKET ASSEMBLY,DOOR [241A]
5004JD1170C 5004JD1170C BASKET,DOOR
5004JA1209A 5004JA1209A BASKET,DOOR
5005JA1030A 5005JA1030A BASKET,DOOR
5004JA1199A 5004JA1199A BASKET,DOOR
5004JA1197A 5004JA1197A BASKET,DOOR
5004JD1168C 5004JD1168C BASKET,DOOR [241B]
4811JA2009A 4811JA2009A BRACKET ASSEMBLY,MOTOR [136B]
5989JA1005B 5989JA1005B BRACKET,ICE MAKER
5075JA1029S 5075JA1029S BUCKET ASSEMBLY,ICE [610A]
5075JA1007A 5075JA1007A BUCKET,DAIRY
5021JA3004A 5021JA3004A BUTTON ASSEMBLY
5020JA3038A 5020JA3038A BUTTON,DECOR
5020JA2040F 5020JA2040F BUTTON,LEVER [280B]
5007JA3006R 5007JA3006R CAP ASSEMBLY,DUCT [275A]
J513-00012Z J513-00012Z CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [407A]
0CZZJB2010G 0CZZJB2010G CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [407B]
4995JA1038D 4995JA1038D CASE ASSEMBLY,CONTROL REFRIGERATOR
3111JA1035J 3111JA1035J CASE ASSEMBLY,DISPENSER [155A]
3111JA1033F 3111JA1033F CASE ASSEMBLY,MAGIC ROOM
3110JA1071A 3110JA1071A CASE,PCB [502B]
2521JA1006F 2521JA1006F COMPRESSOR,ASSEMBLY
5403JA1003A 5403JA1003A CONDENSER ASSEMBLY,WIRE [301A]
4932JA3002A 4932JA3002A CONNECTOR,TUBE
ACM73079207 ACM73079207 CONTROLLER ASSEMBLY [400A]
3551JA2053E 3551JA2053E COVER ASSEMBLY,DEODORIZER [151A]
3551JA1084D 3551JA1084D COVER ASSEMBLY,HINGE [270A]
3550JA1299C 3550JA1299C COVER ASSEMBLY,HINGE [270B]
3551JA1062C 3551JA1062C COVER ASSEMBLY,LOWER [105B]
3551JA1071A 3551JA1071A COVER ASSEMBLY,MACHINERY(REAR) [313A]
3551JA2081B 3551JA2081B COVER ASSEMBLY,PTC
3551JA1065B 3551JA1065B COVER ASSEMBLY,TRAY
3551JA1063C 3551JA1063C COVER ASSEMBLY,TRAY
3550JA2215A 3550JA2215A COVER,DEODORIZER [151C]
3550JA0095A 3550JA0095A COVER,DISPENSER
3550JD1087D 3550JD1087D COVER,FILTER [624C]
3550JA2209A 3550JA2209A COVER,FILTER [624D]
3550JA1299D 3550JA1299D COVER,HINGE [270C]
3550JA1208A 3550JA1208A COVER,LAMP
3550JA1495A 3550JA1495A COVER,LAMP [130A]
3550JA1297A 3550JA1297A COVER,LAMP [150A]
3550JA2147A 3550JA2147A COVER,MOTOR [308C]
3550JA1395A 3550JA1395A COVER,PCB [502A]
3550JA2158A 3550JA2158A COVER,PTC [304A]
3550JA2035D 3550JA2035D COVER,SENSOR [152A]
3550JA3095A 3550JA3095A COVER,SENSOR [603A]
3550JA2067A 3550JA2067A COVER,TRAY
3550JA2184B 3550JA2184B COVER,TUBE [625A]
5040JA3073A 5040JA3073A DAMPER,COMPRESSOR [306A]
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [136C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [136D]
5040JA2009A 5040JA2009A DAMPER,MOTOR SUPPORT [309C]
5072JA3003F 5072JA3003F DAMPER,NOISE [316A]
5040JA3056A 5040JA3056A DAMPER,PIPE [327A]
4J03020A 4J03020A DAMPER,PIPE [328A]
3806JA2046C 3806JA2046C DECOR,DRAIN [281A]
3806JA2108C 3806JA2108C DECOR,FRAME DISPLAY [280A]
3581JA8714F 3581JA8714F DOOR ASSEMBLY,FREEZER [200A]
3581JA8572V 3581JA8572V DOOR ASSEMBLY,REFRIGERATOR
3581JA8718D 3581JA8718D DOOR ASSEMBLY,SEMI REFRIGERATOR [231A]
6877JB3019F 6877JB3019F DRAWING,ASSEMBLY [404A]
6877JB2039G 6877JB2039G DRAWING,ASSEMBLY [404B]
6620JB1001S 6620JB1001S DRAWING,ASSEMBLY [408B]
ADH73150208 ADH73150208 DRIER ASSEMBLY
5209JA1036A 5209JA1036A DUCT ASSEMBLY,INSULATION [116A]
5421JA1126Q 5421JA1126Q EVAPORATOR ASSEMBLY [302B]
5901JA1019A 5901JA1019A FAN ASSEMBLY [309A]
5901JA1022A 5901JA1022A FAN ASSEMBLY [329A]
5231JA2006A 5231JA2006A FILTER ASSEMBLY,WATER
5231JA2006F 5231JA2006F FILTER ASSEMBLY,WATER [624A]
5230JA2003A 5230JA2003A FILTER,HEAD [624B]
3211JA1045C 3211JA1045C FRAME ASSEMBLY,DISPLAY
3210JA0006S 3210JA0006S FRAME,FUNNEL
3017JA2004M 3017JA2004M FUNNEL ASSEMBLY [278A]
3016JA2002C 3016JA2002C FUNNEL [278G]
ADX62799506 ADX62799506 GASKET ASSEMBLY,DOOR
ADX62799530 ADX62799530 GASKET ASSEMBLY,DOOR
ADX62799529 ADX62799529 GASKET ASSEMBLY,DOOR
ADX62799527 ADX62799527 GASKET ASSEMBLY,DOOR
ADX73270509 ADX73270509 GASKET ASSEMBLY,DOOR [232A]
4986JA3015A 4986JA3015A GASKET,COVER TRAY
3531JA1040E 3531JA1040E GRILLE ASSEMBLY,FAN [135A]
3531JA1041A 3531JA1041A GRILLE ASSEMBLY,FAN [135B]
4975JA1021A 4975JA1021A GUIDE ASSEMBLY,RAIL [162A]
4975JA1021B 4975JA1021B GUIDE ASSEMBLY,RAIL [162B]
4975JA1022A 4975JA1022A GUIDE ASSEMBLY,RAIL [177A]
4975JA1018A 4975JA1018A GUIDE ASSEMBLY,RAIL [177B]
4974JD1003E 4974JD1003E GUIDE,AIR
4974JA1053A 4974JA1053A GUIDE,FAN [308B]
4974JA3028A 4974JA3028A GUIDE,ICE [613A]
4974JA2055A 4974JA2055A GUIDE,PITCHER
4974JA1063A 4974JA1063A GUIDE,RAIL
MEA40002602 MEA40002602 GUIDE,RAIL
MEA40002601 MEA40002601 GUIDE,RAIL
4974JA1084B 4974JA1084B GUIDE,RAIL
4974JA1084C 4974JA1084C GUIDE,RAIL [128D]
4974JA1086B 4974JA1086B GUIDE,RAIL [128E]
4974JA1086A 4974JA1086A GUIDE,RAIL [128F]
4974JA1064B 4974JA1064B GUIDE,RAIL [612B]
3651JA1023G 3651JA1023G HANDLE ASSEMBLY,FREEZER [205A]
3650JA3032R 3650JA3032R HANDLE,REAR [101A]
3650JA3032Q 3650JA3032Q HANDLE,REAR [101B]
5300JB1102H 5300JB1102H HEATER,SHEATH [408A]
4775JA2113A 4775JA2113A HINGE ASSEMBLY,LOWER [272A]
4775JA2105B 4775JA2105B HINGE ASSEMBLY,UPPER [271A]
4775JA2084B 4775JA2084B HINGE ASSEMBLY,UPPER [271C]
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET [607A]
4930JA2074B 4930JA2074B HOLDER,BUTTON
4930JA3034B 4930JA3034B HOLDER,DRIER [318A]
4930JA3043A 4930JA3043A HOLDER,LEVER [276B]
4930JA3054A 4930JA3054A HOLDER,PIPE [627A]
5989JA1005D 5989JA1005D ICE MAKER ASSEMBLY,KIT [600A]
5988JA1001H 5988JA1001H ICE MAKER,UNIT [605A]
5989JA1002D 5989JA1002D INSULATION,REAR
6912JB2004M 6912JB2004M LAMP,INCANDESCENT
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [401A]
6912JB2002G 6912JB2002G LAMP,INCANDESCENT [401C]
4779JA3001E 4779JA3001E LEG ASSEMBLY,ADJUST [103A]
4510JA2022A 4510JA2022A LEVER,DISPENSER [278C]
4510JA3004A 4510JA3004A LEVER,HINGE [271B]
4510JA3003C 4510JA3003C LEVER,ICE MAKER [604A]
5231JA2006K 5231JA2006K LT600P REFRIDGERATER WATER FILTER (3 PK)
4681JA1005R 4681JA1005R MOTOR,AC
4681JB1029A 4681JB1029A MOTOR,DC [403A]
4681JB1029B 4681JB1029B MOTOR,DC [403B]
MFT62346511 MFT62346511 NAME PLATE
CLS30820001 CLS30820001 OVERLOAD PROTECT
6871JB1352A 6871JB1352A PCB ASSEMBLY,DISPLAY
6871JB1349A 6871JB1349A PCB ASSEMBLY,MAIN
1PZZJA3013A 1PZZJA3013A PIN,COMMON [305C]
5200JA1019B 5200JA1019B PIPE,JOINT [310A]
5200JA1009E 5200JA1009E PIPE,JOINT [310B]
EAD56779001 EAD56779001 POWER CORD ASSEMBLY [406A]
4580JA3024A 4580JA3024A ROLLER [305B]
3858JA3005C 3858JA3005C SHEET,DUCT [278F]
5027JA1040B 5027JA1040B SHELF ASSEMBLY,FREEZER
5027JA1040F 5027JA1040F SHELF ASSEMBLY,FREEZER
5027JA1066D 5027JA1066D SHELF ASSEMBLY,FREEZER
5027JA1066E 5027JA1066E SHELF ASSEMBLY,FREEZER [120C]
5027JA1099B 5027JA1099B SHELF ASSEMBLY,REFRIGERATOR
5027JA1095C 5027JA1095C SHELF ASSEMBLY,REFRIGERATOR [140A]
4999JA2025A 4999JA2025A SHROUD ASSEMBLY,FREEZER [137A]
5070JA3002F 5070JA3002F SKIRT,LOWER [105C]
5070JA3002J 5070JA3002J SKIRT,LOWER [105D]
5070JA3002G 5070JA3002G SKIRT,LOWER [105E]
6620JB1002G 6620JB1002G SOCKET,LAMP [401B]
6421JA3001D 6421JA3001D SOLENOID ASSEMBLY [614A]
6421JB2002R 6421JB2002R SOLENOID,REVERSING,VALVE [405A]
4970JA3011K 4970JA3011K SPRING,LEVER [276A]
4621JA3002L 4621JA3002L STOPPER ASSEMBLY,DOOR
AJC34211602 AJC34211602 STOPPER ASSEMBLY,DOOR [233A]
4J03277A 4J03277A STOPPER,COMPRESSOR [307A]
4980JA2071A 4980JA2071A SUPPORTER,GEAR MOTOR
6600JB3001C 6600JB3001C SWITCH,MICRO [402C]
6600JB3007L 6600JB3007L SWITCH,PUSH BUTTON [402A]
6748JA3004A 6748JA3004A THERMISTOR,PTC
3391JA2036A 3391JA2036A TRAY ASSEMBLY,DRAIN [312A]
3391JA1080F 3391JA1080F TRAY ASSEMBLY,DRAWER
3391JA1081B 3391JA1081B TRAY ASSEMBLY,DRAWER
3391JA1081A 3391JA1081A TRAY ASSEMBLY,DRAWER
3390JJ1195A 3390JJ1195A TRAY ASSEMBLY,DRAWER [125A]
3391JA1084D 3391JA1084D TRAY ASSEMBLY,MAGIC ROOM
3391JA1107C 3391JA1107C TRAY ASSEMBLY,SNACK [170A]
3391JA1082F 3391JA1082F TRAY ASSEMBLY,VEGETABLE [165A]
3391JA1083D 3391JA1083D TRAY ASSEMBLY,VEGETABLE [168A]
3390JA1109A 3390JA1109A TRAY,DRIP
3390JA1150A 3390JA1150A TRAY,ICE [601A]
5251JA3004B 5251JA3004B TUBE ASSEMBLY,DRAIN [104A]
5210JA2006B 5210JA2006B TUBE,INJECT
5210JA2006C 5210JA2006C TUBE,INJECT [616E]
5040JA2015A 5040JA2015A TUBE,INLET [618A]
5210JA3005A 5210JA3005A TUBE,PLASTIC
5221JQ2002X 5221JQ2002X TUBE,PLASTIC [616D]
MJU62070603 MJU62070603 TUBE,PLASTIC [616F]
5210JA3005E 5210JA3005E TUBE,PLASTIC [616G]
5221JA2006D 5221JA2006D VALVE ASSEMBLY,WATER [619A]
