Model Image
Manufacturer

LG

Model Number

LRSPC2331W

Description

Lrspc2331w

Interactive Exploded View

Parts List

Part Number Description
4770JA3001A 4770JA3001A BAND [623A]
4770JA3001B 4770JA3001B BAND [623B]
3103JA1014B 3103JA1014B BASE ASSEMBLY,COMPRESSOR [305A]
5004JD1126A 5004JD1126A BASKET,DOOR [210A]
5004JD1126C 5004JD1126C BASKET,DOOR [210B]
5004JD1126D 5004JD1126D BASKET,DOOR [210C]
5004JD1126G 5004JD1126G BASKET,DOOR [240C]
4811JA2009A 4811JA2009A BRACKET ASSEMBLY,MOTOR [136B]
4810JA3059A 4810JA3059A BRACKET,COVER [622A]
4810JA1015A 4810JA1015A BRACKET,ICE MAKER [602A]
5075JA1029Y 5075JA1029Y BUCKET ASSEMBLY,ICE [610A]
3807JA3006L 3807JA3006L BUTTON ASSEMBLY [280A]
5040JA2008B 5040JA2008B BUTTON,LEVER [280B]
5007JA3007C 5007JA3007C CAP ASSEMBLY,HEAD [624C]
5006JA2023J 5006JA2023J CAP,DOOR [206A]
5006JA2023M 5006JA2023M CAP,DOOR [236A]
J513-00012Z J513-00012Z CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [407A]
0CZZJB2010G 0CZZJB2010G CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [410G]
4995JA1021R 4995JA1021R CASE ASSEMBLY,CONTROL REFRIGERATOR [115A]
3111JA2007B 3111JA2007B CASE ASSEMBLY,DISPENSER [155A]
4994JD1036F 4994JD1036F CASE,CONTROL REFRIGERATOR [115B]
3110JA1010A 3110JA1010A CASE,PCB [502B]
2521JA1006B 2521JA1006B COMPRESSOR,ASSEMBLY [300A]
5403JA1003A 5403JA1003A CONDENSER ASSEMBLY,WIRE [301A]
4932JA3002A 4932JA3002A CONNECTOR,TUBE [621B]
MCD62426801 MCD62426801 CONNECTOR,TUBE [626B]
4932JA3009B 4932JA3009B CONNECTOR,TUBE [626C]
6615JB2002R 6615JB2002R CONTROLLER ASSEMBLY [400A]
3551JA1024A 3551JA1024A COVER ASSEMBLY,MACHINERY(REAR) [313A]
3551JA1101L 3551JA1101L COVER ASSEMBLY,PCB [502A]
3550JD1021G 3550JD1021G COVER,BUCKET ICE [611B]
3550JA1077A 3550JA1077A COVER,BUCKET [147C]
3550JA2215A 3550JA2215A COVER,DEODORIZER [151C]
3550JD1020M 3550JD1020M COVER,DISPENSER [279A]
3550JA1108D 3550JA1108D COVER,HINGE [270A]
3550JA1108C 3550JA1108C COVER,HINGE [270B]
3550JA1495A 3550JA1495A COVER,LAMP [130A]
3550JA0024B 3550JA0024B COVER,LOWER [105B]
3550JA2147A 3550JA2147A COVER,MOTOR [308C]
3550JA2158A 3550JA2158A COVER,PTC [304A]
3550JA2035D 3550JA2035D COVER,SENSOR [152A]
3550JA3095A 3550JA3095A COVER,SENSOR [603A]
3550JA2091A 3550JA2091A COVER,TRAY [161A]
3550JA2184B 3550JA2184B COVER,TUBE [625A]
5040JA3073A 5040JA3073A DAMPER,COMPRESSOR [306A]
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [136C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [136D]
5040JA2009A 5040JA2009A DAMPER,MOTOR SUPPORT [309C]
5072JA3003F 5072JA3003F DAMPER,NOISE [316A]
3806JA2022D 3806JA2022D DECOR,DRAIN [281A]
3806JD1021F 3806JD1021F DECOR,TRAY [165B]
3581JA8377L 3581JA8377L DOOR ASSEMBLY,FREEZER [200A]
3581JA8375D 3581JA8375D DOOR ASSEMBLY,REFRIGERATOR [230A]
6877JB3019F 6877JB3019F DRAWING,ASSEMBLY [404A]
6877JB2039E 6877JB2039E DRAWING,ASSEMBLY [404B]
5851JA2008R 5851JA2008R DRIER ASSEMBLY [317A]
5421JA1124K 5421JA1124K EVAPORATOR ASSEMBLY [302B]
5901JA1011A 5901JA1011A FAN ASSEMBLY [136A]
5901JA1012A 5901JA1012A FAN ASSEMBLY [309A]
ADQ72911006 ADQ72911006 FILTER ASSEMBLY,HEAD [626A]
5231JA2002A 5231JA2002A FILTER ASSEMBLY,WATER [624A]
3211JA1007V 3211JA1007V FRAME ASSEMBLY,DISPLAY [207A]
3210JA1011B 3210JA1011B FRAME,FUNNEL [278B]
3017JA2001E 3017JA2001E FUNNEL ASSEMBLY [278A]
5040JA2006B 5040JA2006B FUNNEL,GASKET [278E]
3J02447C 3J02447C FUSE [505A]

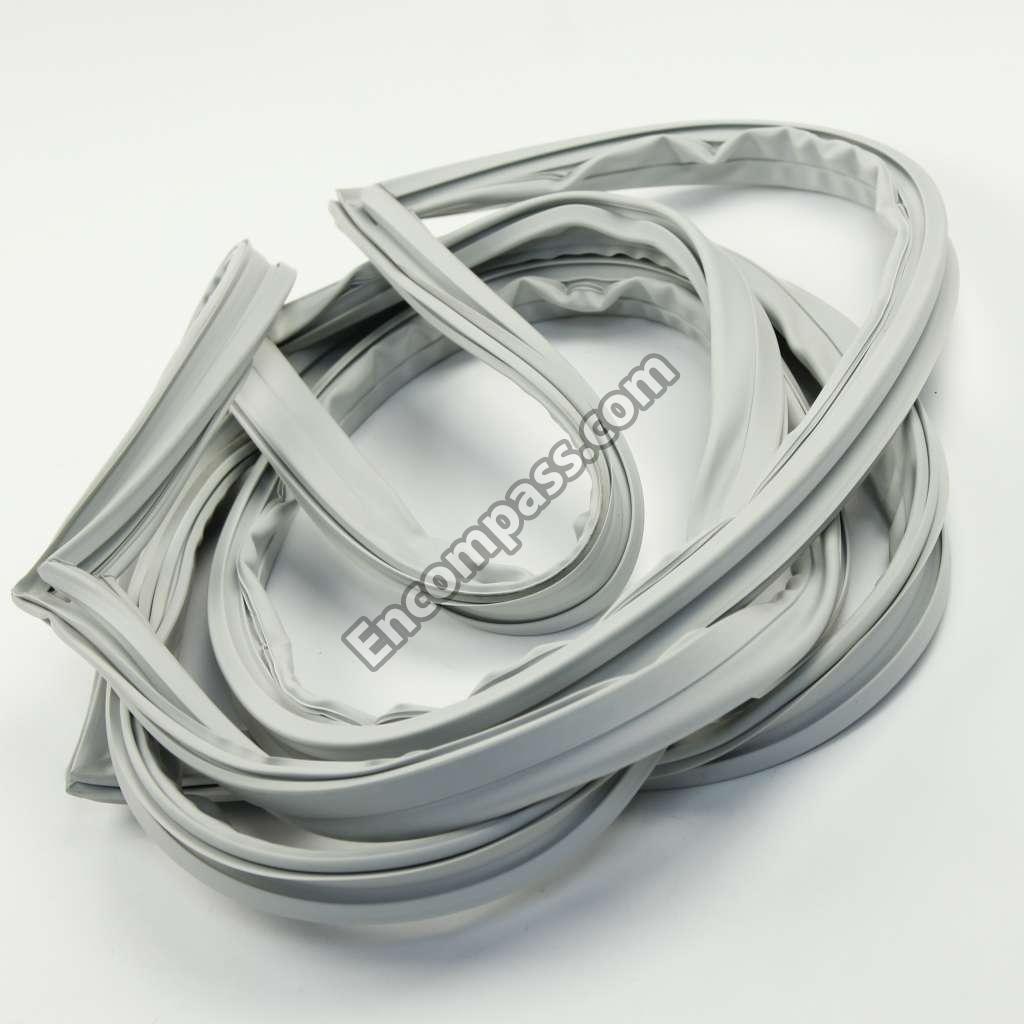

4987JA1022T 4987JA1022T GASKET ASSEMBLY,DOOR [202A]
ADX62356401 ADX62356401 GASKET ASSEMBLY,DOOR [232A]
3531JA2013C 3531JA2013C GRILLE ASSEMBLY,FAN [135A]
3531JA2015E 3531JA2015E GRILLE ASSEMBLY,FAN [135B]
4975JA2012A 4975JA2012A GUIDE ASSEMBLY,RAIL [162A]
4975JA2012B 4975JA2012B GUIDE ASSEMBLY,RAIL [162B]
4975JA1012D 4975JA1012D GUIDE ASSEMBLY,RAIL [171D]
4975JA2003A 4975JA2003A GUIDE ASSEMBLY,RAIL [177A]
4975JA2003N 4975JA2003N GUIDE ASSEMBLY,RAIL [177B]
4974JA1053A 4974JA1053A GUIDE,FAN [308B]
4974JA3028A 4974JA3028A GUIDE,ICE [613A]
4974JA1043A 4974JA1043A GUIDE,RAIL [128C]
4974JA1043B 4974JA1043B GUIDE,RAIL [128D]
4974JA2023A 4974JA2023A GUIDE,RAIL [612A]
4974JA2024A 4974JA2024A GUIDE,RAIL [612B]
3650JA3038A 3650JA3038A HANDLE,BASE [205C]
3650JA2024B 3650JA2024B HANDLE,DECOR [205A]
3650JA2023B 3650JA2023B HANDLE,DECOR [205B]
3650JA0035A 3650JA0035A HANDLE,FREEZER [205D]
3650JA3032R 3650JA3032R HANDLE,REAR [101A]
3650JA3032Q 3650JA3032Q HANDLE,REAR [101B]
5300JB1092D 5300JB1092D HEATER,SHEATH [408A]
4775JA2024A 4775JA2024A HINGE ASSEMBLY,UPPER [271A]
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET [607A]
3806JA2019F 3806JA2019F HOLDER,BUTTON [280C]
4930JA3034B 4930JA3034B HOLDER,DRIER [317B]
4930JA3043A 4930JA3043A HOLDER,LEVER [276B]
4930JA3054A 4930JA3054A HOLDER,PIPE [627A]
4930JA2023B 4930JA2023B HOLDER,SHELF [145A]
5988JA1001B 5988JA1001B ICE MAKER,UNIT [605A]
4940JA2008A 4940JA2008A KNOB,SHUTTER [160D]
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [401A]
4779JA3001E 4779JA3001E LEG ASSEMBLY,ADJUST [103A]
4510JA3004A 4510JA3004A LEVER,HINGE [271B]
4510JA3007A 4510JA3007A LEVER,ICE MAKER [278C]
4510JA3003C 4510JA3003C LEVER,ICE MAKER [604A]
3828JD8394U 3828JD8394U MANUAL,SERVICE [SM]
4681JB1027B 4681JB1027B MOTOR, DC COOLING [403B]
4681JB1029A 4681JB1029A MOTOR,DC [403A]
MFT62346511 MFT62346511 NAME PLATE [239A]
1NZZJA3006A 1NZZJA3006A NUT,CUSTOMIZED [616A]

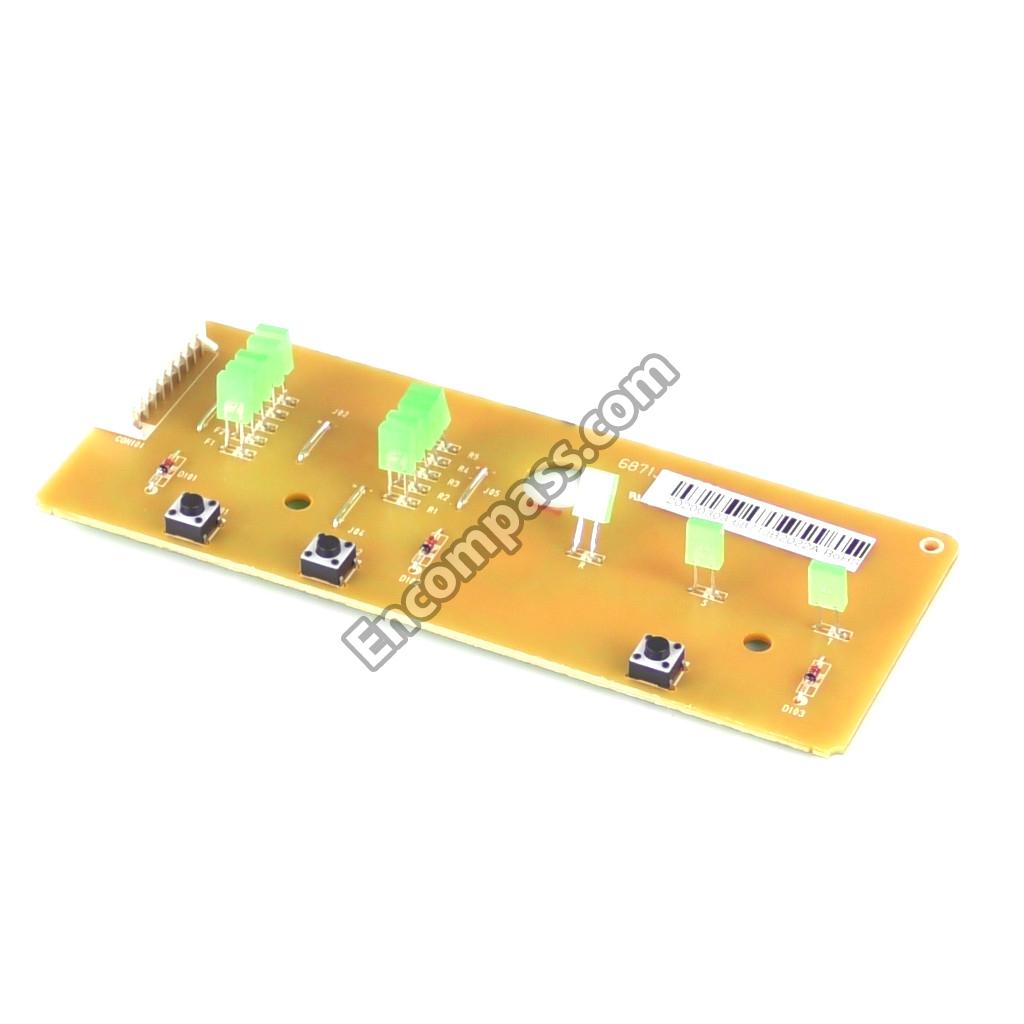

6871JB2022A 6871JB2022A PCB ASSEMBLY,DISPLAY [501A]
1PZZJA3013A 1PZZJA3013A PIN,COMMON [305C]
5201JA3011E 5201JA3011E PIPE ASSEMBLY,INJECT [616E]
5200JA1019B 5200JA1019B PIPE,JOINT [310A]
5200JA1009D 5200JA1009D PIPE,JOINT [310B]
6411JB1009B 6411JB1009B POWER CORD ASSEMBLY [406A]
J469-00030A J469-00030A RACK [146A]
4580JA3024A 4580JA3024A ROLLER [305B]

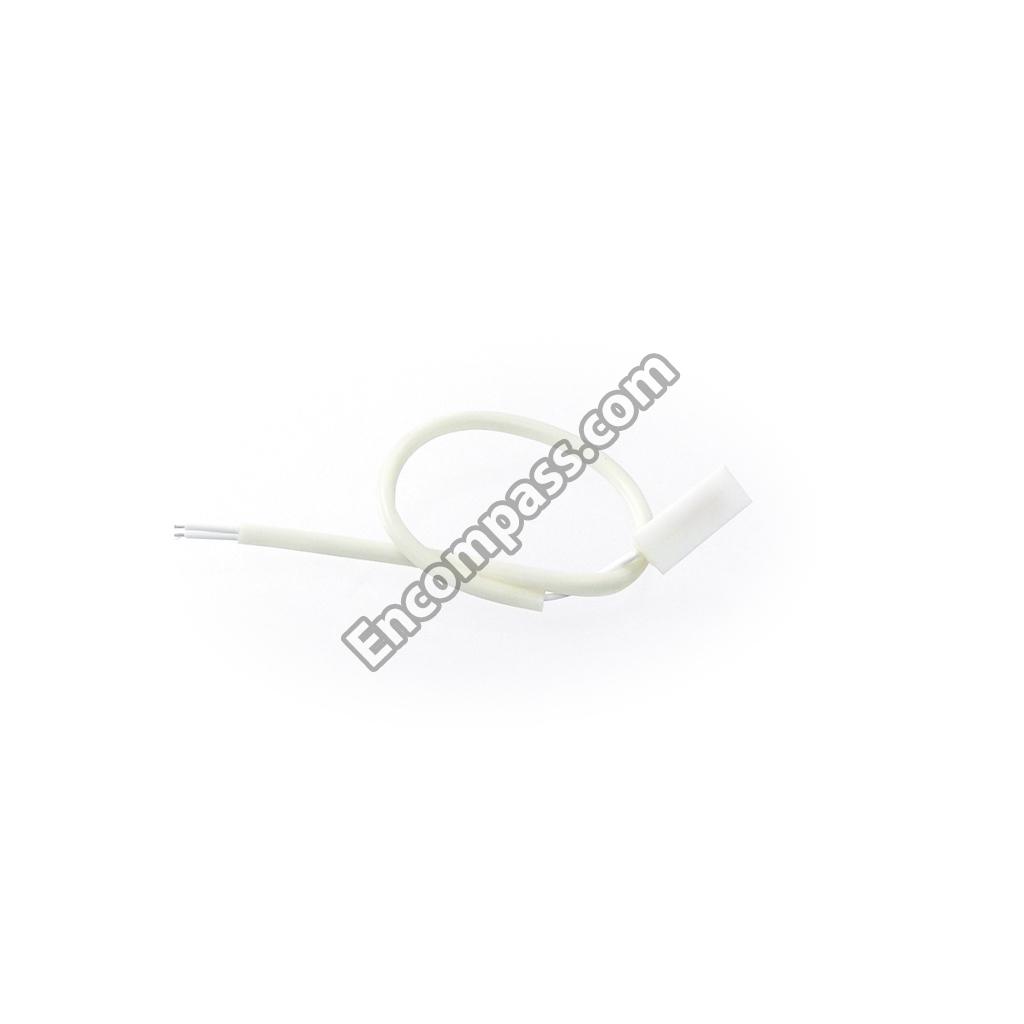

6500JB2004B 6500JB2004B SENSOR [510B]
5027JA2041E 5027JA2041E SHELF ASSEMBLY,FREEZER [120A]
5027JA2036C 5027JA2036C SHELF ASSEMBLY,FREEZER [120B]
5027JA2054C 5027JA2054C SHELF ASSEMBLY,NET [140C]
5027JA2054B 5027JA2054B SHELF ASSEMBLY,NET [141C]
5027JA1013G 5027JA1013G SHELF ASSEMBLY,REFRIGERATOR [140A]
5027JA1013H 5027JA1013H SHELF ASSEMBLY,REFRIGERATOR [141A]
5027JA1035B 5027JA1035B SHELF ASSEMBLY,REFRIGERATOR [141B]
4998JA0024A 4998JA0024A SHROUD,FREEZER [137A]
5070JA3002F 5070JA3002F SKIRT,LOWER [105C]
5070JA3002G 5070JA3002G SKIRT,LOWER [105D]
5070JA3002J 5070JA3002J SKIRT,LOWER [105E]
5070JA3002D 5070JA3002D SKIRT,LOWER [105F]
6421JA3001D 6421JA3001D SOLENOID ASSEMBLY [614A]
6421JB2002R 6421JB2002R SOLENOID,REVERSING,VALVE [405A]
4970JA3011A 4970JA3011A SPRING,LEVER [276A]
4621JQ3001G 4621JQ3001G STOPPER ASSEMBLY,DOOR [203A]
AJC34211602 AJC34211602 STOPPER ASSEMBLY,DOOR [233A]
4J03277A 4J03277A STOPPER,COMPRESSOR [307A]
4980JA2019B 4980JA2019B SUPPORTER,GEAR MOTOR [612C]
6600JB3001C 6600JB3001C SWITCH,MICRO [402C]
6600JB1010K 6600JB1010K SWITCH,PUSH BUTTON [402A]
6600JB3002A 6600JB3002A SWITCH,ROCKER [278F]
3391JA2016B 3391JA2016B TRAY ASSEMBLY,DRAIN [312A]
3391JA1032A 3391JA1032A TRAY ASSEMBLY,DRAWER [125A]
3391JA1035F 3391JA1035F TRAY ASSEMBLY,VEGETABLE [165A]
3390JA1086A 3390JA1086A TRAY,EGG [147B]
3390JA1150A 3390JA1150A TRAY,ICE [601A]
3390JD1047F 3390JD1047F TRAY,VEGETABLE [160C]
3390JD1048E 3390JD1048E TRAY,VEGETABLE [165C]
5251JA3004B 5251JA3004B TUBE ASSEMBLY,DRAIN [104A]
5040JA2011A 5040JA2011A TUBE,INLET [618A]
AJR72929602 AJR72929602 TUBE,PLASTIC [616B]
5221JQ2002X 5221JQ2002X TUBE,PLASTIC [616D]
5210JA3004A 5210JA3004A TUBE,PLASTIC [616F]
5210JA3005E 5210JA3005E TUBE,PLASTIC [616G]
5221JA2006D 5221JA2006D VALVE ASSEMBLY,WATER [619A]
