Model Image
Manufacturer

LG

Model Number

LRSPC2661T

Description

Lrspc2661t

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4770JA3001A 4770JA3001A BAND [623A]
4770JA3001B 4770JA3001B BAND [623B]
3103JA1011A 3103JA1011A BASE ASSEMBLY,COMPRESSOR [305A]
5004JD1129A 5004JD1129A BASKET,DOOR [210A]
5004JD1129B 5004JD1129B BASKET,DOOR [210B]
5004JD1129C 5004JD1129C BASKET,DOOR [210C]
5004JD1129G 5004JD1129G BASKET,DOOR [240A]
5004JD1129H 5004JD1129H BASKET,DOOR [240B]
5004JD1129F 5004JD1129F BASKET,DOOR [240C]
5004JD1129D 5004JD1129D BASKET,DOOR [241B]
3890JC2836A 3890JC2836A BOX,GRAPHIC [BOX]
4810JA3059A 4810JA3059A BRACKET,COVER [622A]
4810JA2028A 4810JA2028A BRACKET,DOOR [203B]
4810JA2028B 4810JA2028B BRACKET,DOOR [233B]
4810JA1009A 4810JA1009A BRACKET,ICE MAKER [602A]
4810JA2055A 4810JA2055A BRACKET,MOTOR [136B]
4810JA3072A 4810JA3072A BRACKET,SPRING [821D]
4810JA3073A 4810JA3073A BRACKET,TILT [821C]
5075JA1006B 5075JA1006B BUCKET ASSEMBLY,ICE [610A]
5075JA1007A 5075JA1007A BUCKET,DAIRY
5021JA2001E 5021JA2001E BUTTON ASSEMBLY [280A]
5020JA3020B 5020JA3020B BUTTON,DECOR
5020JA2022A 5020JA2022A BUTTON,DECOR [723A]
5020JA2025D 5020JA2025D BUTTON,LEVER [280B]
5020JA3021A 5020JA3021A BUTTON,LINK [280D]
6714JB3001A 6714JB3001A CAMERA MODULE [821A]
5007JA3007C 5007JA3007C CAP ASSEMBLY,HEAD
ABN75058701 ABN75058701 CAP ASSEMBLY,HEAD [624C]
5006JA3068B 5006JA3068B CAP,CAMERA [820C]
5078JA1032K 5078JA1032K CAP,DECOR FREEZER [206C]
5078JA1032L 5078JA1032L CAP,DECOR FREEZER [206D]
5006JA3075A 5006JA3075A CAP,HANDLE [205F]
5040JA3032A 5040JA3032A CAP,RUBBER [617A]
J513-00012P J513-00012P CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [407A]
0CZZJB2010H 0CZZJB2010H CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [407B]
4995JA1025M 4995JA1025M CASE ASSEMBLY,CONTROL REFRIGERATOR [115A]
4994JD1032D 4994JD1032D CASE,CONTROL REFRIGERATOR [115B]
3110JA1047A 3110JA1047A CASE,CONTROLLER [702A]
3110JA1012B 3110JA1012B CASE,HOME BAR [264A]
3110JA0013B 3110JA0013B CASE,PCB [701A]
3110JA2005B 3110JA2005B CASE,TOUCH PEN [820F]
2521C-A8640 2521C-A8640 COMPRESSOR,SET ASSEMBLY [300A]
5403JA1016A 5403JA1016A CONDENSER ASSEMBLY,WIRE [301A]
4932JA3012B 4932JA3012B CONNECTOR,TUBE
4932JA3002A 4932JA3002A CONNECTOR,TUBE [621B]
4932JA3009A 4932JA3009A CONNECTOR,TUBE [626B]
4932JA3009B 4932JA3009B CONNECTOR,TUBE [626C]
6615JB2002G 6615JB2002G CONTROLLER ASSEMBLY [400A]
3551JA1020D 3551JA1020D COVER ASSEMBLY,BUCKET ICE [611A]
3551JA1046A 3551JA1046A COVER ASSEMBLY,LCD [268A]
3551JA1017P 3551JA1017P COVER ASSEMBLY,LOWER [105A]
3551JA1021A 3551JA1021A COVER ASSEMBLY,MACHINERY(REAR) [313A]
3551JA1015D 3551JA1015D COVER ASSEMBLY,MOTOR [606A]
3551JA2049C 3551JA2049C COVER ASSEMBLY,TRAY [176A]
3550JD1047A 3550JD1047A COVER,BUCKET ICE [611B]
3550JA1077A 3550JA1077A COVER,BUCKET [147C]
3550JA1213A 3550JA1213A COVER,CONTROLLER [703A]
3550JA2071A 3550JA2071A COVER,DEODORIZER [151A]
3550JA0052A 3550JA0052A COVER,DISPENSER [279B]
3550JD1040C 3550JD1040C COVER,DISPLAY [279F]
3550JA1150D 3550JA1150D COVER,HINGE [270A]
3550JA1150C 3550JA1150C COVER,HINGE [270B]
3550JA1082B 3550JA1082B COVER,HOME BAR [264B]
3550JA1069A 3550JA1069A COVER,LAMP [130A]
3550JA1127A 3550JA1127A COVER,LAMP [150A]
3550JA1079A 3550JA1079A COVER,LAMP [150B]
3550JA1152B 3550JA1152B COVER,LCD [803A]
3550JD1023D 3550JD1023D COVER,LCD [820B]
3550JA1151B 3550JA1151B COVER,LCD [820E]
3550JA0013G 3550JA0013G COVER,LOWER [105B]
3550JA2147A 3550JA2147A COVER,MOTOR [308C]
3550JA1230A 3550JA1230A COVER,PCB [502A]
3550JA1214A 3550JA1214A COVER,PCB [502B]
3550JA2059A 3550JA2059A COVER,PTC
3550JA3095A 3550JA3095A COVER,SENSOR [603A]
3550JA2067A 3550JA2067A COVER,TRAY
3550JA2063A 3550JA2063A COVER,TRAY [161B]
3550JA1081B 3550JA1081B COVER,TRAY [241A]
3550JA2184B 3550JA2184B COVER,TUBE [625A]
4901JA2002C 4901JA2002C DAMPER ASSEMBLY,CONTROL
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [136C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [136D]
5040JA2009A 5040JA2009A DAMPER,MOTOR SUPPORT [309B]
5072JA3003F 5072JA3003F DAMPER,NOISE [316A]
5072JA3003B 5072JA3003B DAMPER,NOISE [316B]
4J03020A 4J03020A DAMPER,PIPE [306C]
3806JA1036B 3806JA1036B DECOR ASSEMBLY,CASE [720A]
3806JD1036B 3806JD1036B DECOR,CASE [720B]
3806JA1072A 3806JA1072A DECOR,DISPENSER [279C]
3806JA2020J 3806JA2020J DECOR,DRAIN [281A]
3390JA1081A 3390JA1081A DECOR,TRAY [160C]
3581JA8496C 3581JA8496C DOOR ASSEMBLY,FREEZER [200A]
3581JA8497D 3581JA8497D DOOR ASSEMBLY,REFRIGERATOR [230A]
5433JA8339Y 5433JA8339Y DOOR FOAM ASSEMBLY,FREEZER [201A]
3580JA1020A 3580JA1020A DOOR,ICE [611C]
6877JB2040H 6877JB2040H DRAWING,ASSEMBLY [303D]
6877JB3019F 6877JB3019F DRAWING,ASSEMBLY [404A]
6877JB2039C 6877JB2039C DRAWING,ASSEMBLY [404B]
6620JB1001R 6620JB1001R DRAWING,ASSEMBLY [410B]
6877JB3046B 6877JB3046B DRAWING,ASSEMBLY [410H]
6877JB1218B 6877JB1218B DRAWING,ASSEMBLY [712A]
6877JB3038A 6877JB3038A DRAWING,ASSEMBLY [713A]
6877JB3040A 6877JB3040A DRAWING,ASSEMBLY [714A]
6877JB3039A 6877JB3039A DRAWING,ASSEMBLY [715A]
6877JB3041A 6877JB3041A DRAWING,ASSEMBLY [716A]
6877JB3037A 6877JB3037A DRAWING,ASSEMBLY [720D]
6877JB3024A 6877JB3024A DRAWING,ASSEMBLY [826A]
6877JB2116A 6877JB2116A DRAWING,ASSEMBLY [827A]
5851JA2008R 5851JA2008R DRIER ASSEMBLY
ADH73150208 ADH73150208 DRIER ASSEMBLY [317A]
5421JA1027E 5421JA1027E EVAPORATOR ASSEMBLY [302A]
5901JA1011A 5901JA1011A FAN ASSEMBLY [136A]
5901JA1012A 5901JA1012A FAN ASSEMBLY [309A]
ADQ72911006 ADQ72911006 FILTER ASSEMBLY,HEAD [626A]
ADQ72910911 ADQ72910911 FILTER ASSEMBLY,WATER [624A]
3211JA1026D 3211JA1026D FRAME ASSEMBLY,DISPLAY [279A]
3210JA3004B 3210JA3004B FRAME,DISPLAY [279D]
3210JA1035E 3210JA1035E FRAME,FUNNEL [278B]
3210JA0003A 3210JA0003A FRAME,LCD [828A]
3017JA2002C 3017JA2002C FUNNEL ASSEMBLY
4980JA2024R 4980JA2024R FUNNEL [278D]
5040JA2010D 5040JA2010D FUNNEL,GASKET
3J02447C 3J02447C FUSE [505A]
4987JA2004C 4987JA2004C GASKET ASSEMBLY,DOOR
4987JA2004D 4987JA2004D GASKET ASSEMBLY,DOOR [232A]
4986JA3005A 4986JA3005A GASKET,COVER TRAY [176B]
4986JA3006A 4986JA3006A GASKET,COVER TRAY [176C]
3531JA2008B 3531JA2008B GRILLE ASSEMBLY,FAN [135A]
3531JA2009K 3531JA2009K GRILLE ASSEMBLY,FAN [135B]
4975JA2009B 4975JA2009B GUIDE ASSEMBLY,RAIL
4975JA2004C 4975JA2004C GUIDE ASSEMBLY,RAIL [128A]
4975JA2004D 4975JA2004D GUIDE ASSEMBLY,RAIL [128B]
4975JA3005C 4975JA3005C GUIDE ASSEMBLY,RAIL [128C]
4975JA3005D 4975JA3005D GUIDE ASSEMBLY,RAIL [128D]
4975JA2014A 4975JA2014A GUIDE ASSEMBLY,RAIL [162B]
4975JA2007A 4975JA2007A GUIDE ASSEMBLY,RAIL [171A]
4975JA2007B 4975JA2007B GUIDE ASSEMBLY,RAIL [171B]
4975JA2008A 4975JA2008A GUIDE ASSEMBLY,RAIL [177A]
4975JA2008B 4975JA2008B GUIDE ASSEMBLY,RAIL [177B]
4974JA1055A 4974JA1055A GUIDE,FAN [308B]
4974JA3028A 4974JA3028A GUIDE,ICE [613A]
4974JA3034A 4974JA3034A GUIDE,LCD [821B]
4974JA2019A 4974JA2019A GUIDE,PITCHER [243A]
4974JA2021A 4974JA2021A GUIDE,PITCHER [243B]
4974JA2047A 4974JA2047A GUIDE,RAIL [120B]
4974JA1065A 4974JA1065A GUIDE,RAIL [612A]
4974JA1066A 4974JA1066A GUIDE,RAIL [612B]
3650JA1108C 3650JA1108C HANDLE,BAR [205D]
5300JB1049F 5300JB1049F HEATER,PLATE [408C]
5300JB1060C 5300JB1060C HEATER,PLATE [408D]
5300JB2008C 5300JB2008C HEATER,PLATE [410A]
5300JB1045D 5300JB1045D HEATER,SHEATH

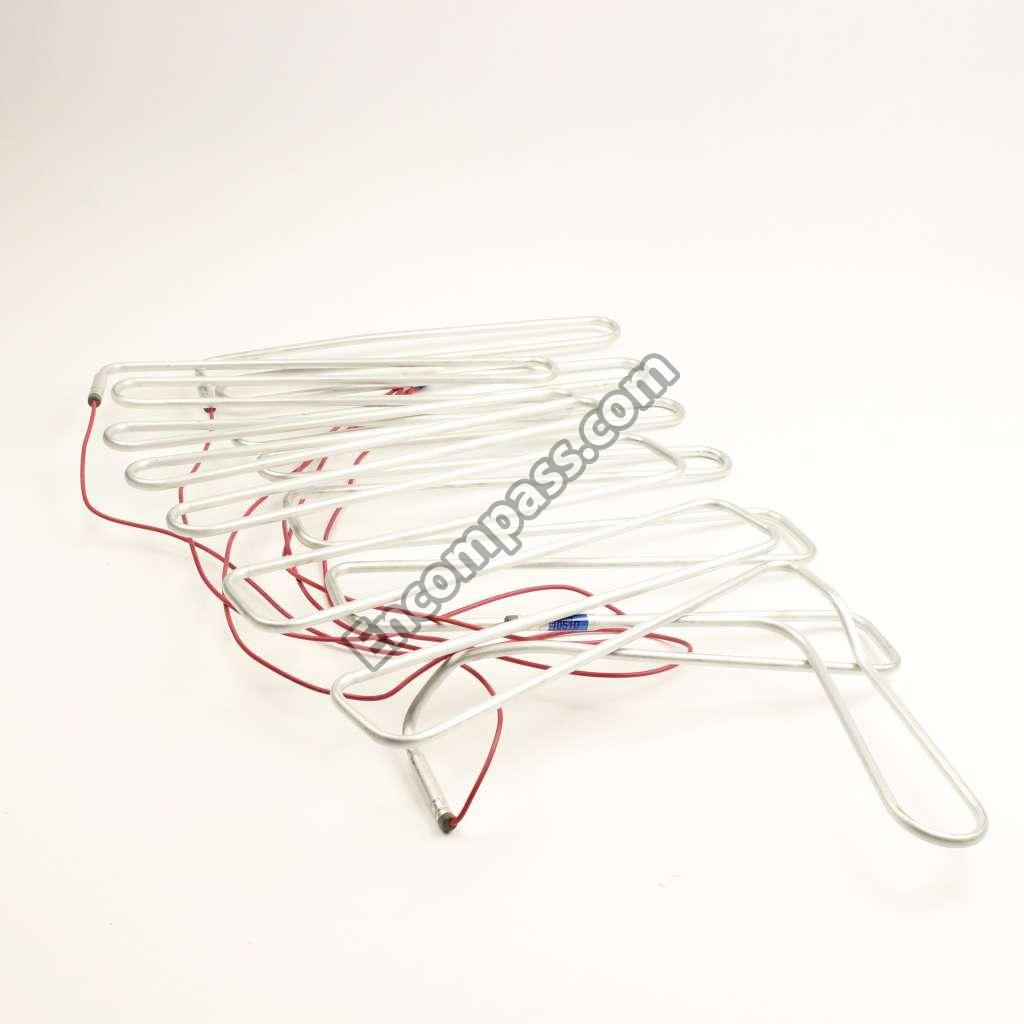

5300JB1051D 5300JB1051D HEATER,SHEATH [408A]
4775JA2013A 4775JA2013A HINGE ASSEMBLY,LOWER [272A]
4775JA2014B 4775JA2014B HINGE ASSEMBLY,LOWER [272B]
4775JA2012A 4775JA2012A HINGE ASSEMBLY,UPPER
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET [607A]
4930JA2048C 4930JA2048C HOLDER,BUTTON [280C]
4930JA3034A 4930JA3034A HOLDER,DRIER [317B]
4930JA2050A 4930JA2050A HOLDER,HANDLE [205G]
4930JA3043A 4930JA3043A HOLDER,LEVER [276B]
4930JA3054A 4930JA3054A HOLDER,PIPE [627A]
4930JA2023B 4930JA2023B HOLDER,SHELF [145A]
5989JA1001A 5989JA1001A ICE MAKER ASSEMBLY,KIT [600A]
5988JA1001B 5988JA1001B ICE MAKER,UNIT [605A]
5989JA1002D 5989JA1002D INSULATION,REAR
4826JA3008A 4826JA3008A INSULATION,SPACER [320A]
4826JA2005A 4826JA2005A INSULATION,SPACER [320B]
6632JB3001A 6632JB3001A INVERTER,DC/AC [824A]
6912JB2003E 6912JB2003E LAMP,INCANDESCENT
6912JB2001D 6912JB2001D LAMP,INCANDESCENT [401B]
6912JB2002G 6912JB2002G LAMP,INCANDESCENT [401C]
4779JA3001A 4779JA3001A LEG ASSEMBLY,ADJUST [103A]
4510JA3004A 4510JA3004A LEVER,HINGE [271B]
4510JA3007A 4510JA3007A LEVER,ICE MAKER [278C]
4510JA3003C 4510JA3003C LEVER,ICE MAKER [604A]
2179JB8001A 2179JB8001A MEMORY EXPANSION [705A]
3013JA1002B 3013JA1002B MONITOR ASSEMBLY [800A]
4681JB1027B 4681JB1027B MOTOR ASSEMBLY,DC,COOLING
4681JB1029A 4681JB1029A MOTOR,DC [403A]
3846JD1007E 3846JD1007E NAME PLATE
1NZZJA3006A 1NZZJA3006A NUT,CUSTOMIZED [616A]
6750C-0004R 6750C-0004R OVERLOAD PROTECT [303C]
3720JB3001A 3720JB3001A PANEL,TOUCH [820D]
6871JB1195A 6871JB1195A PCB ASSEMBLY,DISPLAY [501A]
6871JB1169C 6871JB1169C PCB ASSEMBLY,MAIN [500A]
6871JB1173D 6871JB1173D PCB ASSEMBLY,MAIN [704A]
6871JB2031A 6871JB2031A PCB ASSEMBLY,SUB [520D]
6871JB1139B 6871JB1139B PCB ASSEMBLY,SUB [708A]
6871JB1170C 6871JB1170C PCB ASSEMBLY,SUB [711A]
6870JB3017A 6870JB3017A PCB [520F]
6870JB3016A 6870JB3016A PCB [520G]
6870JB3015A 6870JB3015A PCB [521A]
6870JB3018A 6870JB3018A PCB [825A]
3012JA3002A 3012JA3002A PEN [802A]
1PZZJA3003A 1PZZJA3003A PIN,COMMON [305C]
1PZZJA3019C 1PZZJA3019C PIN,COMMON [822A]
1PZZJA3019B 1PZZJA3019B PIN,COMMON [822B]
5201JA3011D 5201JA3011D PIPE ASSEMBLY,INJECT [616E]
5201JA1038A 5201JA1038A PIPE ASSEMBLY,JOINT [310B]
5200JA1018A 5200JA1018A PIPE,JOINT [310A]
6411JB1024B 6411JB1024B POWER CORD ASSEMBLY [411A]
J469-00030A J469-00030A RACK [146A]
6711JB3001A 6711JB3001A REMOTE CONTROLLER ASSEMBLY [718A]
4581JA3001A 4581JA3001A ROLLER ASSEMBLY [102A]
4580JA3022A 4580JA3022A ROLLER [160F]
4580JA3021A 4580JA3021A ROLLER [305B]
6957JB3001G 6957JB3001G S/W,SYSTEM PROGRAM [707A]
6501JB2007B 6501JB2007B SENSOR ASSEMBLY [510A]

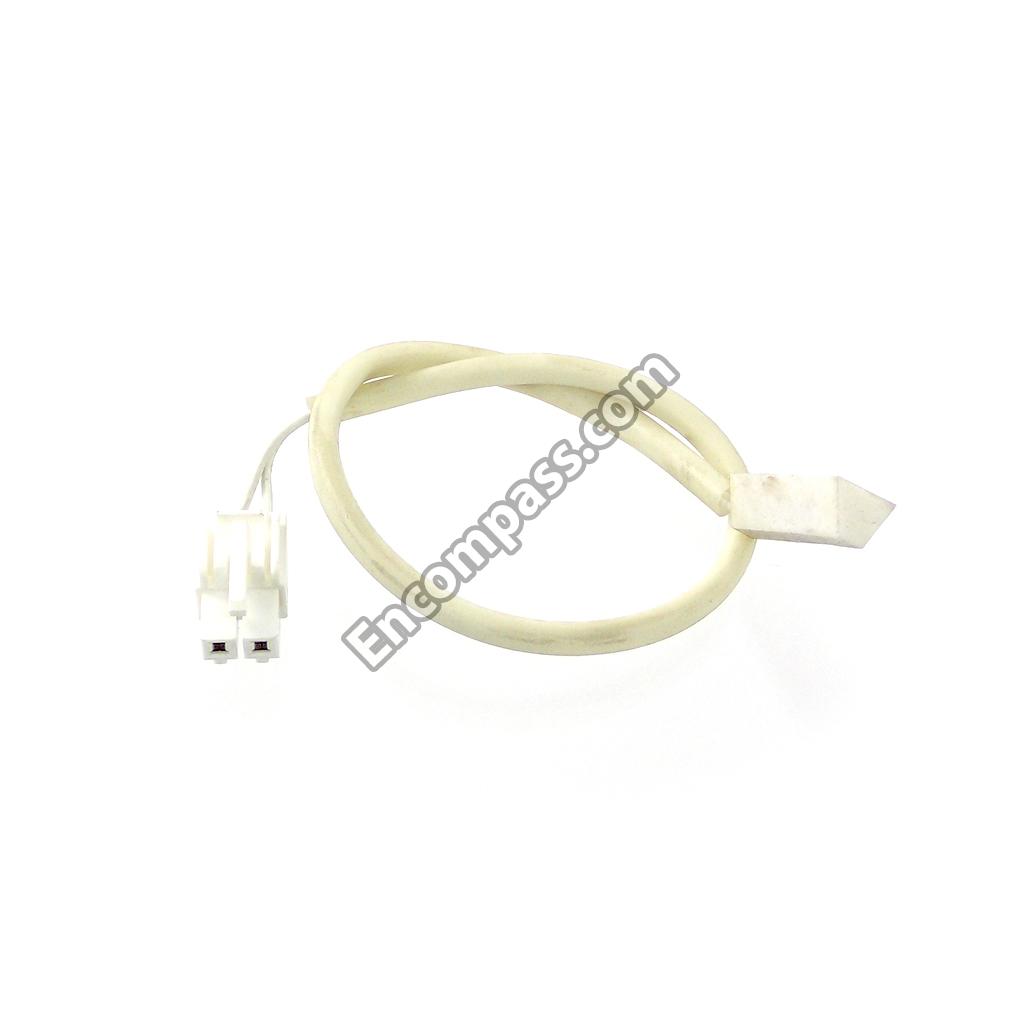

6500JB2004A 6500JB2004A SENSOR [510B]
3858JA3005A 3858JA3005A SHEET,DUCT [278F]
5027JA2025B 5027JA2025B SHELF ASSEMBLY,NET [141C]
5027JA2025C 5027JA2025C SHELF ASSEMBLY,NET [142C]
5027JA1024D 5027JA1024D SHELF ASSEMBLY,REFRIGERATOR [140B]
5027JA2029J 5027JA2029J SHELF ASSEMBLY,REFRIGERATOR [141A]
5027JA2029K 5027JA2029K SHELF ASSEMBLY,REFRIGERATOR [142A]
5026JA1147D 5026JA1147D SHELF,FREEZER [120A]
4999JA2017A 4999JA2017A SHROUD ASSEMBLY,FREEZER [137A]
4999JA2007A 4999JA2007A SHROUD ASSEMBLY,FREEZER [137B]
4999JA2018D 4999JA2018D SHROUD ASSEMBLY,FREEZER [137C]
5070JA2001E 5070JA2001E SKIRT,LOWER [105D]
6708JB2001A 6708JB2001A SMPS,AC/DC [709A]
EBE60661303 EBE60661303 SOLENOID ASSEMBLY
6421JA3001D 6421JA3001D SOLENOID ASSEMBLY [614A]
6421JB2002R 6421JB2002R SOLENOID,REVERSING,VALVE [405A]
6400M00003A 6400M00003A SPEAKER,MID,RANGE [721A]
4970JA3004C 4970JA3004C SPRING
4970JA3004E 4970JA3004E SPRING [823A]
4970JA3011A 4970JA3011A SPRING,LEVER [276A]
4J03277A 4J03277A STOPPER,COMPRESSOR [314A]
4620JA2003B 4620JA2003B STOPPER,DOOR [203A]
4620JA2003A 4620JA2003A STOPPER,DOOR [233A]
4620JA3006A 4620JA3006A STOPPER,SLIDE [143A]
4980JA3065A 4980JA3065A SUPPORTER,CAMERA [829A]
4980JA1016B 4980JA1016B SUPPORTER,CASE [212A]
4980JA1017B 4980JA1017B SUPPORTER,CASE [242A]
4980JA2019B 4980JA2019B SUPPORTER,GEAR MOTOR [612C]
4980JA3064A 4980JA3064A SUPPORTER,HDD [706A]
4980JA3068A 4980JA3068A SUPPORTER,HOUSING [804A]
6600JB3001C 6600JB3001C SWITCH,MICRO [402C]
6600JB1010K 6600JB1010K SWITCH,PUSH BUTTON
6600JB1010A 6600JB1010A SWITCH,PUSH BUTTON [402A]
6600JB1005F 6600JB1005F SWITCH,PUSH BUTTON [402B]
6600JB3003B 6600JB3003B SWITCH,ROCKER [406B]
4838JA1004A 4838JA1004A TANK,WATER
6749JA2008T 6749JA2008T THERMISTOR ASSEMBLY,PTC [303A]
EBG32952202 EBG32952202 THERMISTOR ASSEMBLY,PTC [303B]
3391JA2012F 3391JA2012F TRAY ASSEMBLY,DRAIN [312A]
3391JA1057B 3391JA1057B TRAY ASSEMBLY,DRAWER [125A]
3391JA1058C 3391JA1058C TRAY ASSEMBLY,DRAWER [126A]
3391JA1025C 3391JA1025C TRAY ASSEMBLY,SNACK [170A]
3391JA1022C 3391JA1022C TRAY ASSEMBLY,SNACK [170B]
3391JA1023E 3391JA1023E TRAY ASSEMBLY,VEGETABLE [160A]
3391JA1021E 3391JA1021E TRAY ASSEMBLY,VEGETABLE [160B]
3391JA1024C 3391JA1024C TRAY ASSEMBLY,VEGETABLE [175A]
3391JA1021F 3391JA1021F TRAY ASSEMBLY,VEGETABLE [175B]
3390JA1084B 3390JA1084B TRAY,DRAWER [126C]
3390JA1124A 3390JA1124A TRAY,DRIP [308A]
3390JA1086A 3390JA1086A TRAY,EGG [147B]
3390JA1150A 3390JA1150A TRAY,ICE [601A]
3390JA1087B 3390JA1087B TRAY,SNACK [170C]
5251JA3002A 5251JA3002A TUBE ASSEMBLY,DRAIN [140A]
5040JA2011A 5040JA2011A TUBE,INLET [618A]
5210JA3005A 5210JA3005A TUBE,PLASTIC
MJU62070602 MJU62070602 TUBE,PLASTIC
AJR72929602 AJR72929602 TUBE,PLASTIC [616B]
5221JQ2002X 5221JQ2002X TUBE,PLASTIC [616D]
6701JB3002A 6701JB3002A TUNER,UNCLASSIFIED
5221JA2006D 5221JA2006D VALVE ASSEMBLY,WATER [619A]
3790A30011A 3790A30011A WINDOW,REMOTE CONTROL [722A]
Main Menu x
