Model Image
Manufacturer

LG

Model Number

LRTN19320WW

Description

Lrtn19320ww

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3103JJ1001K 3103JJ1001K BASE ASSEMBLY,COMPRESSOR [315A]
5004JJ1017A 5004JJ1017A BASKET,DOOR [205A]
5004JJ1015A 5004JJ1015A BASKET,DOOR [205D]
5004JJ1035A 5004JJ1035A BASKET,DOOR [241B]
5004JJ1030A 5004JJ1030A BASKET,DOOR [241C]
5004JJ1026A 5004JJ1026A BASKET,DOOR [241D]
5004JJ1028A 5004JJ1028A BASKET,DOOR [241E]
5004JJ2002A 5004JJ2002A BASKET,TILT [205B]
5004JJ2003A 5004JJ2003A BASKET,TILT [205C]
1BZZJA2002A 1BZZJA2002A BOLT,COMMON [B04]
4810JJ3003A 4810JJ3003A BRACKET,MOTOR [405A]
5075JJ1001B 5075JJ1001B BUCKET ASSEMBLY,ICE [131A]
5074JJ1006A 5074JJ1006A BUCKET,ICE [131A]
4984JJ3003A 4984JJ3003A BUSH [286A]
5006JA3085A 5006JA3085A CAP,COVER [623H]
5006JA3034A 5006JA3034A CAP,DRAIN TUBE [327A]
5006JJ3007A 5006JJ3007A CAP,HANDLE [281D]
5006JJ3010A 5006JJ3010A CAP,HANDLE [282X]
5006JJ3003A 5006JJ3003A CAP,HINGE [281E]
5006JJ2001A 5006JJ2001A CAP,HINGE [282E]
5006JJ3004A 5006JJ3004A CAP,HINGE [282H]
5006JA3055A 5006JA3055A CAP,HINGE [282Z]
5006JA3080A 5006JA3080A CAP,SCREW [284C]
0CZZJB2010H 0CZZJB2010H CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [410G]

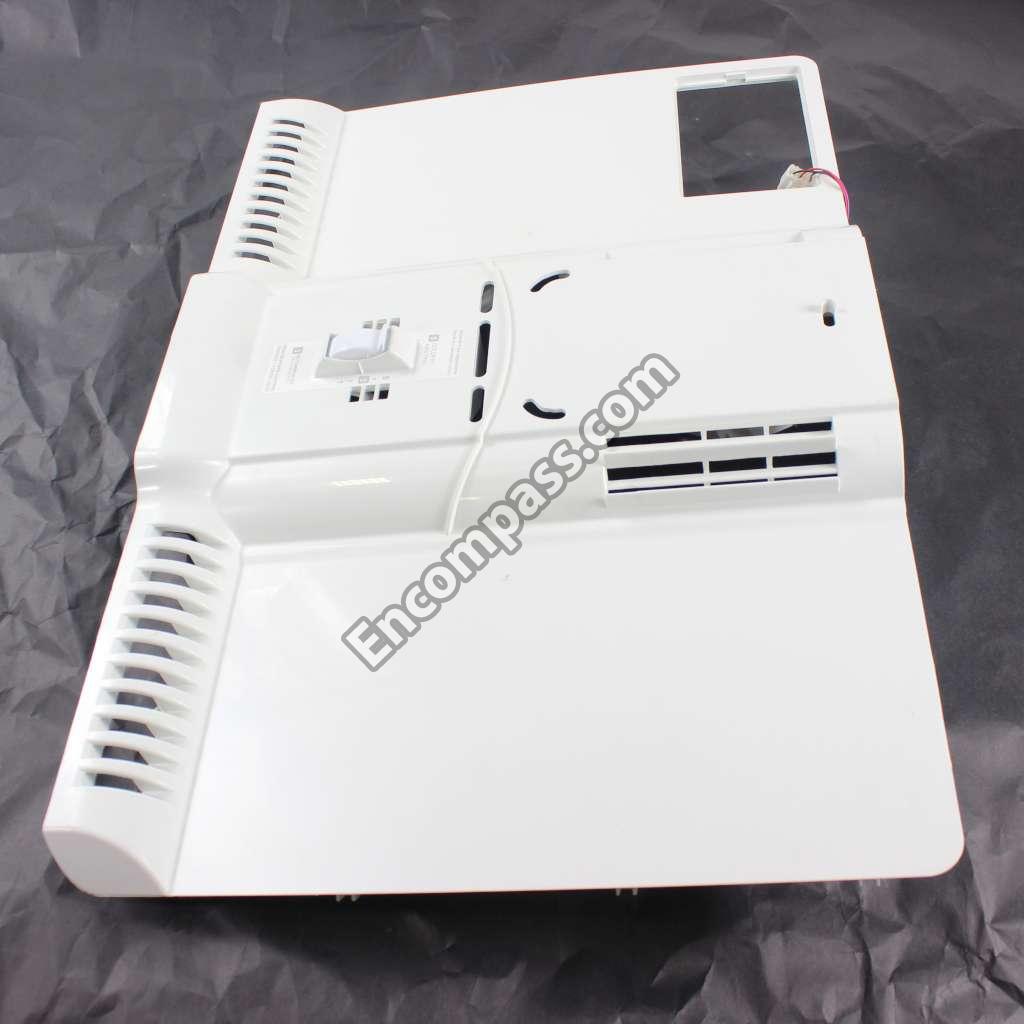

4995JJ1003F 4995JJ1003F CASE ASSEMBLY,CONTROL REFRIGERATOR [120A]
4994JJ0002A 4994JJ0002A CASE,CONTROL REFRIGERATOR [120B]
3110JJ2002A 3110JJ2002A CASE,DISPLAY [503D]
TCA35931726 TCA35931726 COMPRESSOR,SET ASSEMBLY
TCA00271707 TCA00271707 COMPRESSOR,SET ASSEMBLY
5403JJ1010A 5403JJ1010A CONDENSER ASSEMBLY,WIRE [323B]
4781JK2001A 4781JK2001A CONTROLLER ASSEMBLY [401A]
3550JJ0005A 3550JJ0005A COVER ASSEMBLY,LOWER [103C]
3551JJ2008A 3551JJ2008A COVER ASSEMBLY,MACHINERY(REAR) [304A]
3550JL1008B 3550JL1008B COVER,FILTER [611C]
3550JJ2023A 3550JJ2023A COVER,GRILLE FAN [284A]
3550JJ2013A 3550JJ2013A COVER,HINGE [281A]
3550JJ2004B 3550JJ2004B COVER,HINGE [610A]
3550JJ2019B 3550JJ2019B COVER,LAMP [158A]
3550JJ2019A 3550JJ2019A COVER,LAMP [158C]
3550JJ2017C 3550JJ2017C COVER,LAMP [158E]
3550JJ1027A 3550JJ1027A COVER,MAGIC ROOM [167B]
3550JJ2069A 3550JJ2069A COVER,PCB [501F]
3550JJ2016A 3550JJ2016A COVER,PCB [501F]
3550JA2042C 3550JA2042C COVER,PTC [310A]
3550JJ2020A 3550JJ2020A COVER,SENSOR [610A]

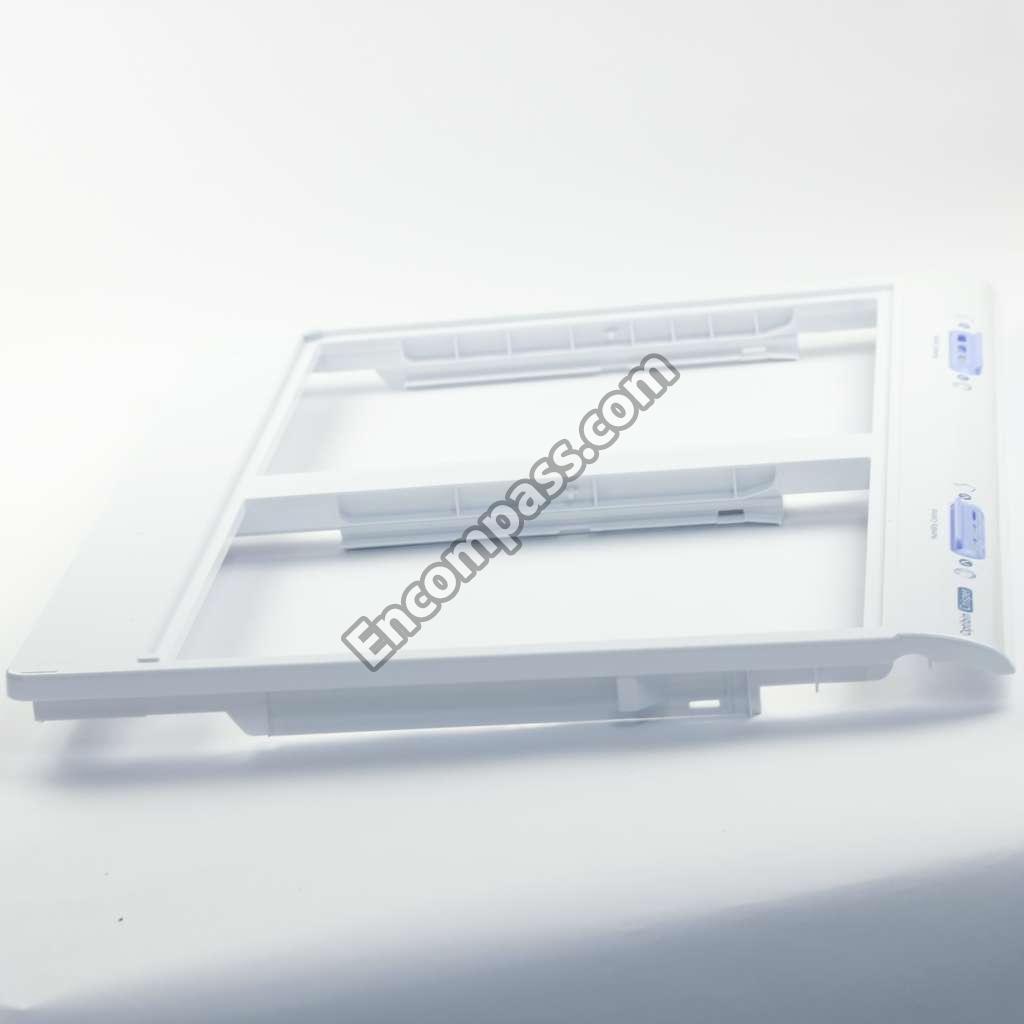

3550JJ2025A 3550JJ2025A COVER,TRAY [161A]
3550JJ1024A 3550JJ1024A COVER,TRAY [241A]
5005JJ2010F 5005JJ2010F COVER,TRAY [241A]
3550JL2003J 3550JL2003J COVER,TRAY [241A]
5005JJ2013D 5005JJ2013D COVER,TRAY [241A]

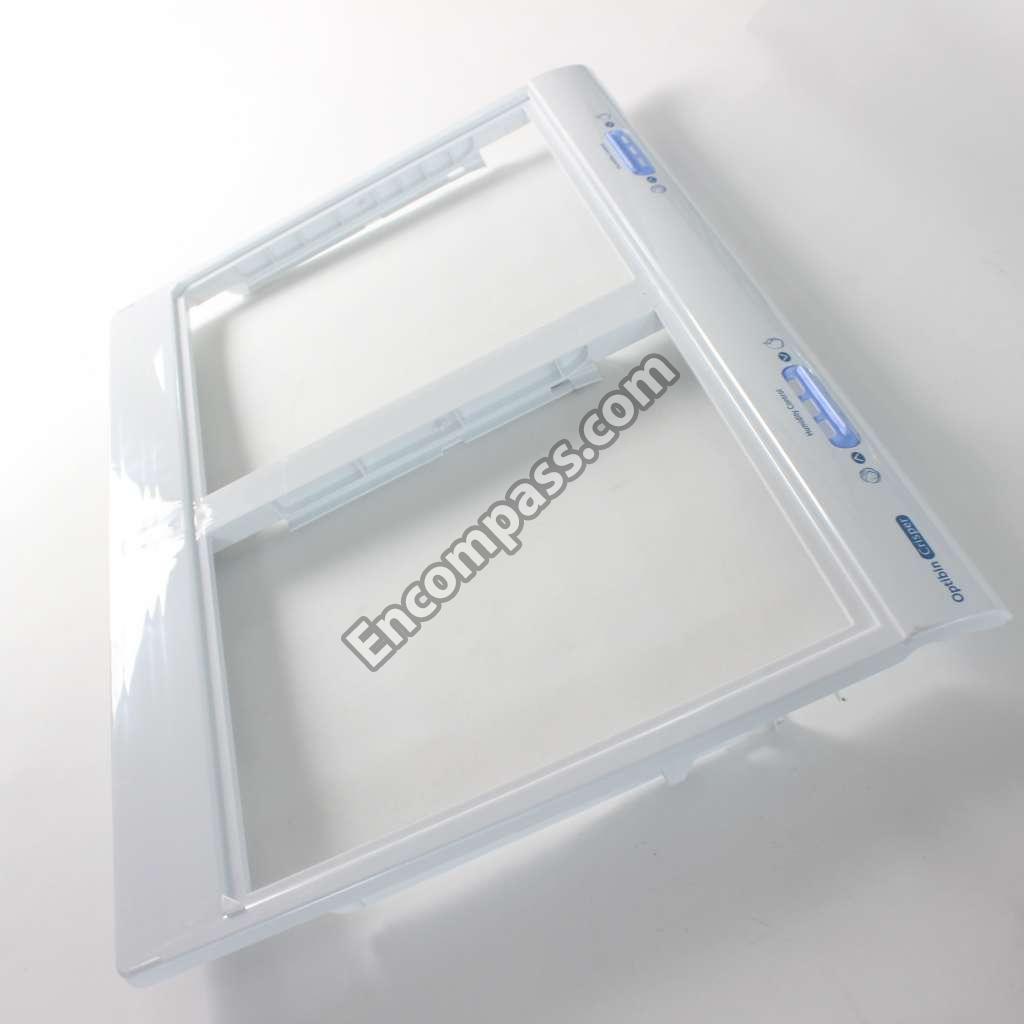

3551JJ1069D 3551JJ1069D COVER,TV [154A]
3551JJ1069S 3551JJ1069S COVER,TV [154A]
3551JJ1069C 3551JJ1069C COVER,TV [154A]

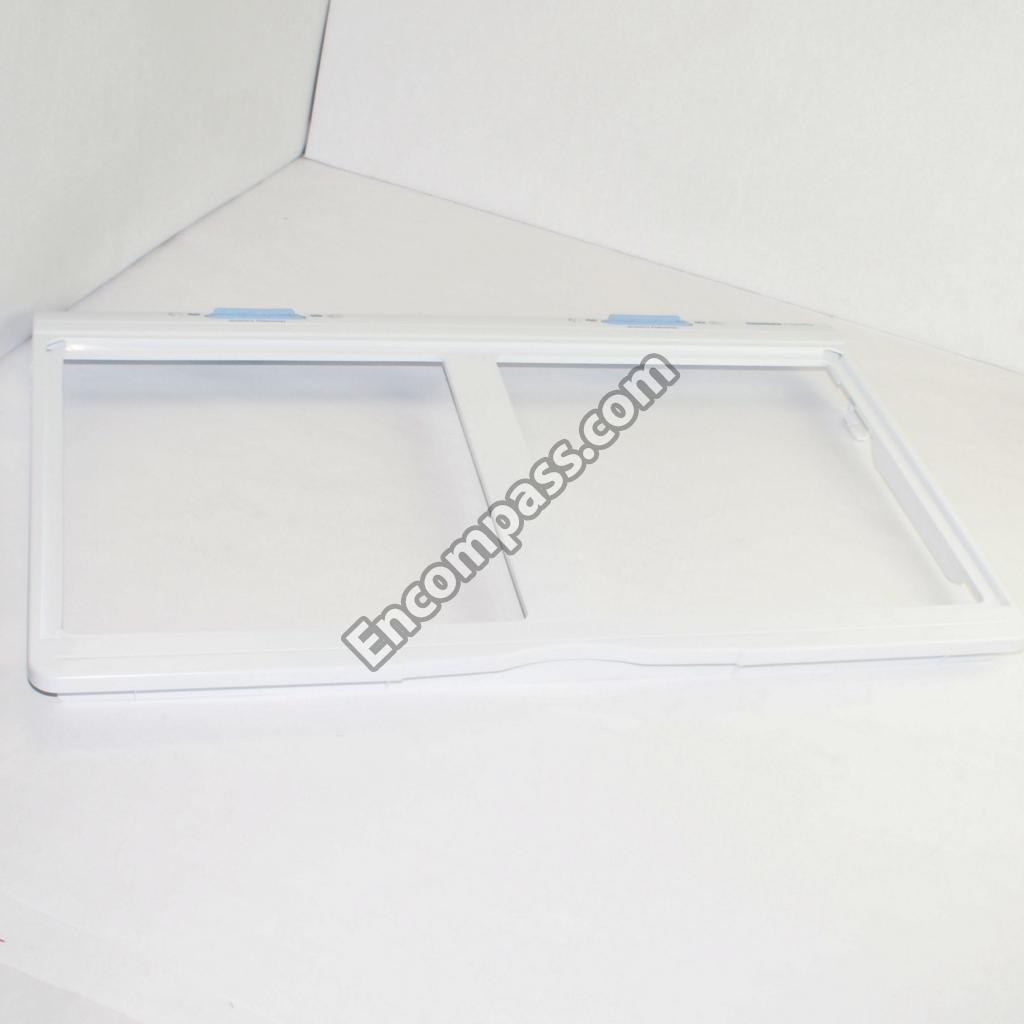

3550JJ1025A 3550JJ1025A COVER,TV [154A]
3551JJ1005X 3551JJ1005X COVER,TV [160B]
3550JJ2024A 3550JJ2024A COVER,VALVE [619B]
4901JK1001A 4901JK1001A DAMPER ASSEMBLY,MOTOR [116A]
5040JA3031A 5040JA3031A DAMPER,COMPRESSOR [312A]
5040JA3049A 5040JA3049A DAMPER,MOTOR SUPPORT [405C]
4J03020A 4J03020A DAMPER,PIPE [328A]
4J04328A 4J04328A DAMPER,PIPE [328B]
3806JL1004E 3806JL1004E DECOR,DUCT [234B]
3806JL1004F 3806JL1004F DECOR,DUCT [234B]
3806JL1004D 3806JL1004D DECOR,DUCT [234B]
3806JL2006E 3806JL2006E DECOR,DUCT [282F]
3806JJ2012A 3806JJ2012A DECOR,TRAY
3806JJ2011A 3806JJ2011A DECOR,TRAY [160B]
3581JJ8012A 3581JJ8012A DOOR ASSEMBLY,FREEZER [200A]
3581JJ8030A 3581JJ8030A DOOR ASSEMBLY,REFRIGERATOR [230A]
5433JJ1003A 5433JJ1003A DOOR FOAM ASSEMBLY,FREEZER [201A]
5433JJ0035A 5433JJ0035A DOOR FOAM ASSEMBLY,REFRIGERATOR [231A]
6621JK2001A 6621JK2001A DRAWING,ASSEMBLY [408A]
ADH73150210 ADH73150210 DRIER ASSEMBLY
ADH73150208 ADH73150208 DRIER ASSEMBLY [317A]
5851JJ2002F 5851JJ2002F DRIER ASSEMBLY [317A]

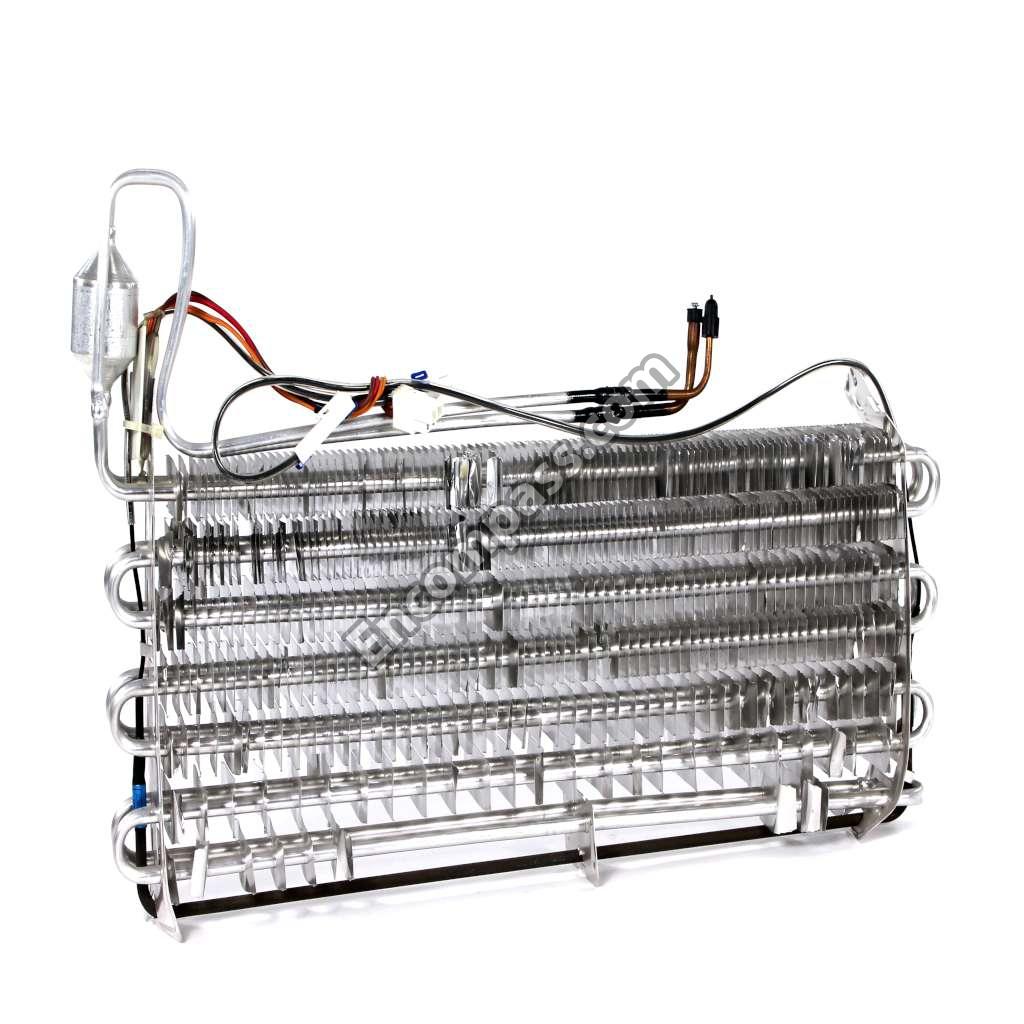

5421JJ0003A 5421JJ0003A EVAPORATOR ASSEMBLY [301A]
5901JJ1003A 5901JJ1003A FAN ASSEMBLY [329A]
5901JJ1004B 5901JJ1004B FAN ASSEMBLY [329C]

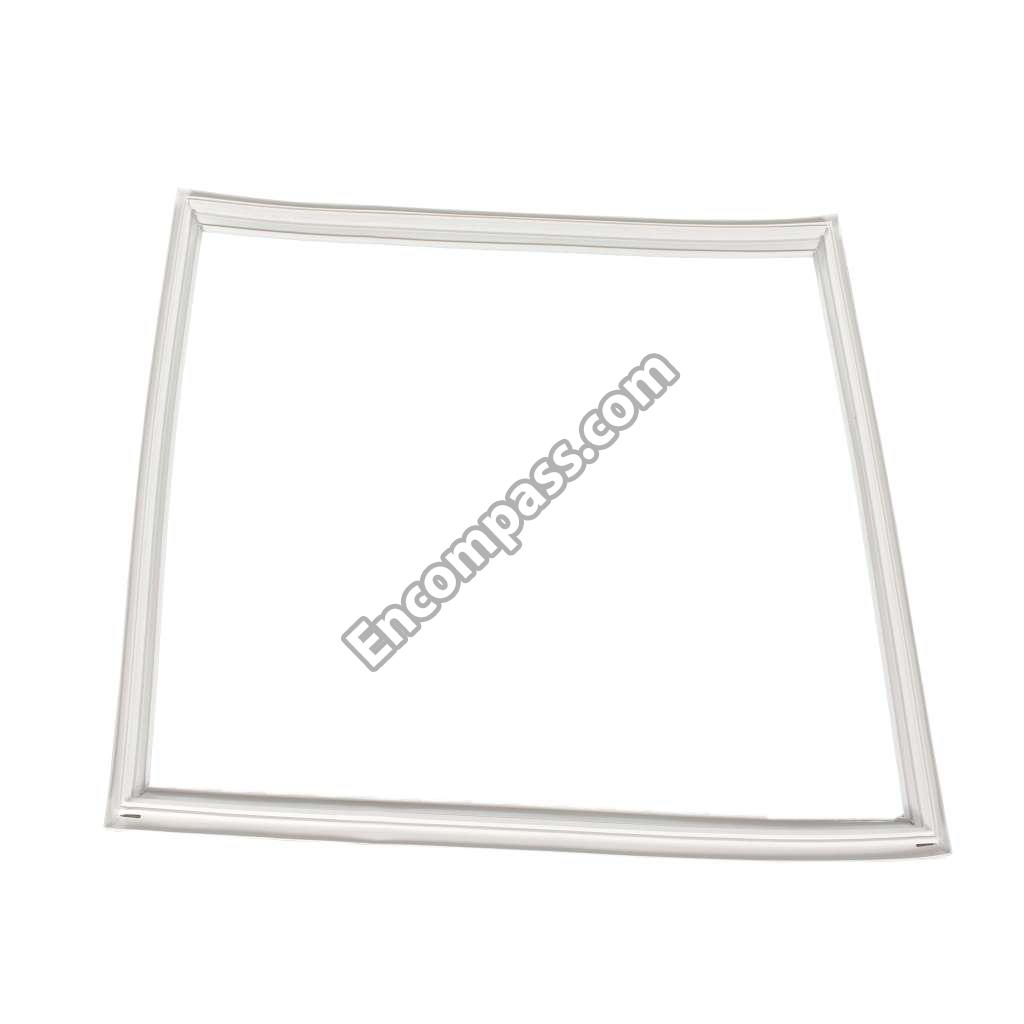

ADX52752632 ADX52752632 GASKET ASSEMBLY,DOOR
ADX52752651 ADX52752651 GASKET ASSEMBLY,DOOR [203A]
4987JJ1004S 4987JJ1004S GASKET ASSEMBLY,DOOR [233A]
4986JJ2003A 4986JJ2003A GASKET,BETTA [113D]
3531JJ1002A 3531JJ1002A GRILLE ASSEMBLY,FAN [332A]
3531JJ1005C 3531JJ1005C GRILLE ASSEMBLY,FAN [332A]
3531JJ1006S 3531JJ1006S GRILLE ASSEMBLY,FAN [332A]
4975JJ2002A 4975JJ2002A GUIDE ASSEMBLY,RAIL [128A]
4975JJ2002B 4975JJ2002B GUIDE ASSEMBLY,RAIL [128B]
4975JJ2003C 4975JJ2003C GUIDE ASSEMBLY,RAIL [128B]
4974JJ1009A 4974JJ1009A GUIDE,FAN [319C]
4974JJ2021A 4974JJ2021A GUIDE,PITCHER [237A]
4974JJ2006A 4974JJ2006A GUIDE,RAIL [612A]
4974JA3031B 4974JA3031B GUIDE,STOPPER [210B]
3650JJ2005A 3650JJ2005A HANDLE,BASE [212C]
3650JJ1011A 3650JJ1011A HANDLE,DECOR [244B]

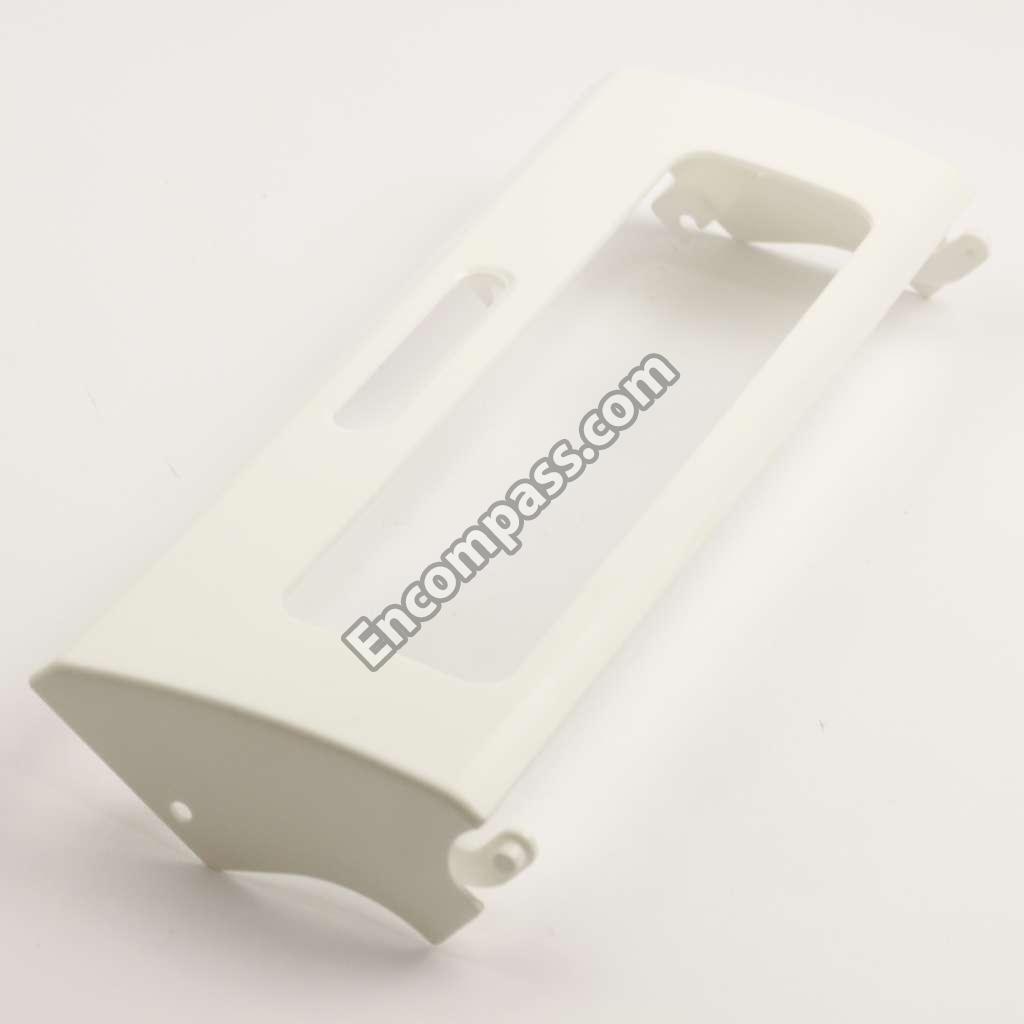

3650JJ1008A 3650JJ1008A HANDLE,FREEZER
3650JJ2003E 3650JJ2003E HANDLE,REAR [103A]
3650JJ2003A 3650JJ2003A HANDLE,REAR [103B]
3650JJ1009A 3650JJ1009A HANDLE,REFRIGERATOR [244A]
6877JK2011D 6877JK2011D HARNESS ASSEMBLY
4775JJ2002A 4775JJ2002A HINGE ASSEMBLY,CENTER [282B]
AEH72915201 AEH72915201 HINGE ASSEMBLY,LOWER [283B]

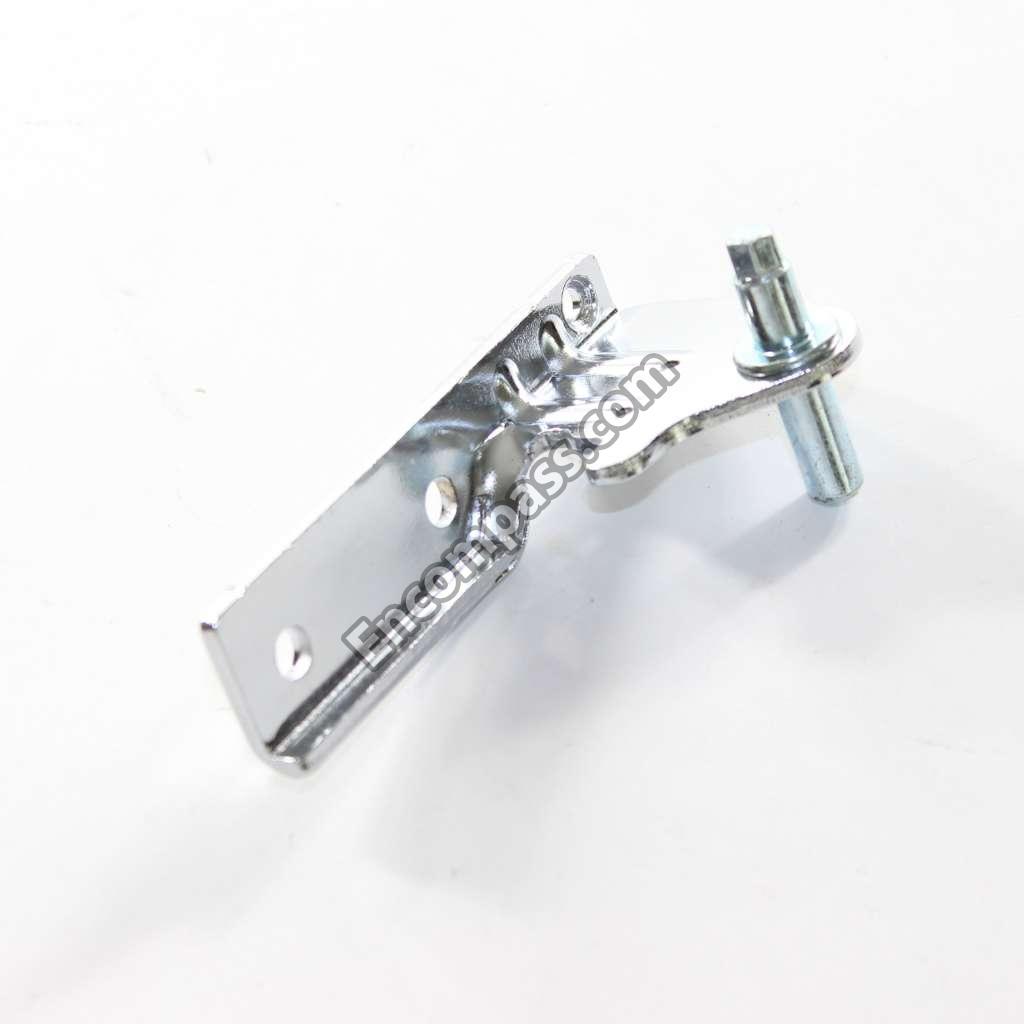

4775JJ2003B 4775JJ2003B HINGE ASSEMBLY,UPPER [281B]
4930JJ2008A 4930JJ2008A HOLDER,BRACKET [113A]
4930JJ2021A 4930JJ2021A HOLDER,COVER(LOWER)
4930JA3034A 4930JA3034A HOLDER,DRIER [318A]
4930JJ2005A 4930JJ2005A HOLDER,GASKET [113B]
4930JJ2003D 4930JJ2003D HOLDER,SHELF [145A]
4930JJ2004D 4930JJ2004D HOLDER,SHELF [145B]
4940JA2026F 4940JA2026F KNOB,SHUTTER
4940JL2001B 4940JL2001B KNOB,SHUTTER [110D]
4940JA2026D 4940JA2026D KNOB,SHUTTER [151C]
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [409A]
4779JA2003A 4779JA2003A LEG ASSEMBLY,ADJUST [106A]
4681JB1016J 4681JB1016J MOTOR, AC FREEZING
4680JK1001B 4680JK1001B MOTOR,AC [420A]
MFT61843001 MFT61843001 NAME PLATE
MFT62346508 MFT62346508 NAME PLATE
MFT61843003 MFT61843003 NAME PLATE
4140JD2001C 4140JD2001C NAME PLATE [212G]
MFT62346511 MFT62346511 NAME PLATE [212G]
6750C-0004S 6750C-0004S OVERLOAD PROTECT [309A]
6871JB2044A 6871JB2044A PCB ASSEMBLY,DISPLAY [503B]
6871JB2044B 6871JB2044B PCB ASSEMBLY,DISPLAY [503C]

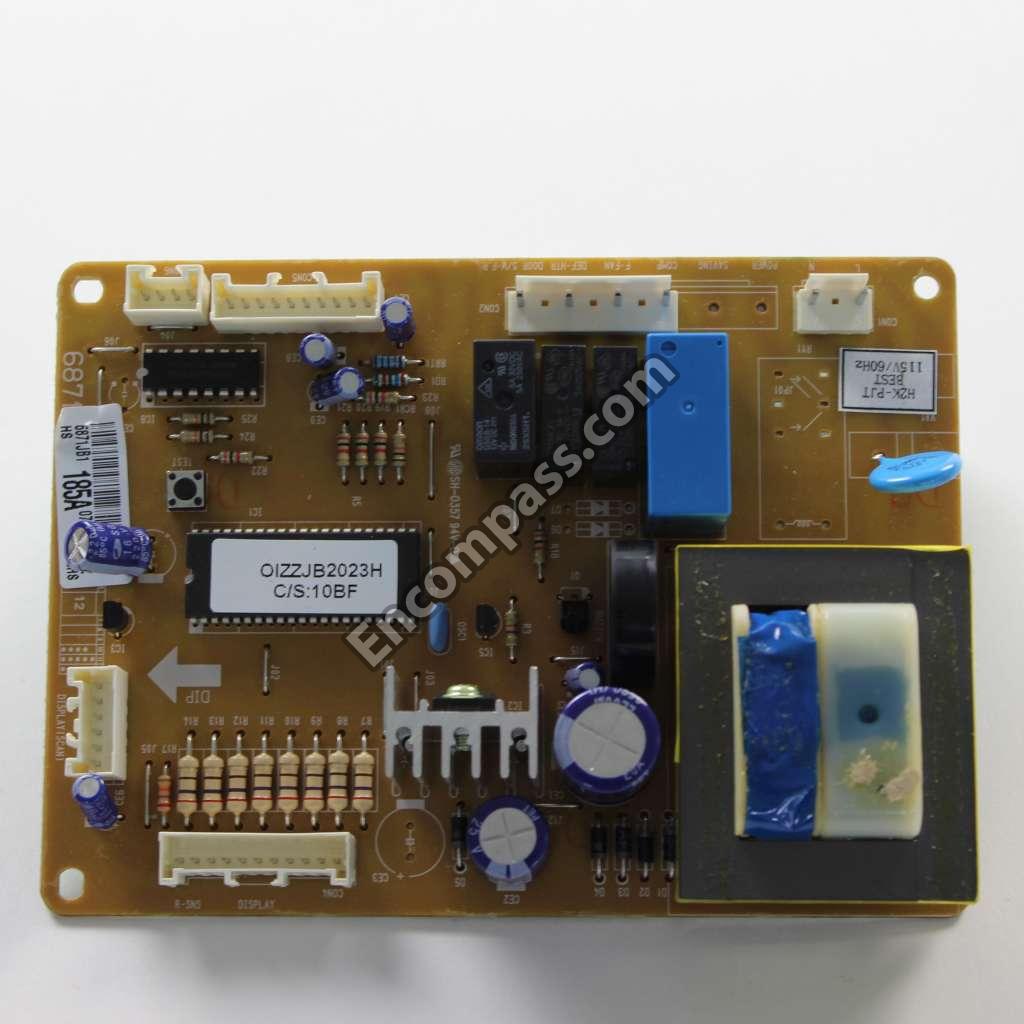

6871JB1185A 6871JB1185A PCB ASSEMBLY,MAIN [501A]
1PZZJJ3002B 1PZZJJ3002B PIN,COMMON [282C]
4J04238A 4J04238A PIN,COMMON [305C]
5200JJ3003E 5200JJ3003E PIPE,JOINT
6411JB1042Y 6411JB1042Y POWER CORD ASSEMBLY [411A]
5218JJ3001A 5218JJ3001A RAIL,SLIDE [103E]
MHA62513601 MHA62513601 ROLLER [305B]
4001JA3001A 4001JA3001A SCREW ASSEMBLY [S20]

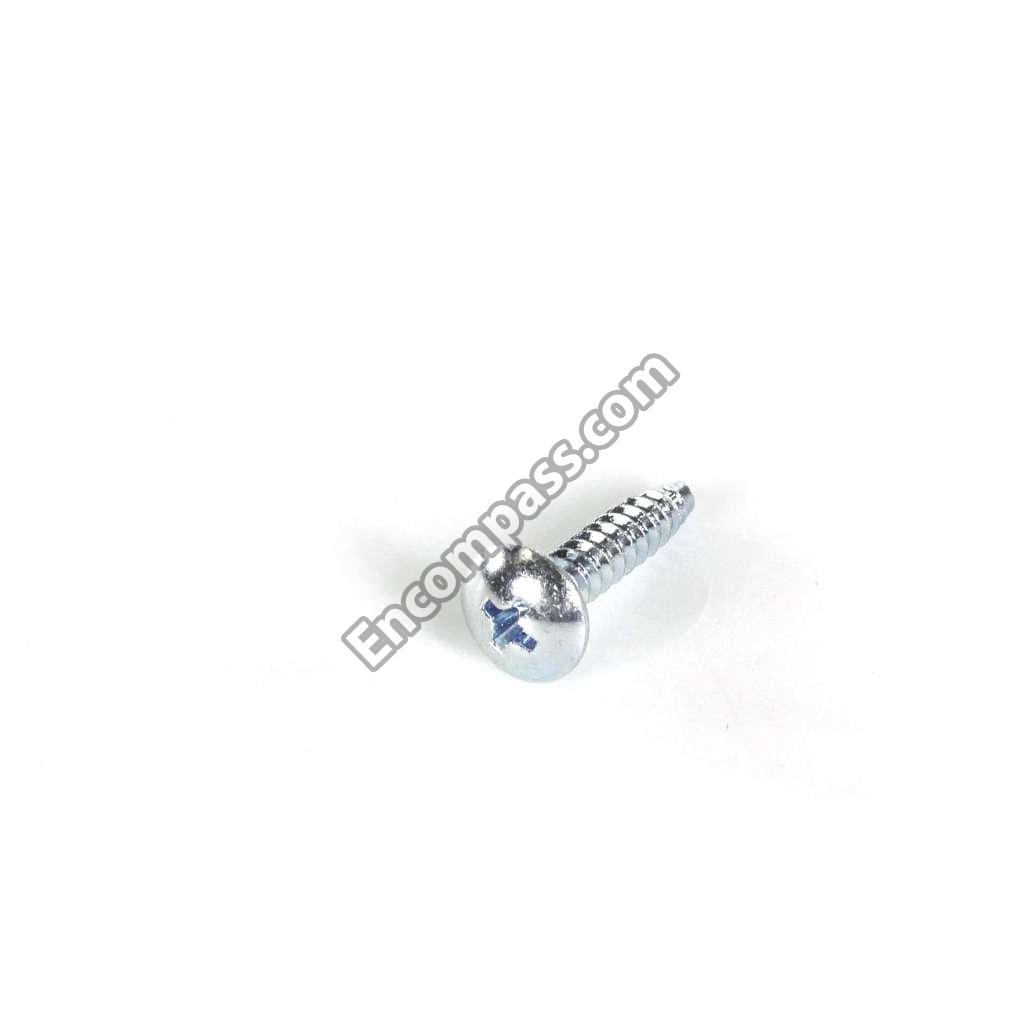

1SZZJJ3010A 1SZZJJ3010A SCREW,CUSTOMIZED

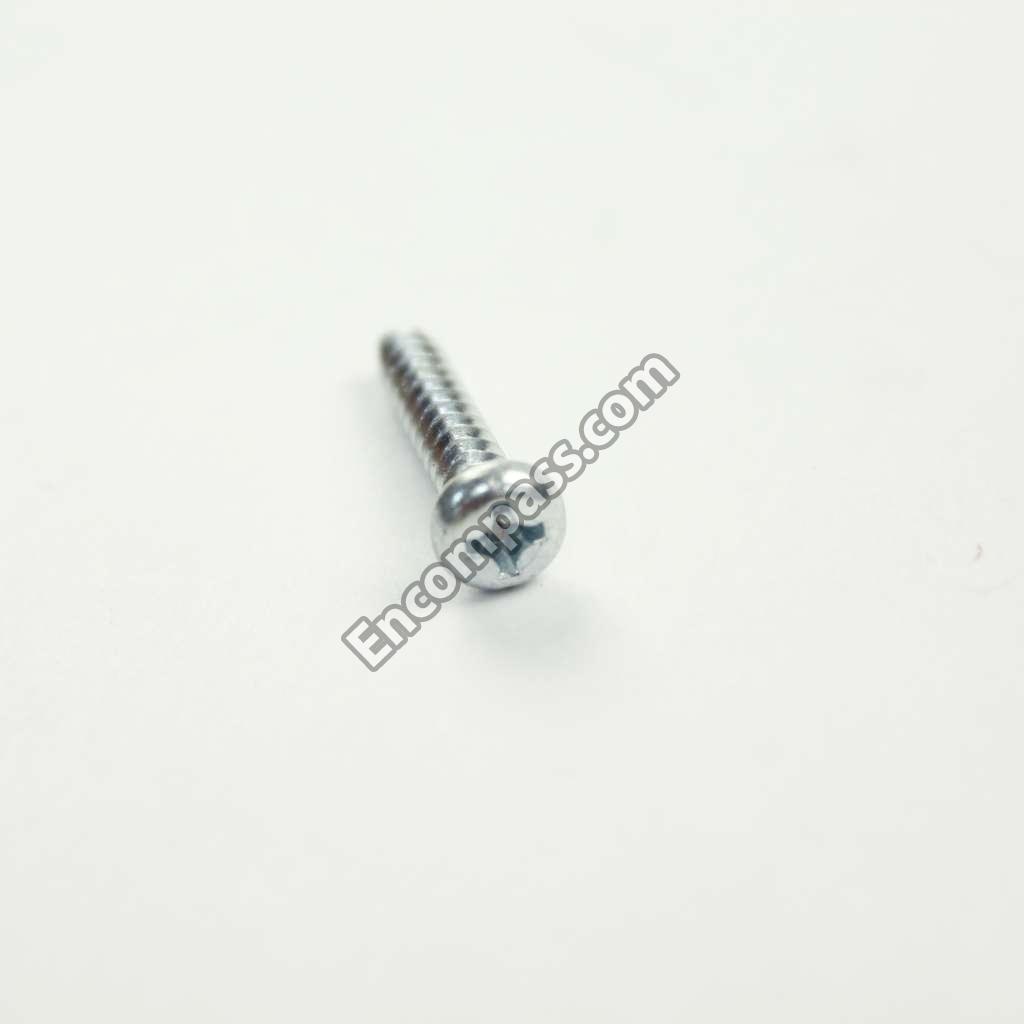

J351-00004L J351-00004L SCREW,CUSTOMIZED [B01]
J351-00004P J351-00004P SCREW,CUSTOMIZED [B03]
4J00415D 4J00415D SCREW,CUSTOMIZED [S01]
4J01425B 4J01425B SCREW,CUSTOMIZED [S05]
4000W4A003A 4000W4A003A SCREW,CUSTOMIZED [S07]
1SZZJA3016A 1SZZJA3016A SCREW,CUSTOMIZED [S09]
3J05696W 3J05696W SCREW,CUSTOMIZED [S14]
4J01424D 4J01424D SCREW,CUSTOMIZED [S16]
4J01425A 4J01425A SCREW,CUSTOMIZED [S22]
1SZZJA3011B 1SZZJA3011B SCREW,CUSTOMIZED [S24]
1SZZJJ3014A 1SZZJJ3014A SCREW,CUSTOMIZED [S25]
1SZZJJ3003D 1SZZJJ3003D SCREW,CUSTOMIZED [S26]
1TCL0302818 1TCL0302818 SCREW,TAPPING [S18]

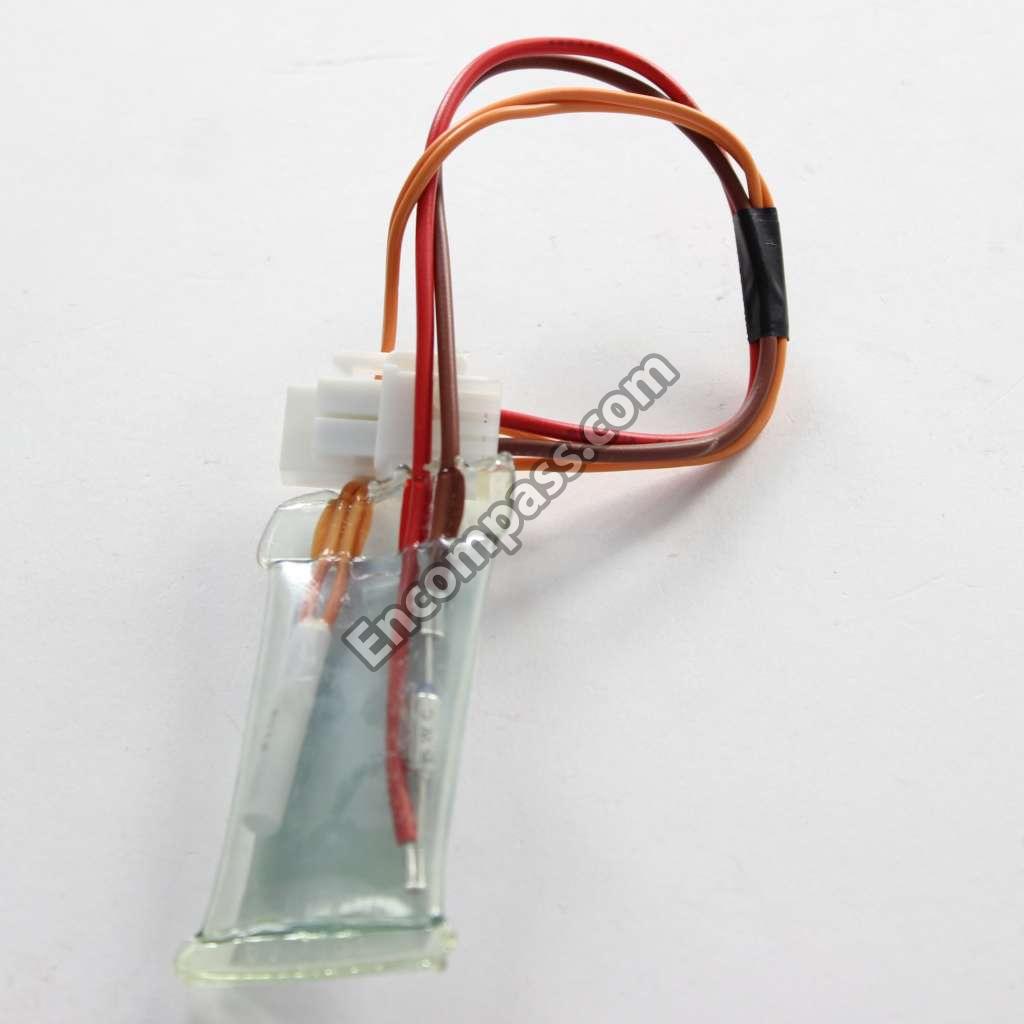

6500JB2001B 6500JB2001B SENSOR [903D]
6500JB2002T 6500JB2002T SENSOR [903E]
5027JJ2005A 5027JJ2005A SHELF ASSEMBLY,NET [141C]
5027JJ1004A 5027JJ1004A SHELF ASSEMBLY,REFRIGERATOR [140B]
5027JJ1014A 5027JJ1014A SHELF ASSEMBLY,REFRIGERATOR [141A]
5027JJ1003A 5027JJ1003A SHELF ASSEMBLY,REFRIGERATOR [141B]
5027JJ1013A 5027JJ1013A SHELF ASSEMBLY,REFRIGERATOR [143E]
5027JJ1013B 5027JJ1013B SHELF ASSEMBLY,REFRIGERATOR [143F]
5026JJ1018A 5026JJ1018A SHELF,FREEZER [149A]
5026JL1001B 5026JL1001B SHELF,FREEZER [149B]
5026JJ2001L 5026JJ2001L SHELF,NET
5026JJ2001G 5026JJ2001G SHELF,NET [140D]
5026JJ2001H 5026JJ2001H SHELF,NET [140E]
AHT72974106 AHT72974106 SHELF,NET [142D]
5026JJ2001M 5026JJ2001M SHELF,NET [142E]
4998JJ1004A 4998JJ1004A SHROUD,FREEZER [330B]
5070JJ3002A 5070JJ3002A SKIRT,LOWER [105F]
4970JA3016A 4970JA3016A SPRING [113C]
4620JA3009A 4620JA3009A STOPPER,COMPRESSOR [314A]
4620JJ2009A 4620JJ2009A STOPPER,DOOR [210A]
4620JJ3006D 4620JJ3006D STOPPER,DOOR [243A]
4620JJ2007A 4620JJ2007A STOPPER,DOOR [283F]
4980JJ1009A 4980JJ1009A SUPPORTER,COVER TV [155B]
6600JB2004F 6600JB2004F SWITCH,PUSH BUTTON

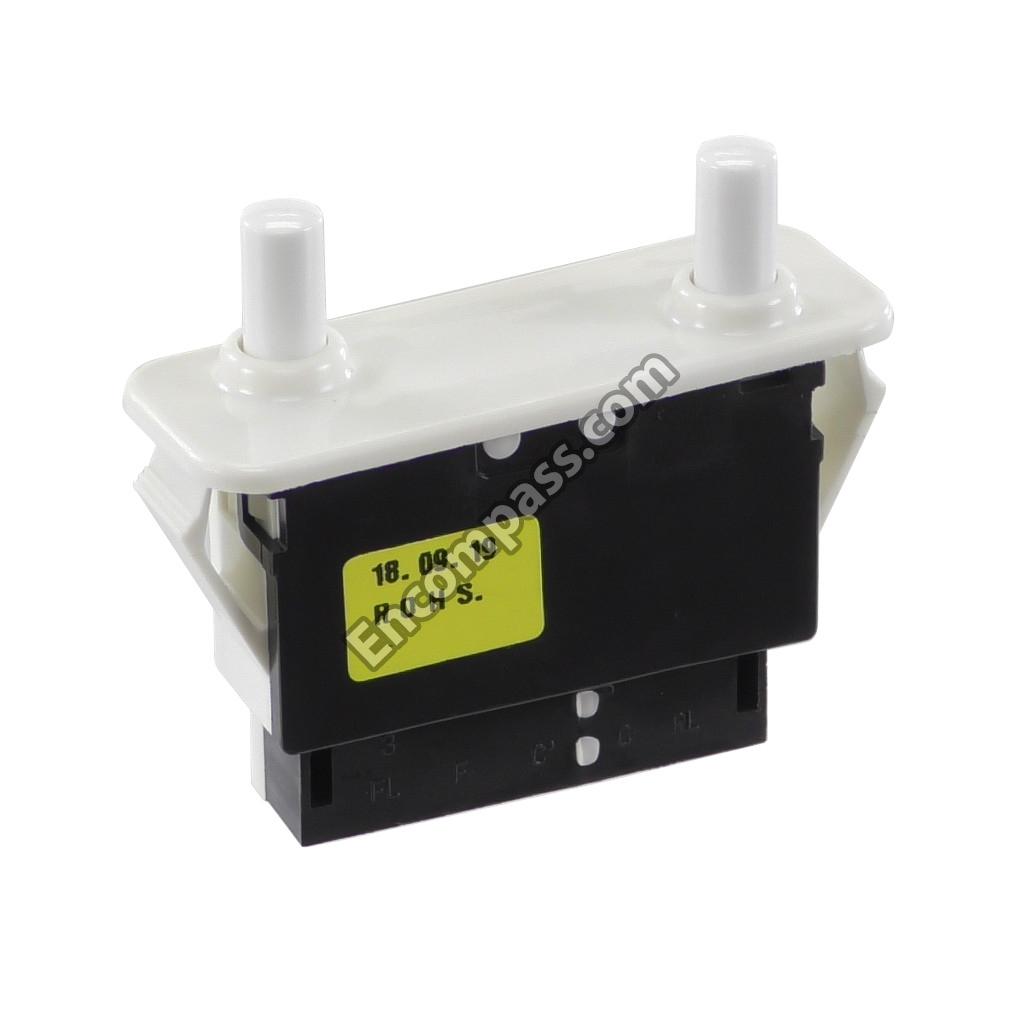

6600JB2004A 6600JB2004A SWITCH,PUSH BUTTON [406B]
6748C-0004D 6748C-0004D THERMISTOR ASSEMBLY,PTC
6749C-0014E 6749C-0014E THERMISTOR ASSEMBLY,PTC [308A]
3391JJ1009B 3391JJ1009B TRAY ASSEMBLY,ICE [125A]
3391JJ2004J 3391JJ2004J TRAY ASSEMBLY,MEAT [170A]
3391JJ2004G 3391JJ2004G TRAY ASSEMBLY,MEAT [170A]
3391JJ2004H 3391JJ2004H TRAY ASSEMBLY,MEAT [170A]
3391JJ1019A 3391JJ1019A TRAY ASSEMBLY,VEGETABLE [151A]
3390JJ0003A 3390JJ0003A TRAY,DRIP [319A]
3390JJ1014A 3390JJ1014A TRAY,EGG [147B]
3390JJ1023A 3390JJ1023A TRAY,ICE [125A]
5251JA3003D 5251JA3003D TUBE ASSEMBLY,DRAIN [105A]
