Model Image
Manufacturer

LG

Model Number

LRTPC2031W

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4681JB1020G 4681JB1020G AC MOTOR
4681JB1018P 4681JB1018P AC MOTOR
4770JA3001A 4770JA3001A BAND
3103JA1015B 3103JA1015B BASE ASSEMBLY,COMPRESSOR
5005JA1001B 5005JA1001B BASKET ASSEMBLY,DOOR
5004JD1111C 5004JD1111C BASKET,DOOR
5004JA1079A 5004JA1079A BASKET,DOOR
5004JD1119A 5004JD1119A BASKET,DOOR
5004JD1110B 5004JD1110B BASKET,DOOR
4810JA3036A 4810JA3036A BRACKET,COVER
4810JA1022A 4810JA1022A BRACKET,ICE MAKER
4810JA3007A 4810JA3007A BRACKET,MOTOR
5075JA1007A 5075JA1007A BUCKET,DAIRY
5074JA1023A 5074JA1023A BUCKET,ICE
5006JA2020B 5006JA2020B CAP,HINGE
5006JA2011H 5006JA2011H CAP,HINGE
5006JA3054A 5006JA3054A CAP,HINGE
5006JA3055A 5006JA3055A CAP,HINGE
0CBZJB2001E 0CBZJB2001E CAPACITOR,ELECTRIC APPLIANCE FILM,BOX
4995JA1022H 4995JA1022H CASE ASSEMBLY,CONTROL REFRIGERATOR
4994JD1037B 4994JD1037B CASE,CONTROL REFRIGERATOR
2521JA1006A 2521JA1006A COMPRESSOR,ASSEMBLY
5403JA1026A 5403JA1026A CONDENSER ASSEMBLY,WIRE
6615JB2003F 6615JB2003F CONTROLLER ASSEMBLY
6923JB1001A 6923JB1001A CONTROLLER ASSEMBLY,CIRCUIT
3551JA2066A 3551JA2066A COVER ASSEMBLY,LOWER
3550JA1117A 3550JA1117A COVER ASSEMBLY,MACHINERY(REAR)
3551JA2074A 3551JA2074A COVER ASSEMBLY,TRAY
3551JA1027B 3551JA1027B COVER ASSEMBLY,TV
3550JA1077A 3550JA1077A COVER,BUCKET
3550JA2132A 3550JA2132A COVER,HINGE
3550JA2096A 3550JA2096A COVER,LAMP
3550JA2095A 3550JA2095A COVER,PIPE
3550JA2158A 3550JA2158A COVER,PTC
3550JA3095A 3550JA3095A COVER,SENSOR
5040JA3044A 5040JA3044A DAMPER,COMPRESSOR
J756-00008B J756-00008B DAMPER,MOTOR SUPPORT
4J03020A 4J03020A DAMPER,PIPE
3581JA1045A 3581JA1045A DOOR ASSEMBLY,FREEZER
3581JA1046M 3581JA1046M DOOR ASSEMBLY,REFRIGERATOR
6621JB2005A 6621JB2005A DRAWING,ASSEMBLY
5851JA2008R 5851JA2008R DRIER ASSEMBLY
5421JA1032A 5421JA1032A EVAPORATOR ASSEMBLY
5901JA1005B 5901JA1005B FAN ASSEMBLY
5901JA1013A 5901JA1013A FAN ASSEMBLY
4987JA1032X 4987JA1032X GASKET ASSEMBLY,DOOR
4987JA1032W 4987JA1032W GASKET ASSEMBLY,DOOR
4986JA2024A 4986JA2024A GASKET,DOOR
5400JA2040E 5400JA2040E GASKET,FOAM
3531JA1018L 3531JA1018L GRILLE ASSEMBLY,FAN
4974JA2033A 4974JA2033A GUIDE,DUCT
4974JA1046A 4974JA1046A GUIDE,FAN
3650JA2027A 3650JA2027A HANDLE,BASE
3650JA1099A 3650JA1099A HANDLE,DECOR
3650JA1069A 3650JA1069A HANDLE,FREEZER
3650JA2003T 3650JA2003T HANDLE,REAR
3650JA2003S 3650JA2003S HANDLE,REAR
3650JA1070A 3650JA1070A HANDLE,REFRIGERATOR
5300JB1050R 5300JB1050R HEATER,SHEATH
5300JB1050G 5300JB1050G HEATER,SHEATH
5300JB1050H 5300JB1050H HEATER,SHEATH
5300JB1050F 5300JB1050F HEATER,SHEATH
5300JB1050J 5300JB1050J HEATER,SHEATH
4441JA3001A 4441JA3001A HINGE ASSEMBLY,CASTER
4774JA2005A 4774JA2005A HINGE ASSEMBLY,CENTER
4775JA2026A 4775JA2026A HINGE ASSEMBLY,LOWER
4775JA2031B 4775JA2031B HINGE ASSEMBLY,UPPER
J719-00006A J719-00006A HOLDER,DRIER
4930JA1034A 4930JA1034A HOLDER,LAMP
4930JA2031A 4930JA2031A HOLDER,SHELF
4930JA2032A 4930JA2032A HOLDER,SHELF

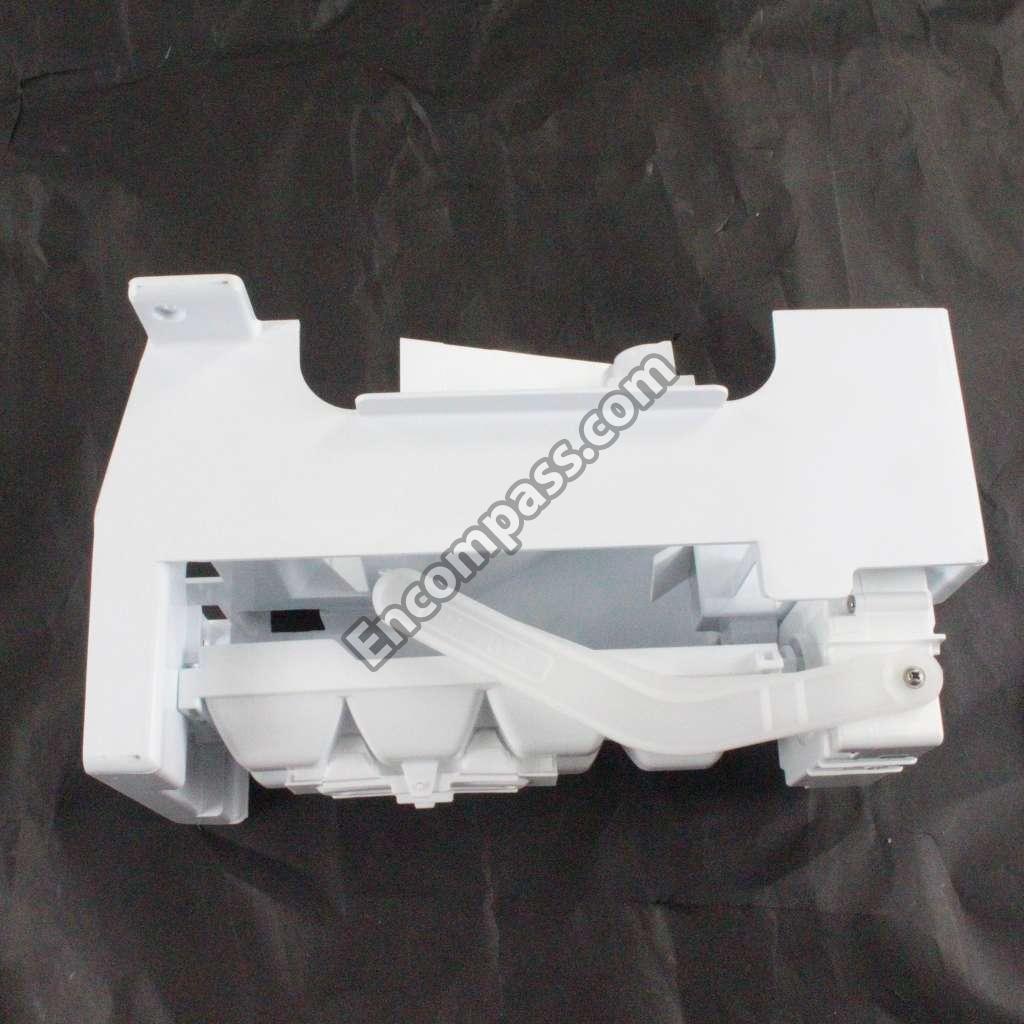

5989JA1004B 5989JA1004B ICE MAKER ASSEMBLY,KIT
5988JA1001A 5988JA1001A ICE MAKER,UNIT
5989JA1002D 5989JA1002D INSULATION,REAR
4940JA2011A 4940JA2011A KNOB,DAMPER
4940JA2012A 4940JA2012A KNOB,DAMPER
4940JD1006E 4940JD1006E KNOB,DAMPER
4940JD1007C 4940JD1007C KNOB,DAMPER
6912JK2002D 6912JK2002D LAMP,INCANDESCENT
6912JB2004F 6912JB2004F LAMP,INCANDESCENT
4779JA2003B 4779JA2003B LEG ASSEMBLY,ADJUST
4510JA3003A 4510JA3003A LEVER,ICE MAKER
6914JB2006C 6914JB2006C MODULE,TIMER
4680JB1029A 4680JB1029A MOTOR,AC
4140JD1022A 4140JD1022A NAME PLATE
1NZZJA3003A 1NZZJA3003A NUT,CUSTOMIZED
6750JA3001A 6750JA3001A OVERLOAD PROTECT
5040JA3039A 5040JA3039A PIPE,GASKET
6411JB1013B 6411JB1013B POWER CORD ASSEMBLY
5026JA1108A 5026JA1108A SHELF ASSEMBLY,FREEZER
5027JA2037G 5027JA2037G SHELF ASSEMBLY,NET
5027JA2037A 5027JA2037A SHELF ASSEMBLY,NET
5027JA1020J 5027JA1020J SHELF ASSEMBLY,REFRIGERATOR
5027JA1017H 5027JA1017H SHELF ASSEMBLY,REFRIGERATOR
5027JA1018J 5027JA1018J SHELF ASSEMBLY,REFRIGERATOR
4998JA1010A 4998JA1010A SHROUD,FREEZER
4970JA3016A 4970JA3016A SPRING
4620JA3009A 4620JA3009A STOPPER,COMPRESSOR
4620JA3014A 4620JA3014A STOPPER,CORD
4620JA3010B 4620JA3010B STOPPER,DOOR
4620JA2011A 4620JA2011A STOPPER,DOOR
6600JB1002K 6600JB1002K SWITCH,PUSH BUTTON
6600JB1005C 6600JB1005C SWITCH,PUSH BUTTON
6748JA3001A 6748JA3001A THERMISTOR,PTC
6930JB1007E 6930JB1007E THERMOSTAT
3391JA1045A 3391JA1045A TRAY ASSEMBLY,CAN STORAGE
3391JA1036H 3391JA1036H TRAY ASSEMBLY,VEGETABLE
3391JA1036G 3391JA1036G TRAY ASSEMBLY,VEGETABLE
3390JA1115A 3390JA1115A TRAY,DRIP
3390JA1140A 3390JA1140A TRAY,EGG
3390JA1118A 3390JA1118A TRAY,ICE
3390JD1050H 3390JD1050H TRAY,MEAT
5251JA3001B 5251JA3001B TUBE,DRAIN
5210JA3006B 5210JA3006B TUBE,INJECT
5210JA3005A 5210JA3005A TUBE,PLASTIC
5220JA2003A 5220JA2003A VALVE,WATER
1WPZJA3007A 1WPZJA3007A WASHER,COMMON
