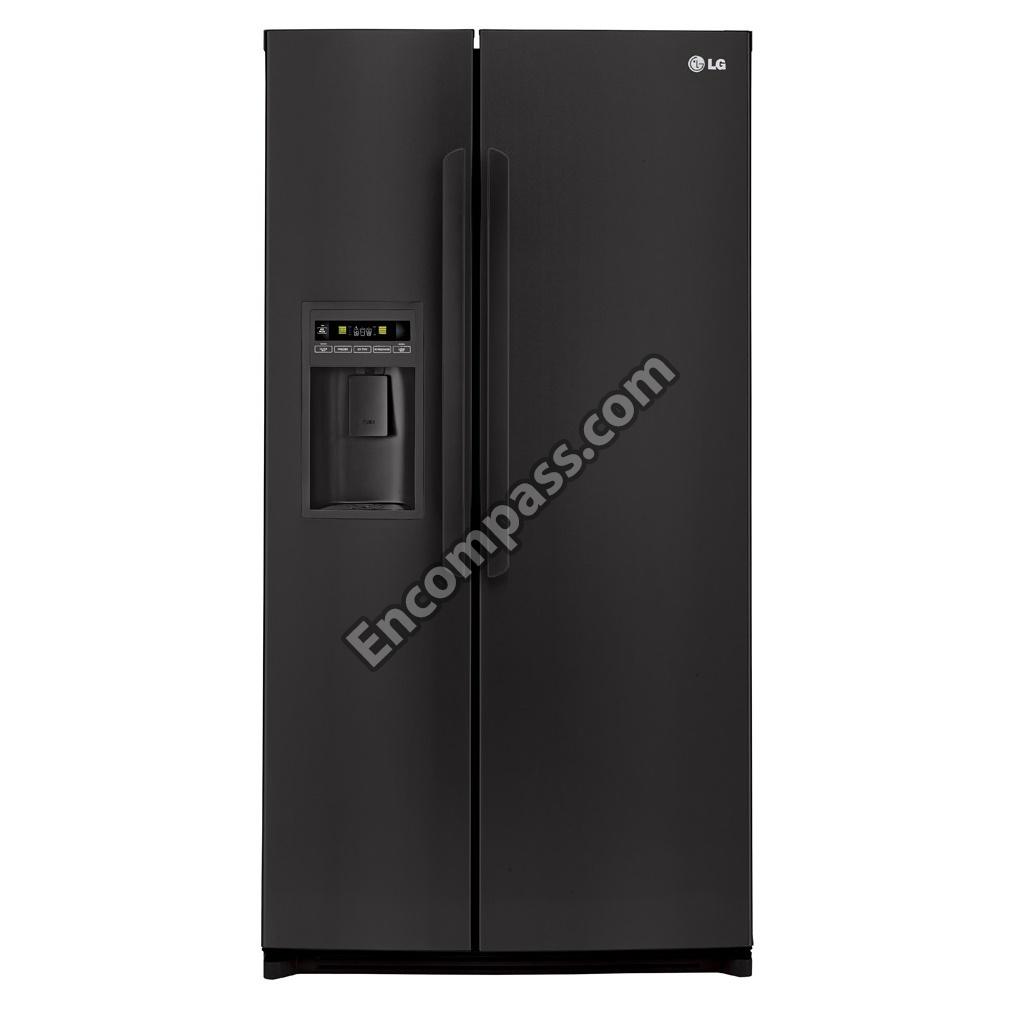

Model Image
Manufacturer

LG

Model Number

LSC27914SB

Description

Large Capacity Side-by-side Refrigerator With Ice

Interactive Exploded View

Parts List

Part Number Description
4770JA3001B 4770JA3001B BAND [627A]
4770JA3001E 4770JA3001E BAND [627B]
3103JJ1004B 3103JJ1004B BASE ASSEMBLY,COMPRESSOR [315A]
MAN61844601 MAN61844601 BASKET,DOOR [241D]
MAN61847301 MAN61847301 BASKET,DOOR [241F]
MAN61847501 MAN61847501 BASKET,DOOR [241G]
MAN61844401 MAN61844401 BASKET,DOOR [241H]
4811JA2009B 4811JA2009B BRACKET ASSEMBLY,MOTOR [405A]
MAZ61976201 MAZ61976201 BRACKET,MOTOR
AKC72909202 AKC72909202 BUCKET ASSEMBLY,DAIRY
AKC72909201 AKC72909201 BUCKET ASSEMBLY,DAIRY [241A]
5075JJ1003J 5075JJ1003J BUCKET ASSEMBLY,ICE
MKK61841701 MKK61841701 BUCKET,DAIRY [241B]
MBG61966305 MBG61966305 BUTTON,LEVER
ABN72909907 ABN72909907 CAP ASSEMBLY,DUCT [282G]
ABN75058701 ABN75058701 CAP ASSEMBLY,HEAD [611E]
J513-00012P J513-00012P CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [410G]
0CZZJB2010H 0CZZJB2010H CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [410H]
ABQ72954502 ABQ72954502 CASE ASSEMBLY,CONTROL REFRIGERATOR [120A]
ACF67062311 ACF67062311 COMPRESSOR ASSEMBLY [307B]
TCA37091210 TCA37091210 COMPRESSOR,SET ASSEMBLY
5403JA1003C 5403JA1003C CONDENSER ASSEMBLY,WIRE
5403JA1003A 5403JA1003A CONDENSER ASSEMBLY,WIRE [323B]
4932JA3002C 4932JA3002C CONNECTOR,TUBE
4932JA3002A 4932JA3002A CONNECTOR,TUBE [621B]
ACM73079207 ACM73079207 CONTROLLER ASSEMBLY [401A]
ACQ85694901 ACQ85694901 COVER ASSEMBLY
ACQ75198221 ACQ75198221 COVER ASSEMBLY,DISPLAY
ACQ77080313 ACQ77080313 COVER ASSEMBLY,HINGE
ACQ77080306 ACQ77080306 COVER ASSEMBLY,HINGE
3551JA1084H 3551JA1084H COVER ASSEMBLY,HINGE [281A]
3551JA1084G 3551JA1084G COVER ASSEMBLY,HINGE [281B]
ACQ85290801 ACQ85290801 COVER ASSEMBLY,MACHINERY(REAR)
3551JA1071A 3551JA1071A COVER ASSEMBLY,MACHINERY(REAR) [304A]
ACQ85612409 ACQ85612409 COVER ASSEMBLY,PCB
ACQ85612406 ACQ85612406 COVER ASSEMBLY,PCB
3551JA1110D 3551JA1110D COVER ASSEMBLY,PCB [501F]
ACQ74897401 ACQ74897401 COVER ASSEMBLY,TRAY [154A]
ACQ74897303 ACQ74897303 COVER ASSEMBLY,TRAY [161A]
MCK62219305 MCK62219305 COVER,DISPLAY
MCK62219302 MCK62219302 COVER,DISPLAY [279B]
3550JA1299G 3550JA1299G COVER,HINGE [281C]
3550JA1299H 3550JA1299H COVER,HINGE [281D]
MCK62215001 MCK62215001 COVER,LAMP [158A]
3550JA1496A 3550JA1496A COVER,LAMP [158B]
MCK35849501 MCK35849501 COVER,LAMP [158C]
3551JJ1066C 3551JJ1066C COVER,LOWER [103C]
3550JA2147A 3550JA2147A COVER,MOTOR [319E]
3550C-0042C 3550C-0042C COVER,RELAY [310A]
3550JA2035D 3550JA2035D COVER,SENSOR [610E]
MCK63305801 MCK63305801 COVER,TRAY [161C]
3550JA2184B 3550JA2184B COVER,TUBE [625A]
MCK37371501 MCK37371501 COVER,TUBE [625B]
5040JA3031A 5040JA3031A DAMPER,COMPRESSOR [312A]
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [405C]
5040JA2009A 5040JA2009A DAMPER,MOTOR SUPPORT [405F]
5072JA3003F 5072JA3003F DAMPER,NOISE [316A]
5072JA3003M 5072JA3003M DAMPER,NOISE [316B]
4J03020A 4J03020A DAMPER,PIPE [328A]
MCR62145408 MCR62145408 DECOR,CONTROL
MCR62145402 MCR62145402 DECOR,CONTROL [279A]
MCR61988505 MCR61988505 DECOR,DRAIN
MCR61988502 MCR61988502 DECOR,DRAIN [281F]
ADC72986461 ADC72986461 DOOR ASSEMBLY,FREEZER
ADC72986435 ADC72986435 DOOR ASSEMBLY,FREEZER [200A]
ADC30116656 ADC30116656 DOOR ASSEMBLY,REFRIGERATOR
ADC72986624 ADC72986624 DOOR ASSEMBLY,SEMI FREEZER [201A]
ADD30170752 ADD30170752 DOOR ASSEMBLY,SEMI REFRIGERATOR [231A]
ADD72912836 ADD72912836 DOOR FOAM ASSEMBLY,FREEZER
6877JB3019F 6877JB3019F DRAWING,ASSEMBLY [412A]
6877JB2039G 6877JB2039G DRAWING,ASSEMBLY [412B]
6877JB2040H 6877JB2040H DRAWING,ASSEMBLY [412D]
ADH73150208 ADH73150208 DRIER ASSEMBLY [317A]
ADJ74092101 ADJ74092101 DUCT ASSEMBLY,INSULATION [120B]
ADL72916201 ADL72916201 EVAPORATOR ASSEMBLY [301A]
5901JA1022A 5901JA1022A FAN ASSEMBLY [329A]
5901JJ1019A 5901JJ1019A FAN ASSEMBLY [329C]
ADQ72911001 ADQ72911001 FILTER ASSEMBLY,HEAD
ADQ72911006 ADQ72911006 FILTER ASSEMBLY,HEAD [611B]
ADQ72910911 ADQ72910911 FILTER ASSEMBLY,WATER
MDR61841905 MDR61841905 FUNNEL
MDR61882405 MDR61882405 FUNNEL
ADW34028006 ADW34028006 FUNNEL ASSEMBLY
ADW34028007 ADW34028007 FUNNEL ASSEMBLY [278A]
4987JJ1010J 4987JJ1010J GASKET ASSEMBLY,DOOR [203A]
4987JJ1010K 4987JJ1010K GASKET ASSEMBLY,DOOR [233A]
3531JJ1011E 3531JJ1011E GRILLE ASSEMBLY,FAN
3531JJ1010A 3531JJ1010A GRILLE ASSEMBLY,FAN [332A]
3531JJ1011D 3531JJ1011D GRILLE ASSEMBLY,FAN [332B]
4975JA1018B 4975JA1018B GUIDE ASSEMBLY,RAIL [128E]
4975JA1018A 4975JA1018A GUIDE ASSEMBLY,RAIL [128F]
MEA50433501 MEA50433501 GUIDE,AIR [128L]
4974JJ1053A 4974JJ1053A GUIDE,FAN [319C]
4974JA3028A 4974JA3028A GUIDE,ICE [110B]
4974JA1063B 4974JA1063B GUIDE,RAIL
MEA40002602 MEA40002602 GUIDE,RAIL
MEA40002601 MEA40002601 GUIDE,RAIL
4974JA1064B 4974JA1064B GUIDE,RAIL [612B]
AED37082944 AED37082944 HANDLE ASSEMBLY,REFRIGERATOR
AED72912502 AED72912502 HANDLE ASSEMBLY,REFRIGERATOR [244A]
MEB64014305 MEB64014305 HANDLE,REAR
3650JA3041Y 3650JA3041Y HANDLE,REAR [103A]
3650JA3041Z 3650JA3041Z HANDLE,REAR [103B]
5300JB1102H 5300JB1102H HEATER,SHEATH [418A]
4775JA2104A 4775JA2104A HINGE ASSEMBLY,LOWER [281G]
4775JA2113A 4775JA2113A HINGE ASSEMBLY,LOWER [281H]
4775JA2105B 4775JA2105B HINGE ASSEMBLY,UPPER [271A]
4775JA2084B 4775JA2084B HINGE ASSEMBLY,UPPER [271C]
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET [607A]
4930JA3034A 4930JA3034A HOLDER,DRIER [318A]
4930JA3043A 4930JA3043A HOLDER,LEVER [113F]
4930JA3054A 4930JA3054A HOLDER,PIPE
MEG42758601 MEG42758601 HOLDER,PIPE [627D]
MEG30067802 MEG30067802 HOLDER,SHELF
MEG30067202 MEG30067202 HOLDER,SHELF
5989JA1005G 5989JA1005G ICE MAKER ASSEMBLY,KIT [600A]
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [409B]
4779JA3001E 4779JA3001E LEG ASSEMBLY,ADJUST [106A]
MFC61845101 MFC61845101 LEVER,DISPENSER
MFC62049501 MFC62049501 LEVER,DISPENSER
4510JA3004A 4510JA3004A LEVER,HINGE [271B]
ADQ72910912 ADQ72910912 LT500P REFRIDGERATER WATER FILTER (3 PK)
EAU59551204 EAU59551204 MOTOR,DC
4681JB1029A 4681JB1029A MOTOR,DC [404A]
4681JB1029B 4681JB1029B MOTOR,DC [404B]
MFT62346511 MFT62346511 NAME PLATE
1NZZJA3023A 1NZZJA3023A NUT,CUSTOMIZED [281K]
6750C-0004U 6750C-0004U OVERLOAD PROTECT [309A]
AGG73183301 AGG73183301 PACKING ASSEMBLY [EP1]
EBR61526802 EBR61526802 PCB ASSEMBLY,DISPLAY [501B]
EBR64585304 EBR64585304 PCB ASSEMBLY,MAIN [501A]
1PZZJA3013A 1PZZJA3013A PIN,COMMON [305C]
5200JA1019A 5200JA1019A PIPE,JOINT [419A]
MGE58810302 MGE58810302 PIPE,JOINT [419B]
EAD56779012 EAD56779012 POWER CORD ASSEMBLY [411A]
4580JA3024A 4580JA3024A ROLLER [305B]
4J00415D 4J00415D SCREW,CUSTOMIZED [S15]
4000W4A003A 4000W4A003A SCREW,CUSTOMIZED [S38]
1TRL0302818 1TRL0302818 SCREW,TAPPING [S18]
6500JB2001B 6500JB2001B SENSOR [903D]
6500JB2002T 6500JB2002T SENSOR [903E]
5027JJ1098B 5027JJ1098B SHELF ASSEMBLY,FREEZER [149D]
AHT72913503 AHT72913503 SHELF ASSEMBLY,REFRIGERATOR
AHT72913501 AHT72913501 SHELF ASSEMBLY,REFRIGERATOR [141A]
MHL48126402 MHL48126402 SHELF,FREEZER [149A]
5026JJ1195A 5026JJ1195A SHELF,FREEZER [149E]
MHL61848906 MHL61848906 SHELF,REFRIGERATOR
MHL61848905 MHL61848905 SHELF,REFRIGERATOR
MHL61848901 MHL61848901 SHELF,REFRIGERATOR [140A]
4999JJ2004D 4999JJ2004D SHROUD ASSEMBLY,FREEZER
4999JA2025B 4999JA2025B SHROUD ASSEMBLY,FREEZER [330B]
5070JJ3004C 5070JJ3004C SKIRT,LOWER [105F]
6620JB1001P 6620JB1001P SOCKET,LAMP [412C]
6421JA3001D 6421JA3001D SOLENOID,REVERSING,VALVE [614A]
4970JA3011K 4970JA3011K SPRING,LEVER [113E]
4621JA3003A 4621JA3003A STOPPER ASSEMBLY,DOOR
4621JA3003C 4621JA3003C STOPPER ASSEMBLY,DOOR [243A]
AJC34211602 AJC34211602 STOPPER ASSEMBLY,DOOR [243B]
MJB61877901 MJB61877901 STOPPER,COMPRESSOR [314A]
MJB63190001 MJB63190001 STOPPER,HANDLE
MJB63190002 MJB63190002 STOPPER,HANDLE
4980JA2071B 4980JA2071B SUPPORTER,GEAR MOTOR
6600JB3007E 6600JB3007E SWITCH,PUSH BUTTON [406A]
MJM61904704 MJM61904704 TANK,WATER
MJM61904702 MJM61904702 TANK,WATER [615A]
EBG42993602 EBG42993602 THERMISTOR ASSEMBLY,PTC
3391JA2036A 3391JA2036A TRAY ASSEMBLY,DRAIN [319B]
MJS61846901 MJS61846901 TRAY ASSEMBLY,VEGETABLE [151A]
AJP72994802 AJP72994802 TRAY ASSEMBLY,VEGETABLE [151B]
MJS32793301 MJS32793301 TRAY,DRAWER [136A]
3390JJ1109A 3390JJ1109A TRAY,DRIP [319A]
MJS61846501 MJS61846501 TRAY,SNACK [170A]
5251JA3004B 5251JA3004B TUBE ASSEMBLY,DRAIN [105A]
5210JA2006B 5210JA2006B TUBE,INJECT
5210JA2006C 5210JA2006C TUBE,INJECT [616E]
5040JA2015A 5040JA2015A TUBE,INLET [622B]
5210JA3005A 5210JA3005A TUBE,PLASTIC
5221JQ2002X 5221JQ2002X TUBE,PLASTIC [616D]
5221JA2006D 5221JA2006D VALVE,WATER [619A]
