Model Image
Manufacturer

LG

Model Number

LSE4613BD

Description

6.3 Cu. Ft. Electric Convection Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5001W5N001D 5001W5N001D ACCESSORY
AAA77250705 AAA77250705 ACCESSORY
AAA74970602 AAA74970602 ACCESSORY ASSEMBLY
AAA77169702 AAA77169702 ACCESSORY ASSEMBLY
FAK30249601 FAK30249601 ANCHOR,CUSTOMIZED
3B72559A 3B72559A ANTI-C FAN

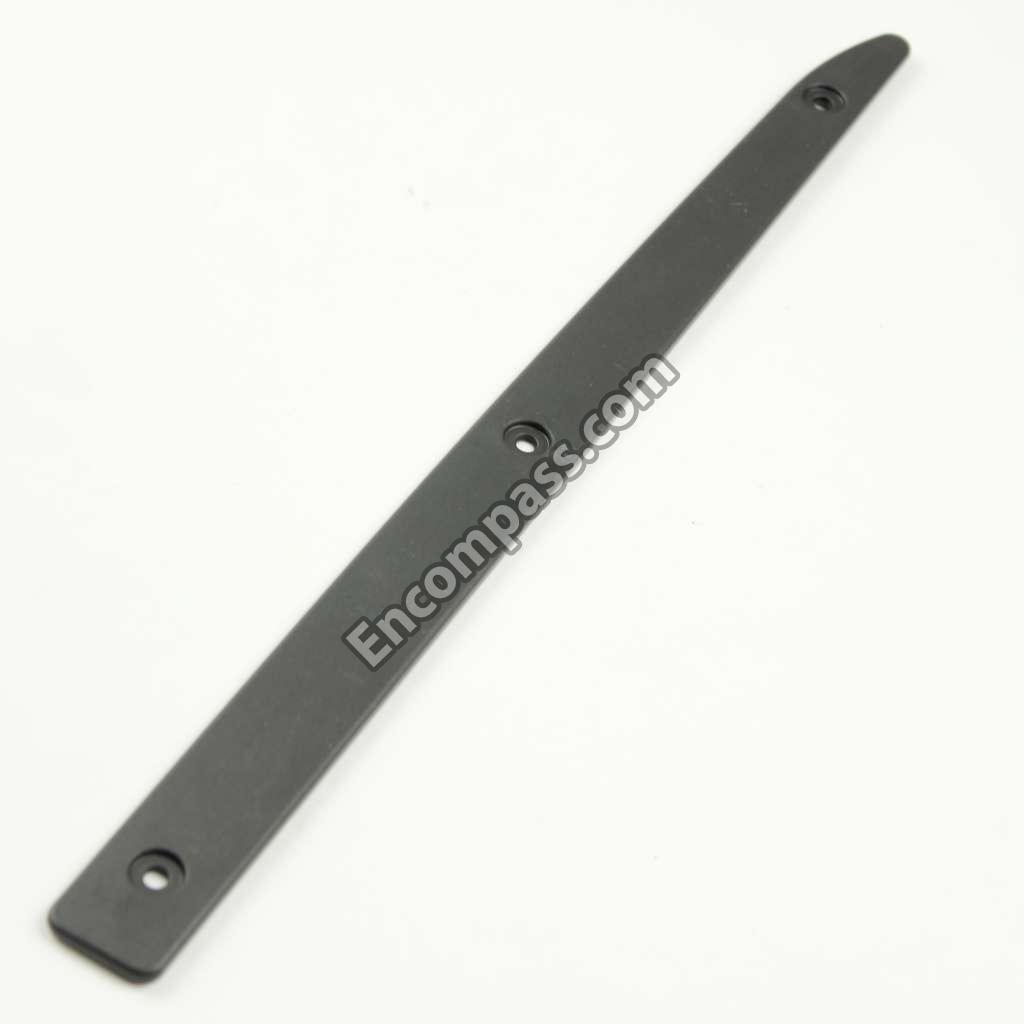

MAK61907202 MAK61907202 BAR

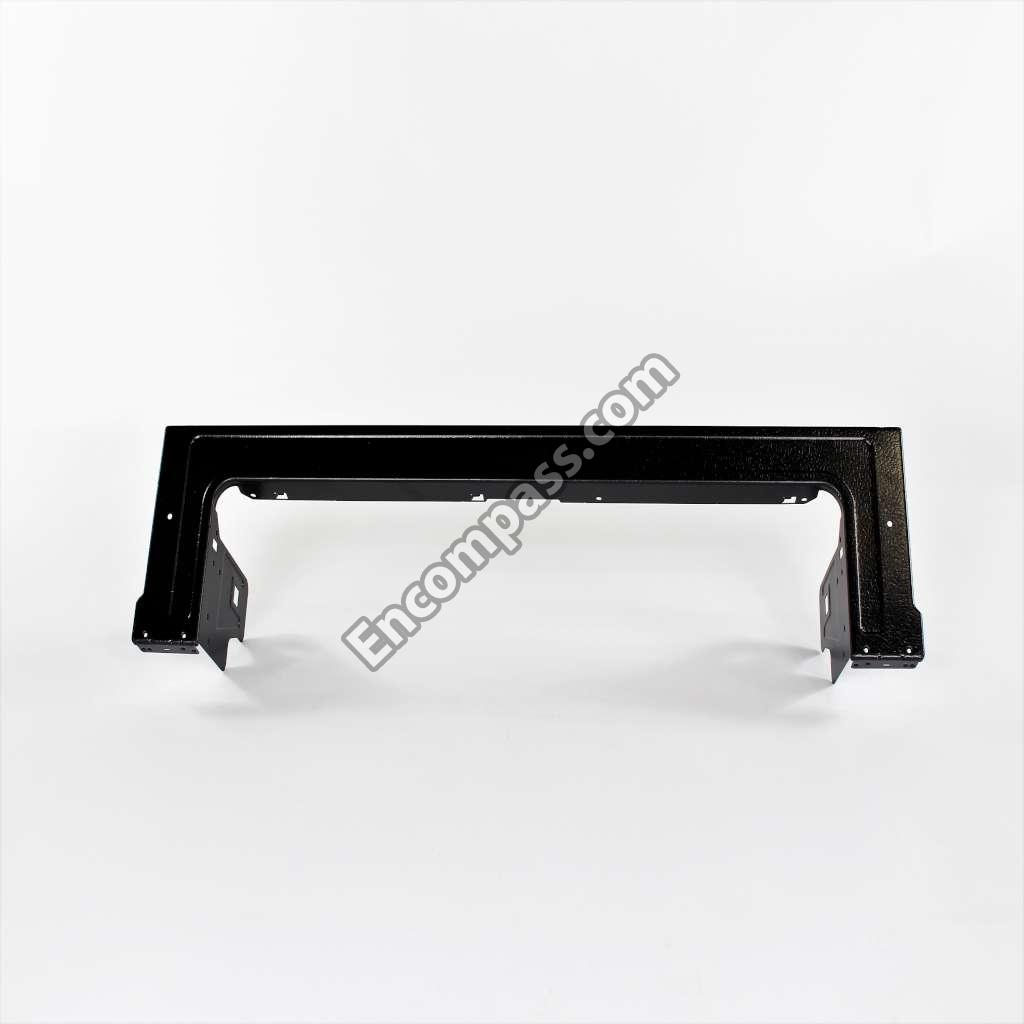

MAZ64764301 MAZ64764301 BRACKET
ABA75389602 ABA75389602 BRACKET ASSEMBLY
ABA75830004 ABA75830004 BRACKET ASSEMBLY
MAZ63310803 MAZ63310803 BRACKET,HEATER
MAZ63310801 MAZ63310801 BRACKET,HEATER
MAZ64548501 MAZ64548501 BRACKET,HEATER
MAZ64788501 MAZ64788501 BRACKET,HINGE
MAZ63548109 MAZ63548109 BRACKET,HINGE
MAZ63548112 MAZ63548112 BRACKET,HINGE
MAZ63548110 MAZ63548110 BRACKET,HINGE
MAZ64569801 MAZ64569801 BRACKET,IDLE
MAZ34877103 MAZ34877103 BRACKET,IDLE
4810W1N060B 4810W1N060B BRACKET,MOTOR
MAZ64569701 MAZ64569701 BRACKET,MOUNT
MAZ65207801 MAZ65207801 BRACKET,MOUNT
MAZ64569401 MAZ64569401 BRACKET,MOUNT
MAZ63250903 MAZ63250903 BRACKET,MOUNT
MAZ63250603 MAZ63250603 BRACKET,MOUNT
MAZ65207802 MAZ65207802 BRACKET,MOUNT
EAG32629306 EAG32629306 CONNECTOR,TERMINAL BLOCK
EAG32629301 EAG32629301 CONNECTOR,TERMINAL BLOCK
MCK69067601 MCK69067601 COVER,DISPLAY
MCK68473117 MCK68473117 COVER,HEATER
MCK68473106 MCK68473106 COVER,HEATER
MCK68473201 MCK68473201 COVER,INNER
MCK62028001 MCK62028001 COVER,LAMP
MCK62028003 MCK62028003 COVER,LAMP
MCK66822404 MCK66822404 COVER,POWER CORD
MCK68473911 MCK68473911 COVER,REAR
MCK68473903 MCK68473903 COVER,REAR
MCK68474102 MCK68474102 COVER,REAR
MCR67468501 MCR67468501 DECOR,GUARD(REAR)

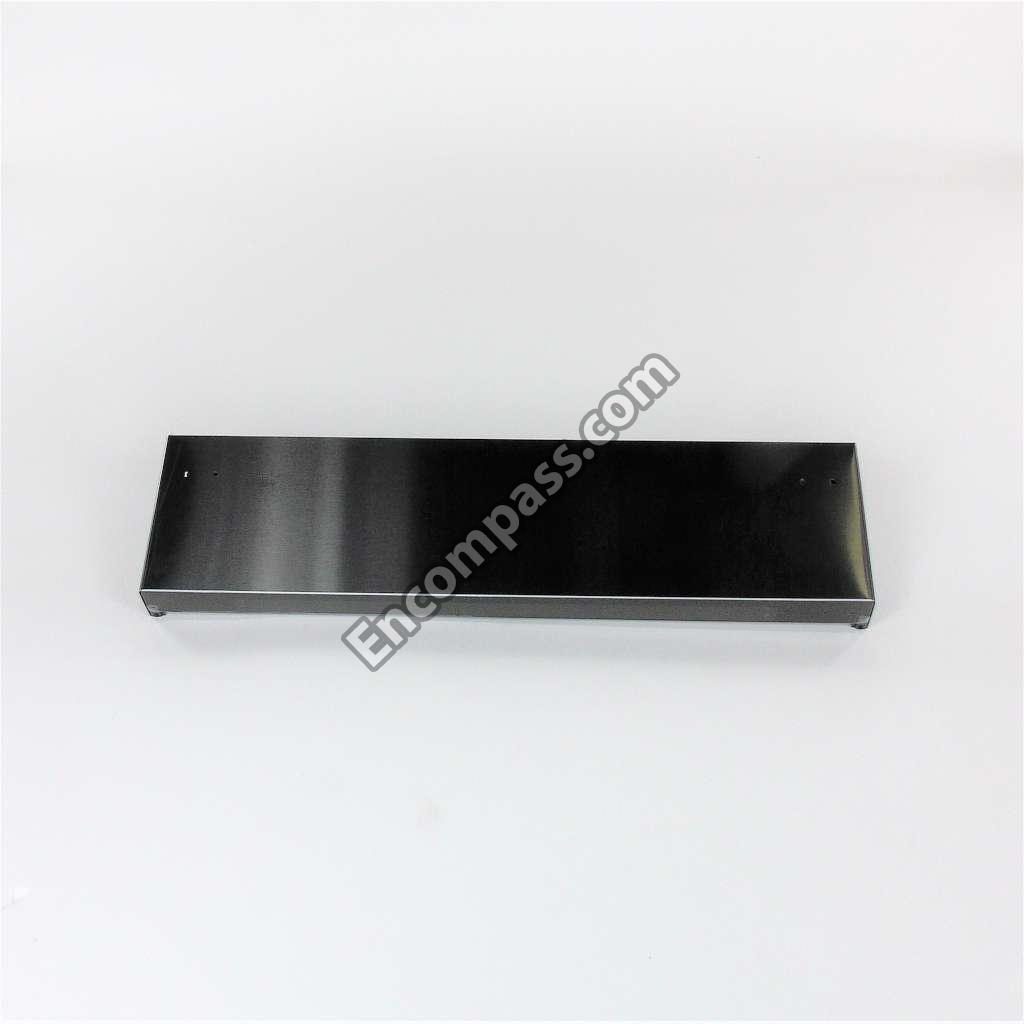

MCX61961512 MCX61961512 DRAWER
MCX61961507 MCX61961507 DRAWER

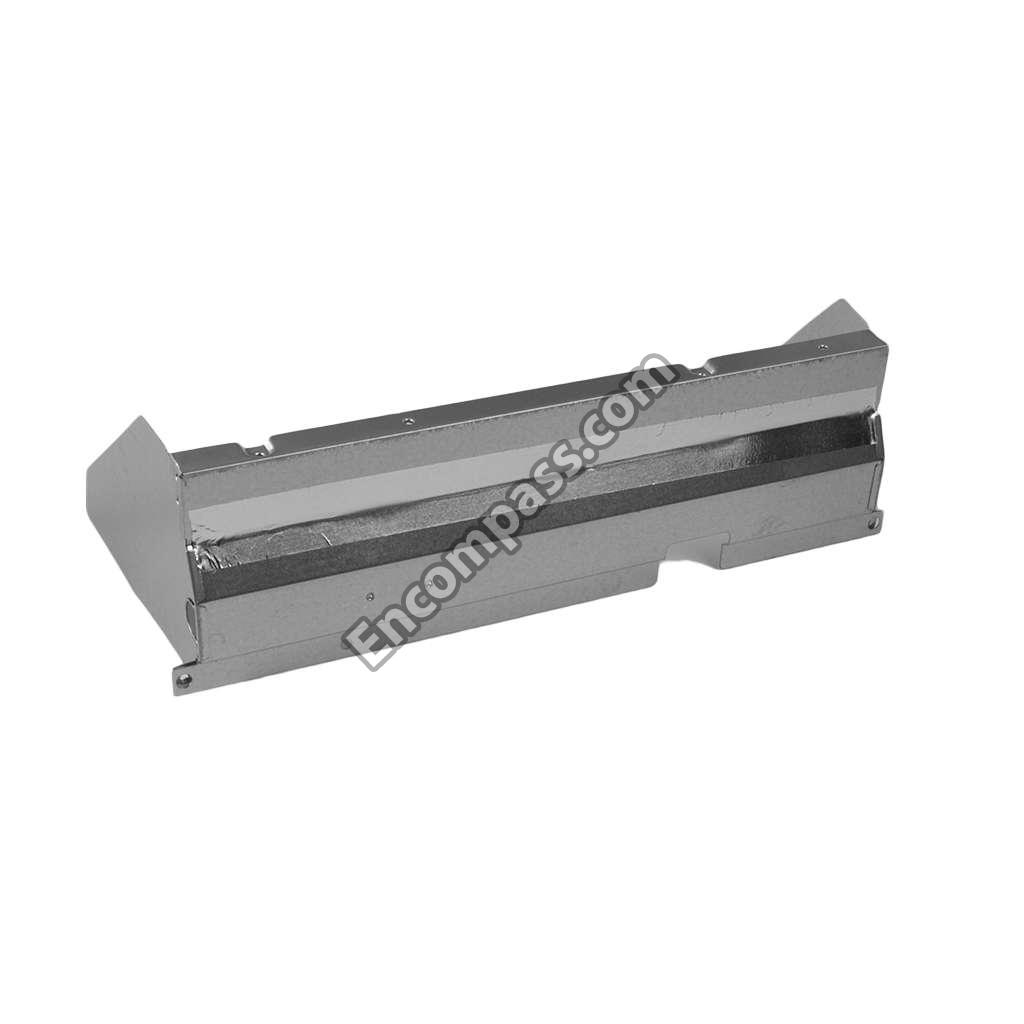

MCZ64011701 MCZ64011701 DUCT
MCZ63532001 MCZ63532001 DUCT
ADJ74172306 ADJ74172306 DUCT ASSEMBLY
ADJ74172302 ADJ74172302 DUCT ASSEMBLY
ADP74573301 ADP74573301 FAN ASSEMBLY,BLOWER
MDG62882901 MDG62882901 FAN,CONVECTION
4778W1N001A 4778W1N001A FOOT
ADU73169401 ADU73169401 FOOT

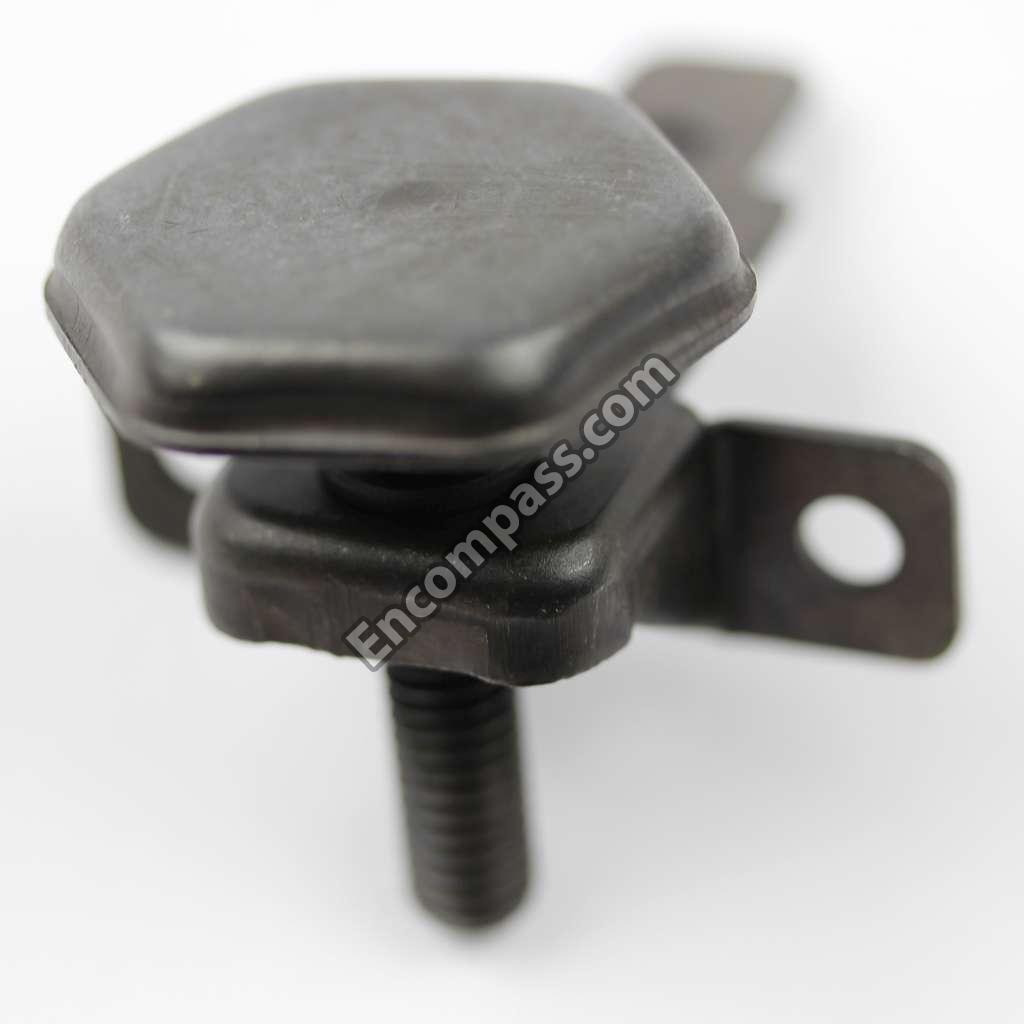

MDP62447001 MDP62447001 FOOT ASSEMBLY

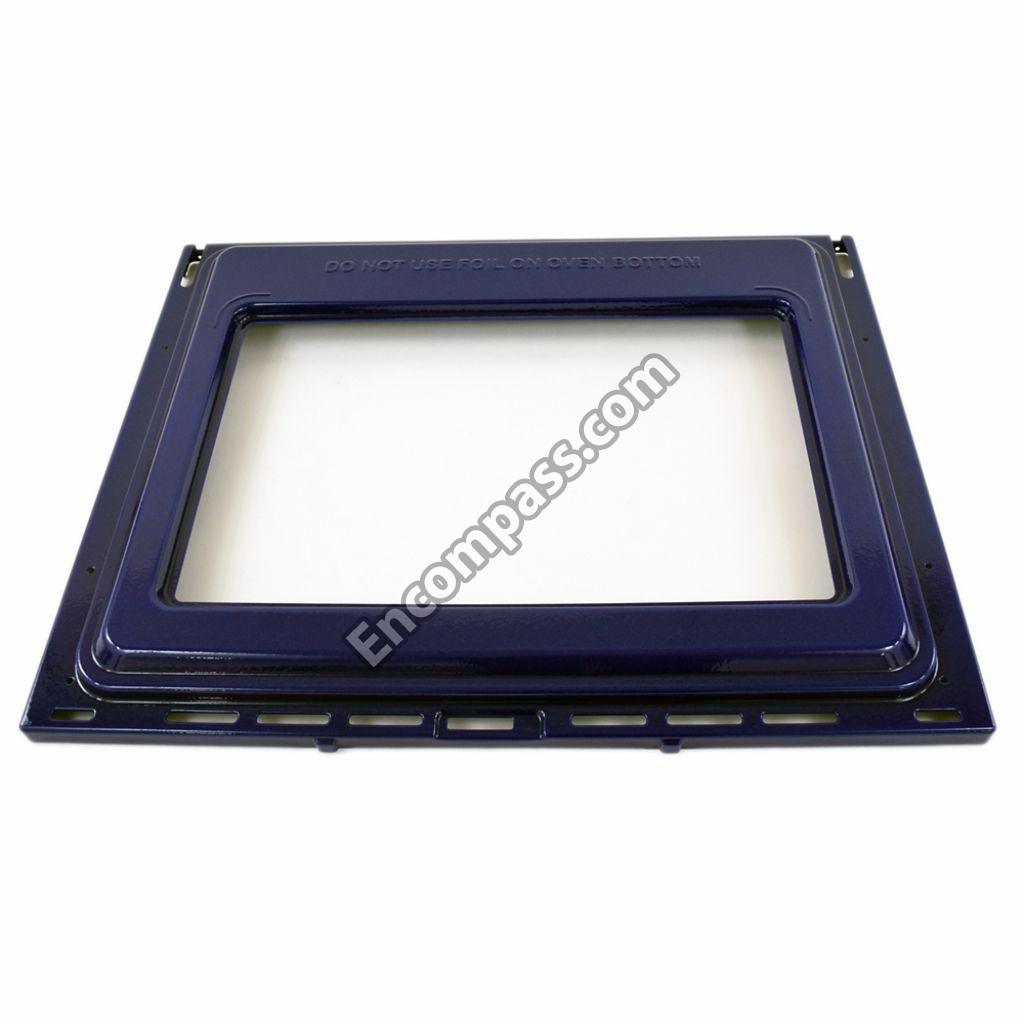

MDQ64177401 MDQ64177401 FRAME,DOOR
MDQ64176902 MDQ64176902 FRAME,DOOR

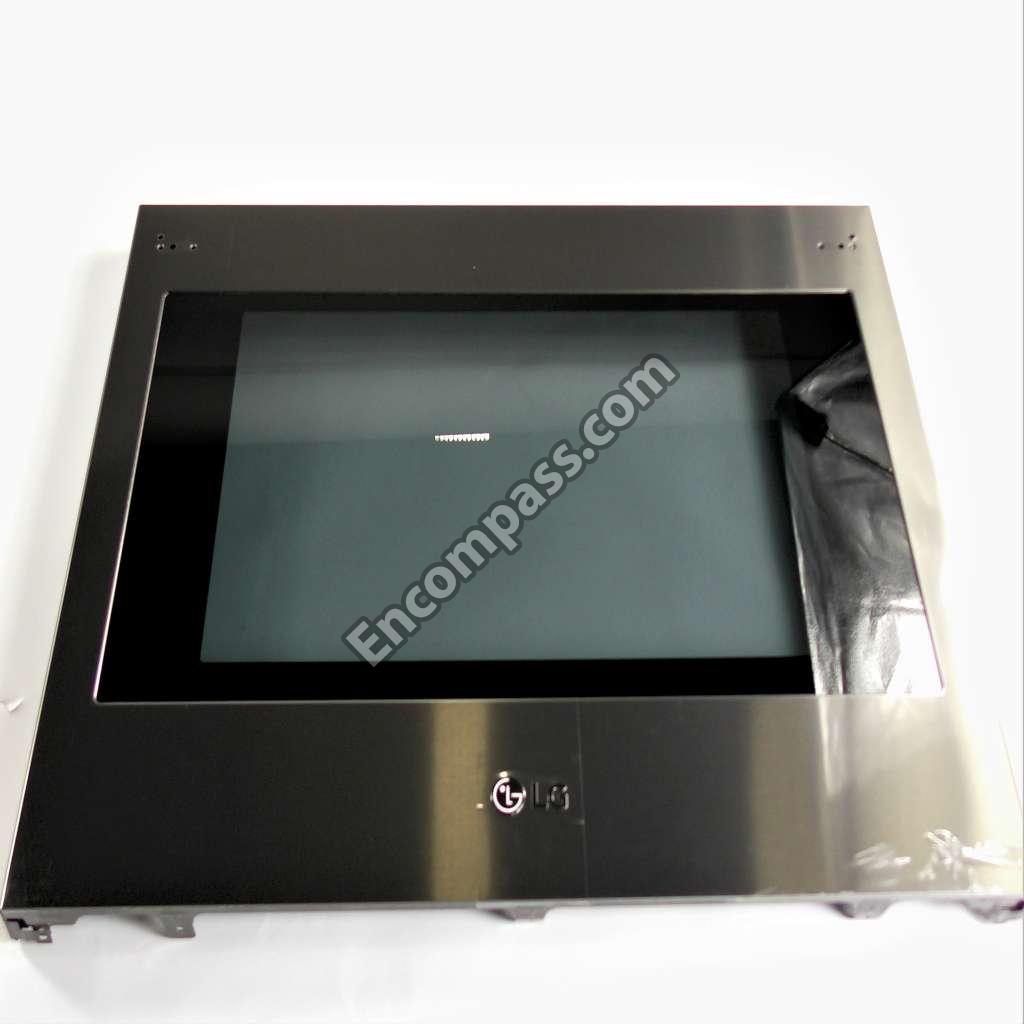

AGM75429211 AGM75429211 GLASS WINDOW,PARTS ASSEMBLY,SVC

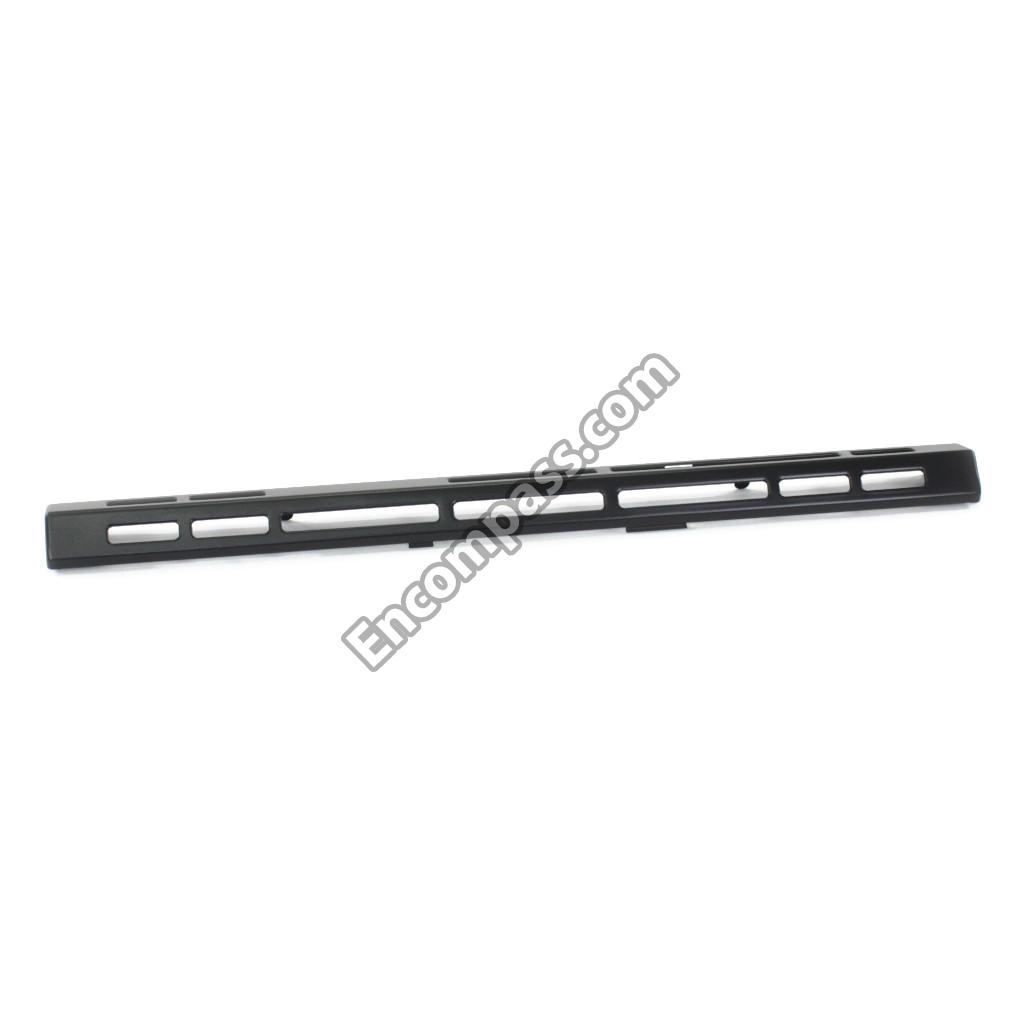

MDX64331906 MDX64331906 GRILLE,VENT
MEA63970501 MEA63970501 GUIDE,AIR
MEB62494914 MEB62494914 HANDLE,DOOR
MEB63574005 MEB63574005 HANDLE,DOOR
6877W1N024F 6877W1N024F HARNESS,SINGLE
EAD63748802 EAD63748802 HARNESS,SINGLE
EAD62887202 EAD62887202 HARNESS,SINGLE
EAD62705401 EAD62705401 HARNESS,SINGLE
EAD62705302 EAD62705302 HARNESS,SINGLE
EAD61076101 EAD61076101 HARNESS,SINGLE
EAD62349806 EAD62349806 HARNESS,SINGLE
EAD34822942 EAD34822942 HARNESS,SINGLE
EAD63750102 EAD63750102 HARNESS,SINGLE
EAD63750101 EAD63750101 HARNESS,SINGLE
AEG33897011 AEG33897011 HEATER ASSEMBLY

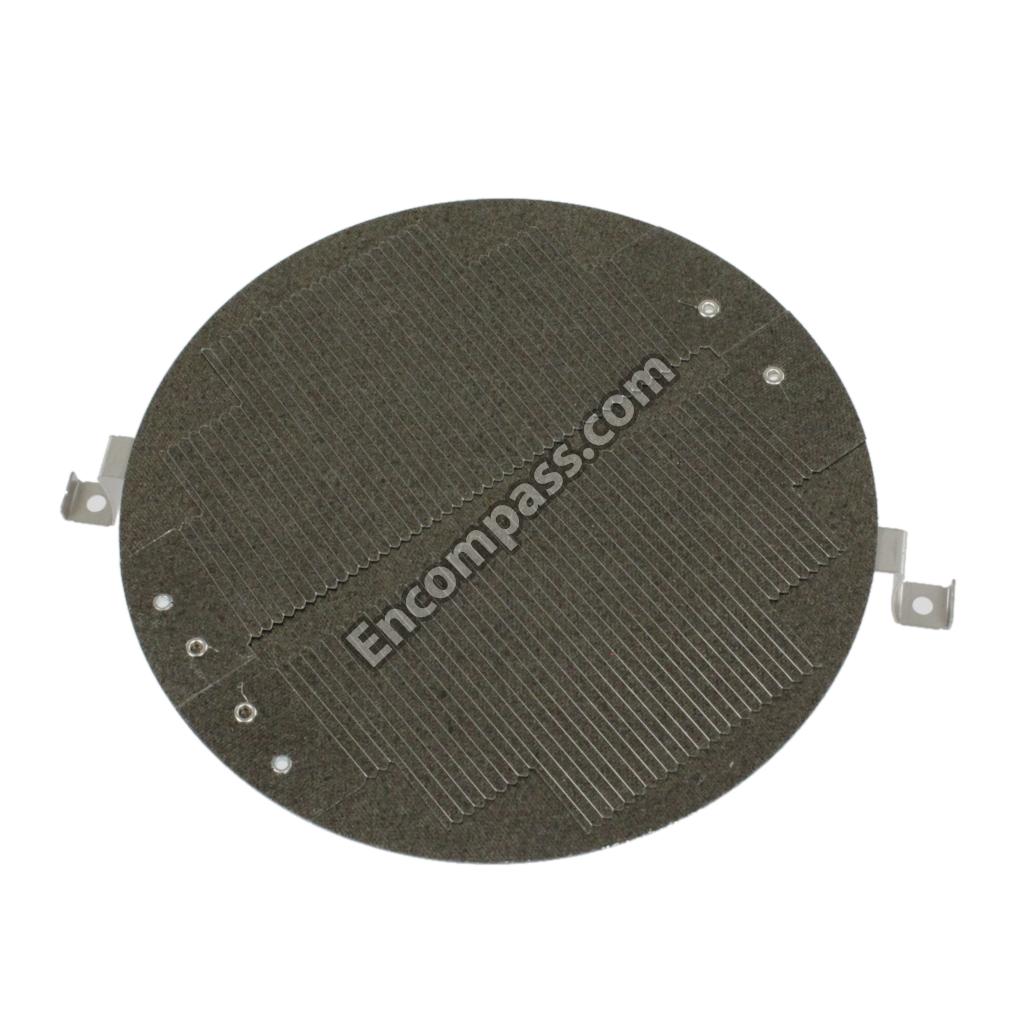

MEE62385201 MEE62385201 HEATER,RADIATION
MEE62385303 MEE62385303 HEATER,RADIATION
MEE64286201 MEE64286201 HEATER,RADIATION

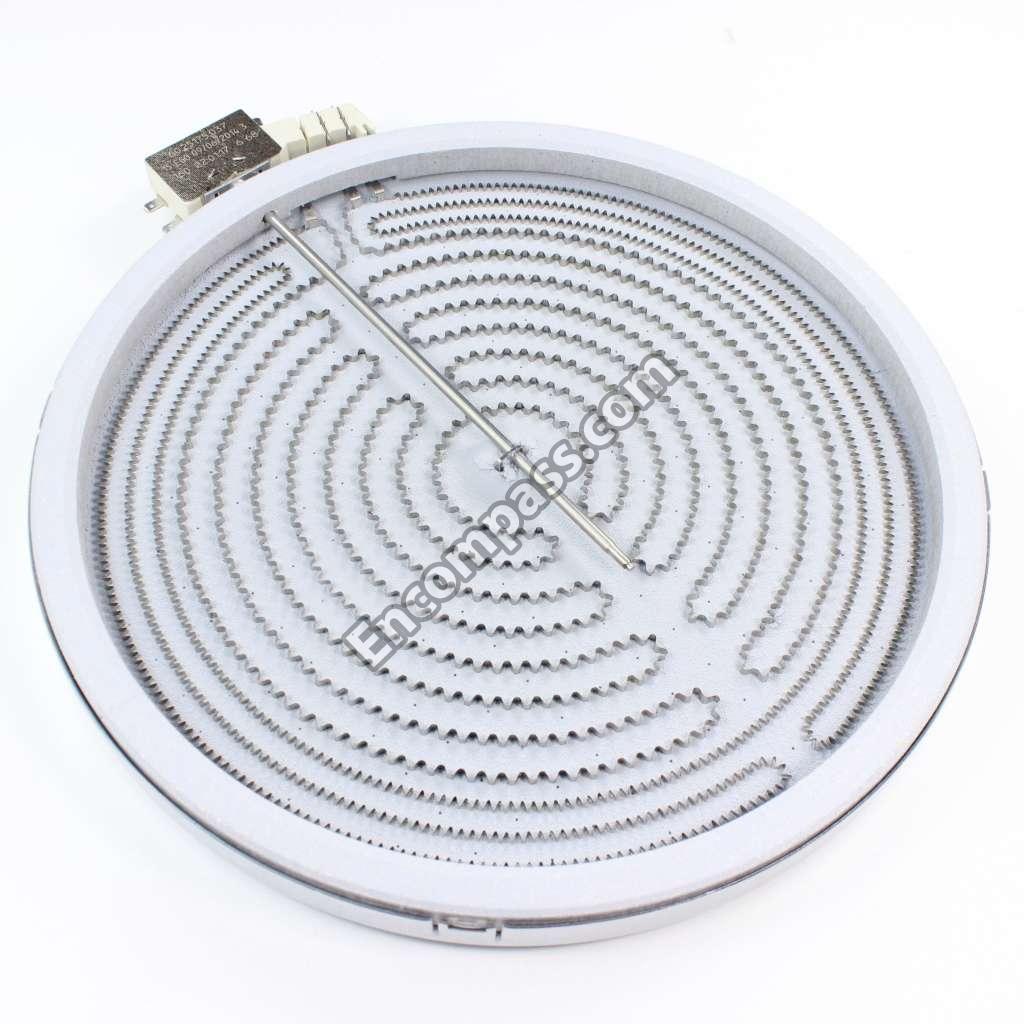

MEE62385301 MEE62385301 HEATER,RADIATION
MEE62385001 MEE62385001 HEATER,RADIATION
MEE62306506 MEE62306506 HEATER,SHEATH
MEE62865003 MEE62865003 HEATER,SHEATH
MEE62306504 MEE62306504 HEATER,SHEATH
AEH75637211 AEH75637211 HINGE ASSEMBLY
AEH72957517 AEH72957517 HINGE ASSEMBLY
MEV63876302 MEV63876302 INSULATOR
MEV65115509 MEV65115509 INSULATOR
MEV65115502 MEV65115502 INSULATOR
MEV65115510 MEV65115510 INSULATOR
MEV65115503 MEV65115503 INSULATOR
MEV65115501 MEV65115501 INSULATOR
MEV63876301 MEV63876301 INSULATOR

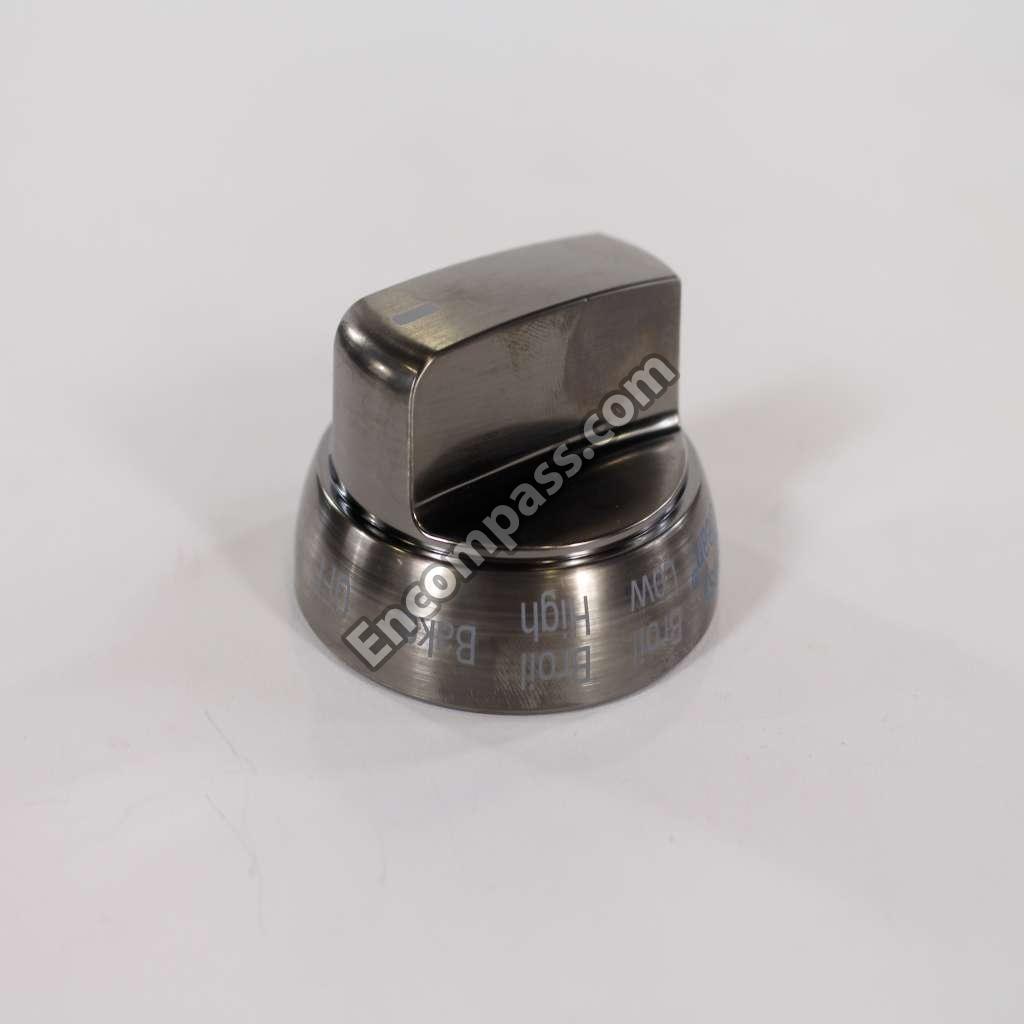

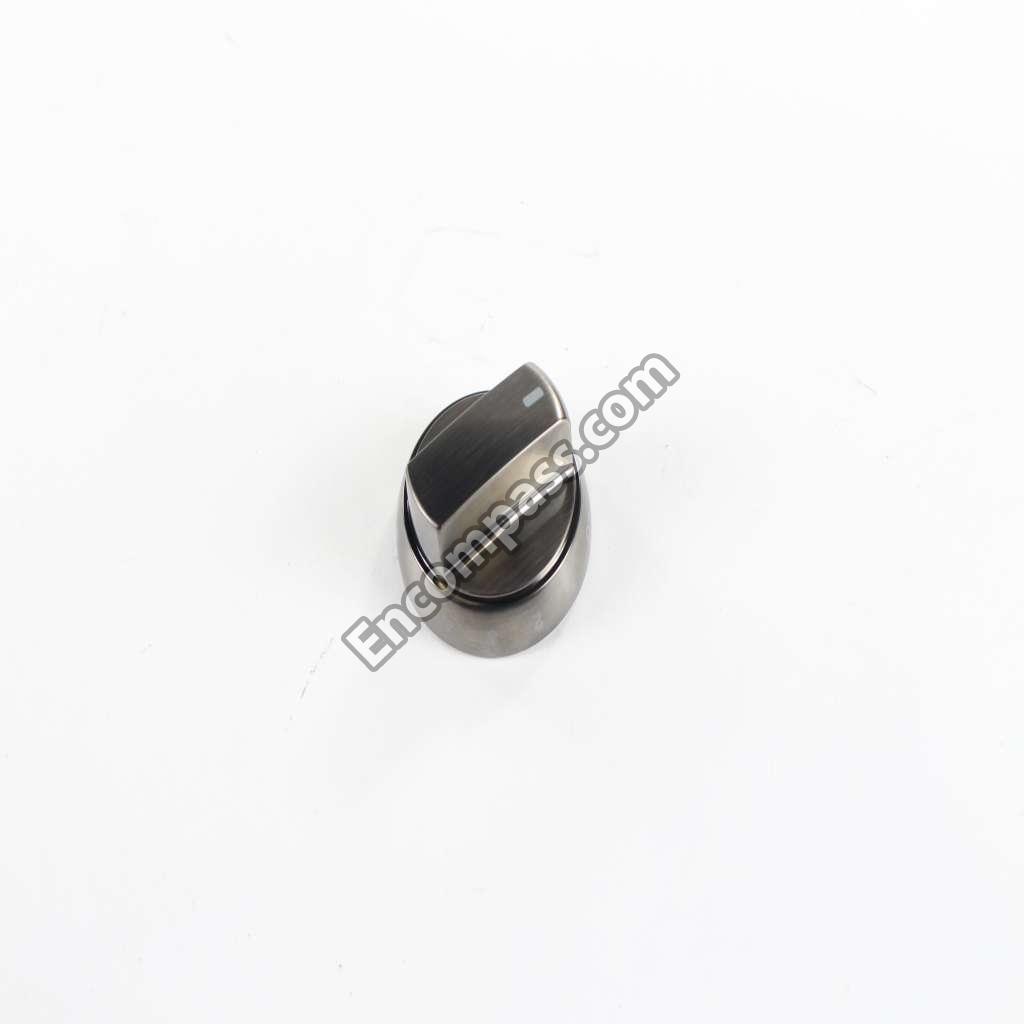

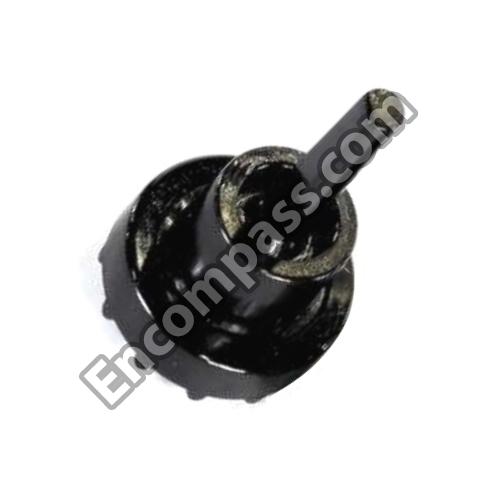

AEZ74533310 AEZ74533310 KNOB ASSEMBLY
AEZ74533308 AEZ74533308 KNOB ASSEMBLY
AEZ74533309 AEZ74533309 KNOB ASSEMBLY
AEZ74073407 AEZ74073407 KNOB ASSEMBLY
AEZ74073404 AEZ74073404 KNOB ASSEMBLY
AEZ74073415 AEZ74073415 KNOB ASSEMBLY
AEZ74453504 AEZ74453504 KNOB ASSEMBLY
AEZ74453510 AEZ74453510 KNOB ASSEMBLY
AEZ74533302 AEZ74533302 KNOB ASSEMBLY
AEZ74533352 AEZ74533352 KNOB ASSEMBLY
AEZ74073405 AEZ74073405 KNOB ASSEMBLY
AEZ74073416 AEZ74073416 KNOB ASSEMBLY
AEZ74453505 AEZ74453505 KNOB ASSEMBLY
AEZ74453511 AEZ74453511 KNOB ASSEMBLY
AEZ74533301 AEZ74533301 KNOB ASSEMBLY
AEZ74533353 AEZ74533353 KNOB ASSEMBLY
AEZ74073406 AEZ74073406 KNOB ASSEMBLY
AEZ74073417 AEZ74073417 KNOB ASSEMBLY
AEZ74453506 AEZ74453506 KNOB ASSEMBLY
AEZ74453512 AEZ74453512 KNOB ASSEMBLY
AEZ74533303 AEZ74533303 KNOB ASSEMBLY
AEZ74533314 AEZ74533314 KNOB ASSEMBLY
AEZ74533344 AEZ74533344 KNOB ASSEMBLY
AEZ74533349 AEZ74533349 KNOB ASSEMBLY
AEZ74533351 AEZ74533351 KNOB ASSEMBLY
MEZ69028404 MEZ69028404 LABEL,WARNING
6913W1N002C 6913W1N002C LAMP,INCANDESCENT
6913W1N002H 6913W1N002H LAMP,INCANDESCENT
EAQ60658301 EAQ60658301 LAMP,NEON
EAQ60658303 EAQ60658303 LAMP,NEON
4778W1N001B 4778W1N001B LEG
4B72510F 4B72510F LUG
MFM64236701 MFM64236701 MEMBRANE
EAU62862906 EAU62862906 MOTOR ASSEMBLY,AC,SYNCHRONOUS
EAU62862901 EAU62862901 MOTOR ASSEMBLY,AC,SYNCHRONOUS
EAU62343001 EAU62343001 MOTOR,AC FAN
1NHB0500032 1NHB0500032 NUT HEXAGON 1, D4.0 NORULE MS
MFZ64539501 MFZ64539501 PACKING,GASKET
MFZ61951606 MFZ61951606 PACKING,GASKET
MFZ64539502 MFZ64539502 PACKING,GASKET
MFZ61951605 MFZ61951605 PACKING,GASKET
3920W1N014A 3920W1N014A PACKING,MISC
3920W1N013A 3920W1N013A PACKING,SEAL

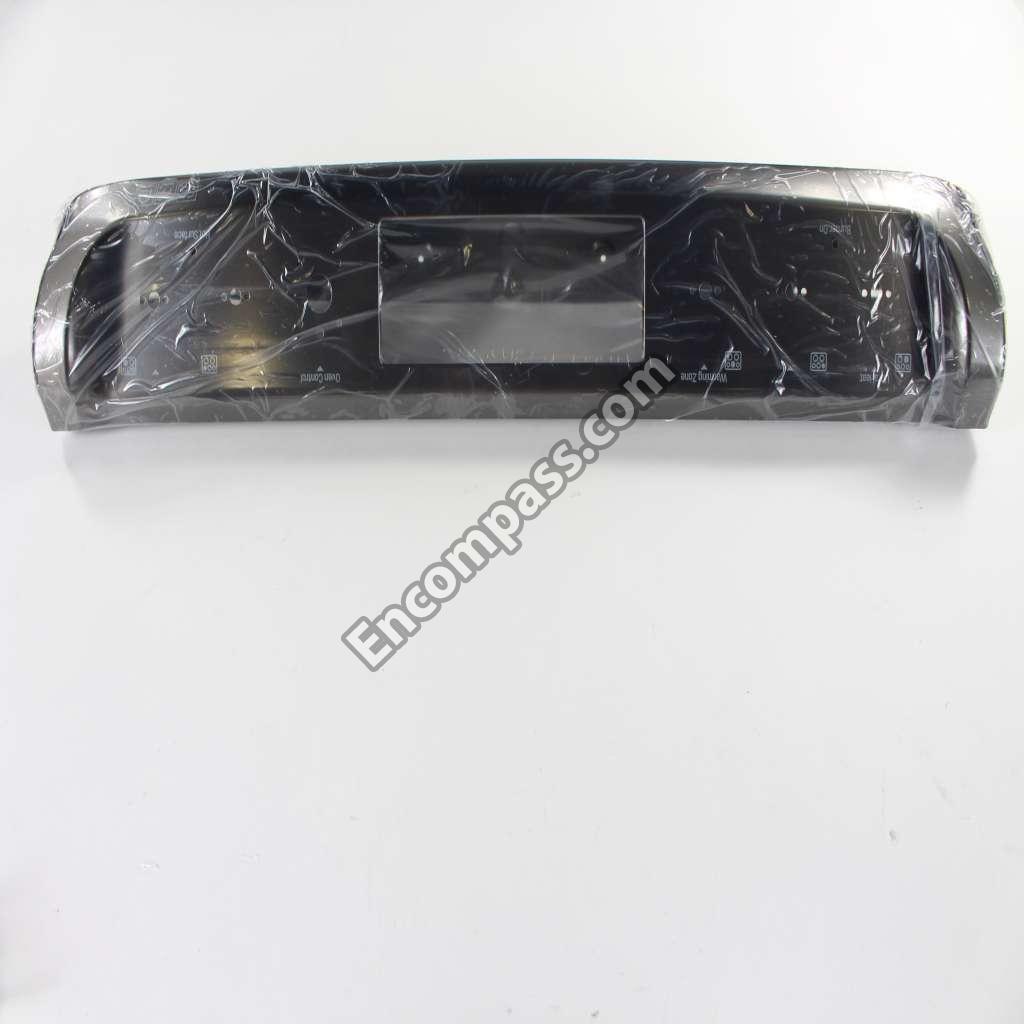

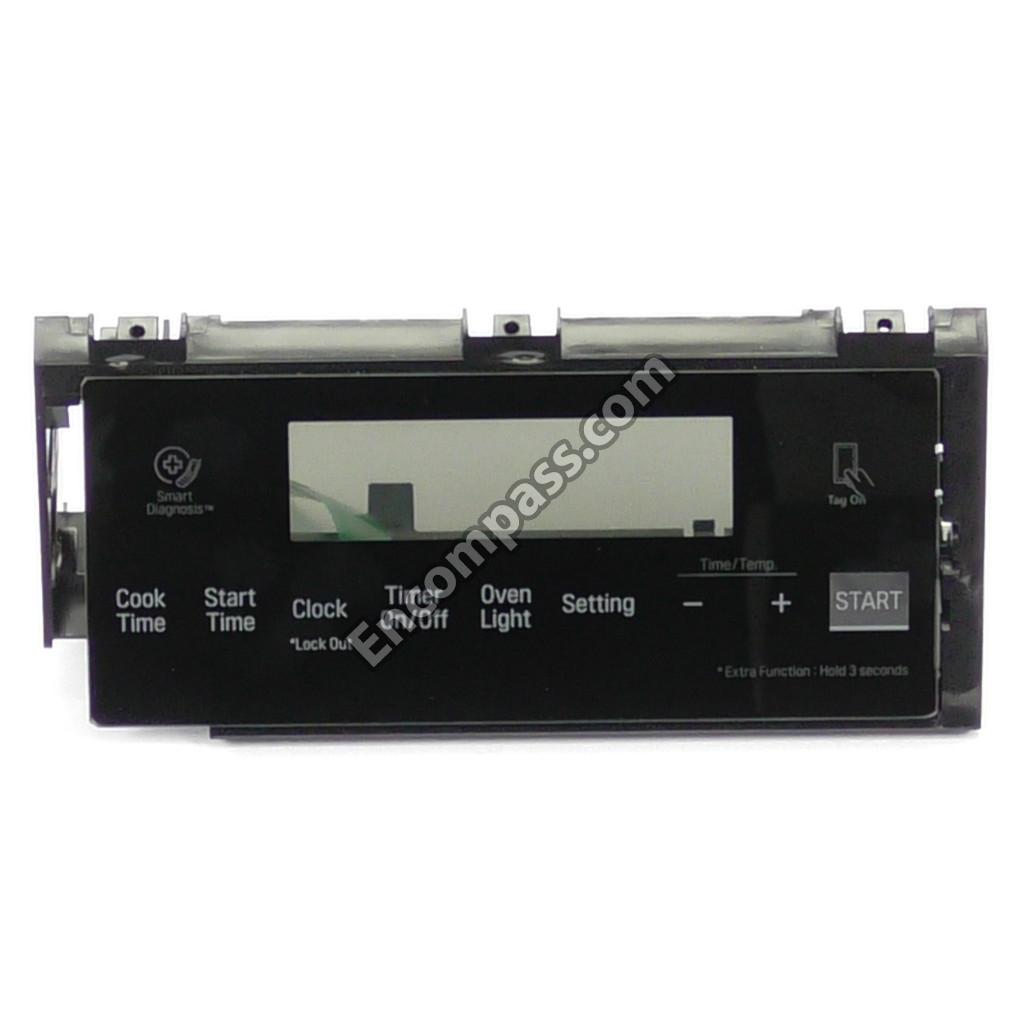

AGL75512508 AGL75512508 PANEL ASSEMBLY,FRONT
MGC63820310 MGC63820310 PANEL,FRONT
MGC63819802 MGC63819802 PANEL,REAR
MGC62644035 MGC62644035 PANEL,SIDE
MGC62644017 MGC62644017 PANEL,SIDE
AGM75429208 AGM75429208 PARTS ASSEMBLY
AGM75429206 AGM75429206 PARTS ASSEMBLY
AGM75509804 AGM75509804 PARTS ASSEMBLY

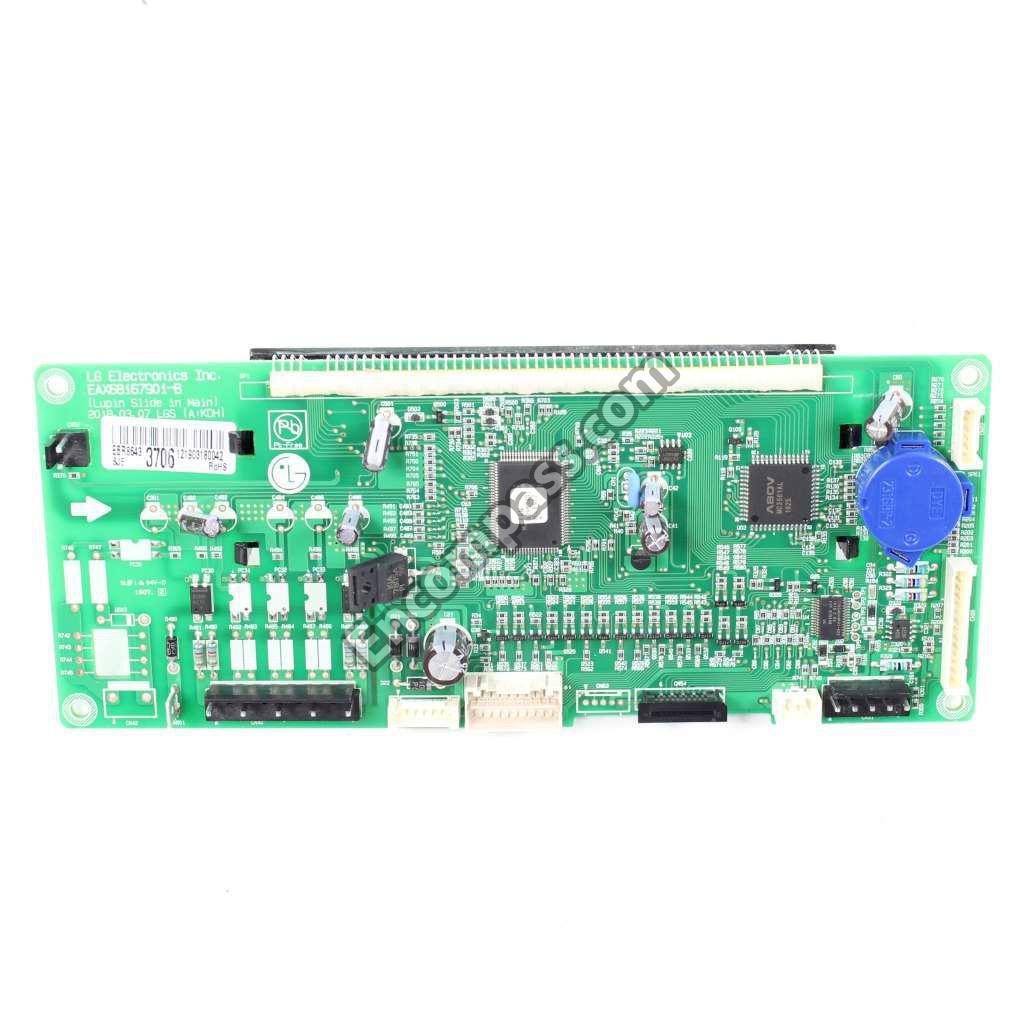

EBR86433707 EBR86433707 PCB ASSEMBLY,MAIN
EBR86433706 EBR86433706 PCB ASSEMBLY,MAIN
EBR78789101 EBR78789101 PCB ASSEMBLY,MODULE
EBR80595701 EBR80595701 PCB ASSEMBLY,POWER
EBR80327001 EBR80327001 PCB ASSEMBLY,SUB
EBR80595411 EBR80595411 PCB ASSEMBLY,SUB

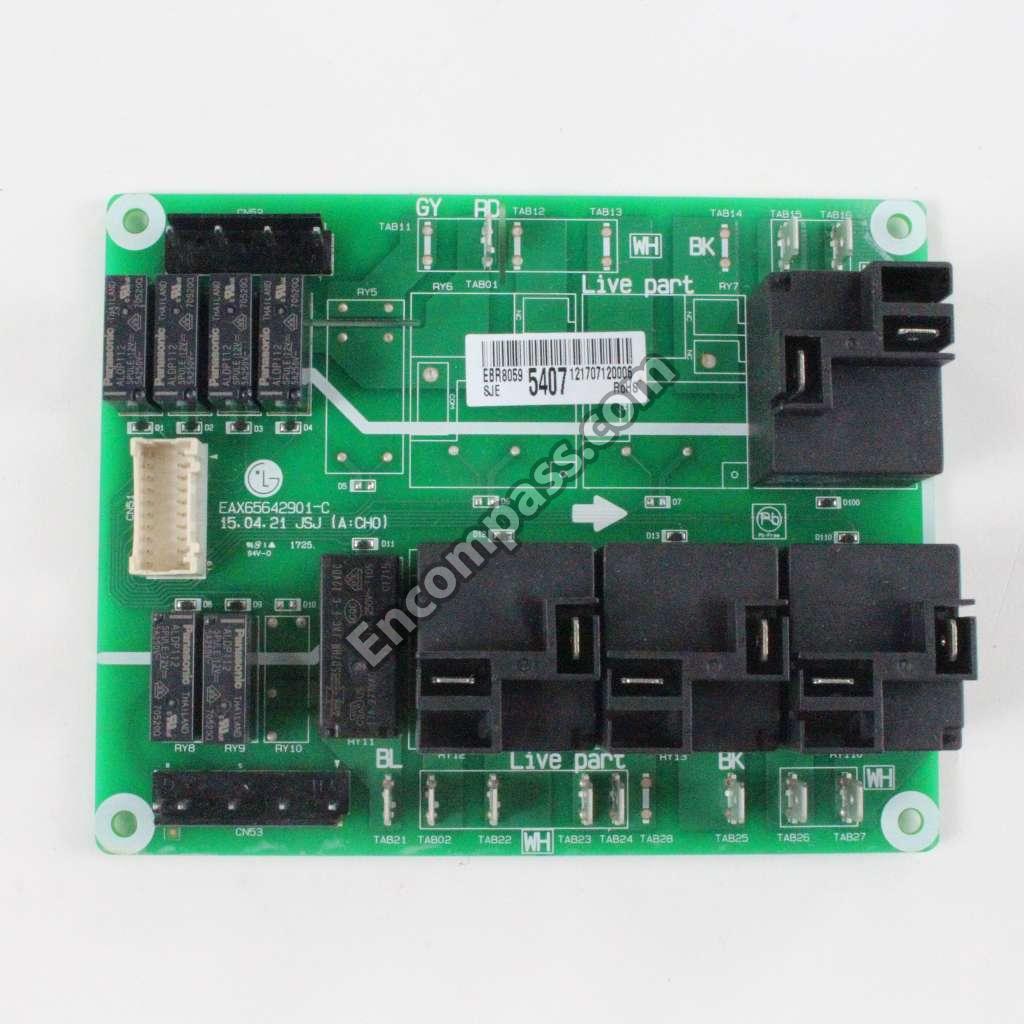

EBR80595407 EBR80595407 PCB ASSEMBLY,SUB

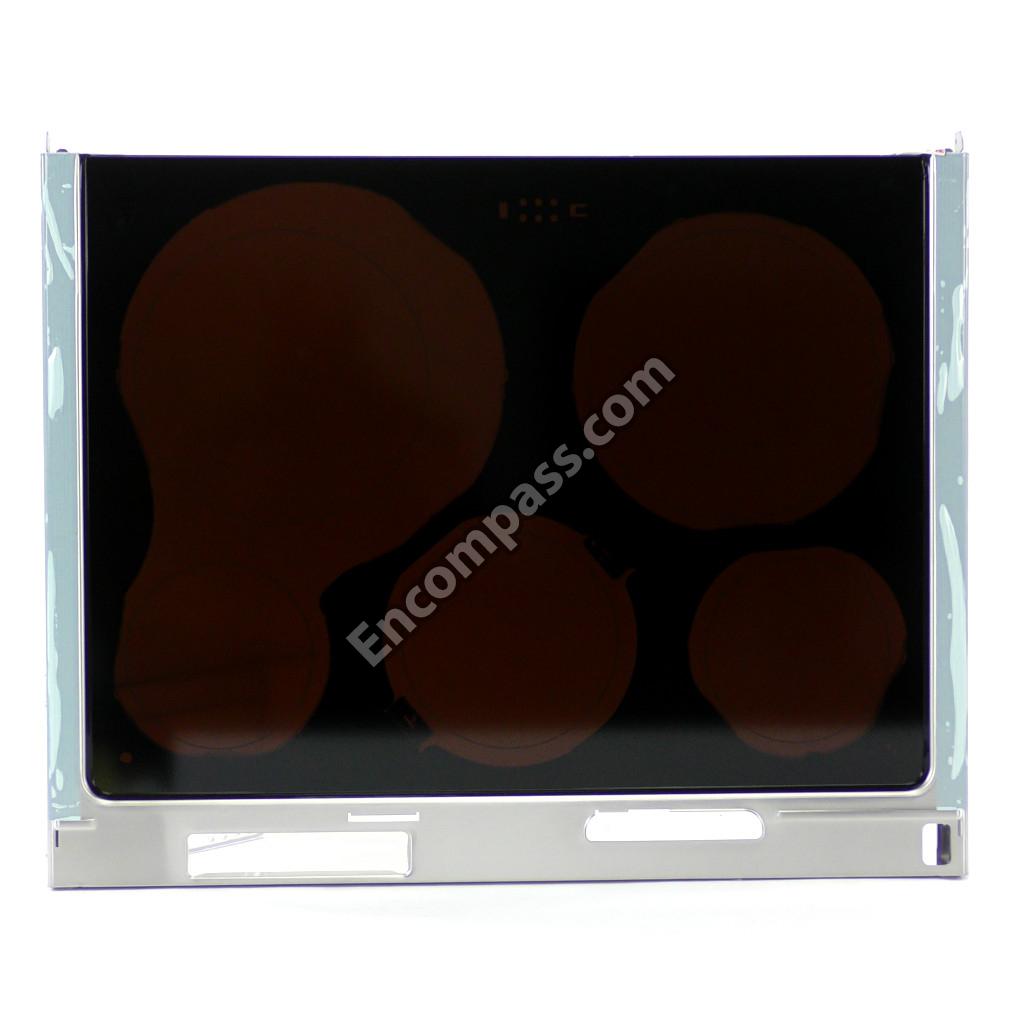

AGU75049010 AGU75049010 PLATE ASSEMBLY,UPPER
AGU75049011 AGU75049011 PLATE ASSEMBLY,UPPER
AGU75049008 AGU75049008 PLATE ASSEMBLY,UPPER
AGU75049009 AGU75049009 PLATE ASSEMBLY,UPPER
MGJ64431101 MGJ64431101 PLATE,BASE
MGJ63105904 MGJ63105904 PLATE,FRONT

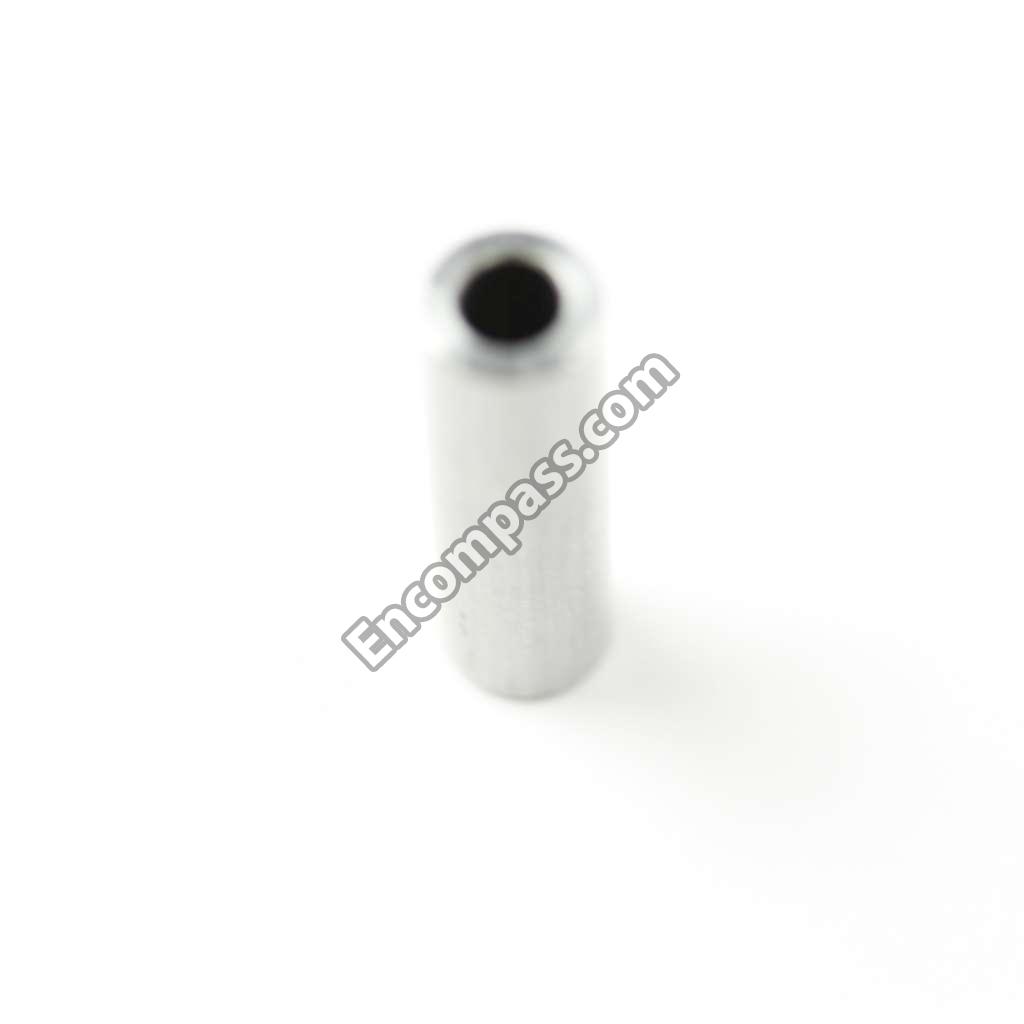

MGZ63607001 MGZ63607001 RING
4B73725E 4B73725E RING
MGZ63727001 MGZ63727001 RING,GUIDE

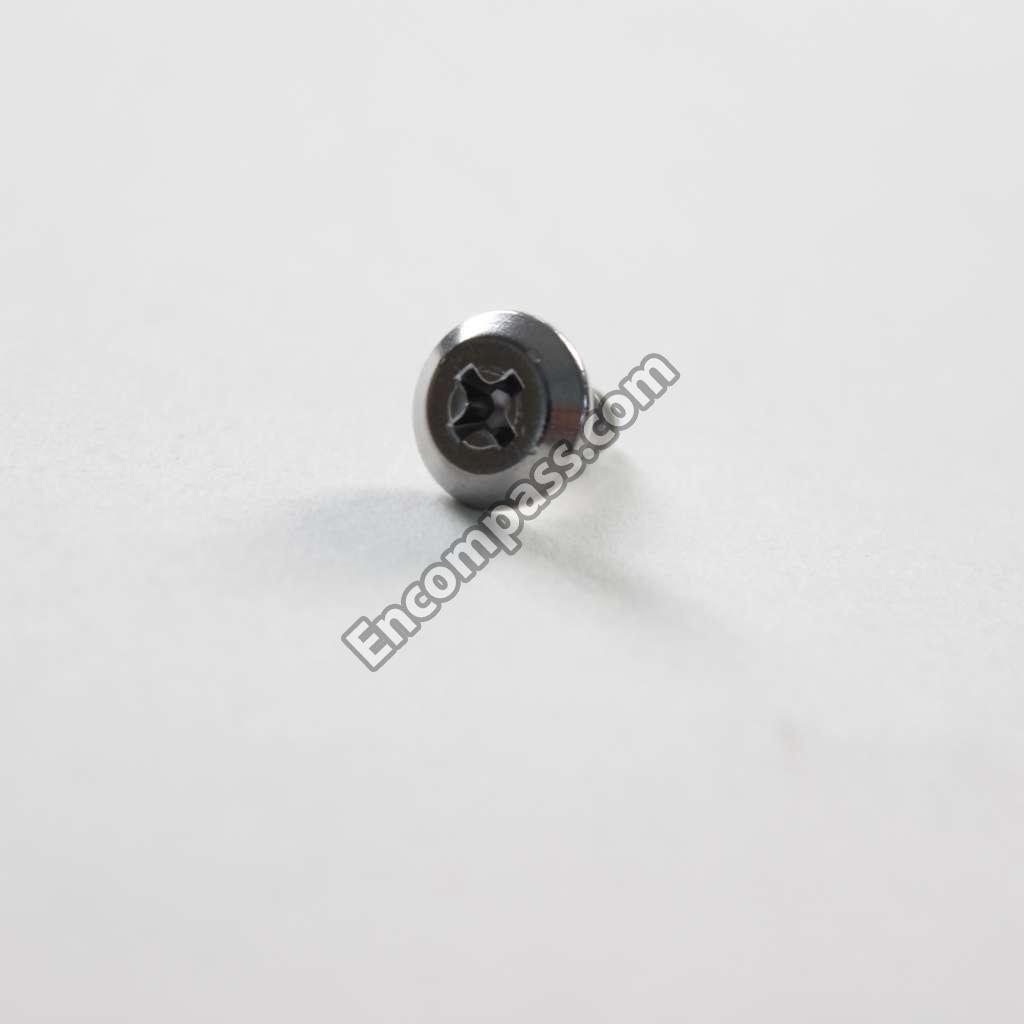

1SZZW1N003A 1SZZW1N003A SCREW,CUSTOMIZED
1SZZW5N001H 1SZZW5N001H SCREW,CUSTOMIZED
FAB30162501 FAB30162501 SCREW,CUSTOMIZED
1SZZW2A004E 1SZZW2A004E SCREW,CUSTOMIZED
1SZZW5N001A 1SZZW5N001A SCREW,DRAWING
1SZZW5N001C 1SZZW5N001C SCREW,DRAWING
FAB30455601 FAB30455601 SCREW,MACHINE
1SBF0402418 1SBF0402418 SCREW,TAPTITE
MHL63411403 MHL63411403 SHELF
MHS62022301 MHS62022301 SLIDER
MHS62022201 MHS62022201 SLIDER
4000W4A003A 4000W4A003A SPECIAL SCREW(EARTH) D4.0 L10
4B70188C 4B70188C SPECIAL SCREW-D MV-1003T MVH1
MHY64083701 MHY64083701 SPRING
MJH64334501 MJH64334501 SUPPORTER
MJH63775301 MJH63775301 SUPPORTER
MJH63757102 MJH63757102 SUPPORTER
MJH63757101 MJH63757101 SUPPORTER
MJH63776501 MJH63776501 SUPPORTER
4980W1N013A 4980W1N013A SUPPORTER
MJH42056411 MJH42056411 SUPPORTER
MJH64673101 MJH64673101 SUPPORTER,HANDLE
MJH37701302 MJH37701302 SUPPORTER,HOLDER
MJH64334701 MJH64334701 SUPPORTER,LEVER
MJH63756601 MJH63756601 SUPPORTER,PCB
MJH64354502 MJH64354502 SUPPORTER,PCB
MJH63756801 MJH63756801 SUPPORTER,PCB
EBF62174905 EBF62174905 SWITCH,ROTARY
EBF62174907 EBF62174907 SWITCH,ROTARY
EBF62174906 EBF62174906 SWITCH,ROTARY
EBF60663403 EBF60663403 SWITCH,TACT
1TTG0402422 1TTG0402422 TAP TITE SCREW+D4.0 L8.0MA-117
EBG61305805 EBG61305805 THERMISTOR,PTC
6930W1A003X 6930W1A003X THERMOSTAT
AJV73149901 AJV73149901 VENT ASSEMBLY
1WSD0500032 1WSD0500032 WASHER,COMMON
1WSD0500075 1WSD0500075 WASHER,COMMON
1WZZ81N001A 1WZZ81N001A WASHER,CUSTOMIZED
4890W1N005L 4890W1N005L WINDOW,GLASS
MKC65459116 MKC65459116 WINDOW,GLASS
4890W1N005A 4890W1N005A WINDOW,GLASS
