Model Image
Manufacturer

LG

Model Number

LSGL5833D

Description

5.8 Cu Ft. Smart Wi-fi Enabled Fan Convection Gas

Interactive Exploded View

Parts List

Part Number Description
EAU61865305 EAU61865305 AC MOTOR FAN
AAA72971046 AAA72971046 ACCESSORY ASSEMBLY
FAK30249601 FAK30249601 ANCHOR,CUSTOMIZED
MAK61907202 MAK61907202 BAR
MAM62948406 MAM62948406 BASE
MAM62948404 MAM62948404 BASE
MAZ61859501 MAZ61859501 BRACKET
MAZ64885101 MAZ64885101 BRACKET
ABA30100101 ABA30100101 BRACKET ASSEMBLY
ABA75389602 ABA75389602 BRACKET ASSEMBLY
MAZ64788501 MAZ64788501 BRACKET,HINGE
MAZ61885801 MAZ61885801 BRACKET,HINGE
MAZ61859006 MAZ61859006 BRACKET,IDLE
MAZ61859001 MAZ61859001 BRACKET,IDLE
MAZ64590502 MAZ64590502 BRACKET,IDLE
4810W1N060B 4810W1N060B BRACKET,MOTOR
MAZ63250901 MAZ63250901 BRACKET,MOUNT
MAZ63250602 MAZ63250602 BRACKET,MOUNT
MAZ63250601 MAZ63250601 BRACKET,MOUNT
ABF74493301 ABF74493301 BURNER ASSEMBLY
ABF74369801 ABF74369801 BURNER ASSEMBLY
ABF74369718 ABF74369718 BURNER ASSEMBLY
ABF74369717 ABF74369717 BURNER ASSEMBLY
ABF74369716 ABF74369716 BURNER ASSEMBLY
ABF74369715 ABF74369715 BURNER ASSEMBLY
ABF74369714 ABF74369714 BURNER ASSEMBLY
ABF74049704 ABF74049704 BURNER ASSEMBLY
ABF73009701 ABF73009701 BURNER ASSEMBLY
ABF72909013 ABF72909013 BURNER ASSEMBLY

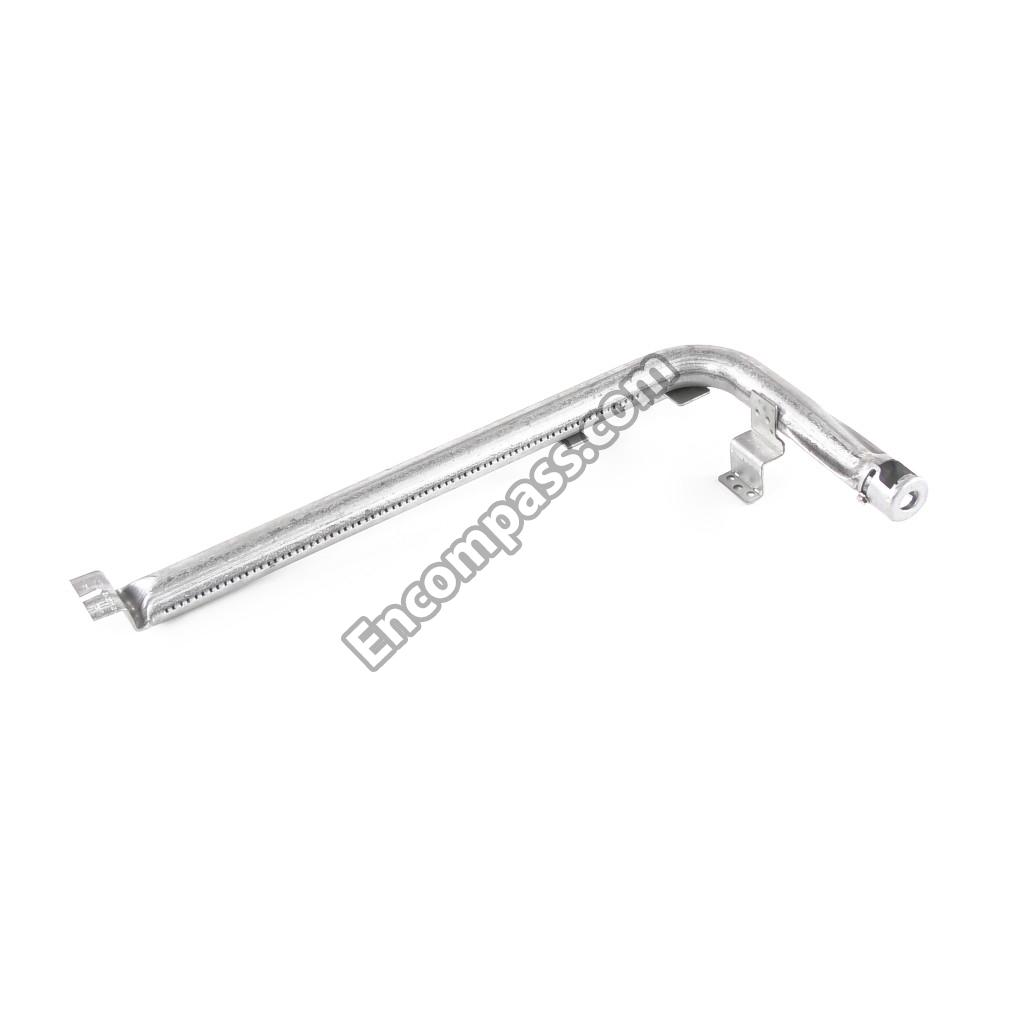

ABF72909012 ABF72909012 BURNER ASSEMBLY
ABF73569804 ABF73569804 BURNER ASSEMBLY
ABF72989703 ABF72989703 BURNER ASSEMBLY
ABF72989705 ABF72989705 BURNER ASSEMBLY
MBE62284202 MBE62284202 BURNER,CAP
MBE62284502 MBE62284502 BURNER,CAP
MBE62284402 MBE62284402 BURNER,CAP
MBE62284102 MBE62284102 BURNER,CAP
MBE62284302 MBE62284302 BURNER,CAP
MBE62423701 MBE62423701 BURNER,HEAD
MBE62283203 MBE62283203 BURNER,HEAD
MBE62424001 MBE62424001 BURNER,HEAD
MBE62302903 MBE62302903 BURNER,HEAD
MBE62424101 MBE62424101 BURNER,HEAD
MBE62423801 MBE62423801 BURNER,HEAD
MBE62283303 MBE62283303 BURNER,HEAD
EAD65965002 EAD65965002 CABLE,ASSEMBLY
EAD65965006 EAD65965006 CABLE,ASSEMBLY
EAD65965005 EAD65965005 CABLE,ASSEMBLY
MBN61848606 MBN61848606 CASE
MBN61848608 MBN61848608 CASE
EBR32418503 EBR32418503 CONTROL BOARD,WIFI
EBR85871801 EBR85871801 CONTROL BOARD,WIFI
AGM30037606 AGM30037606 CONTROL PANEL,PARTS ASSEMBLY,SVC
ACQ30699702 ACQ30699702 COVER ASSEMBLY,REAR
MCK71414904 MCK71414904 COVER,GUIDE
MCK71414901 MCK71414901 COVER,GUIDE
MCK61936501 MCK61936501 COVER,HEATER
MCK71166610 MCK71166610 COVER,HEATER
MCK7116610 MCK7116610 COVER,HEATER
MCK71166701 MCK71166701 COVER,INSULATOR
MCK71167510 MCK71167510 COVER,MOTOR
MCK71167502 MCK71167502 COVER,MOTOR
AGM30045202 AGM30045202 COVER,PARTS ASSEMBLY,SVC
MCK71167402 MCK71167402 COVER,SAFETY
MCR67468503 MCR67468503 DECOR,GUARD(REAR)
AGM30037202 AGM30037202 DOOR,PARTS ASSEMBLY,SVC

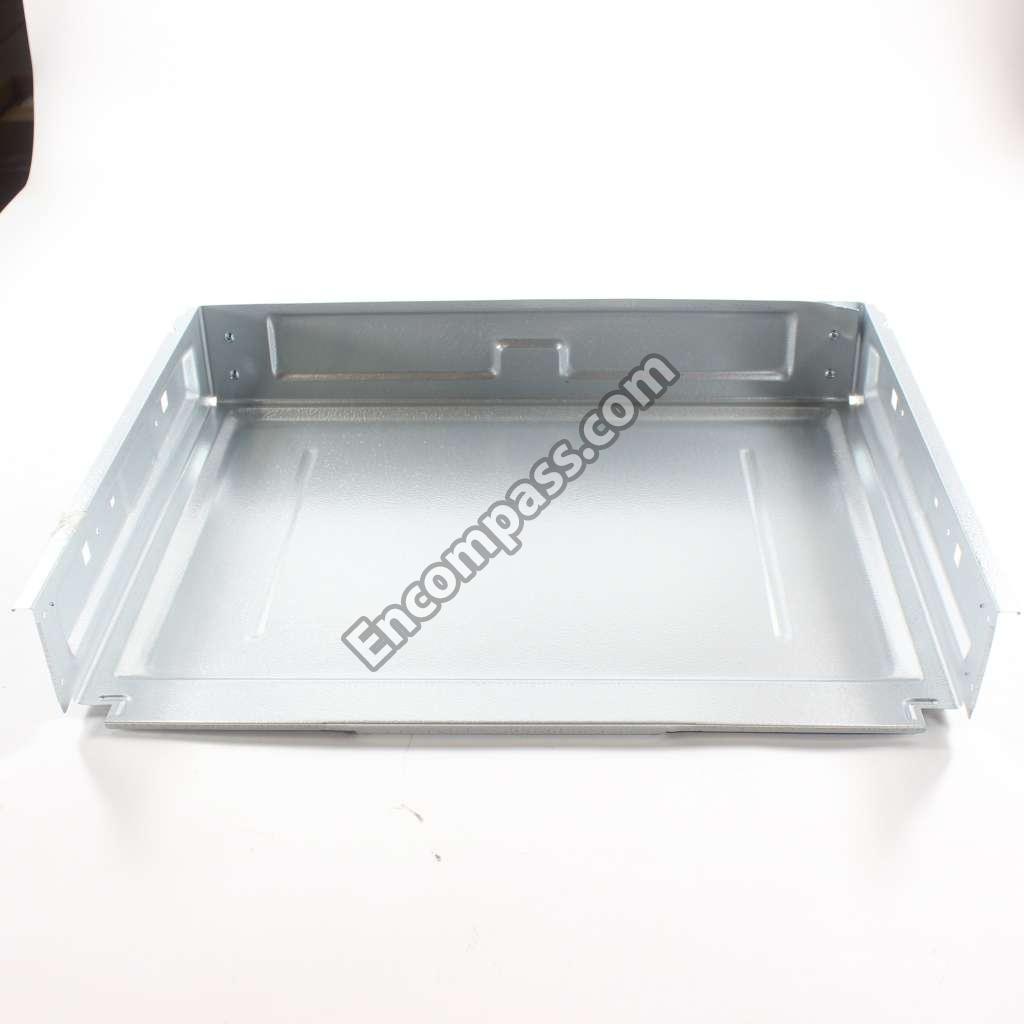

MCX61961502 MCX61961502 DRAWER
ADJ74172310 ADJ74172310 DUCT ASSEMBLY
ADP75675601 ADP75675601 FAN ASSEMBLY,BLOWER
MDG35948702 MDG35948702 FAN,CONVECTION
4778W1N001A 4778W1N001A FOOT
MDP64335101 MDP64335101 FOOT
4778W1N001E 4778W1N001E FOOT
4778W1N001B 4778W1N001B FOOT
ADU73169403 ADU73169403 FOOT ASSEMBLY
ADU73169401 ADU73169401 FOOT ASSEMBLY
MDQ66517706 MDQ66517706 FRAME,DOOR
MDQ66517702 MDQ66517702 FRAME,DOOR
MDQ66517503 MDQ66517503 FRAME,FIXING
AMP30000002 AMP30000002 GOVERNOR ASSEMBLY
AEB76124701 AEB76124701 GRILLE ASSEMBLY
AEB76124601 AEB76124601 GRILLE ASSEMBLY
AEB76124501 AEB76124501 GRILLE ASSEMBLY
MDX64331911 MDX64331911 GRILLE,VENT
MDX64331909 MDX64331909 GRILLE,VENT
MEB65414302 MEB65414302 HANDLE,DOOR
EAD62349831 EAD62349831 HARNESS,SINGLE
EAD65883501 EAD65883501 HARNESS,SINGLE
6877W1N024F 6877W1N024F HARNESS,SINGLE
EAD65882202 EAD65882202 HARNESS,SINGLE
EAD65882205 EAD65882205 HARNESS,SINGLE
EAD65883701 EAD65883701 HARNESS,SINGLE
EAD65883801 EAD65883801 HARNESS,SINGLE
MEE61841401 MEE61841401 HEATER,PLAIN
AEH75637210 AEH75637210 HINGE ASSEMBLY
AEH76198004 AEH76198004 HINGE ASSEMBLY
AEH75637215 AEH75637215 HINGE ASSEMBLY
AEJ72912907 AEJ72912907 HOLDER ASSEMBLY
MEG66723901 MEG66723901 HOLDER,NOZZLE
MEG61850403 MEG61850403 HOLDER,NOZZLE
MEV64078605 MEV64078605 INSULATOR
MEV64078606 MEV64078606 INSULATOR
MEV67477201 MEV67477201 INSULATOR
MEV64078601 MEV64078601 INSULATOR
MEV64078607 MEV64078607 INSULATOR
MEV65115501 MEV65115501 INSULATOR
MEV65115503 MEV65115503 INSULATOR
MEV65115502 MEV65115502 INSULATOR
AEZ75853733 AEZ75853733 KNOB ASSEMBLY
AEZ75853730 AEZ75853730 KNOB ASSEMBLY
AEZ75853760 AEZ75853760 KNOB ASSEMBLY
AEZ75853763 AEZ75853763 KNOB ASSEMBLY
EAQ62881201 EAQ62881201 LAMP,HALOGEN
EAV64012008 EAV64012008 LED DISPLAY MODULE
EBR43713602 EBR43713602 MAIN BOARD
EBR31736602 EBR31736602 MAIN BOARD
EAU62862906 EAU62862906 MOTOR ASSEMBLY,AC,SYNCHRONOUS
MFV62085103 MFV62085103 NOZZLE
FAD33778501 FAD33778501 NUT,COMMON
1NHB0500032 1NHB0500032 NUT,COMMON
4B71028B 4B71028B NUT,COMMON
MFZ62037301 MFZ62037301 PACKING,GASKET
3920W1N013D 3920W1N013D PACKING,GASKET
MFZ66946601 MFZ66946601 PACKING,GASKET
MFZ63772806 MFZ63772806 PACKING,GASKET
3920W1N014A 3920W1N014A PACKING,IDLE
MGC66180307 MGC66180307 PANEL,DRAWER
MGC30045404 MGC30045404 PANEL,REAR
MGC66371905 MGC66371905 PANEL,REAR
MGC66371908 MGC66371908 PANEL,REAR
MGC66371902 MGC66371902 PANEL,REAR
MGC62644045 MGC62644045 PANEL,SIDE
MGC62644024 MGC62644024 PANEL,SIDE
MGC62644046 MGC62644046 PANEL,SIDE
MGC62644026 MGC62644026 PANEL,SIDE
MGE65892402 MGE65892402 PIPE

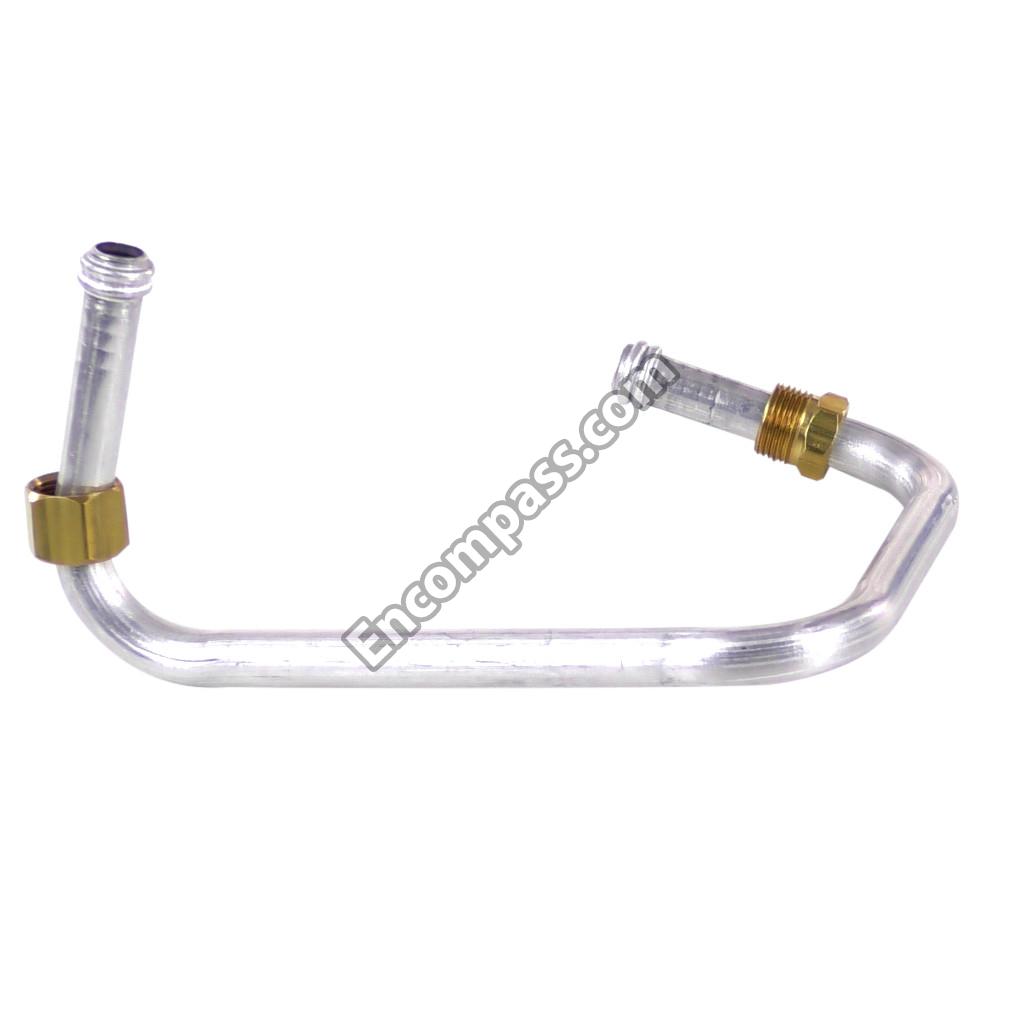

MGE65892401 MGE65892401 PIPE
MGE65892602 MGE65892602 PIPE
MGE65892601 MGE65892601 PIPE
MGE65892502 MGE65892502 PIPE
MGE65892501 MGE65892501 PIPE
MGE66147402 MGE66147402 PIPE
MGE66147401 MGE66147401 PIPE
AGR30024802 AGR30024802 PIPE ASSEMBLY
AGR30024801 AGR30024801 PIPE ASSEMBLY
MGE66146802 MGE66146802 PIPE,BENDING
MGE66146801 MGE66146801 PIPE,BENDING
MGJ67004801 MGJ67004801 PLATE,BASE
MGJ67004802 MGJ67004802 PLATE,BASE

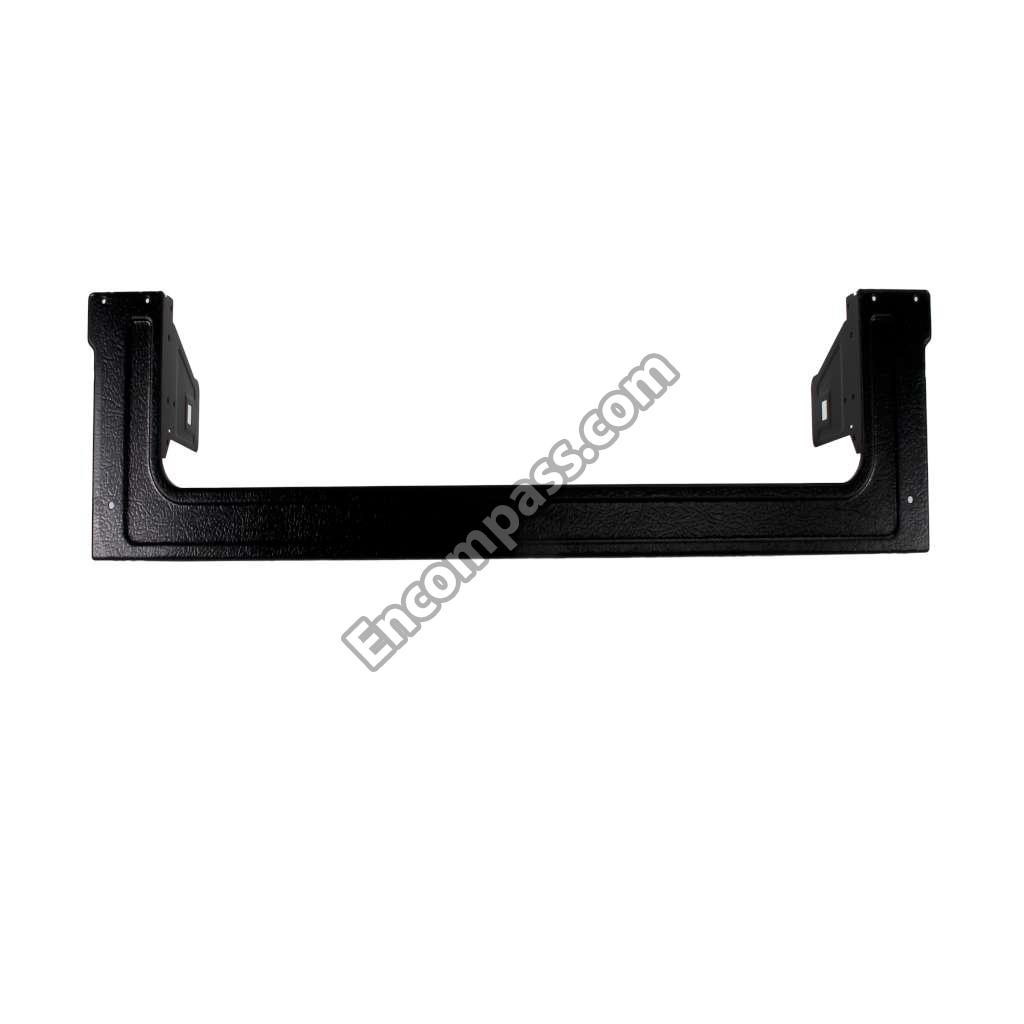

MGJ63105901 MGJ63105901 PLATE,FRONT
MGJ67004403 MGJ67004403 PLATE,INNER
MGJ67004401 MGJ67004401 PLATE,INNER
3300W1N003Q 3300W1N003Q PLATE,SHIELD
MGJ67206103 MGJ67206103 PLATE,TOP
EAD60700406 EAD60700406 POWER CORD ASSEMBLY
EBR43713702 EBR43713702 POWER SUPPLY

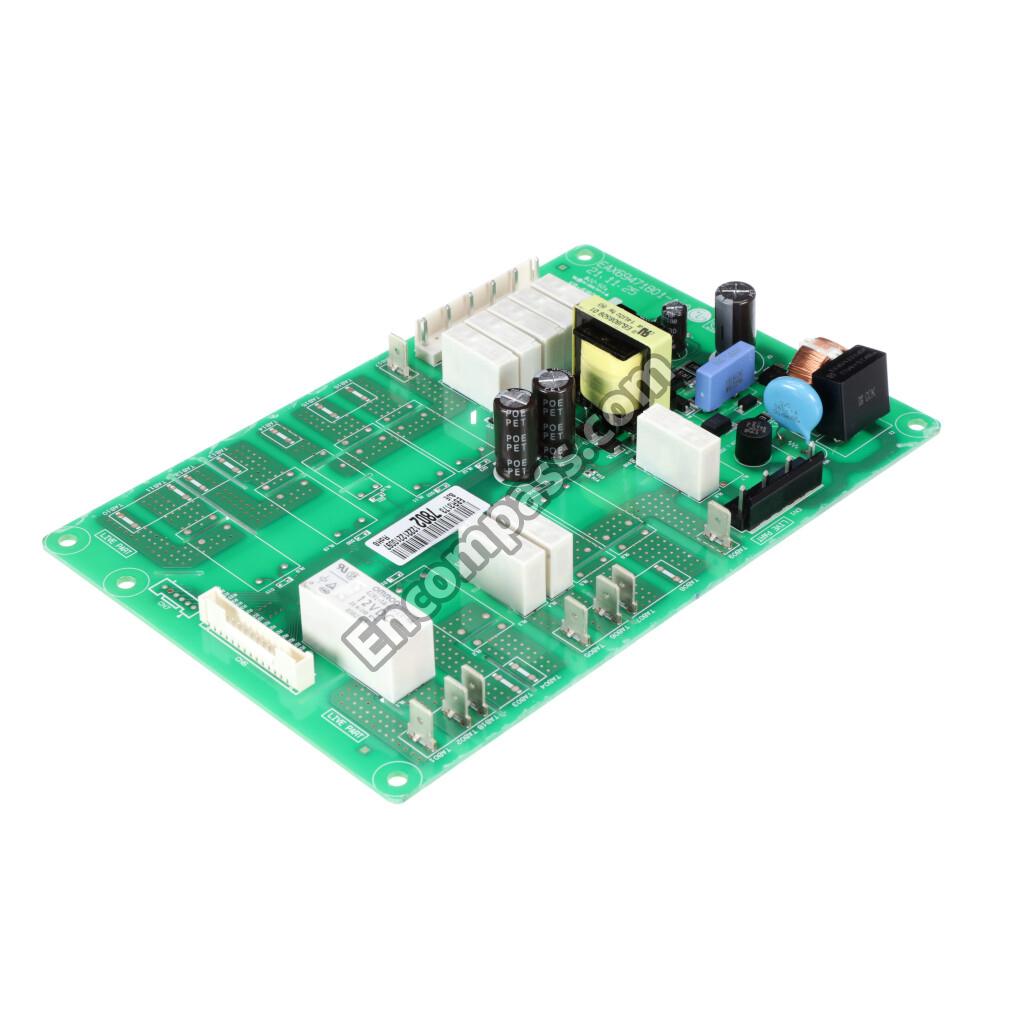

EBR31737802 EBR31737802 POWER SUPPLY

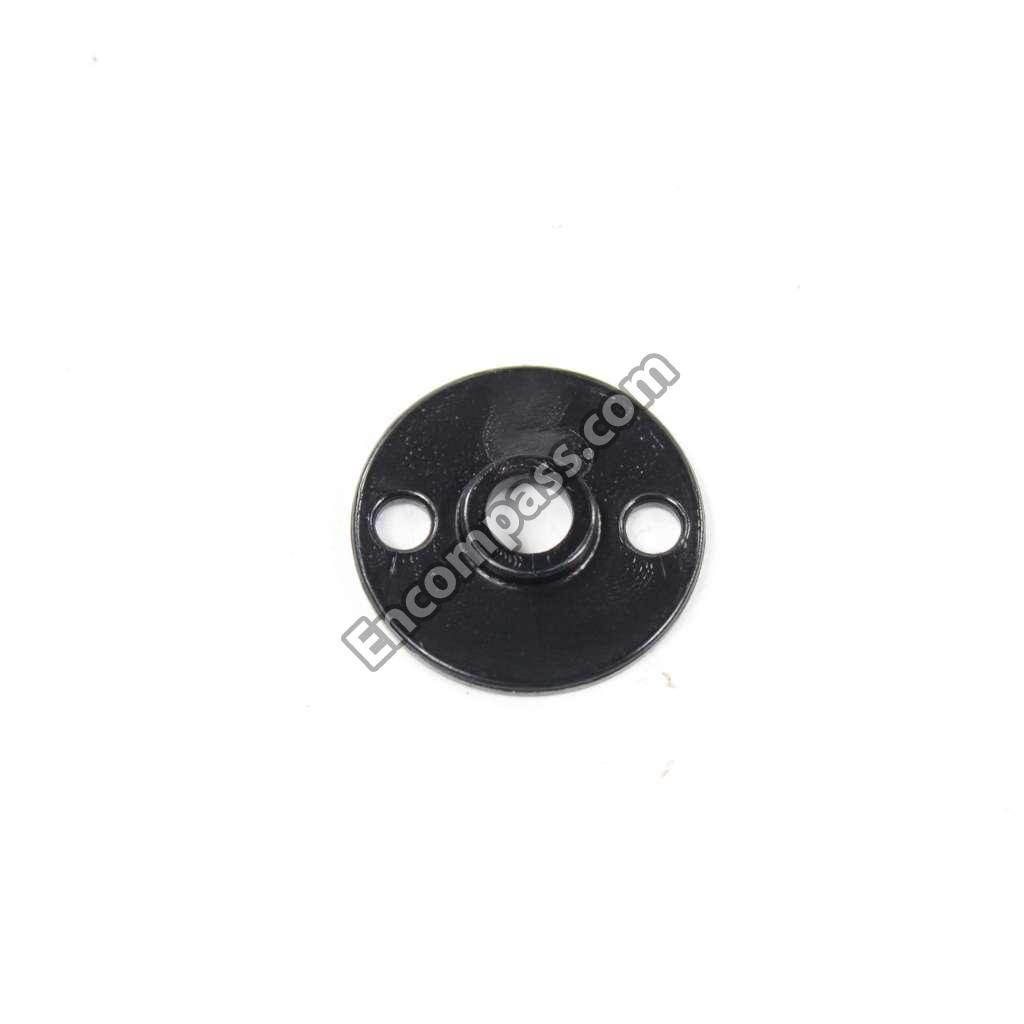

MGZ63727001 MGZ63727001 RING,GUIDE
MGZ63727002 MGZ63727002 RING,GUIDE
FAB30424504 FAB30424504 SCREW,CUSTOMIZED
1SZZW2A004E 1SZZW2A004E SCREW,CUSTOMIZED
3E55114A 3E55114A SCREW,CUSTOMIZED
FAB30424502 FAB30424502 SCREW,CUSTOMIZED
1SZZW1N006A 1SZZW1N006A SCREW,CUSTOMIZED
1SZZW1E002E 1SZZW1E002E SCREW,CUSTOMIZED
1SZZW5N001H 1SZZW5N001H SCREW,CUSTOMIZED
1SZZW5N001A 1SZZW5N001A SCREW,CUSTOMIZED
1SZZW1N003A 1SZZW1N003A SCREW,CUSTOMIZED
FAB31821702 FAB31821702 SCREW,CUSTOMIZED
1SZZW5N001C 1SZZW5N001C SCREW,CUSTOMIZED
4B73763A 4B73763A SCREW,CUSTOMIZED
1SZZW1N006E 1SZZW1N006E SCREW,CUSTOMIZED
1SZZW5N001E 1SZZW5N001E SCREW,CUSTOMIZED
FAB31821701 FAB31821701 SCREW,CUSTOMIZED
FAB30455602 FAB30455602 SCREW,MACHINE
FAB30264901 FAB30264901 SCREW,TAPPING
1TTL0403118 1TTL0403118 SCREW,TAPPING
1TTL0402618 1TTL0402618 SCREW,TAPPING
1TTL0402418 1TTL0402418 SCREW,TAPPING
1SBF0402418 1SBF0402418 SCREW,TAPTITE
MHL64891810 MHL64891810 SHELF
MHL64891809 MHL64891809 SHELF
MHL64891808 MHL64891808 SHELF
MHL64712101 MHL64712101 SHELF
MHS62022201 MHS62022201 SLIDER
MHS62022301 MHS62022301 SLIDER
4980W1N013F 4980W1N013F SUPPORTER
AJJ76649101 AJJ76649101 SUPPORTER ASSEMBLY,SET
MJH66410201 MJH66410201 SUPPORTER,HANDLE
MJH66074701 MJH66074701 SUPPORTER,HANDLE
MJH37701302 MJH37701302 SUPPORTER,HOLDER
AGM30037301 AGM30037301 SUPPORTER,PARTS ASSEMBLY,SVC
MJH66322901 MJH66322901 SUPPORTER,PCB
MJH66074001 MJH66074001 SUPPORTER,WINDOW
EBF64562701 EBF64562701 SWITCH ASSEMBLY
EBF63054503 EBF63054503 SWITCH,ROTARY
EBF60663404 EBF60663404 SWITCH,TACT
6322W2A001S 6322W2A001S THERMISTOR,NTC
EBG61305805 EBG61305805 THERMISTOR,PTC
EBJ64465501 EBJ64465501 TRANSFORMER ASSEMBLY,POWER
MJX62571702 MJX62571702 VALVE
AJU74852802 AJU74852802 VALVE ASSEMBLY,GAS
AJU74852813 AJU74852813 VALVE ASSEMBLY,GAS
AJU74852801 AJU74852801 VALVE ASSEMBLY,GAS
AJU75859301 AJU75859301 VALVE ASSEMBLY,GAS
AJV73149406 AJV73149406 VENT ASSEMBLY
AJV73149410 AJV73149410 VENT ASSEMBLY
1WSD0500075 1WSD0500075 WASHER,COMMON
1WZZ81N001A 1WZZ81N001A WASHER,CUSTOMIZED
1WZZW3Z003E 1WZZW3Z003E WASHER,CUSTOMIZED
4890W1N005L 4890W1N005L WINDOW,GLASS
4890W1N009H 4890W1N009H WINDOW,GLASS
