Manufacturer
LG
Model Number
LSK2430CN
Description
Ls-k2430cn
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BARRIER ASSEMBLY,OUTDOOR [447910] |
|
|
BASE ASSEMBLY,WELD(OUTDOOR) [430411] |
|
|
BEARING [342800] |
|
|
CABINET ASSEMBLY [131410] |
|
|
CAPACITOR,FILM,BOX [W0CZZ] |
|
|
CASE ASSEMBLY,CONTROL(INDOOR) [249951] |
|
|
CASE ASSEMBLY,CONTROL(OUTDOOR) [649950] |
|
|
COMPRESSOR ASSEMBLY [554160] |
|
|
CONDENSER ASSEMBLY,BENDING [554031] |
|
|
COVER ASSEMBLY,CONTROL(OUTDOOR) [435511] |
|
|
COVER ASSEMBLY,TOP(OUTDOOR) [435512] |
|
|
DAMPER,COMPRESSOR [550140] |
|
|
EVAPORATOR ASSEMBLY,FINAL [354212] |
|
|
FAN ASSEMBLY,CROSS FLOW [359011] |
|
|
FAN ASSEMBLY,PROPELLER [559010] |
|
|
GRILLE ASSEMBLY,DISCHARGE(INDOOR) [135311] |
|
|
GRILLE ASSEMBLY,FRONT(INDOOR) [135312] |
|
|
GRILLE ASSEMBLY,INLET(SUB) [135314] |
|
|
HOSE ASSEMBLY,DRAIN [352150] |
|
|
LOUVER,HORIZONTAL [159901-1] |
|
|
LOUVER,HORIZONTAL [159901-2] |
|
|
MOTOR ASSEMBLY,AC,OUTDOOR [546810] |
|
|
MOTOR,DC [146811] |
|
|
PANEL ASSEMBLY,FRONT(OUTDOOR) [437210] |
|
|
PANEL ASSEMBLY,REAR(OUTDOOR) [437212] |
|
|
PCB ASSEMBLY,DISPLAY [268712] |
|
|
PCB ASSEMBLY,MAIN [268714] |
|
|

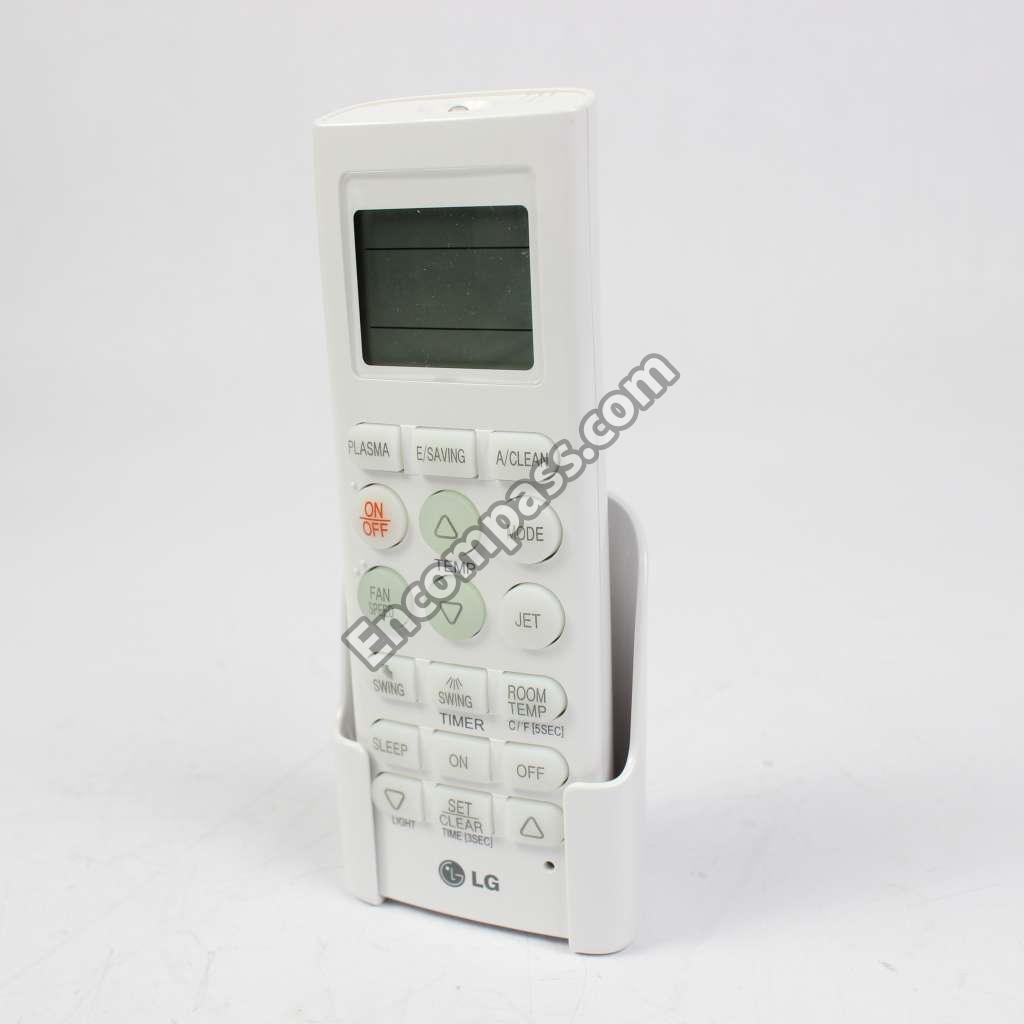

REMOTE CONTROLLER ASSEMBLY [267110] |
|
|
THERMISTOR,NTC [263230] |
|
|
TUBE ASSEMBLY,CAPILLARY [552111] |
|
|
TUBE,CAPILLARY BENDING [552102] |
|
|
VALVE,SERVICE [552203-1] |
|
|
VALVE,SERVICE [552203-2] |
