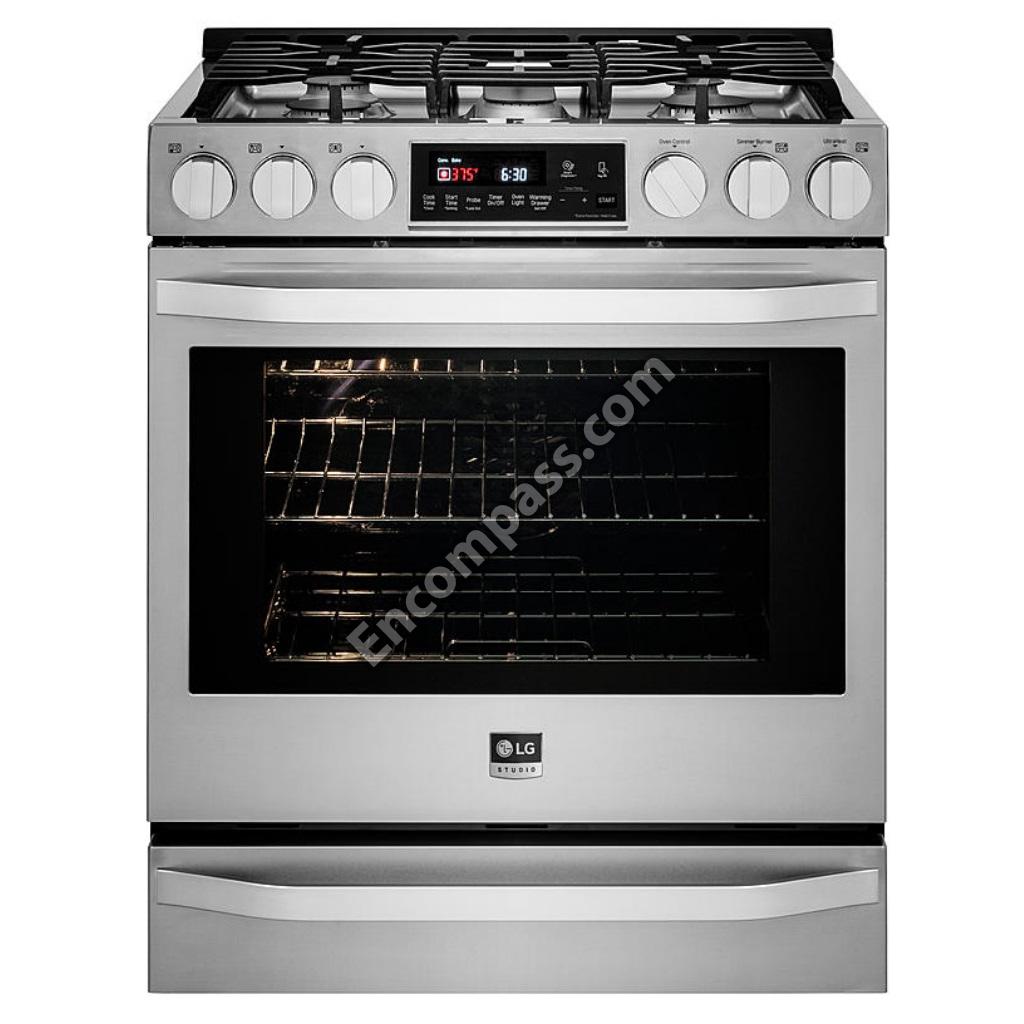

Model Image
Manufacturer

LG

Model Number

LSSG3016ST

Description

6.3 Cu. Ft. Gas Self-cleaning Slide-in Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
AAA74970602 AAA74970602 ACCESSORY ASSEMBLY
AAA77169702 AAA77169702 ACCESSORY ASSEMBLY

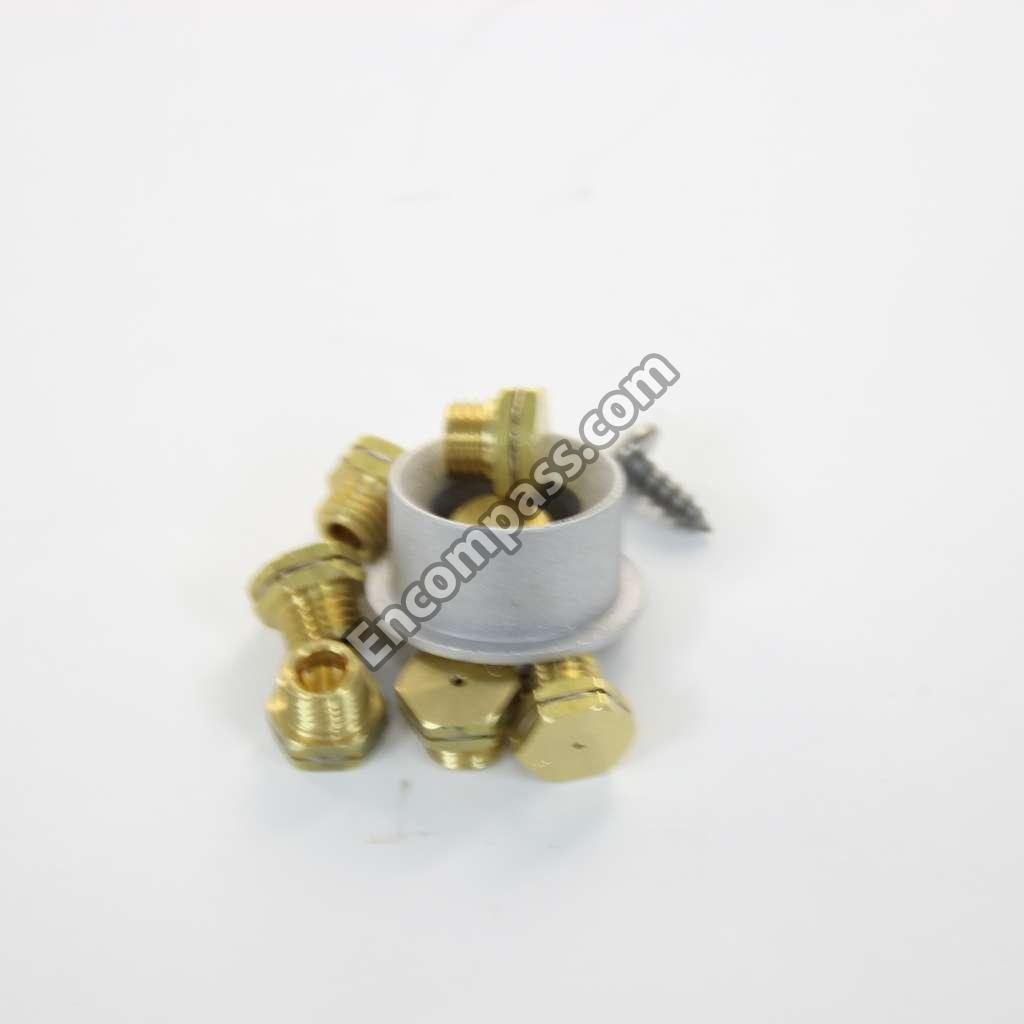

AAA75946005 AAA75946005 ACCESSORY ASSEMBLY,NOZZLE
FAK30249601 FAK30249601 ANCHOR,CUSTOMIZED
3B72559A 3B72559A ANTI-C FAN

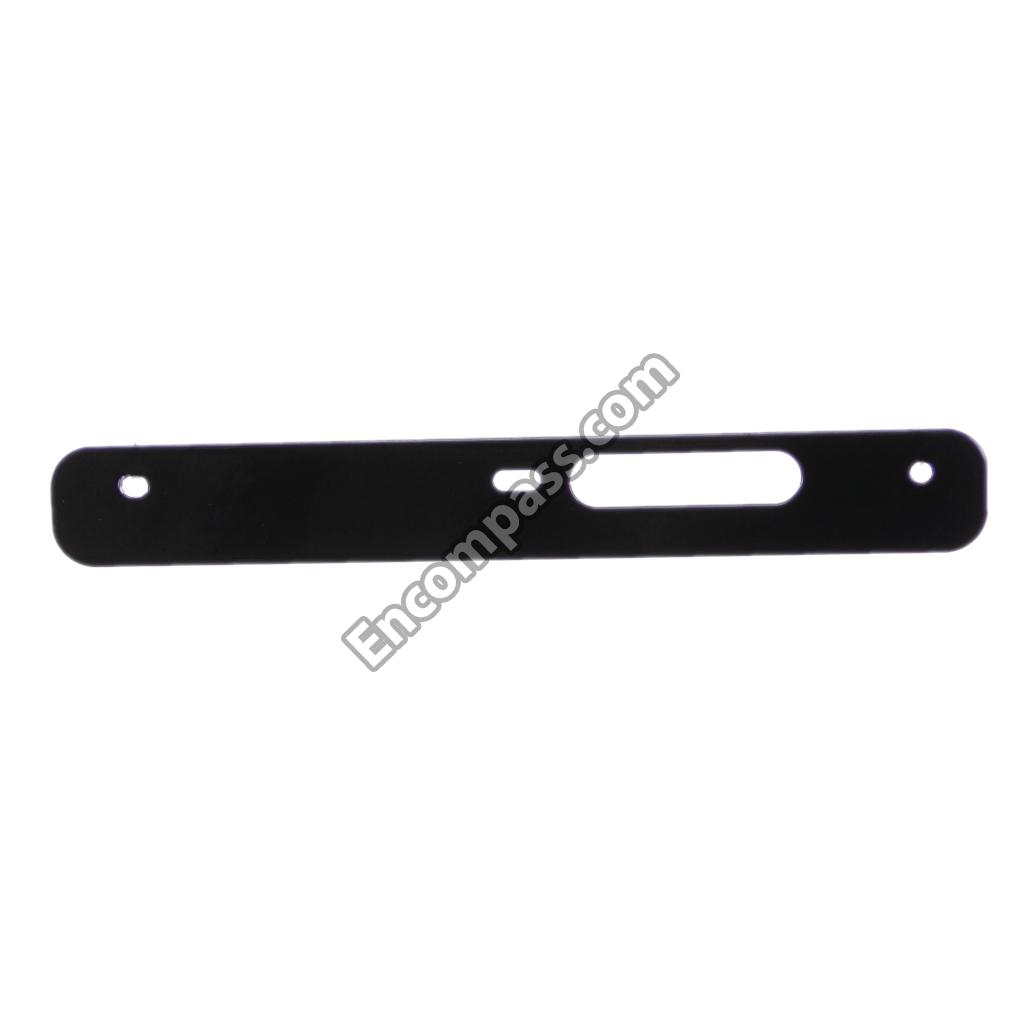

MAK61907202 MAK61907202 BAR

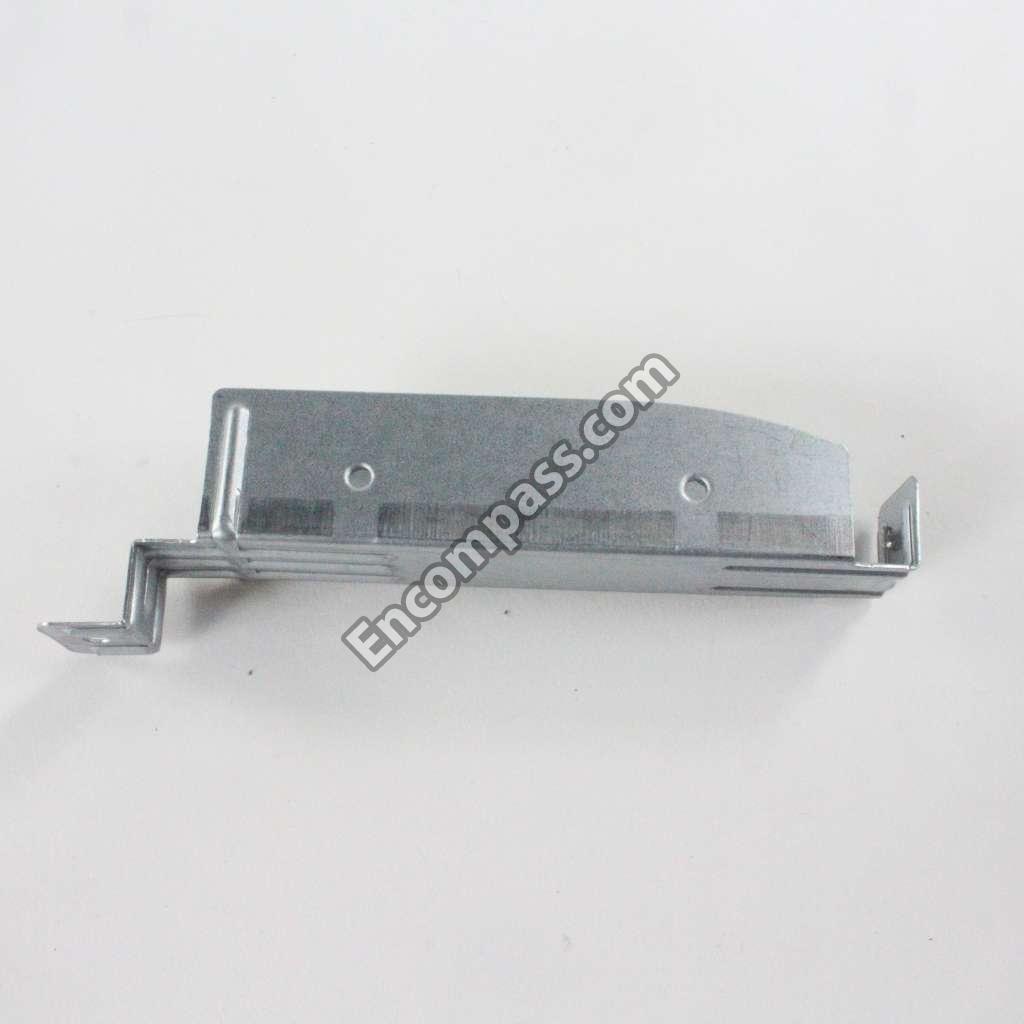

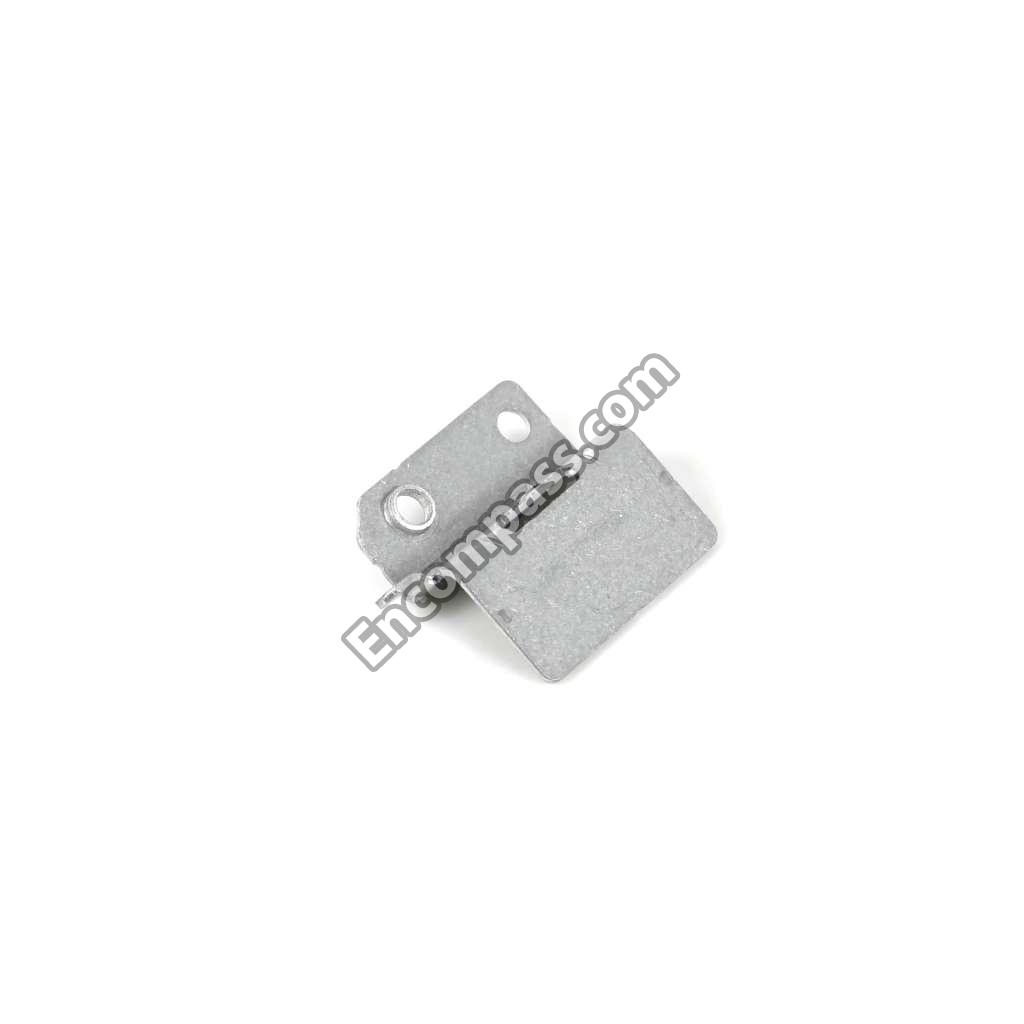

MAZ61859501 MAZ61859501 BRACKET
MAZ64885101 MAZ64885101 BRACKET
MAZ64725501 MAZ64725501 BRACKET
MAZ64568801 MAZ64568801 BRACKET
MAZ64568802 MAZ64568802 BRACKET
ABA75389602 ABA75389602 BRACKET ASSEMBLY
MAZ63548109 MAZ63548109 BRACKET,HINGE
MAZ64788501 MAZ64788501 BRACKET,HINGE
MAZ63548110 MAZ63548110 BRACKET,HINGE
4810W3G135A 4810W3G135A BRACKET,IDLE
MAZ34877103 MAZ34877103 BRACKET,IDLE
4810W1N060B 4810W1N060B BRACKET,MOTOR
MAZ63250603 MAZ63250603 BRACKET,MOUNT
MAZ64569701 MAZ64569701 BRACKET,MOUNT
MAZ63250903 MAZ63250903 BRACKET,MOUNT
MAZ64569401 MAZ64569401 BRACKET,MOUNT
4810W1A180A 4810W1A180A BRACKET,[MAGNETRON]

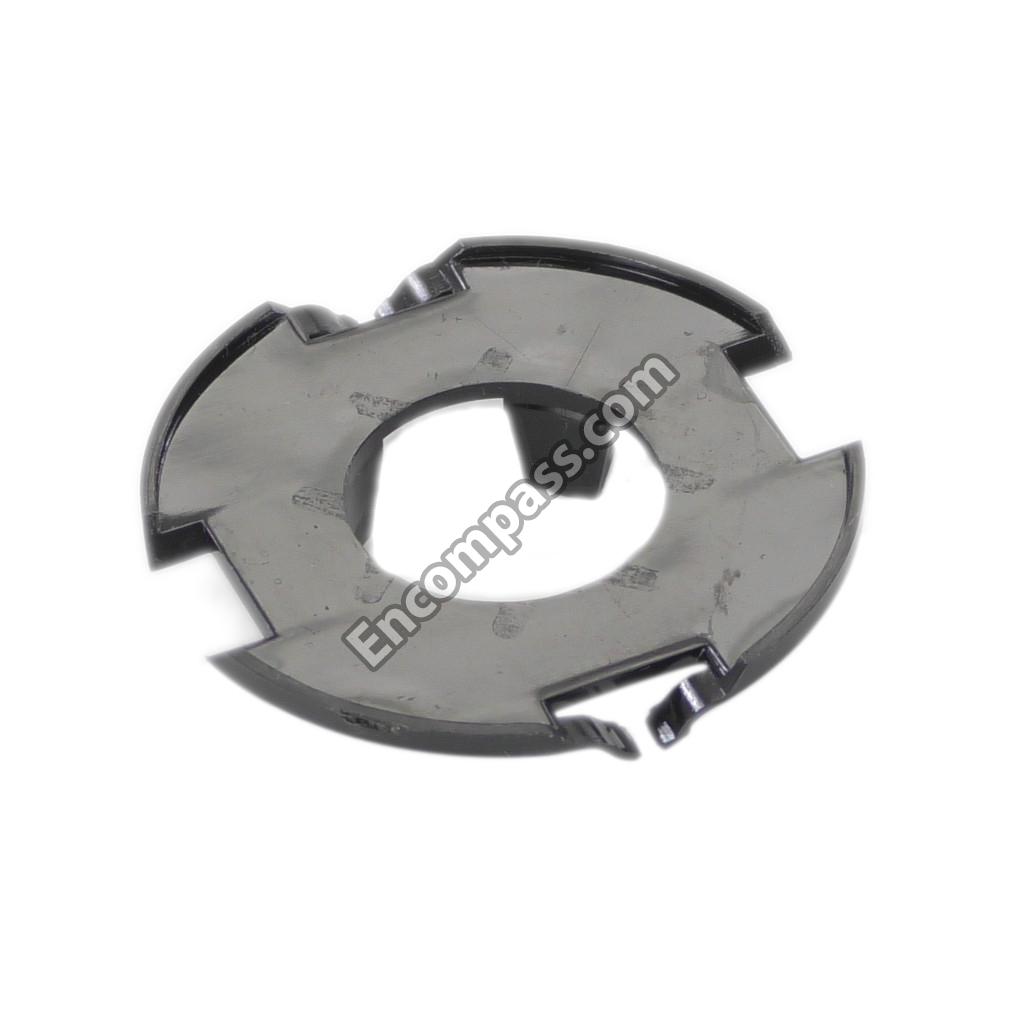

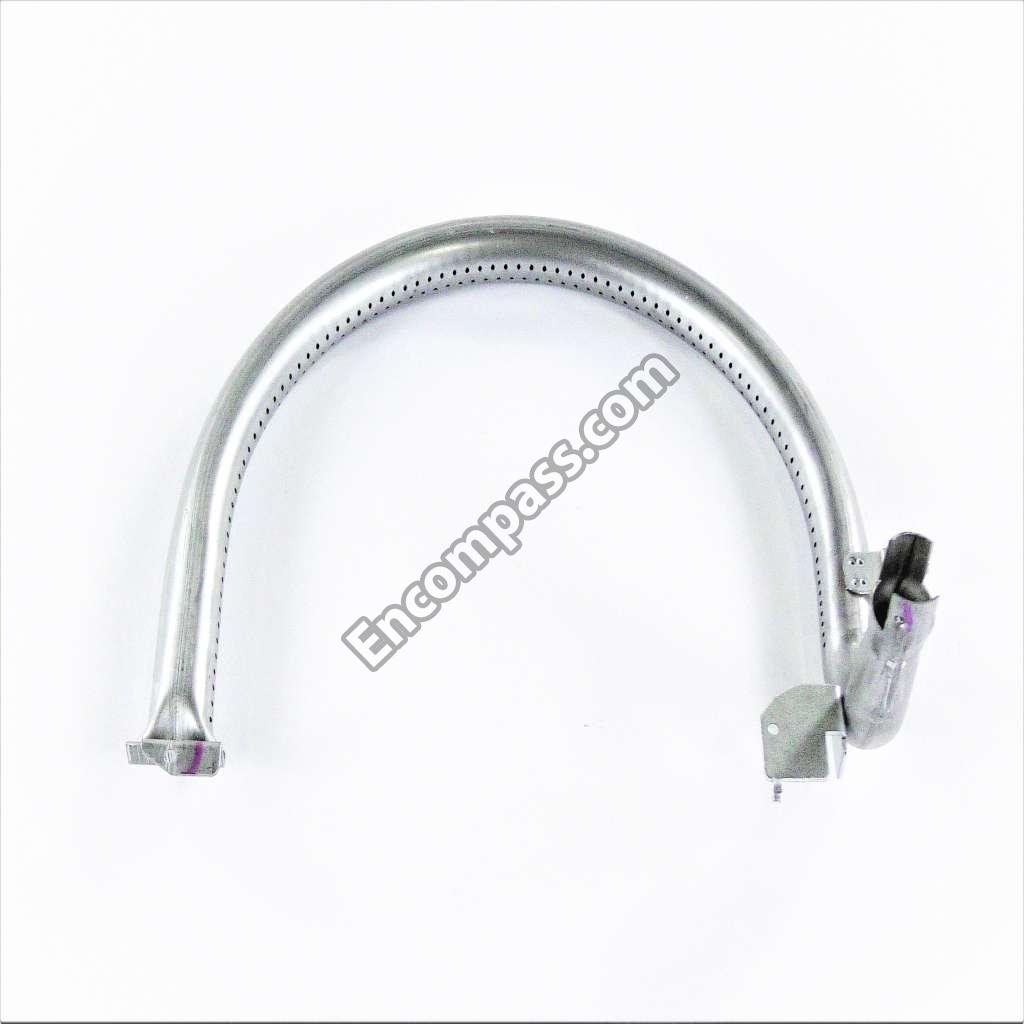

MBE61842008 MBE61842008 BURNER
MBE61842107 MBE61842107 BURNER
MBE61842105 MBE61842105 BURNER
MBE62002906 MBE62002906 BURNER
MBE61842507 MBE61842507 BURNER
MBE61841305 MBE61841305 BURNER
MBE61841306 MBE61841306 BURNER
MBE61841506 MBE61841506 BURNER
MBE61841505 MBE61841505 BURNER
MBE61842004 MBE61842004 BURNER
MBE61841404 MBE61841404 BURNER
MBE62002902 MBE62002902 BURNER
MBE61842103 MBE61842103 BURNER
MBE61841405 MBE61841405 BURNER
MBE61842503 MBE61842503 BURNER
ABF73729801 ABF73729801 BURNER ASSEMBLY
ABF74495101 ABF74495101 BURNER ASSEMBLY
ABF73569802 ABF73569802 BURNER ASSEMBLY
ABF73009701 ABF73009701 BURNER ASSEMBLY
ABF73469901 ABF73469901 BURNER ASSEMBLY
ABF73009703 ABF73009703 BURNER ASSEMBLY
ABF73729805 ABF73729805 BURNER ASSEMBLY

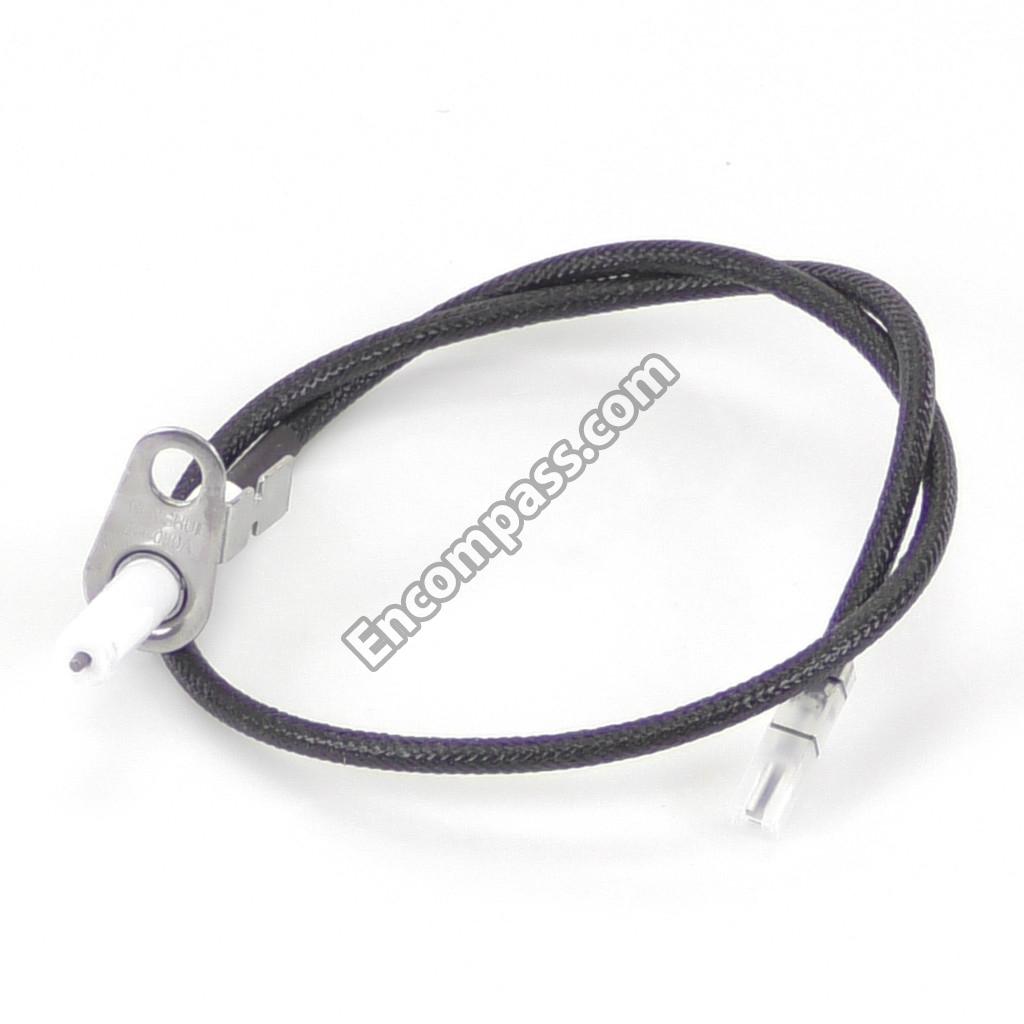

EAD60700551 EAD60700551 CABLE,ASSEMBLY
EAD60700544 EAD60700544 CABLE,ASSEMBLY
EAD60700549 EAD60700549 CABLE,ASSEMBLY
EAD60700550 EAD60700550 CABLE,ASSEMBLY
EAD60700548 EAD60700548 CABLE,ASSEMBLY
EAD60700547 EAD60700547 CABLE,ASSEMBLY
EAD60700541 EAD60700541 CABLE,ASSEMBLY

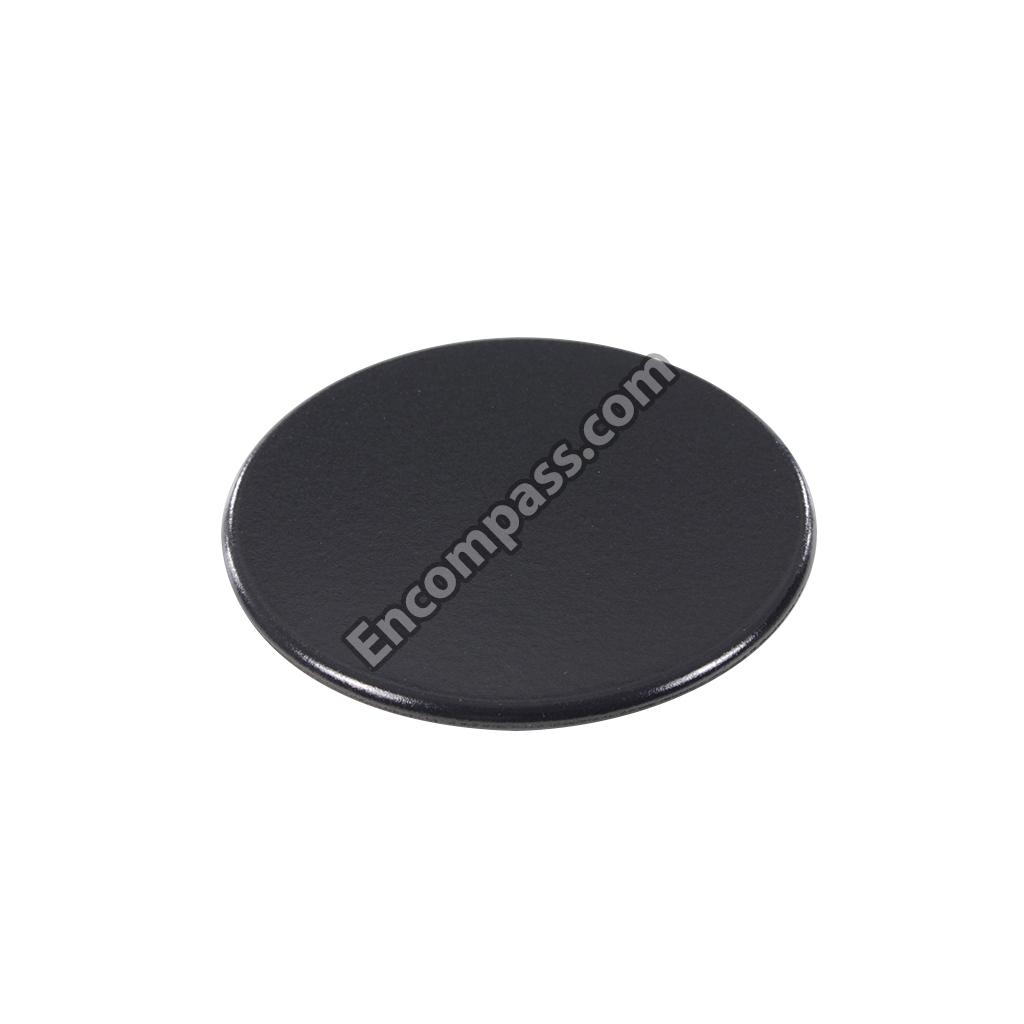

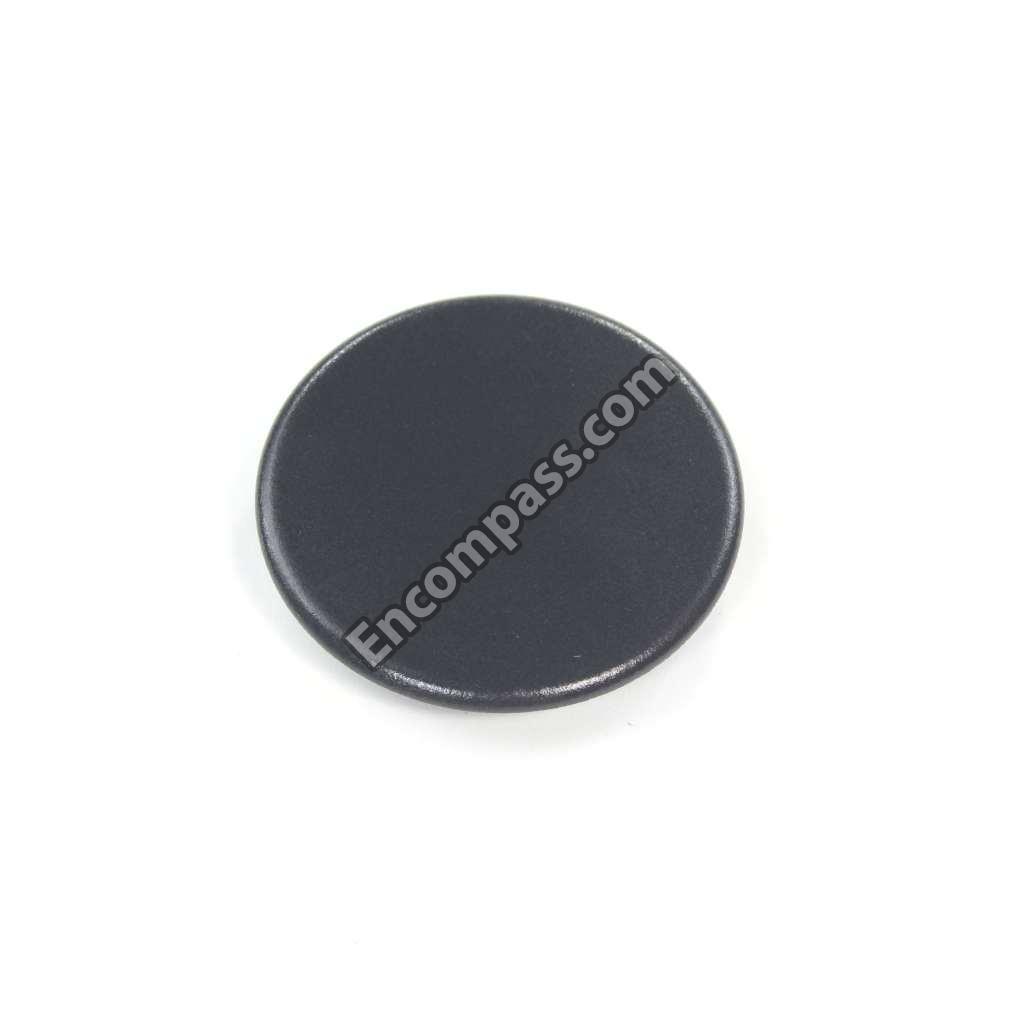

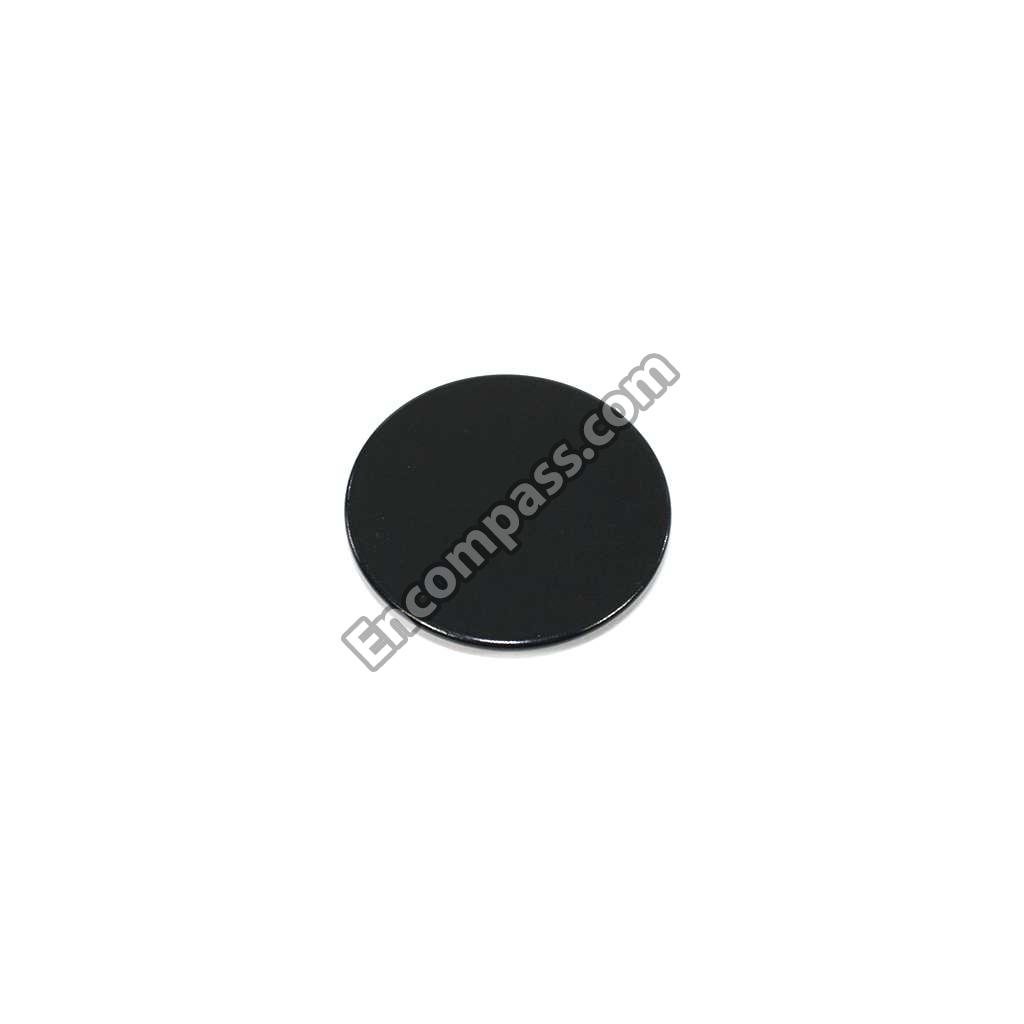

MBL61908706 MBL61908706 CAP,BURNER
MBL61908704 MBL61908704 CAP,BURNER
MBL66377905 MBL66377905 CAP,BURNER
MBL61908504 MBL61908504 CAP,BURNER
MBL61908604 MBL61908604 CAP,BURNER
MBL66377903 MBL66377903 CAP,BURNER
MBL66377906 MBL66377906 CAP,BURNER
MBL61908503 MBL61908503 CAP,BURNER
MBL61908703 MBL61908703 CAP,BURNER
MBL61908506 MBL61908506 CAP,BURNER
MBL61908606 MBL61908606 CAP,BURNER
MBN63824201 MBN63824201 CASE
MBN63824301 MBN63824301 CASE
MBN63844901 MBN63844901 CASE
MBN64606101 MBN64606101 CASE,NOZZLE

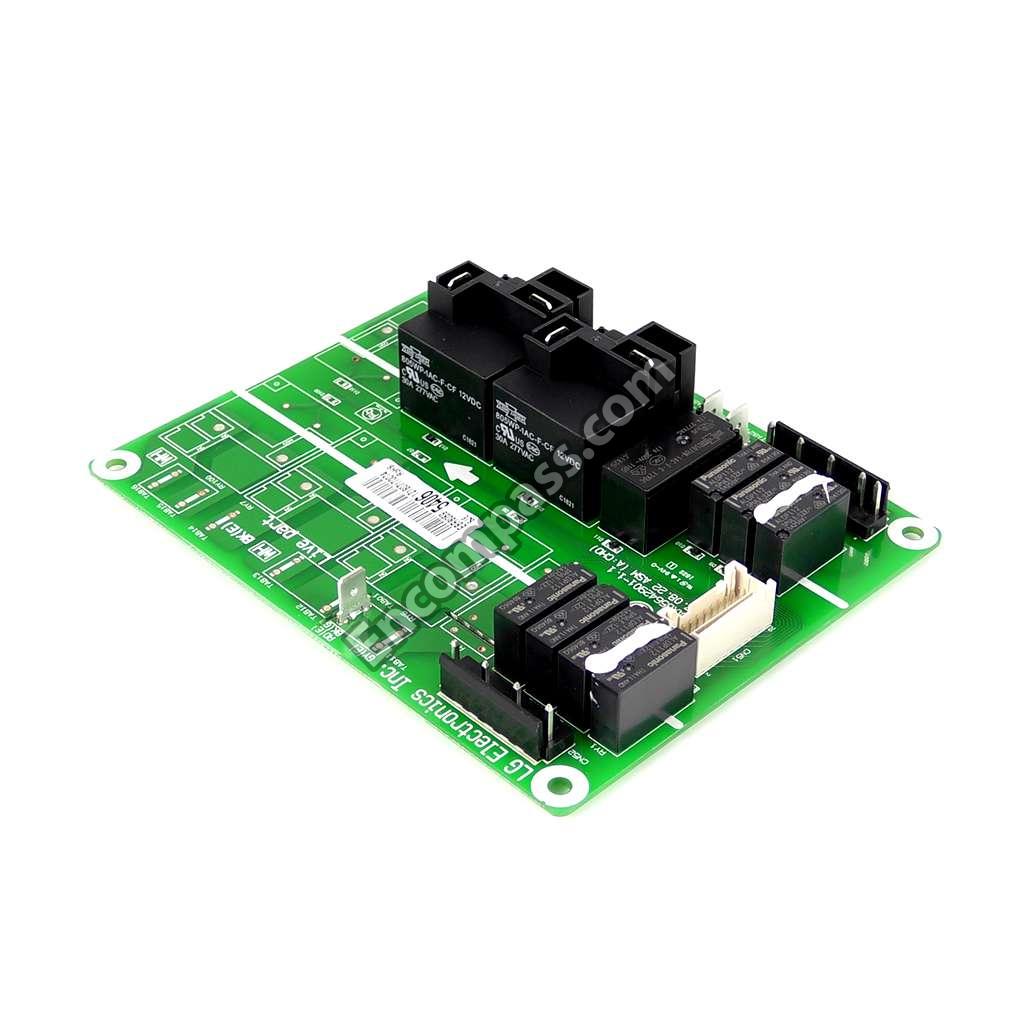

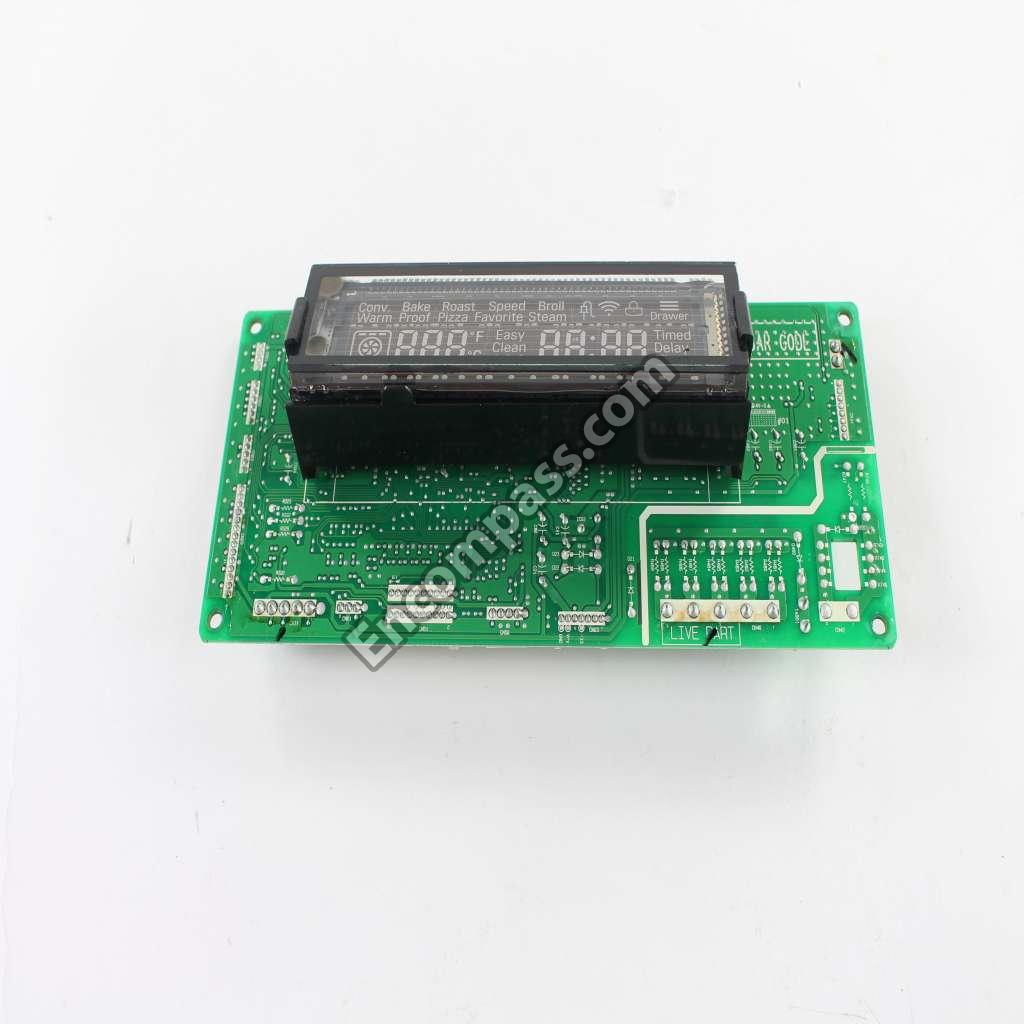

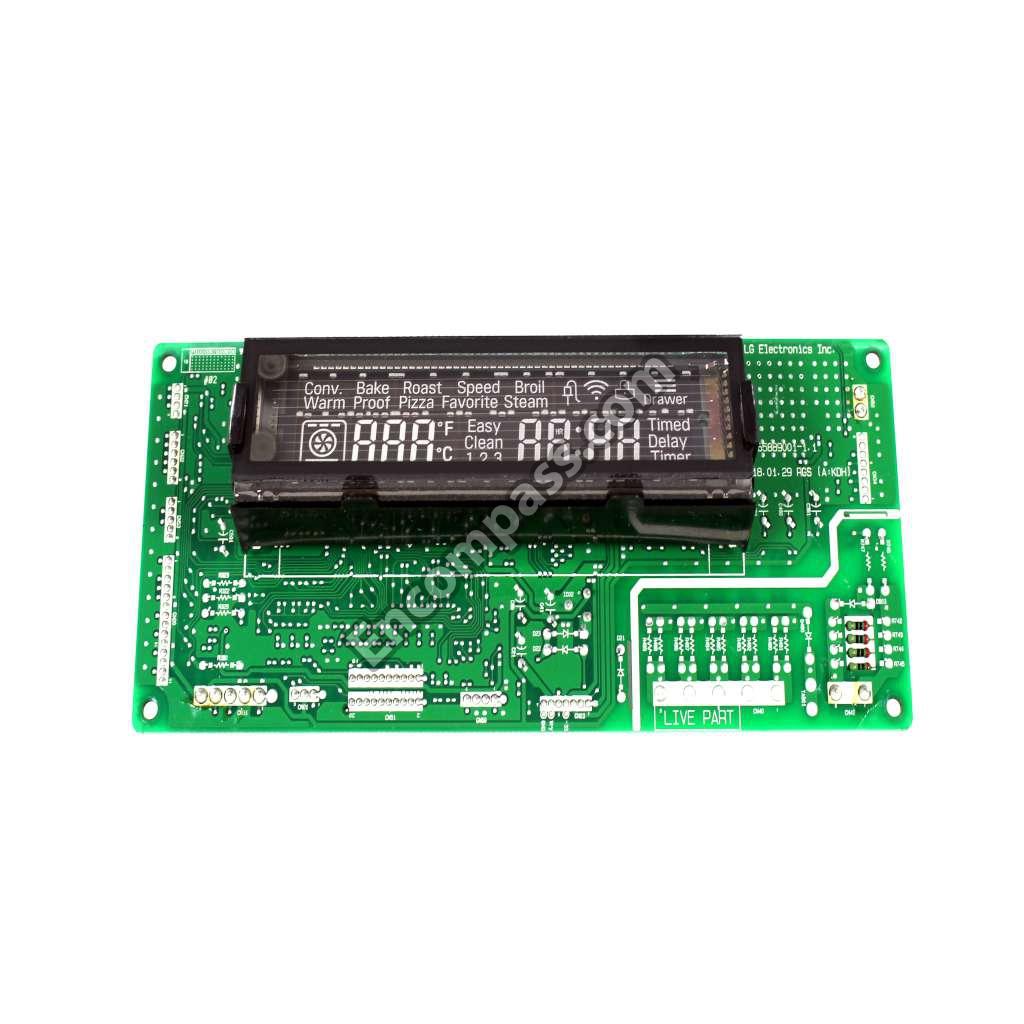

EBR79627802 EBR79627802 CONTROL BOARD
EBR35185701 EBR35185701 CONTROL BOARD
AGM75410301 AGM75410301 CONTROLLER ASSEMBLY,SUB
AGM75410309 AGM75410309 CONTROLLER,PARTS ASSEMBLY,SVC
MCK68627501 MCK68627501 COVER,DISPLAY

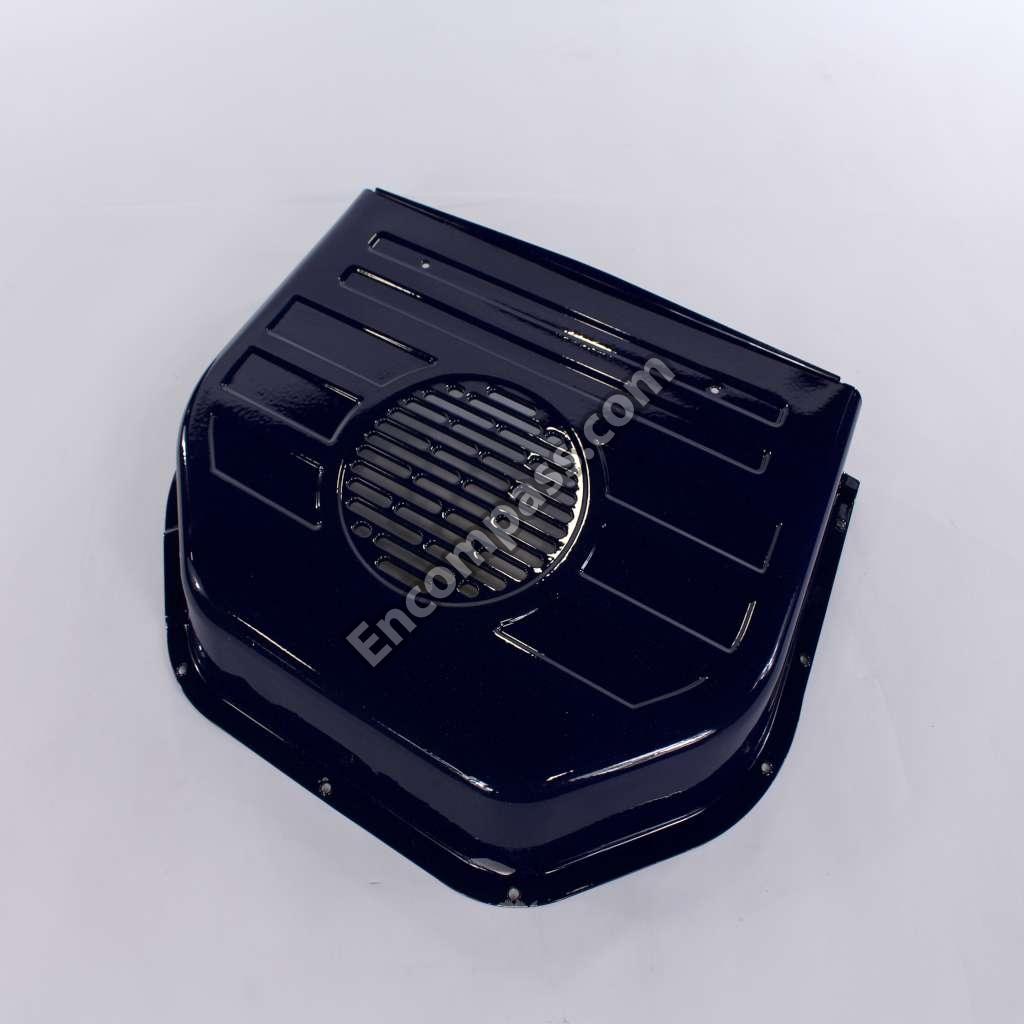

MCK68473002 MCK68473002 COVER,HEATER
MCK66907802 MCK66907802 COVER,HEATER
MCK68473201 MCK68473201 COVER,INNER
MCK65824303 MCK65824303 COVER,LAMP
MCK65824301 MCK65824301 COVER,LAMP
MCK68474101 MCK68474101 COVER,REAR
MCK68473801 MCK68473801 COVER,REAR
MCR67468501 MCR67468501 DECOR,GUARD(REAR)
MCX61961509 MCX61961509 DRAWER
MCZ63532201 MCZ63532201 DUCT
MCZ63532101 MCZ63532101 DUCT
ADJ74172305 ADJ74172305 DUCT ASSEMBLY
ADJ74172301 ADJ74172301 DUCT ASSEMBLY
ADP74573301 ADP74573301 FAN ASSEMBLY,BLOWER
MDG62882901 MDG62882901 FAN,CONVECTION
4778W1N001A 4778W1N001A FOOT
ADU73169401 ADU73169401 FOOT
MDQ64176902 MDQ64176902 FRAME,DOOR
MDQ64177401 MDQ64177401 FRAME,DOOR

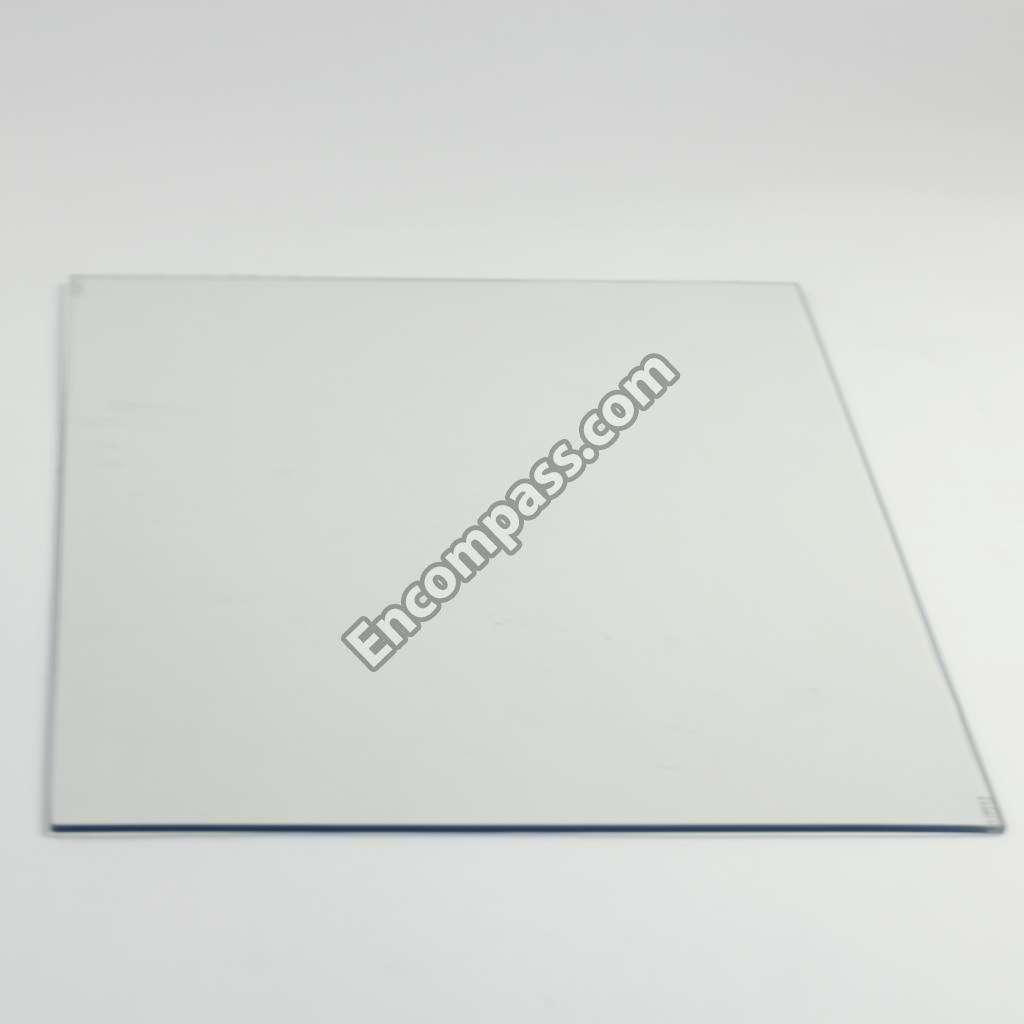

4890W1N009H 4890W1N009H GLASS
AMP30000002 AMP30000002 GOVERNOR ASSEMBLY

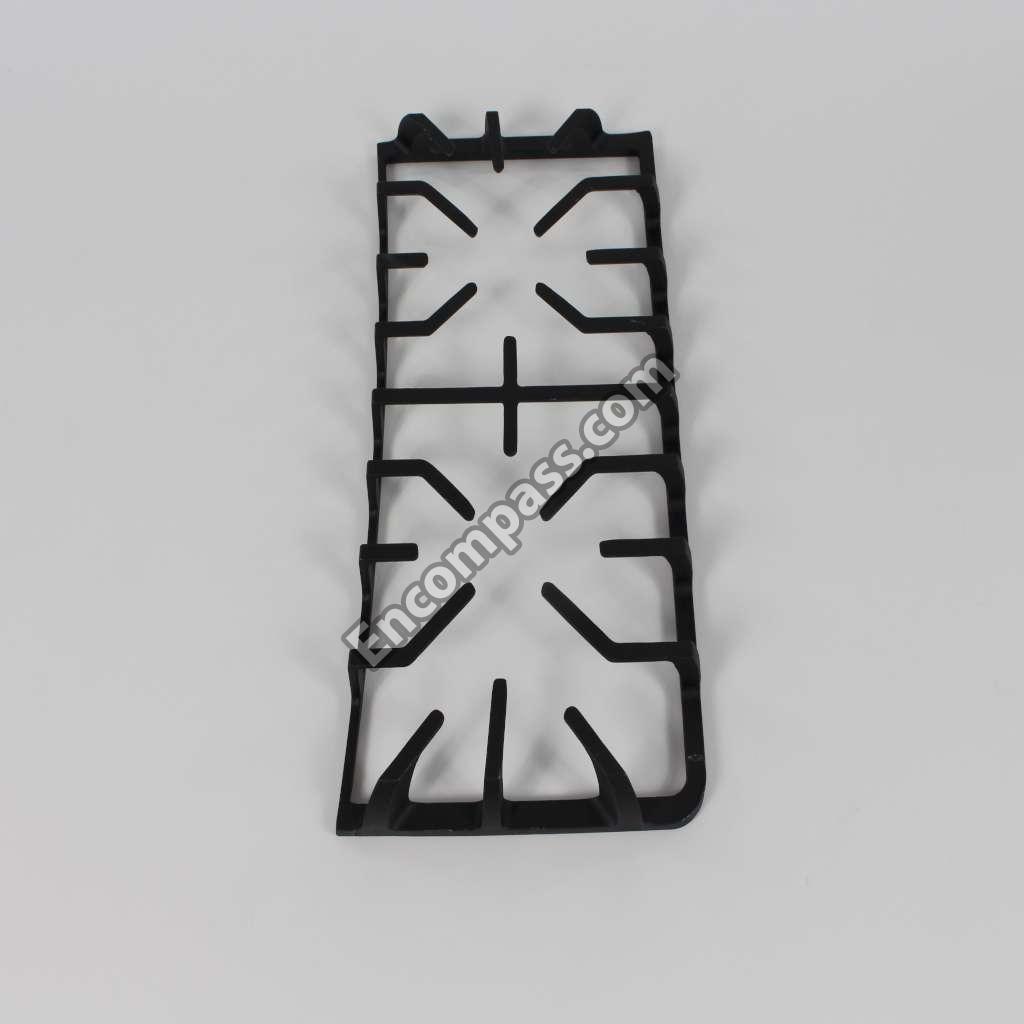

AEB72914210 AEB72914210 GRILLE ASSEMBLY
AEB74684803 AEB74684803 GRILLE ASSEMBLY
AEB74684703 AEB74684703 GRILLE ASSEMBLY
AEB74684603 AEB74684603 GRILLE ASSEMBLY
AEB74684704 AEB74684704 GRILLE ASSEMBLY
AEB74684804 AEB74684804 GRILLE ASSEMBLY
AEB74684604 AEB74684604 GRILLE ASSEMBLY
AEB72914208 AEB72914208 GRILLE ASSEMBLY
AEC74277601 AEC74277601 GUIDE ASSEMBLY,AIR
MEA63970501 MEA63970501 GUIDE,AIR
MEB61954801 MEB61954801 HANDLE,DOOR
EAD62349840 EAD62349840 HARNESS,SINGLE
EAD60700211 EAD60700211 HARNESS,SINGLE
EAD34822942 EAD34822942 HARNESS,SINGLE
EAD61076101 EAD61076101 HARNESS,SINGLE
EAD63009001 EAD63009001 HARNESS,SINGLE
6877W1N024F 6877W1N024F HARNESS,SINGLE
EAD61850602 EAD61850602 HARNESS,SINGLE
EAD62349806 EAD62349806 HARNESS,SINGLE
EAD63206001 EAD63206001 HARNESS,SINGLE
EAD60833511 EAD60833511 HARNESS,SINGLE
EAD62349808 EAD62349808 HARNESS,SINGLE
EAD34822941 EAD34822941 HARNESS,SINGLE
AEG73150202 AEG73150202 HEATER ASSEMBLY
MEE61841401 MEE61841401 HEATER,PLAIN
AEH72957517 AEH72957517 HINGE ASSEMBLY
AEH75637211 AEH75637211 HINGE ASSEMBLY

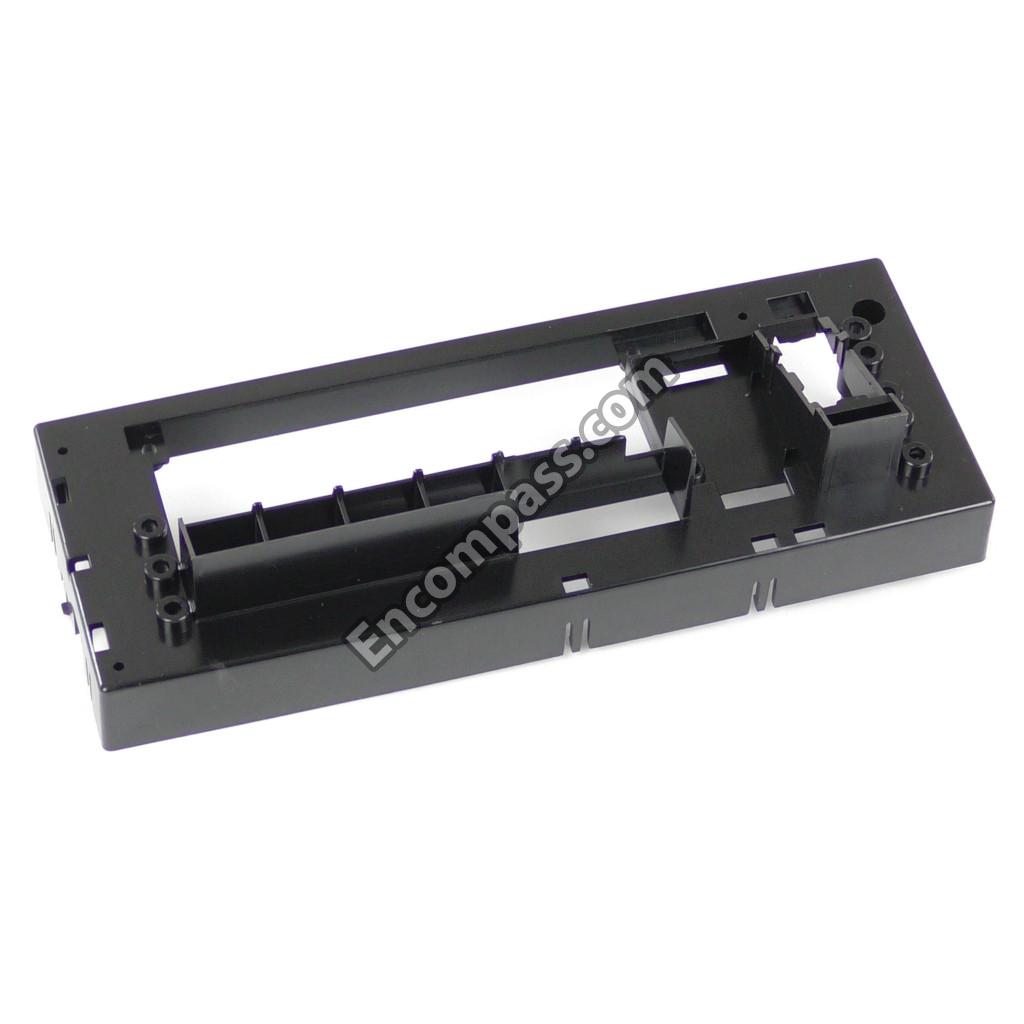

MEG64160401 MEG64160401 HOLDER,DISPLAY
MEG64179804 MEG64179804 HOLDER,NOZZLE
MEG64179802 MEG64179802 HOLDER,NOZZLE
MEG61851202 MEG61851202 HOLDER,NOZZLE
MEK63587001 MEK63587001 HOUSING
MEV65115503 MEV65115503 INSULATOR
MEV65115502 MEV65115502 INSULATOR
MEV65115501 MEV65115501 INSULATOR
MEV63876304 MEV63876304 INSULATOR
MEV65115509 MEV65115509 INSULATOR
MEV65115510 MEV65115510 INSULATOR
EAG43128001 EAG43128001 JACK,DC POWER

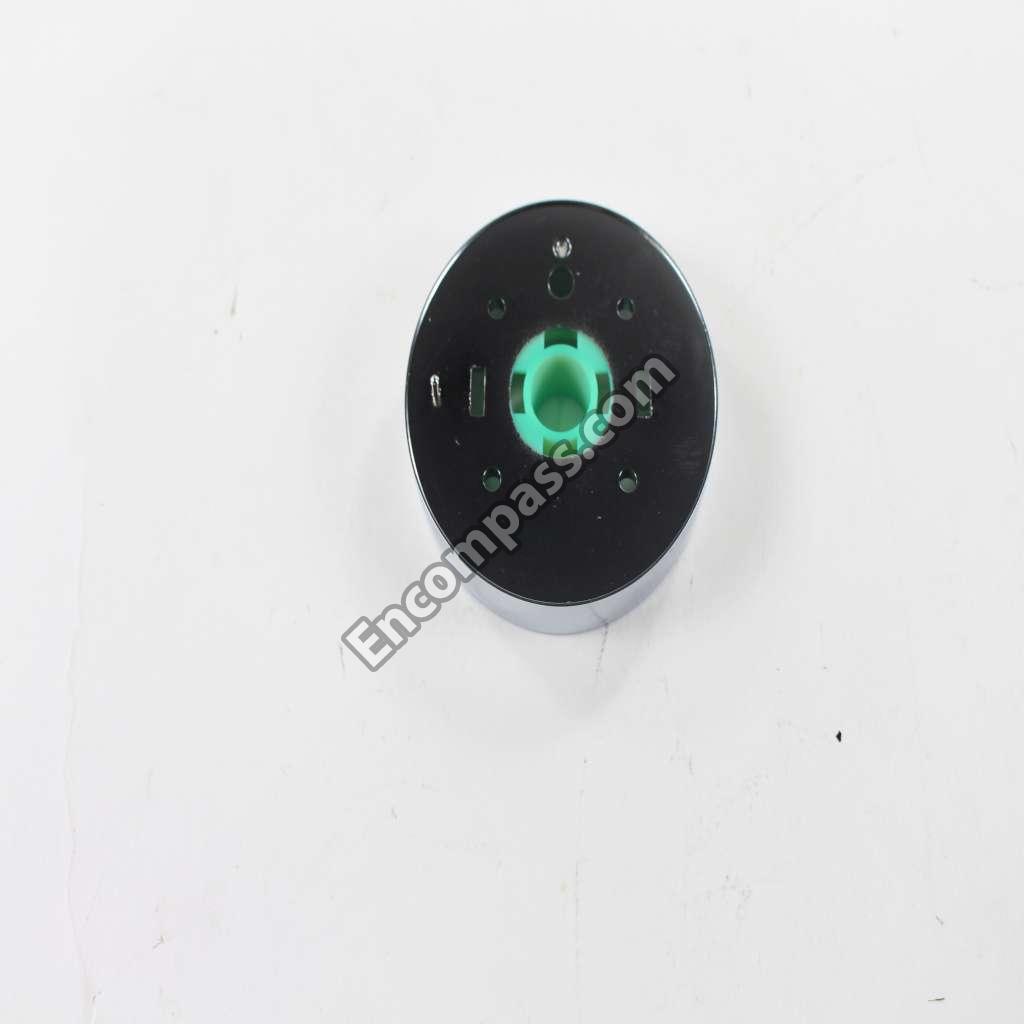

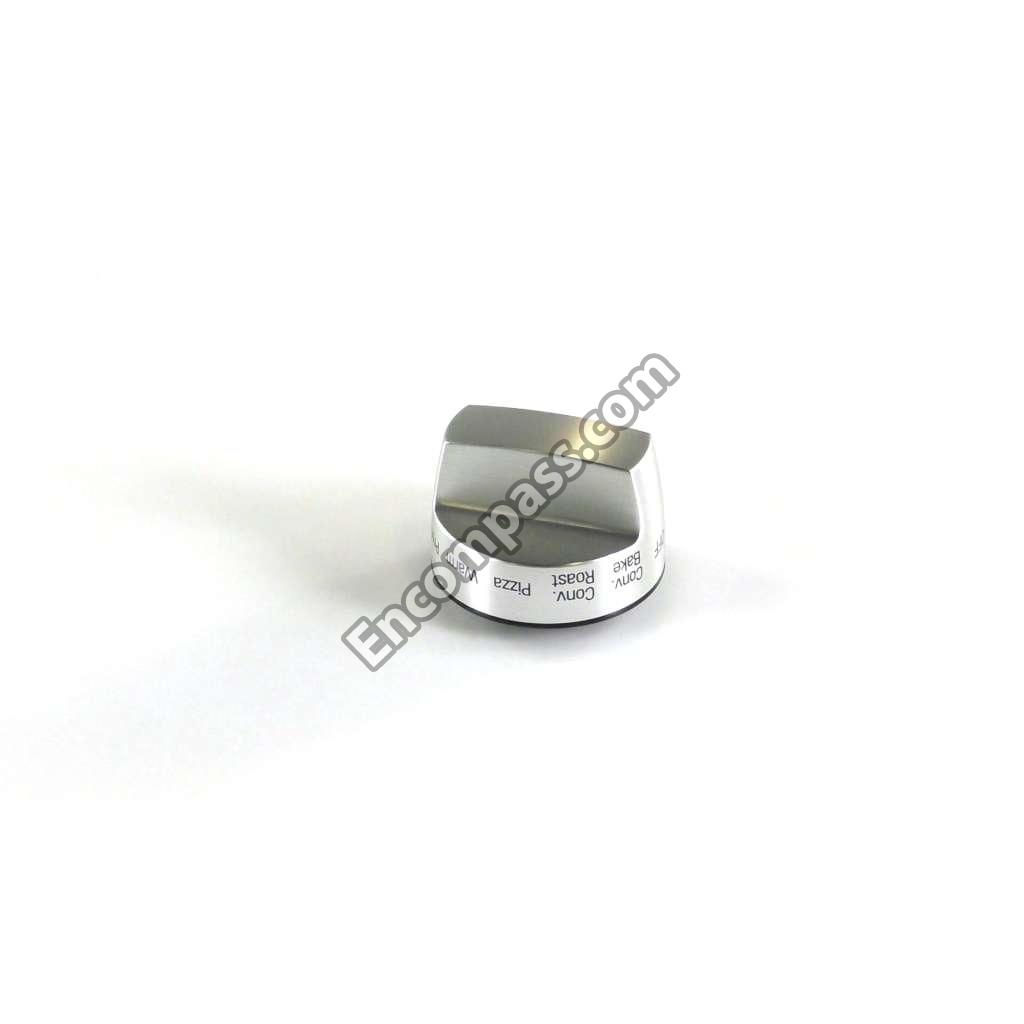

MEY63494001 MEY63494001 KNOB

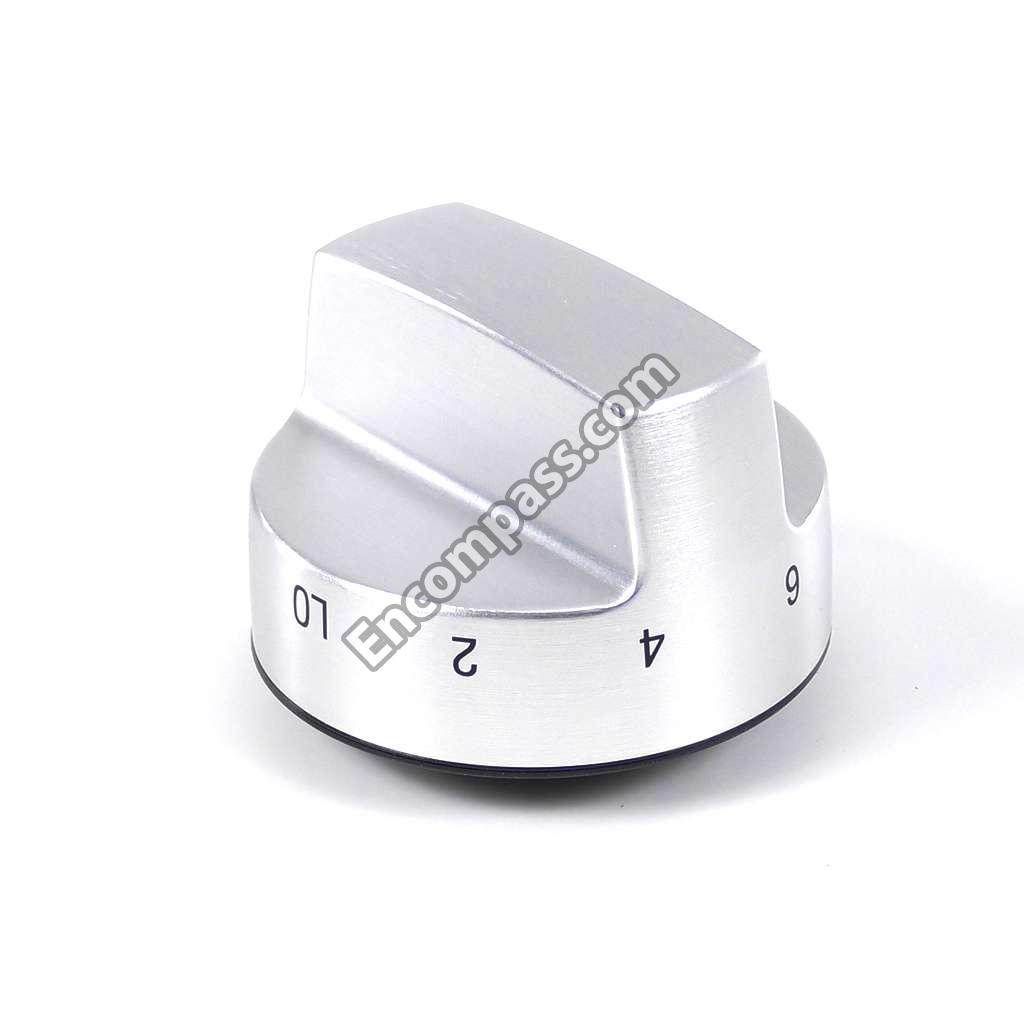

AEZ74453503 AEZ74453503 KNOB ASSEMBLY
AEZ74453501 AEZ74453501 KNOB ASSEMBLY
6913W1N002H 6913W1N002H LAMP,INCANDESCENT
6913W1N002C 6913W1N002C LAMP,INCANDESCENT
4778W1N001B 4778W1N001B LEG
4B72510F 4B72510F LUG

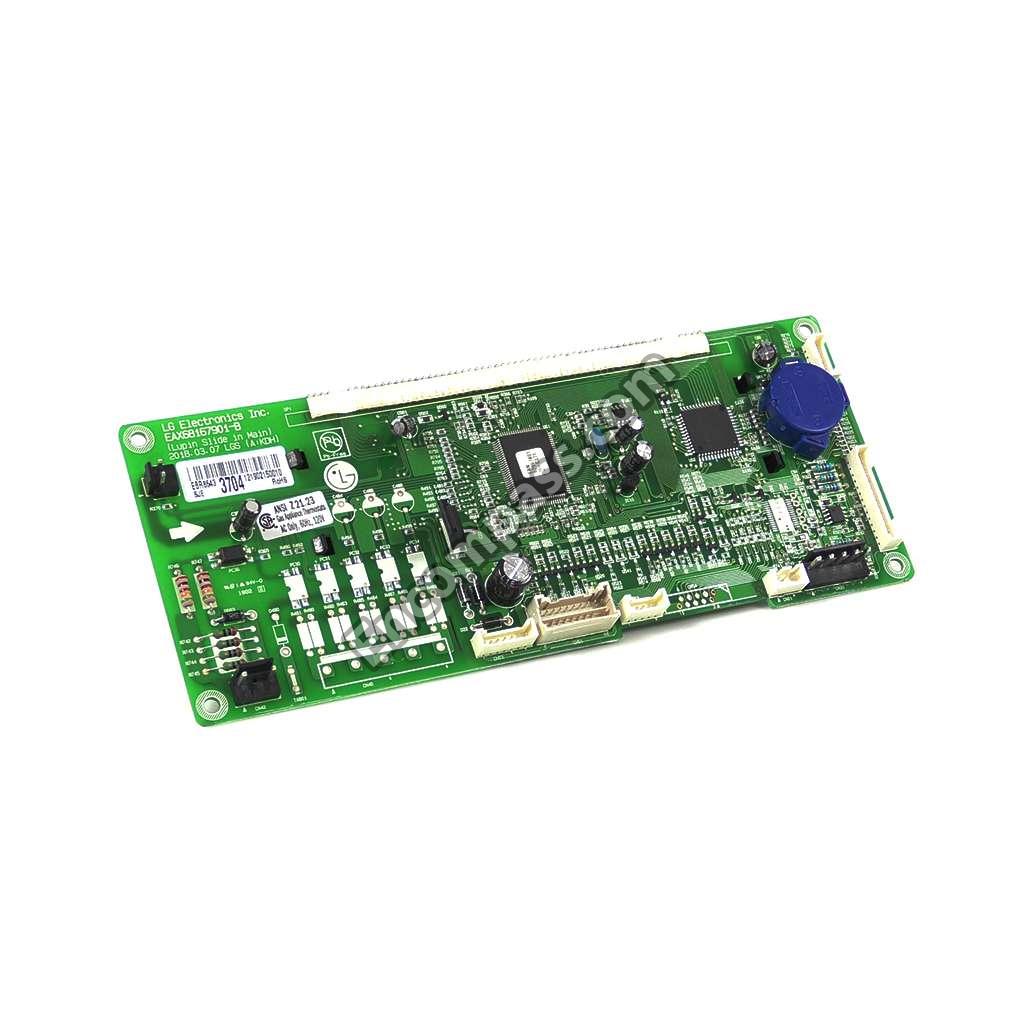

EBR86433704 EBR86433704 MAIN BOARD
EAU62862906 EAU62862906 MOTOR ASSEMBLY,AC,SYNCHRONOUS
EAU62862901 EAU62862901 MOTOR ASSEMBLY,AC,SYNCHRONOUS
EAU62343001 EAU62343001 MOTOR,AC FAN
MFV61841521 MFV61841521 NOZZLE
MFV61841526 MFV61841526 NOZZLE
MFV61841507 MFV61841507 NOZZLE
MFV61841508 MFV61841508 NOZZLE
MFV61841401 MFV61841401 NOZZLE
MFV61841519 MFV61841519 NOZZLE
MFV61841504 MFV61841504 NOZZLE
1NHB0500032 1NHB0500032 NUT HEXAGON 1, D4.0 NORULE MS
MFZ64539501 MFZ64539501 PACKING,GASKET
MFZ64774501 MFZ64774501 PACKING,GASKET
MFZ64774502 MFZ64774502 PACKING,GASKET
MFZ64539502 MFZ64539502 PACKING,GASKET
3920W1N014A 3920W1N014A PACKING,MISC
3920W1N013A 3920W1N013A PACKING,SEAL
MGC64258906 MGC64258906 PANEL,CONTROL
MGC63820302 MGC63820302 PANEL,FRONT
MGC63820328 MGC63820328 PANEL,FRONT
MGC63819801 MGC63819801 PANEL,REAR
MGC62644035 MGC62644035 PANEL,SIDE
MGC62644017 MGC62644017 PANEL,SIDE
AGM75410401 AGM75410401 PARTS ASSEMBLY
EBR80595603 EBR80595603 PCB ASSEMBLY,MAIN
EBR80595604 EBR80595604 PCB ASSEMBLY,MAIN

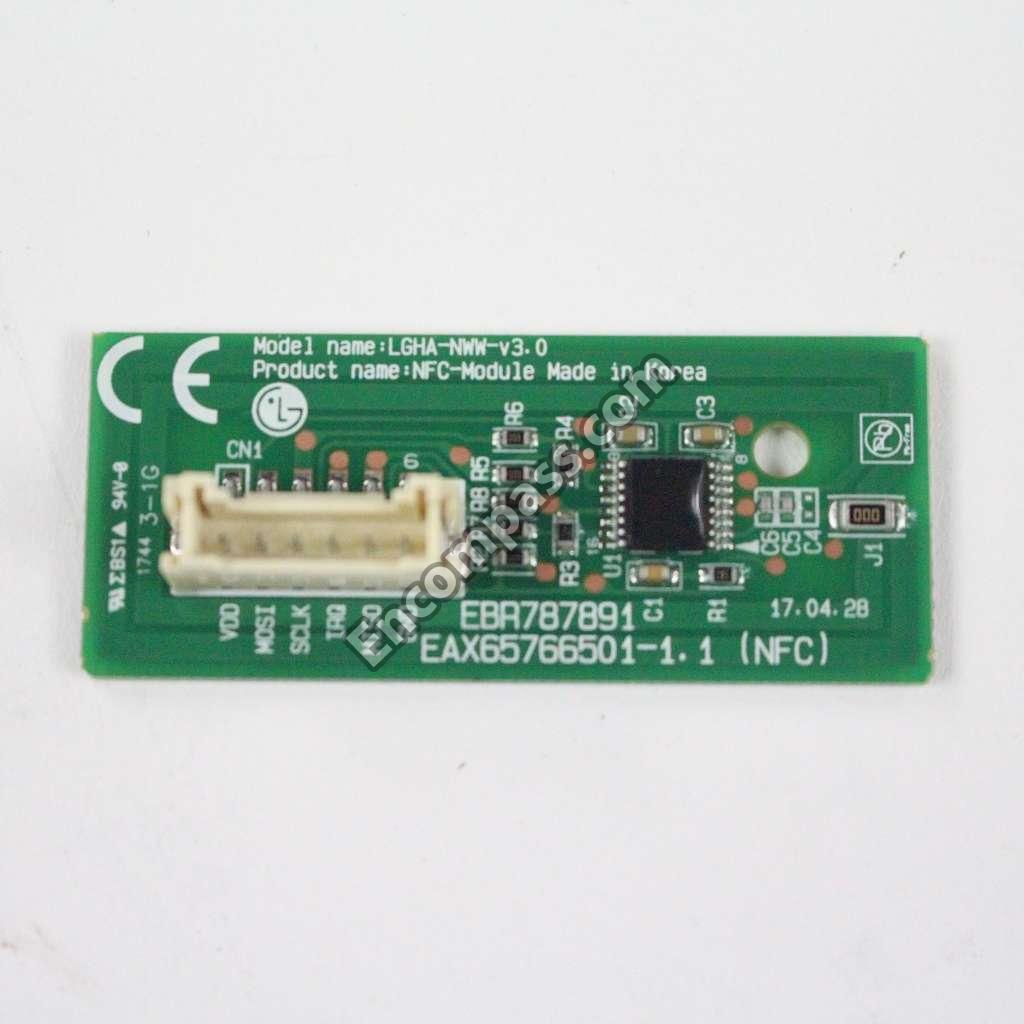

EBR78789101 EBR78789101 PCB ASSEMBLY,MODULE
EBR80595411 EBR80595411 PCB ASSEMBLY,OPTION
EBR80595701 EBR80595701 PCB ASSEMBLY,POWER
EBR79627801 EBR79627801 PCB ASSEMBLY,SIDEKEY
EBR76332902 EBR76332902 PCB ASSEMBLY,SUB
EBR80595406 EBR80595406 PCB ASSEMBLY,SUB
EBR80327001 EBR80327001 PCB ASSEMBLY,SUB
MGE63711801 MGE63711801 PIPE
MGE63711701 MGE63711701 PIPE
MGE63712002 MGE63712002 PIPE
MGE63712101 MGE63712101 PIPE
MGE63711901 MGE63711901 PIPE
MGE63712203 MGE63712203 PIPE
AGR75305502 AGR75305502 PIPE ASSEMBLY
AGR75305501 AGR75305501 PIPE ASSEMBLY
MGE63639101 MGE63639101 PIPE,BENDING
MGE63639001 MGE63639001 PIPE,BENDING
MGE63638901 MGE63638901 PIPE,BENDING
MGJ64431301 MGJ64431301 PLATE
MGJ64431101 MGJ64431101 PLATE,BASE
MGJ63105907 MGJ63105907 PLATE,FRONT
MGJ63105904 MGJ63105904 PLATE,FRONT
MGJ64431503 MGJ64431503 PLATE,TOP
EAD60700408 EAD60700408 POWER CORD ASSEMBLY
MGZ63607001 MGZ63607001 RING
4B73725E 4B73725E RING
FAB30424504 FAB30424504 SCREW,CUSTOMIZED
FAB30424503 FAB30424503 SCREW,CUSTOMIZED
1SZZW1E002E 1SZZW1E002E SCREW,CUSTOMIZED
FAB31821702 FAB31821702 SCREW,CUSTOMIZED
FAB30424502 FAB30424502 SCREW,CUSTOMIZED
1SZZW2A004E 1SZZW2A004E SCREW,CUSTOMIZED
1SZZW1E002C 1SZZW1E002C SCREW,CUSTOMIZED
1SZZW5N001H 1SZZW5N001H SCREW,CUSTOMIZED
1SZZW1N003A 1SZZW1N003A SCREW,CUSTOMIZED
FAB30424505 FAB30424505 SCREW,CUSTOMIZED
1SZZW5N001E 1SZZW5N001E SCREW,CUSTOMZIED
1SZZW5N001C 1SZZW5N001C SCREW,DRAWING
1SZZW5N001A 1SZZW5N001A SCREW,DRAWING
1SBF0402418 1SBF0402418 SCREW,TAPTITE
EBD51431001 EBD51431001 SENSOR,TEMPERATURE
MHL63411402 MHL63411402 SHELF
MHL63411408 MHL63411408 SHELF
MHL63411403 MHL63411403 SHELF
MHL63411404 MHL63411404 SHELF
AHT74173805 AHT74173805 SHELF ASSEMBLY
AHT74173802 AHT74173802 SHELF ASSEMBLY
MHS62022201 MHS62022201 SLIDER
MHS62022301 MHS62022301 SLIDER
4B70188C 4B70188C SPECIAL SCREW-D MV-1003T MVH1
MHY64003802 MHY64003802 SPRING
MHY64083701 MHY64083701 SPRING
MJH63715703 MJH63715703 SUPPORTER
MJH63715702 MJH63715702 SUPPORTER
MJH42056411 MJH42056411 SUPPORTER
4980W1N013A 4980W1N013A SUPPORTER
MJH63776501 MJH63776501 SUPPORTER
MJH63715701 MJH63715701 SUPPORTER
MJH63756902 MJH63756902 SUPPORTER
MJH63775301 MJH63775301 SUPPORTER
MJH64673101 MJH64673101 SUPPORTER,HANDLE
MJH37701302 MJH37701302 SUPPORTER,HOLDER
MJH63756601 MJH63756601 SUPPORTER,PCB
MJH63756801 MJH63756801 SUPPORTER,PCB
MJH64193501 MJH64193501 SUPPORTER,PCB

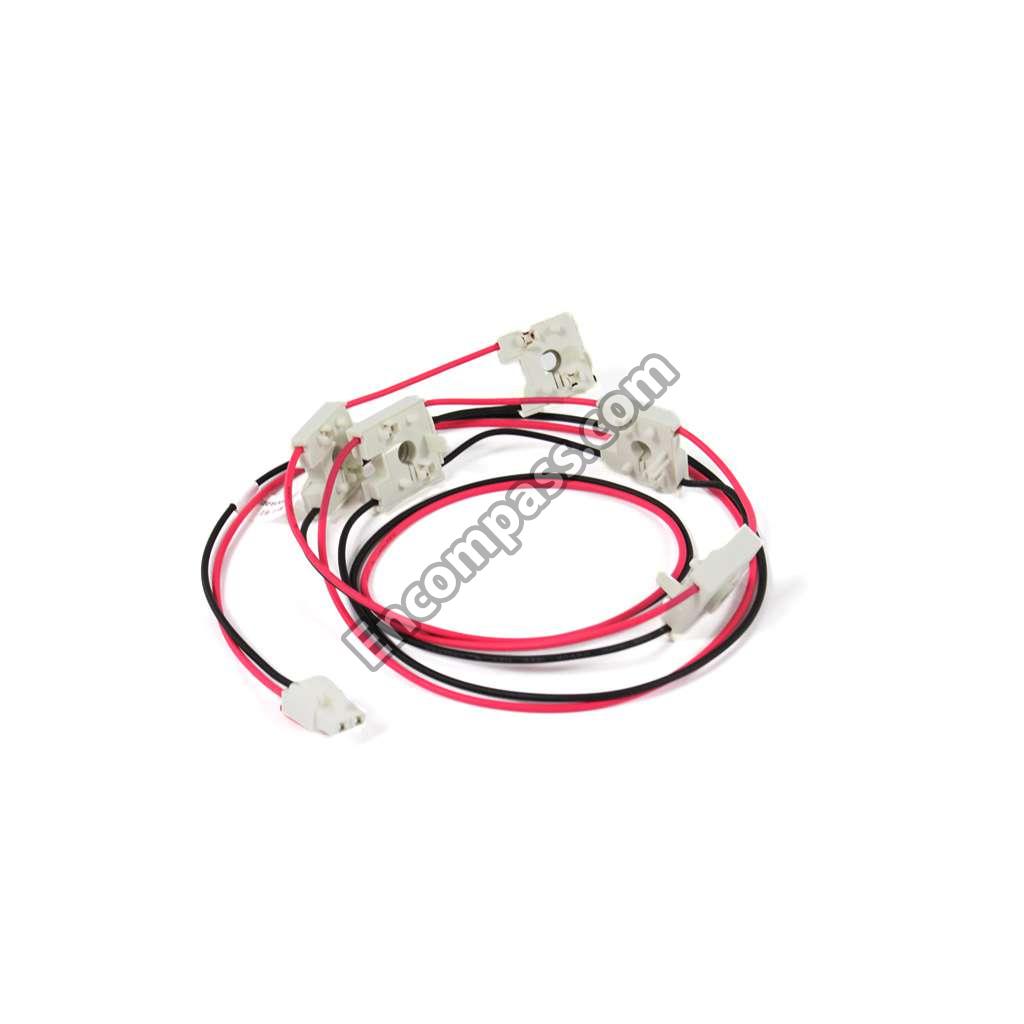

EBF60662912 EBF60662912 SWITCH ASSEMBLY
EBF60663403 EBF60663403 SWITCH,TACT
4B73763A 4B73763A TAP TITE SCREW S-TYPE M5X10 30
1TTG0402422 1TTG0402422 TAP TITE SCREW+D4.0 L8.0MA-117
EBG61305805 EBG61305805 THERMISTOR,PTC
6930W1A003J 6930W1A003J THERMOSTAT
EBJ62730001 EBJ62730001 TRANSFORMER,POWER
EBJ64465501 EBJ64465501 TRANSFORMER,POWER

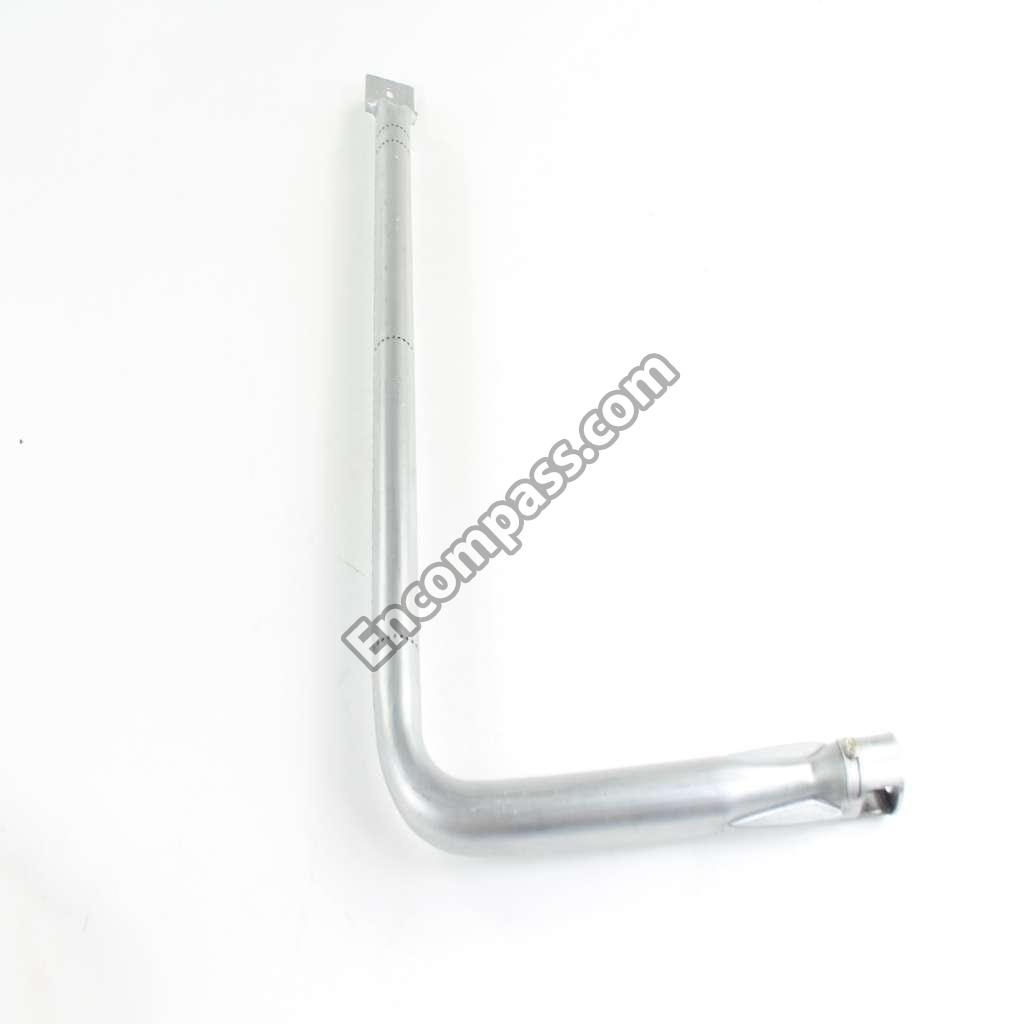

MJU64269502 MJU64269502 TUBE,BURNER
MJU64269503 MJU64269503 TUBE,BURNER
AJU74852804 AJU74852804 VALVE
MJX65090301 MJX65090301 VALVE
MJX61842218 MJX61842218 VALVE
MJX62571702 MJX62571702 VALVE
AJU74852803 AJU74852803 VALVE
AJU74852802 AJU74852802 VALVE
AJU74852805 AJU74852805 VALVE
AJU74852801 AJU74852801 VALVE ASSEMBLY,GAS
AJV73149402 AJV73149402 VENT ASSEMBLY
1WSD0500075 1WSD0500075 WASHER,COMMON
1WSD0500032 1WSD0500032 WASHER,COMMON
1WZZ81N001A 1WZZ81N001A WASHER,CUSTOMIZED
4890W1N005L 4890W1N005L WINDOW,GLASS
4890W1N005A 4890W1N005A WINDOW,GLASS
