Model Image
Manufacturer

LG

Model Number

LTC22350SS

Description

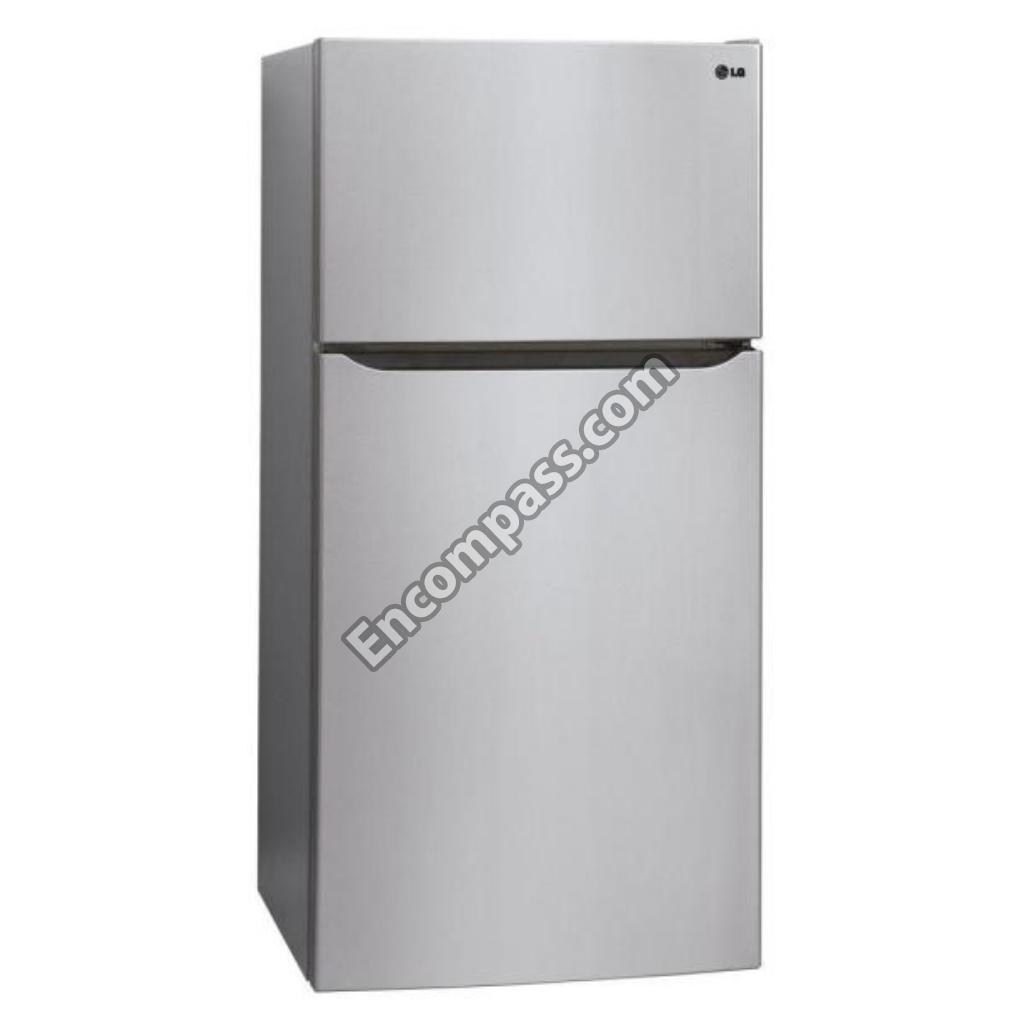

Large Capacity Top Freezer Refrigerator With Ice M

Interactive Exploded View

Parts List

Part Number Description
4811JJ2002K 4811JJ2002K LG AC MOTOR [404A]
4770JA3001A 4770JA3001A LG BAND [623C]
3103JJ1001Z 3103JJ1001Z LG BASE ASSEMBLY,COMPRESSOR [315A]
5004JJ1024A 5004JJ1024A LG BASKET,DOOR [205D]
5004JJ1036A 5004JJ1036A LG BASKET,DOOR [241B]
5004JJ1025A 5004JJ1025A LG BASKET,DOOR [241D]
5004JJ1038A 5004JJ1038A LG BASKET,DOOR [241E]
4810JJ2005A 4810JJ2005A LG BRACKET,MOTOR [319E]
AKC73049404 AKC73049404 LG BUCKET,ICE [131A]
4984JJ3003A 4984JJ3003A LG BUSH [286A]
5006JA3034A 5006JA3034A LG CAP,DRAIN TUBE [327A]
5006JJ3003F 5006JJ3003F LG CAP,HINGE [281E]
5006JJ2001G 5006JJ2001G LG CAP,HINGE [282E]
5006JJ3004F 5006JJ3004F LG CAP,HINGE [282H]
5006JA3080A 5006JA3080A LG CAP,SCREW [284C]
0CZZJB2014L 0CZZJB2014L LG CAPACITOR,ELECTRIC APPLIANCE FILM,BOX [410G]
4995JJ1004D 4995JJ1004D LG CASE ASSEMBLY,CONTROL REFRIGERATOR [120A]
4994JJ0003A 4994JJ0003A LG CASE,CONTROL REFRIGERATOR [120B]
3110JJ2003A 3110JJ2003A LG CASE,DISPLAY [503D]
4004JA3002A 4004JA3002A LG CLIP [262D]
ACF67062303 ACF67062303 LG COMPRESSOR ASSEMBLY [307B]
TCA33414101 TCA33414101 LG COMPRESSOR,SET ASSEMBLY [307A]
5403JJ1008A 5403JJ1008A LG CONDENSER ASSEMBLY,WIRE [323B]
4781JK2001A 4781JK2001A LG CONTROLLER ASSEMBLY [401A]
3551JJ2008B 3551JJ2008B LG COVER ASSEMBLY,MACHINERY(REAR) [304A]
3551JJ1020E 3551JJ1020E LG COVER ASSEMBLY,PCB [501F]
3551JJ1020C 3551JJ1020C LG COVER ASSEMBLY,PCB [501F]
3550JJ2023A 3550JJ2023A LG COVER,GRILLE FAN [284A]
3550JJ2013D 3550JJ2013D LG COVER,HINGE [281A]
3550JJ2027A 3550JJ2027A LG COVER,LAMP [158A]
3551JJ1015H 3551JJ1015H LG COVER,LOWER [103C]
3550JA2042C 3550JA2042C LG COVER,PTC [310A]
5005JJ2013D 5005JJ2013D LG COVER,TRAY [241A]
3551JJ1069S 3551JJ1069S LG COVER,TV [154A]
3550JJ2024A 3550JJ2024A LG COVER,VALVE [619B]
5040JA3031A 5040JA3031A LG DAMPER,COMPRESSOR [312A]
5040JJ2001A 5040JJ2001A LG DAMPER,MOTOR SUPPORT [405B]
5040JA2009B 5040JA2009B LG DAMPER,MOTOR SUPPORT [405C]
5040JA2004A 5040JA2004A LG DAMPER,MOTOR SUPPORT [405F]
4J03020A 4J03020A LG DAMPER,PIPE [328A]
3806JJ3001B 3806JJ3001B LG DECOR,SHELF [149A]
ADC71006710 ADC71006710 LG DOOR ASSEMBLY,FREEZER [200A]
ADC71006920 ADC71006920 LG DOOR ASSEMBLY,REFRIGERATOR [230A]
ADD71006809 ADD71006809 LG DOOR FOAM ASSEMBLY,FREEZER [201A]
ADD71007020 ADD71007020 LG DOOR FOAM ASSEMBLY,REFRIGERATOR [231A]
6877JB1223F 6877JB1223F LG DRAWING,ASSEMBLY [404Z]
ADH73150208 ADH73150208 LG DRIER ASSEMBLY [317A]
5421JJ0002A 5421JJ0002A LG EVAPORATOR ASSEMBLY [301A]
5901JJ1003A 5901JJ1003A LG FAN ASSEMBLY [329A]
ADP36665702 ADP36665702 LG FAN ASSEMBLY [329C]
ADX52752645 ADX52752645 LG GASKET ASSEMBLY,DOOR [203A]
3531JJ1006S 3531JJ1006S LG GRILLE ASSEMBLY,FAN [332A]
4975JJ2002A 4975JJ2002A LG GUIDE ASSEMBLY,RAIL [128A]
4975JJ2002B 4975JJ2002B LG GUIDE ASSEMBLY,RAIL [128B]
MEA41997401 MEA41997401 LG GUIDE,FAN [319C]
4974JA3031B 4974JA3031B LG GUIDE,STOPPER [210B]
MEA32865501 MEA32865501 LG GUIDE,TUBE [600C]
3650JJ2003H 3650JJ2003H LG HANDLE,REAR [103A]
3650JJ2003D 3650JJ2003D LG HANDLE,REAR [103B]
6877JK2011D 6877JK2011D LG HARNESS ASSEMBLY [412D]
5300JK1003J 5300JK1003J LG HEATER,SHEATH [418A]
4775JJ2002A 4775JJ2002A LG HINGE ASSEMBLY,CENTER [282B]
AEH72915201 AEH72915201 LG HINGE ASSEMBLY,LOWER [283B]
4775JJ2003B 4775JJ2003B LG HINGE ASSEMBLY,UPPER [281B]
AEJ73579702 AEJ73579702 LG HOLDER ASSEMBLY,BRACKET [602A]
4930JJ3007A 4930JJ3007A LG HOLDER,BRACKET [125D]
4930JA3034C 4930JA3034C LG HOLDER,DRIER [318A]
4930JJ2003D 4930JJ2003D LG HOLDER,SHELF [145A]
4930JJ2004D 4930JJ2004D LG HOLDER,SHELF [145B]
5989JA0002Y 5989JA0002Y LG ICE MAKER ASSEMBLY,KIT [600A]
4940JL2001E 4940JL2001E LG KNOB,SHUTTER [110D]
4940JJ2003E 4940JJ2003E LG KNOB,SHUTTER [151C]
6912JK2002E 6912JK2002E LG LAMP,INCANDESCENT [409B]
4779JA2003A 4779JA2003A LG LEG ASSEMBLY,ADJUST [106A]
4681JB1029J 4681JB1029J LG MOTOR,DC [420A]
MFT62346511 MFT62346511 LG NAME PLATE [212G]
6750C-0005P 6750C-0005P LG OVERLOAD PROTECT [309A]
6871JB2036D 6871JB2036D LG PCB ASSEMBLY,DISPLAY [503C]
EBR41531306 EBR41531306 LG PCB ASSEMBLY,MAIN [501A]
1PZZJJ3002F 1PZZJJ3002F LG PIN,COMMON [282C]
4J04238A 4J04238A LG PIN,COMMON [305C]
5200JJ3003E 5200JJ3003E LG PIPE,JOINT [419B]
6411JB1042Y 6411JB1042Y LG POWER CORD ASSEMBLY [411A]
5218JJ3001A 5218JJ3001A LG RAIL,SLIDE [103E]
MHA62513601 MHA62513601 LG ROLLER [305B]
J351-00004L J351-00004L LG SCREW,CUSTOMIZED [B01]
J351-00004P J351-00004P LG SCREW,CUSTOMIZED [B03]
4J00415D 4J00415D LG SCREW,CUSTOMIZED [S01]
3J05696W 3J05696W LG SCREW,CUSTOMIZED [S14]
J471-00001J J471-00001J LG SCREW,CUSTOMIZED [S22]
1SZZJA3011B 1SZZJA3011B LG SCREW,CUSTOMIZED [S24]
1SZZJJ3005E 1SZZJJ3005E LG SCREW,CUSTOMIZED [S28]
4000W4A003A 4000W4A003A LG SCREW,CUSTOMIZED [S31]
1TCL0302818 1TCL0302818 LG SCREW,TAPPING [S16]
6500JB2001B 6500JB2001B LG SENSOR [903D]
AHT72996107 AHT72996107 LG SHELF ASSEMBLY,REFRIGERATOR [140B]
5027JJ1028F 5027JJ1028F LG SHELF ASSEMBLY,REFRIGERATOR [143A]
AHT72996103 AHT72996103 LG SHELF ASSEMBLY,REFRIGERATOR [143F]
MHL58275201 MHL58275201 LG SHELF,FREEZER [149F]
4890JL1002V 4890JL1002V LG SHELF,GLASS [167B]
MHL38615403 MHL38615403 LG SHELF,NET [140D]
MHL38615404 MHL38615404 LG SHELF,NET [140E]
AHT72974106 AHT72974106 LG SHELF,NET [142D]
5026JJ2001M 5026JJ2001M LG SHELF,NET [142E]
MHN58555001 MHN58555001 LG SHROUD,FREEZER [330B]
5070JJ3002A 5070JJ3002A LG SKIRT,LOWER [105F]
MJB61877901 MJB61877901 LG STOPPER,COMPRESSOR [314A]
MJB63029901 MJB63029901 LG STOPPER,DOOR [210A]
4620JJ3006D 4620JJ3006D LG STOPPER,DOOR [243A]
4620JJ2007A 4620JJ2007A LG STOPPER,DOOR [283F]
4980JJ1010A 4980JJ1010A LG SUPPORTER,COVER TV [155B]
MJH61841901 MJH61841901 LG SUPPORTER,TUBE GUIDE [622B]
6600JB2004C 6600JB2004C LG SWITCH,PUSH BUTTON [406B]
6749C-0014E 6749C-0014E LG THERMISTOR ASSEMBLY,PTC [308A]
3391JJ2004H 3391JJ2004H LG TRAY ASSEMBLY,MEAT [170A]
3391JJ1020B 3391JJ1020B LG TRAY ASSEMBLY,VEGETABLE [151A]
3390JJ0004A 3390JJ0004A LG TRAY,DRIP [319A]
5251JA3003B 5251JA3003B LG TUBE ASSEMBLY,DRAIN [105A]
5211JA2003C 5211JA2003C LG TUBE ASSEMBLY,INJECT [616E]
5210JJ3006B 5210JJ3006B LG TUBE,INJECT [618A]
5220JB2010T 5220JB2010T LG VALVE ASSEMBLY,WATER [619C]
