Model Image
Manufacturer

LG

Model Number

LWHD1200FR

Description

Lwhd1200fr

Interactive Exploded View

Parts List

Part Number Description
3041A20020J 3041A20020J BASE ASSEMBLY,SINGLE

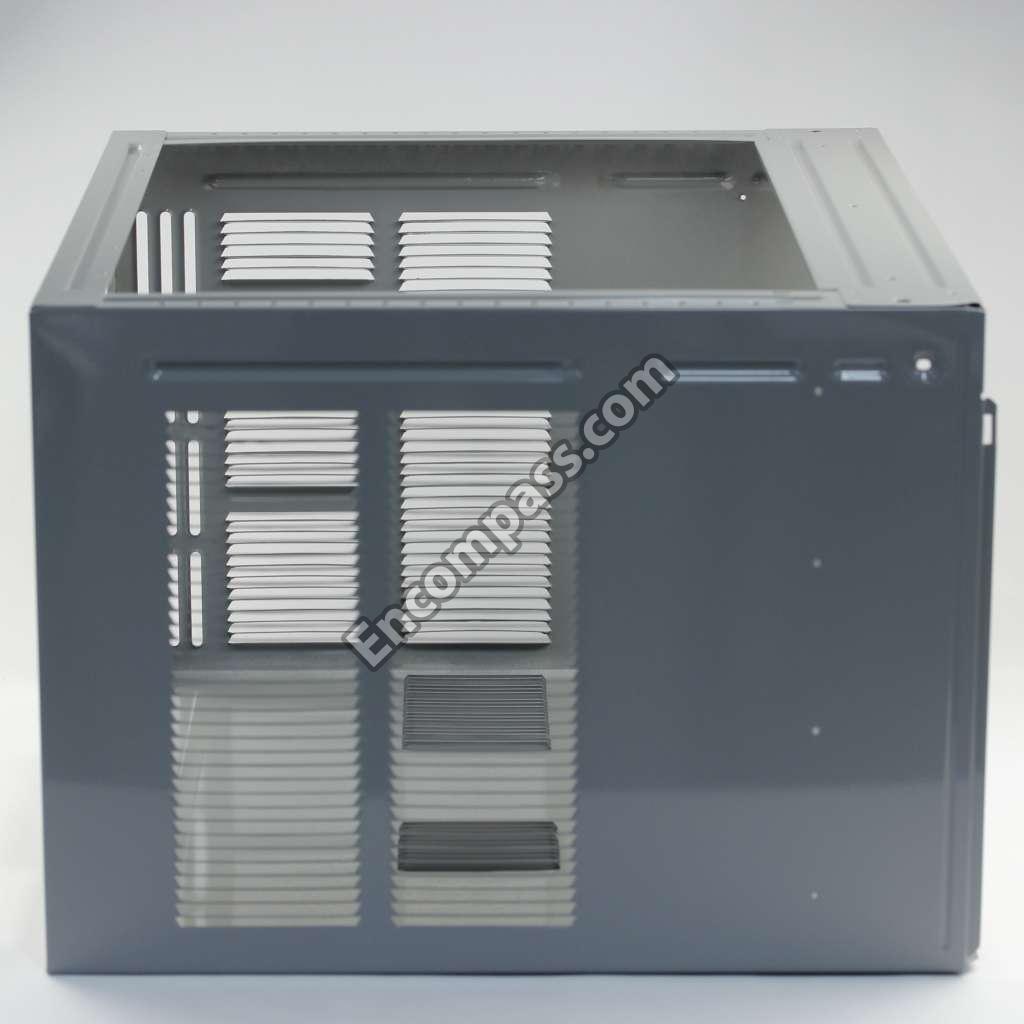

3091A10071K 3091A10071K CABINET ASSEMBLY,SINGLE
0CZZA20005Y 0CZZA20005Y CAPACITOR,FILM,BOX

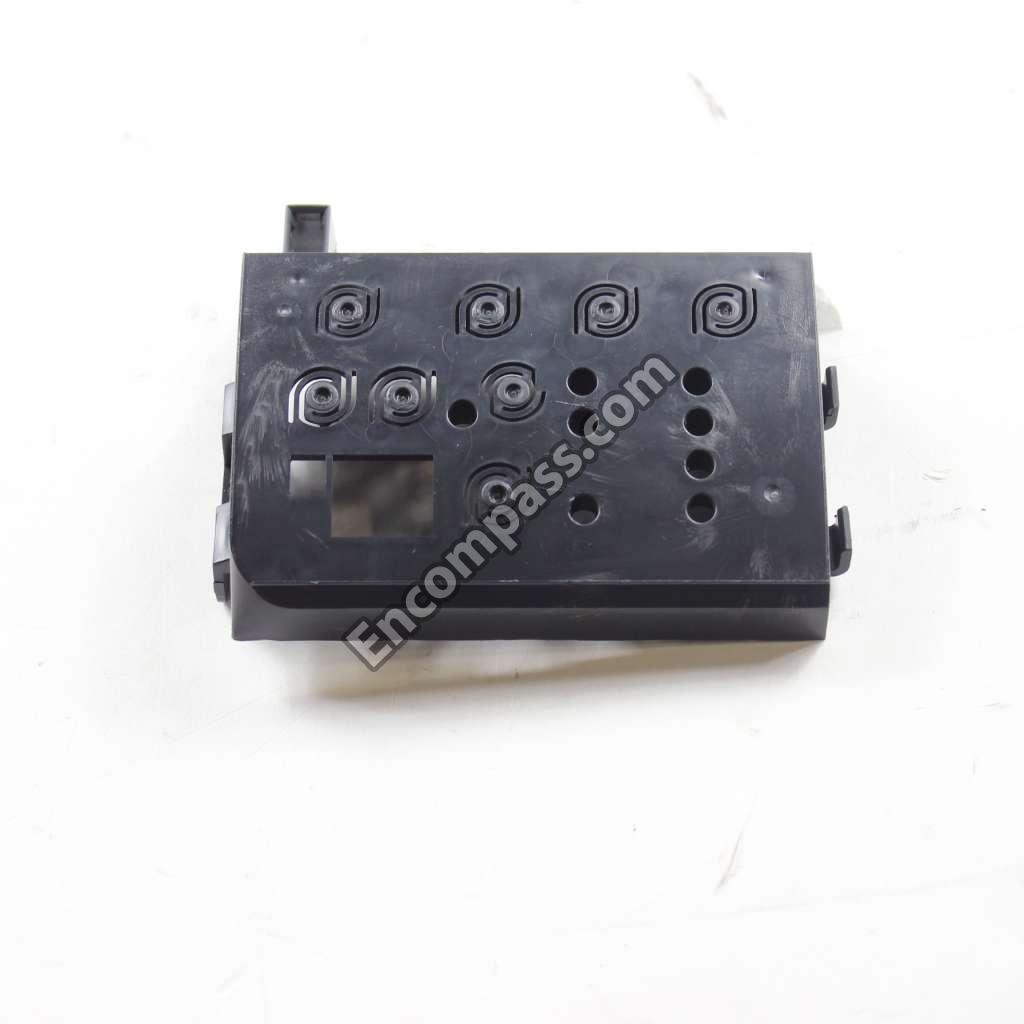

ABQ33478605 ABQ33478605 CASE ASSEMBLY,CONTROL [249950]
3H02932B 3H02932B CLAMP,SPRING [W48602]
2520UCBK015 2520UCBK015 COMPRESSOR SET,CHINA [554160]
5403A20042S 5403A20042S CONDENSER ASSEMBLY,BENDING [554031]
MCK35983901 MCK35983901 COVER
3550UTL006A 3550UTL006A COVER [135500]
3550A30114A 3550A30114A COVER [135500]
4959AR3402D 4959AR3402D CURTAIN ASSEMBLY
4959AR3402C 4959AR3402C CURTAIN ASSEMBLY
AET73671601 AET73671601 CURTAIN ASSEMBLY [749590-1]
3127A20074Y 3127A20074Y CURTAIN ASSEMBLY [749590-2]
4830AR4335A 4830AR4335A DAMPER,COMPRESSOR [550140]
4900A20002A 4900A20002A DAMPER,VENT [349001]
5239A20004A 5239A20004A DUCT ASSEMBLY [352380-1]
3831A10021L 3831A10021L ESCUTCHEON
5421A20099E 5421A20099E EVAPORATOR ASSEMBLY,FIRST
5421A20099D 5421A20099D EVAPORATOR ASSEMBLY,FIRST [354210]
5900A10009B 5900A10009B FAN,AXIAL [359011]
5900A20019C 5900A20019C FAN,TURBO [359012]
5231A20007A 5231A20007A FILTER ASSEMBLY,AIR CLEANER
AEB32730603 AEB32730603 GRILLE,INLET
4974AR3262K 4974AR3262K GUIDE [749740]
5238A20008C 5238A20008C GUIDE,AIR
3127A10015V 3127A10015V INSTALL PART ASSEMBLY,SINGLE
4520A20007A 4520A20007A LINK [145200]
4758A20018H 4758A20018H LOUVER,HORIZONTAL [147581]
4758A20041A 4758A20041A LOUVER,VERTICAL [147582-1]
4758A20041B 4758A20041B LOUVER,VERTICAL [147582-2]
4681A20069K 4681A20069K MOTOR ASSEMBLY,AC
4948A10015A 4948A10015A ORIFICE [349480]
6750U-L029A 6750U-L029A OVERLOAD PROTECT [567502]
3720A10111C 3720A10111C PANEL,CONTROL
3721A20037H 3721A20037H PANEL,CONTROL [237200]
EBR39283902 EBR39283902 PCB ASSEMBLY,MAIN
6871A20418A 6871A20418A PCB ASSEMBLY,MAIN
6871A20417C 6871A20417C PCB ASSEMBLY,MAIN [268711-2]
6411A20056K 6411A20056K POWER CORD ASSEMBLY
EAD63469503 EAD63469503 POWER CORD ASSEMBLY [264110]
AKB73016004 AKB73016004 REMOTE CONTROLLER ASSEMBLY
AKB73016012 AKB73016012 REMOTE CONTROLLER ASSEMBLY [267110]
4999A20001A 4999A20001A SHROUD ASSEMBLY [549990]
4800A30002D 4800A30002D SUPPORTER [148000]
6323A20004P 6323A20004P THERMISTOR,NTC [567480]
5211AR3332G 5211AR3332G TUBE ASSEMBLY,CAPILLARY [552111]
AJR73083906 AJR73083906 TUBE ASSEMBLY,CONDENSER(OUT)
5211A21901A 5211A21901A TUBE ASSEMBLY,DISCHARGE [352113]
5211A10063J 5211A10063J TUBE ASSEMBLY,EVAPORATOR(IN) [352115]
5211A20131Q 5211A20131Q TUBE ASSEMBLY,EVAPORATOR(IN) [352115]
5211A20228E 5211A20228E TUBE ASSEMBLY,SUCTION [35211A]
MJU62650905 MJU62650905 TUBE,CAPILLARY
3H01535M 3H01535M TUBE,CAPILLARY [552102]
