Model Image
Manufacturer

LG

Model Number

MH6150XLS

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3890W2Y188D 3890W2Y188D BOX
4810W1A064A 4810W1A064A BRACKET,CAPACITOR
4810W1G061A 4810W1G061A BRACKET,CONTROL PANEL
4810W1A151A 4810W1A151A BRACKET,IDLE
4810W1A150C 4810W1A150C BRACKET,LAMP
4810W1A149A 4810W1A149A BRACKET,MOUNT
6021W3B001U 6021W3B001U CABLE,ASSEMBLY
5006WRA002A 5006WRA002A CAP,FUSE
0CZZW1H004B 0CZZW1H004B CAPACITOR,HIGH VOLTAGE
6120W3H003H 6120W3H003H CAPACITOR,HIGH VOLTAGE
3840W1T002A 3840W1T002A CARD,TECHNICAL
4922W5A025A 4922W5A025A CARD,TEMPLATE
3112W1F042B 3112W1F042B CASE,FLAT
4051W3A001A 4051W3A001A CONNECTOR ASSEMBLY
4781W1M197N 4781W1M197N CONTROLLER ASSEMBLY,KEYPAD
3552W1A032E 3552W1A032E COVER,CHOKE
3550W1A189A 3550W1A189A COVER,LAMP
3550W3A095A 3550W3A095A COVER,LAMP
3052W3A016A 3052W3A016A COVER,RESIN
3550W1A077A 3550W1A077A COVER,STIRRER FAN
4900W1A001A 4900W1A001A DAMPER
3581W1A191L 3581W1A191L DOOR ASSEMBLY
5208W0A005A 5208W0A005A DUCT
5893W1A001A 5893W1A001A FAN ASSEMBLY
5230W1A011B 5230W1A011B FILTER,CHARCOAL
5230W1A012B 5230W1A012B FILTER,GREASE
3213W1A035K 3213W1A035K FRAME ASSEMBLY,DOOR
3B74133Q 3B74133Q FUSE,TIME DELAY
3530W0A017B 3530W0A017B GRILLE,VENT
3650W1A030B 3650W1A030B HANDLE,DOOR
6877W1A400A 6877W1A400A HARNESS,SINGLE
6877W1A340A 6877W1A340A HARNESS,SINGLE
3501W1A019J 3501W1A019J HOLDER ASSEMBLY,LOCKER
3501W1A036B 3501W1A036B HOLDER ASSEMBLY,LOCKER
3B71271E 3B71271E HOLDER,COOK AUXILIARY
3500W1A028B 3500W1A028B HOLDER,LOCKER
3861W1A043C 3861W1A043C KIT ASSEMBLY
2B72771J 2B72771J KIT ASSEMBLY
3850W1D056A 3850W1D056A LABEL,COOKING GUIDE
6912W3Q001D 6912W3Q001D LAMP,INCANDESCENT

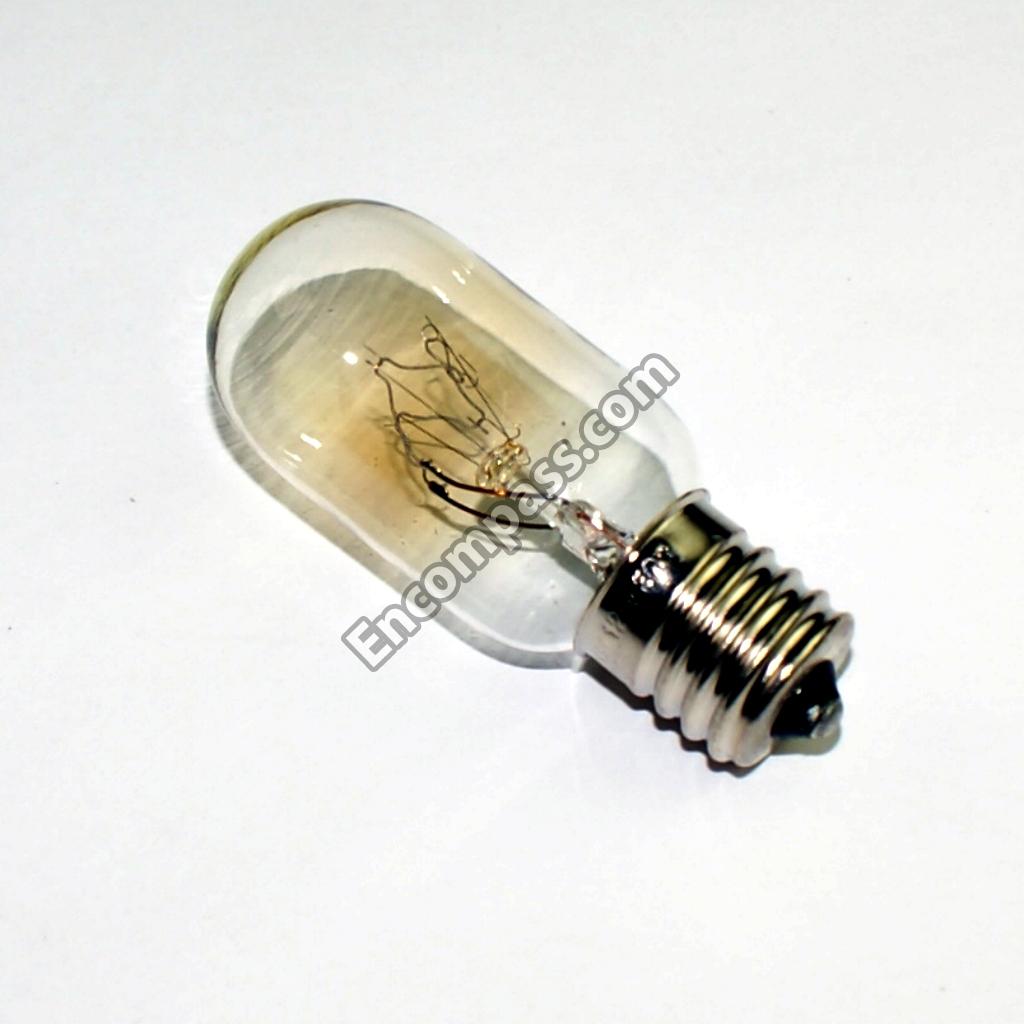

6912W1Z004B 6912W1Z004B LAMP,INCANDESCENT
3501W1A044B 3501W1A044B LEVER
4026W2A015A 4026W2A015A LOCKER
2B71732F 2B71732F MAGNETRON
3828W5U0143 3828W5U0143 MANUAL,INSTALLATION
3828W5A2250 3828W5A2250 MANUAL,OWNERS
6549W1S002F 6549W1S002F MOTOR, AC SYNCHRONOUS
2B72754E 2B72754E MOTOR, AC SYNCHRONOUS
6549W1S013A 6549W1S013A MOTOR, AC SYNCHRONOUS
6549W1V006P 6549W1V006P MOTOR, AC VENTILATION
EAU51230501 EAU51230501 MOTOR, AC VENTILATION
383EW5A089A 383EW5A089A PARTS ASSEMBLY
383EW5A088B 383EW5A088B PARTS ASSEMBLY
6871W1S102A 6871W1S102A PCB ASSEMBLY,SUB
4960W1A008A 4960W1A008A PLATE
3303W1A041S 3303W1A041S PLATE ASSEMBLY,BASE
3302W0A013H 3302W0A013H PLATE,BASE
3300W1A052A 3300W1A052A PLATE,BOTTOM
3300W1A003C 3300W1A003C PLATE,BOTTOM
3300W0A018A 3300W0A018A PLATE,MOUNT
6411W1A010M 6411W1A010M POWER CORD ASSEMBLY
4B70188B 4B70188B SCREW,CUSTOMIZED
1TTL0402818 1TTL0402818 SCREW,TAPPING
1TTL0402418 1TTL0402418 SCREW,TAPPING
1TTG0402422 1TTG0402422 SCREW,TAPTITE
4370W3A001A 4370W3A001A SHAFT,TURNTABLE
3750W1A006F 3750W1A006F SHELF
3750W1A006E 3750W1A006E SHELF
3303W1A061A 3303W1A061A SOCKET,LAMP
4970WRA001B 4970WRA001B SPRING
3740W1A005A 3740W1A005A SUPPORTER
3B73361E 3B73361E SWITCH,MICRO
6600W1K001C 6600W1K001C SWITCH,MICRO
3B73362F 3B73362F SWITCH,MICRO
3536W1A006A 3536W1A006A TAPE,SEALING
6930W1A002L 6930W1A002L THERMOSTAT
6930W1A003E 6930W1A003E THERMOSTAT
6170W1D052R 6170W1D052R TRANSFORMER,HIGH VOLTAGE
1B71961E 1B71961E TRAY,GLASS
5889W2A012A 5889W2A012A TURNTABLE ASSEMBLY
4890W4A001B 4890W4A001B WINDOW,GLASS
