Model Image
Manufacturer

LG

Model Number

MHES1738N

Description

Lg Studio 1.7 Cu. Ft. Over-the-range Convection Mi

Interactive Exploded View

Parts List

Part Number Description
6549W1F009F 6549W1F009F AC MOTOR FAN
4810WRC002F 4810WRC002F BRACKET,CAPACITOR
MAZ67190702 MAZ67190702 BRACKET,CONTROL PANEL
4810W1A235C 4810W1A235C BRACKET,DAMPER
4810W1A234C 4810W1A234C BRACKET,DAMPER
4810W1A245A 4810W1A245A BRACKET,HEATER
4810W1A244B 4810W1A244B BRACKET,HEATER
4810W1A243B 4810W1A243B BRACKET,HEATER
4810W1A151A 4810W1A151A BRACKET,IDLE

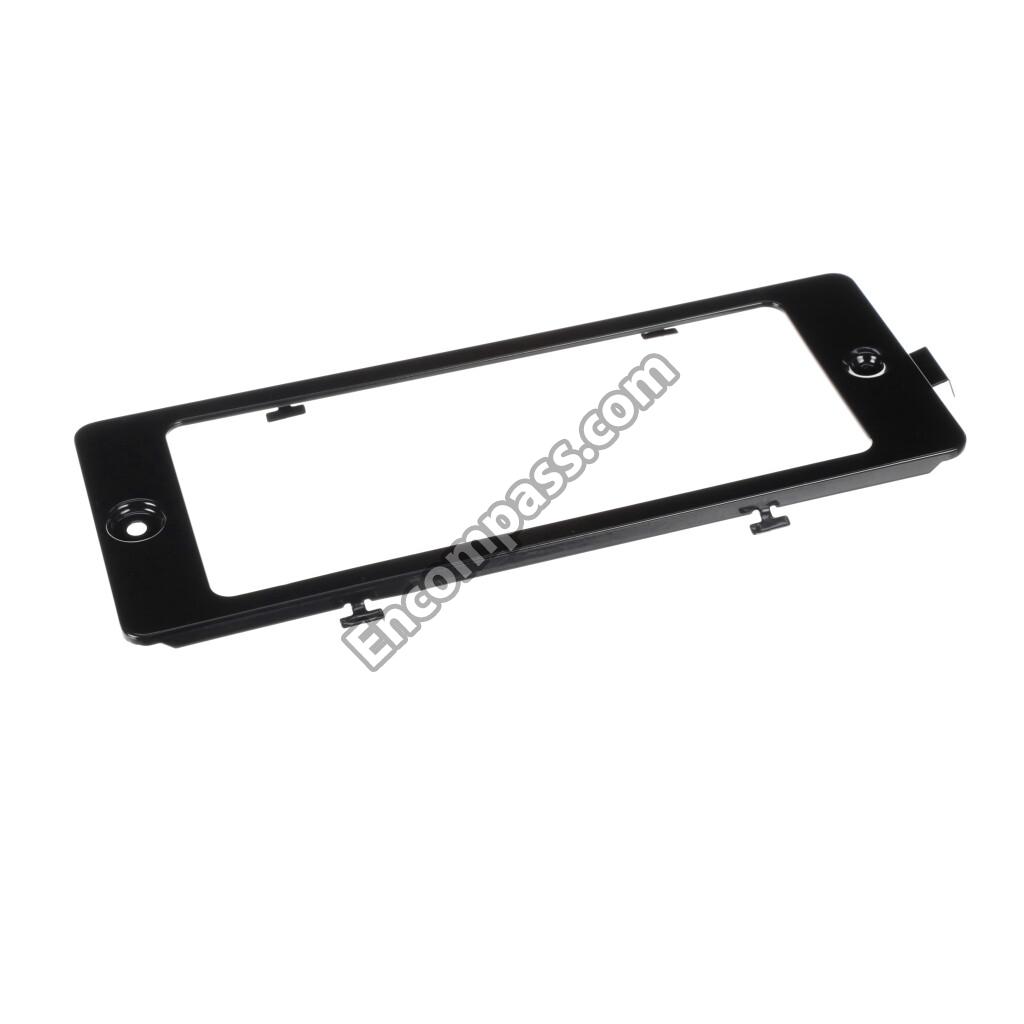

MAZ67190801 MAZ67190801 BRACKET,LAMP
4810W2T003E 4810W2T003E BRACKET,LAMP
4810W1A149A 4810W1A149A BRACKET,MOUNT
MAZ62369502 MAZ62369502 BRACKET,THERMOSTAT
6851W1A002E 6851W1A002E CABLE,ASSEMBLY
0CZZW1M001L 0CZZW1M001L CAPACITOR,FILM,BOX
0CZZW1H004B 0CZZW1H004B CAPACITOR,HIGH VOLTAGE
MBN65504809 MBN65504809 CASE,U BENDING
MBN65504812 MBN65504812 CASE,U BENDING
MBN65504805 MBN65504805 CASE,U BENDING
3504W1A005E 3504W1A005E CHAMBER
ABV73865001 ABV73865001 CHAMBER ASSEMBLY
4930W4B006A 4930W4B006A CLAMP,CORD
EBR34910001 EBR34910001 CONTROL BOARD
EBR85871801 EBR85871801 CONTROL BOARD,WIFI
ACM76192201 ACM76192201 CONTROLLER ASSEMBLY,SUB
3551W1A031G 3551W1A031G COVER ASSEMBLY,REAR
3551W1A032C 3551W1A032C COVER ASSEMBLY,STIRRER FAN
3552W0A001E 3552W0A001E COVER,CHOKE
3550W1A001A 3550W1A001A COVER,POWER CORD
4900W1A001B 4900W1A001B DAMPER
ADC30017612 ADC30017612 DOOR ASSEMBLY,FULL
ADC30017608 ADC30017608 DOOR ASSEMBLY,FULL
ADC30017604 ADC30017604 DOOR ASSEMBLY,FULL
ADC30017704 ADC30017704 DOOR ASSEMBLY,SUB
5208W0A016C 5208W0A016C DUCT
5901W1A003F 5901W1A003F FAN ASSEMBLY
5900W3A004E 5900W3A004E FAN,CONVECTION
EBZ63660865 EBZ63660865 FAN,PART
2B72279B 2B72279B FAN,PROPELLER
MDG63965502 MDG63965502 FAN,PROPELLER
EAM62951901 EAM62951901 FILTER ASSEMBLY
5230W1A011G 5230W1A011G FILTER,CHARCOAL
5230W1A012C 5230W1A012C FILTER,GREASE
ADV74432206 ADV74432206 FRAME ASSEMBLY,DOOR
6901W1A001K 6901W1A001K FUSE ASSEMBLY
3B74133Q 3B74133Q FUSE,TIME DELAY
MDX65461001 MDX65461001 GRILLE,VENT
4974W1A029A 4974W1A029A GUIDE,AIR
4974W1A028C 4974W1A028C GUIDE,AIR
5264W1A031D 5264W1A031D GUIDE,AIR
5264W0A011D 5264W0A011D GUIDE,AIR
4974W1A032C 4974W1A032C GUIDE,SUCTION
EAD56322202 EAD56322202 HARNESS,SINGLE
EAD63790021 EAD63790021 HARNESS,SINGLE
EAD61048809 EAD61048809 HARNESS,SINGLE
6877W1A548F 6877W1A548F HARNESS,SINGLE
6877W1A603P 6877W1A603P HARNESS,SINGLE
5300W1S006W 5300W1S006W HEATER,SHEATH
5300W1S006J 5300W1S006J HEATER,SHEATH

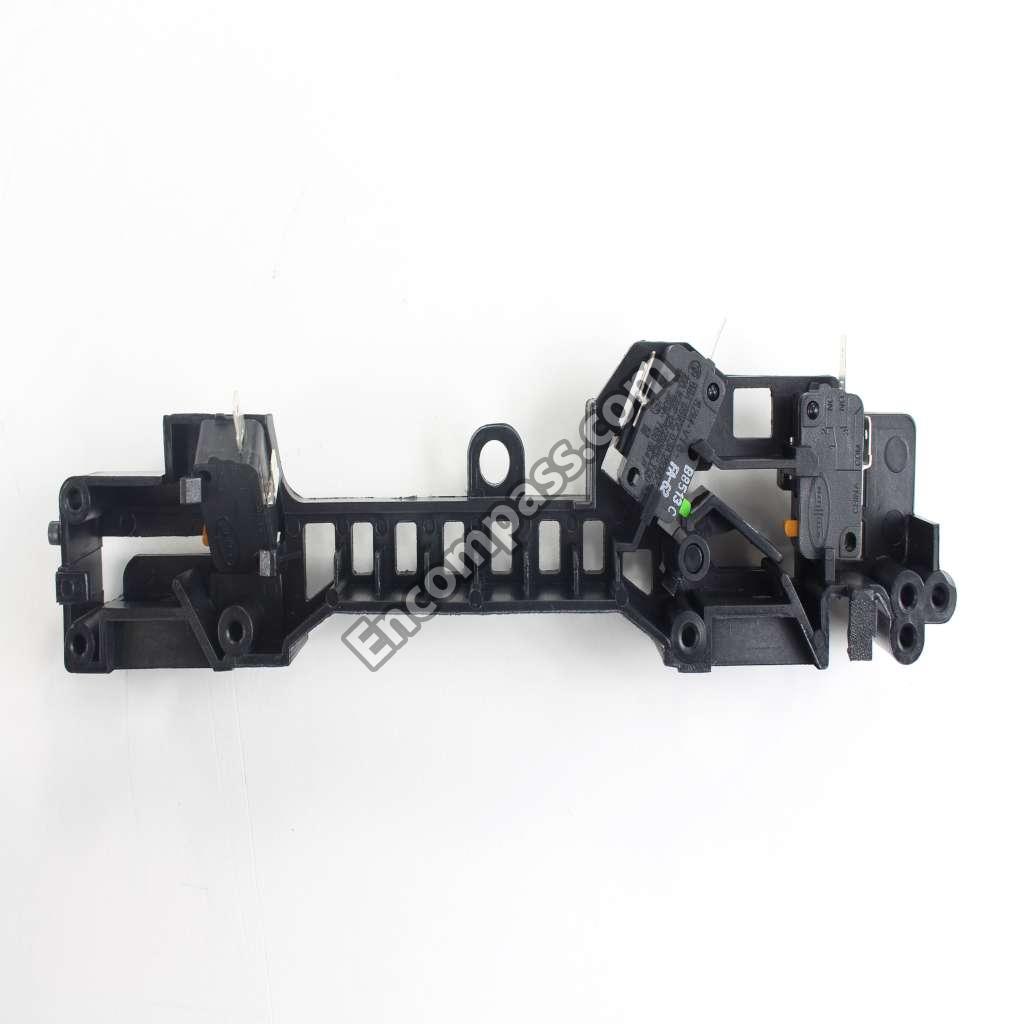

AEJ75540901 AEJ75540901 HOLDER ASSEMBLY,LOCKER
3500W1A013R 3500W1A013R HOLDER,LOCKER
4B72944B 4B72944B HOLDER,WIRE
5290W1A013A 5290W1A013A INSULATOR
5012W0A011E 5012W0A011E INSULATOR
5012W0A010E 5012W0A010E INSULATOR
5290W1A011A 5290W1A011A INSULATOR
5013W1A011A 5013W1A011A INSULATOR ASSEMBLY
3861W1A043H 3861W1A043H KIT ASSEMBLY
EAV62412904 EAV62412904 LED ASSEMBLY
AGM30050601 AGM30050601 LED,PARTS ASSEMBLY,SVC
4510W4A005E 4510W4A005E LEVER
MFG61841302 MFG61841302 LOCKER
EAS42812919 EAS42812919 MICROWAVE MAGNETRON
2B72066Q 2B72066Q MOTOR, AC CIRCULATION
EAU60783501 EAU60783501 MOTOR, AC SYNCHRONOUS
6549W1S013H 6549W1S013H MOTOR, AC SYNCHRONOUS
6549W1S002G 6549W1S002G MOTOR, AC SYNCHRONOUS
EAU56778704 EAU56778704 MOTOR, AC VENTILATION
4B71028B 4B71028B NUT,COMMON
1NHA0400032 1NHA0400032 NUT,COMMON
3911W1A012A 3911W1A012A PACKING ASSEMBLY,MICROWAVE OVEN
MGC66401301 MGC66401301 PANEL,CONTROL
4960W1A008H 4960W1A008H PLATE
AGU30055517 AGU30055517 PLATE ASSEMBLY,BASE
3302W0A028E 3302W0A028E PLATE,BASE
3300W1A055D 3300W1A055D PLATE,BOTTOM
3300W0A045A 3300W0A045A PLATE,MOUNT
3300W1A049C 3300W1A049C PLATE,SIDE HEATER
EAD65946103 EAD65946103 POWER CORD ASSEMBLY
6411W1A039L 6411W1A039L POWER CORD ASSEMBLY
EBR34020001 EBR34020001 POWER SUPPLY
MGZ65553101 MGZ65553101 RING
4000W4A003A 4000W4A003A SCREW,CUSTOMIZED
4B70188C 4B70188C SCREW,CUSTOMIZED
1SBF0402418 1SBF0402418 SCREW,TAPTITE
6501W1A013A 6501W1A013A SENSOR ASSEMBLY
MHJ65866101 MHJ65866101 SHAFT,TURNTABLE
3B72373F 3B72373F SHAFT,TURNTABLE
5026W1A082B 5026W1A082B SHELF
4970WRA001G 4970WRA001G SPRING
3740W2A003C 3740W2A003C SUPPORTER
MJH66298201 MJH66298201 SUPPORTER,COVER
MJH66298101 MJH66298101 SUPPORTER,HANDLE
6600W1K001C 6600W1K001C SWITCH,MICRO
6600W1K001D 6600W1K001D SWITCH,MICRO
6322W2A001A 6322W2A001A THERMISTOR,NTC
6322W2A001U 6322W2A001U THERMISTOR,NTC
6930W1A007R 6930W1A007R THERMOSTAT
6930W1A003Z 6930W1A003Z THERMOSTAT
6930W1A007U 6930W1A007U THERMOSTAT
EBJ60990805 EBJ60990805 TRANSFORMER,HIGH VOLTAGE
3390W1A019E 3390W1A019E TRAY,GLASS
3390W1A019A 3390W1A019A TRAY,GLASS
3390W2P002K 3390W2P002K TRAY,METAL
5889W2A012P 5889W2A012P TURNTABLE ASSEMBLY
1WPL0500032 1WPL0500032 WASHER,COMMON
1WSD0400032 1WSD0400032 WASHER,COMMON
MKC55508801 MKC55508801 WINDOW,GLASS
