Model Image
Manufacturer

LG

Model Number

MS133SE

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3302W1A034D 3302W1A034D BASE PLATE
3303W2A003K 3303W2A003K BASE PLATE ASSY
3303W1A026F 3303W1A026F BASE PLATE ASSY
4811W3A015B 4811W3A015B BRACKET ASSEMBLY
4810W4C003A 4810W4C003A BRACKET,CAPACITOR
5020W2A090B 5020W2A090B BUTTON
6908W3YA01A 6908W3YA01A BUZZER,PIEZO
6021W3B001U 6021W3B001U CABLE,ASSEMBLY
5006W3A010A 5006W3A010A CAP,CHOKE COVER
0CE4761K638 0CE4761K638 CAPACITOR,AL,RADIAL
0CE4751K638 0CE4751K638 CAPACITOR,AL,RADIAL
0CE6871H610 0CE6871H610 CAPACITOR,AL,RADIAL
0CK1040K518 0CK1040K518 CAPACITOR,CERAMIC(HIGH DIELEC)
0CK2210K518 0CK2210K518 CAPACITOR,CERAMIC,AXIAL
0CK2230H518 0CK2230H518 CAPACITOR,CERAMIC,AXIAL
0CE4771H610 0CE4771H610 CAPACITOR,FIXED ELECTROLYTIC
6120WRH001G 6120WRH001G CAPACITOR,HIGH VOLTAGE
0CZZW1H003H 0CZZW1H003H CAPACITOR,HIGH VOLTAGE
6877W1A126A 6877W1A126A CONNECTOR ASSEMBLY
4051W3A001A 4051W3A001A CONNECTOR ASSEMBLY
6630W5YA19D 6630W5YA19D CONNECTOR,FFC/FPC/PIC
3Q50034A 3Q50034A CONNECTOR,WAFER
6630W5V016A 6630W5V016A CONNECTOR,WAFER
CQ52212A CQ52212A CONNECTOR,WAFER
6630W5V004A 6630W5V004A CONNECTOR,WAFER
CQ52212C CQ52212C CONNECTOR,WAFER
6630W5V004B 6630W5V004B CONNECTOR,WAFER
3551W3A013G 3551W3A013G COVER ASSEMBLY,HEATER
3552W1A028A 3552W1A028A COVER,CHOKE
3052W3M008B 3052W3M008B COVER,INSULATOR
4850W4C001C 4850W4C001C DAMPER
3B72244C 3B72244C DAMPER
3B72244T 3B72244T DAMPER
3B72244G 3B72244G DAMPER
3806W1G010A 3806W1G010A DECOR,FRONT
6302W5A012A 6302W5A012A DIGITRON
0DD400209AA 0DD400209AA DIODE,RECTIFIER
0DD414809AA 0DD414809AA DIODE,SWITCHING
0DZ510009AA 0DZ510009AA DIODE,ZENER
5262W2A020A 5262W2A020A DUCT
5900W1A004A 5900W1A004A FAN,PROPELLER
6201W2A019J 6201W2A019J FILTER ASSEMBLY
EAM35001801 EAM35001801 FILTER,AC LINE
4B75290B 4B75290B FOOT
3213W1A031J 3213W1A031J FRAME ASSEMBLY,DOOR
3B74133J 3B74133J FUSE,TIME DELAY
4036W3W001A 4036W3W001A GASKET
4974W3T002A 4974W3T002A GUIDE,SENSOR
4974W1S049A 4974W1S049A GUIDE,SUCTION
3501W1A003H 3501W1A003H HOLDER ASSEMBLY,LOCKER
3500W1A004A 3500W1A004A HOLDER,LOCKER
4930W3B032A 4930W3B032A HOLDER,SENSOR
0IKE655060A 0IKE655060A IC,LED DRIVER
0ITO200400A 0ITO200400A IC,LED DRIVER
0IKE650040A 0IKE650040A IC,LED DRIVER
5012W3A012A 5012W3A012A INSULATOR
6912W3B002L 6912W3B002L LAMP,INCANDESCENT
0DLZW5A005A 0DLZW5A005A LED DISPLAY MODULE
4510W3L003A 4510W3L003A LEVER
4026W2A012A 4026W2A012A LOCKER
2B73104A 2B73104A MAGNETRON
6549W1S003C 6549W1S003C MOTOR, AC SYNCHRONOUS
6549W1S002C 6549W1S002C MOTOR, AC SYNCHRONOUS
6549W1F001E 6549W1F001E MOTOR,AC FAN
3112W0U006J 3112W0U006J OUT CASE,[U-BENDING]
3572W1A145A 3572W1A145A PANEL,CONTROL
3720W0D110A 3720W0D110A PANEL,DOOR
3302W1A033E 3302W1A033E PLATE,BASE
6920W2D014A 6920W2D014A RELAY,CONTACT
6920W2D010B 6920W2D010B RELAY,CONTACT
6920W2D010A 6920W2D010A RELAY,CONTACT
0RD1503F608 0RD1503F608 RESISTOR,CARBON FILM
0RD1004F608 0RD1004F608 RESISTOR,CARBON FILM
0RD0472F608 0RD0472F608 RESISTOR,CARBON FILM
0RD4701F608 0RD4701F608 RESISTOR,CARBON FILM
0RD2202F608 0RD2202F608 RESISTOR,CARBON FILM
0RD1001G608 0RD1001G608 RESISTOR,CARBON FILM
0RD5601F608 0RD5601F608 RESISTOR,CARBON FILM
0RD4702F608 0RD4702F608 RESISTOR,CARBON FILM
0RD1003F608 0RD1003F608 RESISTOR,CARBON FILM
0RD0102F608 0RD0102F608 RESISTOR,CARBON FILM
0RD3900F608 0RD3900F608 RESISTOR,CARBON FILM
0RD1002F608 0RD1002F608 RESISTOR,CARBON FILM
0RD1001F608 0RD1001F608 RESISTOR,CARBON FILM
0RD2701F608 0RD2701F608 RESISTOR,CARBON FILM
CQ39048A CQ39048A RESONATOR,CERAMIC
4B70188C 4B70188C SCREW,CUSTOMIZED
1TTL0403818 1TTL0403818 SCREW,TAPPING
1TTL0403118 1TTL0403118 SCREW,TAPPING
1TTL0402818 1TTL0402818 SCREW,TAPPING
1TPL0402618 1TPL0402618 SCREW,TAPPING
1TTL0402418 1TTL0402418 SCREW,TAPPING
1TTG0402422 1TTG0402422 SCREW,TAPTITE
6501W1A002G 6501W1A002G SENSOR ASSEMBLY
1B71435C 1B71435C SHELF
4B72023A 4B72023A SPRING
4970WRA001C 4970WRA001C SPRING
6600W1K001C 6600W1K001C SWITCH,MICRO
3B73362F 3B73362F SWITCH,MICRO
3536WRA001M 3536WRA001M TAPE,SEALING
6930W1A004A 6930W1A004A THERMOSTAT
6930WRT001C 6930WRT001C THERMOSTAT
0TR107009AE 0TR107009AE TR,BIPOLAR
0TR181509AB 0TR181509AB TR,BIPOLAR
0TR107009AD 0TR107009AD TR,BIPOLAR
0TR101509AB 0TR101509AB TR,BIPOLAR
6170W1D012C 6170W1D012C TRANSFORMER,HIGH VOLTAGE
6010W2P008A 6010W2P008A TRANSFORMER,POWER

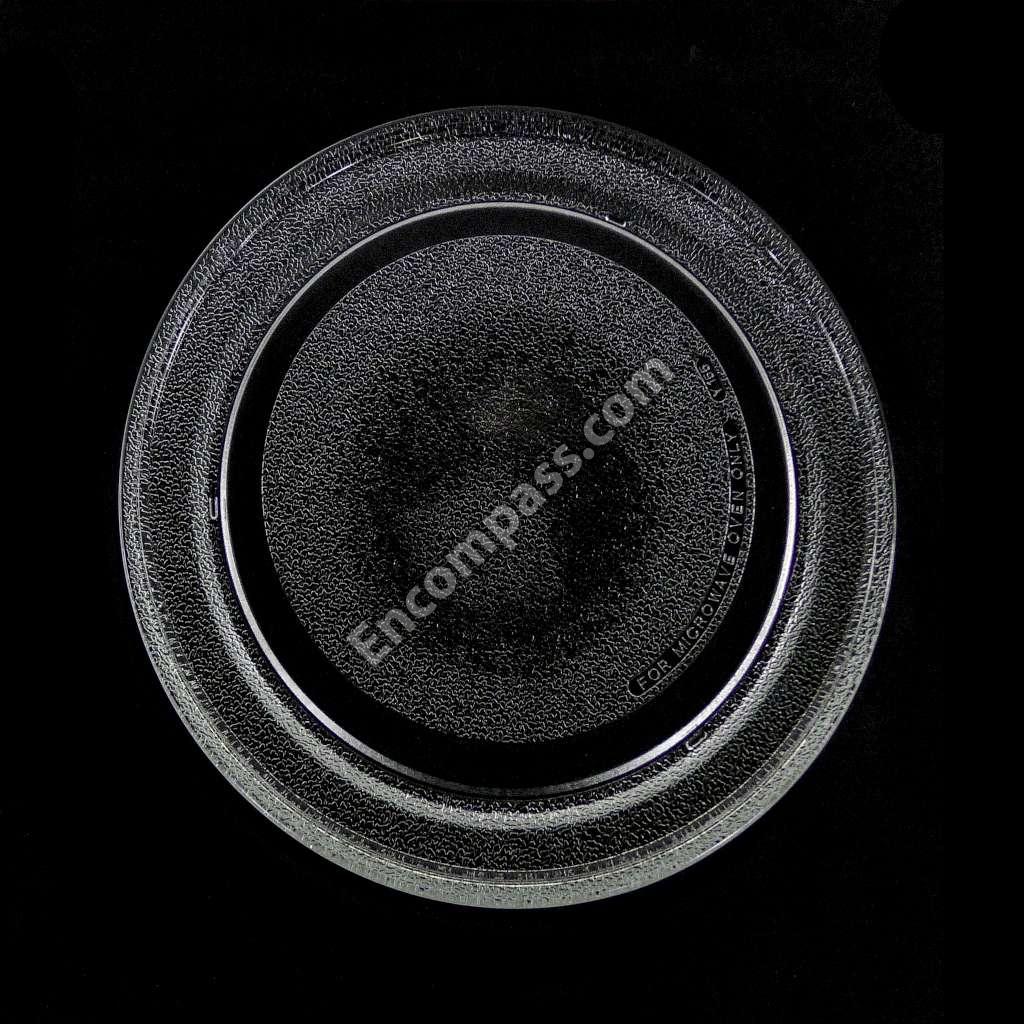

3390W1G004C 3390W1G004C TRAY,GLASS
3390W1G004E 3390W1G004E TRAY,GLASS
5889W2A014C 5889W2A014C TURNTABLE ASSEMBLY
3352W1A097A 3352W1A097A WINDOW,SCREEN
