Model Image
Manufacturer

LG

Model Number

MV1648EGL

Description

Mv1648egl

Interactive Exploded View

Parts List

Part Number Description
4810W1A313A 4810W1A313A BRACKET,CAPACITOR [5002]
4810W1A148C 4810W1A148C BRACKET,CONTROL PANEL [2008]
4810W1A151A 4810W1A151A BRACKET,IDLE [6010]
4810W1A150C 4810W1A150C BRACKET,LAMP [3025]
4811W1A008B 4811W1A008B BRACKET,MOUNT [3029]
4810W1A305B 4810W1A305B BRACKET,THERMOSTAT [5067]
6021W3B001V 6021W3B001V CABLE,ASSEMBLY [5018]
0CZZW1H004B 0CZZW1H004B CAPACITOR,HIGH VOLTAGE [5000]
MBM00607005 MBM00607005 CARD,TECHNICAL [MBM2]
4922W5A057B 4922W5A057B CARD,TEMPLATE [MBM4]
4922W5A060B 4922W5A060B CARD,TEMPLATE [MBM5]
3112W1F056S 3112W1F056S CASE,U BENDING [3001]
4781W1M405R 4781W1M405R CONTROLLER ASSEMBLY,KEYPAD [2004]
4781W1A296J 4781W1A296J CONTROLLER ASSEMBLY,SUB [2381]
3552W1A032J 3552W1A032J COVER,CHOKE [1004]
3550W1A189A 3550W1A189A COVER,LAMP [5036]
3052W1A002A 3052W1A002A COVER,RESIN [3034]
3550W1A126D 3550W1A126D COVER,STIRRER FAN [5044]
4900W1A001B 4900W1A001B DAMPER [6011]
ADC67059701 ADC67059701 DOOR ASSEMBLY [1005]
5208W0A006C 5208W0A006C DUCT [5006]
5893W3A002D 5893W3A002D FAN ASSEMBLY [5042]
EAM35001801 EAM35001801 FILTER,AC LINE [5041]
5230W1A011B 5230W1A011B FILTER,CHARCOAL [5037]
5230W1A012B 5230W1A012B FILTER,GREASE [3026]
3213W1A049F 3213W1A049F FRAME ASSEMBLY,DOOR [1000]
3B74133Q 3B74133Q FUSE,TIME DELAY [5001]

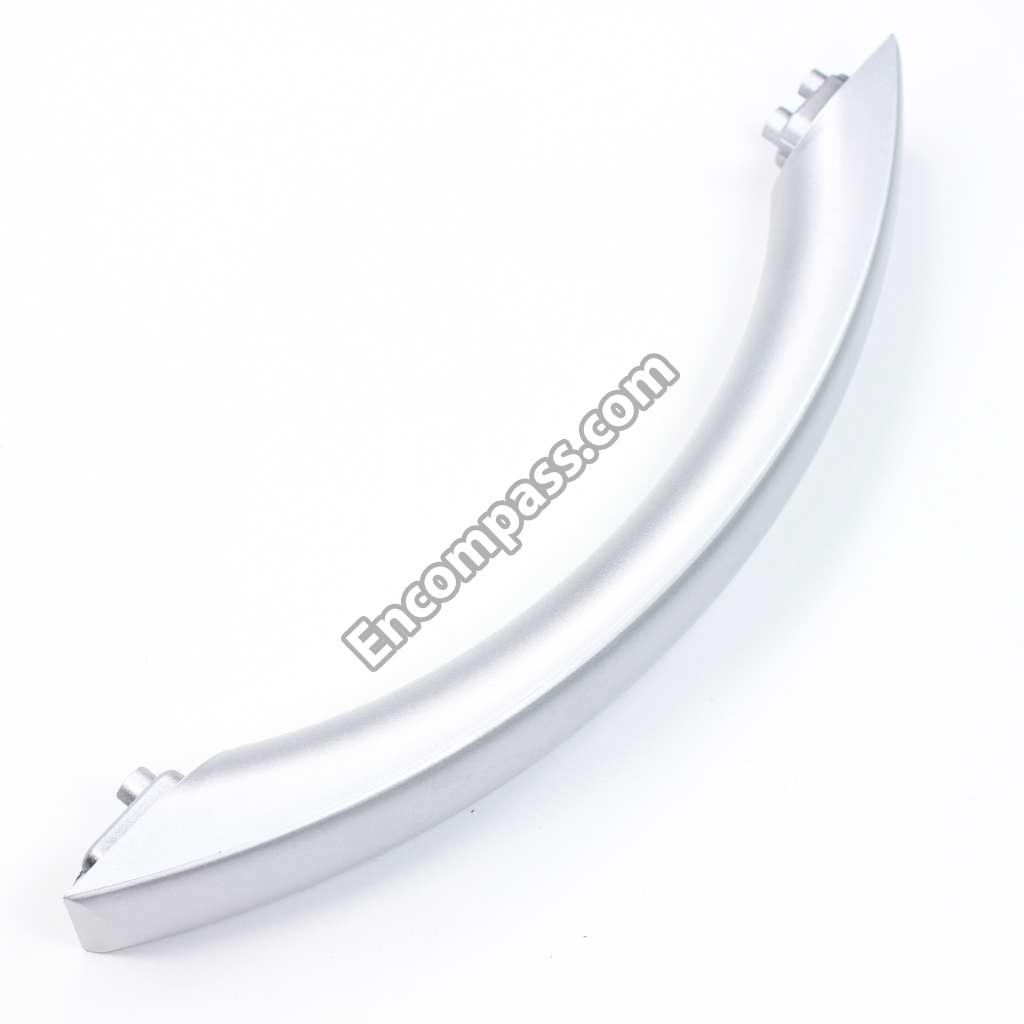

MEB47173603 MEB47173603 HANDLE,DOOR [1009]
6877W1A597X 6877W1A597X HARNESS,SINGLE [5014]
3501W1A019D 3501W1A019D HOLDER ASSEMBLY,LOCKER [4001]
3500W1A028B 3500W1A028B HOLDER,LOCKER [4000]
3861W1A043A 3861W1A043A KIT ASSEMBLY [6009]
3850W1D141A 3850W1D141A LABEL,COOKING GUIDE [MEZ1]
6620G00007B 6620G00007B LAMP HOLDER [5038]
6912W1Z004C 6912W1Z004C LAMP,INCANDESCENT [3028]
4510W3A012C 4510W3A012C LEVER [4004]
4026W2A015A 4026W2A015A LOCKER [1006]
2B71165R 2B71165R MAGNETRON [5009]
6549W1S013K 6549W1S013K MOTOR, AC SYNCHRONOUS [3009]
EAU51230501 EAU51230501 MOTOR, AC VENTILATION [3027]
AGM67064701 AGM67064701 PARTS ASSEMBLY [1381]
ACM33398002 ACM33398002 PCB ASSEMBLY,SUB [2006]
3303W1A072N 3303W1A072N PLATE ASSEMBLY,BASE [6001]
4960W1A022B 4960W1A022B PLATE [3010]
3300W1A046C 3300W1A046C PLATE,BOTTOM [5034]
3300W1A045C 3300W1A045C PLATE,BOTTOM [5035]
3300W0A030A 3300W0A030A PLATE,MOUNT [6008]
6411W1A019M 6411W1A019M POWER CORD ASSEMBLY [5010]
4B70188C 4B70188C SCREW,CUSTOMIZED [W102]
1TTL0402418 1TTL0402418 SCREW,TAPPING [W105]
1TTL0402818 1TTL0402818 SCREW,TAPPING [W106]
1TPL0402618 1TPL0402618 SCREW,TAPPING [W130]
1SBF0402418 1SBF0402418 SCREW,TAPPING[TRUSS HEAD] [W118]
1TTL0402816 1TTL0402816 SCREW,TAPPING[TRUSS HEAD] [W142]
4370W1A006B 4370W1A006B SHAFT,TURNTABLE [3012]
4970WRA001B 4970WRA001B SPRING [1007]
AJJ33709701 AJJ33709701 SUPPORTER ASSEMBLY [3037]
3740W1A005E 3740W1A005E SUPPORTER [3037]
3740W1A011B 3740W1A011B SUPPORTER [5337]
3B73362F 3B73362F SWITCH,MICRO [4002]
3B73361E 3B73361E SWITCH,MICRO [4003]
3536W1A012B 3536W1A012B TAPE,SEALING [1002]
6930W1A003E 6930W1A003E THERMOSTAT [5016]
6170W1D052U 6170W1D052U TRANSFORMER,HIGH VOLTAGE [5008]
1B71961E 1B71961E TRAY,GLASS [3002]
5889W2A012F 5889W2A012F TURNTABLE ASSEMBLY [3008]
4890W1A066B 4890W1A066B WINDOW,GLASS [1008]
4890W1A045A 4890W1A045A WINDOW,GLASS [3011]
