Model Image
Manufacturer

LG

Model Number

MZXZ1727F

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4790W1A013D 4790W1A013D BARRIER
EBZ63660849 EBZ63660849 BARRIER,PART
ABA75148403 ABA75148403 BRACKET ASSEMBLY
4810W1A347B 4810W1A347B BRACKET,HEATER
4810W1A346B 4810W1A346B BRACKET,HEATER
4810W1A345B 4810W1A345B BRACKET,HEATER
4810W1A369B 4810W1A369B BRACKET,HEATER
4810W1A379B 4810W1A379B BRACKET,IDLE
4810W1A378B 4810W1A378B BRACKET,IDLE
4810W1A361B 4810W1A361B BRACKET,IDLE
4810W1A180A 4810W1A180A BRACKET,IDLE
MAZ66388901 MAZ66388901 BRACKET,MOTOR
EBZ63660855 EBZ63660855 BRACKET,PART
EBZ63660854 EBZ63660854 BRACKET,PART
3112W0F050G 3112W0F050G CASE,FLAT
3504W1A007B 3504W1A007B CHAMBER
3504W1A006B 3504W1A006B CHAMBER
3505W1A007J 3505W1A007J CHAMBER ASSEMBLY
3505W1A007F 3505W1A007F CHAMBER ASSEMBLY
3505W1A007H 3505W1A007H CHAMBER ASSEMBLY
3052W1M020A 3052W1M020A COVER,INSULATOR
3550W1A348A 3550W1A348A COVER,LAMP
3550W0A120C 3550W0A120C COVER,REAR
5208W1A047B 5208W1A047B DUCT
5209W1A024C 5209W1A024C DUCT ASSEMBLY
3B72559A 3B72559A FAN,CONVECTION
5900W3A004E 5900W3A004E FAN,CONVECTION
590081A002A 590081A002A FAN,CONVECTION
EBZ63660865 EBZ63660865 FAN,PART
EAM62952105 EAM62952105 FILTER ASSEMBLY
3B74133Q 3B74133Q FUSE,TIME DELAY
5264W1A032B 5264W1A032B GUIDE,AIR
6877W2A002U 6877W2A002U HARNESS,SINGLE
6877W1A605G 6877W1A605G HARNESS,SINGLE
5300W2A006Q 5300W2A006Q HEATER,MIRACLON
5300W1A005J 5300W1A005J HEATER,MIRACLON
5300W1S006V 5300W1S006V HEATER,SHEATH
5300W1S006M 5300W1S006M HEATER,SHEATH
EBZ63660845 EBZ63660845 HEATER,SHEATH,PART
4931W1A009N 4931W1A009N HOLDER ASSEMBLY
4931W1A009C 4931W1A009C HOLDER ASSEMBLY
3501W1A028H 3501W1A028H HOLDER ASSEMBLY,LOCKER
3501W1A029H 3501W1A029H HOLDER ASSEMBLY,LOCKER
3500W1A023B 3500W1A023B HOLDER,LOCKER
3500W1A022B 3500W1A022B HOLDER,LOCKER
4B72510F 4B72510F HOLDER,WIRE
5290W1A017A 5290W1A017A INSULATOR
6912A40002K 6912A40002K LAMP,HALOGEN
6912A40002J 6912A40002J LAMP,HALOGEN
4510W1A006C 4510W1A006C LEVER
6324W1A001L 6324W1A001L MICROWAVE MAGNETRON
2B72066Y 2B72066Y MOTOR, AC CIRCULATION
6549W1S018C 6549W1S018C MOTOR, AC SYNCHRONOUS
4B71028B 4B71028B NUT,COMMON
1NHA0400032 1NHA0400032 NUT,COMMON
4960W3A003D 4960W3A003D PLATE
3303W0A030G 3303W0A030G PLATE ASSEMBLY,BASE
4960W0A002C 4960W0A002C PLATE,GUIDE
3034W2A007H 3034W2A007H REFLECTOR
AHE73469102 AHE73469102 REFLECTOR ASSEMBLY
4B73725A 4B73725A RING
4000W4A001B 4000W4A001B SCREW,CUSTOMIZED
4000W4A003A 4000W4A003A SCREW,CUSTOMIZED
1MTC0403132 1MTC0403132 SCREW,MACHINE
1TTL0402418 1TTL0402418 SCREW,TAPPING
1SBF0402418 1SBF0402418 SCREW,TAPTITE
6501W1A013A 6501W1A013A SENSOR ASSEMBLY
5026W1A078B 5026W1A078B SHELF
4778W4A011E 4778W4A011E SHELF
4980W1A111E 4980W1A111E SUPPORTER
4930W3A014C 4930W3A014C SUPPORTER
EBZ63898531 EBZ63898531 SUPPORTER,PART
6600W1K001C 6600W1K001C SWITCH,MICRO
6600W1K001D 6600W1K001D SWITCH,MICRO
3536W1A001Q 3536W1A001Q TAPE,SEALING
6322W1A001B 6322W1A001B THERMISTOR,NTC

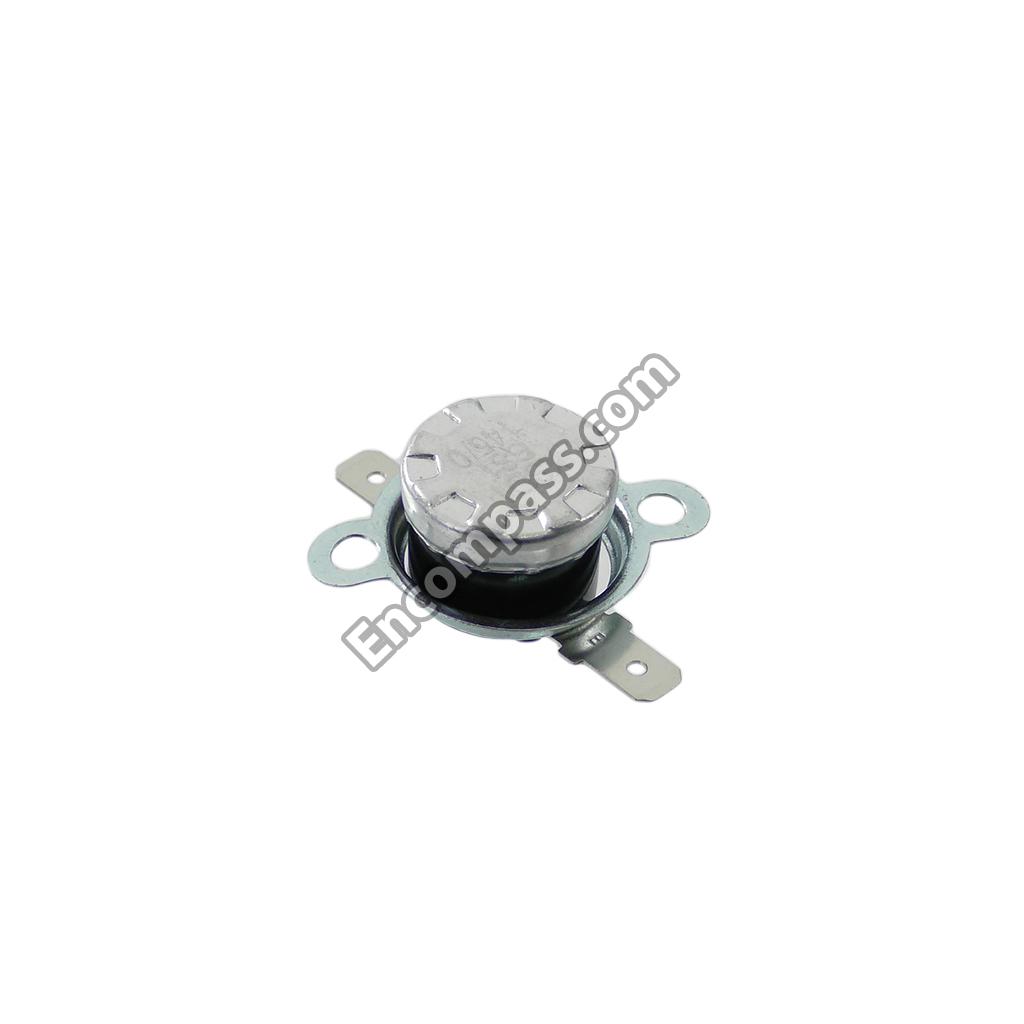

6930W1A003Z 6930W1A003Z THERMOSTAT
6930W1A003Q 6930W1A003Q THERMOSTAT

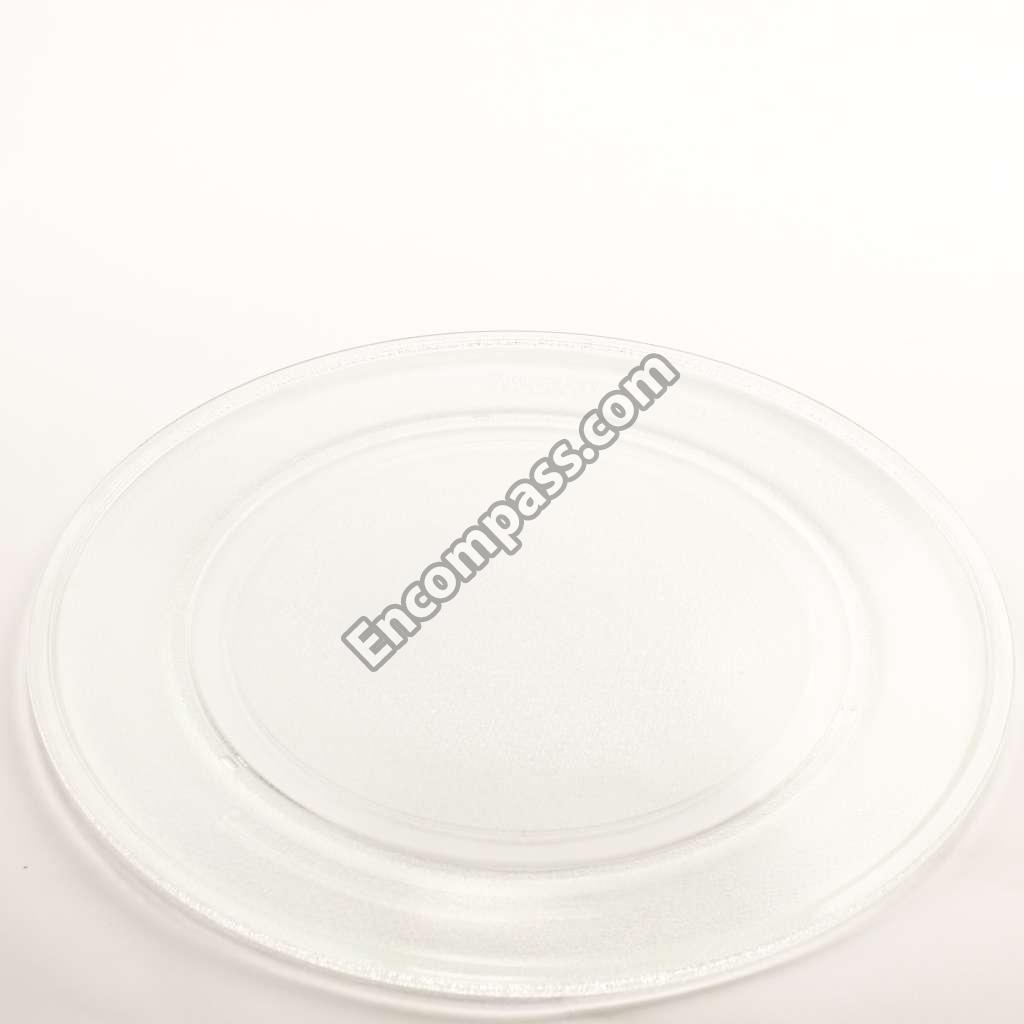

3390W1A017C 3390W1A017C TRAY,GLASS
3390W1A017A 3390W1A017A TRAY,GLASS

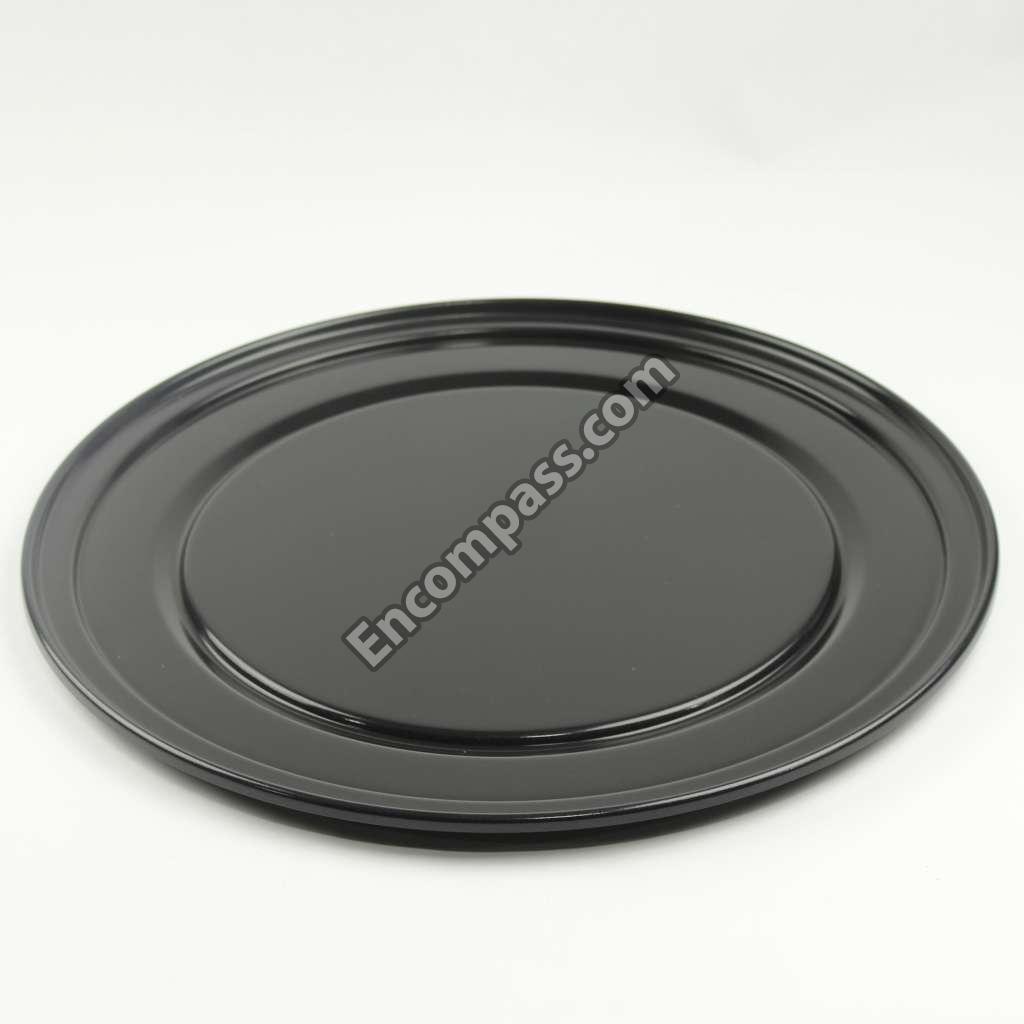

3390W2P002K 3390W2P002K TRAY,METAL
3390W1A043D 3390W1A043D TRAY,METAL
3390W1A043C 3390W1A043C TRAY,METAL
5889W1A017B 5889W1A017B TURNTABLE ASSEMBLY
5889W1A017A 5889W1A017A TURNTABLE ASSEMBLY
1WPL0500032 1WPL0500032 WASHER,COMMON
1WSD0400032 1WSD0400032 WASHER,COMMON
